Motherboard Information

Manufacturer: MSI

Motherboard Name: MSI MPG B760I Edge WiFi

Current Price Amazon: $199

  • Amazon Price Updated: 53 minutes ago.

    • Motherboard Available: True

    Chipset / Socket: B760 / LGA 1700

    Form Factor / Memory Slots: Mini-ITX / 2 slots.

    Memory Type / Max Cap / Max OC: DDR5 / 128 GB / 7200 MHz

    PCIe Suport: PCIe 5.0 x16

    Audio Chipset: Realtek® ALC897

    Network: Realtek® RTL8125BG 2.5Gbps LAN

    Motherboard Dimensions: 17 cm x 17 cm

    Quality & Features (max 100pts)

    VRM Quality: 8 pts.

    Chipset Q & F: 14 pts.

    Build Quality: 13 pts.

    Connectivity Q & F: 13 pts.

    Audio Quality: 6 pts.

    Total Points: 54 pts.

    VRM Configuration

    CPU Power Phases (Amps): 8 (90 A)

    Power Design: 8+1+1

    Calculated Performance

    Quality and Features per Price: 53.7%

    Additional Motherboard Information

    Memory:

    2x DDR5, Maximum Memory Capacity 128GB
    Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)

    Graphics:

    1x HDMI™
    Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

    Storage:

    2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
    4x SATA 6G

    USB:

    2x USB 2.0 (Rear)
    2x USB 2.0 (Front)
    4x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    1x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Rear)
    1x USB 10Gbps Type C (Front)

    Internal I/O:

    1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    1x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    2x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports

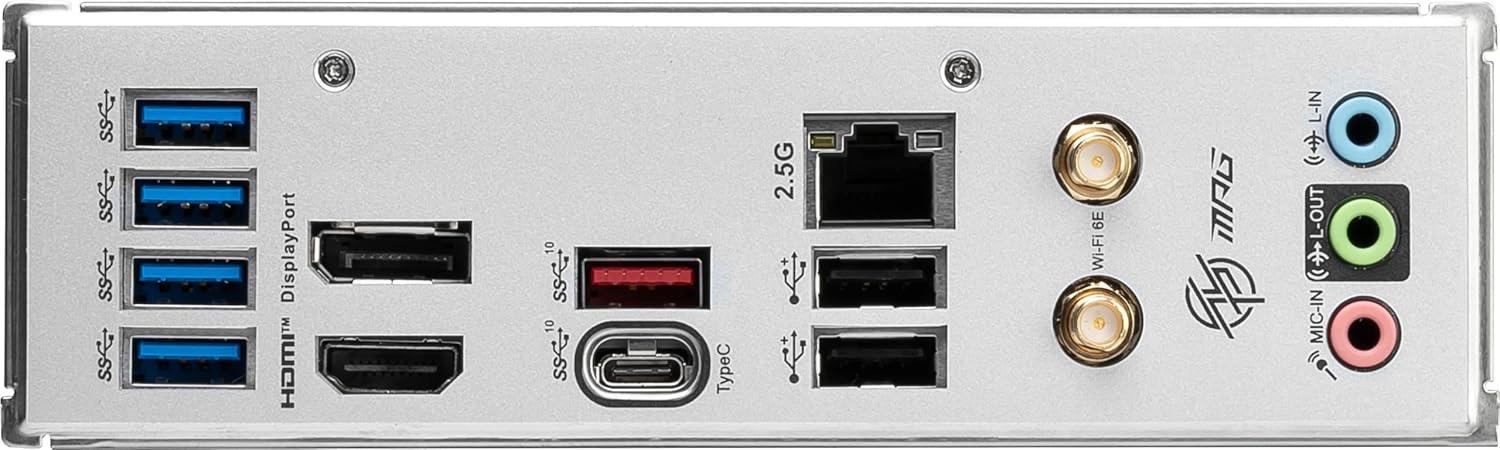

    Back Panel I/O:

    USB 5Gbps
    Display Port
    USB 10Gbps
    2.5G LAN
    Audio Connectors
    HDMI™
    USB 10Gbps (Type-C)
    USB 2.0
    Wi-Fi / Bluetooth

    WiFi:

    Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

    Audio:

    Realtek® ALC897 Codec
    7.1-Channel High Definition Audio Supports S/PDIF output

    Special Features:

    None
