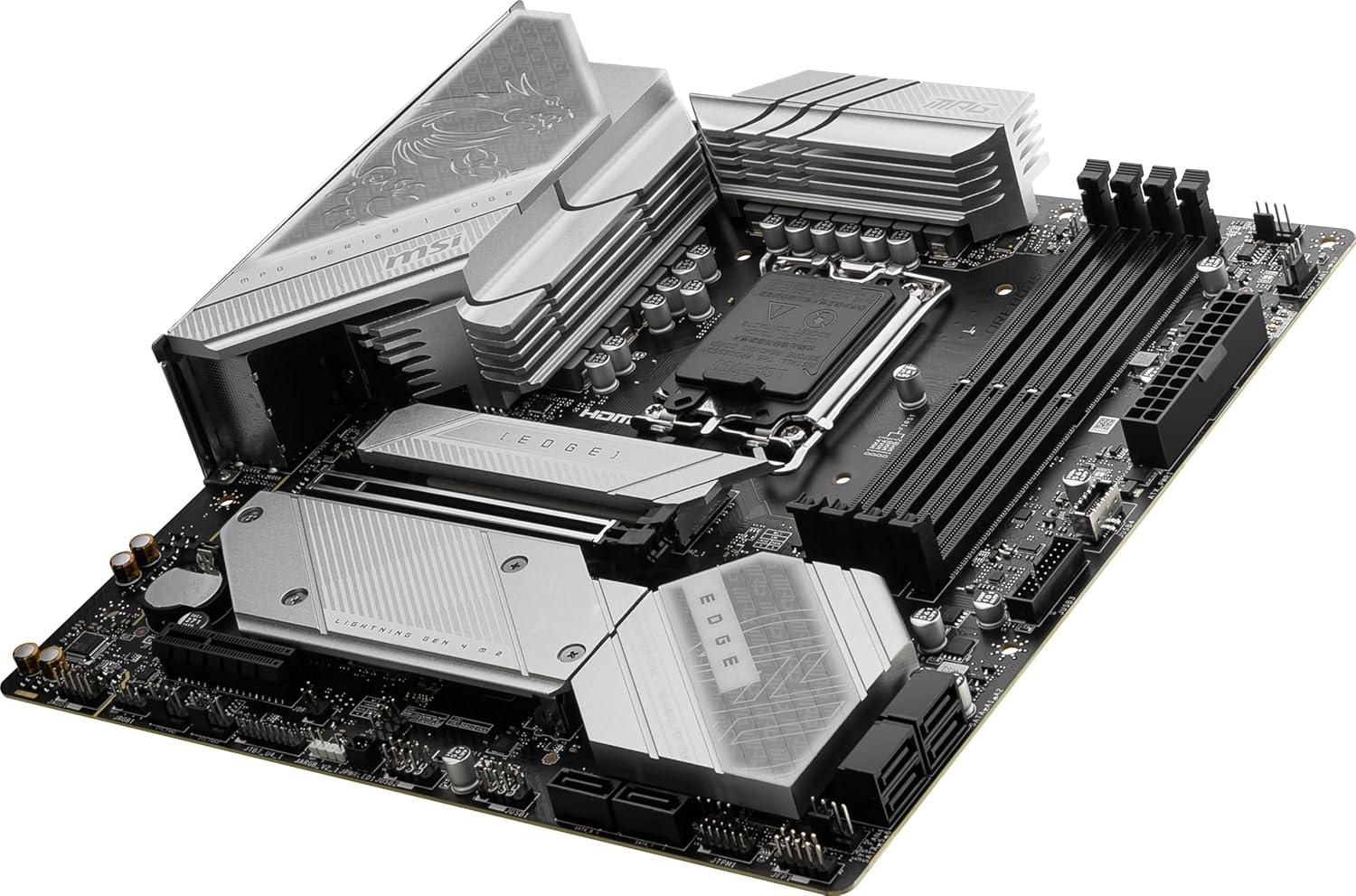

Main Product Image

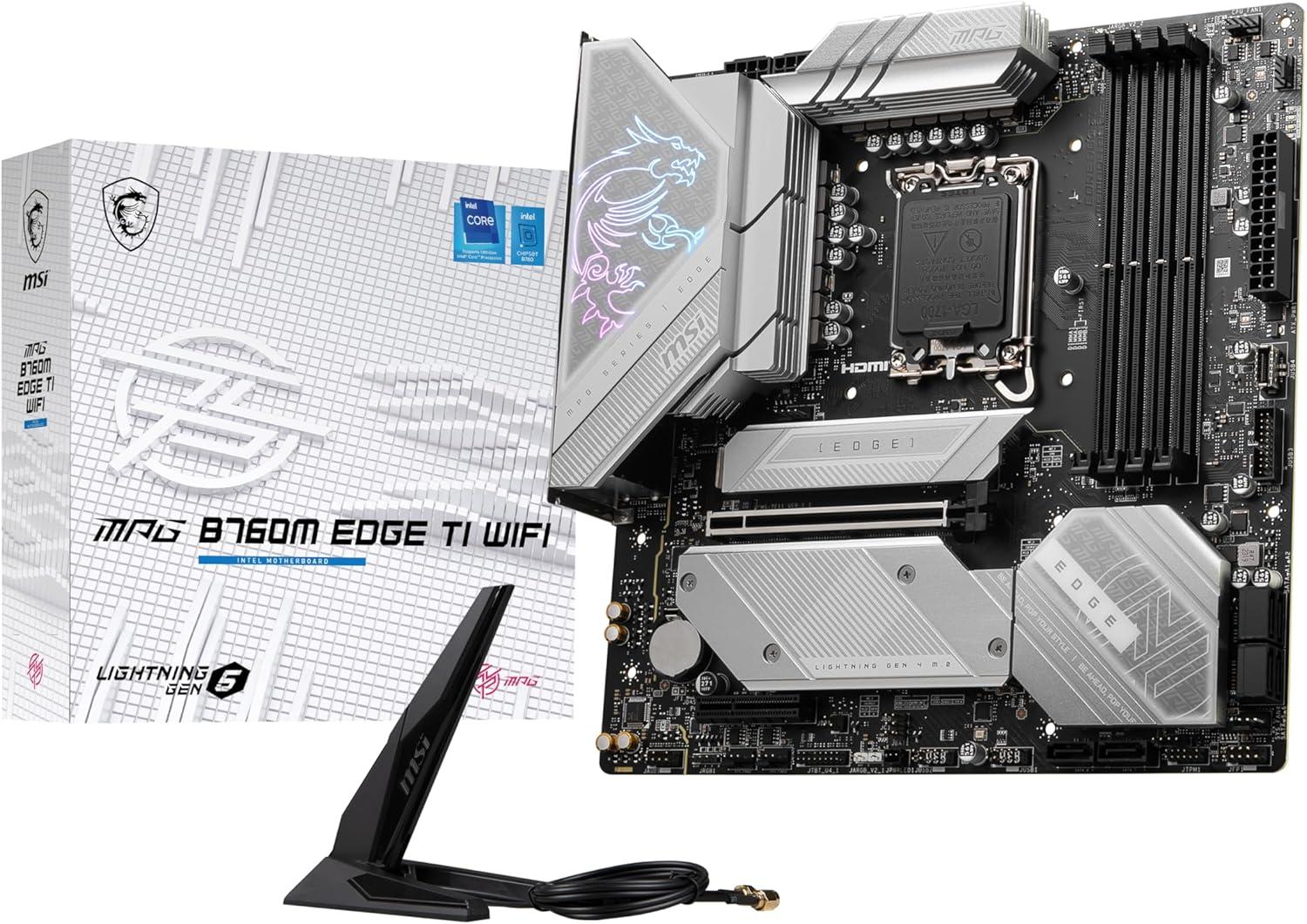

Gallery Image 1

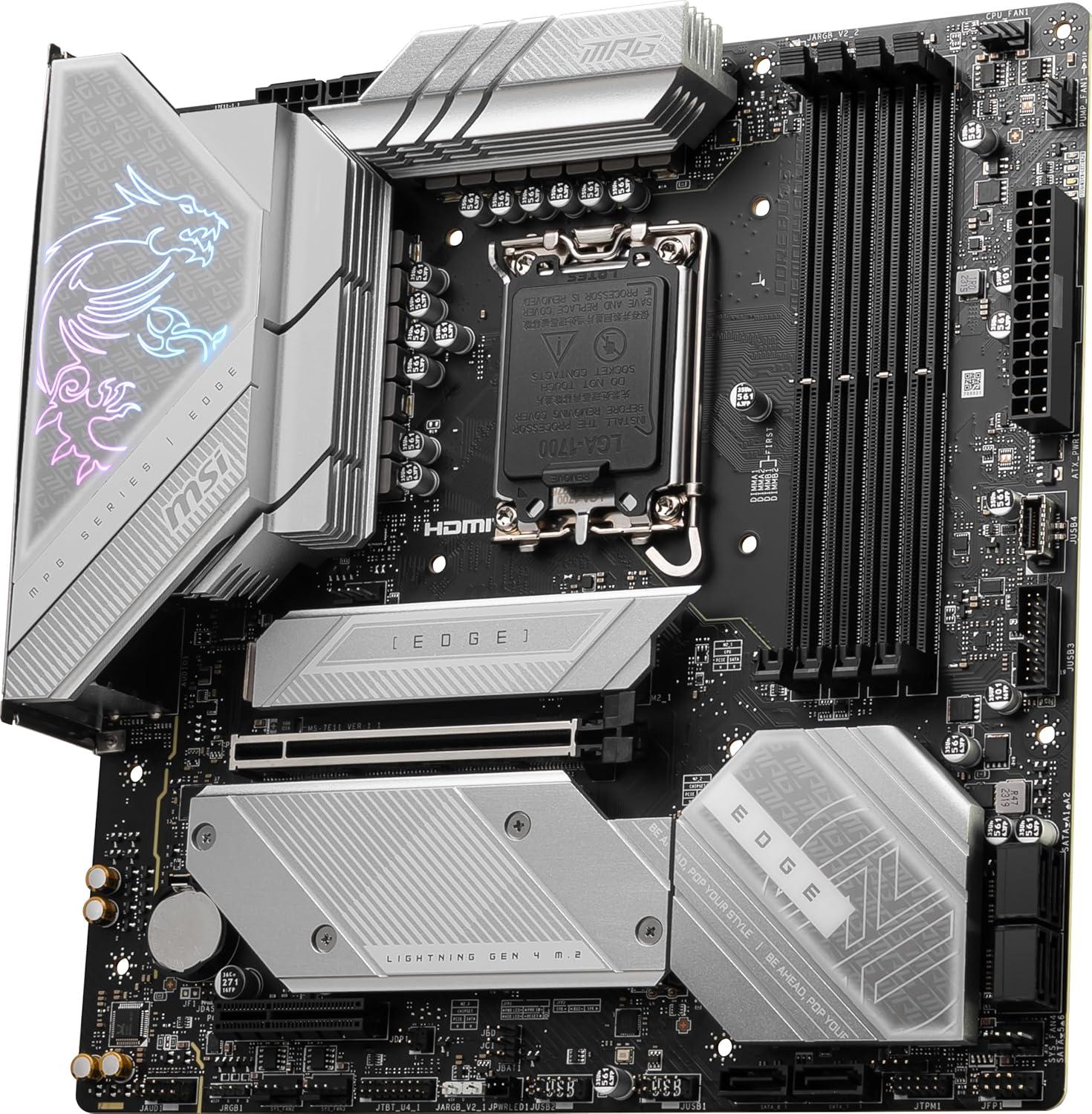

Gallery Image 2

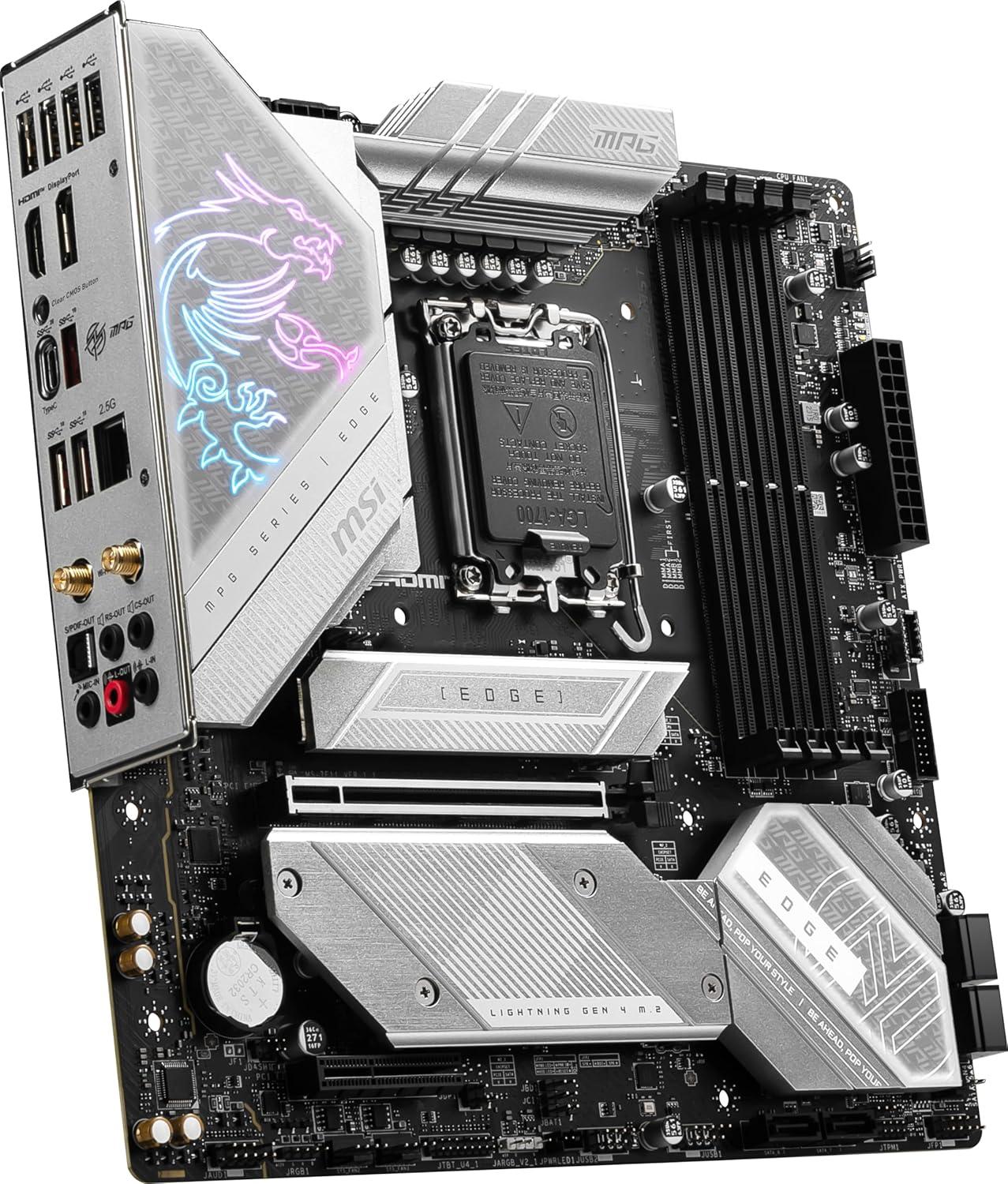

Gallery Image 3
Gallery Image 4

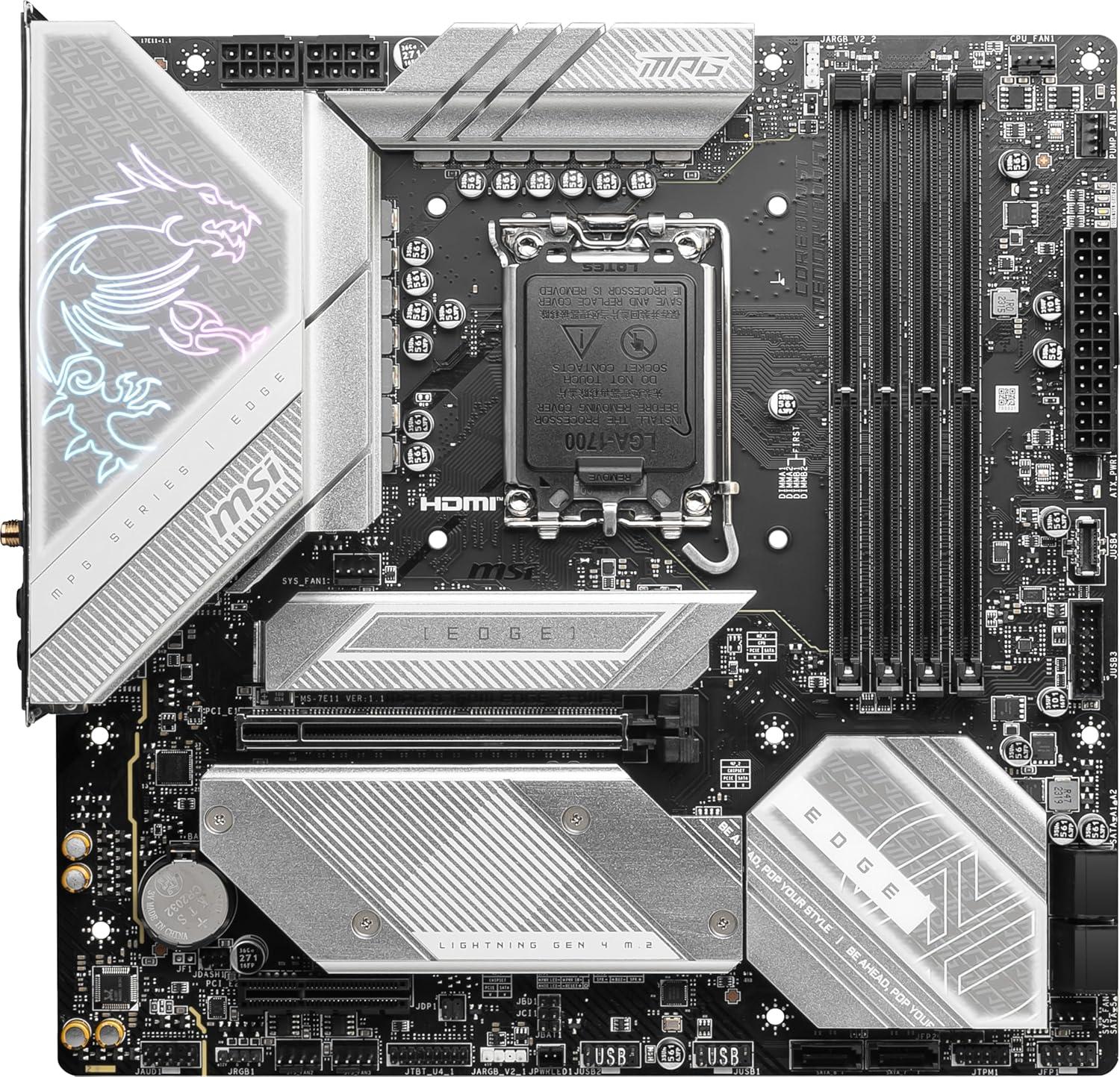

Gallery Image 5
Gallery Image 6

Galleries

MSI MPG B760M Edge TI WiFi Specifications

MSI MPG B760M Edge TI WiFi by MSI is a Micro-ATX form factor motherboard based on the mid-range B760M chipset and LGA 1700 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory up to 256 GB and memory overclocking up to 7800 MHz. The motherboard features 4 memory slots and offers support for PCIe 5.0 x16, ensuring compatibility with modern GPUs and high-bandwidth expansion cards.

MSI MPG B760M Edge TI WiFi Performance Review

The MSI MPG B760M Edge TI WiFi includes a mid-range VRM setup, delivering 75 A through 12 phases. It supports most compatible CPUs on its socket but is not ideal for sustained overclocking or powering very high-wattage CPUs due to potential thermal limitations. Best suited for casual users and mainstream gamers seeking stable performance for everyday use.

This motherboard includes an entry-level audio chipset — Realtek® ALC897 — which provides basic sound quality suitable for casual use. While it’s acceptable for everyday tasks such as web browsing, video playback, and light gaming, it may not meet the expectations of users with mid to high-end audio setups. Audiophiles and those seeking high-fidelity sound should consider using a dedicated sound card or external DAC.

This board delivers balanced value with a performance-per-price ratio of 52.7%, offering a solid blend of features, quality, and affordability.

Motherboard Information

Manufacturer: MSI

Motherboard Name: MSI MPG B760M Edge TI WiFi

Current Price Amazon: $218❗N/A

  • Amazon Price Updated: 1 week, 6 days ago.

    • Motherboard Available: False

    Chipset / Socket: B760M / LGA 1700

    Form Factor / Memory Slots: Micro-ATX / 4 slots.

    Memory Type / Max Cap / Max OC: DDR5 / 256 GB / 7800 MHz

    PCIe Suport: PCIe 5.0 x16

    Audio Chipset: Realtek® ALC897

    Network: Realtek® 2.5Gbps LAN

    Motherboard Dimensions: 24.4 cm x 24.4 cm

    Quality & Features (max 110pts)

    VRM Quality: 9 pts.

    Chipset Q & F: 14 pts.

    Build Quality: 16 pts.

    Connectivity Q & F: 13 pts.

    Audio Quality: 6 pts.

    Total Points: 58 pts.

    VRM Configuration

    CPU Power Phases (Amps): 12 (75 A)

    Power Design: 12+1+1

    Calculated Performance

    Quality and Features per Price: 52.7%

    Additional Motherboard Information

    Memory:

    4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7800+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile

    Graphics:

    1x HDMI™
    Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 8K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

    Storage:

    3x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
    6x SATA 6G

    USB:

    4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Front)
    3x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)

    Internal I/O:

    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    4x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    1x USB4 card connector (JTBT_U4_1, supports RTD3)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports

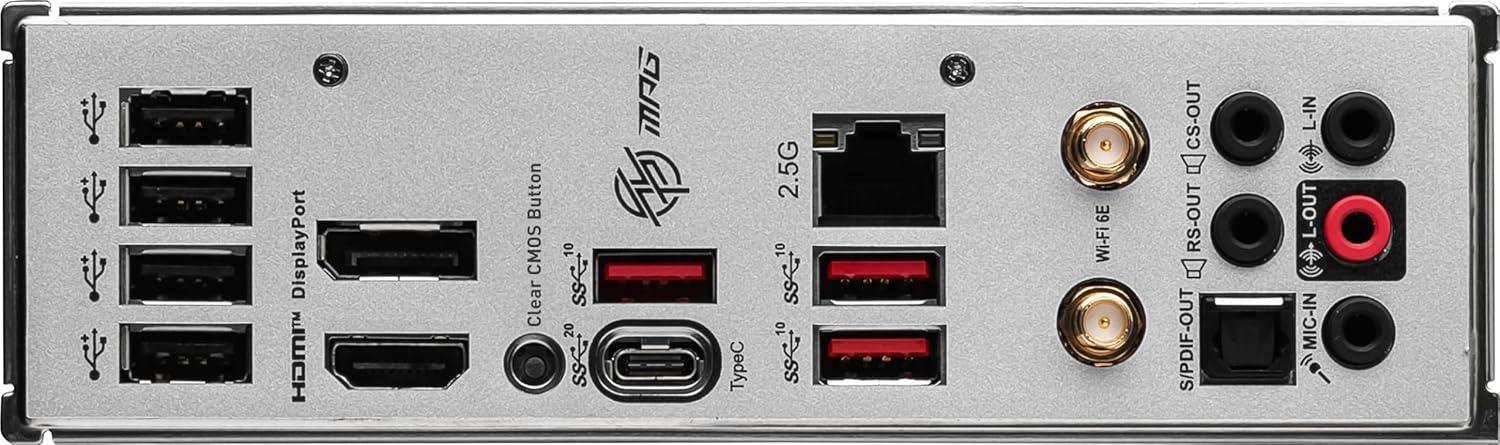

    Back Panel I/O:

    USB 2.0
    DisplayPort 1.4
    USB 10Gbps Type-A
    2.5G LAN Port
    Wi-Fi / Bluetooth Antenna
    HD Audio Connectors
    HDMI™ 2.1 Port
    Clear CMOS Button
    USB 20Gbps Type-C
    Optical S/PDIF OUT

    WiFi:

    Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

    Audio:

    Realtek® ALC897 Codec
    7.1-Channel High Performance Audio
    Supports S/PDIF output

    Special Features:

    None
