Motherboard Information

Manufacturer: MSI

Motherboard Name: MSI MPG Z890 Carbon WiFi

Current Price Amazon: $499

  • Amazon Price Updated: 1 day, 6 hours ago.

    • Motherboard Available: True

    Chipset / Socket: Z890 / LGA 1851

    Form Factor / Memory Slots: Standard-ATX / 4 slots.

    Memory Type / Max Cap / Max OC: DDR5 / 256 GB / 9200 MHz

    PCIe Suport: PCIe 5.0 x16

    Audio Chipset: Realtek® ALC1220P

    Network: 1x Intel® Killer™ E5000B 5G LAN 1x Intel® I226V 2.5G LAN

    Motherboard Dimensions: 30.5 cm x 24.4 cm

    Quality & Features (max 100pts)

    VRM Quality: 20 pts.

    Chipset Q & F: 20 pts.

    Build Quality: 20 pts.

    Connectivity Q & F: 20 pts.

    Audio Quality: 12 pts.

    Total Points: 92 pts.

    VRM Configuration

    CPU Power Phases (Amps): 20 (110 A)

    Power Design: 20+1+1+1

    Calculated Performance

    Quality and Features per Price: 36.5%

    Additional Motherboard Information

    Memory:

    4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 9200+ MT/s
    • 1DPC 2R Max speed up to 7200+ MT/s
    • 2DPC 1R Max speed up to 6400+ MT/s
    • 2DPC 2R Max speed up to 5600+ MT/s

    Supports Intel POR Speed and JEDEC Speed
    Supports Memory Overclocking and Intel XMP 3.0
    Supports Dual-Controller Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM

    • The DIMM slots on this motherboard have single-sided latches.
    • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

    Graphics:

    1x HDMI™
    Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
    2x Type-C DisplayPort
    ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

    Storage:

    5x M.2
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
    M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
    4x SATA 6G

    *Please refer to the manual for M.2 SSD heatsink restrictions.

    USB:

    4x USB 2.0 (Front)
    4x USB 5Gbps Type A (Front)
    10x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Rear)
    1x USB 20Gbps Type C (Front)
    *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

    Internal I/O:

    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x Power Connector(PCIE_PWR 8pin)
    1x Front Type-C Quick Charge Connector(PD_PWR1)
    1x CPU Fan
    1x Combo Fan (Pump_Sys Fan)
    5x System Fan
    1x EZ Conn-header (JAF_2)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Water Flow connector
    1x Front Audio (JAUD)
    1x Thermal Sensor connectors(T_SEN)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 5Gbps Type A ports
    1x USB 20Gbps Type C ports

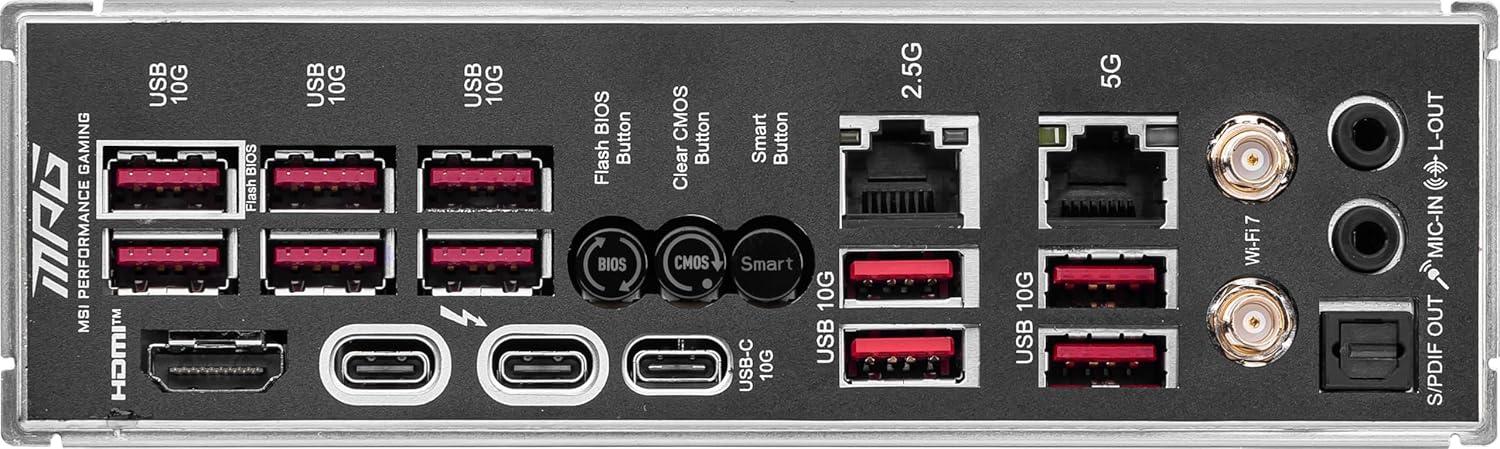

    Back Panel I/O:

    USB 10Gbps Type-A
    Flash BIOS Button
    Clear CMOS Button
    Smart Button
    2.5G LAN
    5G LAN
    Audio Connectors
    HDMI™
    Thunderbolt 4
    USB 10Gbps Type-C
    USB 10Gbps Type-A
    Wi-Fi / Bluetooth
    Optical S/PDIF Out

    WiFi:

    Intel® Killer™ BE1750x Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

    Supports Bluetooth® 5.4**, MLO, 4KQAM

    * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

    Audio:

    Realtek® ALC1220P Codec
    7.1-Channel USB High Defination Audio
    Supports S/PDIF output

    Special Features:

    None
