MSI B650 Gaming Plus WiFi Specifications

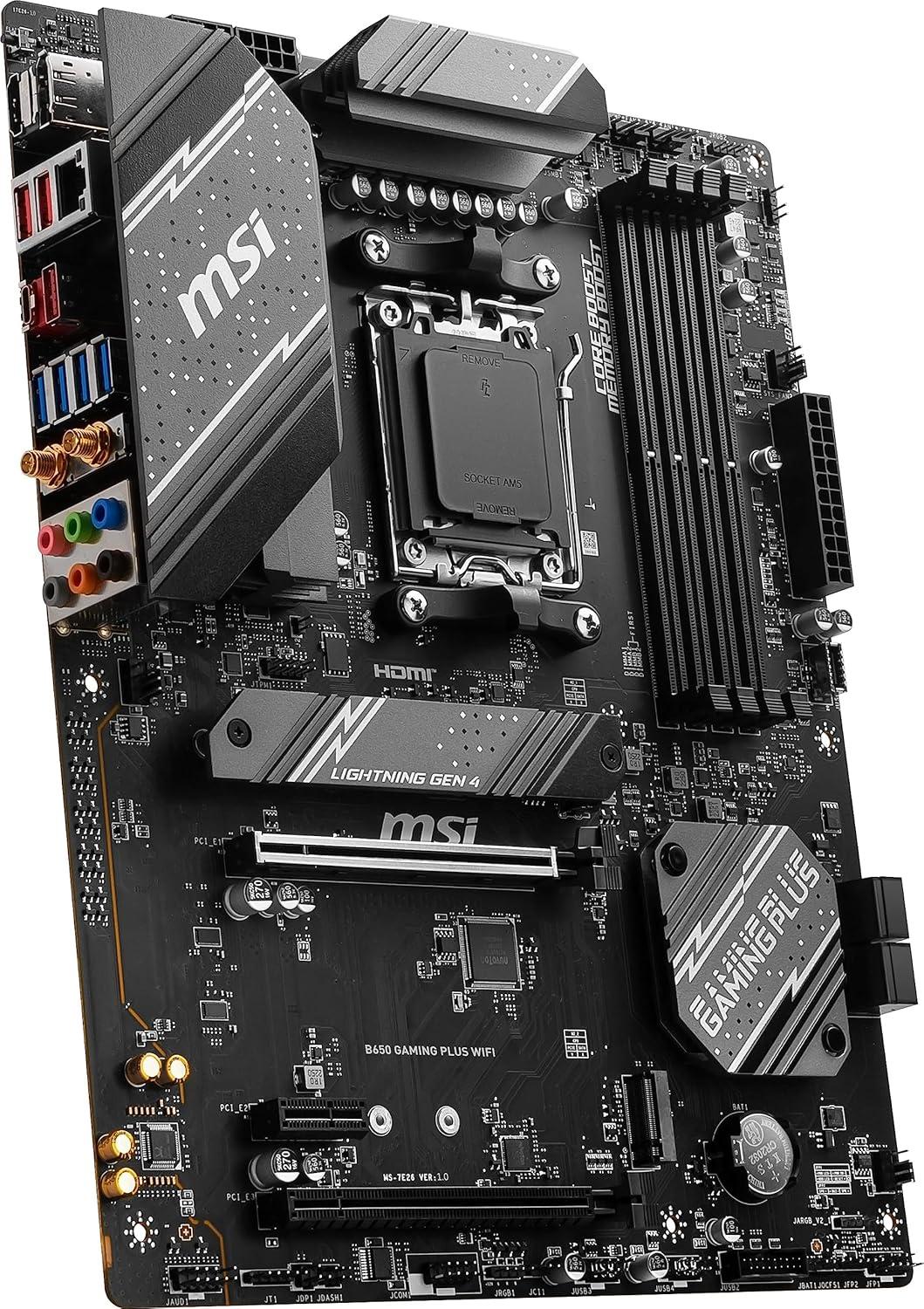

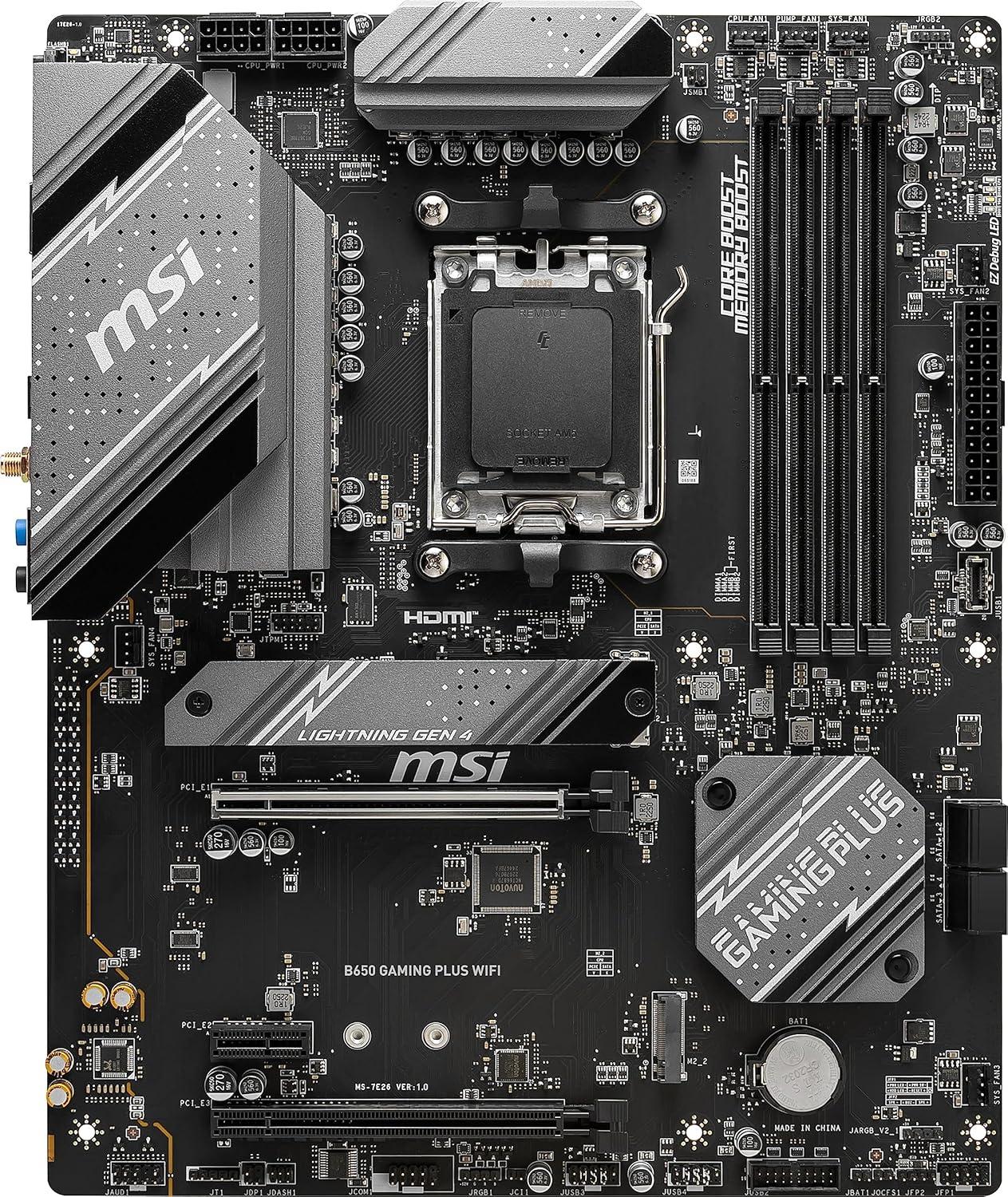

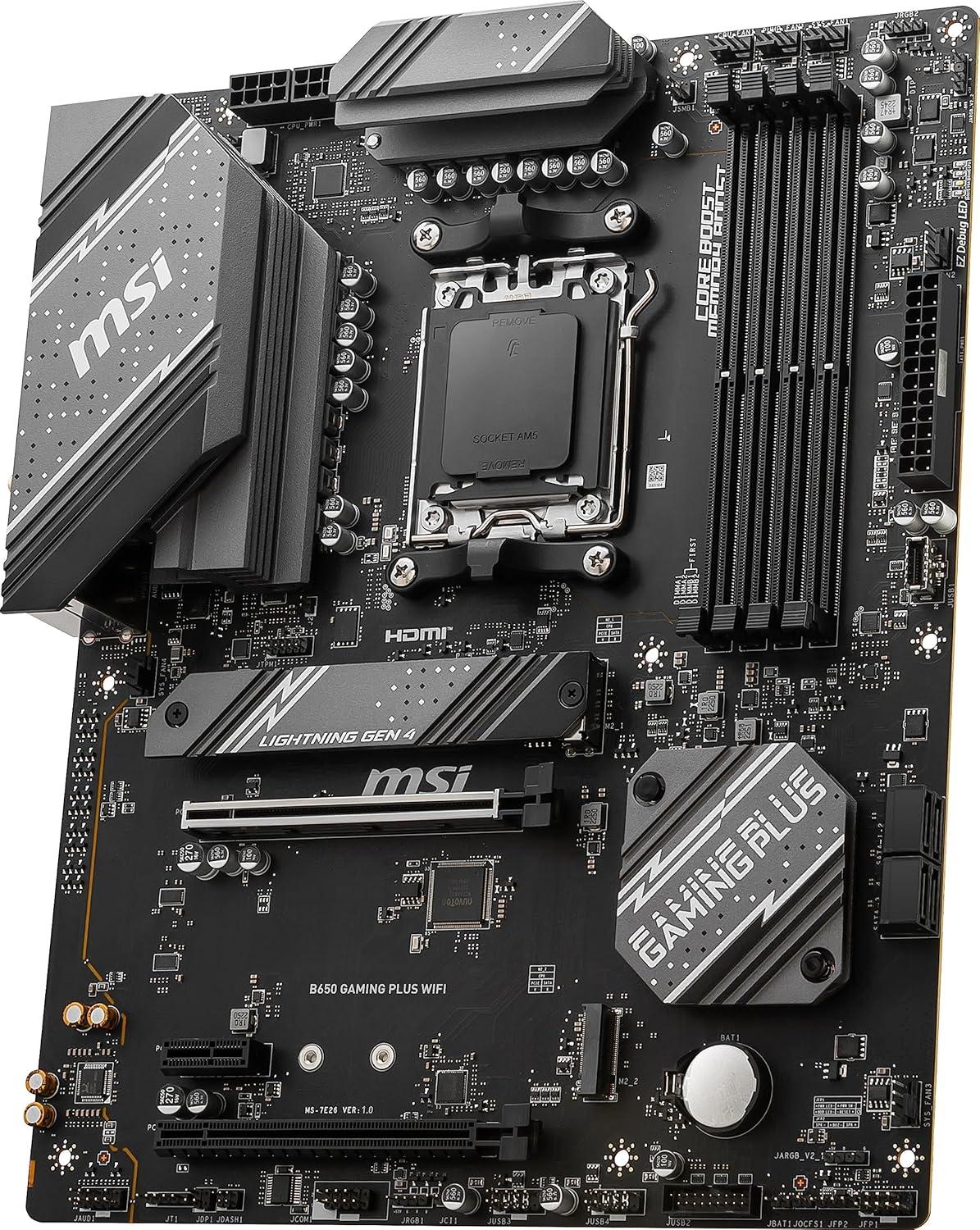

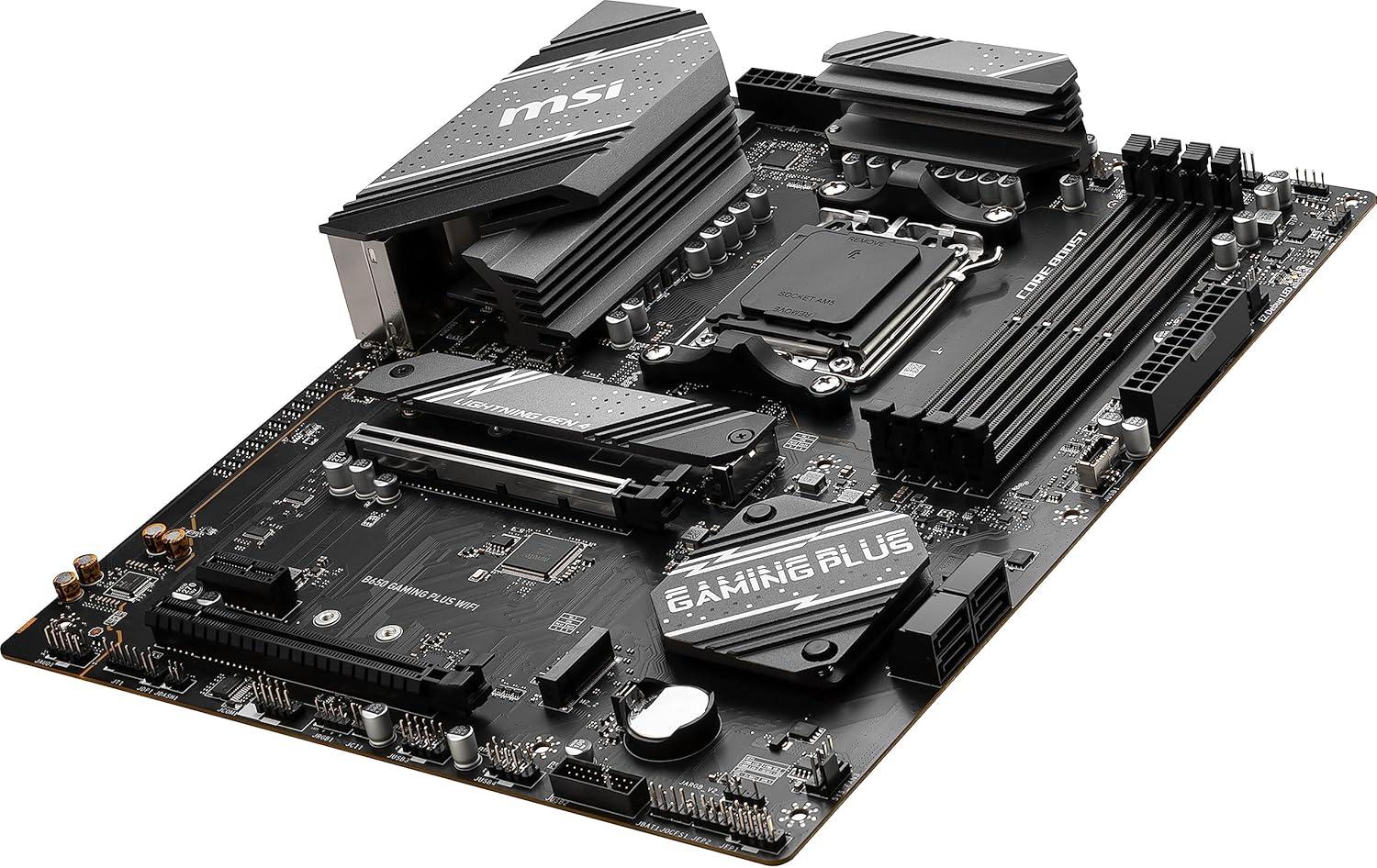

MSI B650 Gaming Plus WiFi by MSI is a Standard-ATX form factor motherboard based on the mid-range B650 chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory up to 256 GB and memory overclocking up to 7200 MHz. The motherboard features 4 memory slots and offers support for PCIe 4.0 x16, ensuring compatibility with modern GPUs and high-bandwidth expansion cards.

MSI B650 Gaming Plus WiFi Performance Review

The MSI B650 Gaming Plus WiFi includes a mid-range VRM setup, delivering 60 A through 12 phases. It supports most compatible CPUs on its socket but is not ideal for sustained overclocking or powering very high-wattage CPUs due to potential thermal limitations. Best suited for casual users and mainstream gamers seeking stable performance for everyday use.

This motherboard includes an entry-level audio chipset — Realtek® ALC897 — which provides basic sound quality suitable for casual use. While it’s acceptable for everyday tasks such as web browsing, video playback, and light gaming, it may not meet the expectations of users with mid to high-end audio setups. Audiophiles and those seeking high-fidelity sound should consider using a dedicated sound card or external DAC.

This board delivers balanced value with a performance-per-price ratio of 53.1%, offering a solid blend of features, quality, and affordability.

Motherboard Information

Manufacturer: MSI

Motherboard Name: MSI B650 Gaming Plus WiFi

Current Price Amazon: $179

  • Amazon Price Updated: 18 hours, 16 minutes ago.

    • Motherboard Available: True

    Chipset / Socket: B650 / AM5

    Form Factor / Memory Slots: Standard-ATX / 4 slots.

    Memory Type / Max Cap / Max OC: DDR5 / 256 GB / 7200 MHz

    PCIe Suport: PCIe 4.0 x16

    Audio Chipset: Realtek® ALC897

    Network: Realtek® 8125BG 2.5G LAN

    Motherboard Dimensions: 30.5 cm x 24.4 cm

    Quality & Features (max 110pts)

    VRM Quality: 7 pts.

    Chipset Q & F: 13 pts.

    Build Quality: 12 pts.

    Connectivity Q & F: 10 pts.

    Audio Quality: 6 pts.

    Total Points: 48 pts.

    VRM Configuration

    CPU Power Phases (Amps): 12 (60 A)

    Power Design: 12+2+1

    Calculated Performance

    Quality and Features per Price: 53.1%

    Additional Motherboard Information

    Memory:

    4x DDR5, Maximum Memory Capacity 256GB
    Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6000+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5400+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports AMD EXPO

    Graphics:

    1x HDMI™
    Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Supports DP1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

    Storage:

    2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G
    • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed

    USB:

    4x USB 2.0 (Front)
    4x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    3x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)

    Internal I/O:

    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    4x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    2x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports

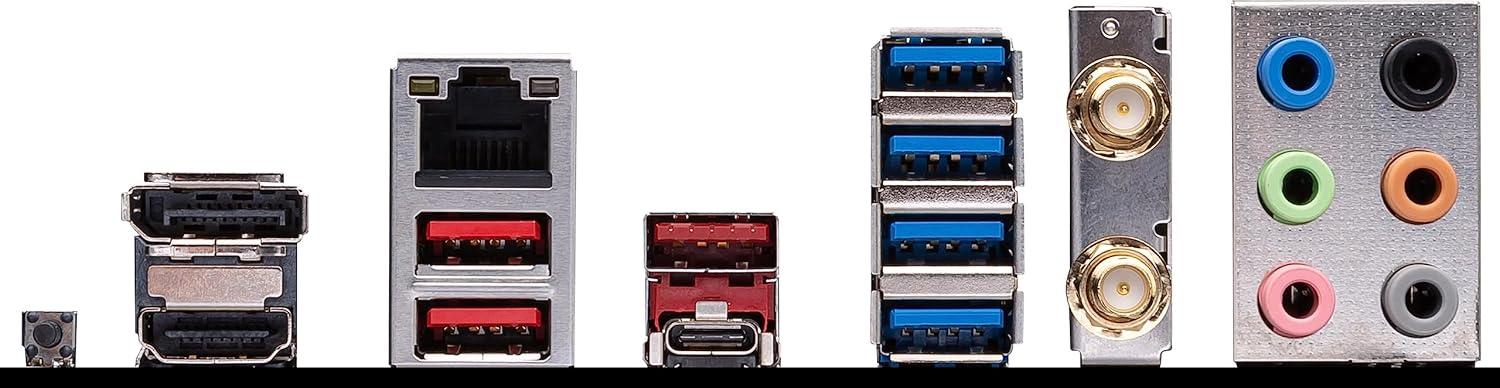

    Back Panel I/O:

    DisplayPort
    2.5G LAN
    USB 3.2 Gen 2 10Gbps (Type-A)
    USB 3.2 Gen 1 5Gbps (Type-A)
    Wi-Fi / Bluetooth
    Audio connectors
    Flash BIOS Button
    HDMI™
    USB 3.2 Gen 2 10Gbps (Type-A)
    USB 3.2 Gen 2x2 20Gbps (Type-C)

    WiFi:

    Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3**

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

    Audio:

    Realtek® ALC897 Codec 7.1-Channel High Definition Audio

    Special Features:

    None
