GIGABYTE X870I AORUS PRO ICE
GIGABYTE X870I AORUS PRO ICE Specifications

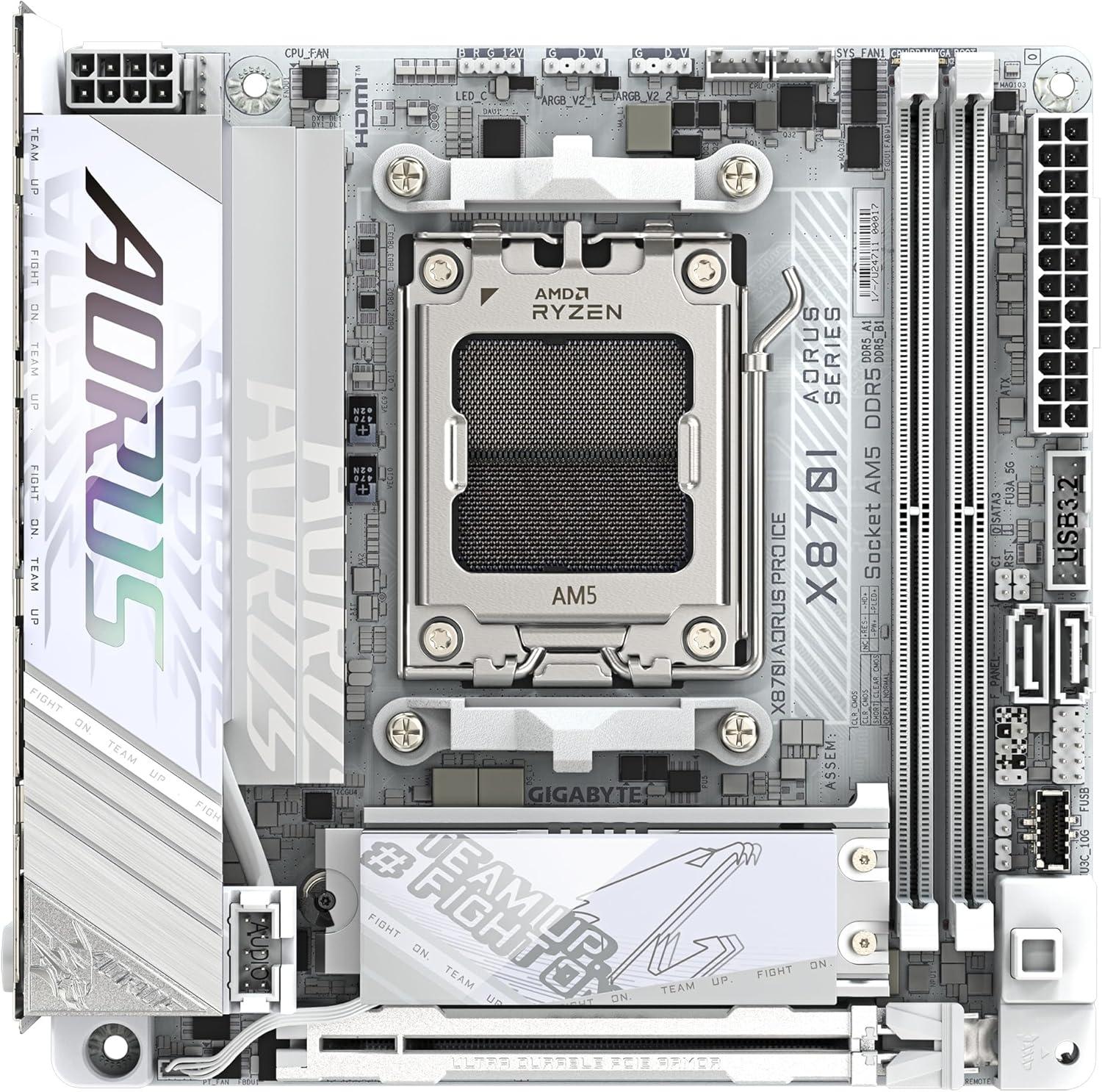

GIGABYTE X870I AORUS PRO ICE by GIGABYTE is a Mini-ITX form factor motherboard based on the high-end X870 chipset and AM5 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory up to 128 GB and memory overclocking up to 8400 MHz. The motherboard features 2 memory slots and offers support for PCIe 5.0 x16, ensuring compatibility with modern GPUs and high-bandwidth expansion cards.
GIGABYTE X870I AORUS PRO ICE Performance Review
The GIGABYTE X870I AORUS PRO ICE includes a mid-range VRM setup, delivering 110 A through 8 phases. It supports most compatible CPUs on its socket but is not ideal for sustained overclocking or powering very high-wattage CPUs due to potential thermal limitations. Best suited for casual users and mainstream gamers seeking stable performance for everyday use.
This motherboard is equipped with a premium audio chipset — the Realtek® ALC4080 — delivering performance comparable to mid-to-high-end discrete sound cards. It provides clean, immersive sound with excellent signal-to-noise ratio and dynamic range. This makes it a recommended choice for audiophiles and users with high-end audio setups, such as studio-grade headphones, amplifiers, or surround sound systems, who want the best possible onboard audio.
This board delivers balanced value with a performance-per-price ratio of 52.3%, offering a solid blend of features, quality, and affordability.
Motherboard Information
Manufacturer: GIGABYTE
Motherboard Name: GIGABYTE X870I AORUS PRO ICE
Current Price Amazon: $284
Amazon Price Updated: 5 hours, 35 minutes ago.
Motherboard Available: True
Chipset / Socket: X870 / AM5
Form Factor / Memory Slots: Mini-ITX / 2 slots.
Memory Type / Max Cap / Max OC: DDR5 / 128 GB / 8400 MHz
PCIe Suport: PCIe 5.0 x16
Audio Chipset: Realtek® ALC4080
Network: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Motherboard Dimensions: 17 cm x 17 cm
Quality & Features (max 110pts)
VRM Quality: 9 pts.
Chipset Q & F: 18 pts.
Build Quality: 17 pts.
Connectivity Q & F: 15 pts.
Audio Quality: 16 pts.
Total Points: 75 pts.
VRM Configuration
CPU Power Phases (Amps): 8 (110 A)
Power Design: 8+2+1
Calculated Performance
Quality and Features per Price: 52.3%
Additional Motherboard Information
Memory:
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR.
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Storage:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0 and RAID 1 support for SATA storage devices
USB:
- 1 x USB4® USB Type-C® port on the back panel
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x speaker header
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header

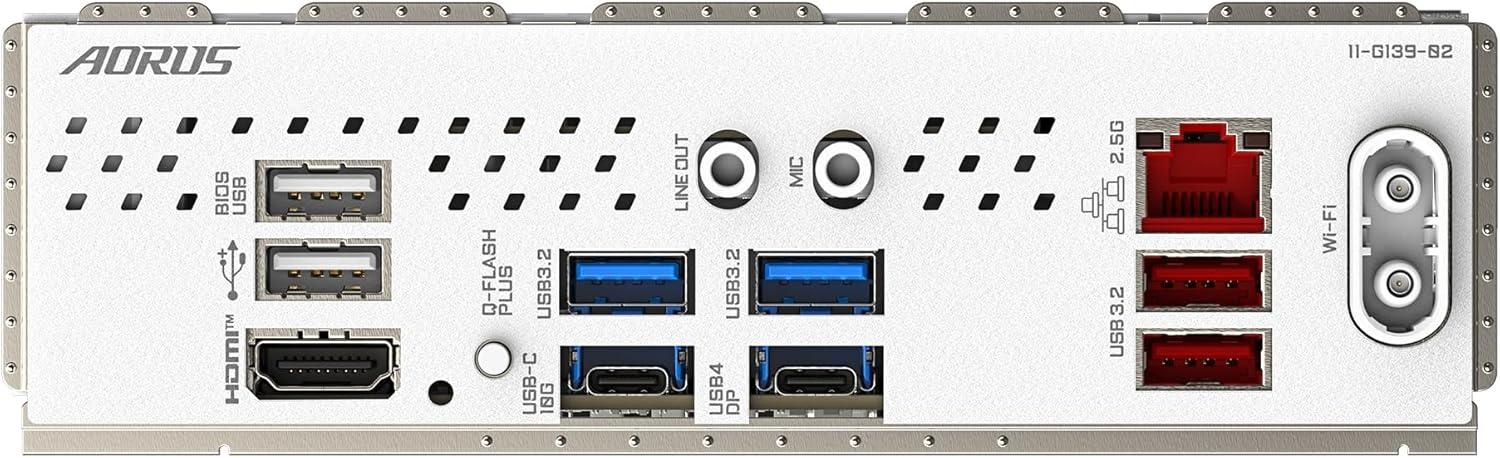

Back Panel I/O:
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
1 x USB4® USB Type-C® port (DisplayPort (Note))
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x audio jacks
(Note) Actual support may vary by CPU.
WiFi:
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no supportdriver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Audio:
High Definition Audio
2-channel
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
