GIGABYTE B650 AORUS Elite AX
GIGABYTE B650 AORUS Elite AX Specifications
GIGABYTE B650 AORUS Elite AX by GIGABYTE is a Standard-ATX form factor motherboard based on the mid-range B650 chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory up to 256 GB and memory overclocking up to 8000 MHz. The motherboard features 4 memory slots and offers support for PCIe 4.0 x16, ensuring compatibility with modern GPUs and high-bandwidth expansion cards.
GIGABYTE B650 AORUS Elite AX Performance Review
The GIGABYTE B650 AORUS Elite AX features a high-end VRM setup, supplying 70 A across 14 phases. It can power high-wattage CPUs and support moderate overclocking while maintaining good voltage regulation and thermal efficiency. This makes it an excellent option for gamers and professionals who need reliable high-end CPU performance.
This motherboard includes an entry-level audio chipset — Realtek® ALC897 — which provides basic sound quality suitable for casual use. While it’s acceptable for everyday tasks such as web browsing, video playback, and light gaming, it may not meet the expectations of users with mid to high-end audio setups. Audiophiles and those seeking high-fidelity sound should consider using a dedicated sound card or external DAC.
This board delivers balanced value with a performance-per-price ratio of 58.2%, offering a solid blend of features, quality, and affordability.
Motherboard Information
Manufacturer: GIGABYTE
Motherboard Name: GIGABYTE B650 AORUS Elite AX
Current Price Amazon: $194
Amazon Price Updated: 16 hours, 58 minutes ago.
Motherboard Available: True
Chipset / Socket: B650 / AM5
Form Factor / Memory Slots: Standard-ATX / 4 slots.
Memory Type / Max Cap / Max OC: DDR5 / 256 GB / 8000 MHz
PCIe Suport: PCIe 4.0 x16
Audio Chipset: Realtek® ALC897
Network: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Motherboard Dimensions: 30.5 cm x 24.4 cm
Quality & Features (max 110pts)
VRM Quality: 10 pts.
Chipset Q & F: 13 pts.
Build Quality: 14 pts.
Connectivity Q & F: 14 pts.
Audio Quality: 6 pts.
Total Points: 57 pts.
VRM Configuration
CPU Power Phases (Amps): 14 (70 A)
Power Design: 14+2+2
Calculated Performance
Quality and Features per Price: 58.2%
Additional Motherboard Information
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Graphics:
* Support for DisplayPort 1.4 version and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Storage:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB:
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

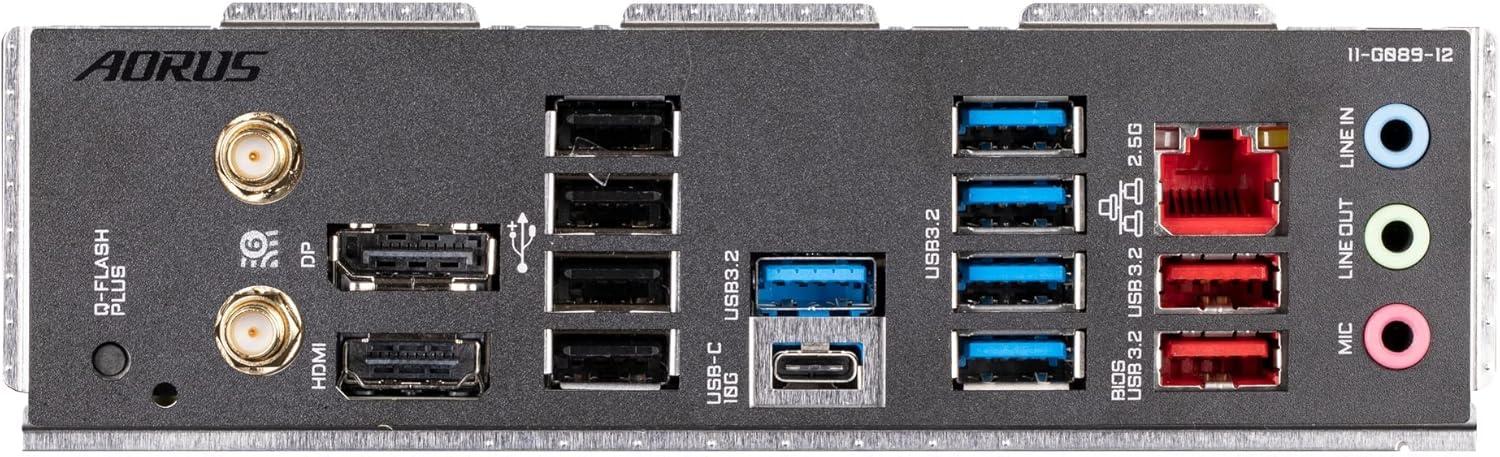

Back Panel I/O:
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
5 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
WiFi:
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
