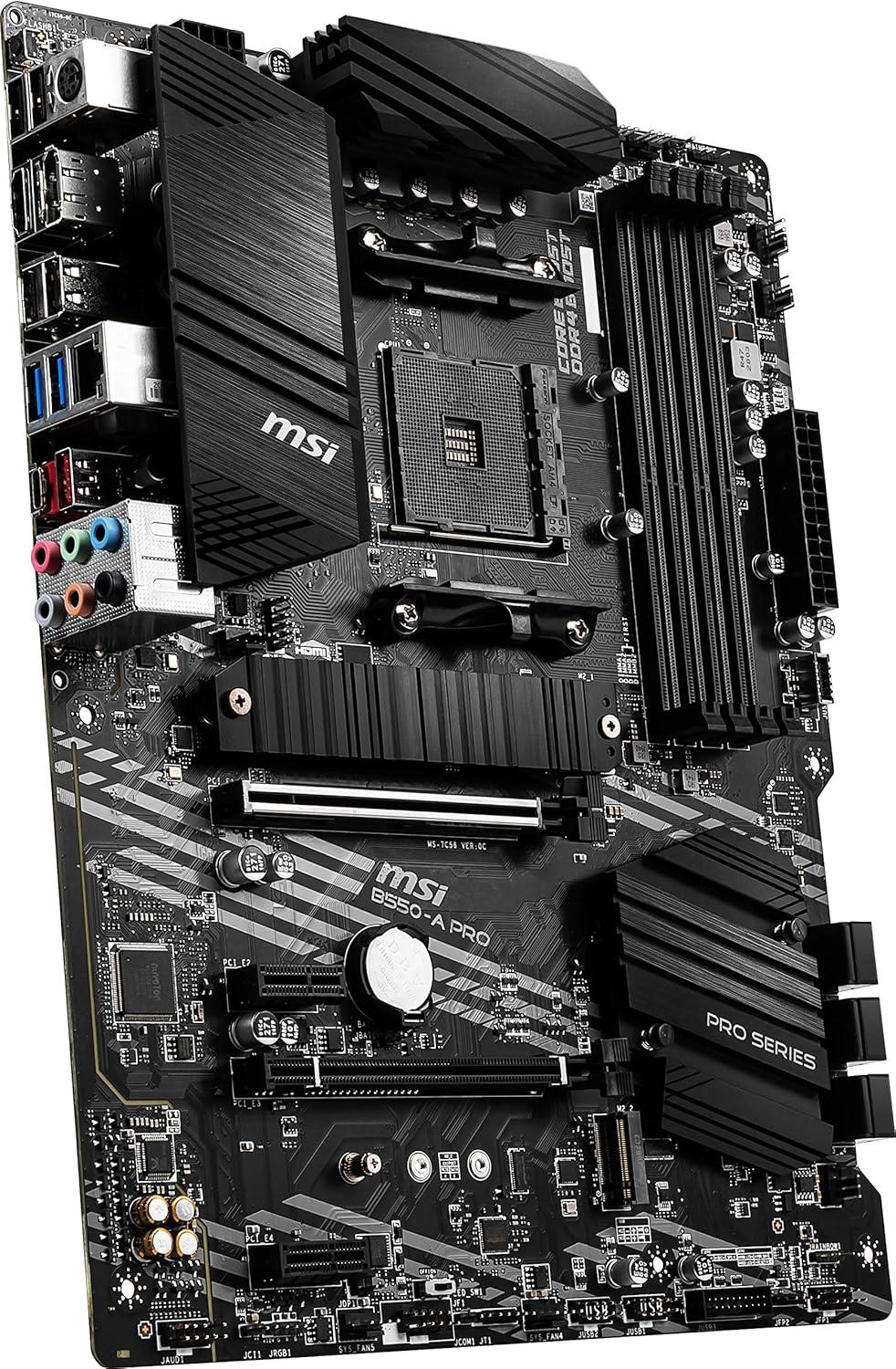

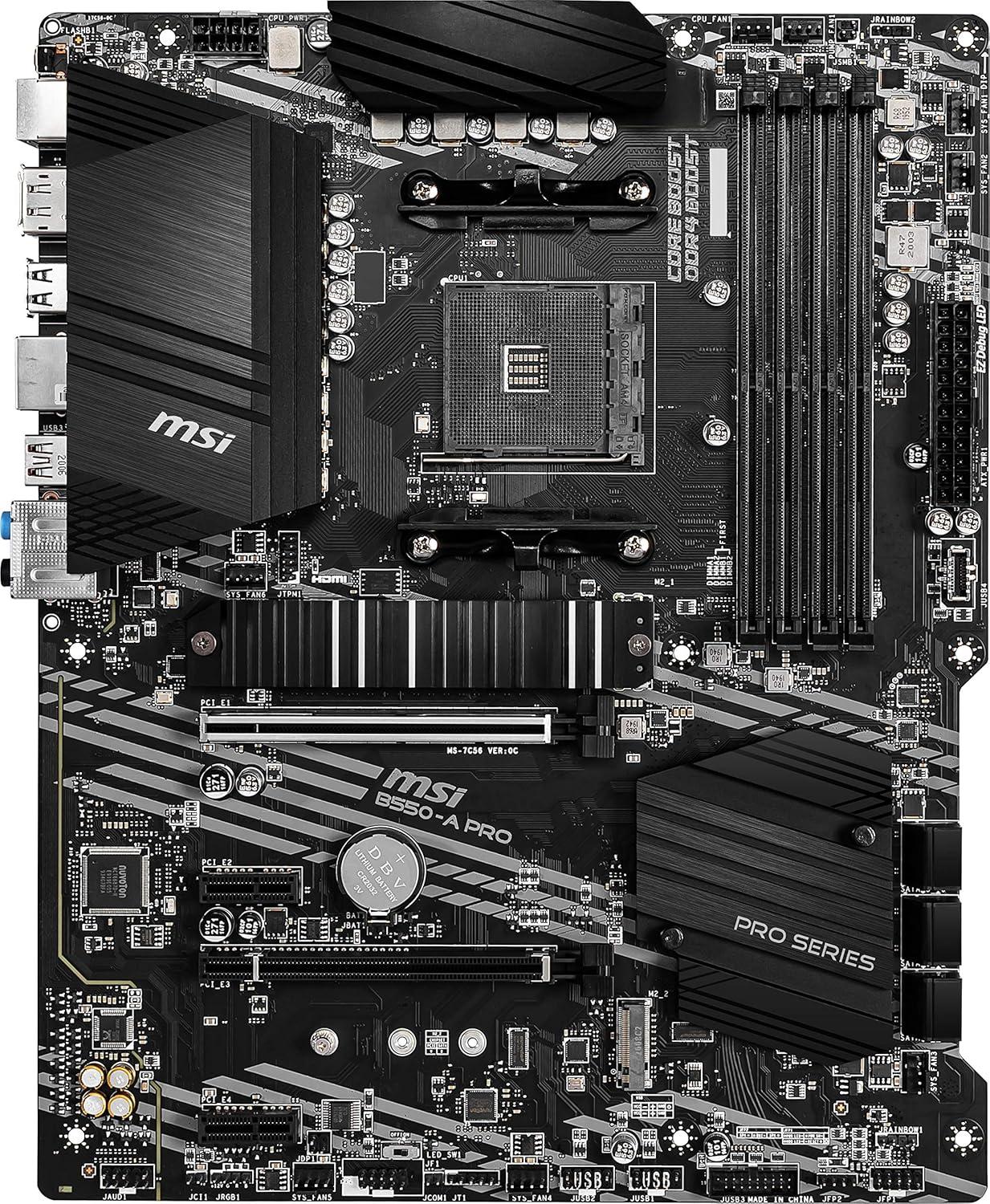

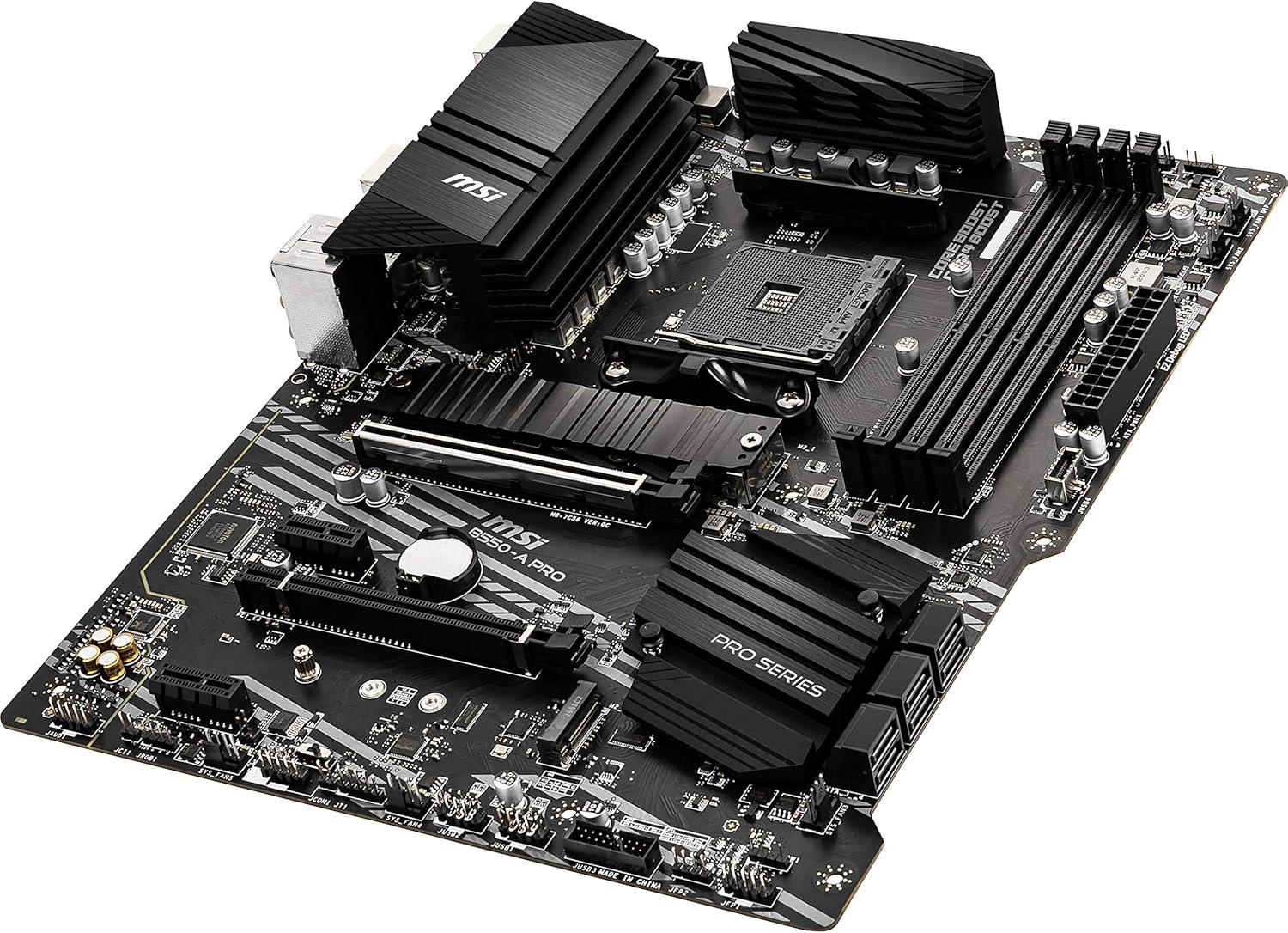

MSI B550-A PRO ProSeries
Motherboard Information
Manufacturer: MSI
Motherboard Name: MSI B550-A PRO ProSeries
Current Price Amazon: $119
Amazon Price Updated: 1Ā hour, 51Ā minutes ago.
Motherboard Available: True
Chipset / Socket: B550-A / AM4
Form Factor / Memory Slots: Standard-ATX / 4 slots.
Memory Type / Max Cap / Max OC: DDR4 / 128 GB / 4400 MHz
PCIe Suport: PCIe 3.0 x16
Audio Chipset: RealtekĀ® ALC892/ALC897
Network: 1x RealtekĀ® 8111H Gigabit LAN controller
Motherboard Dimensions: 30.5 cm x 24.4 cm
Quality & Features (max 100pts)
VRM Quality: 10 pts.
Chipset Q & F: 12 pts.
Build Quality: 10 pts.
Connectivity Q & F: 10 pts.
Audio Quality: 6 pts.
Total Points: 48 pts.
VRM Configuration
CPU Power Phases (Amps): 10 (60 A)
Power Design: 10+2+1
Calculated Performance
Quality and Features per Price: 79.9%
Additional Motherboard Information
Memory:
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R Max speed 4800 MHz
1DPC 2R max speed 3866 MHZ
2DPC 1R max speed 4000 MHZ
2DPC 2R max speed 3600 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Graphics:
Support HDCP 1.4 & 2.3
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
Maximum shared memory of 16 GB
Storage:
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
USB:
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O:
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper
Back Panel I/O:
DisplayPort
LAN
HD Audio Connectors

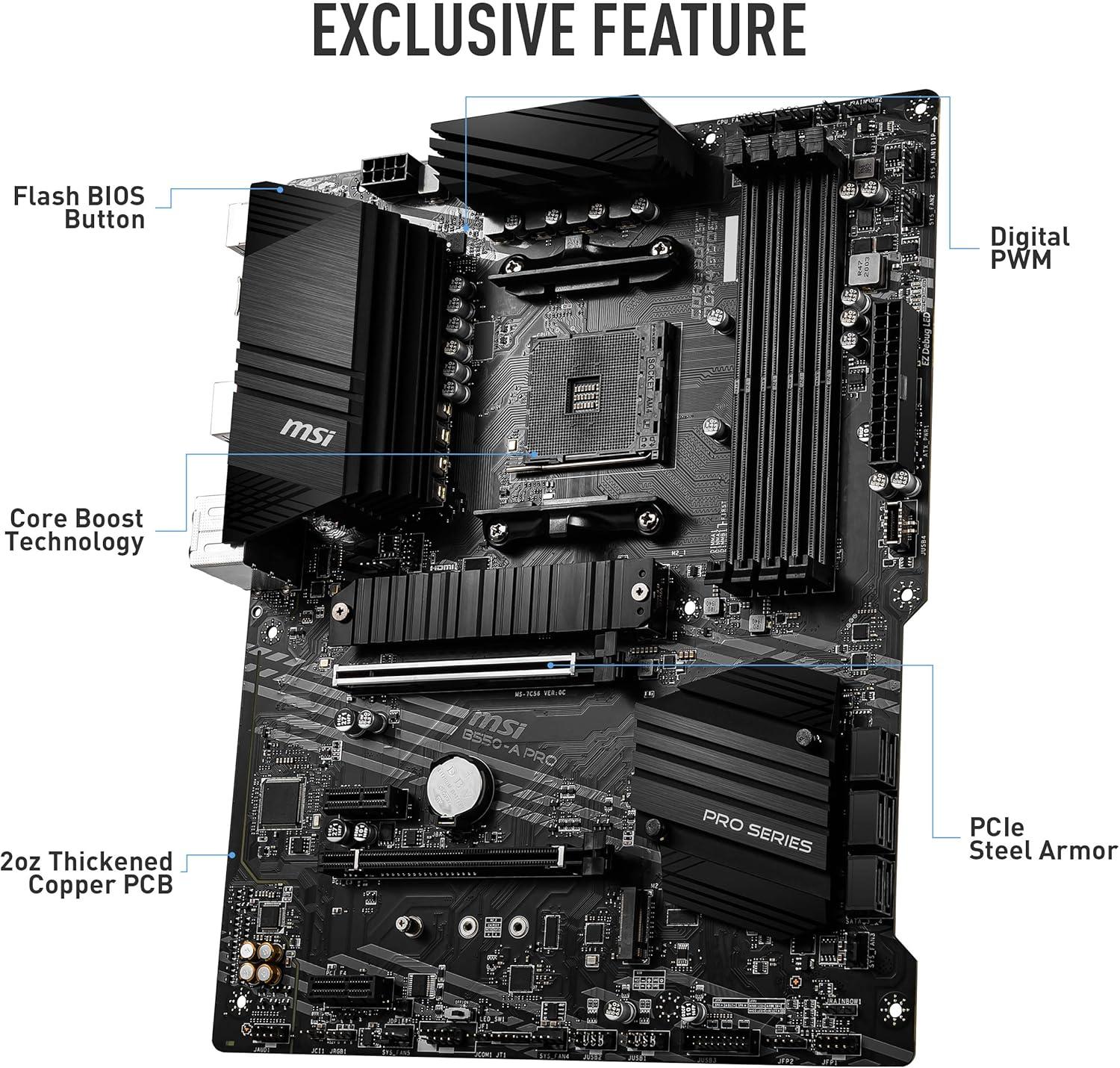

Flash BIOS Button
USB 2.0
HDMIā¢
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A+C
WiFi:
Audio:
7.1-Channel High Definition Audio
Special Features:
