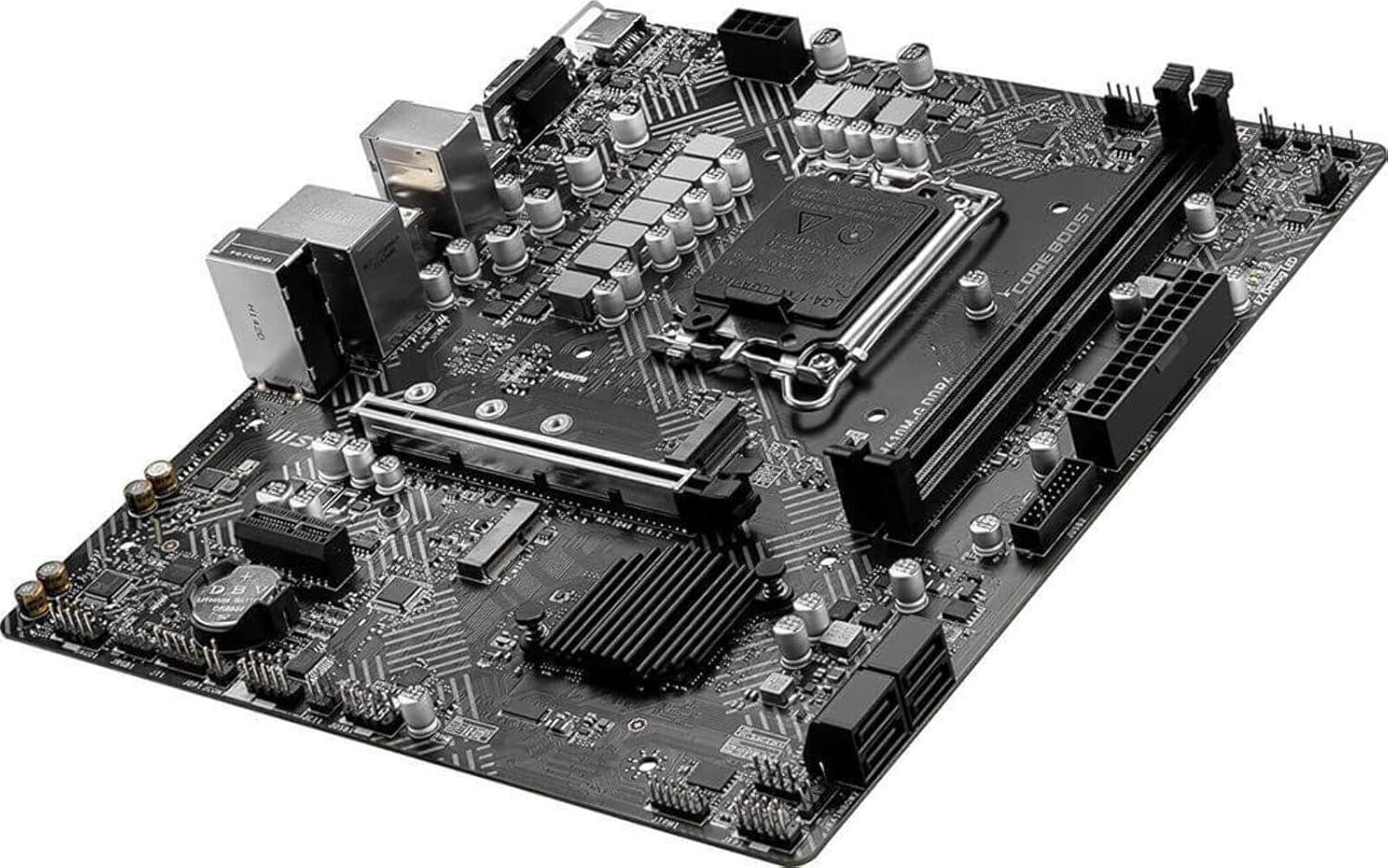

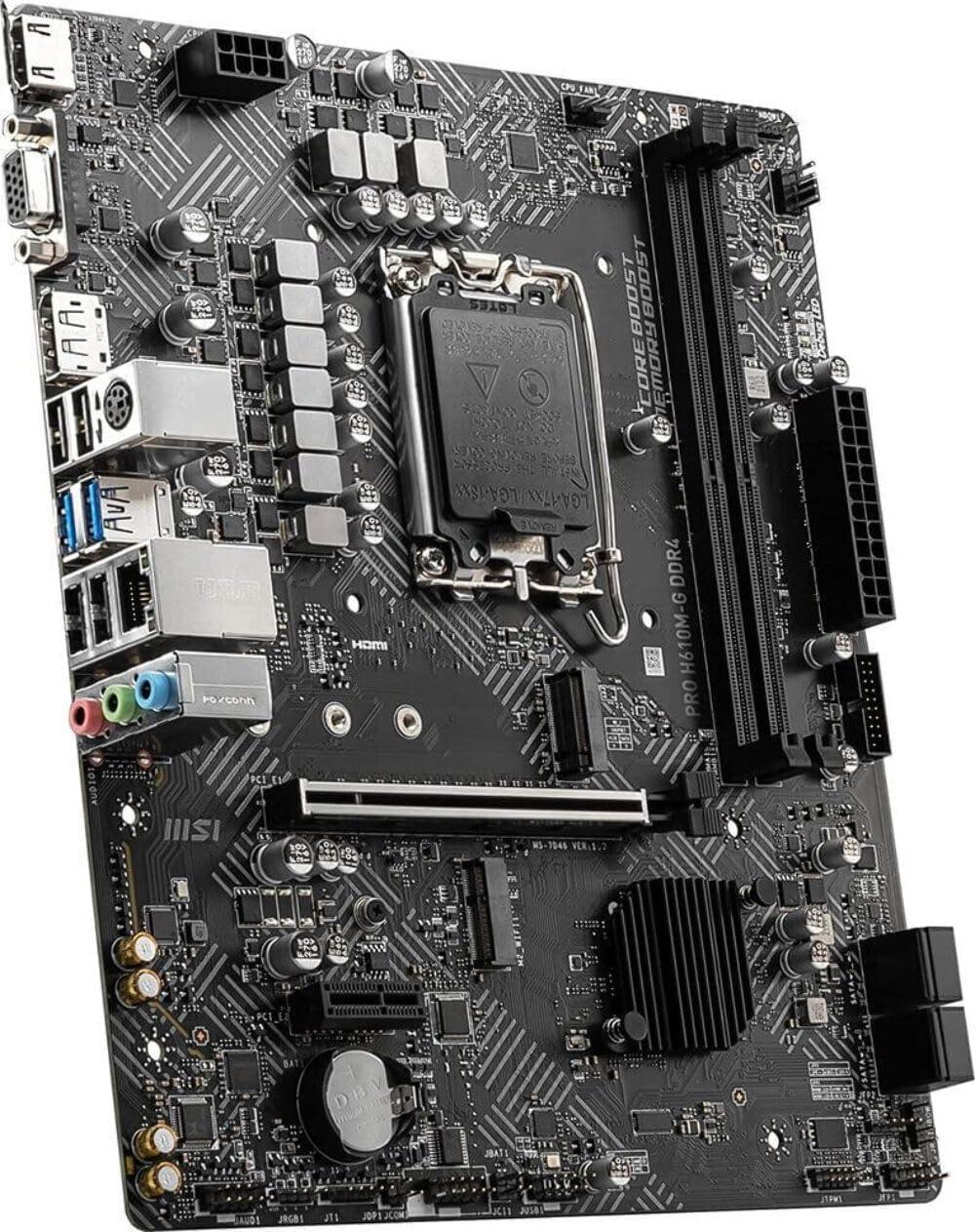

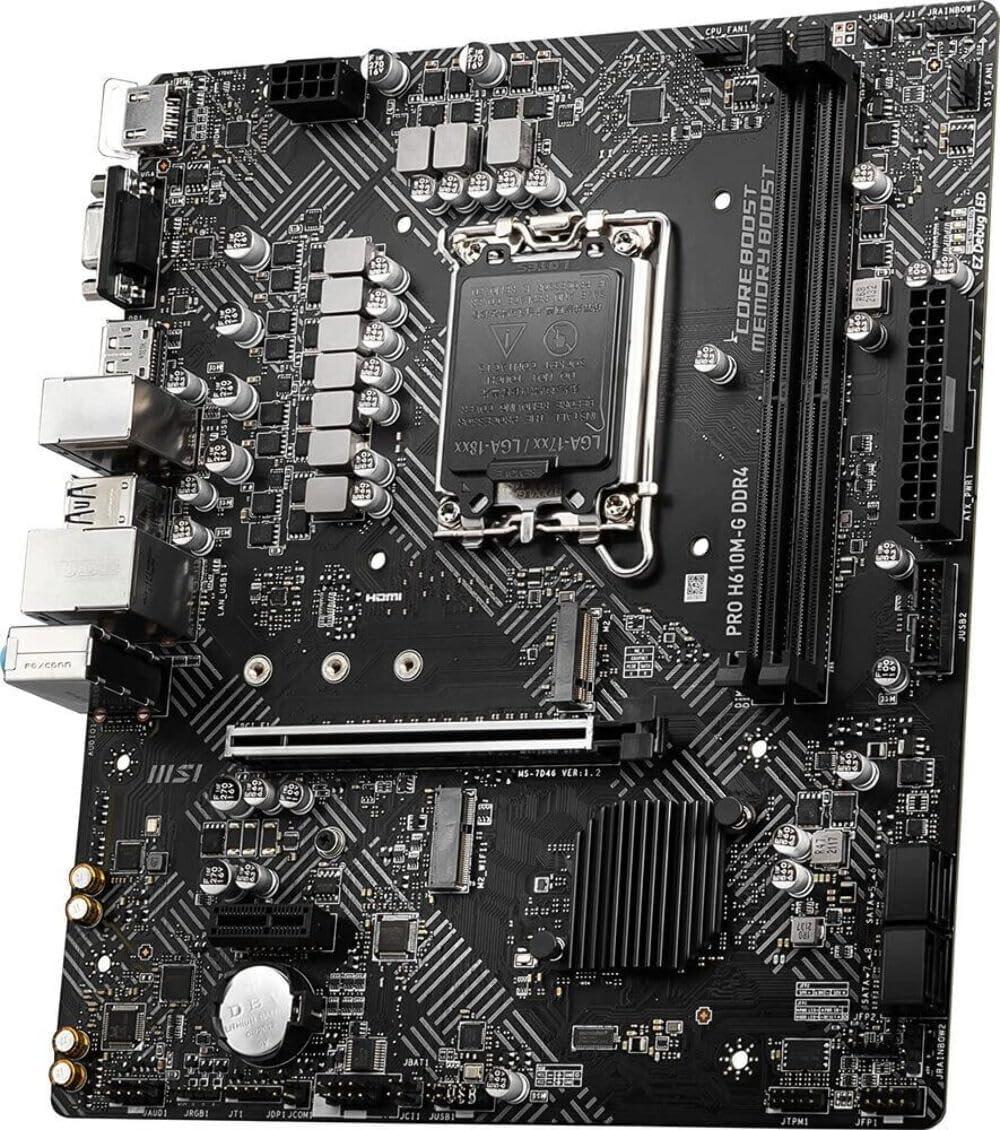

MSI PRO H610M-G DDR4
Motherboard Information
Manufacturer: MSI
Motherboard Name: MSI PRO H610M-G DDR4
Current Price Amazon: $89
Amazon Price Updated: 3Ā hours, 19Ā minutes ago.
Motherboard Available: True
Chipset / Socket: H610M / LGA 1700
Form Factor / Memory Slots: Micro-ATX / 2 slots.
Memory Type / Max Cap / Max OC: DDR4 / 64 GB / 3200 MHz
PCIe Suport: PCIe 3.0 x16
Audio Chipset: RealtekĀ® ALC897
Network: 1x IntelĀ® I219V 1Gbps LAN controller
Motherboard Dimensions: 24.4 cm x 24.4 cm
Quality & Features (max 100pts)
VRM Quality: 4 pts.
Chipset Q & F: 8 pts.
Build Quality: 6 pts.
Connectivity Q & F: 6 pts.
Audio Quality: 6 pts.
Total Points: 30 pts.
VRM Configuration
CPU Power Phases (Amps): 4 (50 A)
Power Design: 4+2
Calculated Performance
Quality and Features per Price: 66.7%
Additional Motherboard Information
Memory:
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Please refer to www.msi.com for more information on compatible memory.
Graphics:
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1
x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Storage:
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD Slot
1x M.2 slot (Key M, from chipset)1
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports IntelĀ® Smart Response Technology for Intel Coreā¢ processors
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB:
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Internal I/O:

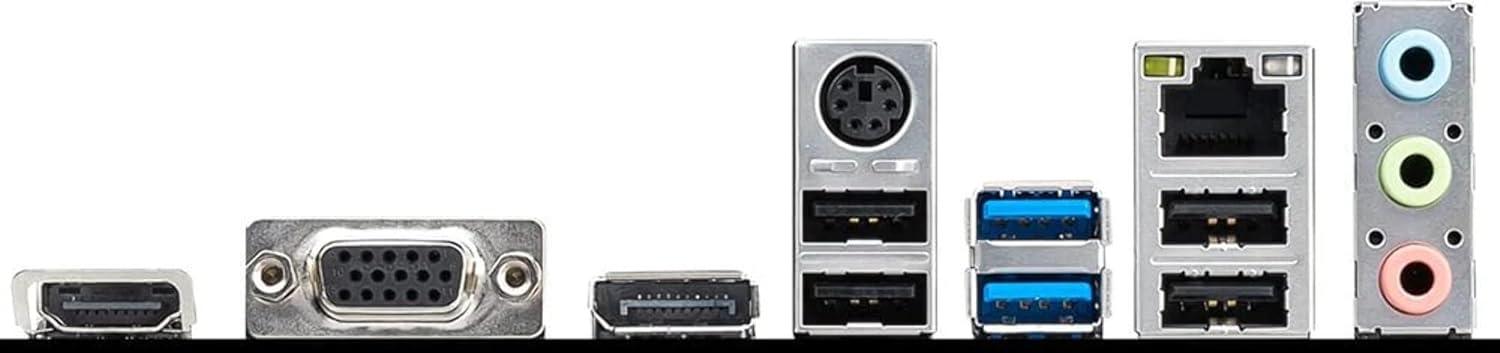

Back Panel I/O:
VGA
DisplayPort
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
WiFi:
Audio:
7.1-Channel High Definition Audio
Special Features:
