MSI MAG B550 TOMAHAWK

Main Product Image

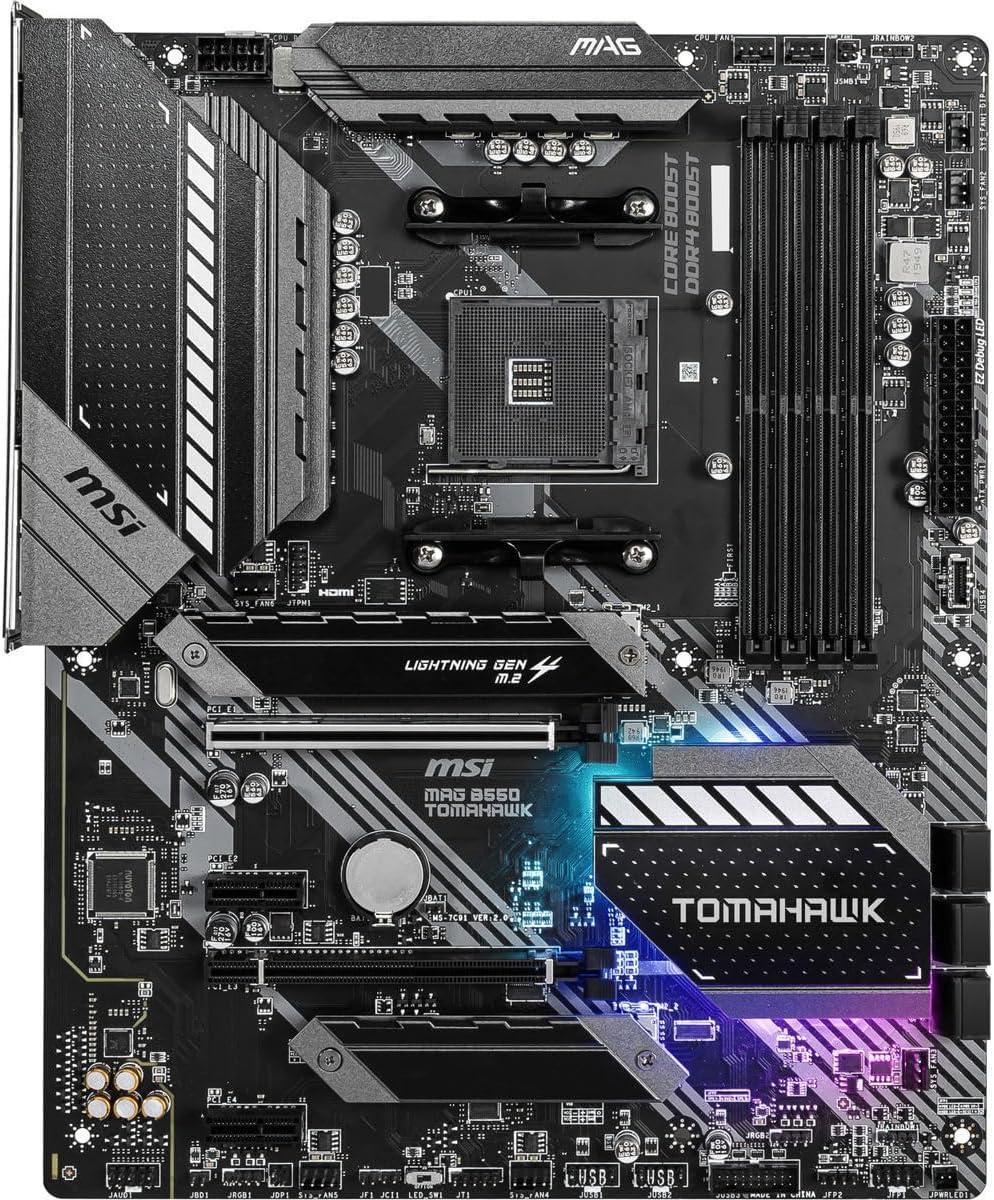

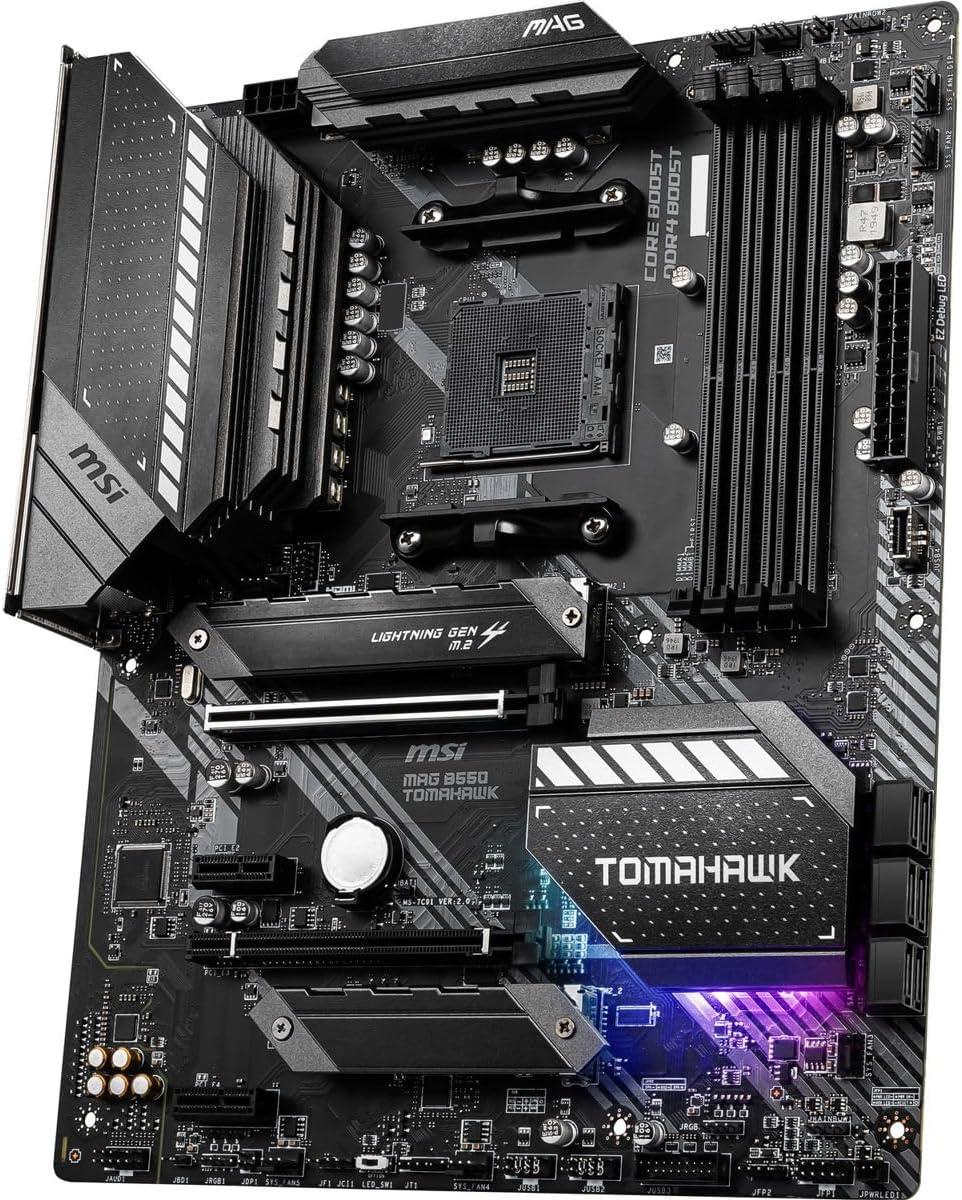

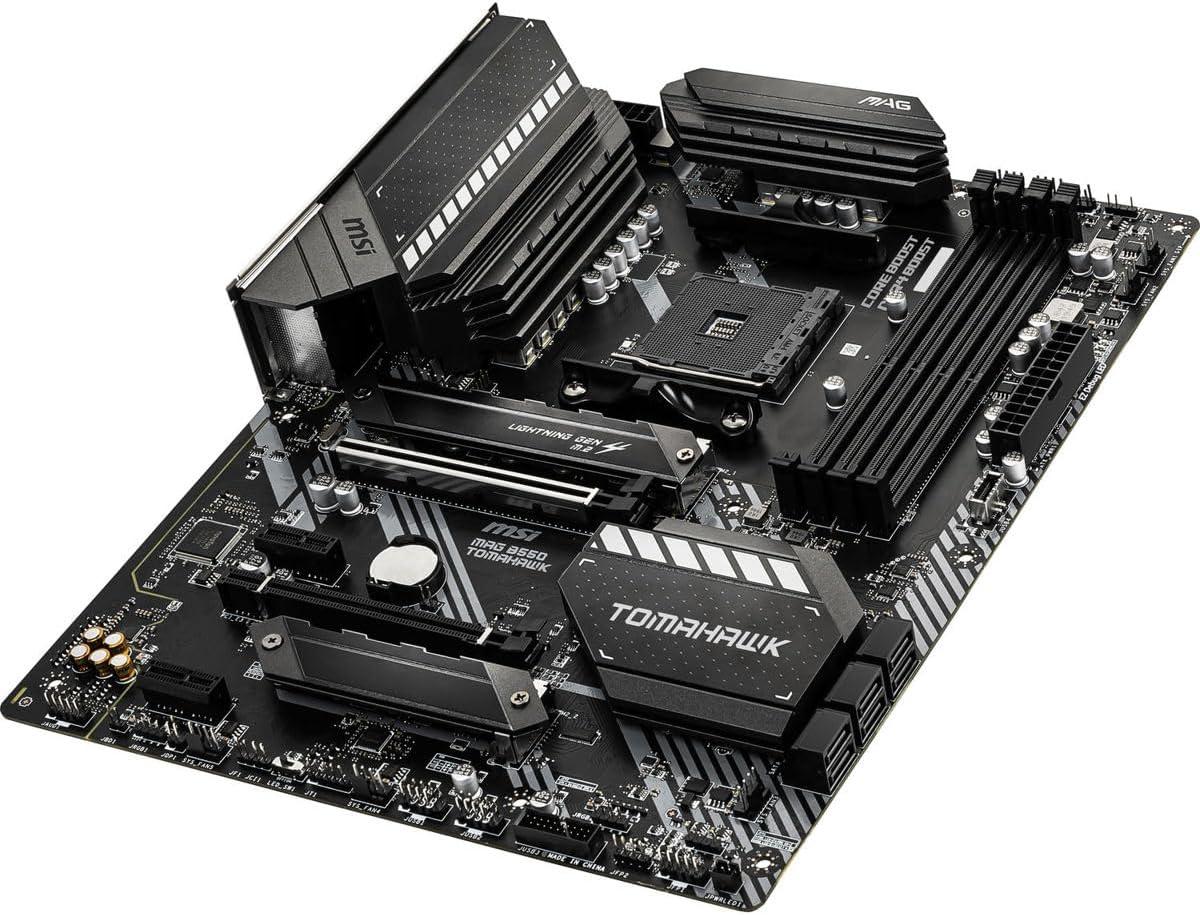

Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Gallery Image 7

Galleries

Motherboard Information

Manufacturer: MSI

Motherboard Name: MSI MAG B550 TOMAHAWK

Current Price Amazon: $149

  • Amazon Price Updated: 3Ā hours, 50Ā minutes ago.

    • Motherboard Available: True

    Chipset / Socket: B550 / AM4

    Form Factor / Memory Slots: Standard-ATX / 4 slots.

    Memory Type / Max Cap / Max OC: DDR4 / 128 GB / 5100 MHz

    PCIe Suport: PCIe 4.0 x16

    Audio Chipset: Realtek ALC1220P

    Network: 1x RealtekĀ® RTL8125B 2.5Gbps LAN controller, 1x RealtekĀ® RTL8111H 1Gbps LAN controller

    Motherboard Dimensions: 30.5 cm x 24.4 cm

    Quality & Features (max 100pts)

    VRM Quality: 10 pts.

    Chipset Q & F: 13 pts.

    Build Quality: 13 pts.

    Connectivity Q & F: 9 pts.

    Audio Quality: 12 pts.

    Total Points: 57 pts.

    VRM Configuration

    CPU Power Phases (Amps): 10 (80 A)

    Power Design: 10+2+1

    Calculated Performance

    Quality and Features per Price: 75.7%

    Additional Motherboard Information

    Memory:

    4 x DDR4 memory slots, support up to 128GBĀ 1
    Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE
    1DPC 1R max speed 5100 MHZ
    1DPC 2R max speed 3866 MHZ
    2DPC 1R max speed 4000 MHZ
    2DPC 2R max speed 3600 MHZ
    Dual channel memory architecture
    Supports non-ECC UDIMM memory
    Supports ECC UDIMM memory (non-ECC mode)
    Supports un-buffered memory

    Graphics:

    1x HDMIā„¢ 2.1 port, supports a maximum resolution of 4096x2160 @60HzĀ 1Ā 2
    Support HDCP 1.4 & 2.3
    1x DisplayPort, supports a maximum resolution of 4096x2160 @60HzĀ 1
    Maximum shared memory of 16 GB
    Available for the processor with integrated graphics.
    Graphics specifications may vary depending on the CPU installed.

    Storage:

    6x SATA 6Gb/s ports
    2x M.2 slots (Key M)
    M2_1 slot (from AMD Processor)
    Supports PCIe 4.0/ 3.0 x4Ā 1
    Supports SATA 6Gb/s
    Supports 2242/ 2260/ 2280/ 22110 storage devices
    M2_2 slot (from AMD B550 chipset)
    Supports PCIe 3.0x4
    Supports 2242/ 2260/ 2280 storage devices
    The supported specification depends on installed processor.

    USB:

    3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
    6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    AMD Processor
    2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
    2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

    Internal I/O:

    1x 24-pin ATX main power connector
    1x 8-pin ATX 12V power connector
    6x SATA 6Gb/s connectors
    2x M.2 slots (M-Key)
    1x USB 3.2 Gen 1 5Gbps Type-C port
    1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    1x 4-pin CPU fan connector
    1x 4-pin water-pump fan connector
    6x 4-pin system fan connectors
    1x Front panel audio connector
    2x System panel connectors
    1x Chassis Intrusion connector
    2x 4-pin RGB LED connectors
    2x 3-pin RAINBOW LED connectors
    1x TPM module connector
    1x Clear CMOS jumper

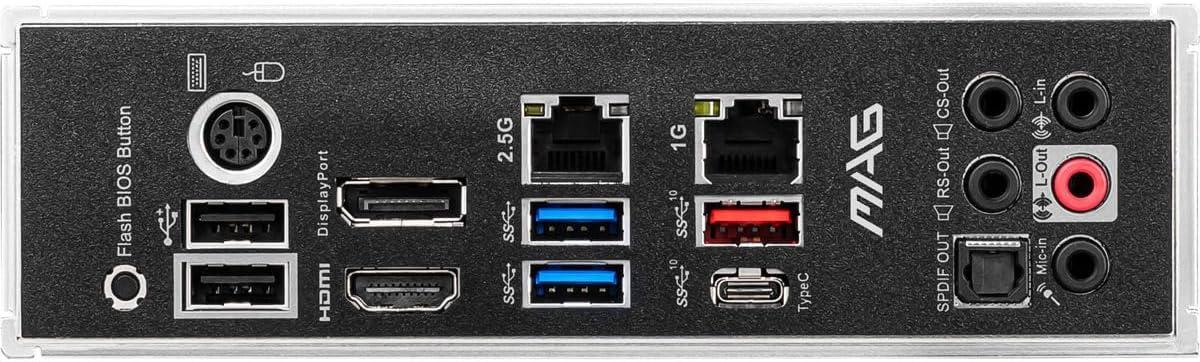

    Back Panel I/O:

    PS/2 Combo Port
    DisplayPort
    2.5G LAN Port
    1G LAN Port
    HD Audio Connectors
    Flash BIOS Button
    USB 2.0 Port
    HDMIā„¢ Port
    USB 3.2 Gen 1 5Gbps (Type-A)
    USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
    Optical S/PDIF OUT

    WiFi:

    None

    Audio:

    RealtekĀ®Ā ALC1200 / ALC1220P Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output

    Special Features:

    None
