Cooler Master NR200P MAX Review & Specifications

The Cooler Master NR200P MAX, manufactured by Cooler Master, is a moderate-quality PC case tailored for Mini-Tower builds. It is built using mid-range steel, plastic, and tempered glass . Its aesthetic is characterized by a optional finish and features a Temperd glass side panel, which adds both style and functionality.

The Cooler Master NR200P MAX supports only Mini-ITX motherboards, making it specifically intended for Small Form Factor (SFF) builds. While challenging due to limited internal space, SFF builds appeal to enthusiasts who enjoy compact systems. Power supply compatibility includes SFX units with a maximum supported length of 135 mm. The overall case dimensions are 376 x 185 x 292 mm, offering insight into its spatial footprint.

This case supports medium to large graphics cards up to 330 mm in length, along with CPU air coolers up to 155 mm in height.

This case features moderate cooling support, including several fan mounts and radiator support up to 280 mm. It's well-suited for mainstream gaming and productivity builds where cooling is important but not extreme. For additional details and specific specifications, refer to the section below.

PC Case Information

Manufacturer: Cooler Master

PC Case Name: Cooler Master NR200P MAX

Current Price Amazon: $399

  • Amazon Price Updated: 1 week, 5 days ago.

    • PC Case Available: True

    Form Factor: Mini-Tower

    Material / Weight: steel, plastic, and tempered glass / None kg

    Color / Side Panel: optional / Temperd glass

    Motherboard Support: Mini-ITX

    GPU Length / CPU Cooler Height: 330 mm / 155 mm

    PSU Form Factor / Maximum Length: SFX / 135 mm

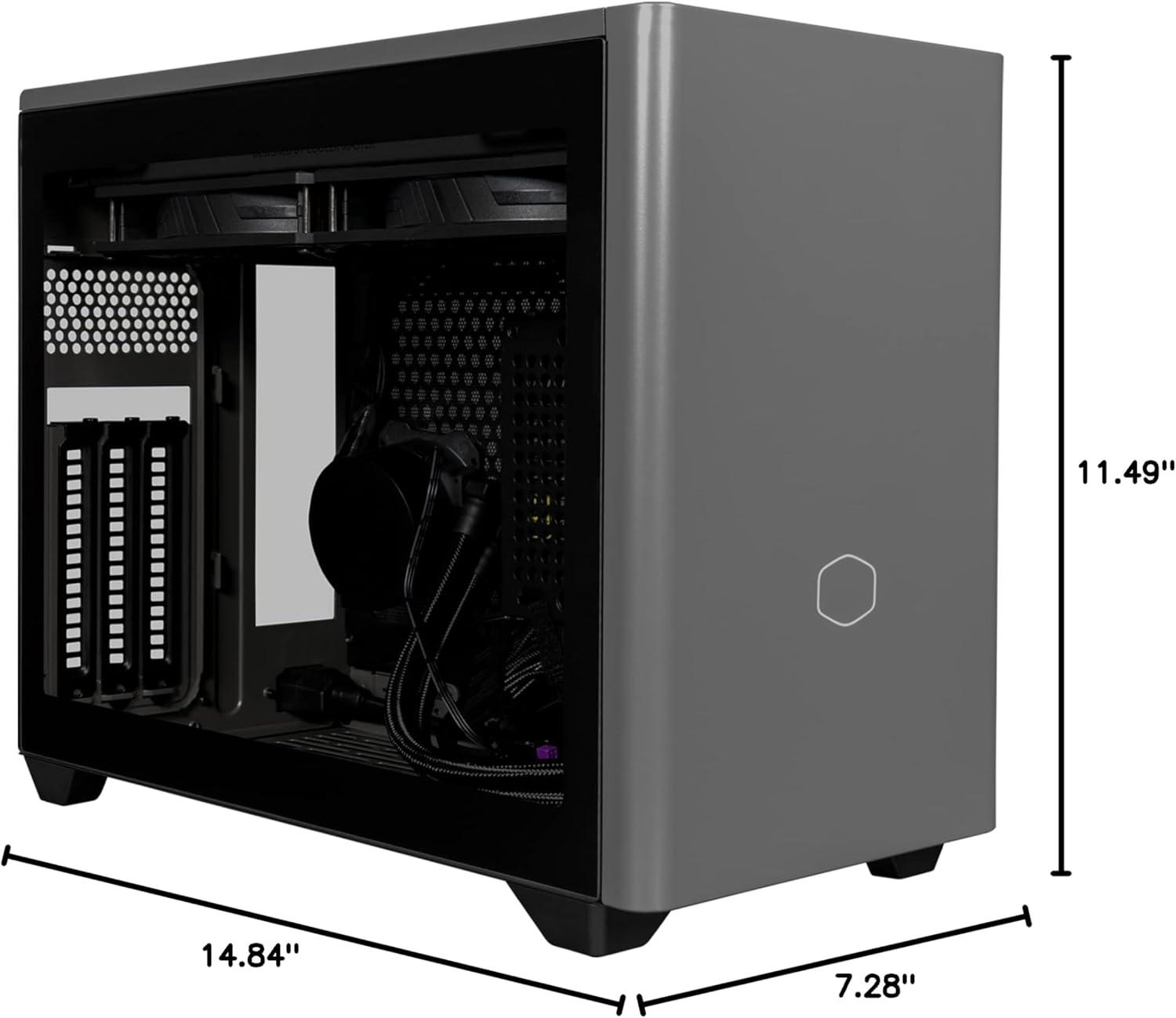

    PC Case Dimensions: 376 x 185 x 292 mm

    Quality & Features (max 100pts)

    Compatibility: 8 pts.

    Cooling Support: 8 pts.

    Build Quality: 14 pts.

    Connectivity: 7 pts.

    Storage Support: 10 pts.

    Total Points: 47 pts.

    Calculated Performance

    Performance & Features per Price: 14.1 %

    Additional PC Case Information

    Fan Support:

    Front Fans:
    N/A
    Rear Fans:
    N/A
    Top Fans:
    2x 120/ 140 mm (optional)
    Bottom Fans:
    2x 120 mm (optional - 15 mm slim)
    `

    Radiator Support:

    Front Radiator:
    N/A
    Rear Radiator:
    N/A
    Top Radiator:
    240 / 280 mm (280 mm AIO pre-installed)
    Bottom Radiator:
    N/A
    Side Radiator:
    N/A

    HDD / SSD Support:

    2x Internal 2.5"
    1x Internal 2.5/3.5"
    1x Internal 3.5"

    Front Ports:

    2x USB 3.0
    1x Audio combo jack

    Dust Filters:

    Yes, Top

    Additional Information:

    CPU Cooler: 76 mm (GPU in vertical position), 153 mm (tempered glass side panel), 155 mm (vented steel side panel) GPU: L: 330 mm (incl. power connector), H: 156 mm (incl. power connector), W: 60 mm (triple slot) PSU: SFX, SFX-L up to 135 mm length 850 W SFX PSU included
