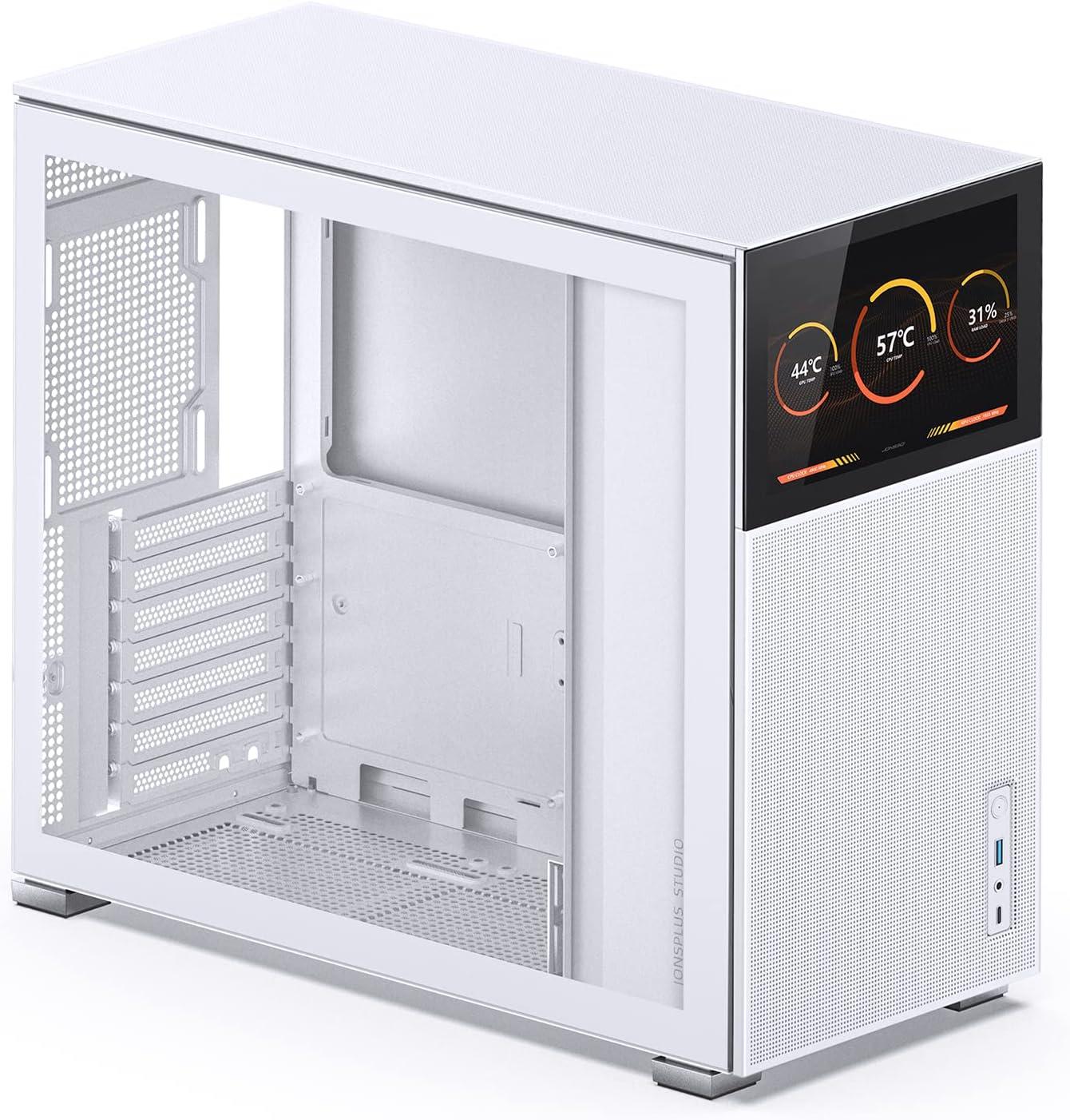

JONSBO D41 MESH SC White ATX Computer Case with Screen

JONSBO D41 MESH SC White ATX Computer Case with Screen Review & Specifications

The JONSBO D41 MESH SC White ATX Computer Case with Screen, manufactured by Jonsbo, is a very high-quality PC case designed for Mid-Tower builds. It is constructed from premium-grade steel, plastic, and tempered glass and weighs approximately 7.08 kg. Its aesthetic is characterized by a white finish and features a Temperd glass side panel, which adds both style and functionality.

The JONSBO D41 MESH SC White ATX Computer Case with Screen supports a standard range of motherboard sizes, including Mini-ITX, Micro-ATX, Standard-ATX. This makes it a versatile choice suitable for most gaming and workstation builds—excluding E-ATX compatibility. Power supply compatibility includes ATX, SFX units with a maximum supported length of None mm. The overall case dimensions are 205mm (W) * 392mm(H) *440mm(D) (Vol: 35.4L), offering insight into its spatial footprint.

This case supports very large graphics cards up to 400 mm in length, along with CPU air coolers up to 168 mm in height.

This case provides excellent cooling support, with extensive fan and radiator mounting options, including radiators up to 360 mm. It ensures superb airflow and thermal management, making it ideal for high-power gaming rigs and workstations. For additional details and specific specifications, refer to the section below.

PC Case Information

Manufacturer: Jonsbo

PC Case Name: JONSBO D41 MESH SC White ATX Computer Case with Screen

Current Price Amazon: $160

  • Amazon Price Updated: 1 week, 6 days ago.

  • PC Case Available: True

    Form Factor: Mid-Tower

    Material / Weight: steel, plastic, and tempered glass / 7.08 kg

    Color / Side Panel: white / Temperd glass

    Motherboard Support: Mini-ITX, Micro-ATX, Standard-ATX

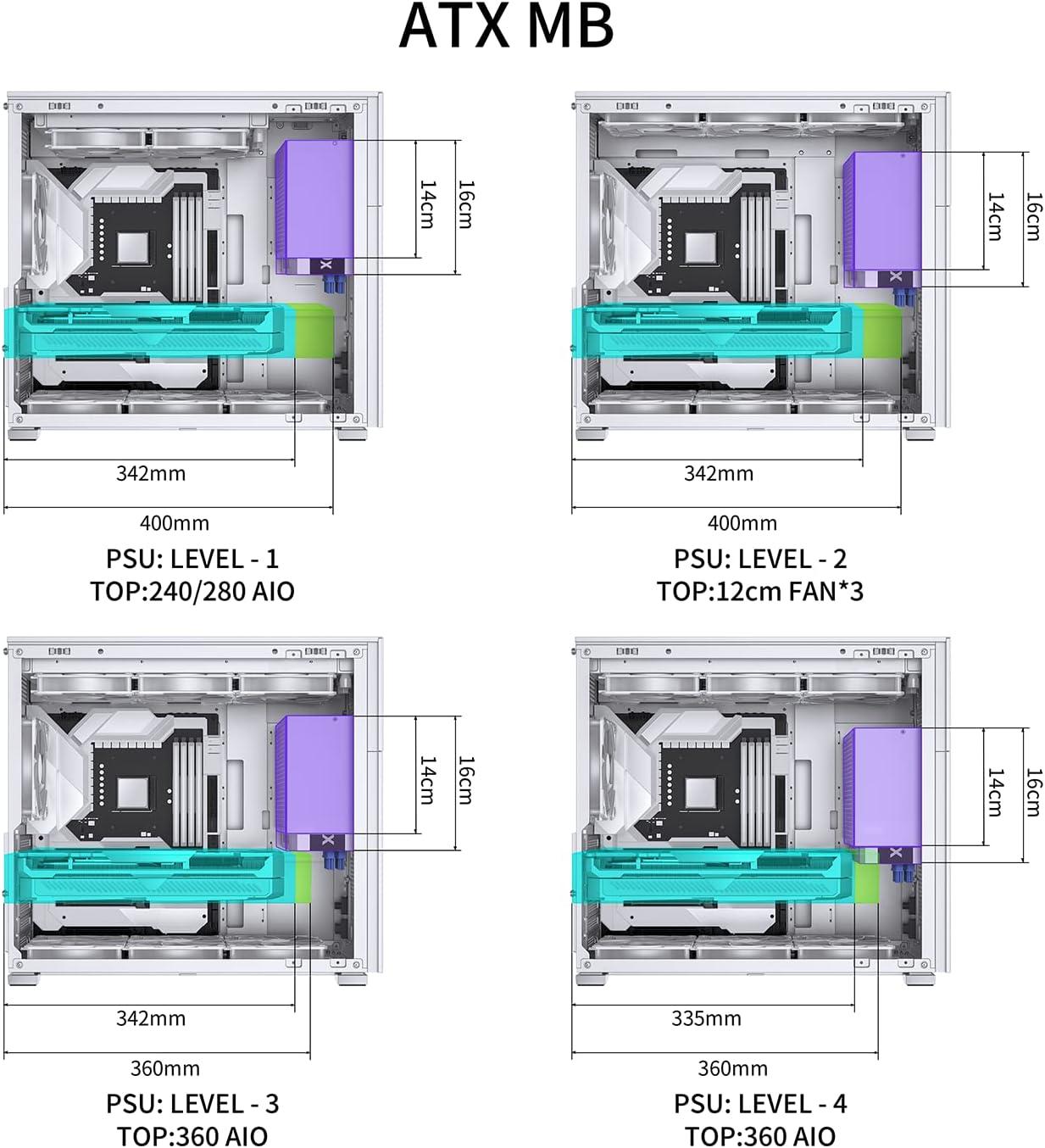

    GPU Length / CPU Cooler Height: 400 mm / 168 mm

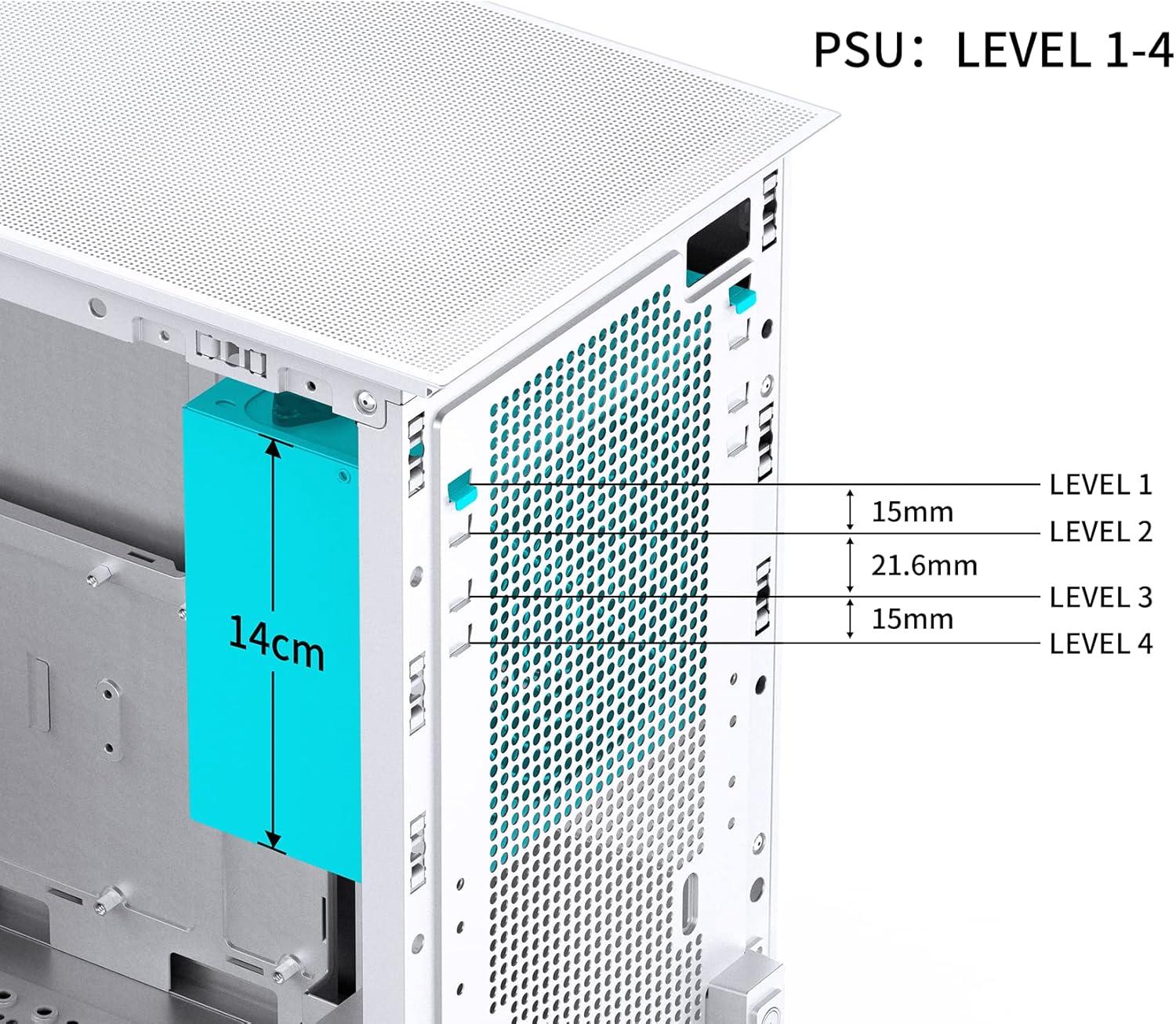

    PSU Form Factor / Maximum Length: ATX, SFX / None mm

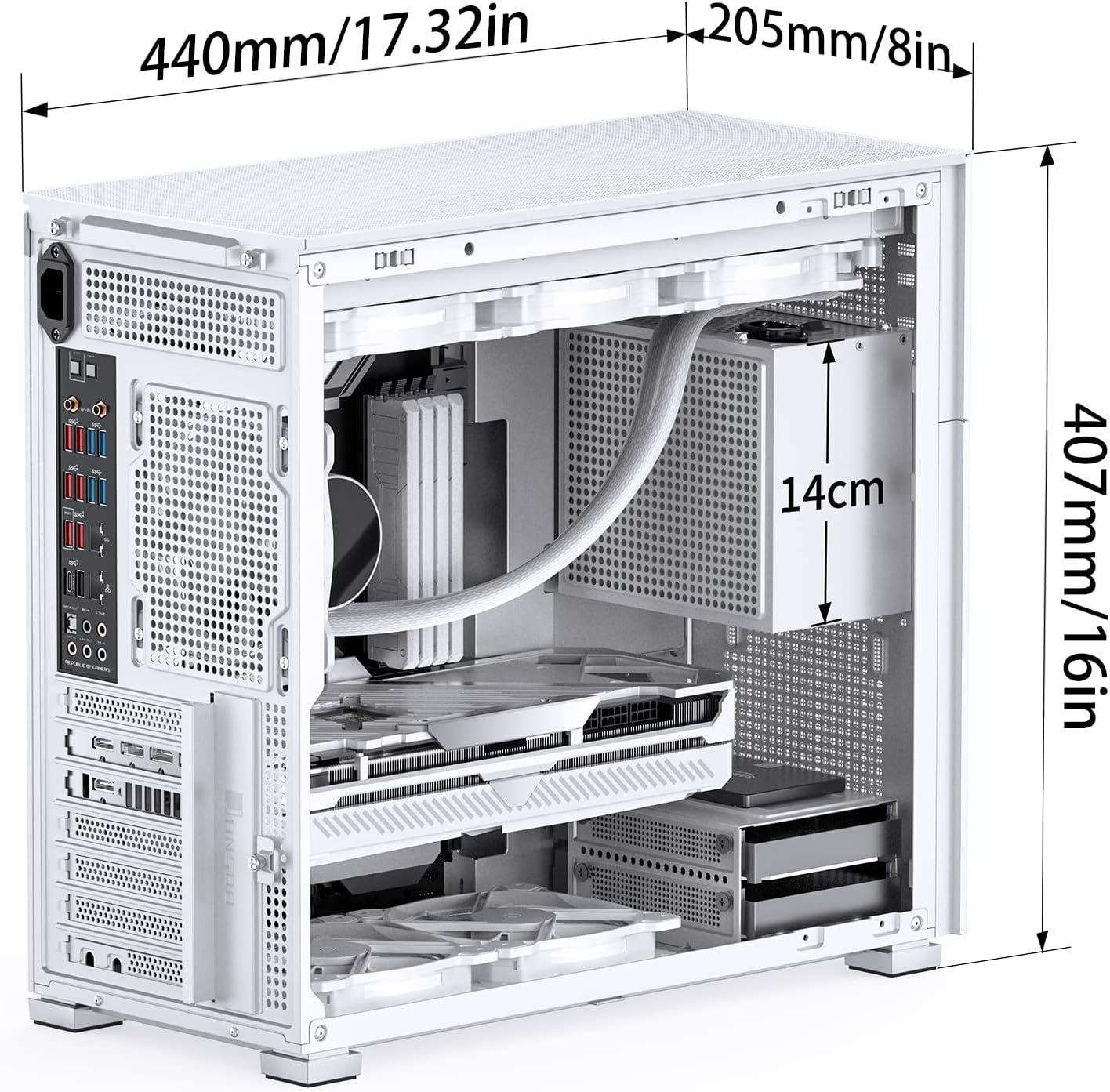

    PC Case Dimensions: 205mm (W) * 392mm(H) *440mm(D) (Vol: 35.4L)

    Quality & Features (max 100pts)

    Compatibility: 16 pts.

    Cooling Support: 16 pts.

    Build Quality: 20 pts.

    Connectivity: 12 pts.

    Storage Support: 14 pts.

    Total Points: 78 pts.

    Calculated Performance

    Performance & Features per Price: 58.5 %

    Additional PC Case Information

    Fan Support:

    Fan mounting position:Top 120mm*3 or 140mm*2          Rear 120*1mm           Bottom 120mm*3 or 140mm*2           Front 120mm*1

    Radiator Support:

    Top 240/280/360*1 Rear 120*1 Bottom 240/360*1

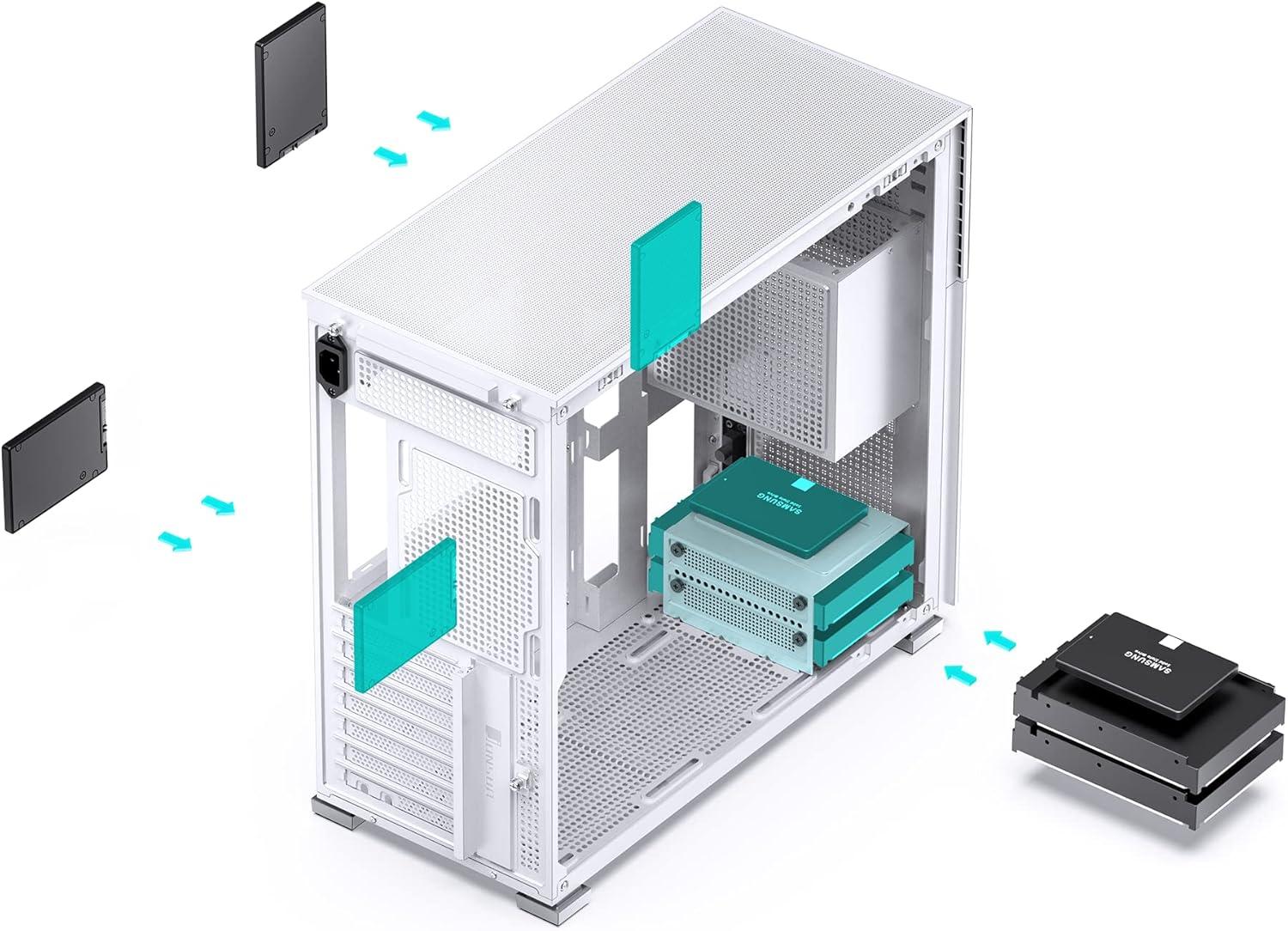

    HDD / SSD Support:

    2.5〞SSD*3+3.5〞HDD*2

    Front Ports:

    USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1

    Dust Filters:

    Yes

    Additional Information:

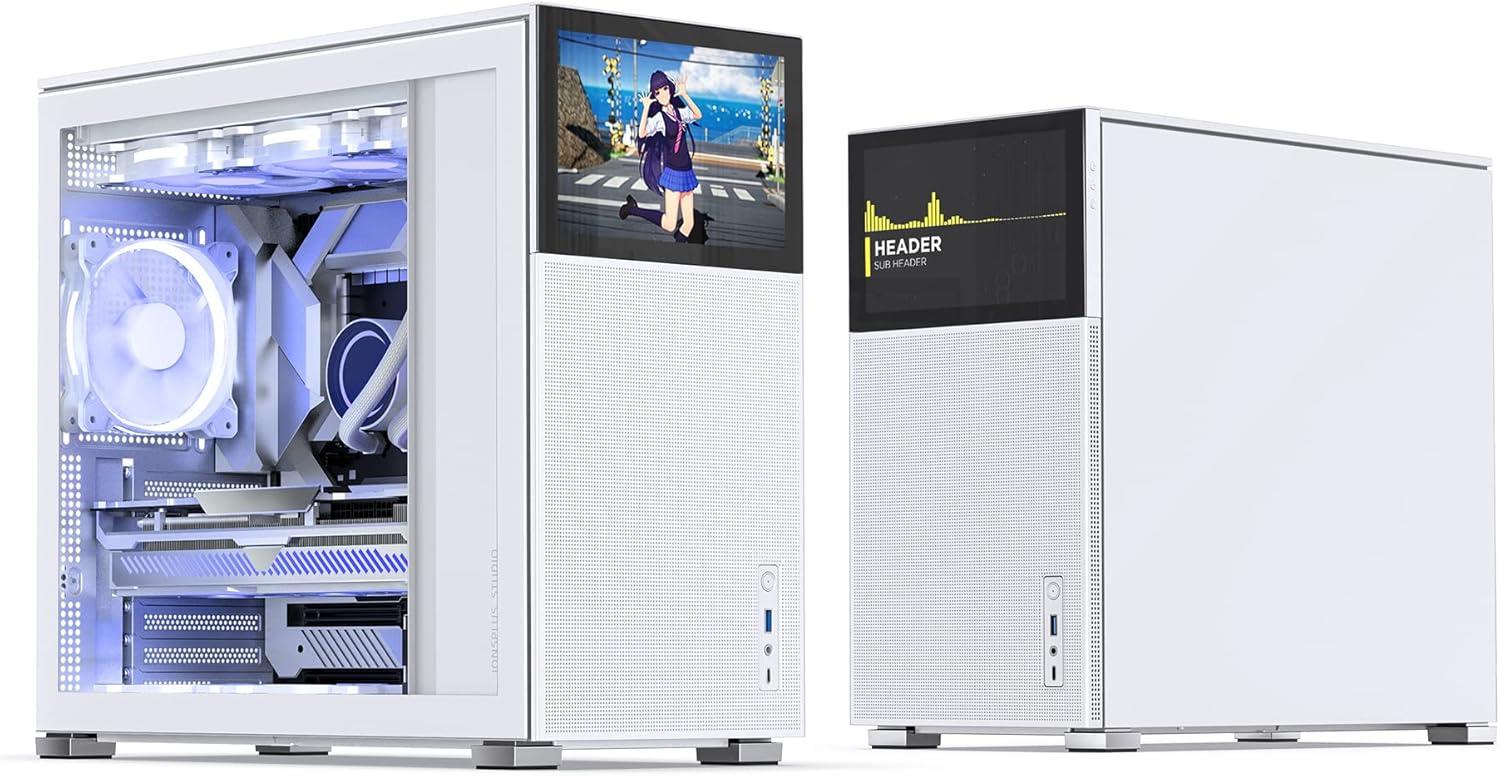

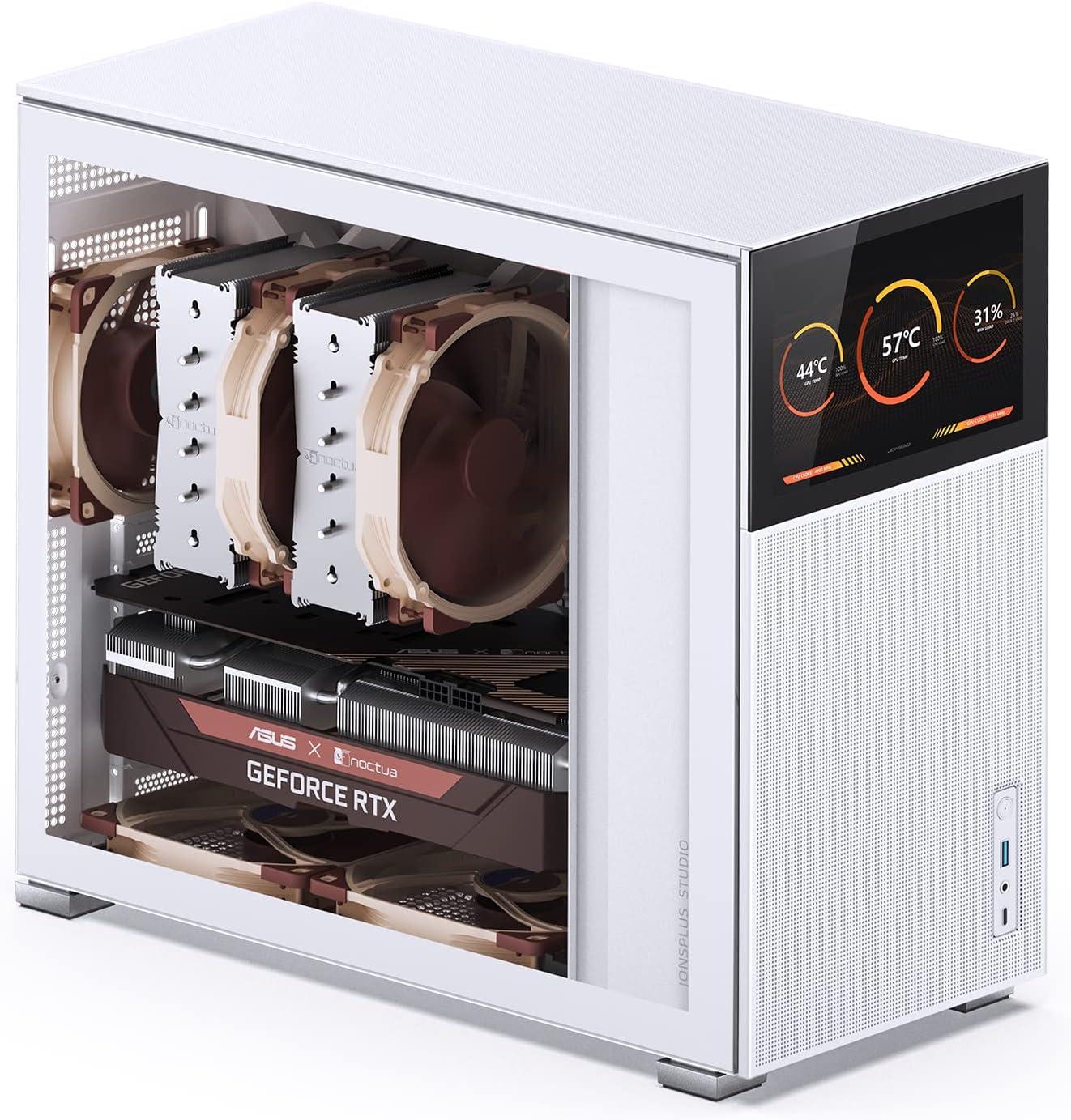

    Screen display spec:
    Dimension:24.6mm(W) * 131.7mm(H) * 205.3mm(L)
    Display size:8〞 Color TFT-LCD                               Colors:16.7M                                       Resolution:1280*800
    Response Time:30ms(Typ.)                                    Brightness:300cd/m2(Typ.)                   Contrast Ratio:1000(Typ.)
    I/O:MINI-HDMI*1(Video Signal)   TYPE-C*1             Refresh Rate(max.):60Hz                      Working Temperture:0-50℃
