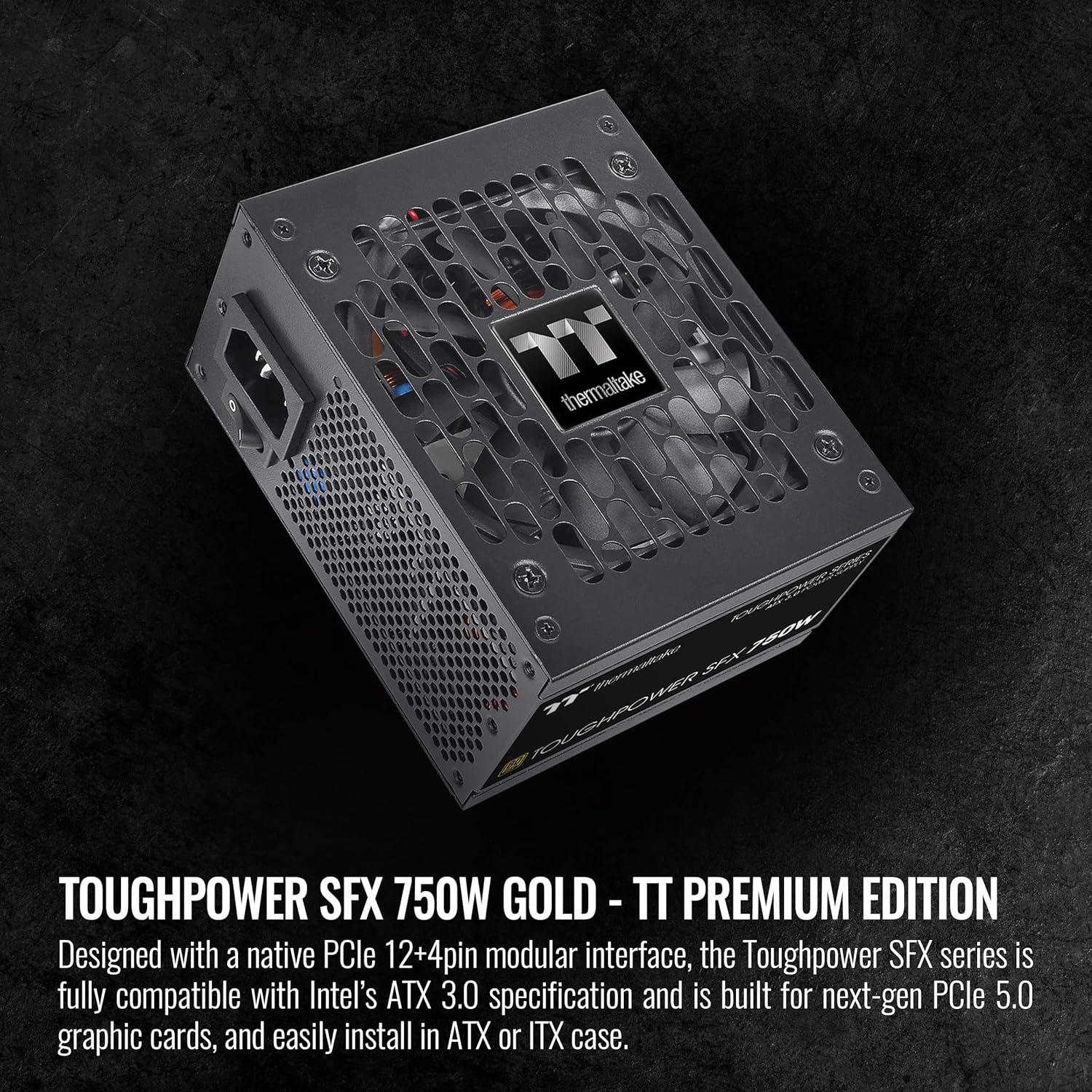

Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Modular 80Plus Gold

Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Modular 80Plus Gold Specifications

The Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Modular 80Plus Gold by Thermaltake (Model: PS-STP-0750FNFAGU-1) is a power supply unit that provides 750 watts of power output. This unit follows the 3.0 standard and comes in a SFX size. It is certified with 80 PLUS Gold and rated at Gold efficiency, reaching a peak efficiency of 90%. It features a 92 mm cooling fan with fan stop support, and is actively cooled. This PSU is modular . It delivers:

  • 62 A on the 12V rail (1 rail(s))
  • 22 A on the 5V rail
  • 22 A on the 3.3V rail
Operating at 100-240 V input, it includes a 7-year warranty. Physical dimensions are 125mm(W)x63.5mm(H)x100mm(D).

Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Modular 80Plus Gold Performance Review

The Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Modular 80Plus Gold is a high power PSU, sufficient for mainstream gaming systems and content creation workstations. It provides sufficient power for systems with modern multi-core CPUs and performance-class GPUs, offering headroom for overclocking and future upgrades.

This PSU achieves a high efficiency of 90% and carries a Gold certification. It balances cost and performance well and is a reliable choice for mainstream builds. The 7-year warranty reflects good long-term support.

This PSU offers moderate value, priced at $196.0 per kilowatt. It delivers decent performance and efficiency, making it a solid mid-range choice for most PC builds. It strikes a good balance between performance and cost, especially for builders prioritizing stability without overspending.

Power Supply Information

Manufacturer: Thermaltake

Power Supply Name: Thermaltake Toughpower SFX (ATX 3.0 Standard) 750W Full Modular 80Plus Gold

Power Supply Part Number: PS-STP-0750FNFAGU-1

Current Price Amazon: $147❗N/A

  • Amazon Price Updated: 2 months ago.

  • Power Supply Available: False

    Power Output: 750 W

    ATX Version / Form Factor: 3.0 / SFX

    Certifications: 80 PLUS Gold

    Efficiency Rating: Gold

    Modular / Fanless: True / False

    Fan Size / Fan Stop: 92 mm / True

    Dimensions: 125mm(W)x63.5mm(H)x100mm(D)

    Warranty: 7 years

    Input Voltage: 100-240 V

    Performance

    Number of 12 V Rails: 1

    Output 12 V / 5 V / 3.3 V: 62 A / 22 A / 22 A

    Maximum Efficiency: 90%

    Calculated Performance

    Performance: 66.5%

    Performance per Price: 45.2%

    Price per kW: 196.0 USD/kW
