XFX Speedster SWFT210 Radeon RX 7600

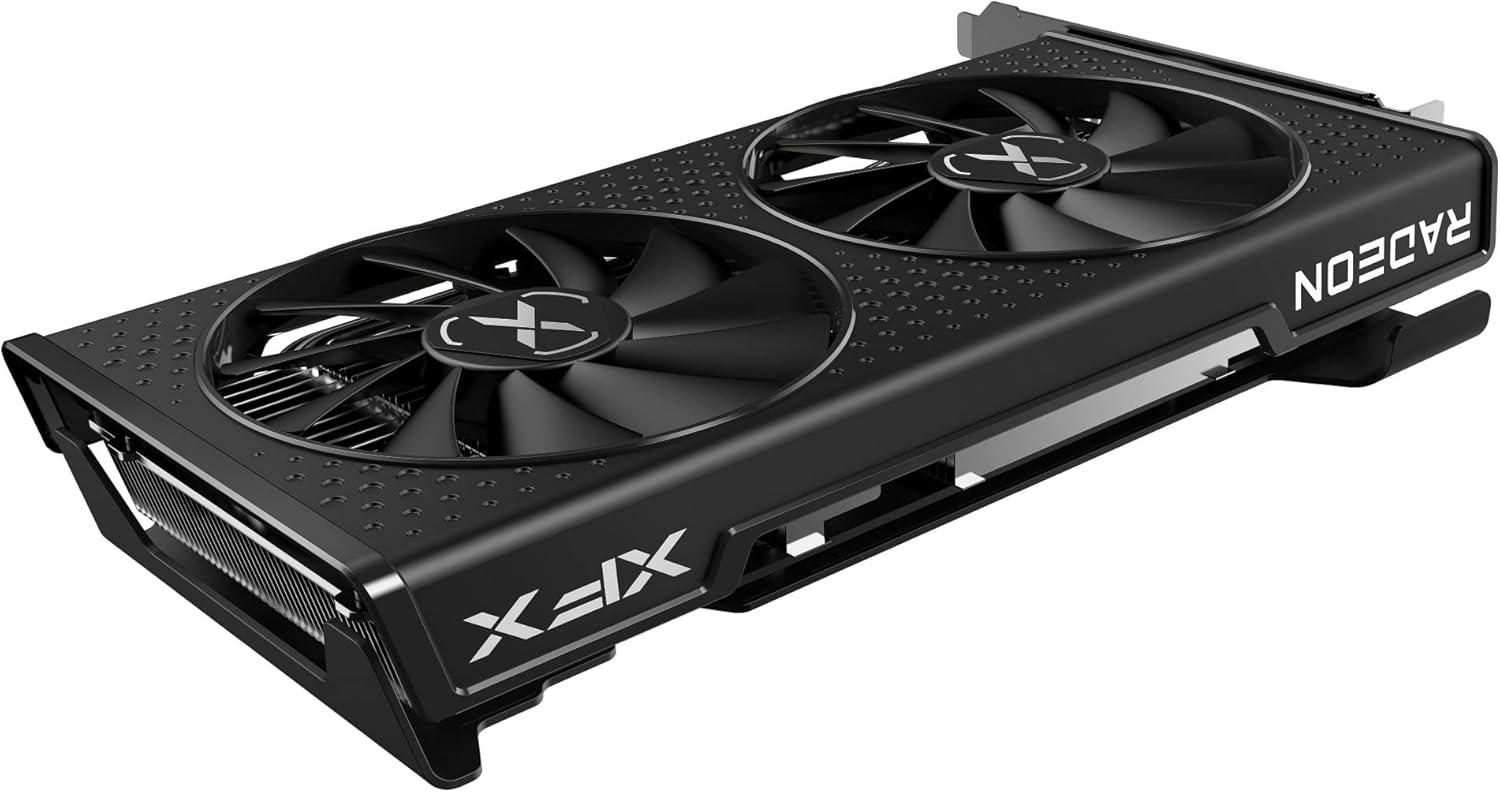

Main Product Image

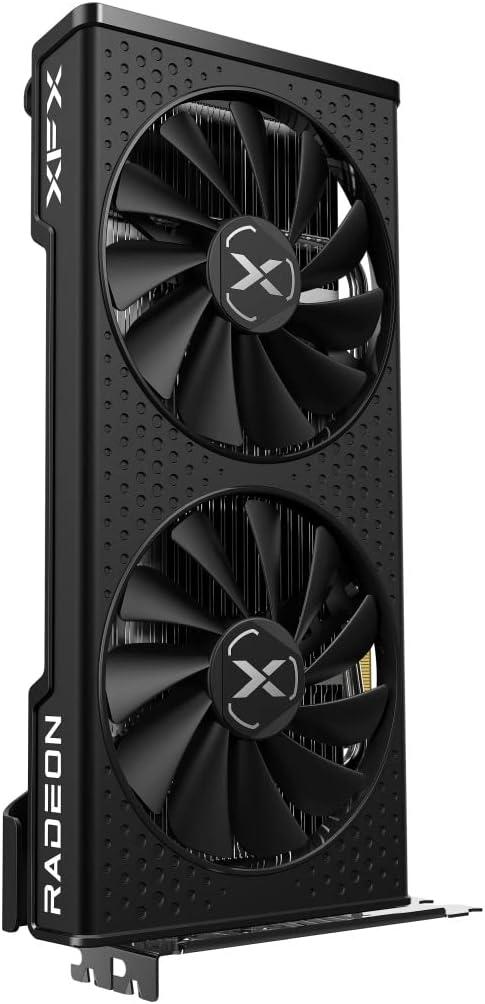

Gallery Image 1

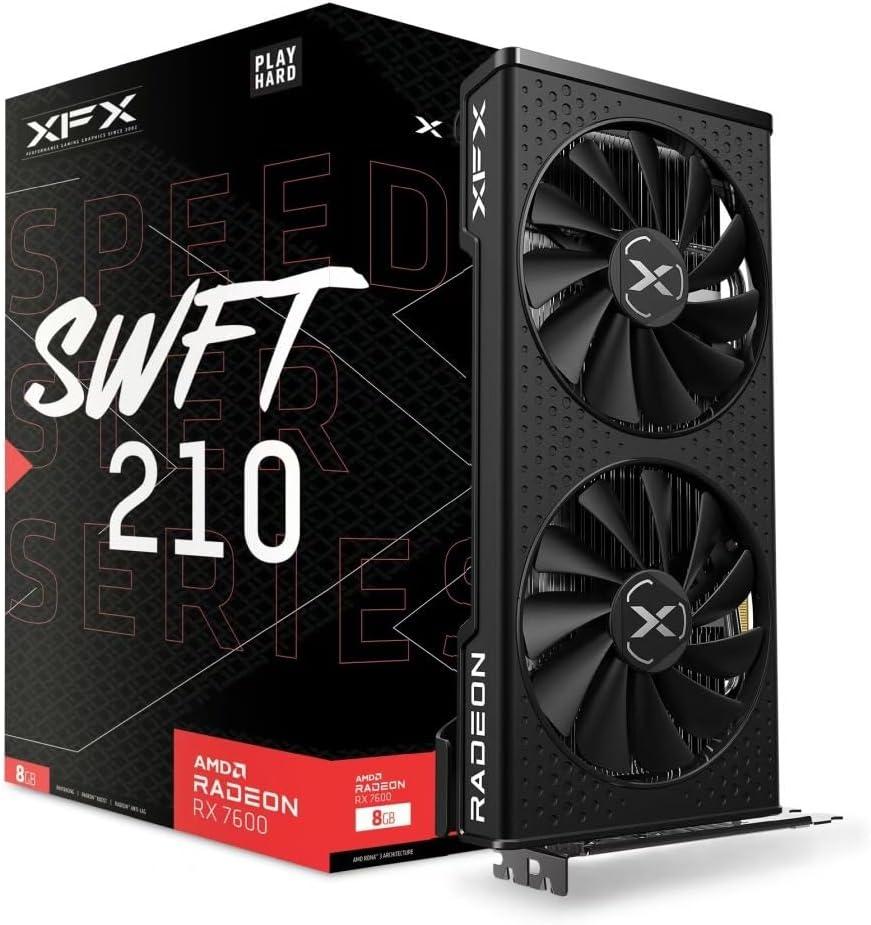

Gallery Image 2

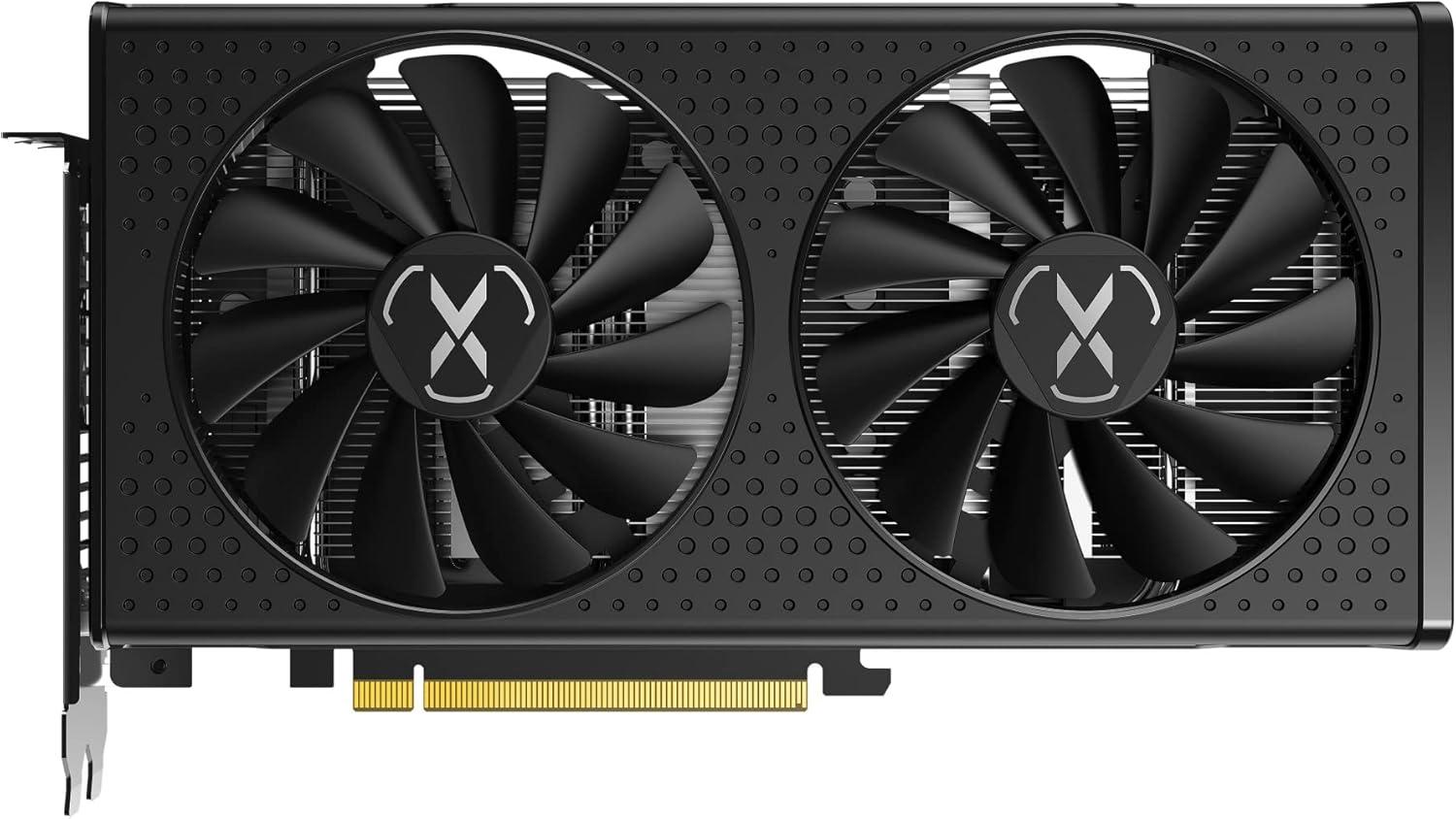

Gallery Image 3

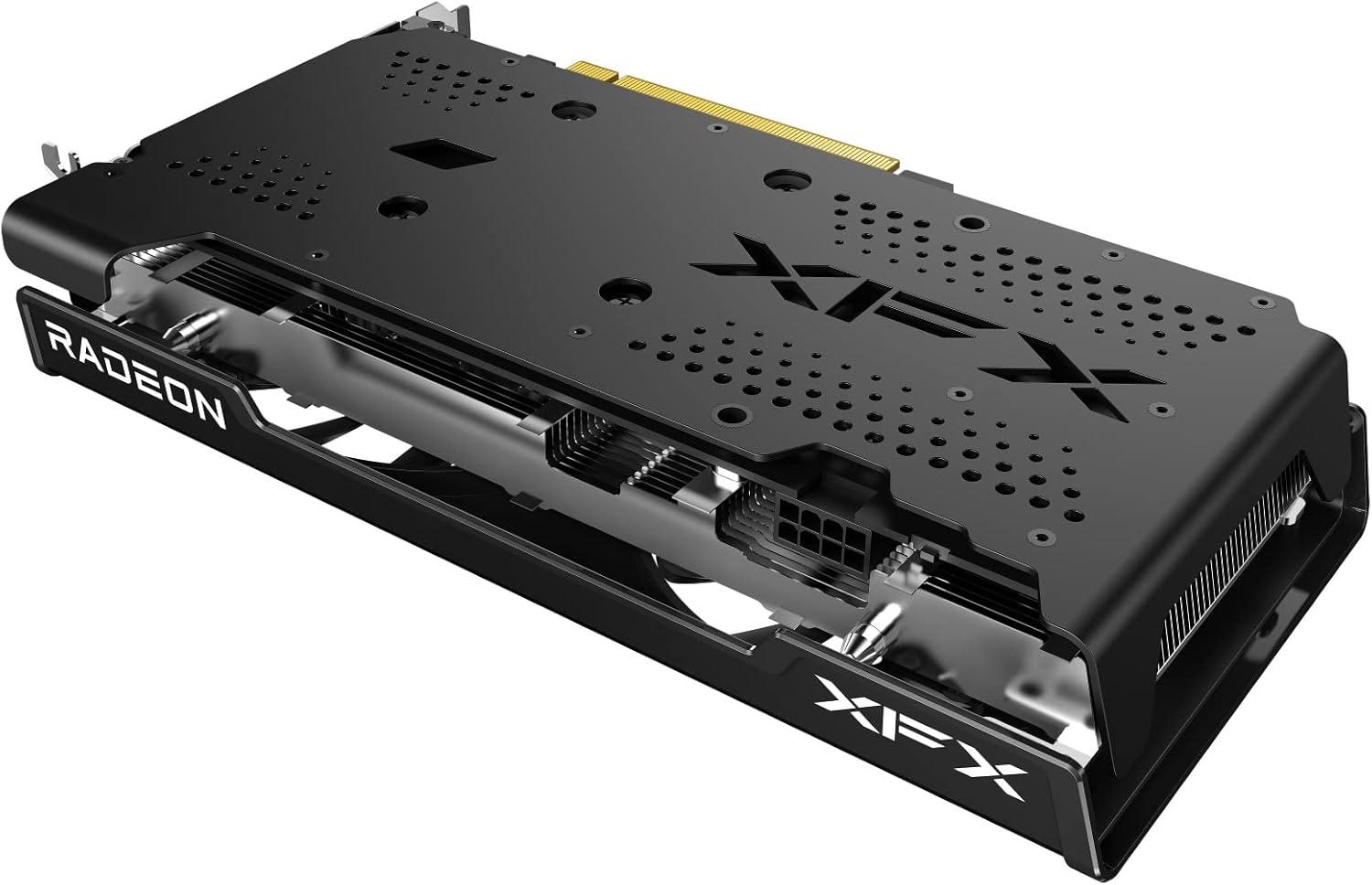

Gallery Image 4
Gallery Image 5
Gallery Image 6

RX 7600 Review & Specifications

The RX 7600 is based on the RDNA 3.0 architecture and manufactured using the 6 nm process node. It was launched approximately 2 years, 1 month ago, originally priced at $269. It features 2048 cores, including 60 compute units (SMs), 128 texture mapping units (TMUs), and 64 render output units (ROPs). For ray tracing and AI-accelerated tasks, it also includes 32 dedicated RT cores and None Tensor cores, enabling advanced rendering and upscaling features where supported. It has a base clock of 1720 MHz and a boost clock reaching up to 2655 MHz. The RX 7600 comes equipped with 8 GB of GDDR6 memory across a 128-bit bus. Memory runs at 2250 MHz and delivers a total memory bandwidth of 288 GB/s.

This GPU has a low thermal design power (TDP) of 165 W. It is generally compatible with almost all PC cases and is excellent for SFF and compact systems where heat dissipation is a concern.

RX 7600 Performance

RX 7600 is an entry-level graphics card with a relative gaming performance score of 30.15%. It performs well at 1080p and can handle 1440p with optimized settings or features like DLSS and FSR, though it's not suitable for 4K. Ideal for casual gamers or users who play occasionally on general-purpose PCs.

The RX 7600 has a moderate VRAM size of 8 GB, which aligns well with its performance class. It is well-suited for 1080p gaming at high settings and 1440p gaming at medium to high settings, depending on the game’s optimization and graphics demands. While capable in rasterized workloads, enabling ray tracing at higher resolutions can quickly consume available VRAM and reduce performance. Upscaling technologies like DLSS or FSR can help improve frame rates, but may come with a noticeable reduction in visual quality. The VRAM capacity is adequate for light to moderate content creation tasks, such as editing Full HD or QHD video, working with smaller assets in 3D environments, and using tools like Photoshop or Premiere Pro for general workloads. In the context of AI and machine learning, this GPU can handle lightweight inference tasks and basic model training. However, users working with large datasets or complex architectures may find the memory insufficient, leading to slowdowns or compatibility issues. This GPU remains a good option for gamers, casual creators, and students exploring AI.

XFX Speedster SWFT210 Radeon RX 7600 provides excellent value at 70.0% efficiency. While its gaming performance is modest, it can still be a cost-effective solution for users with limited demands.

GPU Information

GPU Name: RX 7600

GPU Code Name: Navi 33

Release Price: $269

Launch Date: 2 years, 1 month ago.

Architecture / Process: RDNA 3.0 / 6 nm

Cores / CUs (SMs) : 2048 / 60

TMUs / ROPs: 128 / 64

RT Cores / Tensor Cores: 32 / None

Base / Boost Clock: 1720 MHz / 2655 MHz

Memory: 8 GB GDDR6, 128 bit

Memory Clock / Bandwidth: 2250 MHz / 288 GB/s

Transistors: 13300 million

TDP: 165 W

Graphics Card Information

Name: XFX Speedster SWFT210 Radeon RX 7600

Manufacturer: XFX

Graphics Card Available: True

Current Price Amazon: $299

  • Amazon Price Updated: 4 hours, 25 minutes ago.

    • Factory GPU Clock: 2655 MHz

    Memory Clock: 18 Gbps effective

    Dimensions: 24.1 x 13.1 x 4.1 cm

    Power Connector: 8 pin x 1

    Display Output: DisplayPort 2.1: 3x ‍ HDMI™ 2.1: 1x

    Performance

    Pixel Rate: 233.30 GPixel/s

    Texture Rate: 339.80 GTexel/s

    FP16: 43.50 TFLOPS

    FP32: 21.75 TFLOPS

    FP64: 679.70 GFLOPS

    Gaming Performance

    1080p: 30.15%

    1440p: 23.78%

    2160p: 18.62%

    Calculated Performance

    Performance per Price: 70.0%

    RX 7600 Compared to Similar Performance GPUs

    GPU Price / Performance Table

    GPU (Desc) Price (Desc) Gaming_1080p (Desc) Gaming_1440p (Desc) Gaming_2160p (Desc) Game_1440p/Price (Desc)
    RTX 4060
    $375 | 0.0%
    30.9%
    24.9%
    19.9%
    58.4%
    Arc A770
    $279 | 0.0%
    28.3%
    24.6%
    22.2%
    77.7%
    RTX 2070 SUPER
    $349 | 0.0%
    29.4%
    24.4%
    21.1%
    61.5%
    RX 6650 XT
    $285 | 0.0%
    29.9%
    23.9%
    18.4%
    73.8%
    RX 7600
    $274 | 0.0%
    30.2%
    23.8%
    18.6%
    76.4%
    RX 6600 XT
    $274 | 0.0%
    28.6%
    22.6%
    17.6%
    72.5%
    Arc A750
    $174 | 0.0%
    25.9%
    22.4%
    17.8%
    113.5%
    RTX 3060 12GB
    $369 | 0.0%
    26.9%
    22.3%
    18.9%
    53.2%
    RTX 2070
    $749 | 0.0%
    26.9%
    21.0%
    17.9%
    24.6%

    GPU Specification Table

    GPU (Desc) Architecture Shader/TMU/ROP/RT Base/Boost Clock Memory Mem Clock/Bandwidth TDP
    RTX 4060 AD107 / 5 nm / Ada Lovelace 3072 / 96 / 48 / 24 1830 MHz / 2460 MHz 8 GB GDDR6 / 128 bit 2125 MHz / 272 GB/s 115 W
    Arc A770 DG2-512 / 6 nm / Xe HPG 4096 / 256 / 128 / 32 2100 MHz / 2400 MHz 16 GB GDDR6 / 256 bit 2000 MHz / 512 GB/s 225 W
    RTX 2070 SUPER TU104 / 12 nm / Turing 2560 / 160 / 64 / 40 1606 MHz / 1770 MHz 8 GB GDDR6 / 256 bit 1750 MHz / 448 GB/s 215 W
    RX 6650 XT Navi 23 / 7 nm / RDNA 2.0 2048 / 128 / 64 / 32 2055 MHz / 2635 MHz 8 GB GDDR6 / 128 bit 2190 MHz / 280 GB/s 176 W
    RX 7600 Navi 33 / 6 nm / RDNA 3.0 2048 / 128 / 64 / 32 1720 MHz / 2655 MHz 8 GB GDDR6 / 128 bit 2250 MHz / 288 GB/s 165 W
    RX 6600 XT Navi 23 / 7 nm / RDNA 2.0 2048 / 128 / 64 / 32 1968 MHz / 2589 MHz 8 GB GDDR6 / 128 bit 2000 MHz / 256 GB/s 160 W
    Arc A750 DG2-512 / 6 nm / Xe HPG 3584 / 224 / 112 / 28 2050 MHz / 2400 MHz 8 GB GDDR6 / 256 bit 2000 MHz / 512 GB/s 225 W
    RTX 3060 12GB GA106 / 8 nm / Ampere 3584 / 112 / 48 / 28 1320 MHz / 1777 MHz 12 GB GDDR6 / 192 bit 1875 MHz / 360 GB/s 170 W
    RTX 2070 TU106 / 12 nm / Turing 2304 / 144 / 64 / 36 1410 MHz / 1620 MHz 8 GB GDDR6 / 256 bit 1750 MHz / 448 GB/s 175 W

    GPU Table Explanations

    GPU (Asc): This refers to the name of the graphics processing unit (GPU).

    Price (Asc): This column shows the price of the GPU, sorted in ascending order. The value next to the price indicates the percentage change in price compared to a previous day.

    Architecture: This refers to the core architecture of the GPU, including the process node (nm), the underlying architecture name, and any notable features. For example, AD102 / 5 nm / Ada Lovelace tells us that the RTX 4090 uses the AD102 core, built on a 5 nm process node, and based on the Ada Lovelace architecture.

    Shader/TMU/ROP/RT: These are performance metrics of the GPU:

    • Shader: The number of cores responsible for handling calculations.
    • TMU (Texture Mapping Unit): The number of cores involved in texture processing.
    • ROP (Raster Operations Pipeline): The number of cores used in the final stages of the rendering process.
    • RT (Ray Tracing Cores): The cores dedicated to ray tracing (advanced rendering effects).
    For example, 16384 / 512 / 176 / 128 means the RTX 4090 has 16,384 shaders, 512 TMUs, 176 ROPs, and 128 RT cores.

    Base/Boost Clock: These values indicate the speeds at which the GPU operates:

    • Base Clock: The minimum speed at which the GPU runs.
    • Boost Clock: The maximum speed the GPU can achieve under load.

    Memory: This describes the amount of video memory (VRAM) on the GPU and its type. For example, 24 GB GDDR6X / 384 bit means the RTX 4090 has 24 GB of GDDR6X memory with a 384-bit memory interface.

    Mem Clock/Bandwidth: The memory clock refers to the speed of the memory, while bandwidth indicates the amount of data that can be transferred per second. For example, 1313 MHz / 1010 GB/s means the memory clock speed is 1313 MHz and the memory bandwidth is 1010 GB/s.

    TDP (Thermal Design Power): This is the maximum amount of power the GPU is expected to consume under full load, measured in watts. It also indicates the cooling solution needed. For example, 450 W means the RTX 4090 has a TDP of 450 watts.
