AMD Ryzen 7 7800X3D Specifications and Performance Analysis

The AMD Ryzen 7 7800X3D is based on the Raphael architecture and is manufactured using the 5 nm process at the TSMC foundry. It is compatible with the AM5 socket used by X670E, X670, B650E, B650, A620 chipsets and supports PCIe Gen 5, 24 Lanes (CPU only), as well as DDR5 memory with speeds of up to 5200 MT/s across Dual-channel memory. This processor features 8 cores operating at a base clock of 4.20 GHz and a boost clock of up to 5.00 GHz, for a total of 16 threads. It is equipped with 64 kB of L1 cache, 1024 kB of L2 cache, and 96 MB of L3 cache.

This CPU is designed for a mainstream desktop platform. It supports consumer-grade memory configurations and modern expansion standards, making it suitable for everyday computing, gaming, and productivity workloads.

The AMD Ryzen 7 7800X3D has a base TDP of 120 W and a moderate maximum TDP of 162 W. Most mid-range aftermarket air coolers are sufficient for thermal control. This processor is also suitable for small form factor builds, which often have limited airflow.

For users who require integrated graphics, this CPU includes the Radeon Graphics, which features 2 GPU cores. It operates at a base clock of 400.00 GHz and boosts up to 2200.00 GHz. This makes it suitable for systems without a dedicated GPU, capable of handling everyday tasks and running older or less demanding games. Integrated graphics can also accelerate specific workloads even when a discrete GPU is installed.

Application Performance

AMD Ryzen 7 7800X3D is a mid-range CPU, achieving a relative application performance score of 47.10% of the best possible desktop CPU performance. This CPU is ideal for daily computing, productivity tasks, and multitasking. While it can handle professional applications like 3D rendering and video editing, it may exhibit slower execution and reduced responsiveness under heavy workloads.

The application performance-per-price ratio of AMD Ryzen 7 7800X3D is 41.2%, indicating lower value in this category. This CPU does not offer high application performance and has a low performance-to-price ratio, making it a poor value proposition. Better alternatives exist at this price point.

Gaming Performance

AMD Ryzen 7 7800X3D is a strong gaming CPU, achieving a relative gaming performance score at 1080p resolution of 89.11% compared to the best possible desktop CPU gaming performance. This CPU This CPU delivers excellent gaming performance, especially at higher resolutions where the GPU becomes the primary bottleneck. It is recommended for users who work on their computers but also engage in occasional or regular gaming.

The gaming performance-per-price score of 44.9%, this CPU does not offer strong value in this category. However, since it is a high-end gaming CPU offering top-tier performance, it remains a recommended choice for users who prioritize gaming power and are less concerned about budget constraints.

General Information

CPU Name	AMD Ryzen 7 7800X3D
Release Price	$449.00
Current Price on Amazon	$377
Amazon Price Updated	2 days, 8 hours ago.
Launch Date	3 years, 5 months ago.
CPU Available	True

Architecture

Architecture	Raphael
Foundry	TSMC
Process	5 nm
Socket	AM5
Chipsets	X670E, X670, B650E, B650, A620
Transistors	11270 million
Die Size	71 mm²
PCIe Version	Gen 5, 24 Lanes (CPU only)

Core Configuration

Cores / Threads	8 / 16
Base / Boost Clock	4.20 GHz / 5.00 GHz

RAM Support

Memory Support / Max Speed	DDR5 / 5200 MT/s
Memory Bandwidth	83.2 GB/s
Memory Channels	Dual-channel
ECC Support	True

Cache Configuration

L1 Cache (per core)	64 kB
L2 Cache (per core)	1024 kB
L3 Cache (shared)	96 MB

TDP Configuration

Base TDP	120 W
Max Turbo Power	162 W

Integrated Graphics

Integrated Graphics	True
GPU Name	Radeon Graphics
GPU Cores	2
GPU Base / Boost Clock	400.00 GHz / 2200.00 GHz

Cinebench R24 Performance

Cinebench R24 Multi-core	1109
Cinebench R24 Single-core	110

CPU Normalized Performance Chart

AMD Ryzen 7 7800X3D Compared to Similar Performance CPUs

CPU Price / Performance Table

CPU (Desc) CPU Name Sorts CPUs alphabetically. Click to change order (ascending/descending).	Price (Desc) Price (Amazon) Sorts CPUs by their current Amazon price. Click to toggle ascending/descending.	Performance (Desc) General Performance Based on multi-purpose workloads like rendering, encoding and compression. Click to sort.	Game_Perf (Desc) Gaming Performance (1080p) Measures relative gaming performance in modern games at 1080p. Click to sort by gaming power.	Combined (Desc) Combined Performance Average of general and gaming performance. Use for balanced evaluation. Click to sort.	Perf/Price (Desc) Performance per Dollar Shows how much performance you get for the price. Higher is better. Click to sort.	Game/Price (Desc) Gaming per Dollar Game performance divided by current price. Click to find best gaming deals.	Combined/Price (Desc) Combined per Dollar Overall value score (performance and gaming) per dollar spent. Click to find best overall CPU deals.

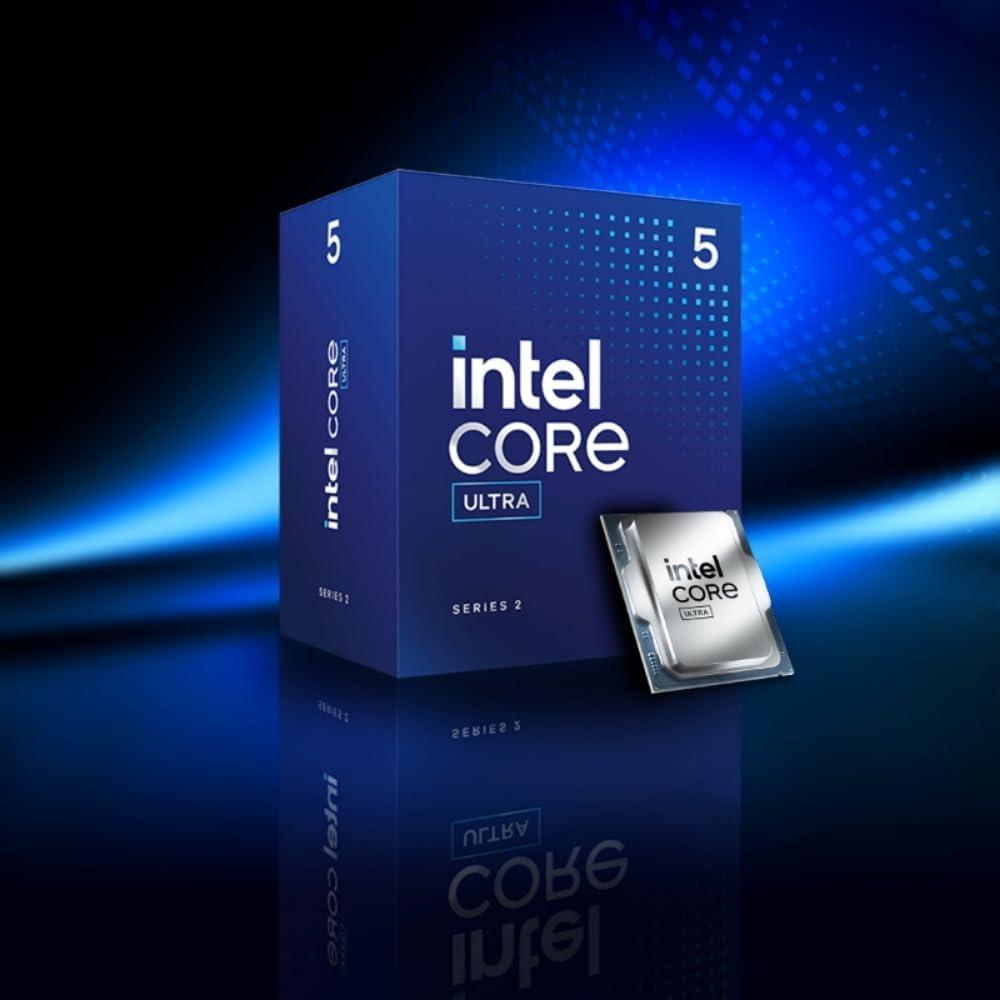

Intel Core Ultra 5 235 Intel Core Ultra 5 235 View detailed specs, benchmarks, charts, and comparison for this CPU.	$346 Intel Core Ultra 5 235 Current Amazon Price Click to view this CPU on Amazon. \| ↑ 1.2% Intel Core Ultra 5 235 Price Change Price increased from the last update.	49.2%	74.2%	61.7%	46.9%	40.8%	42.8%
AMD Ryzen 7 7700 AMD Ryzen 7 7700 View detailed specs, benchmarks, charts, and comparison for this CPU.	$330 AMD Ryzen 7 7700 Current Amazon Price Click to view this CPU on Amazon. \| ↑ 57.2% AMD Ryzen 7 7700 Price Change Price increased from the last update.	47.8%	78.1%	63.0%	47.8%	44.9%	45.8%
Intel Core i5-14500 Intel Core i5-14500 View detailed specs, benchmarks, charts, and comparison for this CPU.	$280 Intel Core i5-14500 Current Amazon Price Click to view this CPU on Amazon. \| 0.0% Intel Core i5-14500 Price Change No significant price change detected.	47.8%	75.0%	61.4%	56.3%	50.9%	52.6%
Intel Core i5-13600 Intel Core i5-13600 View detailed specs, benchmarks, charts, and comparison for this CPU.	$255 Intel Core i5-13600 Current Amazon Price Click to view this CPU on Amazon. \| ↓ -4.9% Intel Core i5-13600 Price Change Price decreased from the last update.	47.7%	74.7%	61.2%	61.7%	55.7%	57.6%
AMD Ryzen 7 7800X3D AMD Ryzen 7 7800X3D View detailed specs, benchmarks, charts, and comparison for this CPU.	$377 AMD Ryzen 7 7800X3D Current Amazon Price Click to view this CPU on Amazon. \| ↑ 11.2% AMD Ryzen 7 7800X3D Price Change Price increased from the last update.	47.1%	89.1%	68.1%	41.2%	44.9%	43.4%
Intel Core i5-13500 Intel Core i5-13500 View detailed specs, benchmarks, charts, and comparison for this CPU.	$280 Intel Core i5-13500 Current Amazon Price Click to view this CPU on Amazon. \| ↓ -39.8% Intel Core i5-13500 Price Change Price decreased from the last update.	45.6%	73.0%	59.3%	53.7%	49.5%	50.8%
AMD Ryzen 7 8700G AMD Ryzen 7 8700G View detailed specs, benchmarks, charts, and comparison for this CPU.	$266 AMD Ryzen 7 8700G Current Amazon Price Click to view this CPU on Amazon. \| ↓ -0.4% AMD Ryzen 7 8700G Price Change Price decreased from the last update.	45.2%	63.7%	54.4%	56.1%	45.5%	49.1%
AMD Ryzen 7 8700F AMD Ryzen 7 8700F View detailed specs, benchmarks, charts, and comparison for this CPU.	$180 AMD Ryzen 7 8700F Current Amazon Price Click to view this CPU on Amazon. \| ↓ -10.0% AMD Ryzen 7 8700F Price Change Price decreased from the last update.	45.1%	63.5%	54.3%	82.7%	67.1%	72.4%
AMD Ryzen 5 9600X AMD Ryzen 5 9600X View detailed specs, benchmarks, charts, and comparison for this CPU.	$180 AMD Ryzen 5 9600X Current Amazon Price Click to view this CPU on Amazon. \| 0.0% AMD Ryzen 5 9600X Price Change No significant price change detected.	43.7%	80.4%	62.0%	80.1%	84.9%	82.7%

Processor Comparison and Detail Specifications Table

Specification	Intel Core Ultra 5 235 Intel Core Ultra 5 235 View detailed specs, benchmarks, charts, and comparison for this CPU.	AMD Ryzen 7 7700 AMD Ryzen 7 7700 View detailed specs, benchmarks, charts, and comparison for this CPU.	Intel Core i5-14500 Intel Core i5-14500 View detailed specs, benchmarks, charts, and comparison for this CPU.	Intel Core i5-13600 Intel Core i5-13600 View detailed specs, benchmarks, charts, and comparison for this CPU.	AMD Ryzen 7 7800X3D AMD Ryzen 7 7800X3D View detailed specs, benchmarks, charts, and comparison for this CPU.	Intel Core i5-13500 Intel Core i5-13500 View detailed specs, benchmarks, charts, and comparison for this CPU.	AMD Ryzen 7 8700G AMD Ryzen 7 8700G View detailed specs, benchmarks, charts, and comparison for this CPU.	AMD Ryzen 7 8700F AMD Ryzen 7 8700F View detailed specs, benchmarks, charts, and comparison for this CPU.	AMD Ryzen 5 9600X AMD Ryzen 5 9600X View detailed specs, benchmarks, charts, and comparison for this CPU.
Perf Chart
Price	$346 Intel Core Ultra 5 235 Current Amazon Price Click to view this CPU on Amazon. \| ↑ 1.2% Intel Core Ultra 5 235 Price Change Price increased from the last update.	$330 AMD Ryzen 7 7700 Current Amazon Price Click to view this CPU on Amazon. \| ↑ 57.2% AMD Ryzen 7 7700 Price Change Price increased from the last update.	$280 Intel Core i5-14500 Current Amazon Price Click to view this CPU on Amazon. \| 0.0% Intel Core i5-14500 Price Change No significant price change detected.	$255 Intel Core i5-13600 Current Amazon Price Click to view this CPU on Amazon. \| ↓ -4.9% Intel Core i5-13600 Price Change Price decreased from the last update.	$377 AMD Ryzen 7 7800X3D Current Amazon Price Click to view this CPU on Amazon. \| ↑ 11.2% AMD Ryzen 7 7800X3D Price Change Price increased from the last update.	$280 Intel Core i5-13500 Current Amazon Price Click to view this CPU on Amazon. \| ↓ -39.8% Intel Core i5-13500 Price Change Price decreased from the last update.	$266 AMD Ryzen 7 8700G Current Amazon Price Click to view this CPU on Amazon. \| ↓ -0.4% AMD Ryzen 7 8700G Price Change Price decreased from the last update.	$180 AMD Ryzen 7 8700F Current Amazon Price Click to view this CPU on Amazon. \| ↓ -10.0% AMD Ryzen 7 8700F Price Change Price decreased from the last update.	$180 AMD Ryzen 5 9600X Current Amazon Price Click to view this CPU on Amazon. \| 0.0% AMD Ryzen 5 9600X Price Change No significant price change detected.
Manufacturer	Intel	AMD	Intel	Intel	AMD	Intel	AMD	AMD	AMD
C/SC/T	14 / 8 / 14	8 / 0 / 16	14 / 8 / 20	14 / 8 / 20	8 / 0 / 16	14 / 8 / 20	8 / 0 / 16	8 / 0 / 16	6 / 0 / 12
L2 / L3 Cache	3072.0 kB / 24.0 MB	1024.0 kB / 32.0 MB	1280.0 kB / 24.0 MB	1280.0 kB / 24.0 MB	1024.0 kB / 96.0 MB	1280.0 kB / 24.0 MB	1024.0 kB / 16.0 MB	1024.0 kB / 16.0 MB	1024.0 kB / 32.0 MB
Base / Boost	3.40 GHz / 5.00 GHz	3.80 GHz / 5.30 GHz	2.60 GHz / 5.00 GHz	2.70 GHz / 5.00 GHz	4.20 GHz / 5.00 GHz	2.50 GHz / 4.80 GHz	4.20 GHz / 5.10 GHz	4.10 GHz / 5.00 GHz	3.90 GHz / 5.40 GHz
Memory	DDR5 / 6400 MT/s	DDR5 / 5200 MT/s	DDR4, DDR5 / 4800 MT/s	DDR4, DDR5 / 4800 MT/s	DDR5 / 5200 MT/s	DDR4, DDR5 / 4800 MT/s	DDR5 / 5200 MT/s	DDR5 / 5200 MT/s	DDR5 / 5600 MT/s
Arch / Node	Arrow Lake-S / 3 nm	Raphael / 5 nm	Raptor Lake-R / 10 nm	Raptor Lake-S / 10 nm	Raphael / 5 nm	Raptor Lake-S / 10 nm	Phoenix / 4 nm	Phoenix / 4 nm	Granite Ridge / 4 nm
TDP / Max	65 W / 121 W	65 W / 88 W	65 W / 154 W	65 W / 154 W	120 W / 162 W	65 W / 154 W	65 W / 61 W	65 W / 61 W	65 W / 88 W
Socket	LGA 1851	AM5	LGA 1700	LGA 1700	AM5	LGA 1700	AM5	AM5	AM5
Int. GPU	Arc Xe-LPG Graphics 24EU	Radeon Graphics	UHD Graphics 770	UHD Graphics 770	Radeon Graphics	UHD Graphics 770	Radeon 780M	None	Radeon Graphics

CPU Performance in Rendering, Encoding and Compression-Decompression

CPU (Desc) CPU Name Click to sort alphabetically (ascending or descending).	CB24_MC (Desc) Cinebench 2024 Multi-Core Measured score (higher is better) from CB24 multi-core benchmark.	CB24_SC (Desc) Cinebench 2024 Single-Core Measured score (higher is better) from CB24 single-core benchmark.	CB24_rel (Desc) Cinebench 2024 Relative Normalized score relative to a reference CPU (100% baseline).	Blender (Desc) Blender Rendering (Relative) Normalized score based on rendering performance in Blender.	Encoding_AV1 (Desc) AV1 Encoding (Relative) Relative encoding performance for AV1 video codec.	Encoding_h265 (Desc) H.265 Encoding (Relative) Relative encoding performance for H.265/HEVC codec.	7-zip_Pack (Desc) 7-Zip Compression Relative speed for compressing files using 7-Zip.	7-zip_Unpack (Desc) 7-Zip Decompression Relative speed for unpacking files using 7-Zip.	Performance (Desc) Total Performance Index Average across all benchmarks.
Intel Core Ultra 5 235 Intel Core Ultra 5 235 View detailed specs, benchmarks, charts, and comparison for this CPU.	1240	128	49.1%	47.6%	62.7%	48.6%	49.6%	37.4%	49.2%
AMD Ryzen 7 7700 AMD Ryzen 7 7700 View detailed specs, benchmarks, charts, and comparison for this CPU.	1078	112	42.6%	40.8%	59.3%	47.0%	51.8%	45.6%	47.8%
Intel Core i5-14500 Intel Core i5-14500 View detailed specs, benchmarks, charts, and comparison for this CPU.	1120	117	44.3%	43.0%	56.6%	56.4%	47.3%	39.1%	47.8%
Intel Core i5-13600 Intel Core i5-13600 View detailed specs, benchmarks, charts, and comparison for this CPU.	1180	115	46.7%	43.0%	56.0%	55.4%	47.3%	37.8%	47.7%
AMD Ryzen 7 7800X3D AMD Ryzen 7 7800X3D View detailed specs, benchmarks, charts, and comparison for this CPU.	1109	110	43.9%	39.8%	57.0%	46.1%	50.9%	44.9%	47.1%
Intel Core i5-13500 Intel Core i5-13500 View detailed specs, benchmarks, charts, and comparison for this CPU.	1100	112	43.5%	41.9%	53.4%	53.6%	45.0%	36.1%	45.6%
AMD Ryzen 7 8700G AMD Ryzen 7 8700G View detailed specs, benchmarks, charts, and comparison for this CPU.	995	105	39.4%	36.4%	53.4%	48.0%	50.5%	43.5%	45.2%
AMD Ryzen 7 8700F AMD Ryzen 7 8700F View detailed specs, benchmarks, charts, and comparison for this CPU.	986	104	39.0%	36.6%	54.0%	47.9%	50.0%	43.2%	45.1%
AMD Ryzen 5 9600X AMD Ryzen 5 9600X View detailed specs, benchmarks, charts, and comparison for this CPU.	976	133	38.6%	37.6%	60.0%	46.1%	43.2%	36.7%	43.7%
