Thermalright Phantom Spirit 120 Vision EVO

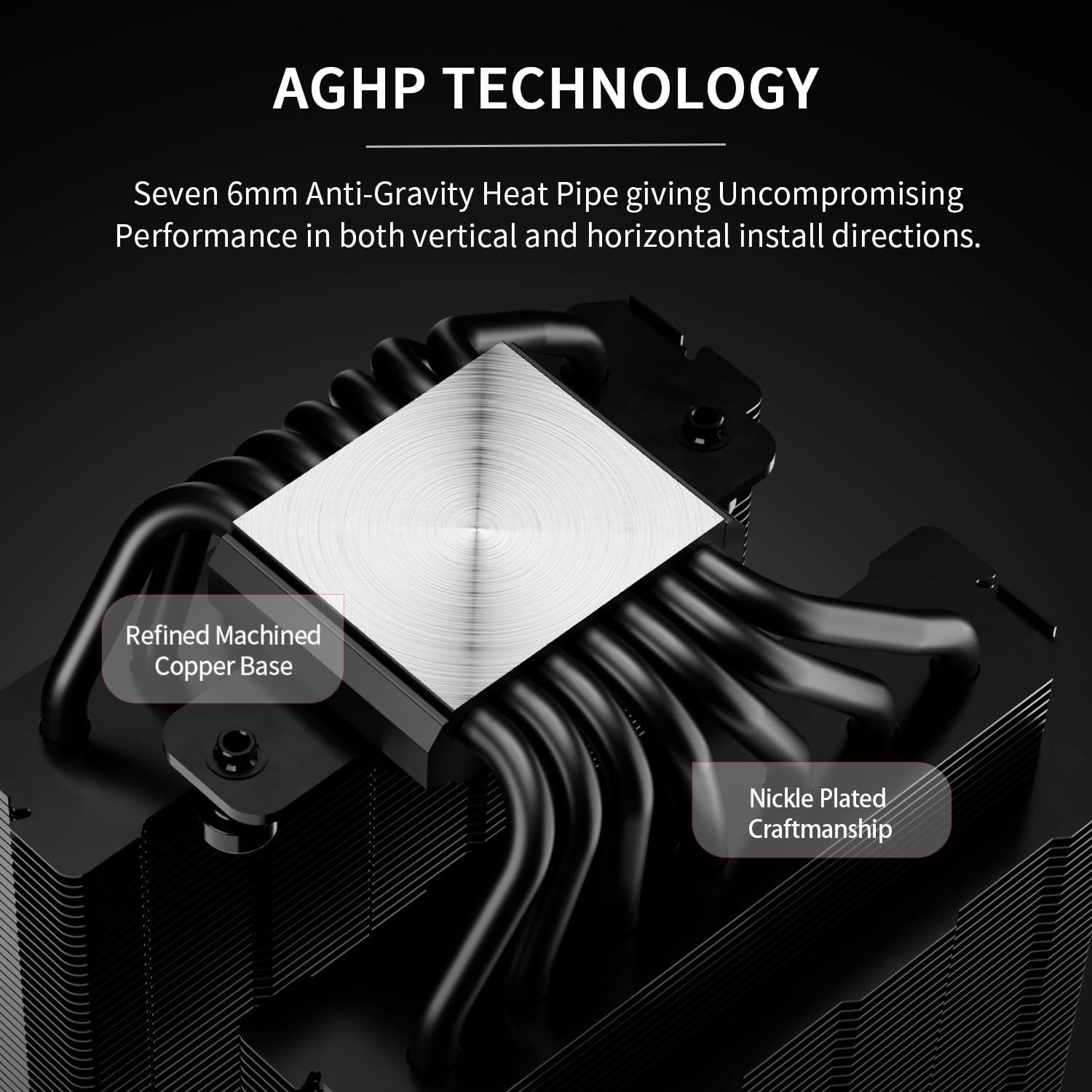

[AGHP Heat Pipe Technology]The 7X6mm heat pipe adopts the 5.0 version of AGHP technology, which can solve the effect of anti-gravity caused by vertical and horizontal orientations. Seiko reflow soldering micro-carved copper bottom senses the CPU temperature, and according to the heating characteristics of the new generation of dual platforms, the corresponding regional heat pipe characteristics can be adjusted to the corresponding refined functional parameters.

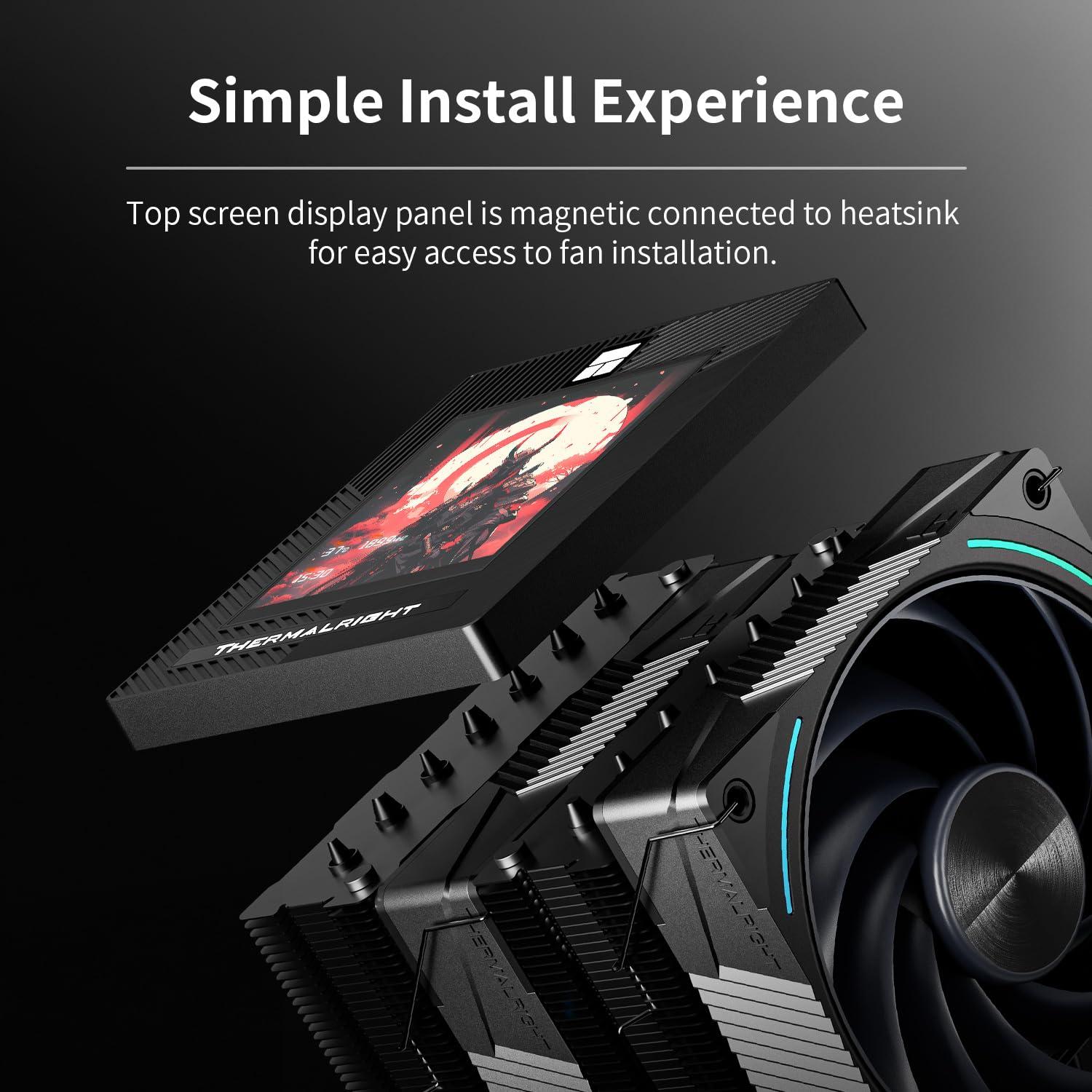

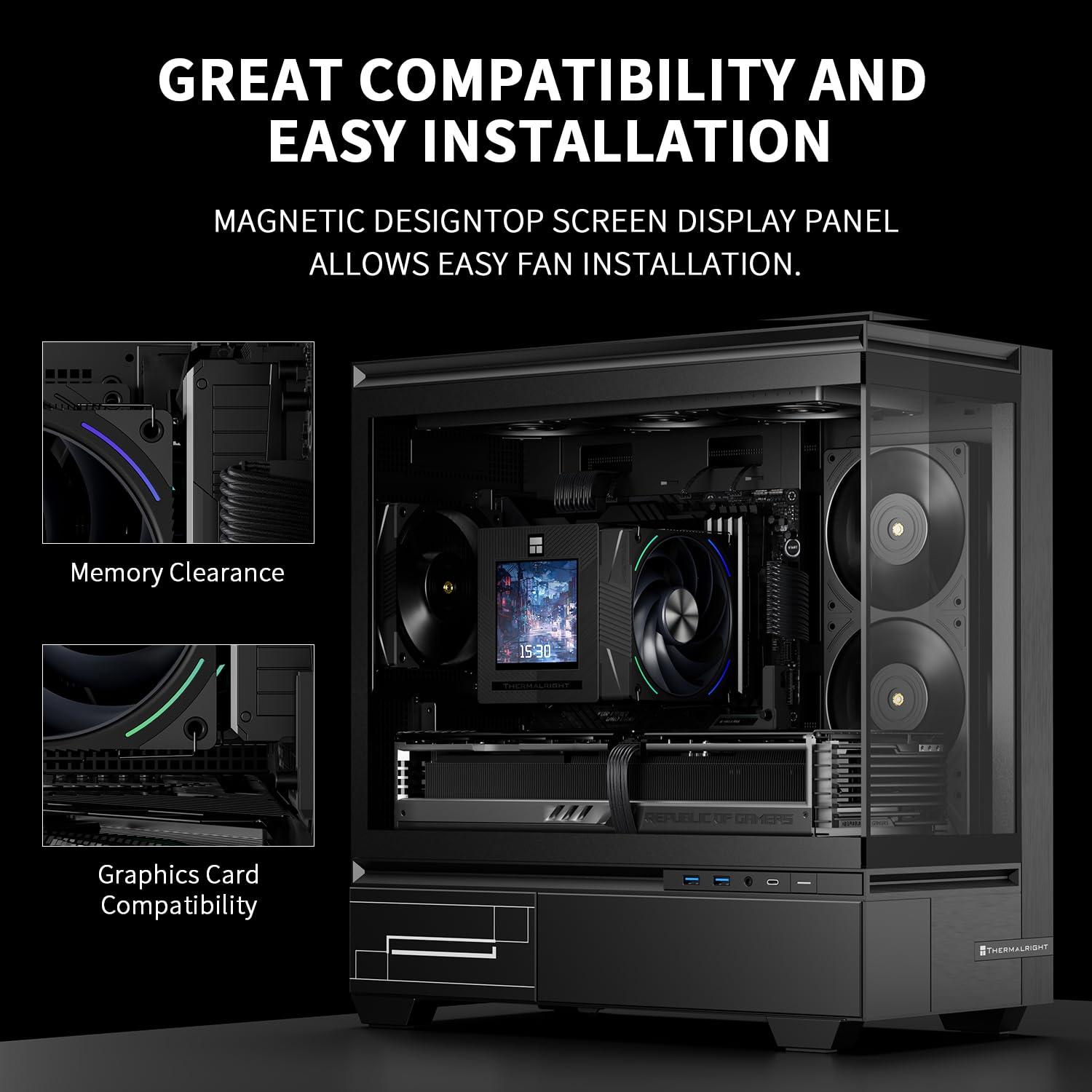

[160MM Height] The overall height of the heatsink is 160mm, which is compatible with medium/large cases. The IPS LCD top cover design of the heatsink improves the overall appearance, combining the high heat dissipation function and aesthetics of the heatsink. Good compatibility, avoid memory corner design and avoid graphics cards.

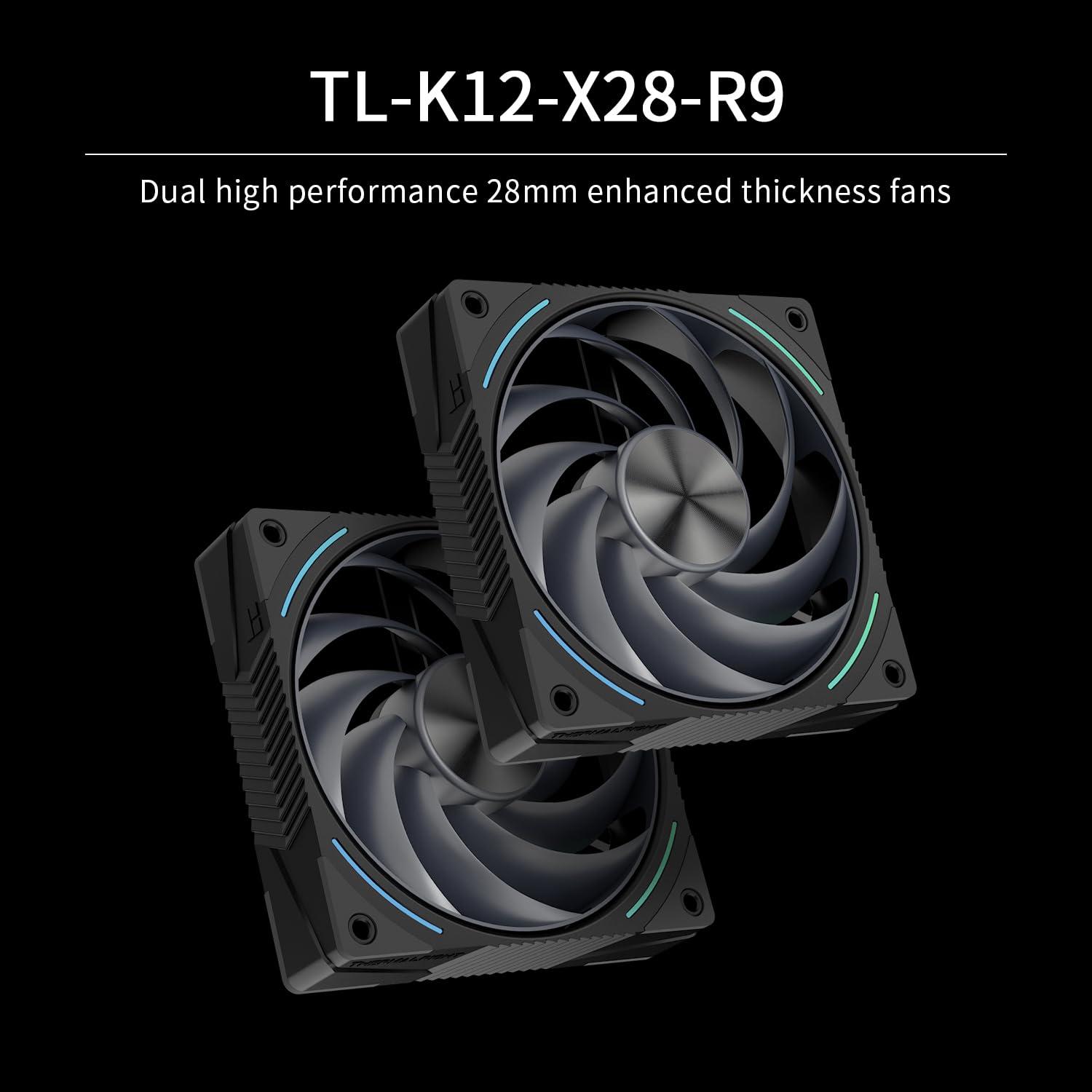

[CPU Cooler Specifications] Model: Phantom Spirit 120 Vision EVO, Overall Size: 125x138x160mm, Fan Size: 120x120x28mm, Fan Speed: 2150RPM+10%, Air Pressure: 3.0mm H2O, Air Volume: 92CFM, Operating Noise≤36DB(A), Fan Power Supply Interface: 4PIN PWM, Lighting Interface: 5V 3pin ARGB, S-FDB included V2 bearings have a long life feature, which ensures that the heat sink maintains good heat dissipation.

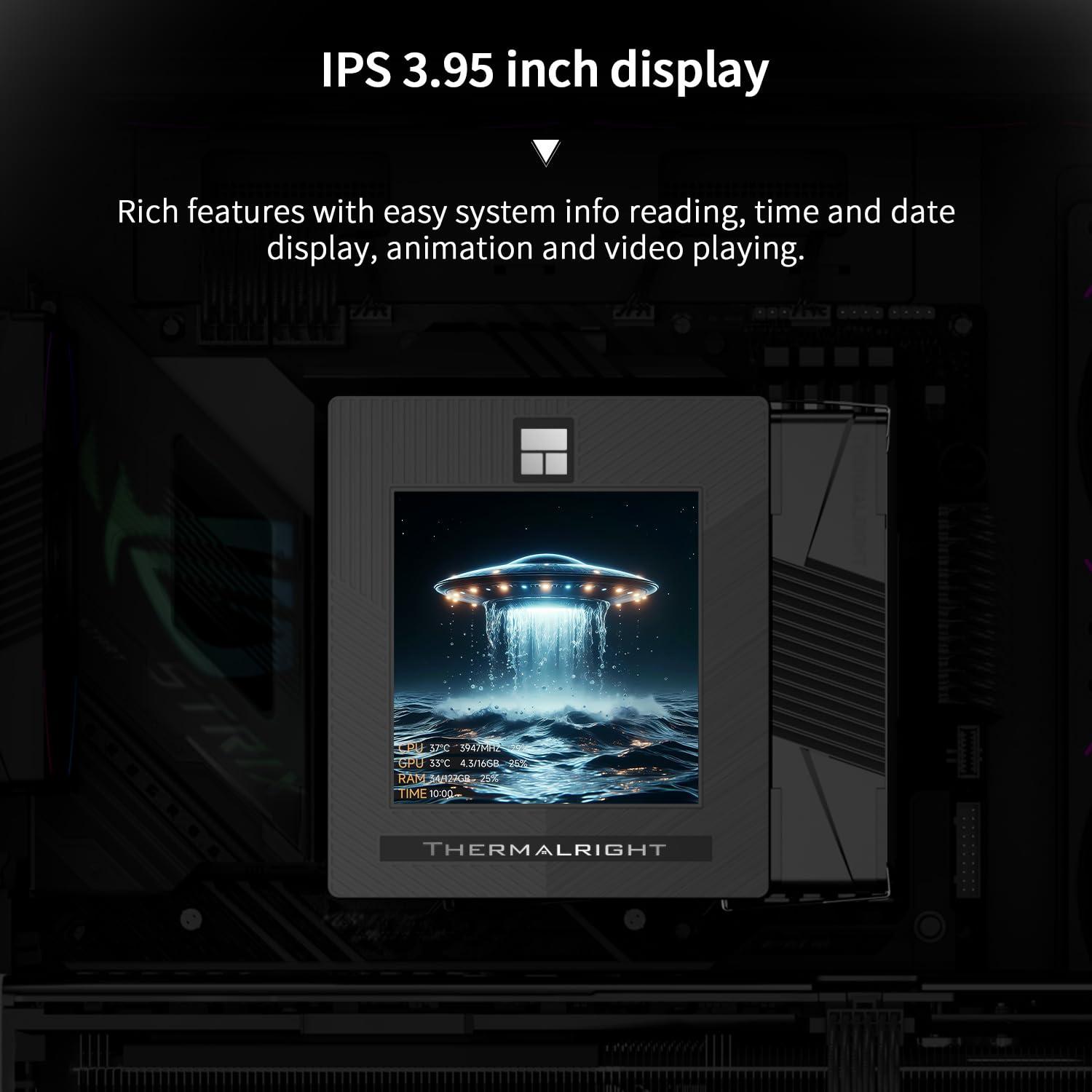

[3.95 inch LCD Display] Equipped with a square 3.95-inch 480x480 resolution IPS LCD screen, this panel screen can accurately restore colors, and the newly developed TRCC can DIY the background subject.

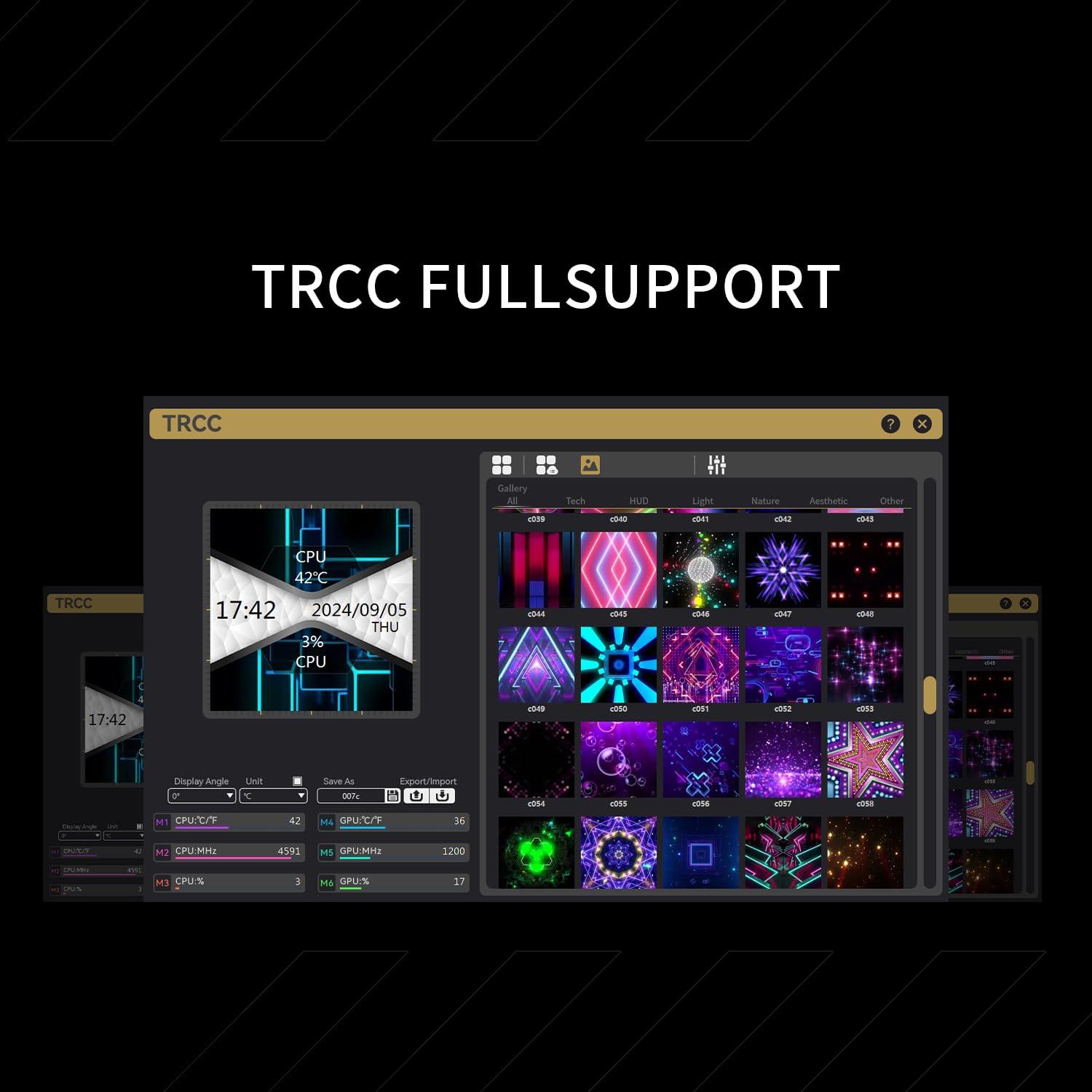

[TRCC Software] TRCC can freely monitor the display of various parameters of the system, the display of free background formats, and the presentation of freely defined text, etc., and many DIY gameplay is wonderfully presented. The screen adopts USB 9PIN interface data transmission + SATA power supply mode, and the software needs to be downloaded and installed from the official website.

[Wide Compatibility] The heatsink supports AMD/Intel dual platforms: AM4/AM5 and LGA1851/1700/1150/1151/1155/1156/1200, and comes with dual-platform mounting fasteners, which can be well installed on the corresponding platform, and can be installed according to the manual or installation video. (Note: AMD platform installation requires the original backplate of the motherboard, this product does not come with this backplate)
