DeepCool AK620 Digital
DeepCool AK620 Digital Review & Specifications
The DeepCool AK620 Digital by DeepCool is a Air CPU cooler designed for compatibility with LGA 2066, LGA 2011-v3, LGA 2011, LGA 1700, LGA 1200, LGA 1150, LGA 1151, LGA 1155, LGA 1156, AM5, AM4, sockets.
This air cooler features a heatsink with a CPU contact base made of Copper, ensuring effective thermal conductivity. It includes 2 fan(s), each sized at 120 mm. These fan(s) can reach up to 1850 RPM and operate at a noise level of 28.0 dBA, delivering a combined airflow of 69.0 CFM. The total height of the cooler is 162 mm , with an approximate weight of 1.00 kg. Please ensure your PC case supports this cooler’s height. You can verify compatibility using our PC Builder, which filters compatible cases based on CPU cooler dimensions. This cooler does not include RGB lighting, focusing instead on performance, reliability, and low acoustic output. The cooler is backed by a 3-year warranty, providing long-term reliability and manufacturer support.
Performance
DeepCool AK620 Digital is a mid-range performance air CPU cooler designed for CPUs with TDPs up to 170 W, reaching a relative cooling performance score of 86.36%. Ideal for entry-level to mid-range gaming systems and lower-power workstation builds, it offers excellent reliability thanks to its simple construction. Compared to liquid cooling systems, air coolers in this class are strongly recommended due to the absence of pumps, fluid, or risk of leaks. At this TDP level, air coolers generally outperform similarly priced liquid coolers in both reliability and long-term value.
Cost-Effectiveness
The DeepCool AK620 Digital delivers a well-balanced performance-to-price ratio of 48.1%, making it a solid mid-range option for users who value both affordability and reliable cooling.
CPU Cooler Information
Manufacturer: DeepCool
CPU Cooler Name: DeepCool AK620 Digital
Release Price: $85
Current Price Amazon: $79
Amazon Price Updated: 1 month ago.
CPU Cooler Available: True
Cooler Type: Air
Socket Compatibility: LGA 2066, LGA 2011-v3, LGA 2011, LGA 1700, LGA 1200, LGA 1150, LGA 1151, LGA 1155, LGA 1156, AM5, AM4,

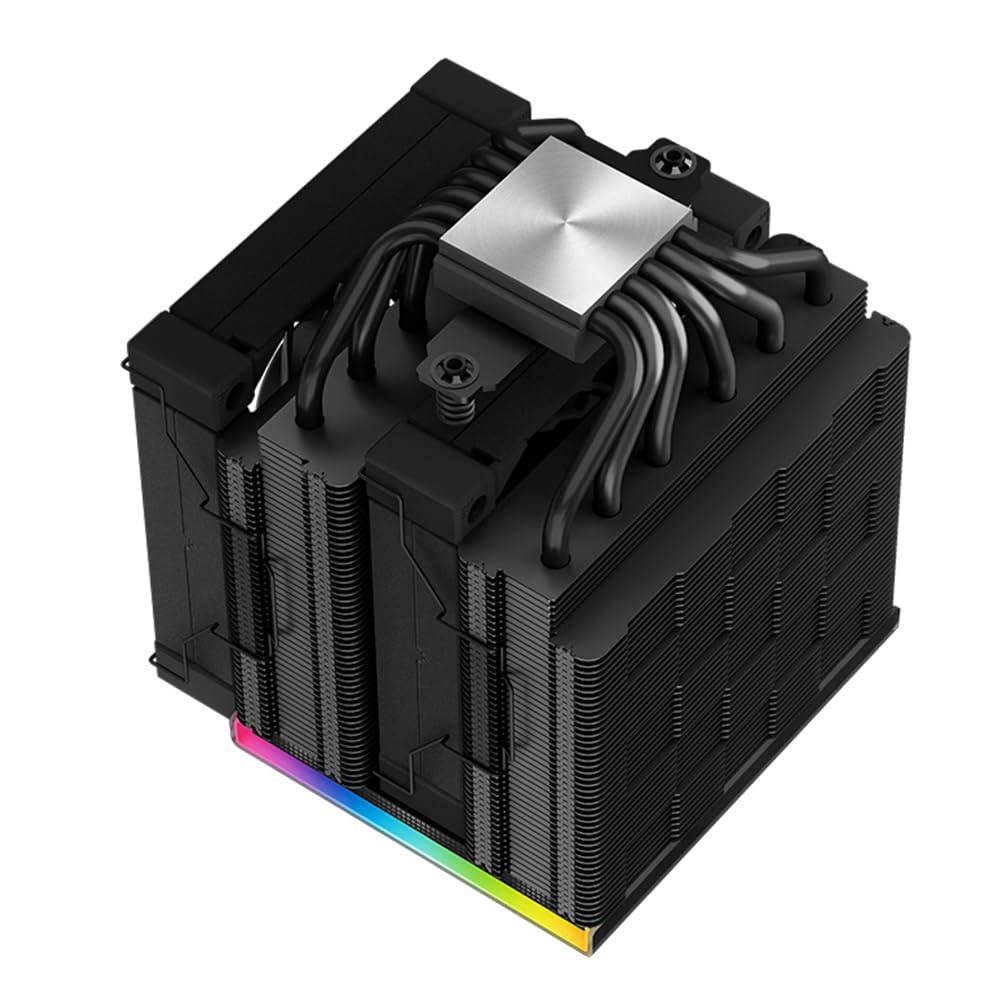

CPU Block: Copper
Fan Size / Number: 120 mm / 2 fan/s.
CPU Cooler Weight: 1.00 kg

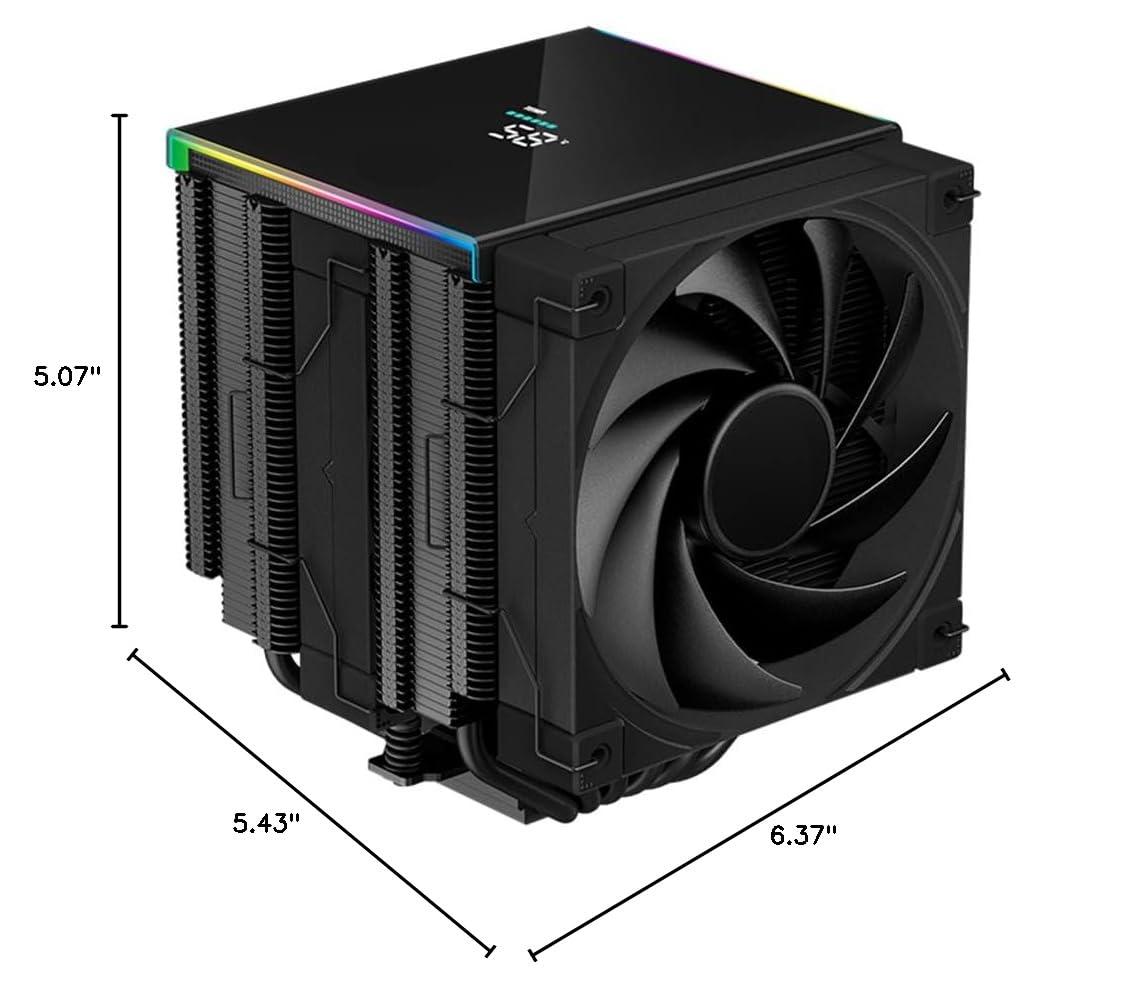

CPU Cooler Dimensions: 129 x 138 x 162 mm
Cooler Height: 162 mm
Warranty: 3 years
Performance
Fan Speed / Noise / Airflow: 1850 rpm / 28.0 dBA / 69.0 CFM
Relative Performance: 86.36%
Calculated Performance
Performance per Price: 48.1 %
DeepCool AK620 Digital Compared to CPU Coolers with Similar Performance
CPU Cooler Price / Performance Table
| CPU_Cooler (Desc) | Price (Desc) | Performance (Desc) | Perf/Price (Desc) |
|---|---|---|---|
|
$179
|
0.0%
|
93.2%
|
22.9%
|
|
|
$125
|
0.0%
|
92.2%
|
32.5%
|
|
|
$55
|
0.0%
|
91.2%
|
73.0%
|
|
|
$145
|
0.0%
|
88.3%
|
26.8%
|
|
|
$79
|
0.0%
|
86.4%
|
48.1%
|
|
|
$179
|
0.0%
|
85.4%
|
21.0%
|
|
|
$26
|
0.0%
|
81.5%
|
137.9%
|
|
|
$129
|
0.0%
|
81.5%
|
27.8%
|
|
|
$69❗
|
↑
27.8%
|
80.5%
|
51.3%
|
CPU Cooler Specification Table
| CPU_Cooler (Desc) | Cooler Type | Radiator Size | Height/Weight | Fan Size/Speed/Airflow | Noise |
|---|---|---|---|---|---|
| Noctua NH-D15 G2 | Air | 168 x 150 x 152 mm | 168 mm / None kg | 130 mm / 1500 rpm / 91.5 CFM | 24.8 dBA |
| CPS PCCOOLER RZ820 | Air | 161 x 150 x 165 mm | 165 mm / None kg | 150 mm / 2200 rpm / 86.6 CFM | 32.0 dBA |
| Thermalright Phantom Spirit 120 EVO | Air | 110 x 125 x 157 mm | 157 mm / None kg | 120 mm / 2150 rpm / 69.0 CFM | 27.0 dBA |
| be quiet! Dark Rock Elite | Air | 145 x 136 x 168 mm | 168 mm / None kg | 135 mm / 2000 rpm / None CFM | 34.5 dBA |
| DeepCool AK620 Digital | Air | 129 x 138 x 162 mm | 162 mm / 1.00 kg | 120 mm / 1850 rpm / 69.0 CFM | 28.0 dBA |
| Noctua NH-D15 | Air | 160 x 150 x 135 mm | 160 mm / 1.00 kg | 140 mm / 1500 rpm / None CFM | 24.6 dBA |
| ID-COOLING SE-224-XTS | Air | 120 x 75 x 151 mm | 151 mm / 0.00 kg | 120 mm / 1500 rpm / 70.0 CFM | 28.9 dBA |
| Noctua NH-D15S | Air | 165 x 150 x 135 mm | 165 mm / 1.00 kg | 140 mm / 1200 rpm / 82.5 CFM | 19.2 dBA |
| DeepCool AK400 Digital | Air | 127 x 97 x 155 mm | 155 mm / 0.00 kg | 120 mm / 1850 rpm / 66.47 CFM | 29.0 dBA |
