Noctua NH-U14S TR5-SP6
Noctua NH-U14S TR5-SP6 Review & Specifications

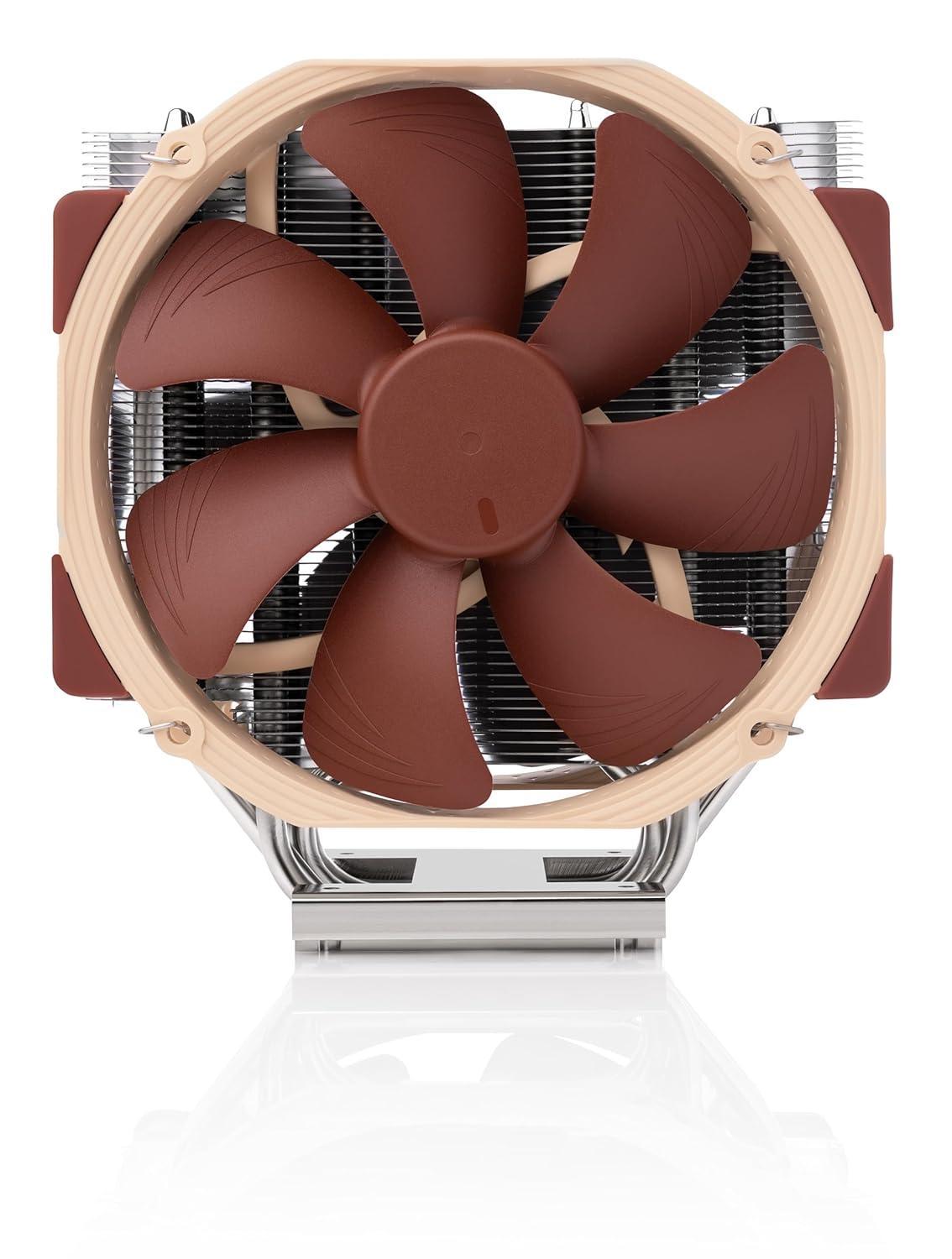

The Noctua NH-U14S TR5-SP6 by Noctua is a Air CPU cooler designed for compatibility with sTR5, SP6 sockets.

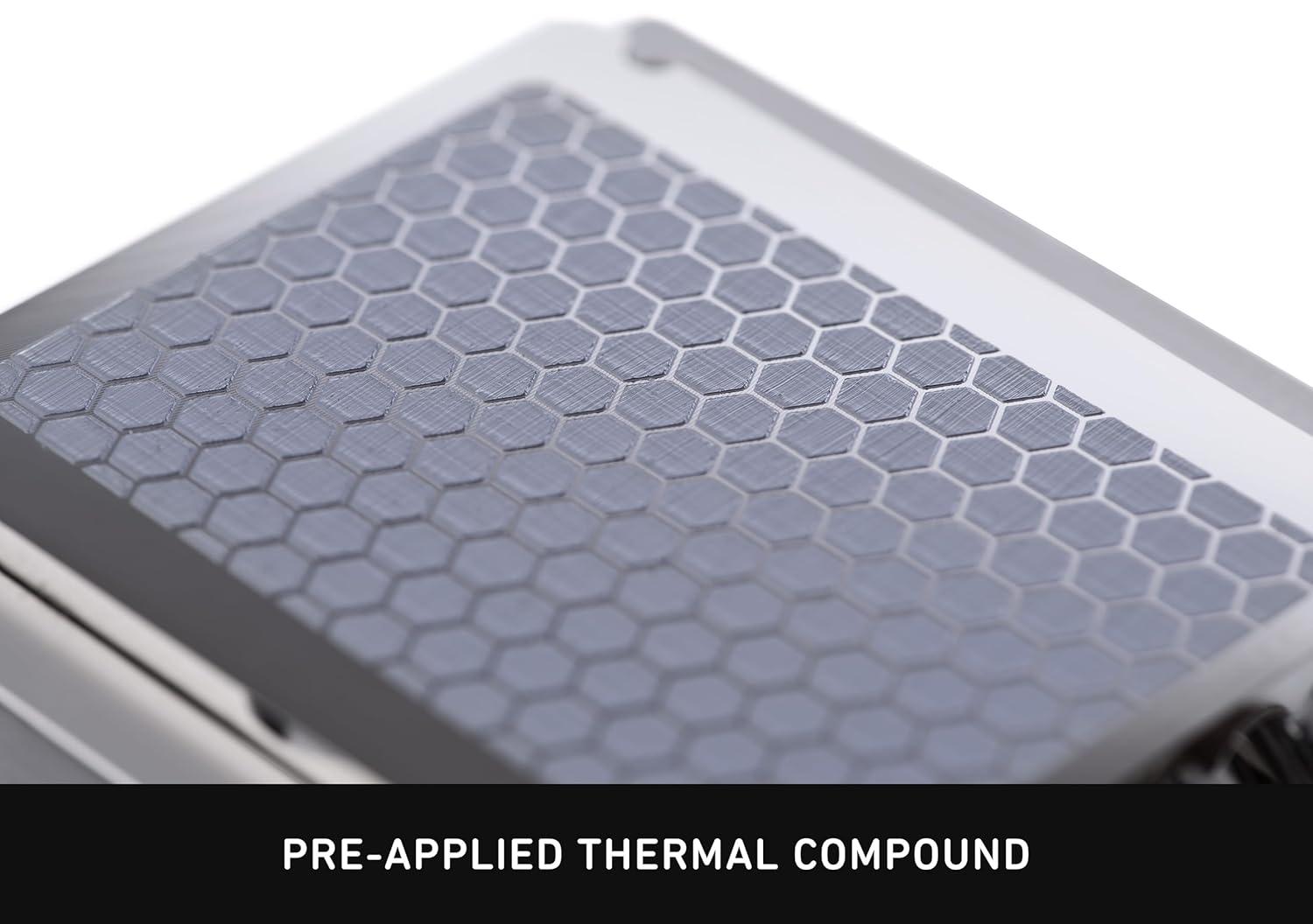

This air cooler features a heatsink with a CPU contact base made of Copper, which is typically nickel-plated to prevent oxidation and ensure long-term durability while maintaining the superior thermal conductivity of the underlying copper. While some coolers use a solid nickel-plated copper base for maximum surface area and durability, others, usally lower to midrange coolers, utilize direct-touch heatpipes to transfer heat immediately from the CPU into the cooling system. It includes 2 fan(s), each sized at 140 mm. These fan(s) can reach up to 1500.0 RPM and operate at a noise level of 24.6 dBA, delivering a combined airflow of 82.5 CFM. The total height of the cooler is 165 mm . Please ensure your PC case supports this cooler’s height. You can verify compatibility using our PC Builder, which filters compatible cases based on CPU cooler dimensions. This cooler does not include RGB lighting, focusing instead on performance, reliability, and low acoustic output. The cooler is backed by a 6-year warranty, providing long-term reliability and manufacturer support.
Performance
Noctua NH-U14S TR5-SP6 is a high-end performance air CPU cooler suitable for CPUs with TDPs up to 200 W, offering a strong relative cooling performance score of 79.00%. It is recommended for mid-range to high-end gaming PCs and mid-range workstation builds where long-term reliability is important. As with all air coolers, this unit benefits from a simple, durable design with only one moving part — the fan — making it less prone to failure than liquid cooling systems. It also features substantial passive thermal mass, helping prevent CPU damage even if the fan stops working temporarily.
Cost-Effectiveness
The performance-per-price ratio of Noctua NH-U14S TR5-SP6 is 24.8%, which places it in the lower tier of value for air coolers. However, as a high-performance air cooler, it may still be a worthwhile investment for enthusiasts or overclockers who prioritize thermal performance over cost-efficiency.
General Information
| Manufacturer | Noctua |
|---|---|
| Cooler Name | Noctua NH-U14S TR5-SP6 |
| Current Price Amazon | $140 |
| Amazon Price Updated | 1 day, 13 hours ago. |
| Cooler Available | True |
Specification
| Cooler Type | Air |
|---|---|
| Socket Compatibility | sTR5, SP6 |
| CPU Block | Copper |
| Fan Size / Number | 140 mm / 2 fan/s |
| Cooler Dimensions | 165 x 150 x 52 mm |
| Cooler Height | 165 mm |
| Warranty | 6 years |
Performance
| Fan Speed | 1500.0 rpm |
|---|---|
| Noise | 24.6 dBA |
| Airflow | 82.5 CFM |
| Relative Performance | 79.00% |
Noctua NH-U14S TR5-SP6 Compared to CPU Coolers with Similar Performance
CPU Cooler Price / Performance Table
| CPU_Cooler (Desc) | Price (Desc) | Performance (Desc) | Perf/Price (Desc) |
|---|---|---|---|
|
$33
|
↓
-10.0%
|
81.0%
|
107.3%
|
|
|
$88
|
↑
8.6%
|
80.0%
|
40.0%
|
|
|
$89
|
↑
9.9%
|
80.0%
|
39.6%
|
|
|
$51
|
↑
3.0%
|
80.0%
|
68.4%
|
|
|
$140
|
0.0%
|
79.0%
|
24.8%
|
|
|
$120
|
0.0%
|
78.0%
|
28.6%
|
|
|
$110
|
0.0%
|
78.0%
|
31.2%
|
|
|
$65
|
0.0%
|
78.0%
|
52.9%
|
|
|
$110
|
0.0%
|
77.0%
|
30.8%
|
CPU Cooler Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Price |
$33
↓
-10.0%
|
$88
↑
8.6%
|
$89
↑
9.9%
|
$51
↑
3.0%
|
$140
0.0%
|
$120
0.0%
|
$110
0.0%
|
$65
0.0%
|
$110
0.0%
|
| Cooling Type | Air | Air | Air | Air | Air | Air | Air | Air | Air |
| Radiator Size | 125 x 110 x 155mm | 124×76×151 mm | 124×76×151 mm | 125 x 137 x 154.9 mm | 165 x 150 x 52 mm | 158 x 125 x 112 mm | 158 x 125 x 112 mm | 76 x 136 x 161 mm | 165 x 150 x 135 mm |
| Height | 155 mm | 151 mm | 151 mm | 155 mm | 165 mm | 158 mm | 158 mm | 161 mm | 165 mm |
| Fan Specs | 120 mm / 1550.0 rpm / 66.17 CFM | 120 mm / 2200.0 rpm / 29.0 CFM | 120 mm / 2200.0 rpm / 29.0 CFM | 120 mm / 1750.0 rpm / 72.0 CFM | 140 mm / 1500.0 rpm / 82.5 CFM | 120 mm / 2000 rpm / 60.0 CFM | 120 mm / 2000.0 rpm / 60.0 CFM | 120 mm / 2100 rpm / 93.0 CFM | 140 mm / 1200 rpm / 82.5 CFM |
| Noise Level | 25.6 dBA | 32.5 dBA | 32.5 dBA | 27.2 dBA | 24.6 dBA | 22.6 dBA | 22.6 dBA | 30.0 dBA | 19.2 dBA |
| Sockets |
LGA 1700, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1851, AM4, AM5
|
AM5
|
AM5
|
LGA 1851, LGA 1700, LGA 1200, LGA 1150, LGA 1155, LGA 1156, AM5, AM4,
|
sTR5, SP6
|
LGA 1150, LGA 1155, LGA 1156, LGA 2011, LGA 2066, AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, AM4
|
AM5, AM4, LGA 1700, LGA 1851, LGA 1954, LGA 1156, LGA 1155, LGA 1150, LGA 1151, LGA 1200
|
LGA 1851, LGA 1700, LGA1200, LGA 1150, LGA 1155, LGA 1156, AM5, AM4,
|
LGA 1851, LGA 1700, LGA1200, LGA 1150, LGA 1155, LGA 1156, AM5, AM4,
|
| Warranty | 5 years | 2 years | 2 years | 2 years | 6 years | 6 years | 6 years | 1 years | 6 years |
CPU Cooler Specification Table
| CPU_Cooler (Desc) | Cooler Type | Radiator Size | Height | Fan Size/Speed/Airflow | Noise |
|---|---|---|---|---|---|
| Air | 125 x 110 x 155mm | 155 mm | 120 mm / 1550.0 rpm / 66.17 CFM | 25.6 dBA | |
| Air | 124×76×151 mm | 151 mm | 120 mm / 2200.0 rpm / 29.0 CFM | 32.5 dBA | |
| Air | 124×76×151 mm | 151 mm | 120 mm / 2200.0 rpm / 29.0 CFM | 32.5 dBA | |
| Air | 125 x 137 x 154.9 mm | 155 mm | 120 mm / 1750.0 rpm / 72.0 CFM | 27.2 dBA | |
| Air | 165 x 150 x 52 mm | 165 mm | 140 mm / 1500.0 rpm / 82.5 CFM | 24.6 dBA | |
| Air | 158 x 125 x 112 mm | 158 mm | 120 mm / 2000 rpm / 60.0 CFM | 22.6 dBA | |
| Air | 158 x 125 x 112 mm | 158 mm | 120 mm / 2000.0 rpm / 60.0 CFM | 22.6 dBA | |
| Air | 76 x 136 x 161 mm | 161 mm | 120 mm / 2100 rpm / 93.0 CFM | 30.0 dBA | |
| Air | 165 x 150 x 135 mm | 165 mm | 140 mm / 1200 rpm / 82.5 CFM | 19.2 dBA |
