Noctua · Air · 134 mm tall

Noctua NH-D9 TR5-SP6 4U

2 fans · 30.6 dBA

Performance
67%
Perf / price
23
Acoustics
62
Amazon
$130
Noctua NH-D9 TR5-SP6 4U
View Noctua NH-D9 TR5-SP6 4U Gallery in high resolution
$130
Available on Amazon Updated Aug 30, 2026 Prime FBA
Performance67.0%
Performance / price22.7
Acoustics62.1
$130 on Amazon Cooler table Compare this cooler

Check this cooler in a buildSelect a CPU and case first so socket, height, and radiator support can be evaluated. Start with the CPU

Written analysis

Noctua NH-D9 TR5-SP6 4U at a glance

The Noctua NH-D9 TR5-SP6 4U is a Air cooler listed as 134 mm tall. It is listed with 2 92 mm fans.

Review-derived relative cooling performance is 67.0%. Recorded noise is 30.6 dBA, for an acoustics score of 62.1. Airflow is listed at 56.7 CFM. Warranty is 6 years.

Best fit: Compact or value builds where clearance, noise, and price outweigh peak thermal headroom.

Fitment and sockets

Tower height is 134 mm — check case cooler clearance before buying. Socket compatibility includes sTR5, SP6. CPU block / cold plate: Copper.

Current value

At $130, performance / price is 22.7. Compare nearby coolers of the same type below; quieter acoustics and fitment can outweigh a small score gap.

Cooler data

Full specifications

Cooling type, fitment, sockets, fans, acoustics, features, and value in one technical sheet.

General

Manufacturer
Noctua
Cooler
Noctua NH-D9 TR5-SP6 4U
Warranty
6 years
Launch price
—
Amazon price
$130
Amazon availability
Available
Price updated
Aug 30, 2026

Cooling type & fit

Type
Air
Size class
134 mm tall
Height
134 mm
Cooler dimensions
134 x 95 x 95 mm

Value

Amazon price
$130
Relative performance
67.0%
Performance / price
22.7
Acoustics
62.1

Sockets & block

Socket compatibility
sTR5, SP6
CPU block
Copper

Fans & acoustics

Fan size
92 mm
Fan count
2
Fan speed
2500 rpm
Noise
30.6 dBA
Airflow
56.7 CFM
Acoustics score
62.1

Features

RGB lighting
No
Thermal paste included
No
Display
0
Color
Black

Amazon

Price history

Nearby performance

Similar coolers

Coolers close to Noctua NH-D9 TR5-SP6 4U on relative performance. Open the cooler table to sort, filter, and compare side by side.

Compare these in the cooler table

Discussion

Comments on Noctua NH-D9 TR5-SP6 4U

No comments yet.

Vendor copy

Amazon listing details

Marketplace feature text kept for reference. Structured specifications above are the source for scores and comparisons.

Compact 92mm size (134mm height) for excellent PCIe compatibility and 4U support, high cooling performance thanks to 4 heatpipes, dual tower design and two NF-A9 premium fans, ideal for quiet 4U servers

Supports AMD SP6 socket for Epyc 8004 line server CPUs as well as sTR5 socket for 7000 series Threadripper (Pro) HEDT and workstations processors (TRX50/WRX90 chipsets, e.g. 7995WX, 7985WX, 7980X, 7970X, 7960X)

Airflow path parallel to the long axis of the socket, ideal for systems where the exhaust fans of the chassis are in this direction

Two award-winning NF-A9 fans (push/pull dual fan configuration), supporting PWM for automatic speed control through the motherboard: silent at idle, full CFM performance when necessary

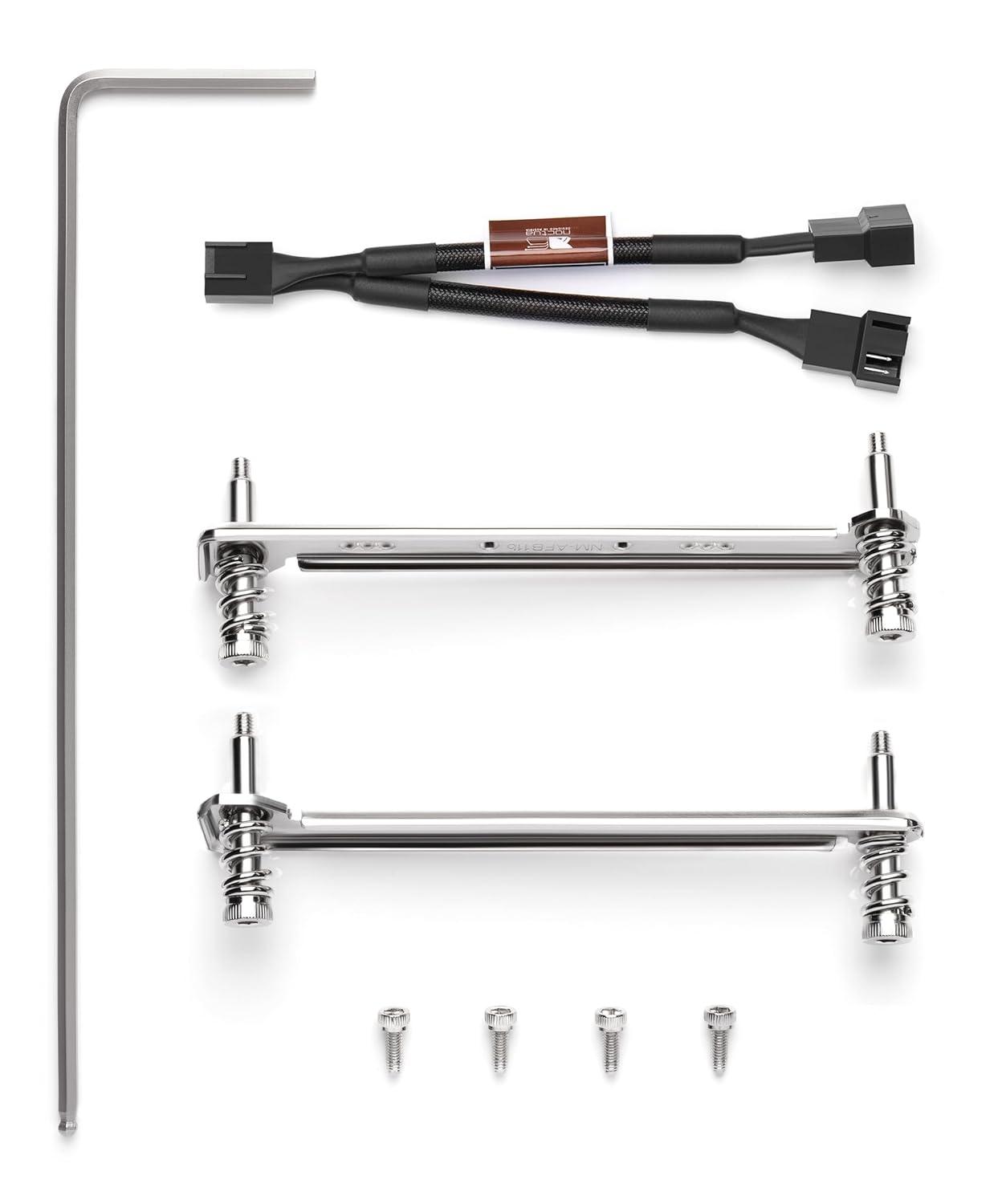

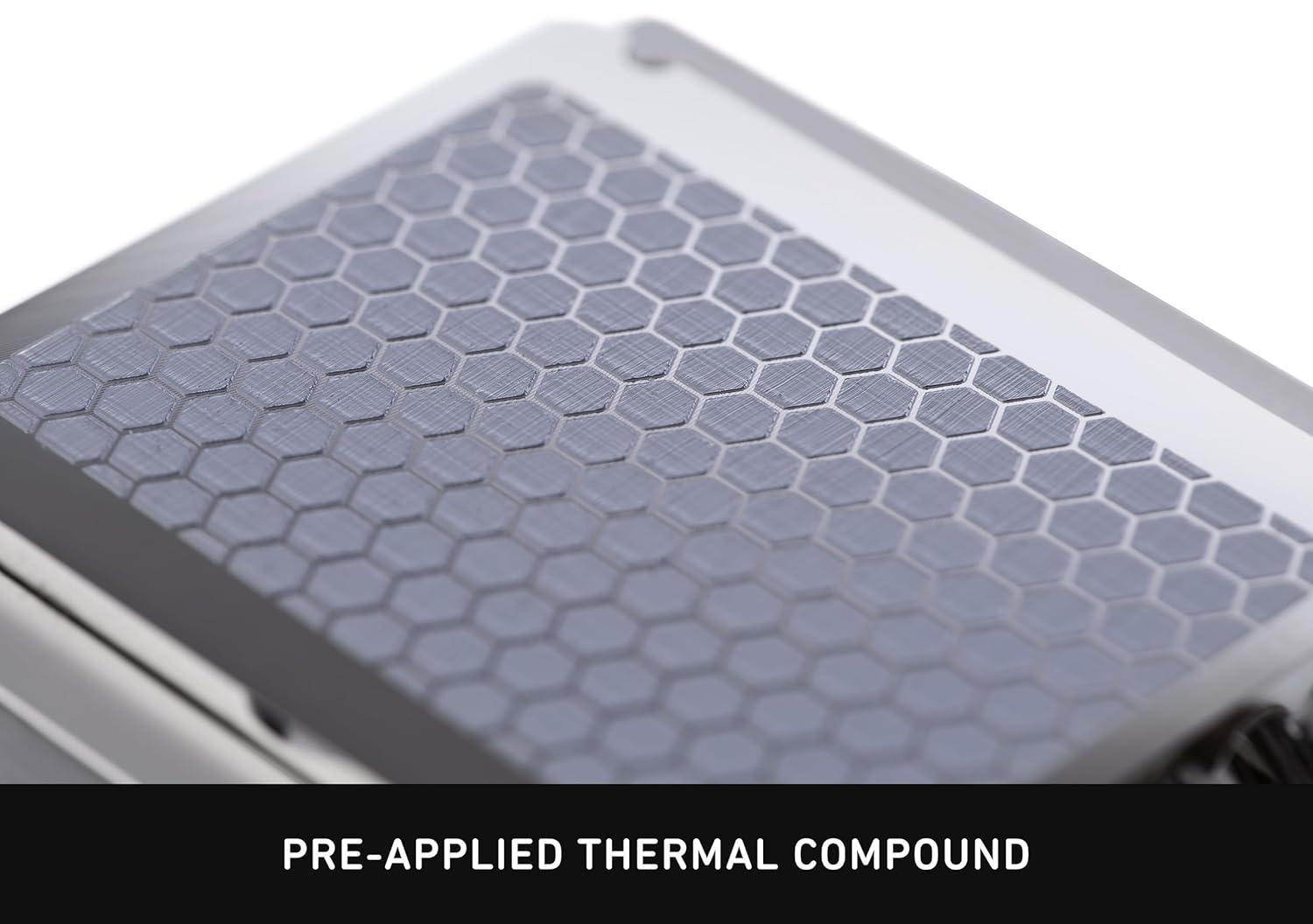

Pre-applied NT-H2 thermal compound and easy, straightforward installation with included mounting tool
