Written analysis

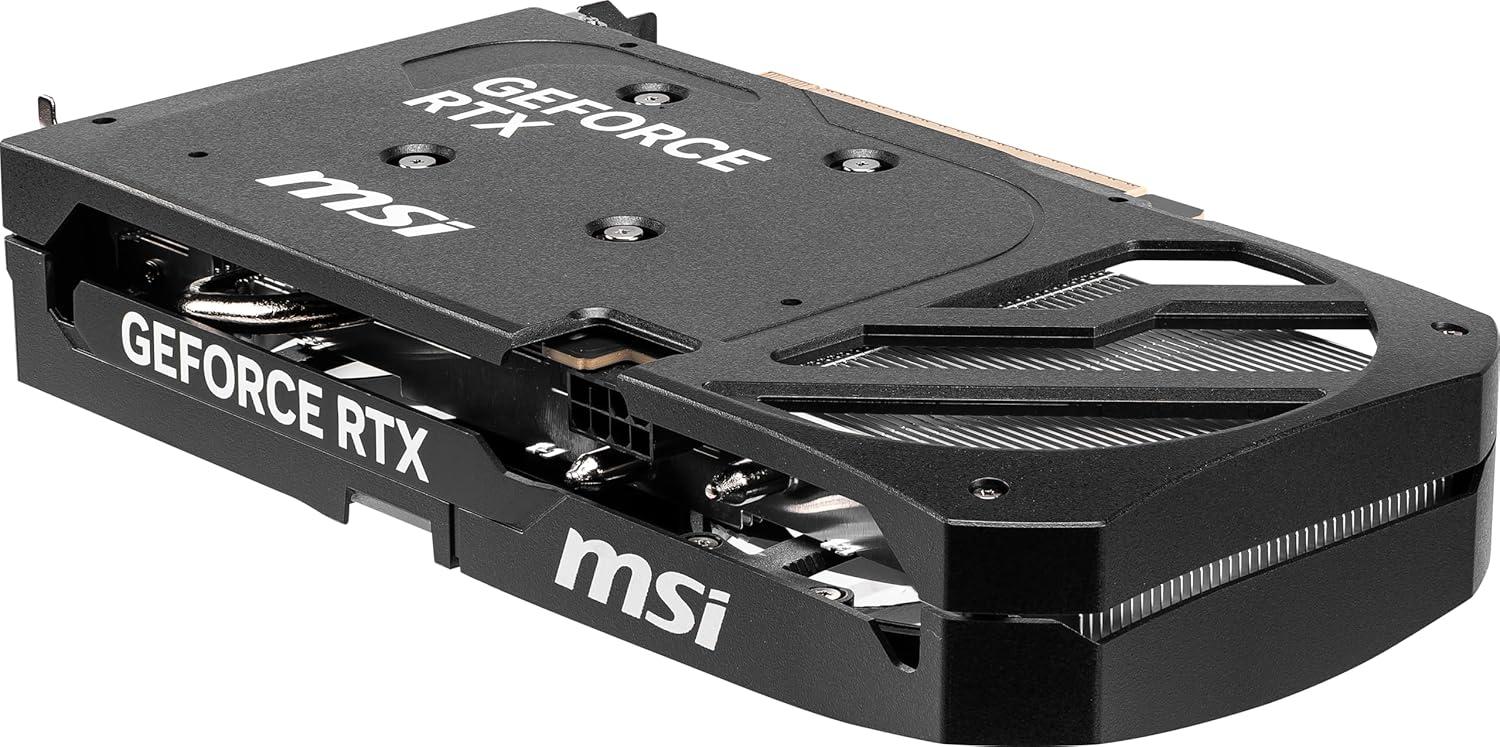

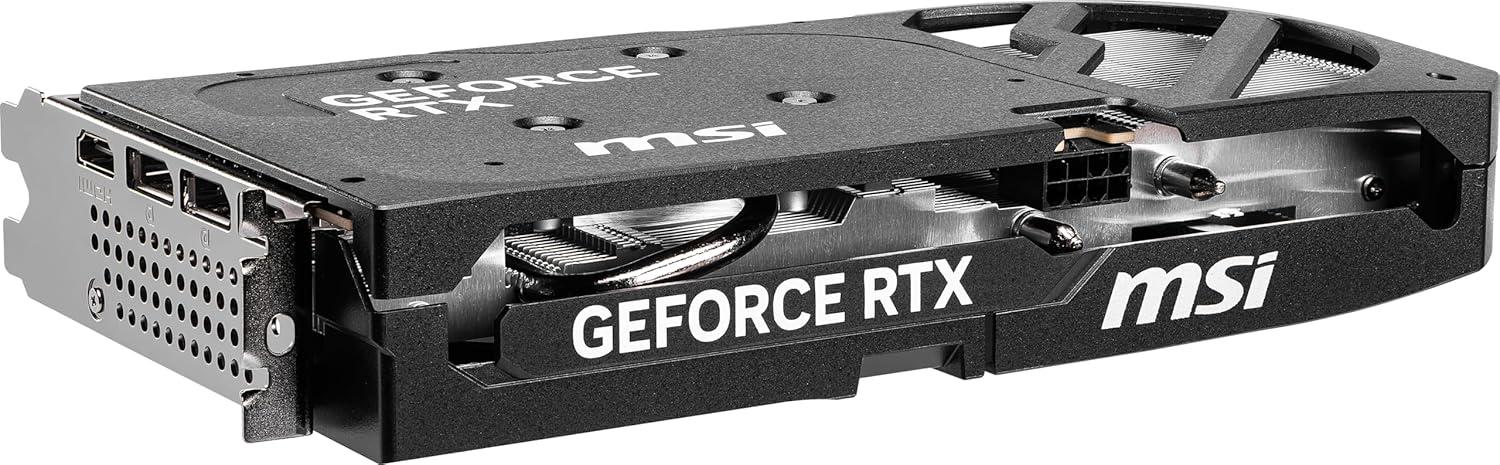

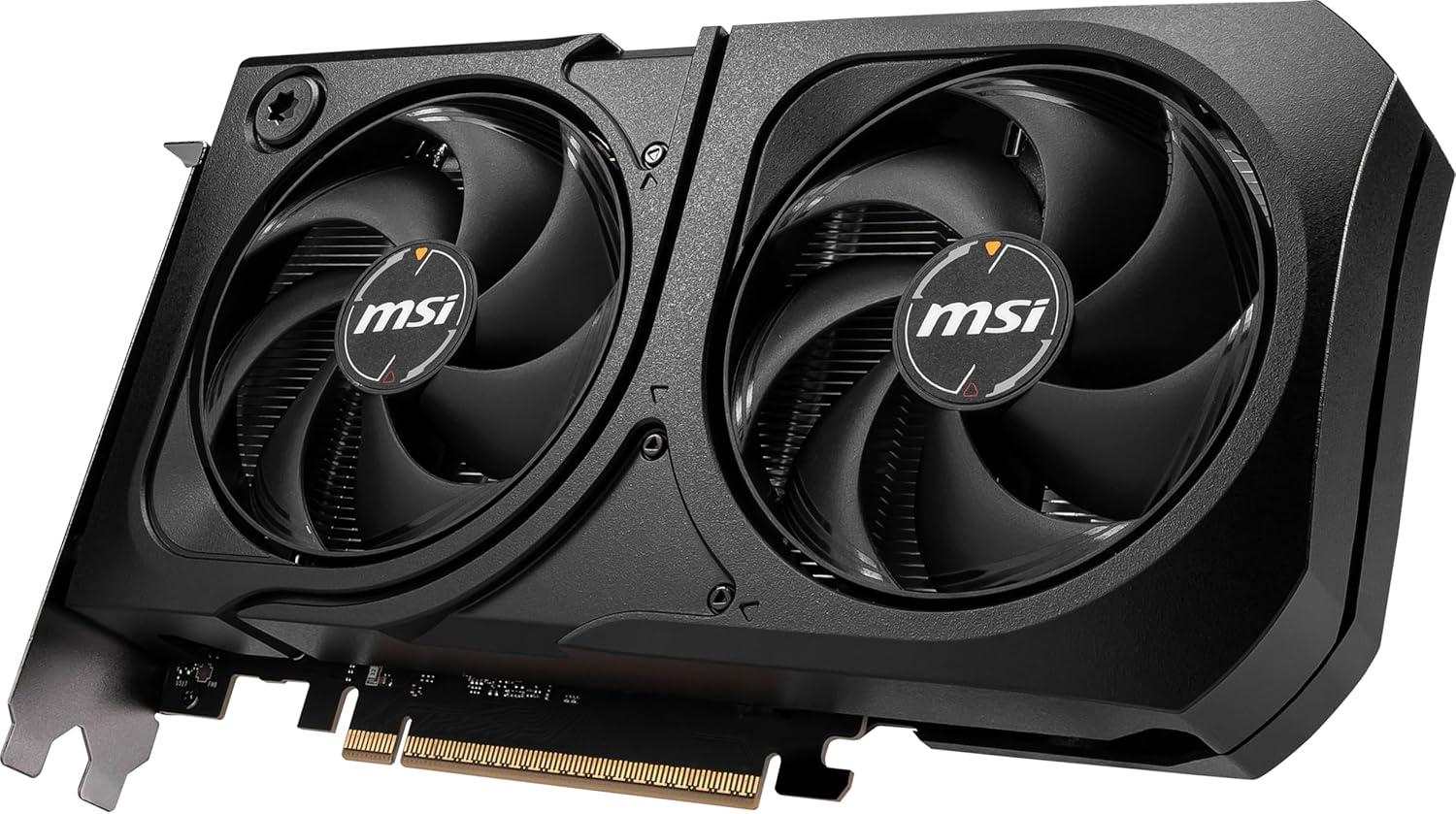

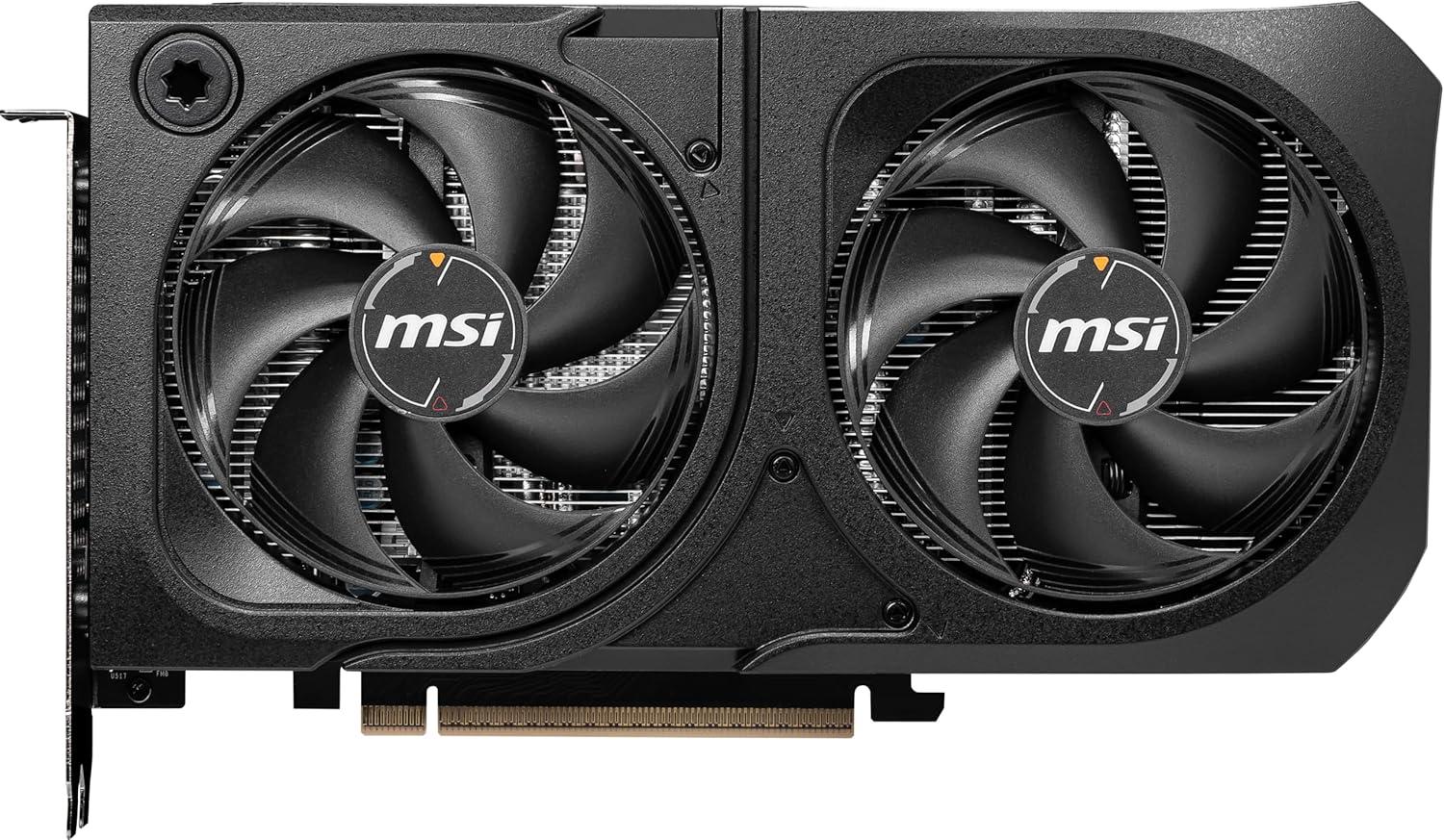

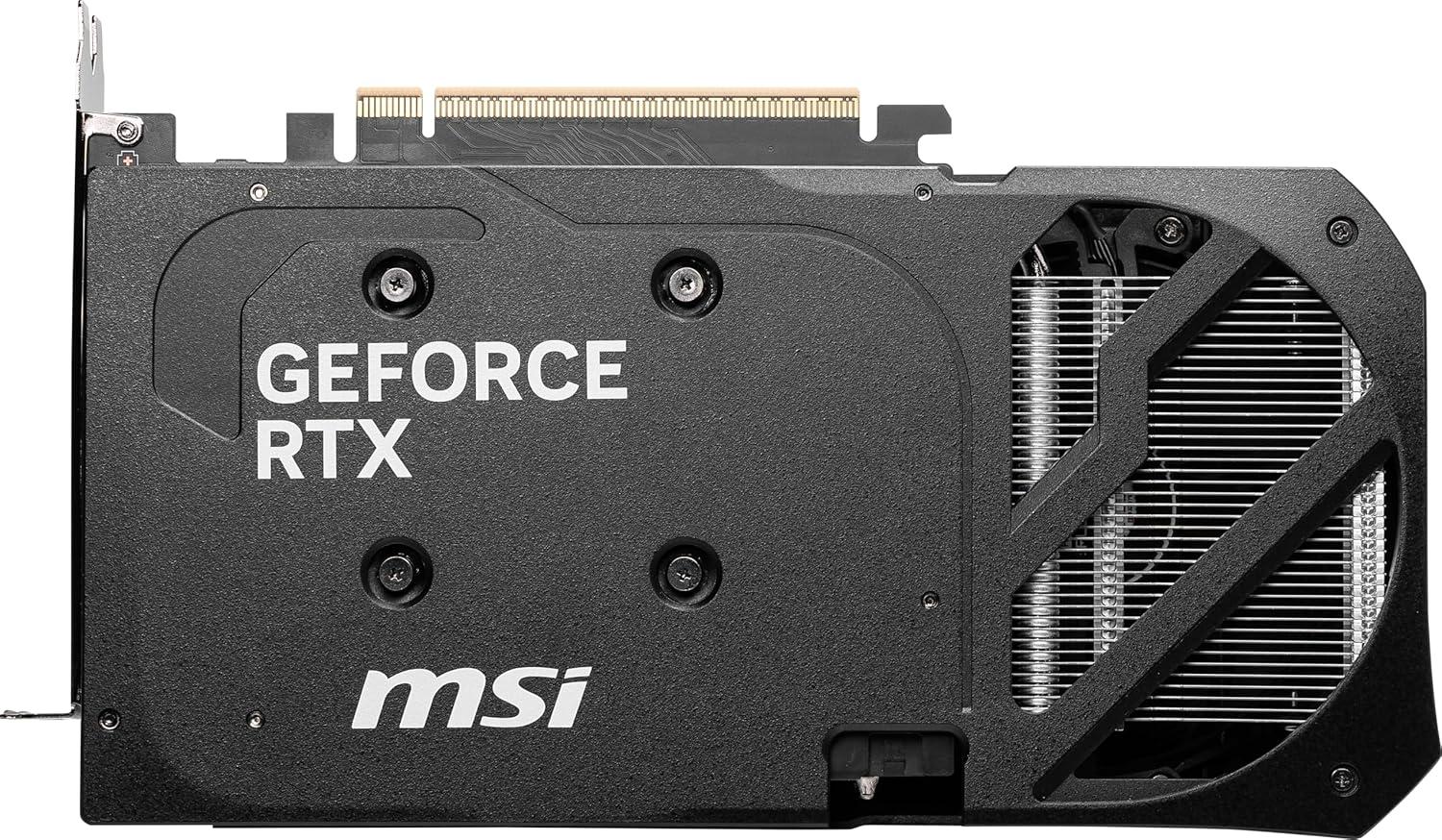

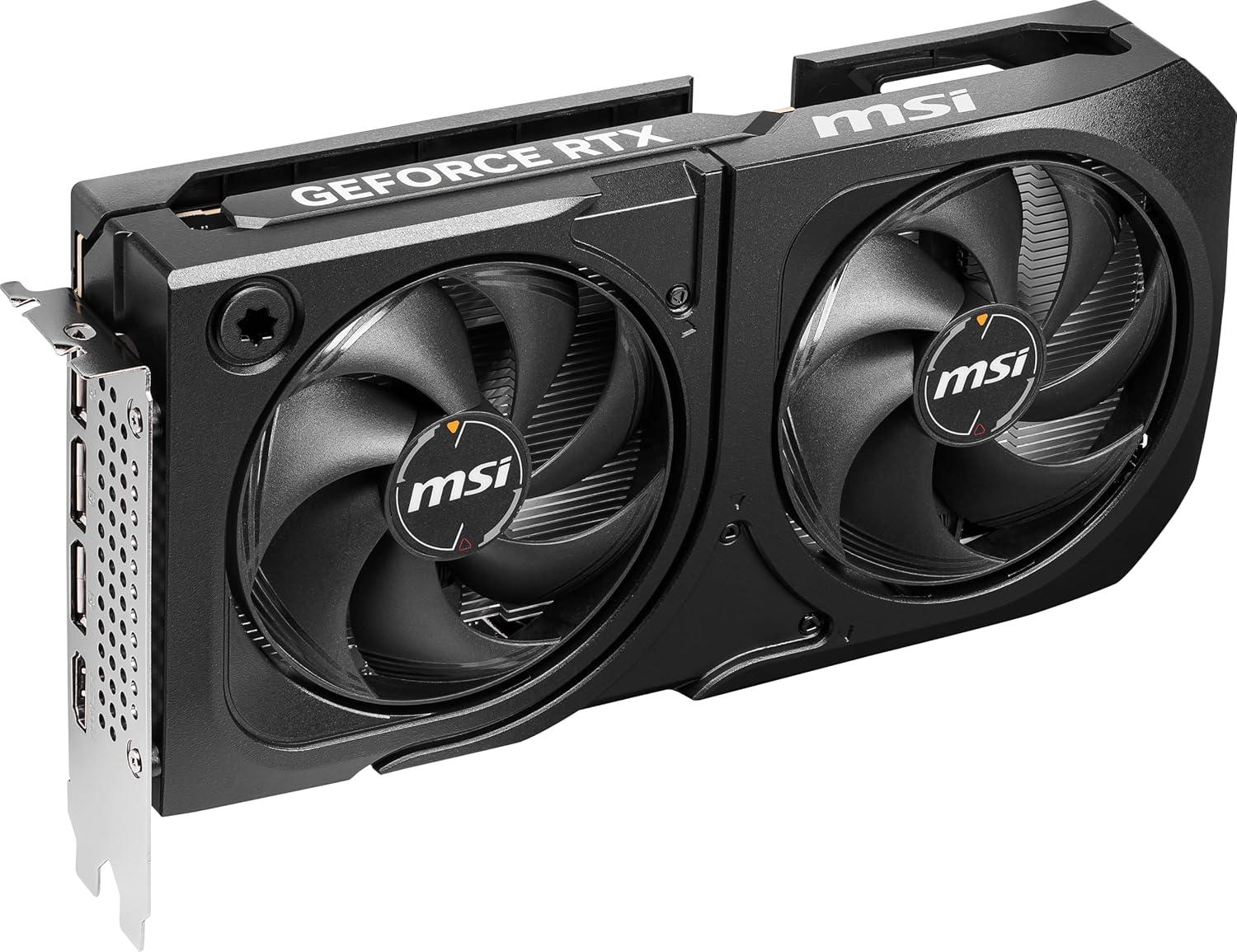

MSI Gaming RTX 5060 Ti 8G Shadow 2X OC at a glance
The MSI Gaming RTX 5060 Ti 8G Shadow 2X OC is a MSI retail card of the RTX 5060 Ti 8GB on Blackwell 2.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 2572 MHz.

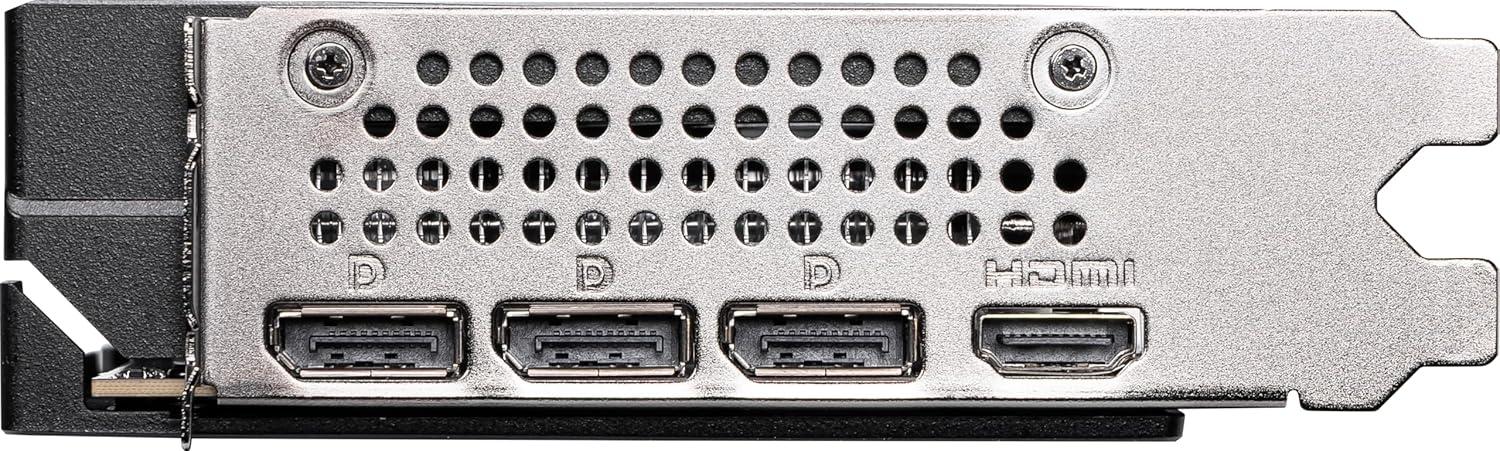

Length is 226 mm and it occupies 2.0 slots (226 x 126 x 41 mm ). Board power is 180 W with 1 x 8-pin. Outputs: DisplayPort x 3 (v2.1b) HDMI™ x 1. Warranty is 36 months.
This is a short card and is a better candidate for compact cases than most RTX 5060 Ti 8GB partners.
Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.
Inherited GPU performance
Raster scores come from the RTX 5060 Ti 8GB, not from this cooler. At 1440p that is 36.59% of the dataset’s best (entry-level), with 45% at 1080p and 26% at 4K. The chip uses 8 GB GDDR7.
This card’s 1440p value is excellent at 97.9 performance per dollar.
Compare other MSI and partner boards of this GPU in the RTX 5060 Ti 8GB retail-card table.
