GIGABYTE · RX 9070 GRE · 288 mm

GIGABYTE Gaming Radeon RX 9070 GRE 12GB GDDR6

12 GB GDDR6 · 288 mm · 2.5 slots · 220 W

1440p
49%
Value
90
Length
288 mm
Amazon
$535
$535
Available Updated 3 days, 16 hours ago
Gaming 1080p56.0%
Gaming 1440p48.5%
Gaming 4K40.9%
1440p value89.8

Written analysis

GIGABYTE Gaming Radeon RX 9070 GRE 12GB GDDR6 at a glance

The GIGABYTE Gaming Radeon RX 9070 GRE 12GB GDDR6 is a GIGABYTE retail card of the RX 9070 GRE on RDNA 4.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 2790 MHz.

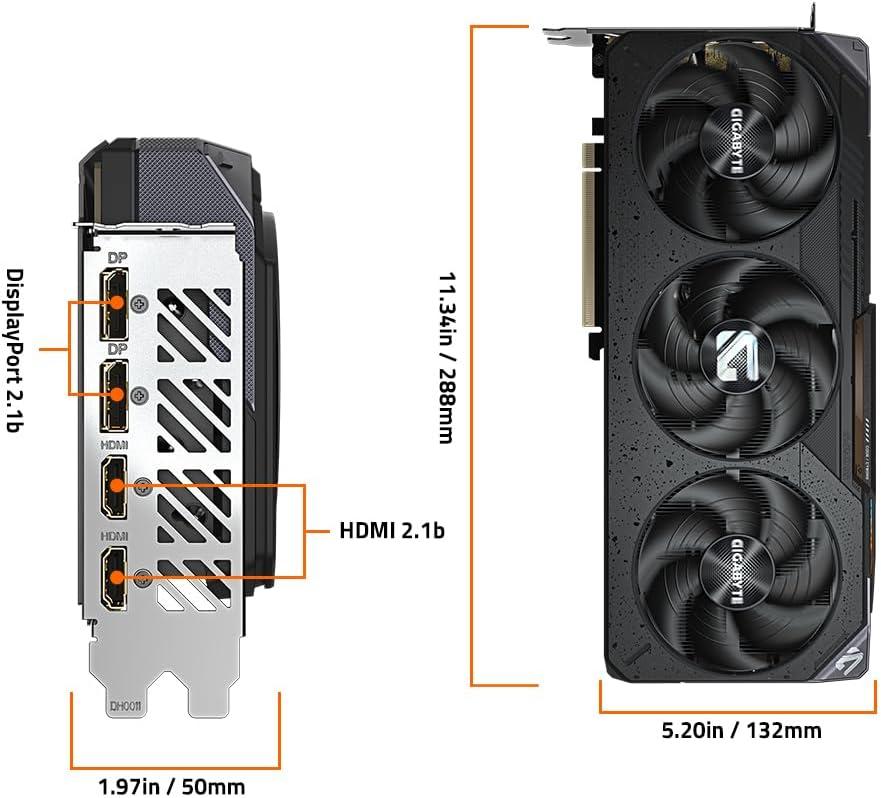

Length is 288 mm and it occupies 2.5 slots (L=288 W=132 H=50 mm). Board power is 220 W with 2 x 8-pin. Outputs: DisplayPort 2.1a x2 HDMI 2.1b x2. Warranty is 36 months.

Length is mainstream. It fits most ATX cases and many compact mid-towers.

Best fit: Builds prioritizing this card’s price, cooler, output selection, and warranty over a factory overclock.

Inherited GPU performance

Raster scores come from the RX 9070 GRE, not from this cooler. At 1440p that is 48.54% of the dataset’s best (entry-level), with 56% at 1080p and 41% at 4K. The chip uses 12 GB GDDR6.

This card’s 1440p value is excellent at 89.8 performance per dollar.

Compare other GIGABYTE and partner boards of this GPU in the RX 9070 GRE retail-card table.

Board hardware

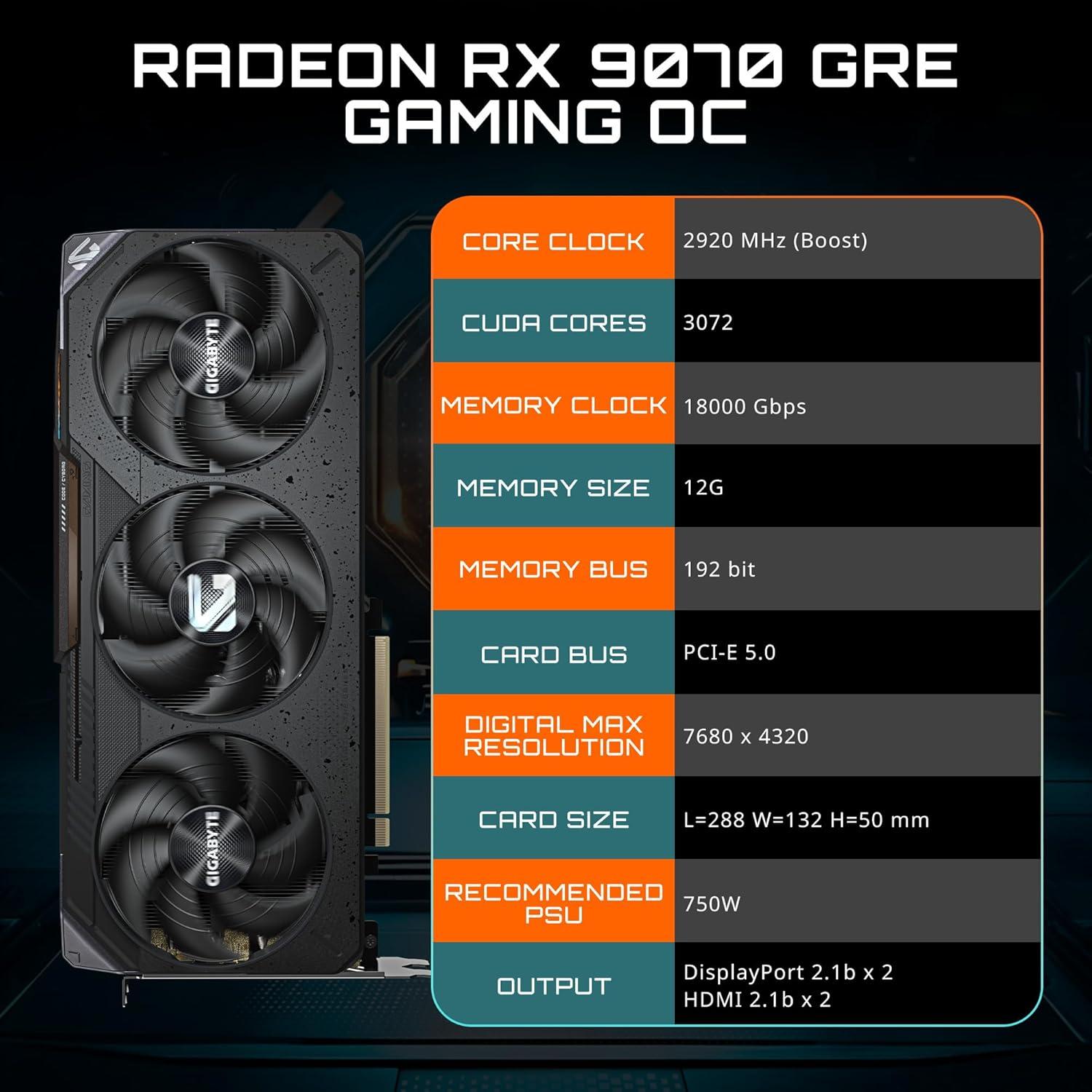

Full specifications

Partner-card clocks, physical fit, cooling, power delivery, display outputs, and the underlying GPU in one technical sheet.

Identity

Card
GIGABYTE Gaming Radeon RX 9070 GRE 12GB GDDR6
Manufacturer
GIGABYTE
Model
GIGABYTE Gaming Radeon RX 9070 GRE 12GB GDDR6
Launch price
Amazon price
$535
Availability
In stock
Price updated
3 days, 16 hours ago

Fit

Length
288 mm
Slot size
2.5 slots
Dimensions

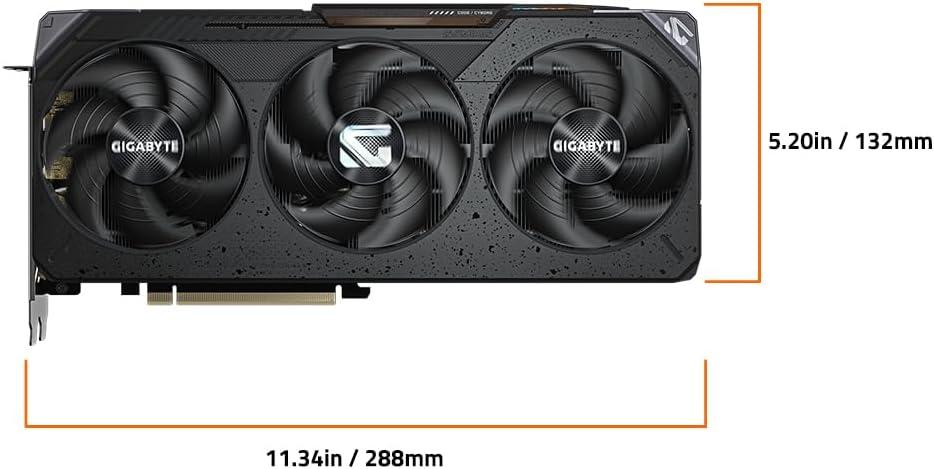

L=288 W=132 H=50 mm
Cooler
Warranty
36 months

Power & I/O

Board power
220 W
Connectors
2 x 8-pin
Display outputs

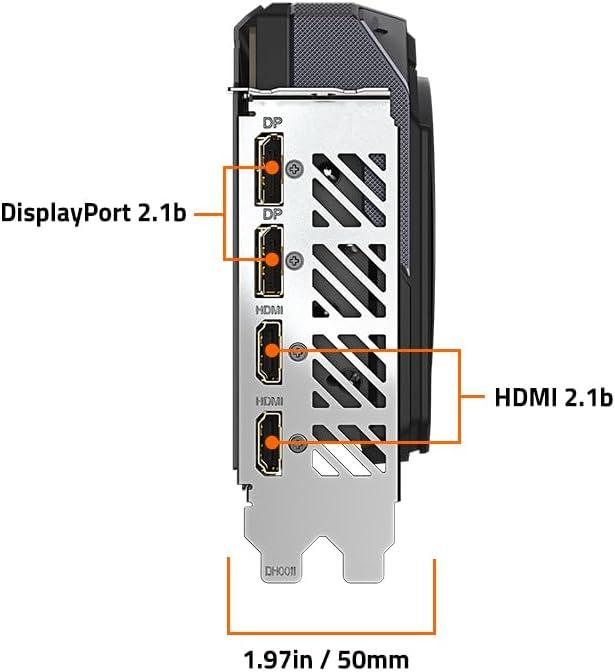

DisplayPort 2.1a x2 HDMI 2.1b x2
Factory OC
No

Boost clock vs RX 9070 GRE

Reference GPU boost compared with this partner card. If no partner boost is recorded, the card is shown as using the reference clock.

Boost clock
Reference GPU 2790 MHz
This card 2920 MHz
Delta +130 MHz (4.7%)

GPU silicon

Architecture
RDNA 4.0
Process
5
Interface
PCIe 5.0 x16
VRAM
12 GB GDDR6
Bus / bandwidth
192-bit · 432 GB/s
Shaders / CU-SM
3072 / 48
RT cores
48
Reference TDP
220 W
Reference base / boost
1420 MHz / 2790 MHz
