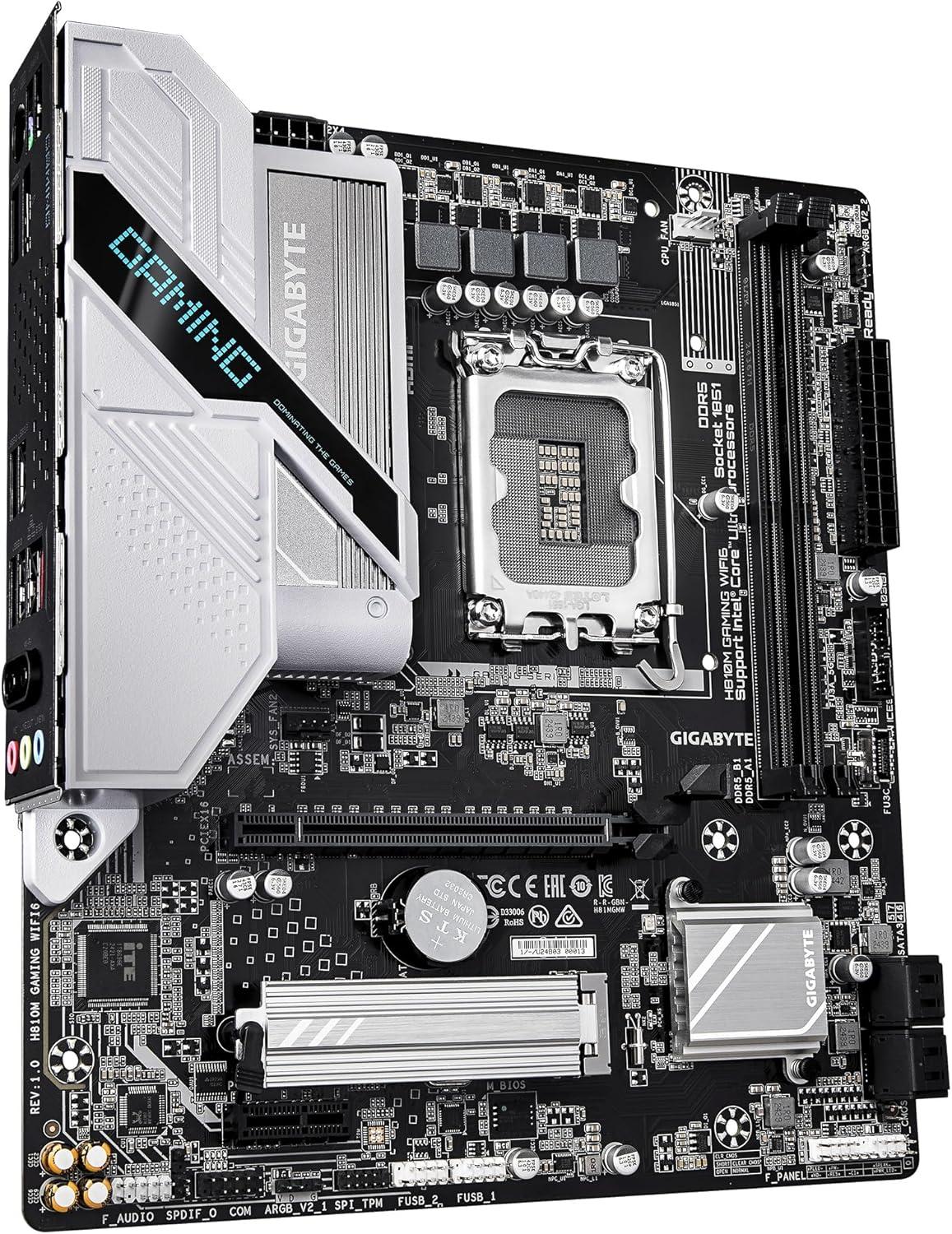

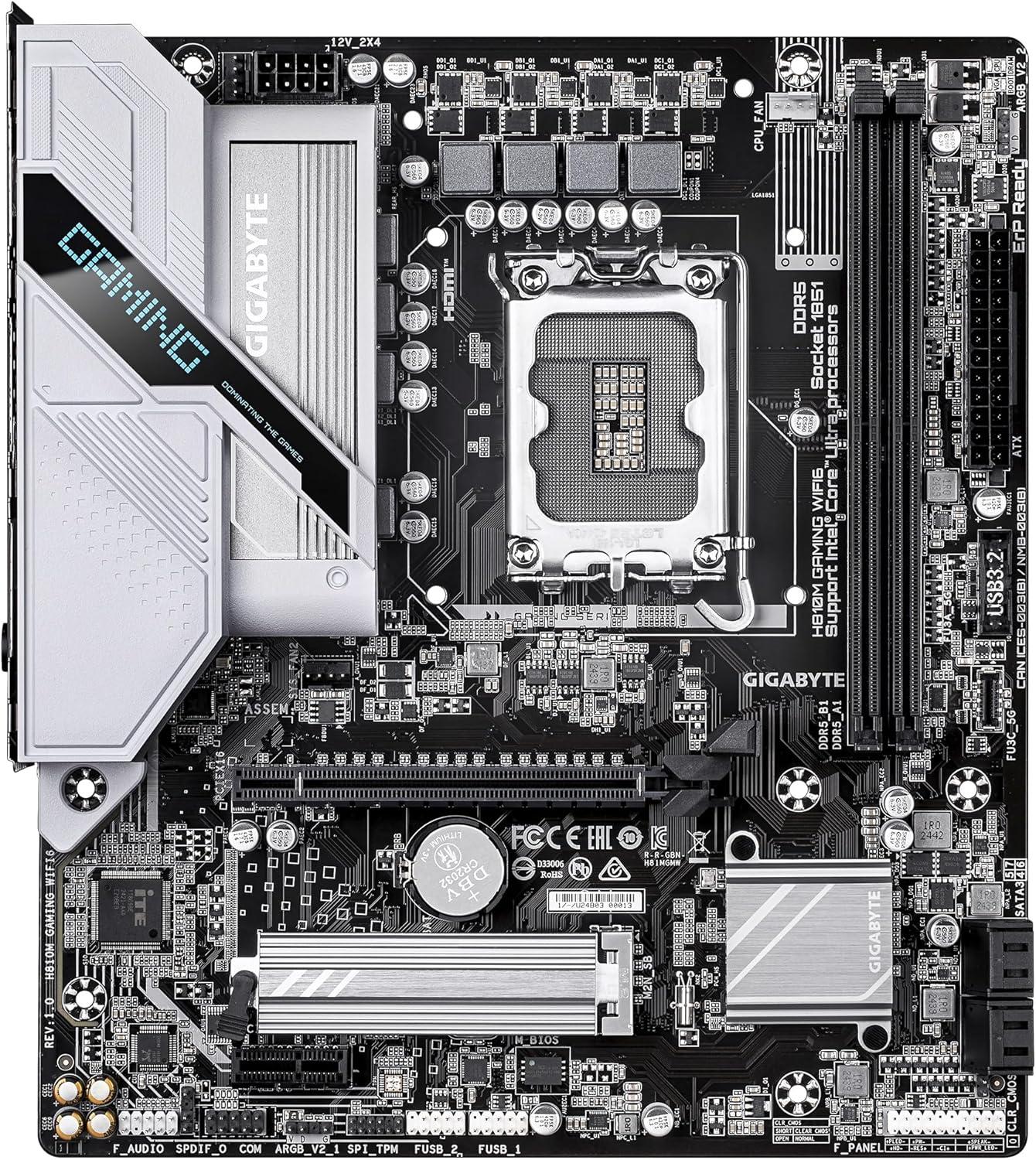

GIGABYTE H810M Gaming WIFI6

View GIGABYTE H810M Gaming WIFI6 Gallery With High-Resolution Images

As an Amazon Associate I earn from qualifying purchases.

GIGABYTE H810M Gaming WIFI6 Specifications Review

GIGABYTE H810M Gaming WIFI6 by GIGABYTE is a Micro-ATX form factor motherboard based on the entry-level H810M chipset and LGA 1851 socket, with basic features and limited connectivity. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 6400 MHz.

VRM Quality

The GIGABYTE H810M Gaming WIFI6 has a basic VRM configuration, delivering 60 A across 4 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.

See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.

Expansion and Storage Overview

The GIGABYTE H810M Gaming WIFI6 offers a simplified expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 1 x16 slot , and 1 x1 slot. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.

For storage, this motherboard provides 1 M.2 slot and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.

Connectivity Overview

This motherboard has essential connectivity features with wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Ethernet . USB connectivity covers basic needs. Please refer to the specification table for details.

For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 2.1 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.

Audio Quality

The motherboard includes a standard audio chipset (Realtek® ALC892/ALC897) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones. Additional features include optical S/PDIF output for clean digital audio.

Overall Quality and Value

GIGABYTE H810M Gaming WIFI6 is basic and functional, carrying an overall quality score of 35.00. It is designed for budget-conscious builds or office setups where advanced features are not required, handling standard tasks effectively but lacking the polish or expandability of higher-tier models.

This motherboard offers an impressive 76.4% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.

General Information

Manufacturer	GIGABYTE
Motherboard Name	GIGABYTE H810M Gaming WIFI6
Current Price Amazon	$87❗N/A
Amazon Price Updated	3 months, 3 weeks ago.
Motherboard Available	False
Chipset / Socket	H810M / LGA 1851
Form Factor	Micro-ATX

VRM Configuration

CPU Power Phases (Amps)	4 (60 A)
Power Design	4+1+2

Memory Information

Type / Slots	DDR5 / 2 slots
Max Capacity / Max OC	128 GB / 6400 MHz

PCIe Slot Configuration

Supported Version	PCIe 4.0

Slot Size	Physical Slots	Gen4	Gen3
x16	1	1	0
x1	1	0	1

Storage Configuration

M.2 Slot Count	1 slot
M.2 Supported Lengths	2280
SATA Ports	4

Onboard Audio Features

Audio Chipset	Realtek® ALC892/ALC897
Analog Audio Jacks	3 jacks
Optical S/PDIF Output	✔️ Present
Spatial/Surround Audio	✔️ Rear Output Supports Spatial Audio

Motherboard Display Outputs

HDMI Output	HDMI - Version 2.1 (Max: 4096x2160@60 Hz)
DisplayPort Output	DisplayPort - Version 2.1 (Max: 3840x2160@60 Hz)

USB and Thunderbolt Connectivity

Rear USB Ports

USB 2.0 Type-A (480 Mbps)	5
USB 3.2 Gen 1 Type-A (5 Gbps)	1

Front USB Ports

USB 2.0 Type-A (480 Mbps)	4
USB 3.2 Gen 1 Type-A (5 Gbps)	2
USB 3.2 Gen 1 Type-C (5 Gbps)	1

Internal USB Headers

USB 2.0 Header (480 Mbps)	4
USB 3.2 Gen 1 Header (5 Gbps)	2

Networking Information

Ethernet	Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1
Wi-Fi	Module: Not Included
Bluetooth	Supported: No

Button Features

Buttons

Quality & Features

Additional Information

RAM	Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, which operate in non-ECC mode. Also supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules.
Display	Video output is provided by the Integrated Graphics Processor (Intel HD Graphics). The HDMI port supports HDCP 2.3.
Expansion	The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage	M.2 Slot Details: M2_1 – 4.0 , Lengths: 2280 , Source: Chipset RAID Support: SATA (Levels: ['0', '1', '5', '10']) The M.2 slot supports PCIe 4.0 x4/x2 modes.
Audio	High Definition Audio. Supports 2/4/5.1/7.1-channel configurations. The functionality of an audio jack can be changed using the audio software. To configure 7.1-channel audio, you must access the audio software for audio settings.
Networking	Supported speeds: 2.5 Gbps/1 Gbps/100 Mbps
Buttons	The motherboard includes a Clear CMOS jumper.
Dimensions	24.4cm x 21.5cm

Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.

GIGABYTE H810M Gaming WIFI6 Compared to Motherboards with Similar Performance and Features

Motherboard Quality & Features per Price Table

Motherboard (Desc) Motherboard Name Sorts motherboards alphabetically. Click to toggle order (A–Z / Z–A).	Price (Desc) Amazon Price Sorts motherboards by their current Amazon price. Click to toggle ascending/descending.	Overall_Q (Desc) Overall Quality & Features Scores based on chipset, VRMs, connectivity, expansion, storage, audio and extra features. Click to toggle sort order.	VRM_Q (Desc) VRM Quality Score reflecting power delivery strength, calculated from the number of phases and their amperage rating. Click to toggle sort order.	Chipset (Desc) Chipset Quality Capabilities and features provided by the motherboard chipset. Determines available PCIe lanes, I/O support, and BIOS features. Click to toggle sort order.	Exp_Str (Desc) Expansion & Storage Score reflecting number of expansion slots and storage options. Based on PCIe slots, M.2 slots, and SATA ports availability. Click to toggle sort order.	Connect (Desc) Connectivity Quality Quantity and quality of ports and networking options. Includes USB ports, Ethernet LAN, Wi-Fi, and Bluetooth support. Click to toggle sort order.	Audio (Desc) Audio Quality Quality of onboard audio hardware components. Considers audio codec and additional functionalities. Click to toggle sort order.	Q&F/Price (Desc) Value Score This value shows how much Quality and Features you're getting per unit of cost. Higher values mean better overall value for money when buying this motherboard.
ASRock B860M H2 ASRock B860M H2 View detailed specs, features, charts, and comparison for this Motherboard.	$120 ASRock B860M H2 Current Amazon Price Click to view this Motherboard on Amazon. \| 0.0% ASRock B860M H2 Price Change No significant price change detected.	40.4%	14.0%	62.0%	54.0%	32.0%	40.0%	64.0%
ASUS PRO Q870M-C-CSM ASUS PRO Q870M-C-CSM View detailed specs, features, charts, and comparison for this Motherboard.	$204❗ ASUS PRO Q870M-C-CSM Price Not Available Last known price from Amazon. Currently unavailable. \| ↓ -8.1% ASUS PRO Q870M-C-CSM Price Change Price decreased from the last update.	38.4%	17.0%	10.0%	80.0%	45.0%	40.0%	35.8%
ASUS Prime H810M-A WiFi-CSM ASUS Prime H810M-A WiFi-CSM View detailed specs, features, charts, and comparison for this Motherboard.	$130 ASUS Prime H810M-A WiFi-CSM Current Amazon Price Click to view this Motherboard on Amazon. \| 0.0% ASUS Prime H810M-A WiFi-CSM Price Change No significant price change detected.	37.2%	17.0%	44.0%	47.0%	38.0%	40.0%	54.4%
GIGABYTE H810M Gaming WIFI6 GIGABYTE H810M Gaming WIFI6 View detailed specs, features, charts, and comparison for this Motherboard.	$87❗ GIGABYTE H810M Gaming WIFI6 Price Not Available Last known price from Amazon. Currently unavailable. \| 0.0% GIGABYTE H810M Gaming WIFI6 Price Change No significant price change detected.	35.0%	11.0%	42.0%	43.0%	31.0%	48.0%	76.4%

Motherboard Comparison and Detail Specifications Table

Specification

Perf Chart

Price

Manufacturer

Chip/Socket

Form

CPU Phases

PWR Design

Mem Slots

Max Mem

PCIe

PCIe Slots

M.2

SATA

Audio

S/PDIF

HDMI

LAN

Wi-Fi

Rear USB

USB 2.0 Type-A (480 Mbps)	2
USB 3.2 Gen 1 Type-A (5 Gbps)	3
USB 3.2 Gen 2x2 Type-C (20 Gbps)	1

USB 2.0 Type-A (480 Mbps)	2
USB 3.2 Gen 1 Type-A (5 Gbps)	1
USB 3.2 Gen 2 Type-A (10 Gbps)	2
USB 3.2 Gen 2 Type-C (10 Gbps)	1

USB 2.0 Type-A (480 Mbps)	4
USB 3.2 Gen 2 Type-A (10 Gbps)	2

USB 2.0 Type-A (480 Mbps)	5
USB 3.2 Gen 1 Type-A (5 Gbps)	1

USB Headers

USB 2.0 Header (480 Mbps)	4
USB 3.2 Gen 1 Header (5 Gbps)	3

USB 2.0 Header (480 Mbps)	4
USB 3.2 Gen 1 Header (5 Gbps)	2

USB 2.0 Header (480 Mbps)	2
USB 3.2 Gen 1 Header (5 Gbps)	2

USB 2.0 Header (480 Mbps)	4
USB 3.2 Gen 1 Header (5 Gbps)	2

Front USB

USB 2.0 Type-A (480 Mbps)	4
USB 3.2 Gen 1 Type-A (5 Gbps)	2
USB 3.2 Gen 1 Type-C (5 Gbps)	1

USB 3.2 Gen 2 Type-C (10 Gbps)	1

USB 3.2 Gen 1 Type-C (5 Gbps)	1
Power Delivery (W)	15W

USB 2.0 Type-A (480 Mbps)	4
USB 3.2 Gen 1 Type-A (5 Gbps)	2
USB 3.2 Gen 1 Type-C (5 Gbps)	1

VRM Appropriate CPU Specification Table
VRM Appropriate
This table lists CPUs that are suitable for the motherboard's Voltage Regulator Module (VRM) capacity, ensuring stable performance without overheating or instability.

CPU CPU Name Sorts CPUs alphabetically. Click to change order.	Price Price (Amazon) Current Amazon price.	App_Performance General Performance Based on multi-purpose workloads like rendering, encoding and compression.	Game_Performance Gaming Performance (1080p) Measures relative gaming performance in modern games at 1080p.	TDP/Max Power Consumption Typical (TDP) and maximum (peak) power draw in watts.	C/SC/T Cores / Small Cores / Threads Number of main performance cores, efficiency cores, and threads.	L2/L3 Cache Cache Memory L2 and L3 cache sizes, which affect performance in data access,multitasking and gaming.	Base/Boost Clock Speeds Base frequency and maximum turbo boost frequency in GHz.	Code Name CPU Architecture Code Name Indicates the internal design generation.	GPU Integrated Graphics Built-in GPU name, if present. Useful for systems without a dedicated GPU.
No compatible CPU available. The motherboard's VRM is too weak to be recommended with any CPU in the database.

Official Manufacturer Data

Memory:

Support for DDR5 6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Graphics:

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz
* Support for DisplayPort 2.1 version.

Storage:

Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Expansion Slots:

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

USB:

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 5 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

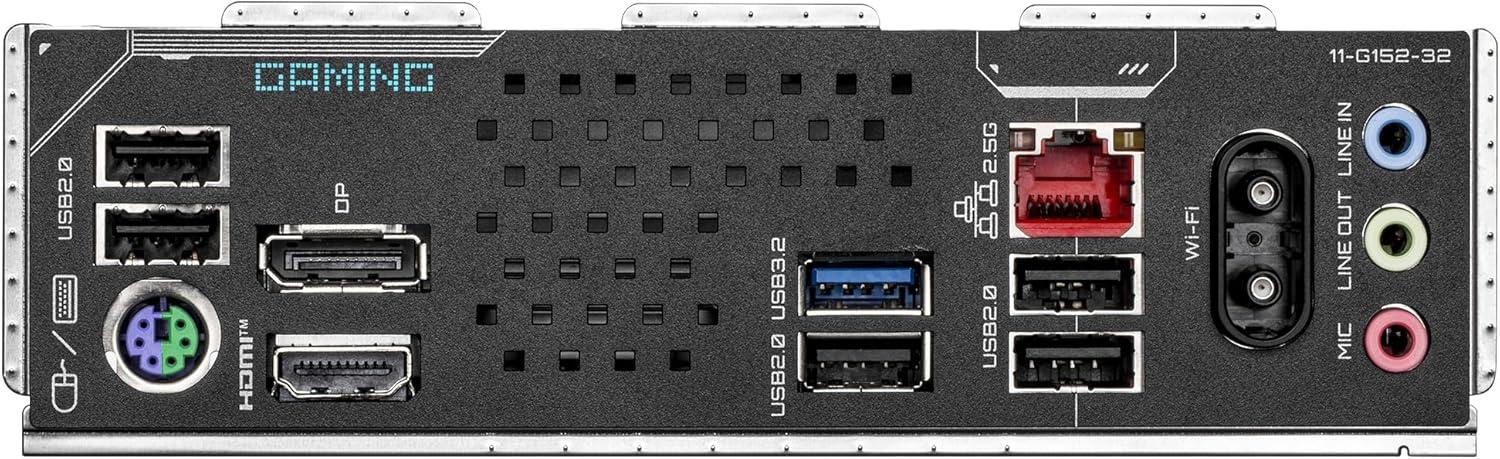

Back Panel I/O:

1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

(Note) Actual support may vary by CPU.

Audio:

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
