ASUS ROG Strix Z790-E Gaming WiFi
ASUS ROG Strix Z790-E Gaming WiFi Specifications Review
ASUS ROG Strix Z790-E Gaming WiFi by Asus is a Standard-ATX form factor motherboard based on the high-end Z790-E chipset and LGA 1700 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 192 GB, and an overclocking speed of up to 7800 MHz.
VRM Quality
The ASUS ROG Strix Z790-E Gaming WiFi features a high-end VRM setup, supplying 90 A across 18 phases. Capable of handling high-wattage CPUs (200 W+) and supporting moderate to heavy overclocking, while keeping thermals and voltage regulation under control. Well-suited for gaming builds with top-tier CPUs, workstation tasks, and enthusiasts seeking reliable high performance.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview

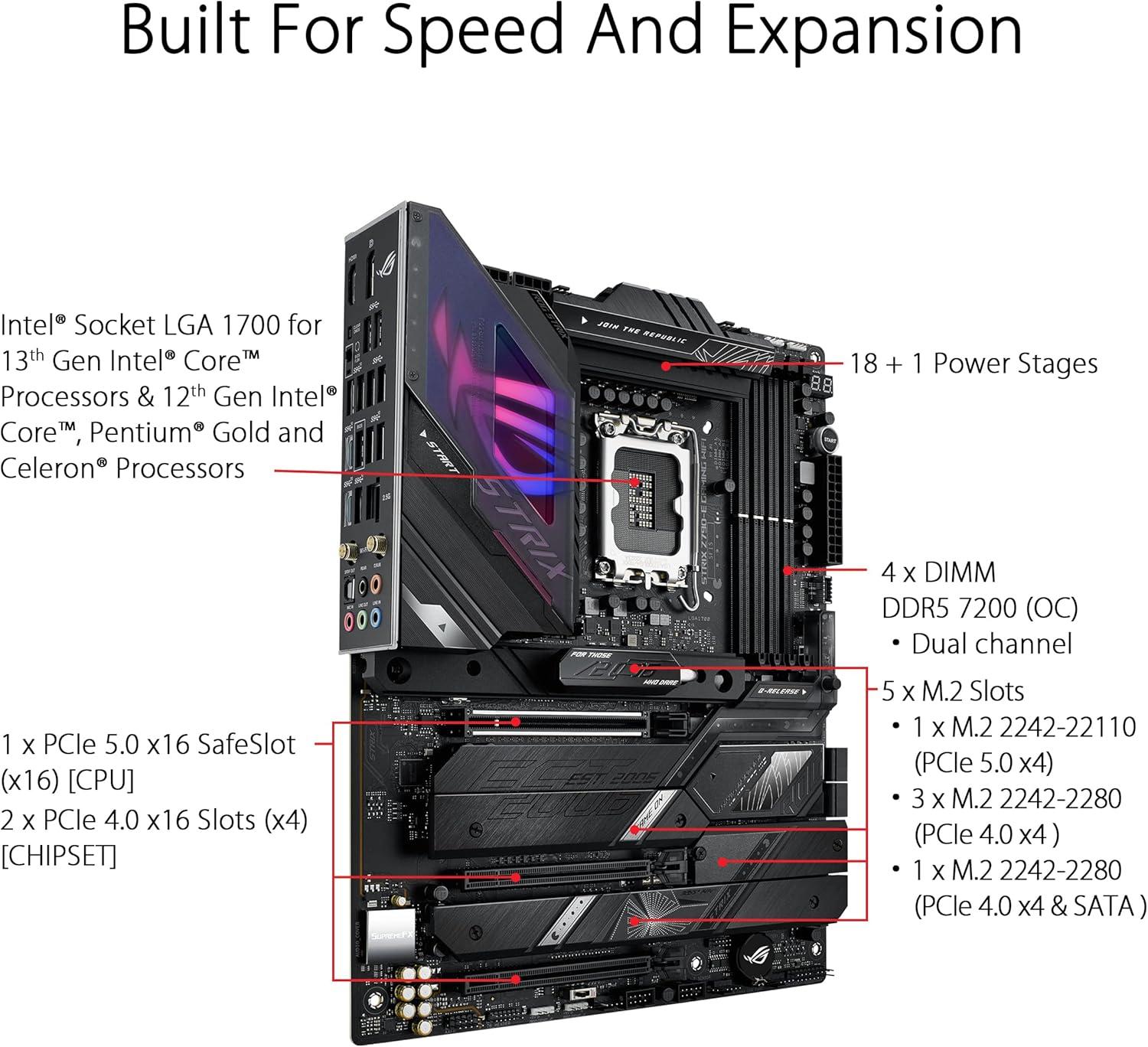

The ASUS ROG Strix Z790-E Gaming WiFi offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 5 M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview

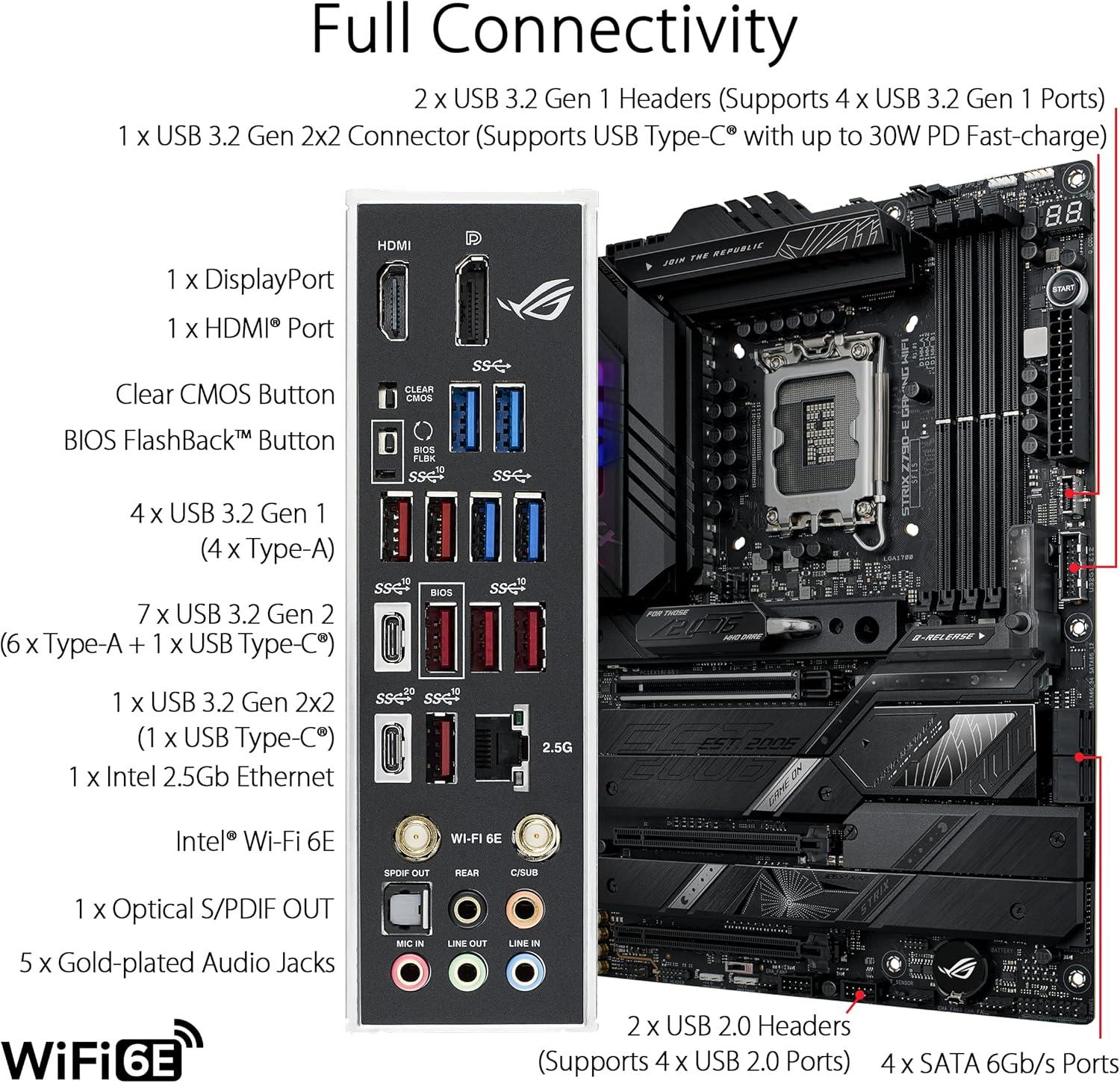

This motherboard provides extensive and premium connectivity options, including wireless networking with the Wi-Fi 6E standard, delivering fast and reliable internet speeds and wired 1 x Intel® 2.5Gb Ethernet LAN support capable of speeds up to 2500 Gbps, ensuring ultra-fast network connections. Bluetooth 5.3 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality

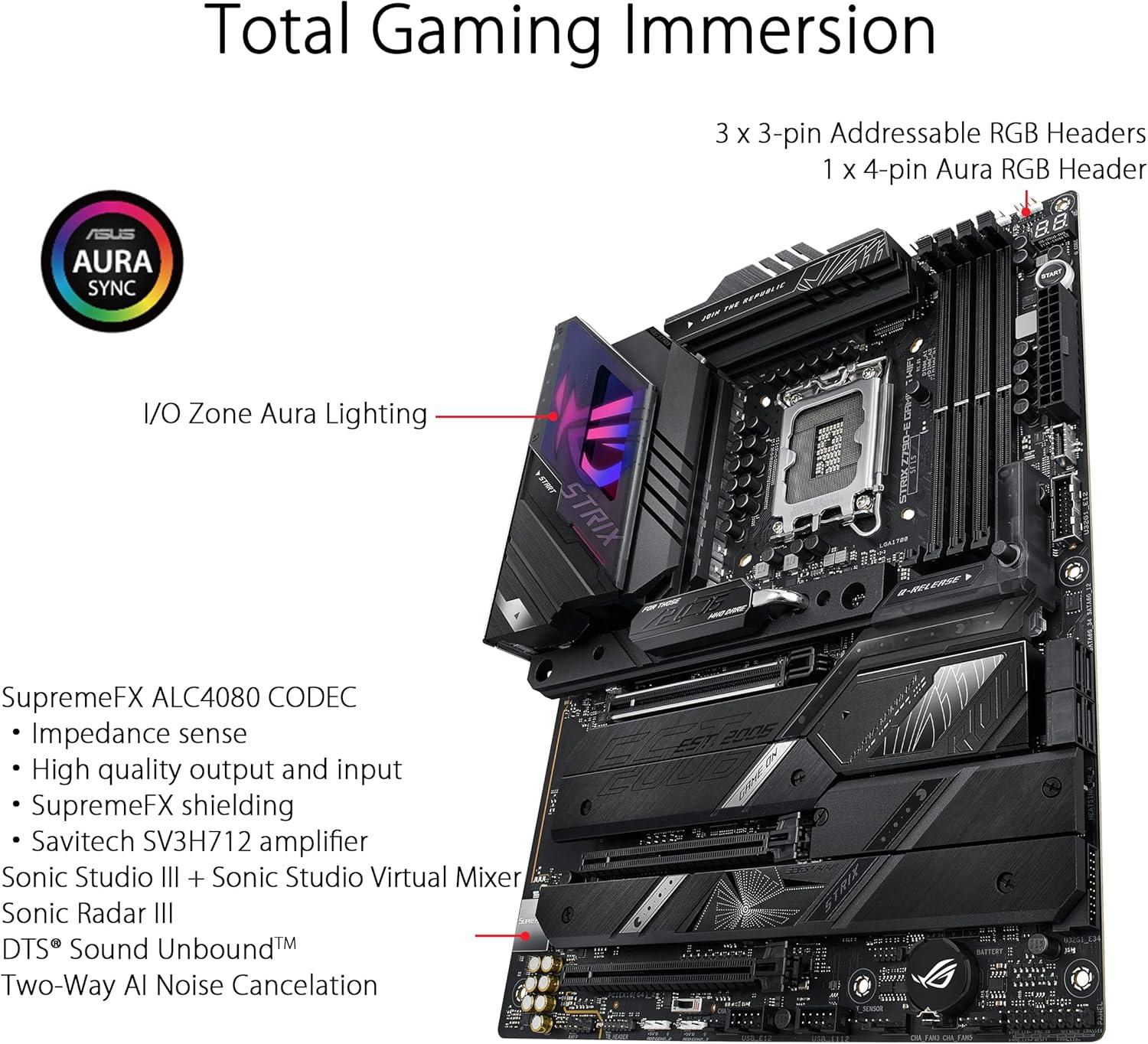

This motherboard features an ultra-premium audio solution — the ROG SupremeFX ALC4080 with Savitech SV3H712 AMP — rivaling professional-grade DACs. With its ESS Sabre-class DAC implementation, it delivers reference-quality sound featuring exceptional clarity, dynamic range, and near-zero distortion. This is the ultimate choice for audiophiles, professional audio work, and high-impedance headphones, eliminating the need for external amplification in most cases. Additional features include optical S/PDIF output for clean digital audio, plus multiple audio jacks (5) for flexible connectivity.
Overall Quality and Value
ASUS ROG Strix Z790-E Gaming WiFi is a premium motherboard boasting a high overall quality score of 96.60. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard shows a 32.0% value score indicating less favorable price-to-performance compared to mainstream models. This is typical for high-end motherboards, which prioritize premium features, durability, and advanced capabilities over raw value. It is an excellent choice for users who favor top quality, cutting-edge technology, and robust performance and are willing to invest more without focusing primarily on price.
General Information
| Manufacturer | Asus |
|---|---|
| Motherboard Name | ASUS ROG Strix Z790-E Gaming WiFi |
| Current Price Amazon | $574❗N/A |
| Amazon Price Updated | 1 month, 2 weeks ago. |
| Motherboard Available | False |
| Chipset / Socket | Z790-E / LGA 1700 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 18 (90 A) |
|---|---|
| Power Design | 18+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 192 GB / 7800 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 3 | 1 | 2 |
Storage Configuration
| M.2 Slot Count | 5 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| M.2 PCIe Modes | PCIe 5.0 x4, PCIe 4.0 x4 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | ROG SupremeFX ALC4080 with Savitech SV3H712 AMP |
|---|---|
| Analog Audio Jacks | 5 jacks |
| Gold-Plated Jacks | ✔️ Yes |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 6 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| Power Delivery (W) | 30W |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 4 |
| USB 3.2 Gen 2x2 Header (20 Gbps) | 1 |
| USB4 / Thunderbolt Header (40 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: 1 x Intel® 2.5Gb Ethernet LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6E Frequency Bands: 2.4/5/6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| RAM | Features OptiMem II. Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration. Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
|---|---|
| Display | Graphics specifications may vary between CPU types. VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion | The two PCIe 4.0 x16 slots support x4 mode. When the M.2_1 slot is occupied with an SSD device, the PCIe 5.0 x16 slot (PCIEX16(G5)) will run in x8 mode only. Please check the PCIe bifurcation table on the support site. |
| Storage |
M.2 Slot Details:
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Audio | SupremeFX Shielding Technology. Impedance sense for front and rear headphone outputs. Supports Jack-detection, Multi-streaming, and Front Panel Jack-retasking. Features 120 dB SNR stereo playback output, 113 dB SNR recording input, and supports up to 32-Bit/384 kHz playback. Includes premium audio capacitors and an audio cover. The rear panel Line out port does not support spatial audio. |
| Networking | WiFi 6E 6GHz regulatory may vary between countries. |
| Buttons | The motherboard includes a Start button and an Alternative PCIe Mode Switch. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS ROG Strix Z790-E Gaming WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$500❗
|
↑
1.5%
|
98.4%
|
105.0%
|
92.0%
|
89.0%
|
108.0%
|
98.0%
|
37.4%
|
|
|
$574❗
|
↑
4.4%
|
96.6%
|
85.0%
|
100.0%
|
109.0%
|
95.0%
|
94.0%
|
32.0%
|
|
|
$574❗
|
↑
4.4%
|
96.6%
|
85.0%
|
100.0%
|
109.0%
|
95.0%
|
94.0%
|
32.0%
|
|
|
$650❗
|
↑
68.5%
|
91.6%
|
99.0%
|
94.0%
|
93.0%
|
81.0%
|
91.0%
|
26.8%
|
|
|
$300❗
|
0.0%
|
90.0%
|
74.0%
|
100.0%
|
96.0%
|
89.0%
|
91.0%
|
57.0%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$500❗
|
↑
1.5%
|
$574❗
|
↑
4.4%
|
$574❗
|
↑
4.4%
|
$650❗
|
↑
68.5%
|
$300❗
|
0.0%
|
||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | Asus | Asus | MSI | ASUS | ||||||||||||||||||||||||||||||
| Chip/Socket | Z790 / LGA 1700 | Z790-E / LGA 1700 | Z790-E / LGA 1700 | Z790 / LGA 1700 | Z790-F / LGA 1700 | ||||||||||||||||||||||||||||||
| Form | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||
| CPU Phases | 20 (105 A) | 18 (90 A) | 18 (90 A) | 19 (105 A) | 16 (90 A) | ||||||||||||||||||||||||||||||
| PWR Design | 20+2+1 | 18+1 | 18+1 | 19+1+1 | 16(90A)+1(90A)+2 | ||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8000 MHz | 192 GB / 7800 MHz | 192 GB / 7800 MHz | 256 GB / 7800 MHz | 192 GB / 8000 MHz | ||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 2x16 Gen3 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||
| M.2 | 5 | 5 | 5 | 5 | 5 | ||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 6 | 4 | ||||||||||||||||||||||||||||||
| Audio | Realtek® ALC1220-VB CODEC, ES… | ROG SupremeFX ALC4080 with Sa… | ROG SupremeFX ALC4080 with Sa… | Realtek® ALC4080 Codec | ROG SupremeFX ALC4080 | ||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||
| HDMI | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||
| DP | ✔️ (1.2) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ||||||||||||||||||||||||||||||
| LAN | Marvell® AQtion AQC113C … (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | Intel® 2.5Gbps LAN (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | ||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi Wi-Fi 7 | Wi-Fi Wi-Fi 7 (802.11be) | ||||||||||||||||||||||||||||||
| BT | v5.3 | v5.3 | v5.3 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
||||||||||||||||||||||||
| USB Headers |
|
|
|
❌ |
|
||||||||||||||||||||||||||||||
| Front USB |
❌ |
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$474
|
↓
-0.6%
|
83.3%
|
82.0%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.20 GHz / 6.00 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$450
|
↓
-0.1%
|
83.3%
|
82.0%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.20 GHz / 6.00 GHz | Raptor Lake-R | None | |
|
$320
|
0.0%
|
81.0%
|
81.5%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.00 GHz / 5.80 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$270
|
↓
-53.4%
|
81.0%
|
81.5%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.00 GHz / 5.80 GHz | Raptor Lake-S | None | |
|
$371
|
0.0%
|
74.3%
|
81.4%
|
125 W / 253 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 3.40 GHz / 5.60 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$540
|
0.0%
|
74.3%
|
81.4%
|
125 W / 253 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 3.40 GHz / 5.60 GHz | Raptor Lake-R | None | |
|
$633
|
0.0%
|
70.1%
|
80.7%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.80 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$561
|
0.0%
|
70.1%
|
80.7%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.80 GHz | Raptor Lake-R | None | |
|
$640
|
↑
11.1%
|
68.0%
|
81.0%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.60 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$400
|
0.0%
|
68.0%
|
81.0%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.60 GHz | Raptor Lake-S | None | |
|
$400
|
↓
-11.1%
|
66.4%
|
80.6%
|
125 W / 253 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 3.40 GHz / 5.40 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$379
|
0.0%
|
66.4%
|
80.6%
|
125 W / 253 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 3.40 GHz / 5.40 GHz | Raptor Lake-S | None | |
|
$379
|
0.0%
|
65.6%
|
81.1%
|
65 W / 219 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 2.10 GHz / 5.40 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$290
|
↑
3.6%
|
65.6%
|
81.1%
|
65 W / 219 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 2.10 GHz / 5.40 GHz | Raptor Lake-R | None | |
|
$430
|
0.0%
|
60.5%
|
76.2%
|
125 W / 241 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 3.20 GHz / 5.20 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$344
|
0.0%
|
60.5%
|
76.2%
|
125 W / 241 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 3.20 GHz / 5.20 GHz | Alder Lake-S | None | |
|
$400
|
0.0%
|
58.8%
|
79.9%
|
65 W / 219 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 2.10 GHz / 5.20 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$399
|
0.0%
|
58.8%
|
79.9%
|
65 W / 219 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 2.10 GHz / 5.20 GHz | Raptor Lake-S | None | |
|
$262❗
|
↑
5.6%
|
55.4%
|
78.9%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.30 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$250❗
|
↓
-1.0%
|
55.4%
|
78.9%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.30 GHz | Raptor Lake-R | None | |
|
$380❗
|
↓
-10.6%
|
54.1%
|
72.4%
|
65 W / 202 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 2.40 GHz / 5.10 GHz | Alder Lake-S | None | |
|
$696
|
0.0%
|
54.1%
|
72.4%
|
65 W / 202 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 2.40 GHz / 5.10 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$268
|
0.0%
|
52.3%
|
76.8%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$268
|
0.0%
|
52.3%
|
76.8%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Raptor Lake-S | None | |
|
$334
|
↓
-1.6%
|
50.9%
|
73.9%
|
125 W / 190 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 3.60 GHz / 5.00 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$273
|
↑
1.8%
|
50.9%
|
73.9%
|
125 W / 190 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 3.60 GHz / 5.00 GHz | Alder Lake-S | None | |
|
$375
|
0.0%
|
50.5%
|
76.8%
|
65 W / 154 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 2.70 GHz / 5.20 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$280
|
0.0%
|
47.8%
|
75.0%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.60 GHz / 5.00 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$268
|
0.0%
|
47.7%
|
74.7%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.70 GHz / 5.00 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$405
|
↑
44.7%
|
45.6%
|
73.0%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.50 GHz / 4.80 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$448
|
↓
-0.3%
|
43.0%
|
72.7%
|
65 W / 180 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 2.10 GHz / 4.90 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$327
|
↓
-2.7%
|
43.0%
|
72.7%
|
65 W / 180 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 2.10 GHz / 4.90 GHz | Alder Lake-S | None | |
|
$191
|
↓
-5.4%
|
40.4%
|
68.3%
|
125 W / 150 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 3.70 GHz / 4.90 GHz | Alder Lake-S | None | |
|
$203❗
|
↑
13.4%
|
40.4%
|
68.3%
|
125 W / 150 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 3.70 GHz / 4.90 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$212
|
↓
-1.5%
|
36.1%
|
64.8%
|
65 W / 154 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.70 GHz | Raptor Lake-R | UHD Graphics 730 | |
|
$188
|
↓
-4.1%
|
36.1%
|
64.8%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.70 GHz | Raptor Lake-R | None | |
|
$387
|
↑
0.8%
|
35.0%
|
64.0%
|
65 W / 154 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.60 GHz | Raptor Lake-S | UHD Graphics 730 | |
|
$234
|
0.0%
|
35.0%
|
64.0%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.60 GHz | Raptor Lake-S | None |
Official Manufacturer Data
Memory:
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
**** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics:
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Storage:
Intel® 14th & 13th & 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Expansion Slots:
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
* Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
USB:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Start button
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Back Panel I/O:
7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C® )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
WiFi:
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Special Features:
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

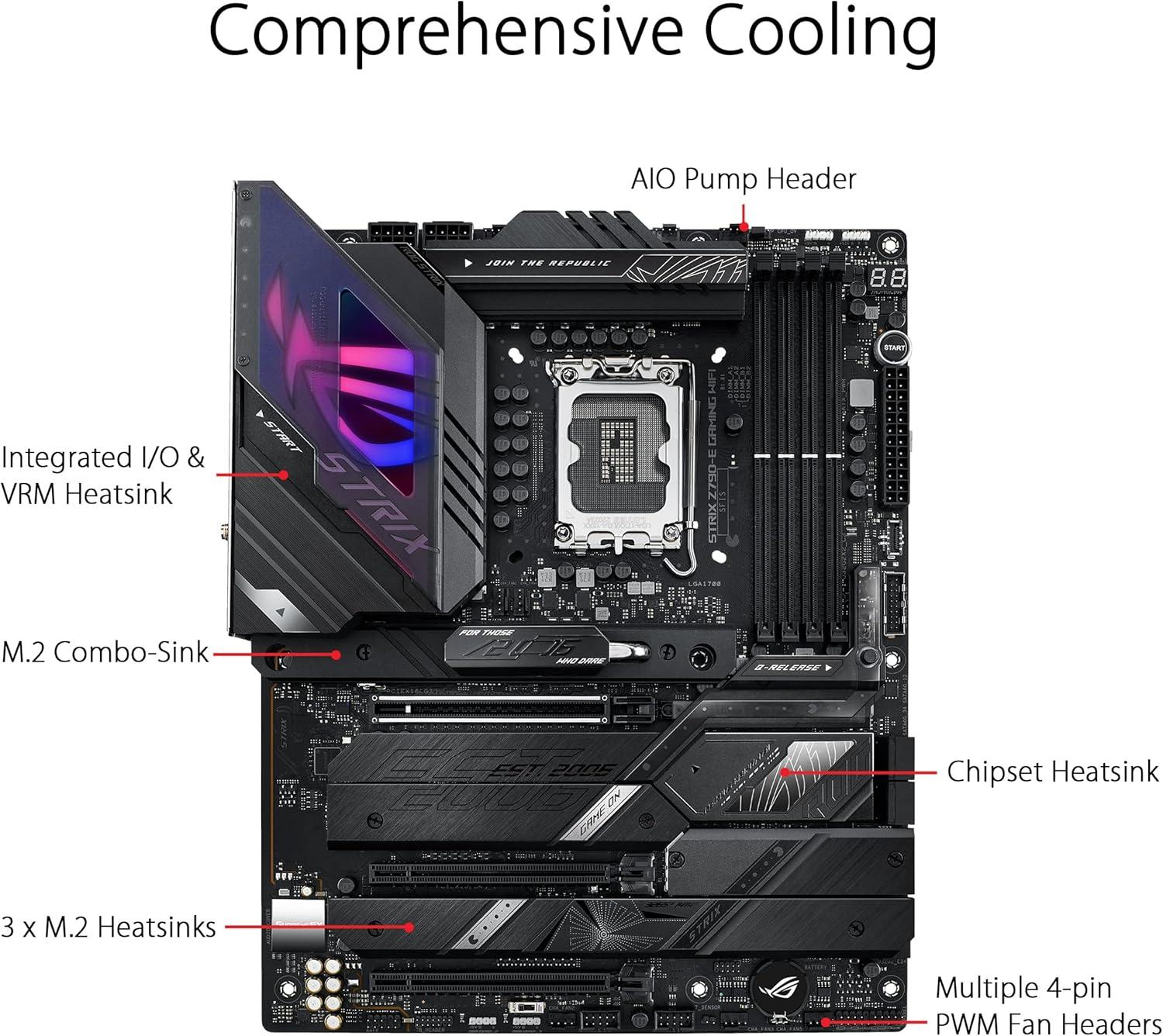

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 RGB headers
Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support
- Support: up to 30W charging
- Output: 5/9V max. 3A, 12V max 2.5A
- Compatible with PD3.0
Add Comment on ASUS ROG Strix Z790-E Gaming WiFi
