Thermaltake · Full-Tower · Tempered glass

Thermaltake AX500 TG Black

Mini-ITX, Micro-ATX, Standard-ATX, E-ATX, SSI-CEB, SSI-EEB · Black · USB-C

Quality
98
Quality / price
44
Max GPU
460 mm
Amazon
$200
Thermaltake AX500 TG Black

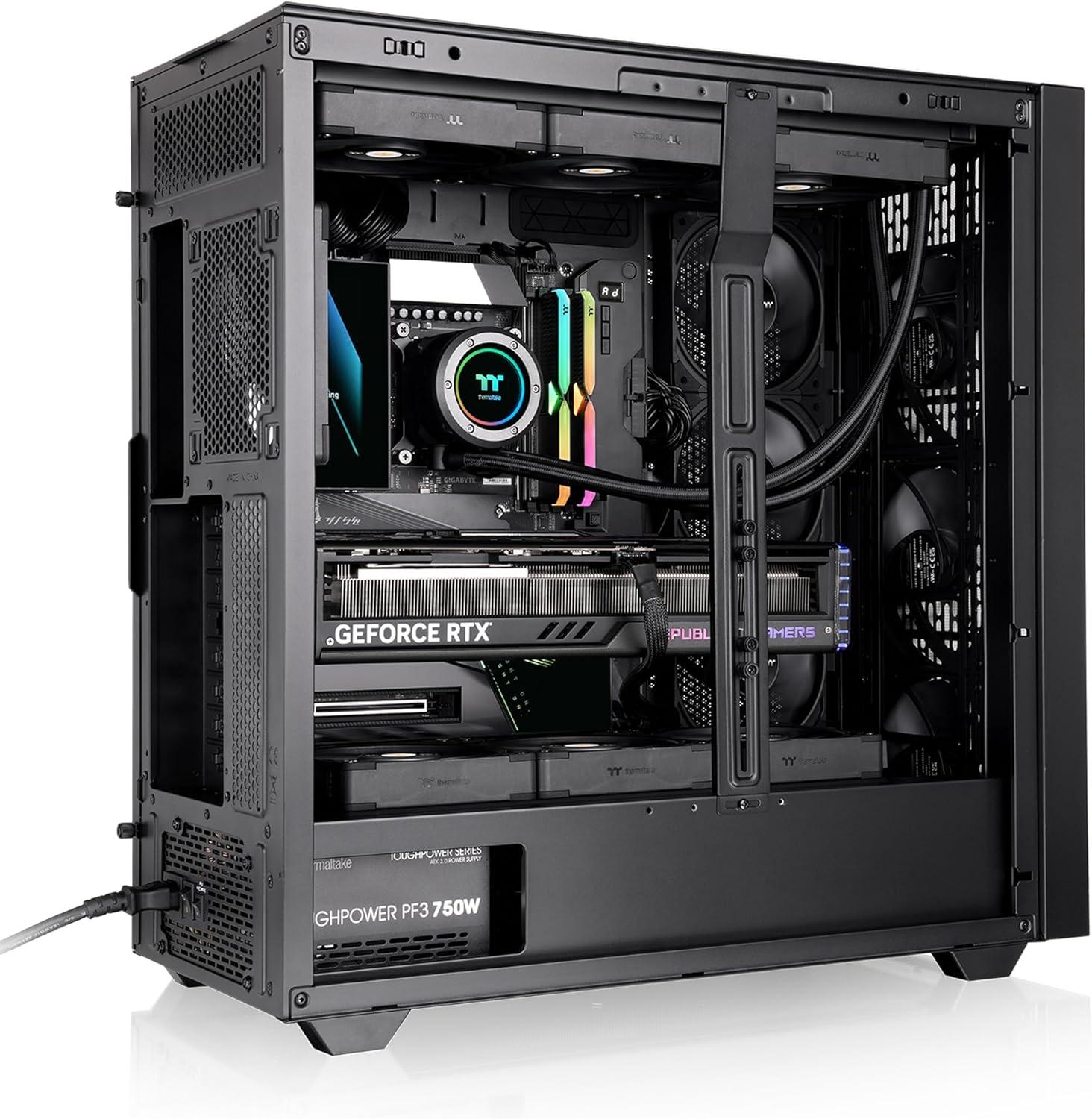

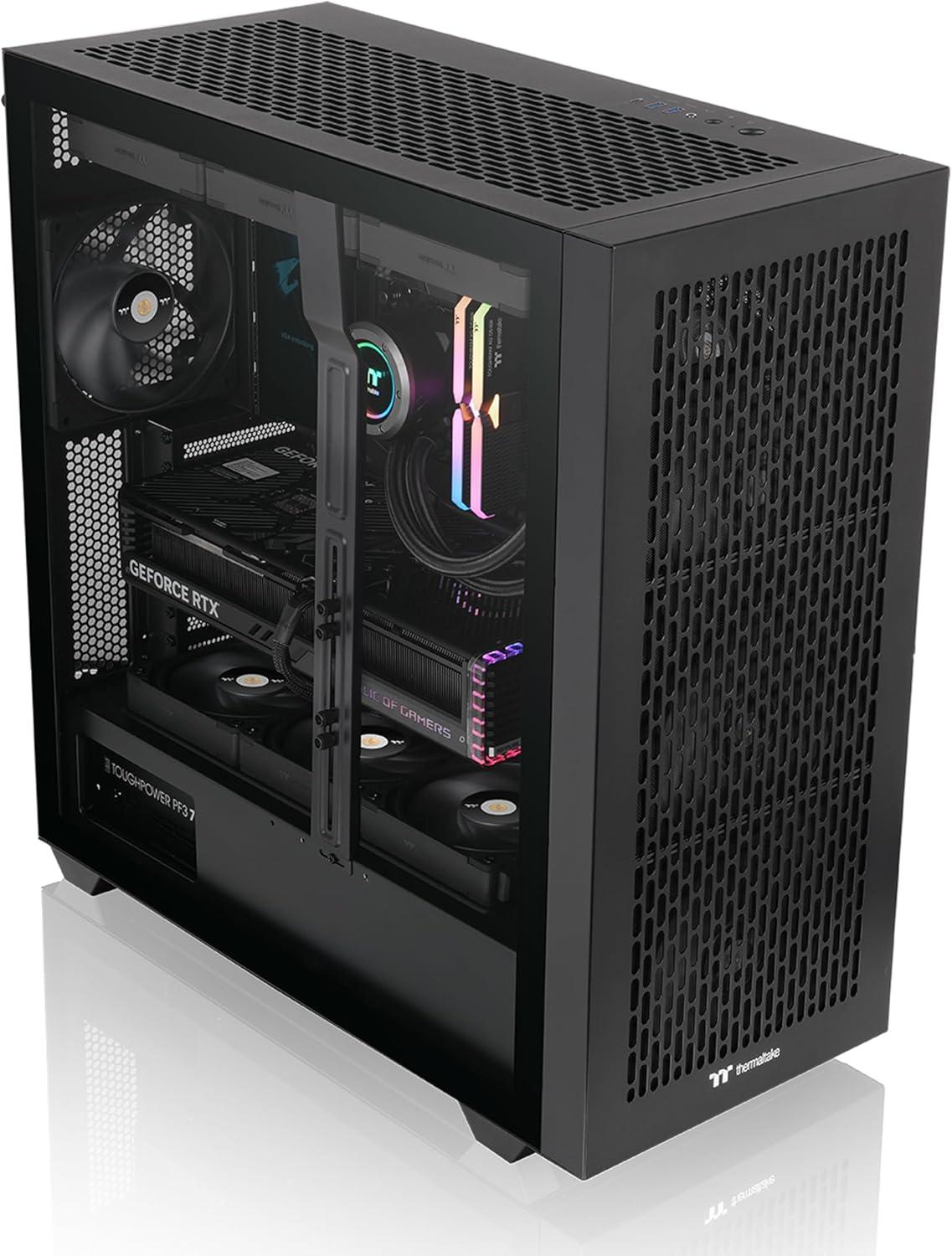

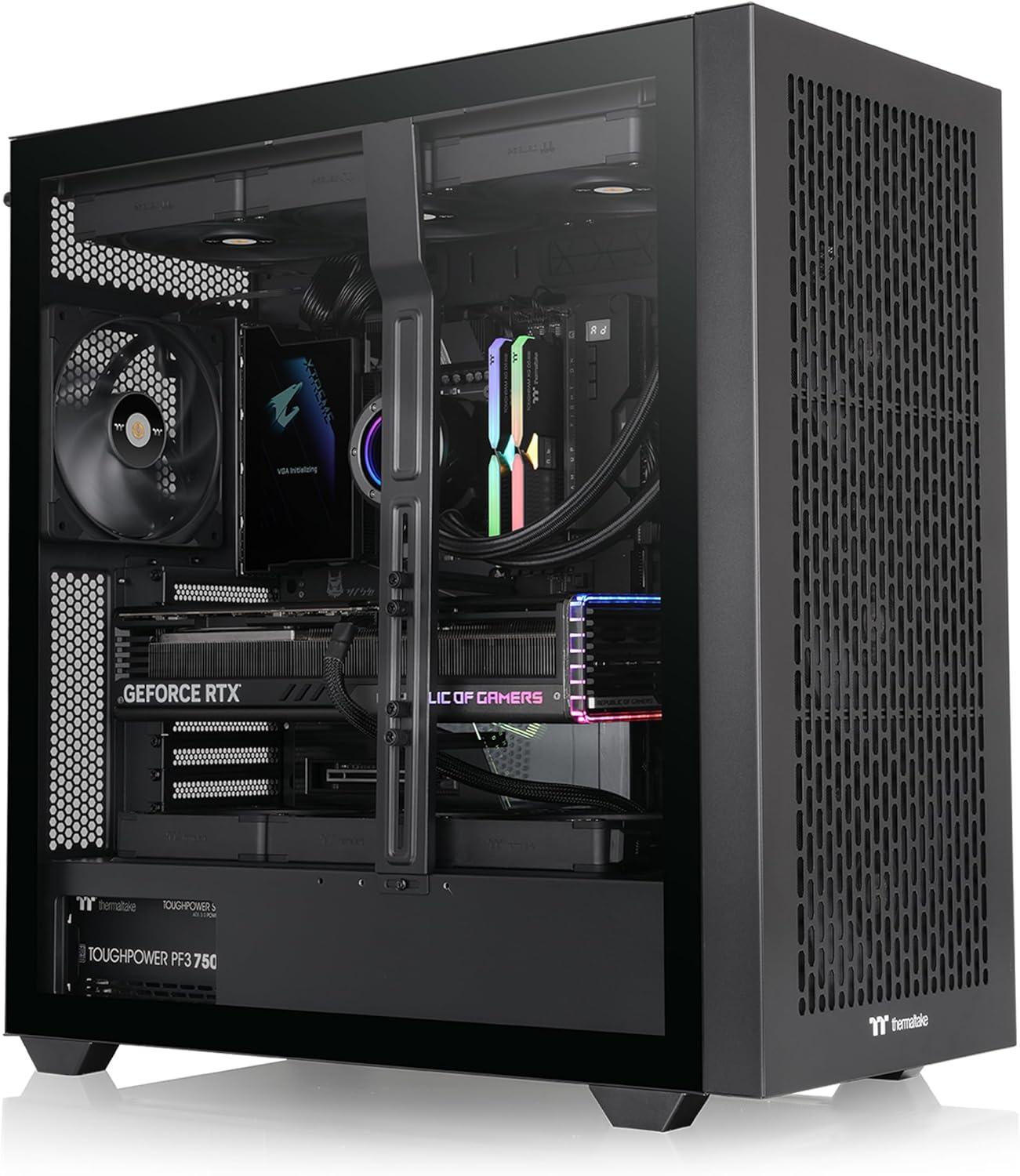

View Thermaltake AX500 TG Black Gallery in high resolution
$200
Available on Amazon Updated Aug 30, 2026 Prime FBA
Overall quality98.0
Quality / price44.1
Cooling support21
$200 on Amazon Case table Compare this case

Check this case with a complete fit chainSelect a CPU and motherboard first; the Builder will then verify board size and GPU clearance. Start the compatibility check

Written analysis

Thermaltake AX500 TG Black at a glance

The Thermaltake AX500 TG Black is a Full-Tower chassis with a tempered glass side panel profile. Supported boards: Mini-ITX, Micro-ATX, Standard-ATX, E-ATX, SSI-CEB, SSI-EEB. Primary materials are listed as SPCC .

Overall quality is 98.0, summing compatibility, cooling, storage, build quality, and connectivity. Max GPU length is 460 mm. Max CPU cooler height is 185 mm. Largest radiator support is listed at 420 mm.

Best fit: High-end long-GPU builds that need support for at least one 360 mm radiator; verify the listed radiator positions before planning a multi-radiator loop.

Cooling and front I/O

Front ports: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 . USB-C is present on the front I/O. Dust filters: Yes.

Current value

At $200, quality / price is 44.1. Compare nearby cases of the same form factor below; clearance and panel type can outweigh a small quality gap.

Chassis data

Full specifications

Construction, clearances, cooling, storage, front I/O, and quality metrics in one technical sheet.

General

Manufacturer
Thermaltake
Case
Thermaltake AX500 TG Black
Form factor
Full-Tower
Side panel
Tempered glass
Launch price
—
Amazon price
$200
Amazon availability
Available
Price updated
Aug 30, 2026

Construction

Material
SPCC
Color
Black
Side panel detail
tempered glass
Dimensions
550 x 248 x 548 mm
Weight
—
PSU shroud
Yes
RGB lighting
No

Quality & value

Overall quality
98.0
Compatibility
20
Cooling support
21
Storage score
20
Build quality
21
Connectivity
16
Quality / price
44.1

Compatibility / clearances

Motherboard sizes
Mini-ITX, Micro-ATX, Standard-ATX, E-ATX, SSI-CEB, SSI-EEB
Max GPU length
460 mm
Max cooler height
185 mm
Max PSU length
200 mm
PSU form factor
ATX, SFX
PSU included
No

Cooling

Max radiator
420 mm
Fan support
4 x 120mm ,3x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Top: 3 x 120mm , 2x 120mm , 1x 120mm 3 x 140mm , 2x 140mm , 1x 140mm Rear: 1 x 120mm , 1 x 140mm Right: 3 x 120mm , 2x 120mm , 1x 120mm 2 x 140mm , 1x 140mm Power Cover: 3 x 120mm , 2x 120mm , 1x 120mm
Radiator support
Front (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Top (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Rear(AIO): 1 x 120mm , 1 x 140mm
Pre-installed fans
Not specified
Dust filters
Yes

Storage & I/O

Drive bays
5 x 3.5” , 1 x 2.5” or 6 x 2.5”
Expansion slots
8
Front ports
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
USB-C
Listed

Additional information

Also listed as
AX500 TG Black
Additional info
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 4

Amazon

Price history

Nearby quality

Similar cases

Cases close to Thermaltake AX500 TG Black on overall quality. Open the case table to sort, filter, and compare side by side.

Compare these in the case table

Discussion

Comments on Thermaltake AX500 TG Black

No comments yet.

Vendor copy

Amazon listing details

Marketplace feature text kept for reference. Structured specifications above are the source for scores and comparisons.

【Workstation or Gaming】 Supports both SSI-CEB/SSI-EEB server boards as well as ATX boards such as E-ATX/ATX/mATX/mITX for versatile build options.

【Cooling Support】 Fans: 9x140mm/14x120mm (ATX) 7x140mm/11x120mm (SSI), Radiators: up to 420mm, Air Coolers up to 185mm.

【Multi-GPU Expandability】 8 PCIe Expansion Slots for multi-GPU up to 460mm in length. GPU Brace included with 2 adjustable supports.

【Plentiful Storage】 Up to 5x3.5" or 6x2.5" drives supported via two drive cages and one drive plate.

【Hidden Connector Support】 Extra cutouts allow support for ATX & mATX hidden connector motherboards such ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH to hide cables for a cleaner build.
