Thermaltake · Full-Tower · Tempered glass

Thermaltake Core W200 Black

Mini-ITX, Micro-ATX, Standard-ATX, E-ATX, XL-ATX · Black

Quality
108
Quality / price
18
Max GPU
470 mm
Amazon
$550
Thermaltake Core W200 Black

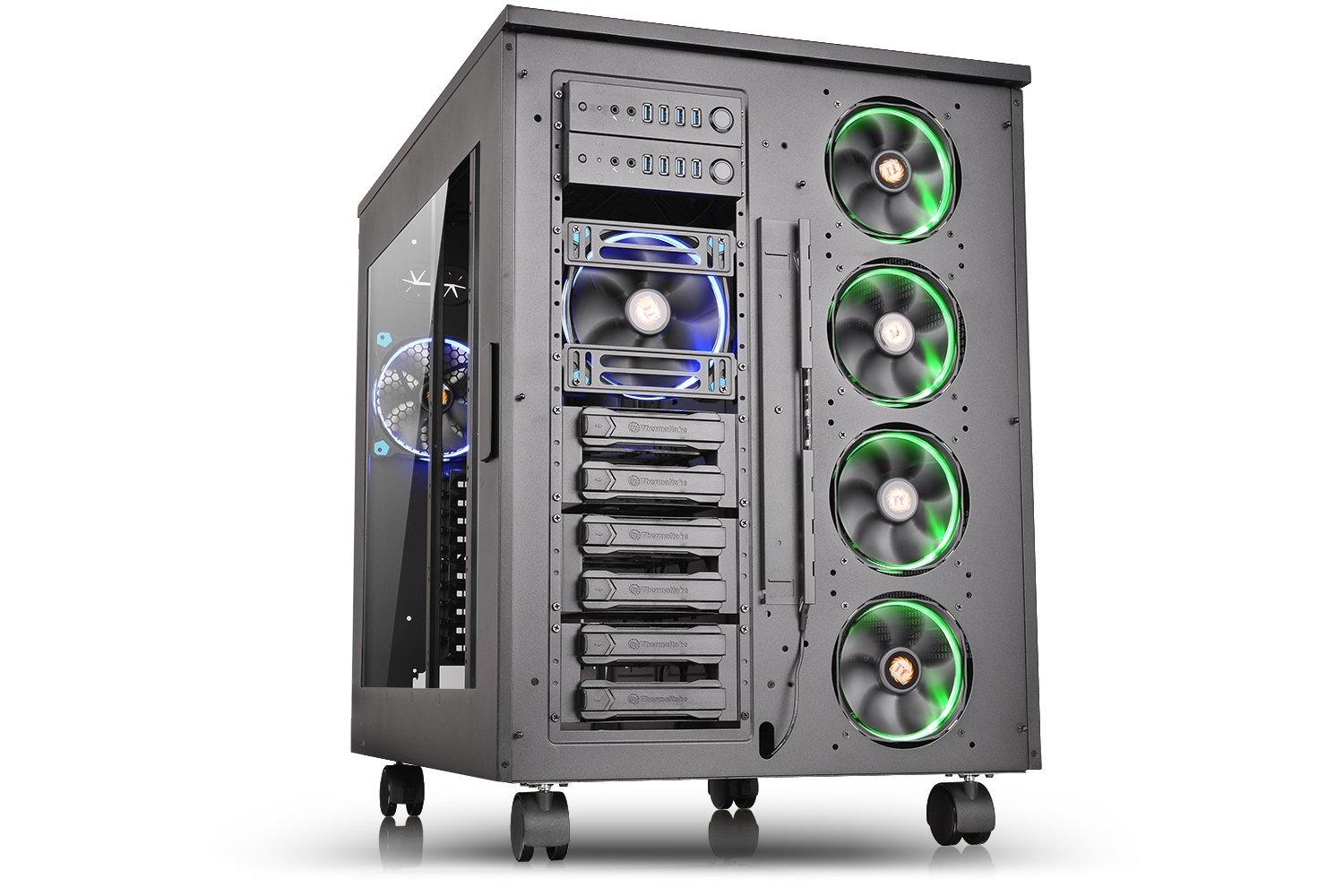

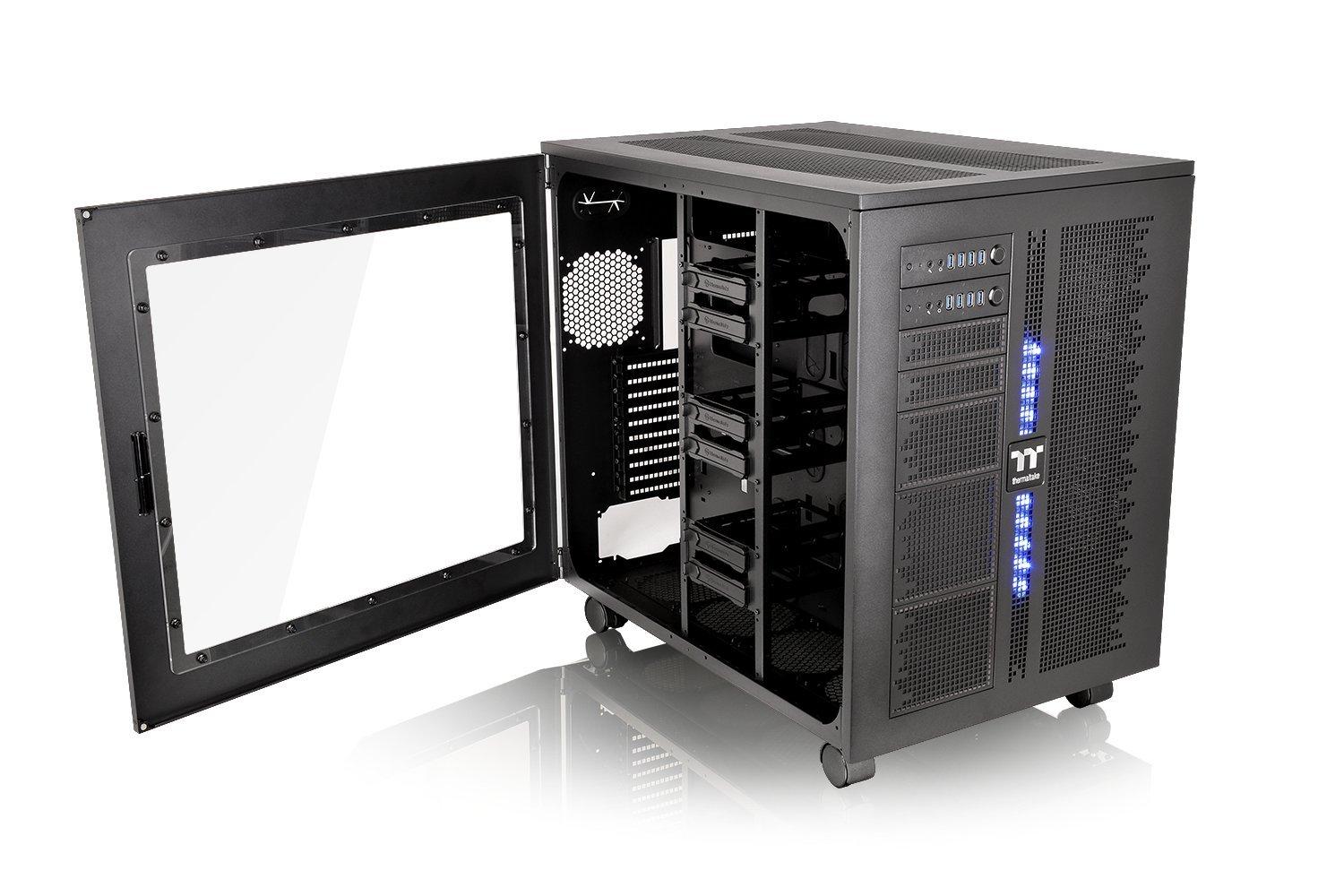

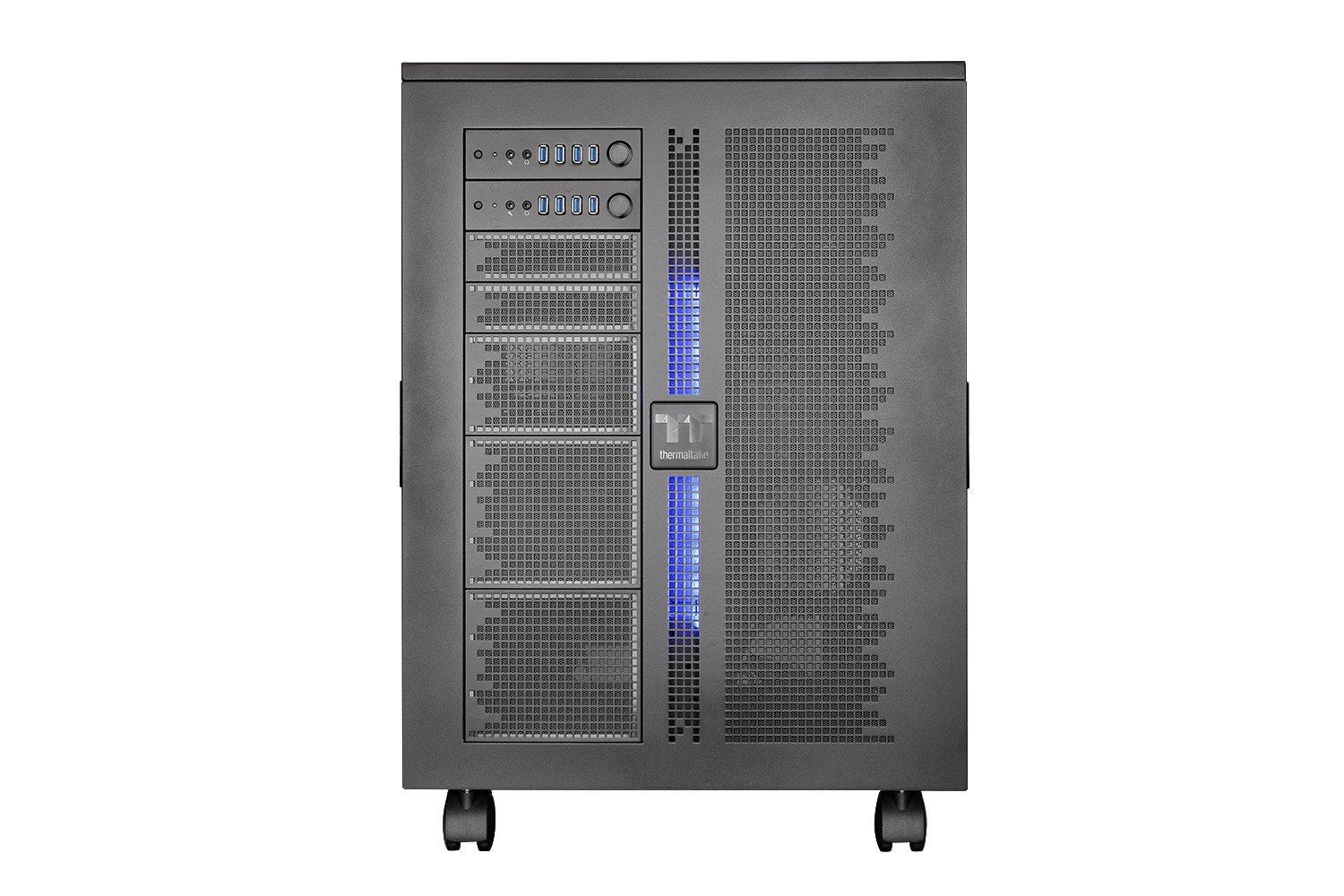

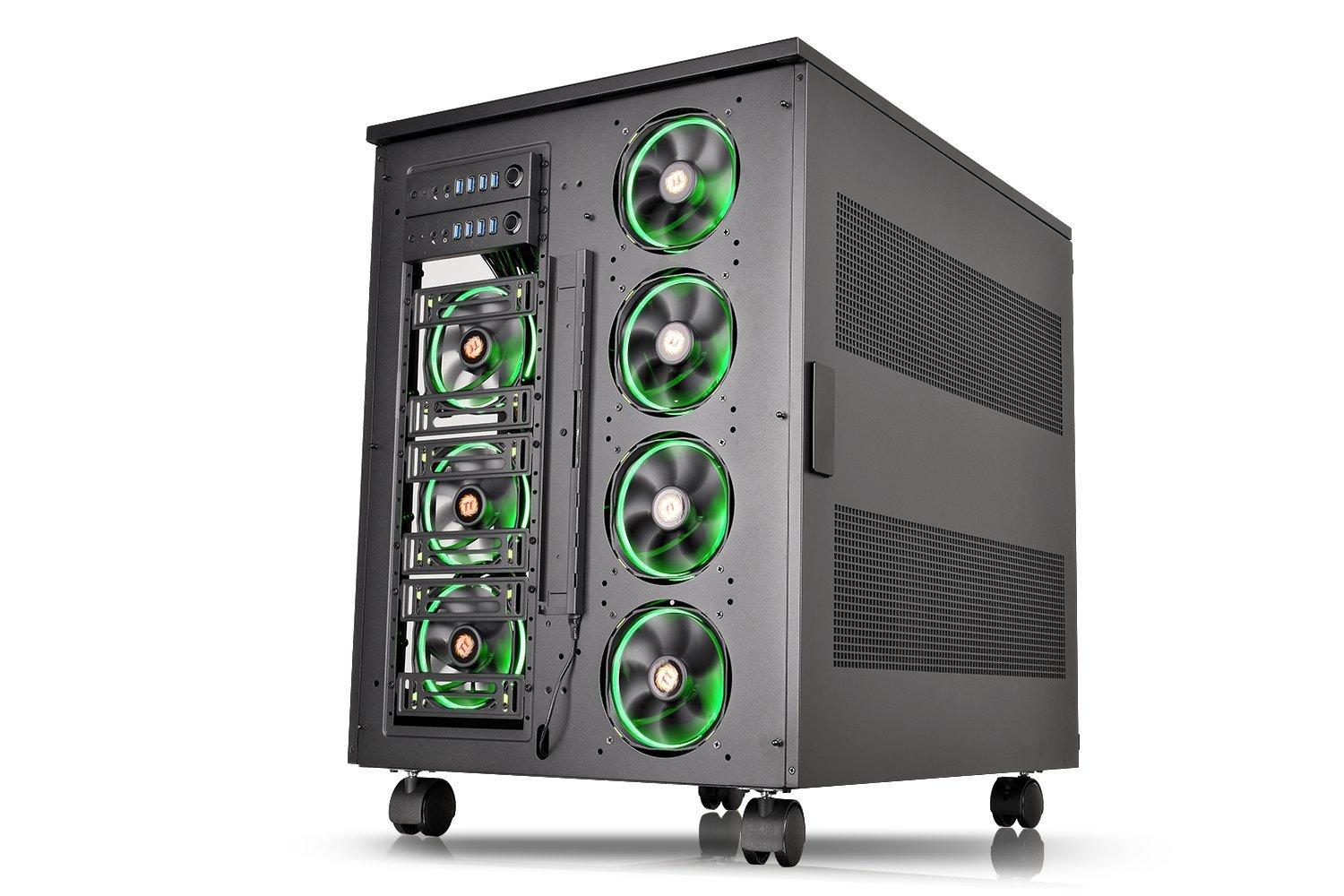

View Thermaltake Core W200 Black Gallery in high resolution
$550
Not currently available Updated Aug 21, 2026
Overall quality108.0
Quality / price17.7
Cooling support24
$550 on Amazon Case table Compare this case

Check this case with a complete fit chainSelect a CPU and motherboard first; the Builder will then verify board size and GPU clearance. Start the compatibility check

Written analysis

Thermaltake Core W200 Black at a glance

The Thermaltake Core W200 Black is a Full-Tower chassis with a tempered glass side panel profile. Supported boards: Mini-ITX, Micro-ATX, Standard-ATX, E-ATX, XL-ATX. Primary materials are listed as SPCC .

Overall quality is 108.0, summing compatibility, cooling, storage, build quality, and connectivity. Max GPU length is 470 mm. Max CPU cooler height is 200 mm. Largest radiator support is listed at 600 mm.

Best fit: High-end long-GPU builds that need support for at least one 360 mm radiator; verify the listed radiator positions before planning a multi-radiator loop.

Cooling and front I/O

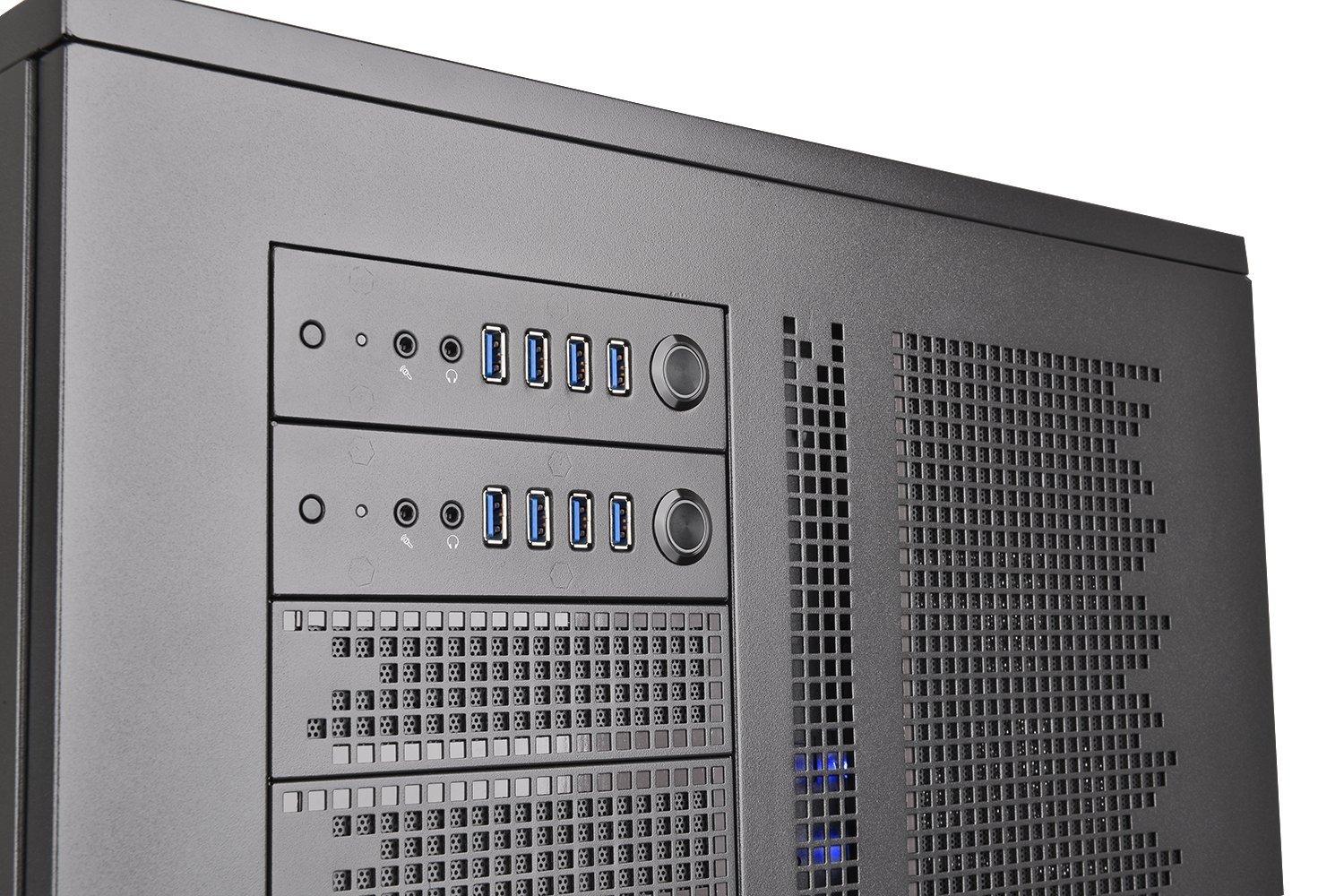

Front ports: USB 3.0 x 8, HD Audio x 2 . Dust filters: Yes.

Current value

At $550, quality / price is 17.7. Compare nearby cases of the same form factor below; clearance and panel type can outweigh a small quality gap.

Chassis data

Full specifications

Construction, clearances, cooling, storage, front I/O, and quality metrics in one technical sheet.

General

Manufacturer
Thermaltake
Case
Thermaltake Core W200 Black
Form factor
Full-Tower
Side panel
Tempered glass
Launch price
—
Amazon price
$550
Amazon availability
Not currently available
Price updated
Aug 21, 2026

Construction

Material
SPCC
Color
Black
Side panel detail
tempered glass
Dimensions
677 x 475 x 678 mm
Weight
29.00 kg
PSU shroud
Yes
RGB lighting
No

Quality & value

Overall quality
108.0
Compatibility
22
Cooling support
24
Storage score
22
Build quality
22
Connectivity
18
Quality / price
17.7

Compatibility / clearances

Motherboard sizes
Mini-ITX, Micro-ATX, Standard-ATX, E-ATX, XL-ATX
Max GPU length
470 mm
Max cooler height
200 mm
Max PSU length
220 mm
PSU form factor
ATX, SFX
PSU included
No

Cooling

Max radiator
600 mm
Fan support
Front: 7 x 120mm , 7 x 140mm Top: 8 x 120mm , 8 x 140mm , 3 x 200mm Rear: 2 x 120mm , 2 x 140mm Bottom: 6 x 120mm , 6 x 140mm Right Side: 8 x 120mm , 8 x 140mm , 6 x 200mm
Radiator support
Front: 1 x 360mm Top: 2 x 480mm , 2 x 560mm , 1 x 600mm Rear: 1 x 120mm , 1 x 140mm Bottom: 2 x 280mm Right: 2 x 480mm , 2 x 560mm , 2 x 600mm
Pre-installed fans
Not specified
Dust filters
Yes

Storage & I/O

Drive bays
-Accessible 3 x 5.25’’ -Hidden 10 x 3.5’’ or 2.5’’ (HDD Cage) 4 x 3.5’’ or 2.5’’ (Behind the M/B tray)
Expansion slots
10
Front ports
USB 3.0 x 8, HD Audio x 2
USB-C
Not listed

Additional information

Also listed as
Core W200 Black

Amazon

Price history

Nearby quality

Similar cases

Cases close to Thermaltake Core W200 Black on overall quality. Open the case table to sort, filter, and compare side by side.

Compare these in the case table

Discussion

Comments on Thermaltake Core W200 Black

No comments yet.

Vendor copy

Amazon listing details

Marketplace feature text kept for reference. Structured specifications above are the source for scores and comparisons.

DUAL SYSTEM CAPABLE: Designed to accommodate (2) completely separate systems/motherboards/power supplies/VGA cards/ main component in a Back-to-Back configuration

FULLY MODULAR/ DISMANTLE DESIGN: Provides multiple configurations and flexibility for PC Enthusiasts with a fully breakdown construction design

DUAL MOTHERBOARD & I/O PANELS SUPPORT: Covering a wide range from Mini ITX to XL-ATX motherboards/ (2) 4x USB 3.0 with HD Audio ports for convenient front panel access for each system

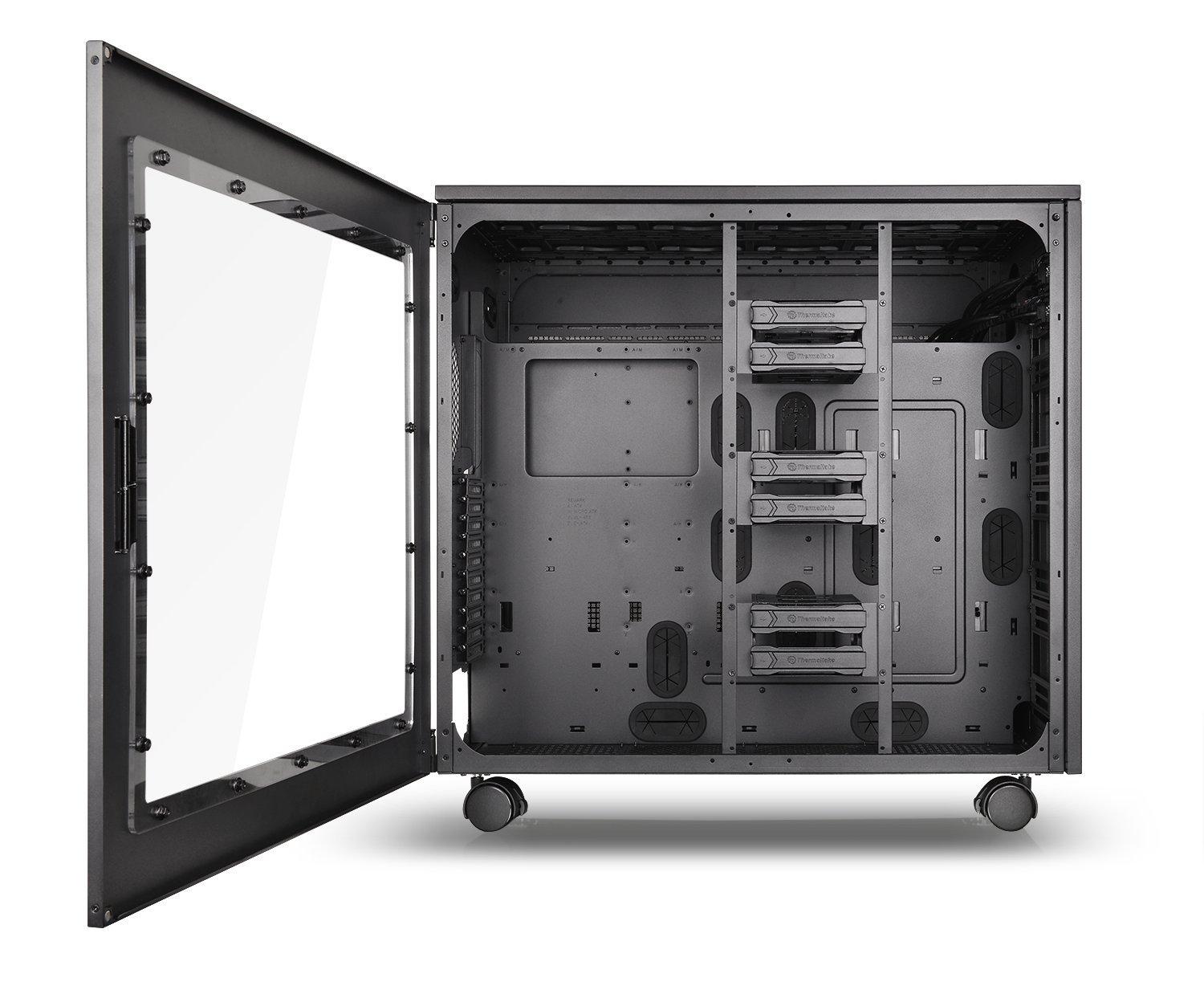

LARGE ARYLIC WINDOW: Equipped with a Large, 3/16" thick acrylic window improving overall structure support and crystal clear viewing

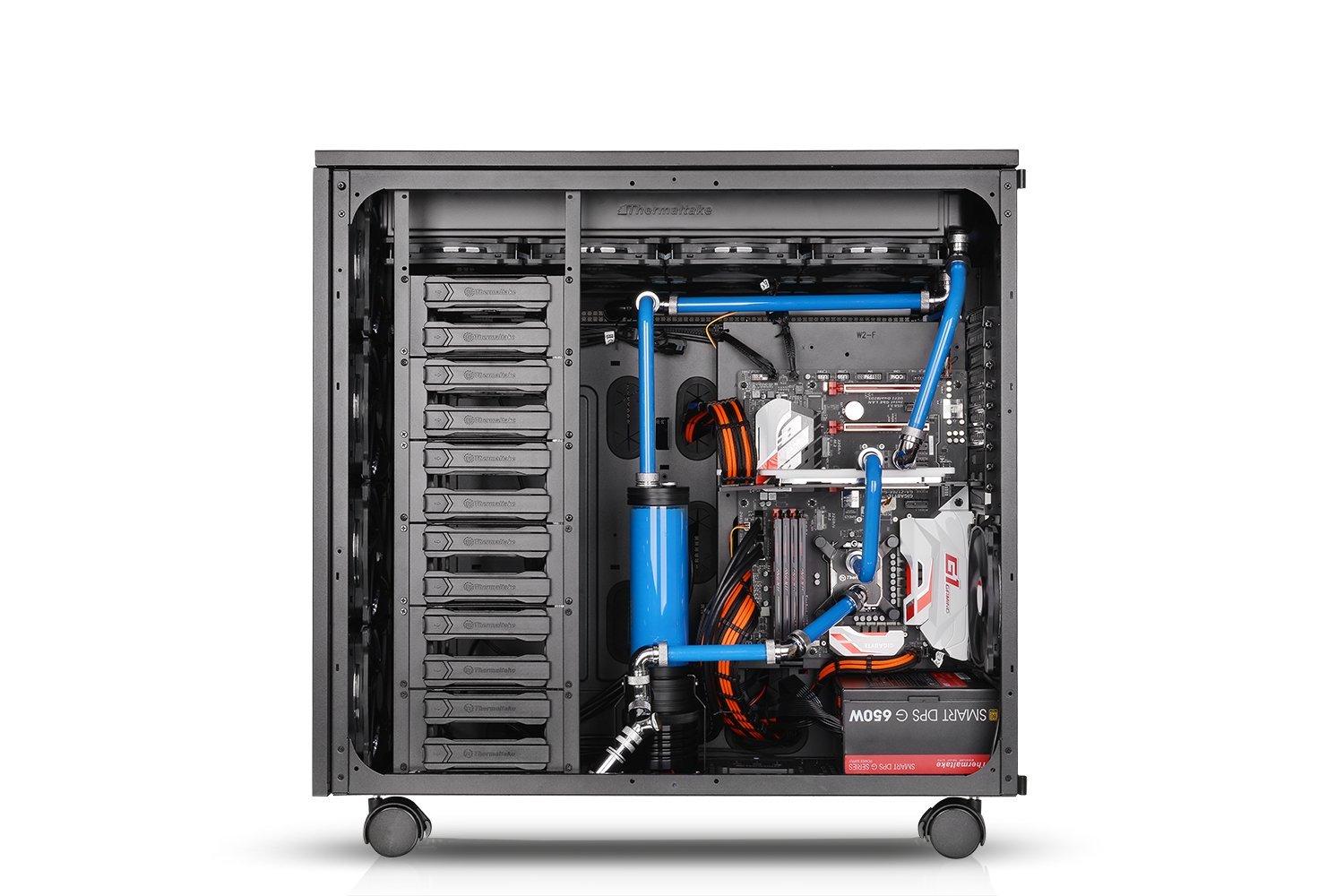

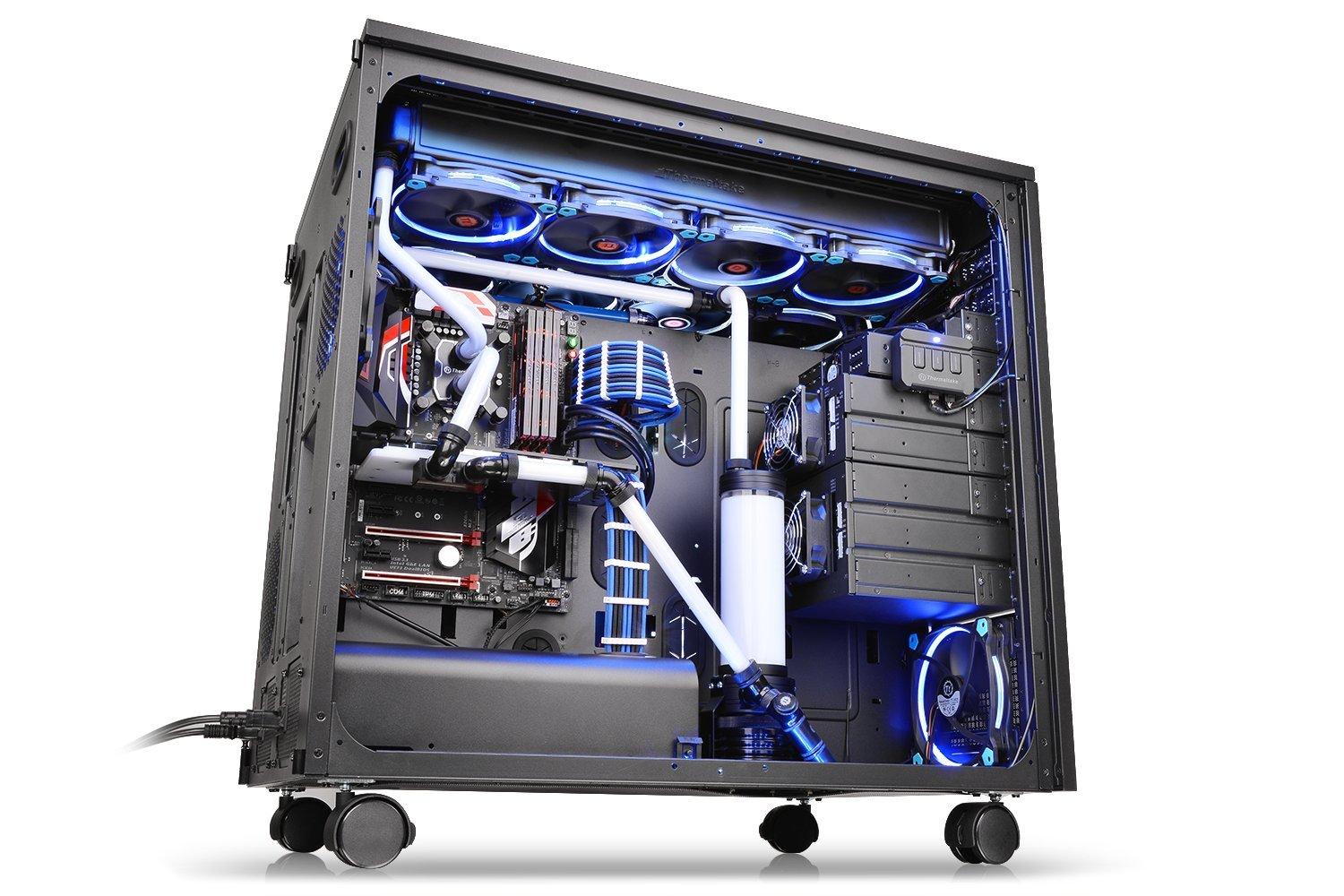

EXTREME WATER COOLING SYSTEM: Support up to 2x 600mm radiator applications with various cooling configurations for full custom liquid cooling builds

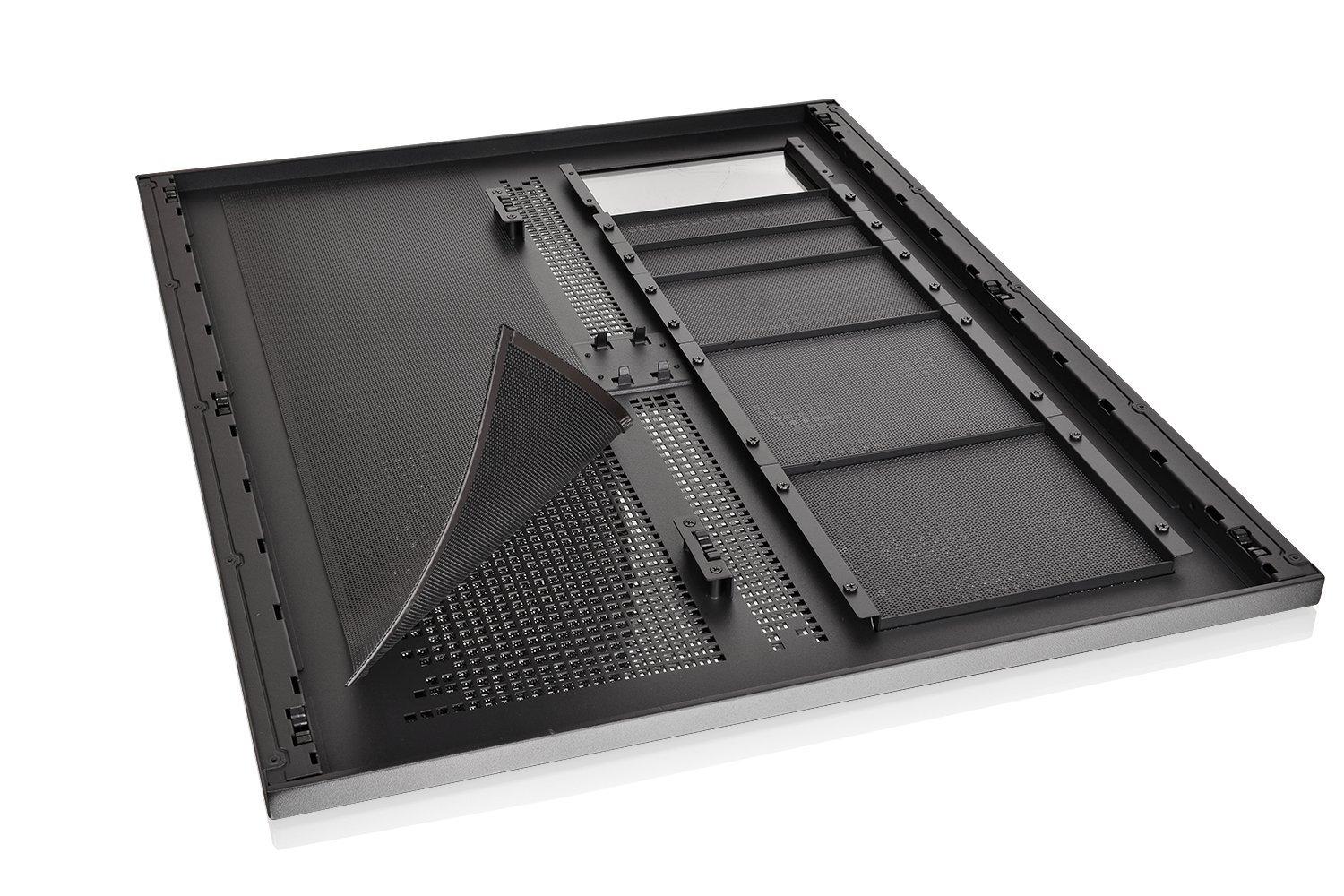

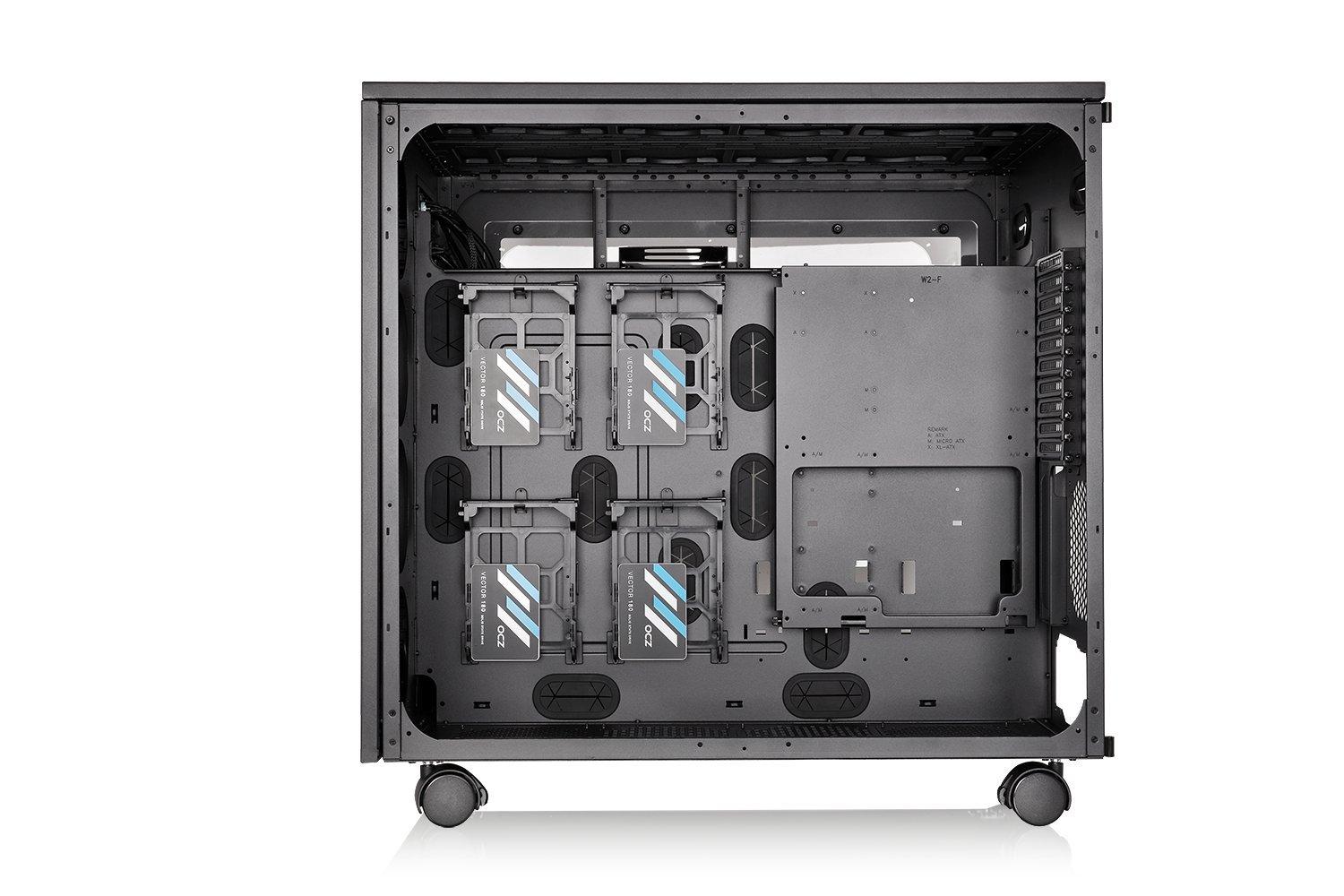

EXTREME STORAGE: Expand your cooling options even further with Hidden SSD/HDD back panel locations and perforated back side panel allows additional airflow.

INTERCHANGEABLE LED LIGHTING: Designated LED strip mounting on Front panel offers interchangeable LED strips to match any color theme

WARRANTY: 3 Years
