Corsair · Mid-Tower · Tempered glass

CORSAIR Frame 5000D RS White

Mini-ITX, Micro-ATX, Standard-ATX, E-ATX · White · USB-C

Quality
96
Quality / price
58
Max GPU
450 mm
Amazon
$150

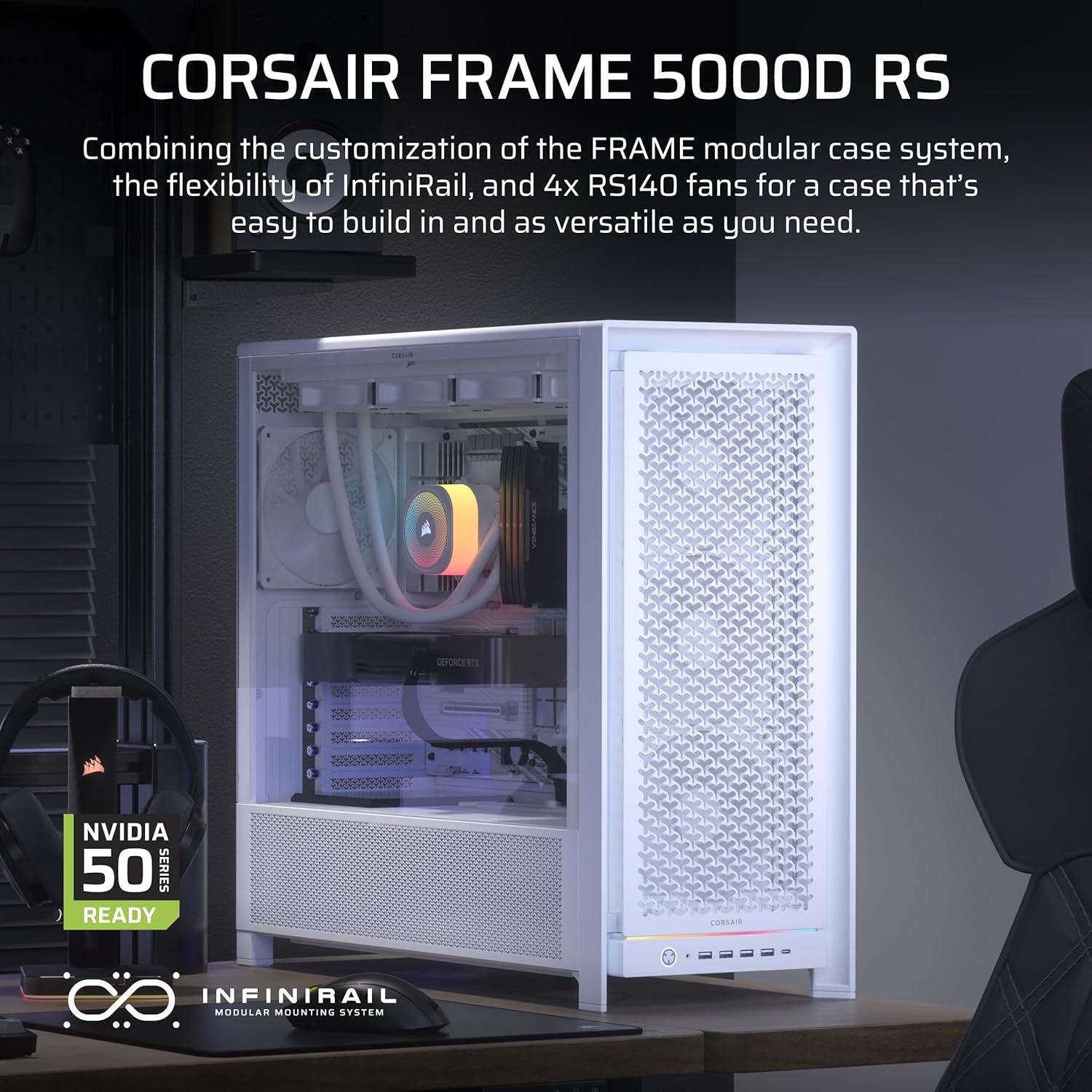

CORSAIR Frame 5000D RS White
View CORSAIR Frame 5000D RS White Gallery in high resolution
$150
Not currently available Updated Oct 2, 2026
Overall quality96.0
Quality / price57.6
Cooling support20
$150 on Amazon Case table Compare this case

Check this case with a complete fit chainSelect a CPU and motherboard first; the Builder will then verify board size and GPU clearance. Start the compatibility check

Written analysis

CORSAIR Frame 5000D RS White at a glance

The CORSAIR Frame 5000D RS White is a Mid-Tower chassis with a tempered glass side panel profile. Supported boards: Mini-ITX, Micro-ATX, Standard-ATX, E-ATX. Primary materials are listed as Steel, Tempered Glass.

Overall quality is 96.0, summing compatibility, cooling, storage, build quality, and connectivity. Max GPU length is 450 mm. Max CPU cooler height is 175 mm. Largest radiator support is listed at 420 mm.

Best fit: High-end long-GPU builds that need support for at least one 360 mm radiator; verify the listed radiator positions before planning a multi-radiator loop.

Cooling and front I/O

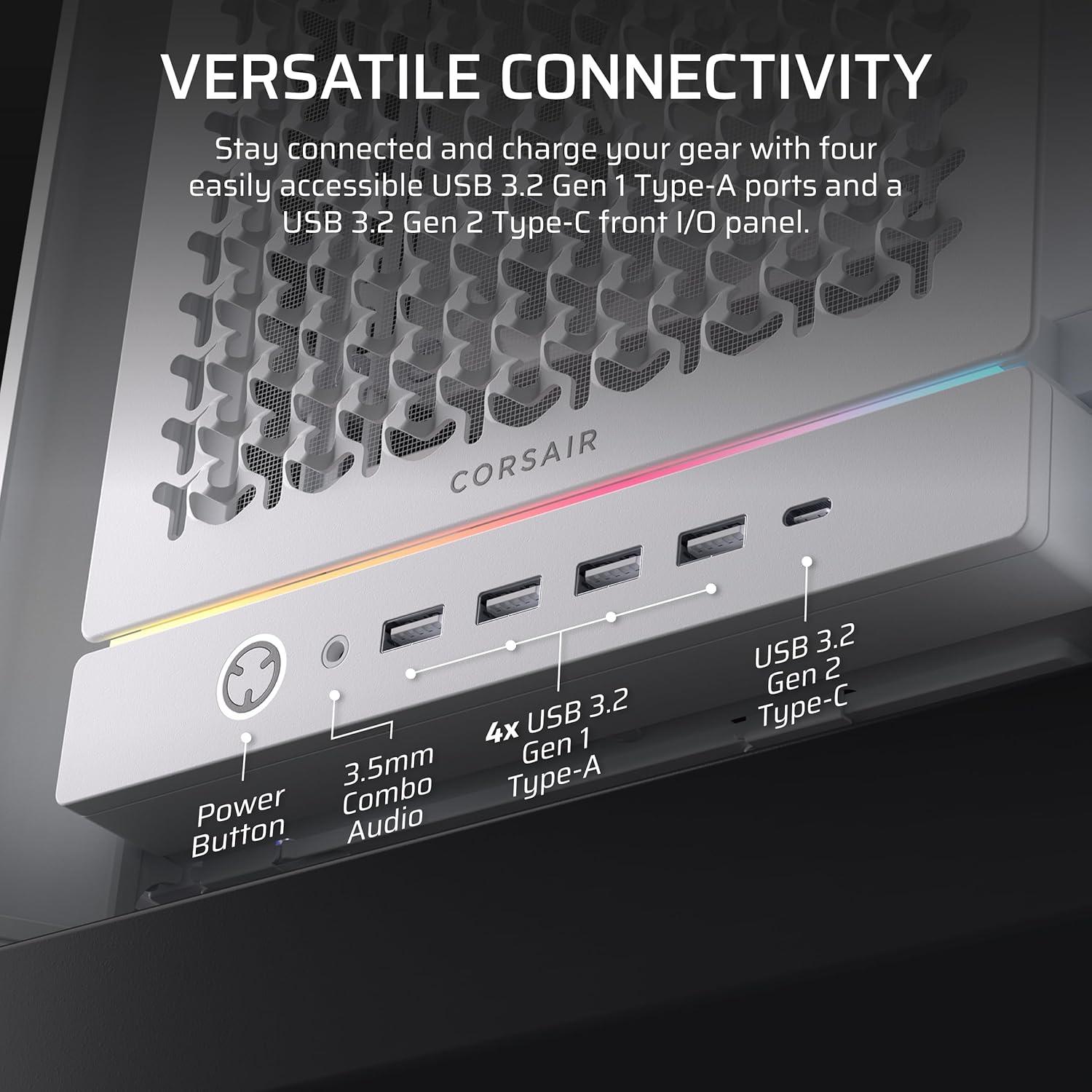

Front ports: (1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out. USB-C is present on the front I/O. Dust filters: Yes.

Current value

At $150, quality / price is 57.6. Compare nearby cases of the same form factor below; clearance and panel type can outweigh a small quality gap.

Chassis data

Full specifications

Construction, clearances, cooling, storage, front I/O, and quality metrics in one technical sheet.

General

Manufacturer
Corsair
Case
CORSAIR Frame 5000D RS White
Form factor
Mid-Tower
Side panel
Tempered glass
Launch price
—
Amazon price
$150
Amazon availability
Not currently available
Price updated
Oct 2, 2026

Construction

Material
Steel, Tempered Glass
Color
White
Side panel detail
tempered glass

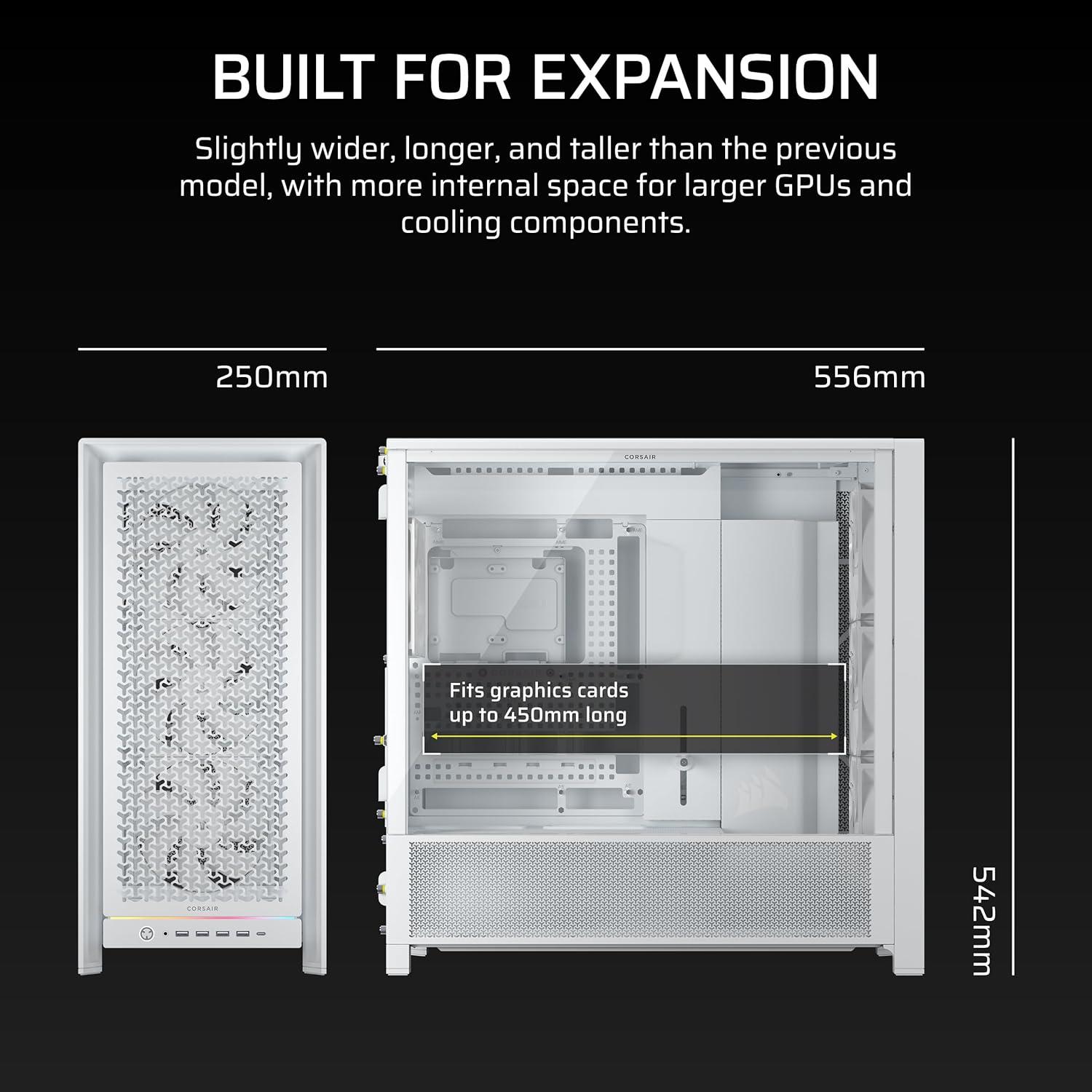

Dimensions
542 x 556 x 250 mm
Weight
15.50 kg
PSU shroud
Yes
RGB lighting
No

Quality & value

Overall quality
96.0
Compatibility
20
Cooling support
20
Storage score
15
Build quality
21
Connectivity
20
Quality / price
57.6

Compatibility / clearances

Motherboard sizes
Mini-ITX, Micro-ATX, Standard-ATX, E-ATX
Max GPU length
450 mm
Max cooler height
175 mm
Max PSU length
250 mm
PSU form factor
ATX, SFX
PSU included
No

Cooling

Max radiator
420 mm
Fan support
Fan Support - Top 3x 120mm, 3x 140mm Fan Support - Front 3x 120mm, 3x 140mm, 2x 200mm Fan Support - Bottom 4x 120mm Fan Support - Side 3x 120mm, 3x 140mm Fan Support - Rear 1x 140mm, 1x 120mm
Radiator support
Radiator Support - Top 420mm, 360mm, 280mm, 240mm Radiator Support - Front 360mm, 280mm, 240mm Radiator Support - Bottom None Radiator Support - Side 360mm, 280mm, 240mm Radiator Support - Rear 140mm, 120mm
Pre-installed fans
Not specified
Dust filters
Yes

Storage & I/O

Drive bays
Internal 3.5" Drive Bays 2 Internal 2.5" Drive Bays 6
Expansion slots
8
Front ports
(1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
USB-C
Listed

Additional information

Additional info

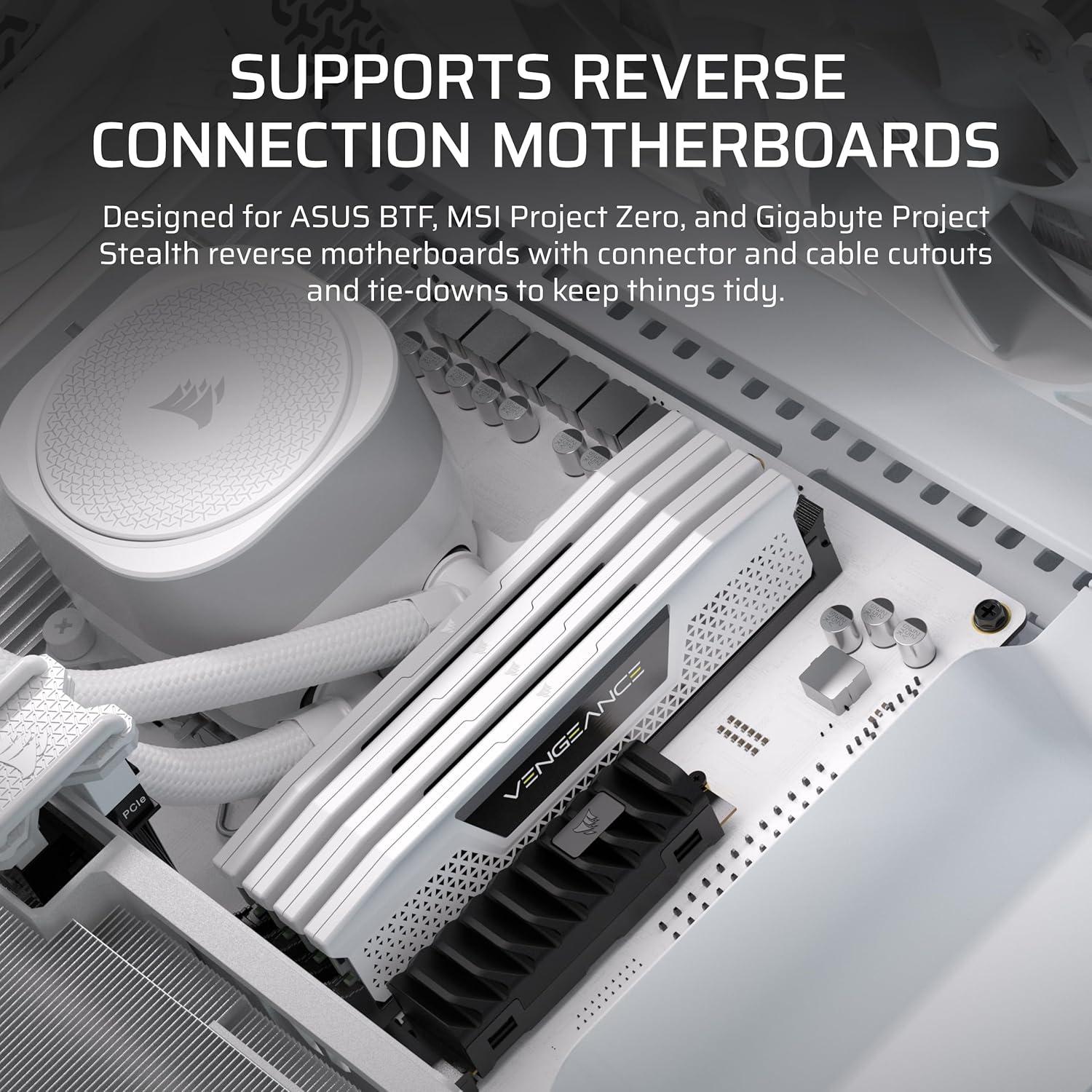

Reverse Connector Motherboard Support Yes Included Fans RS Series

Amazon

Price history

Nearby quality

Similar cases

Cases close to CORSAIR Frame 5000D RS White on overall quality. Open the case table to sort, filter, and compare side by side.

Compare these in the case table

Discussion

Comments on CORSAIR Frame 5000D RS White

No comments yet.

Vendor copy

Amazon listing details

Marketplace feature text kept for reference. Structured specifications above are the source for scores and comparisons.

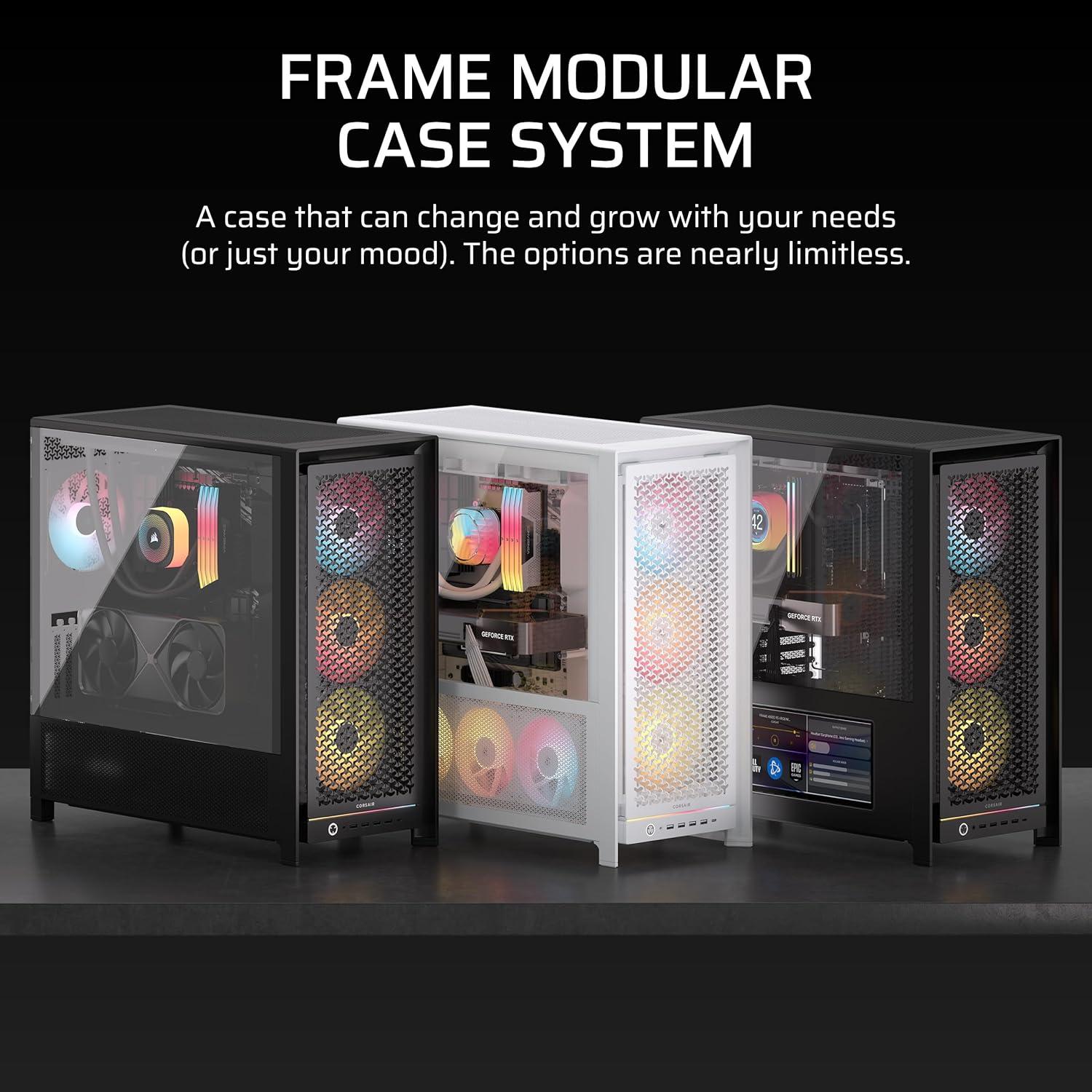

FRAME Modular Case System - The revolutionary FRAME system gives new meaning to the word customization. Some of the choices include upgrading the motherboard tray to billet aluminum, replacing the front I/O panel with different USB ports, and swapping out the front intake panel for a different look. This case evolves with your needs, offering a variety of options for future upgrades and aesthetic changes.

Clean Lines or Turbo Cooled – The internal side panel near the motherboard tray can be used as a cable cover for clean cable management, or you can remove it and mount fans to the side for increased cooling potential.

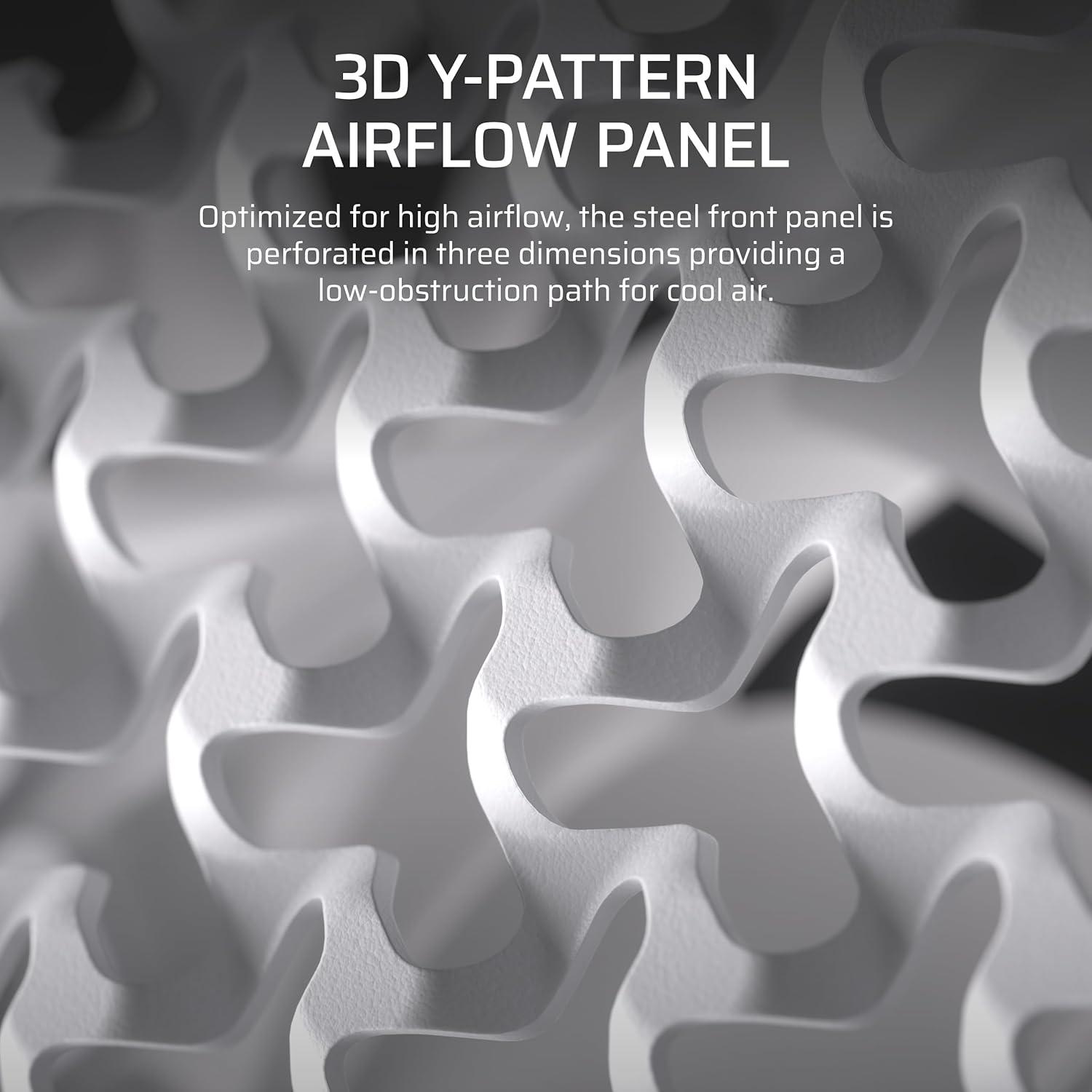

3D Y-Pattern Airflow Panel – Optimized for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.

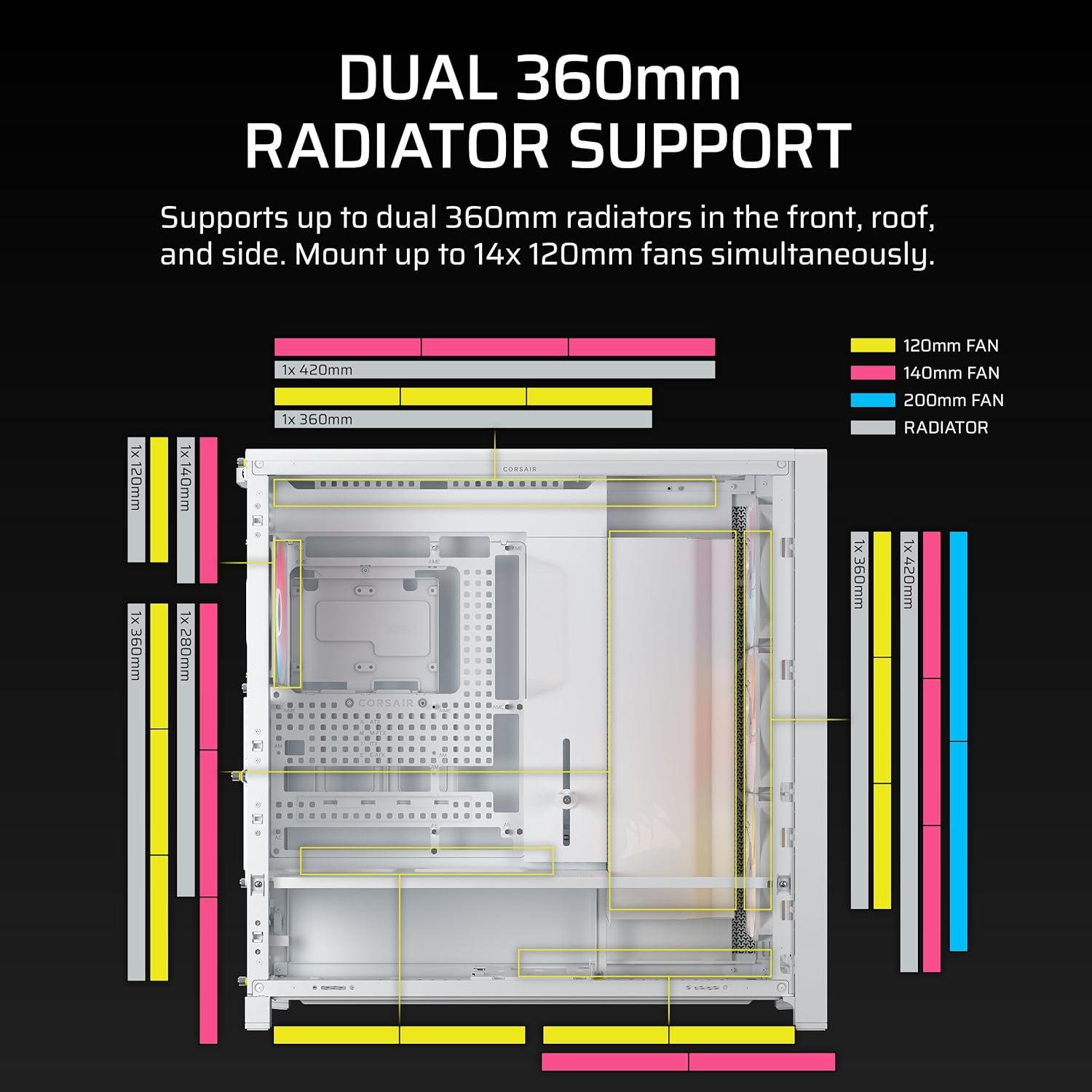

Top 420mm Radiator Support – Take your cooling to the next level with a top-mounted 420mm radiator and room for 360mm radiators on the front or side.

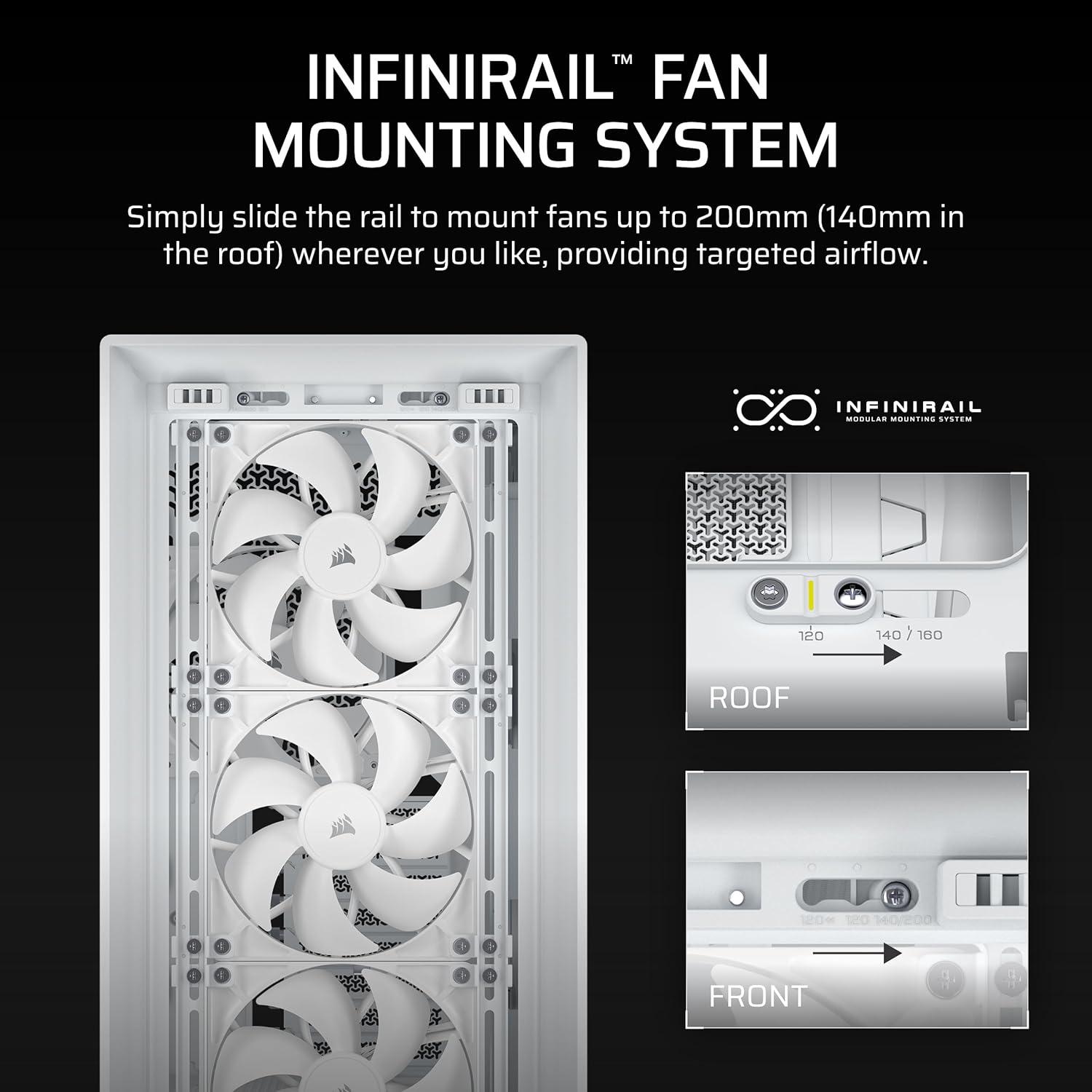

InfiniRail Fan Mounting Options - Mount up to 14x 120mm fans simultaneously to keep cool air flowing in and hot air exhausting quickly and efficiently, or easily adjust the InfiniRail fan mounts for 140mm or 200mm fan locations. The combinations are nearly endless.
