JONSBO · Micro-Tower · Tempered glass

JONSBO D31 MESH SC Black Micro ATX PC Case with Screen

Mini-ITX, Micro-ATX · BLACK · USB-C

Quality
65
Quality / price
73
Max GPU
400 mm
Amazon
$80
JONSBO D31 MESH SC Black Micro ATX PC Case with Screen
View JONSBO D31 MESH SC Black Micro ATX PC Case with Sc Gallery in high resolution
$80
Available on Amazon Updated Aug 30, 2026
Overall quality65.0
Quality / price73.1
Cooling support14
$80 on Amazon Case table Compare this case

Check this case with a complete fit chainSelect a CPU and motherboard first; the Builder will then verify board size and GPU clearance. Start the compatibility check

Written analysis

JONSBO D31 MESH SC Black Micro ATX PC Case with Screen at a glance

The JONSBO D31 MESH SC Black Micro ATX PC Case with Screen is a Micro-Tower chassis with a tempered glass side panel profile. Supported boards: Mini-ITX, Micro-ATX. Primary materials are listed as steel, aluminium and tempered glass.

Overall quality is 65.0, summing compatibility, cooling, storage, build quality, and connectivity. Max GPU length is 400 mm. Max CPU cooler height is 168 mm. Largest radiator support is listed at 360 mm.

Best fit: High-end long-GPU builds that need support for at least one 360 mm radiator; verify the listed radiator positions before planning a multi-radiator loop.

Cooling and front I/O

Front ports: USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1. USB-C is present on the front I/O. Dust filters: Yes.

Current value

At $80, quality / price is 73.1. Compare nearby cases of the same form factor below; clearance and panel type can outweigh a small quality gap.

Chassis data

Full specifications

Construction, clearances, cooling, storage, front I/O, and quality metrics in one technical sheet.

General

Manufacturer
JONSBO
Case
JONSBO D31 MESH SC Black Micro ATX PC Case with Screen
Form factor
Micro-Tower
Side panel
Tempered glass
Launch price
—
Amazon price
$80
Amazon availability
Available
Price updated
Aug 30, 2026

Construction

Material
steel, aluminium and tempered glass
Color
BLACK
Side panel detail
tempered glass
Dimensions
382mm * 198mm* 335mm
Weight
6.50 kg
PSU shroud
Yes
RGB lighting
No

Quality & value

Overall quality
65.0
Compatibility
14
Cooling support
14
Storage score
12
Build quality
15
Connectivity
10
Quality / price
73.1

Compatibility / clearances

Motherboard sizes
Mini-ITX, Micro-ATX
Max GPU length
400 mm
Max cooler height
168 mm
Max PSU length
—
PSU form factor
ATX, SFX
PSU included
No

Cooling

Max radiator
360 mm
Fan support
Top 120mm*3 or 140mm*2          Rear 120*1mm           Bottom 120mm*3 or 140mm*2           Front 120mm*1
Radiator support
Top 240/280/360*1 Rear 120*1 Bottom 240/360*1
Pre-installed fans
Not specified
Dust filters
Yes

Storage & I/O

Drive bays
2.5〞SSD*2+3.5〞HDD*1
Expansion slots
4
Front ports
USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
USB-C
Listed

Additional information

Also listed as
D31 MESH SC Black Micro ATX

Amazon

Price history

Nearby quality

Similar cases

Cases close to JONSBO D31 MESH SC Black Micro ATX PC Case with Screen on overall quality. Open the case table to sort, filter, and compare side by side.

Compare these in the case table

Discussion

Comments on JONSBO D31 MESH SC Black Micro ATX PC Case with Screen

No comments yet.

Vendor copy

Amazon listing details

Marketplace feature text kept for reference. Structured specifications above are the source for scores and comparisons.

Note : If the screen has compatibility problems during installation, please contact customer service for solutions. (AIDA64 software needs to be purchased by users), This model D31 is a micro ATX model. If you need a larger size, please purchase D41. If the screen does not display normally, please contact us. It is most likely due to software updates such as graphics card drivers. The mesh panel is easier to ventilate and dissipate heat. Small size, big compatibility, easier to build your PC.More convenient

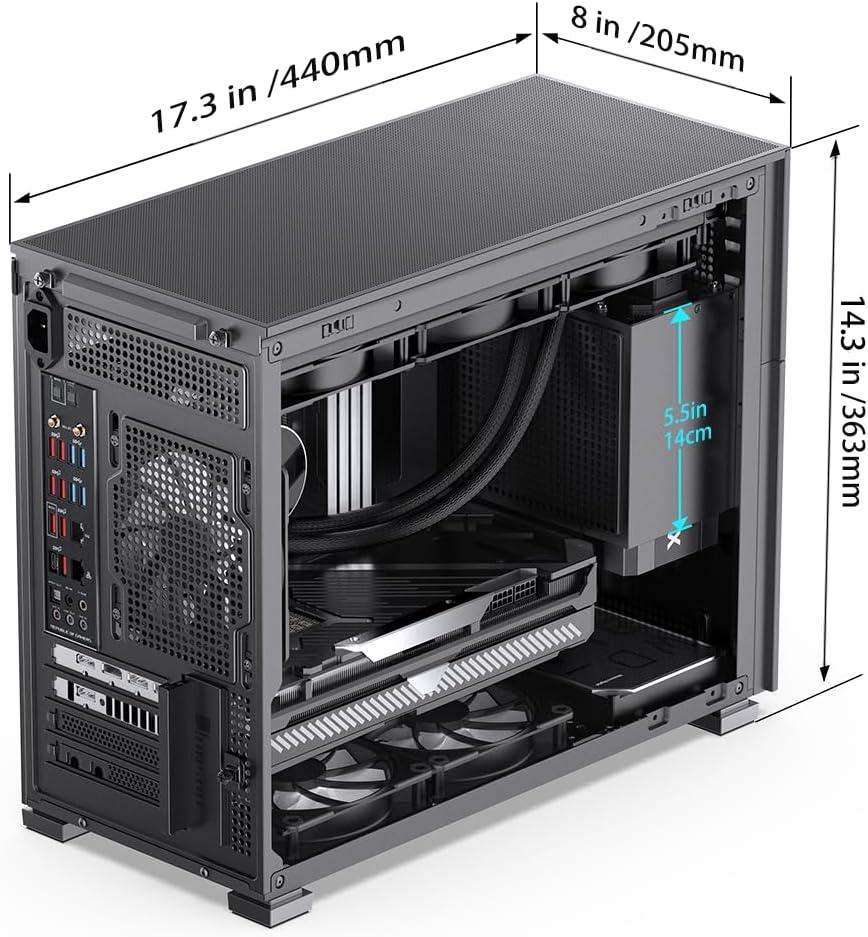

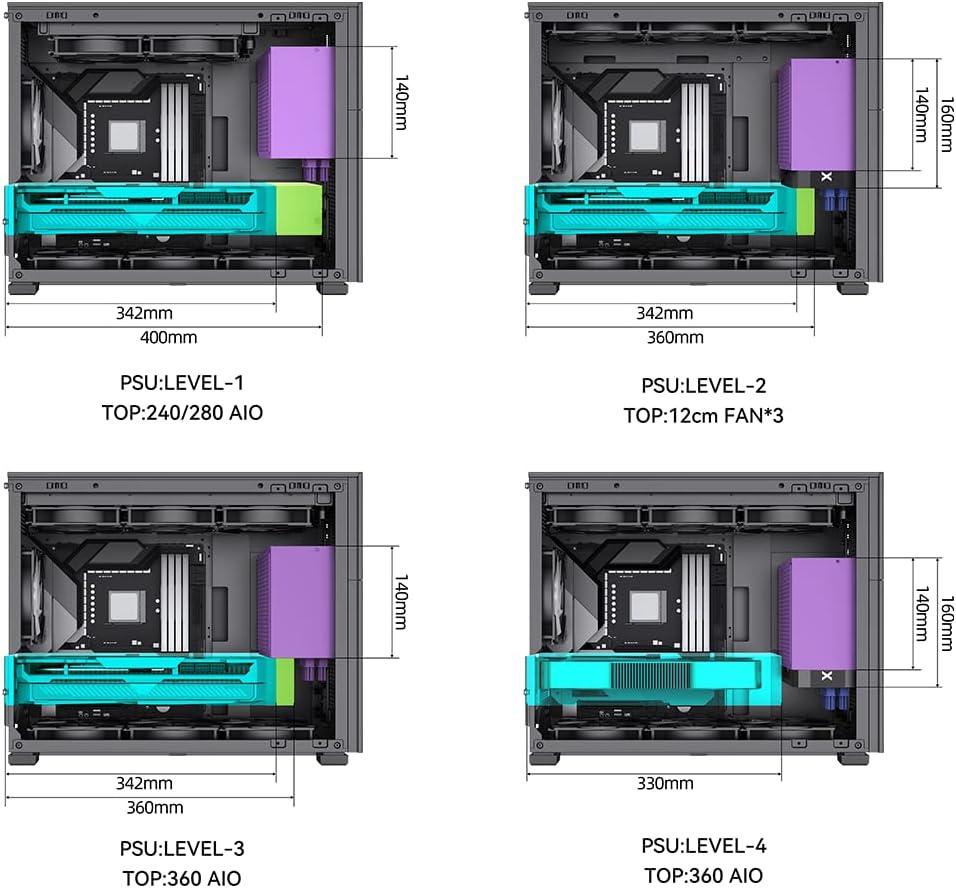

D31 "Pine cone" series-Mesh Screen Micro ATX pc case,size 205*363*452mm POWER SUPPLY: ATX / SFX: 100mm-220mm L max 【The 4-level height adjustment of the power supply】 position is added,Whether it is to set up a personal small workstation or a feverish E-sports PC, D31 can easily select the hardware.

Computer Case Motherboard : MATX/MicroATX GPU:330-400mm PSU: ATX/SFX:100mm-220mm L max

Air cooler:168mm high-order / Support AIO:360/280/240 (Top) 360/240 (Bottom)

Fan mounting position：Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1
