Cooler Master QUBE 500 Flatpack

Name: Cooler Master QUBE 500 Flatpack
Brand: Cooler Master
SKU: 88
Price: 91.94 USD
Availability: OutOfStock

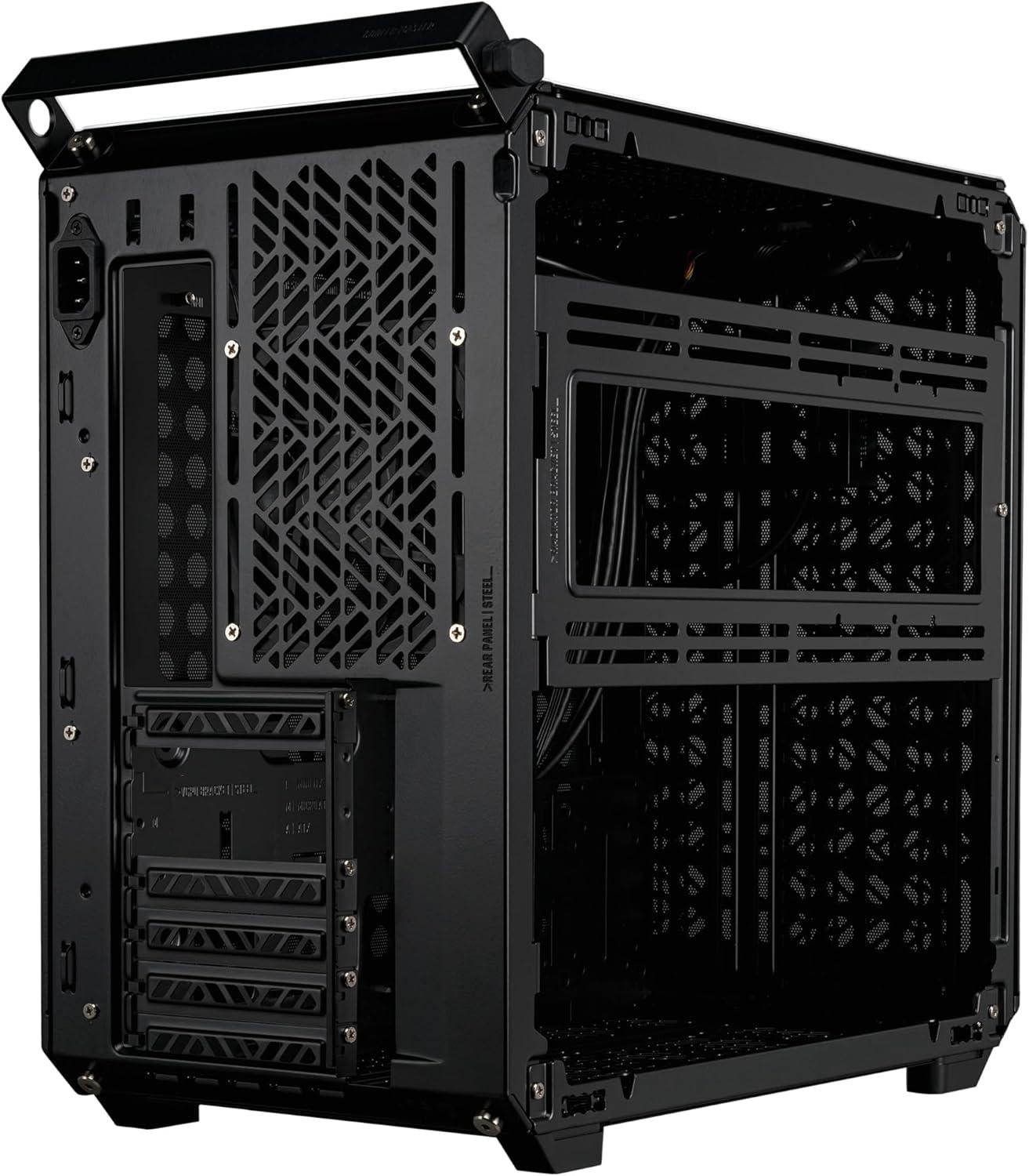

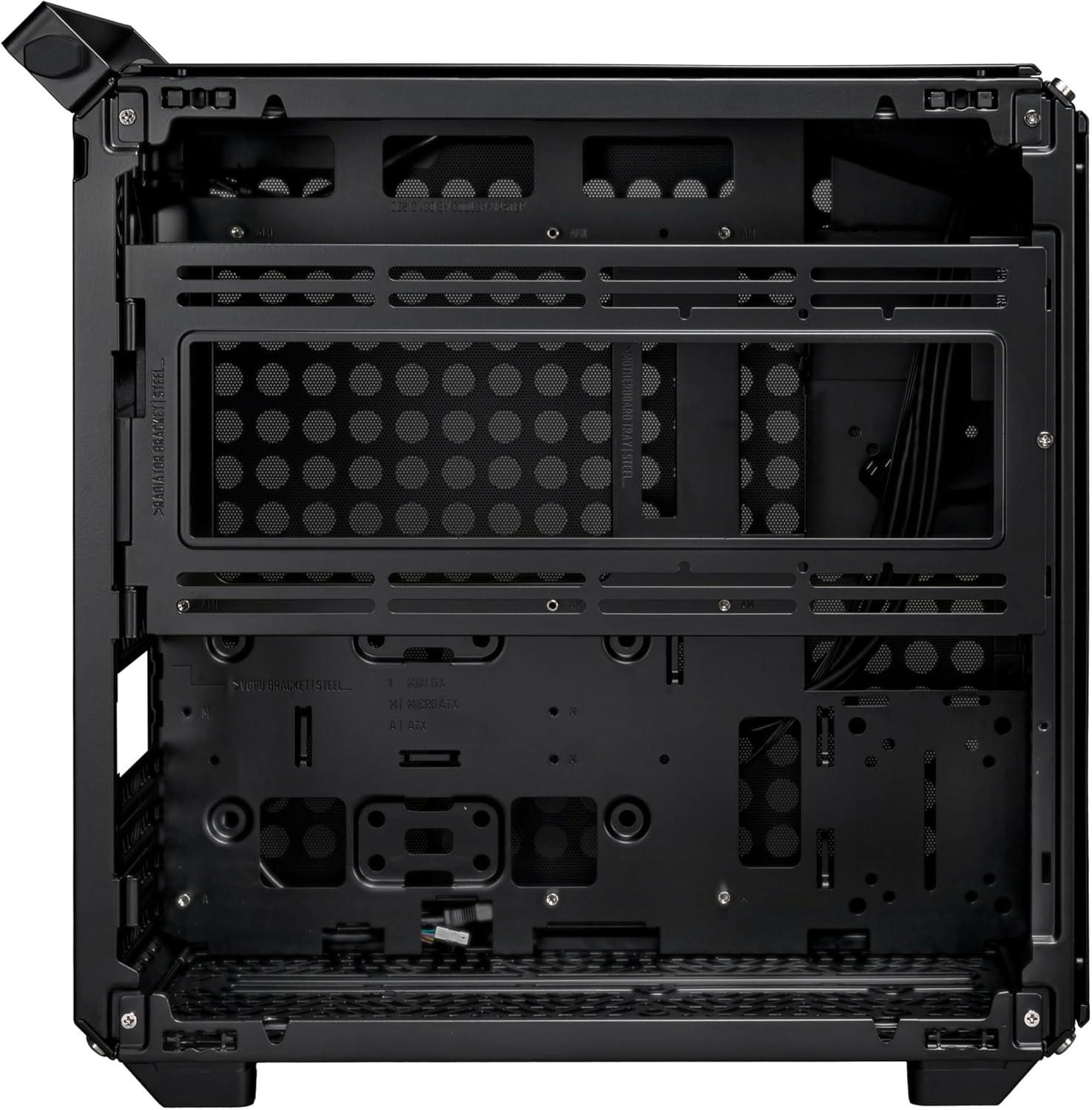

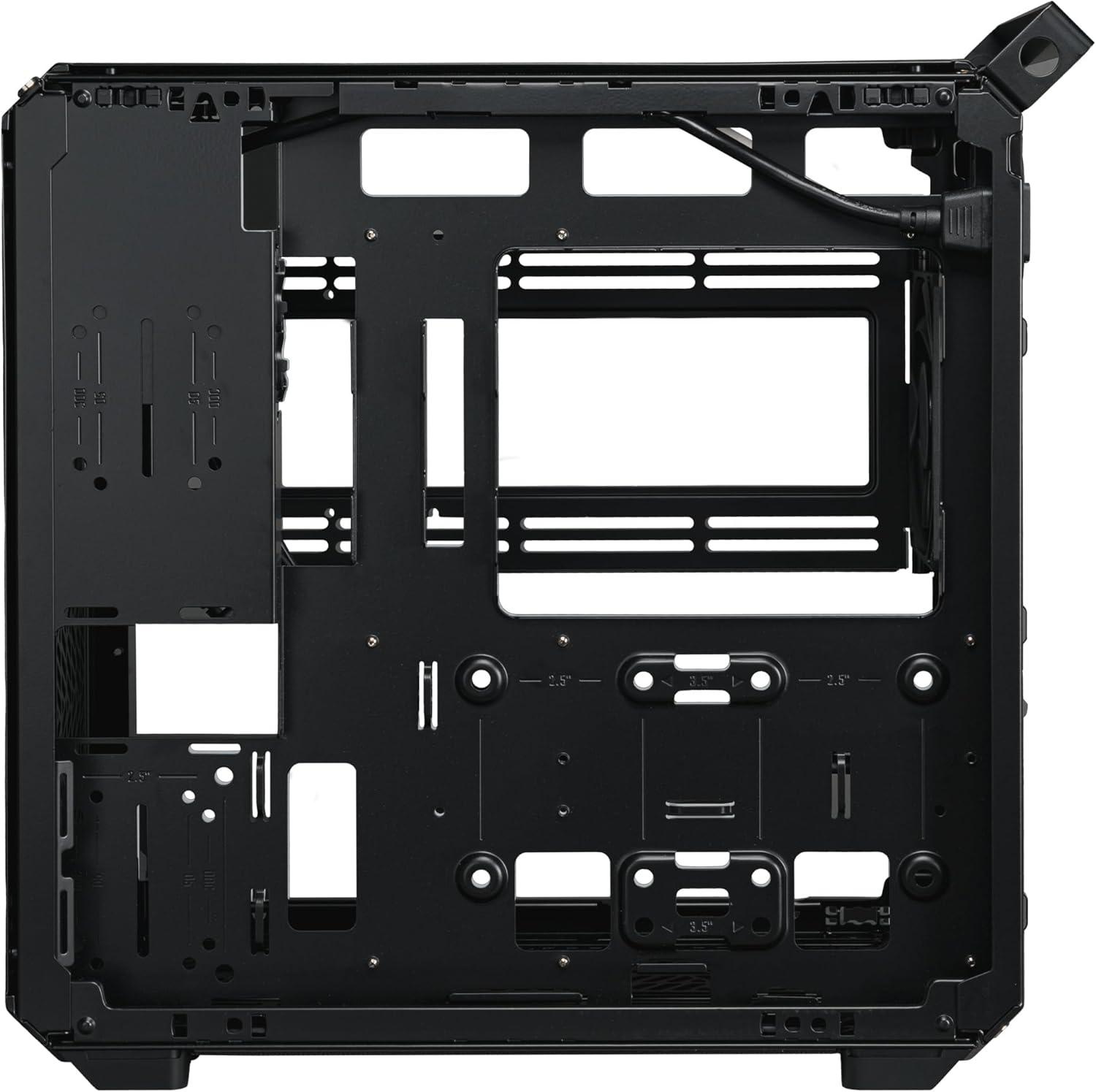

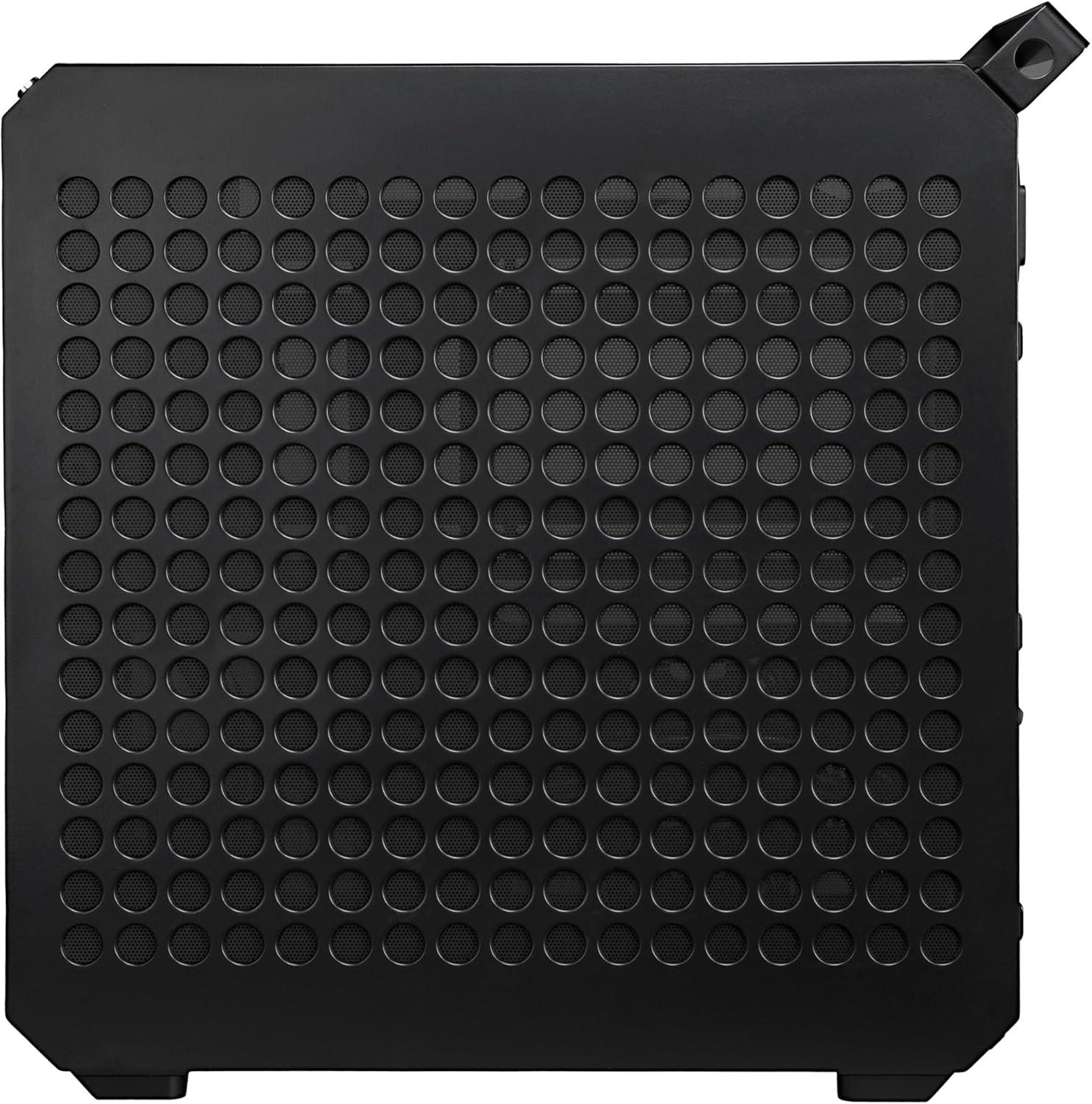

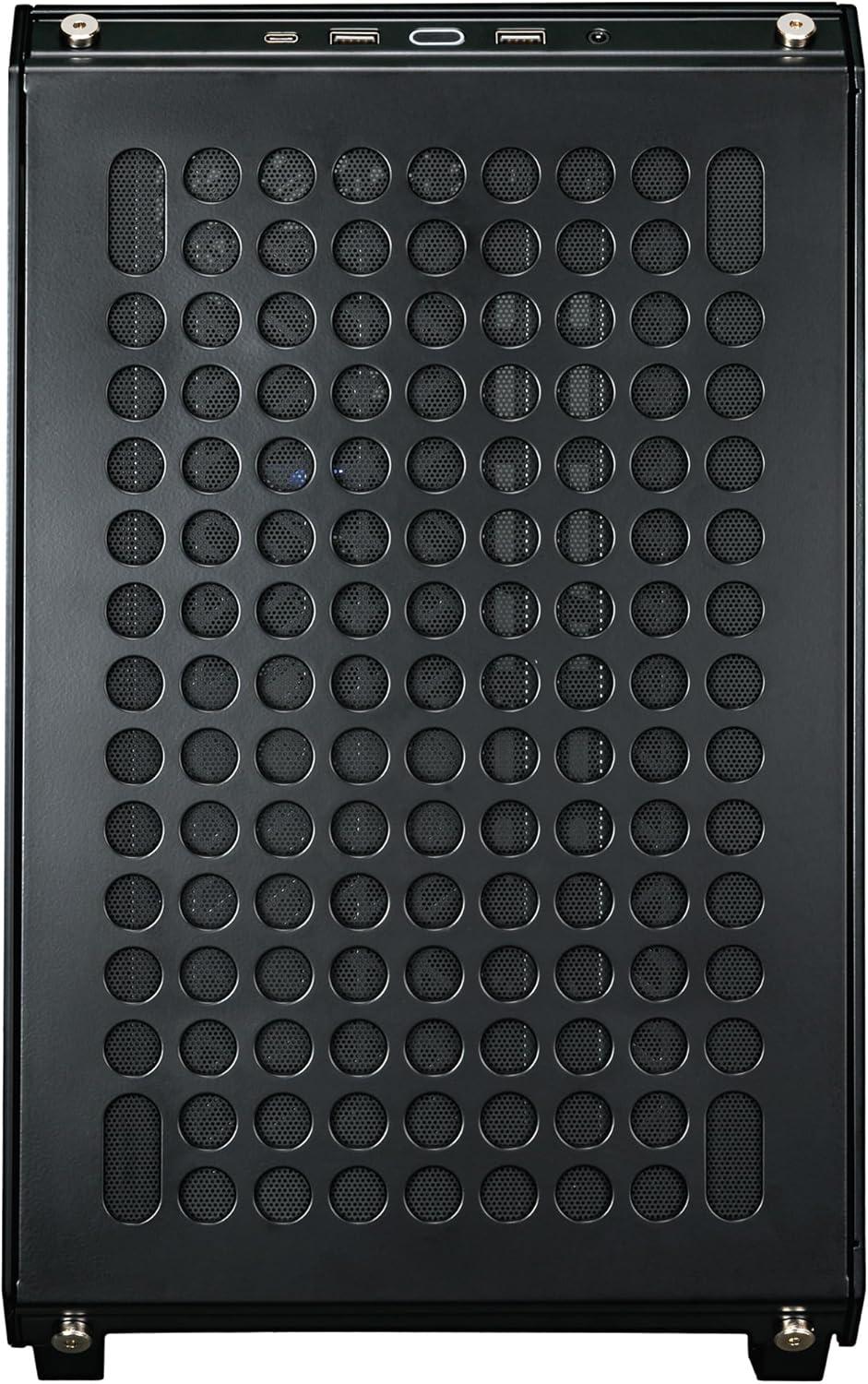

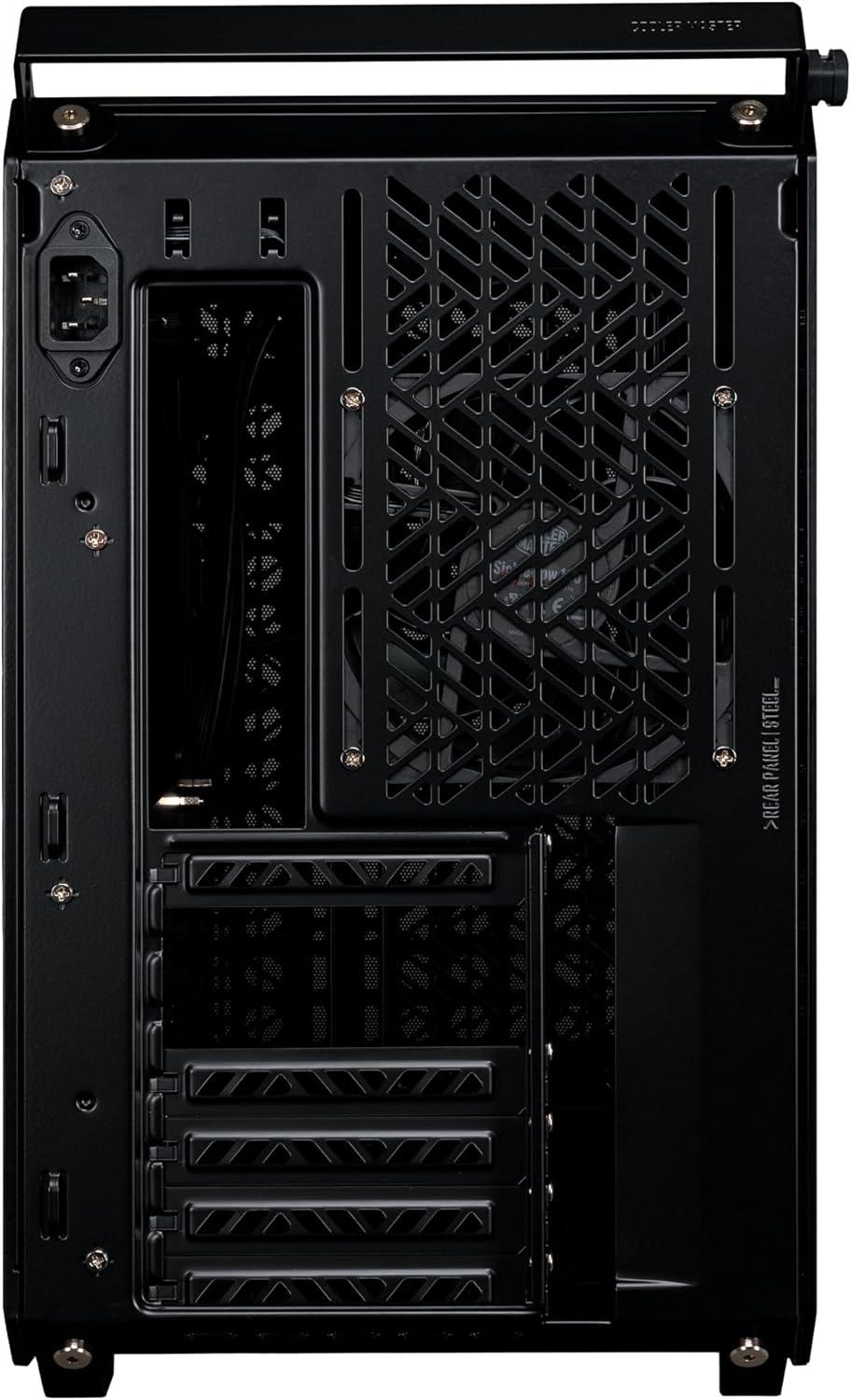

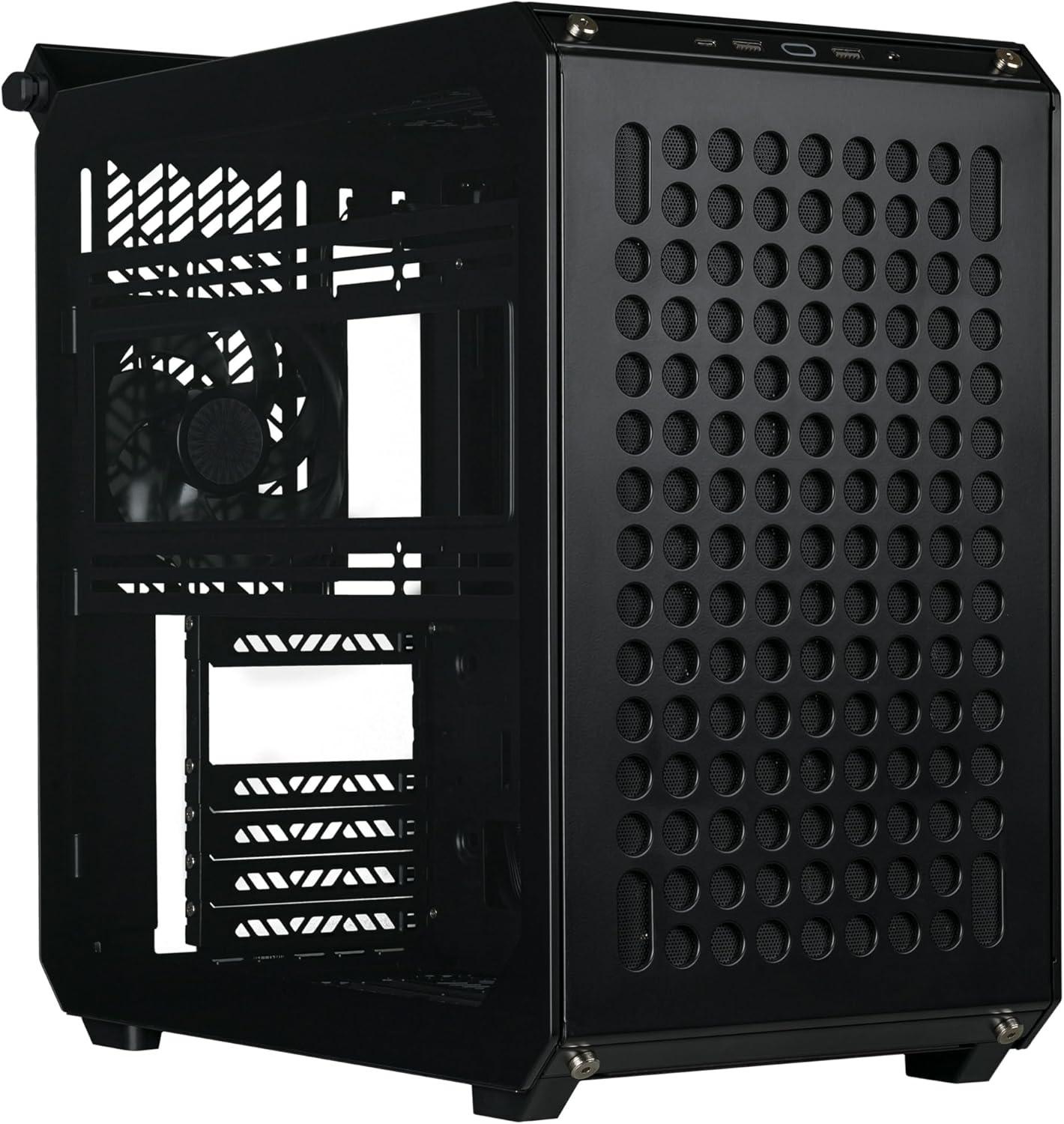

View Cooler Master QUBE 500 Flatpack Gallery With High-Resolution Images

As an Amazon Associate I earn from qualifying purchases.

Cooler Master QUBE 500 Flatpack Review & Specifications

The Cooler Master QUBE 500 Flatpack, manufactured by Cooler Master, is a very high-quality PC case designed for Mid-Tower builds. It is constructed from premium-grade steel, plastic, glass . Its aesthetic is characterized by a Black finish and features a tempered glass side panel, which adds both style and functionality.

The Cooler Master QUBE 500 Flatpack supports a very wide range of motherboard sizes, including Mini-ITX, Micro-ATX, Standard-ATX, E-ATX. It can accommodate extremely large, high-end or server-grade E-ATX motherboards, offering unmatched compatibility across nearly all consumer and professional platforms. Power supply compatibility includes ATX, SFX units with a maximum supported length of 216 mm. The overall case dimensions are 406 x 231 x 415mm, offering insight into its spatial footprint.

This case supports medium to large graphics cards up to 365 mm in length, along with CPU air coolers up to 172 mm in height.

This case features moderate cooling support, including several fan mounts and radiator support up to 280 mm. It's well-suited for mainstream gaming and productivity builds where cooling is important but not extreme. For additional details and specific specifications, refer to the section below.

General Information

Manufacturer	Cooler Master
PC Case Name	Cooler Master QUBE 500 Flatpack
Current Price Amazon	$92❗N/A
Amazon Price Updated	2 months, 2 weeks ago.
PC Case Available	False

Specification

Form Factor	Mid-Tower
Material / Weight	steel, plastic, glass / None kg
Color / Side Panel	Black / tempered glass
PC Case Dimensions	406 x 231 x 415mm

Compatibility

Motherboard Support	Mini-ITX, Micro-ATX, Standard-ATX, E-ATX
GPU Length / CPU Cooler Height	365 mm / 172 mm
PSU Form Factor / Max Length	ATX, SFX / 216 mm
Comment	Pre-installed Fans - RearQUBE 500 Flatpack: 1x 120mm (1800 RPM) SF Black PWM, QUBE 500 Flatpack White: 1x 120mm (1800 RPM) SF White PWM

Performance

Cooler Master QUBE 500 Flatpack Compared to PC Cases with the Same Form Factor and Similar Performance and Features

PC Case Quality & Features per Price Table

PC_Case (Desc)	Price (Desc)	Quality/Features (Desc)	Q&F/Price (Desc)
ASUS TUF Gaming GT302 ARGB White ASUS TUF Gaming GT302 ARGB White View detailed specs, charts, and comparison for this PC case.	$130 ASUS TUF Gaming GT302 ARGB White Current Amazon Price Click to view this PC case on Amazon. \| ↓ -21.2% ASUS TUF Gaming GT302 ARGB White Price Change Price decreased from the last update.	85.0 pts	58.9%
Cooler Master TD500 Mesh V2 White Cooler Master TD500 Mesh V2 White View detailed specs, charts, and comparison for this PC case.	$110 Cooler Master TD500 Mesh V2 White Current Amazon Price Click to view this PC case on Amazon. \| ↓ -17.5% Cooler Master TD500 Mesh V2 White Price Change Price decreased from the last update.	85.0 pts	69.6%
Antec C8 Wood Antec C8 Wood View detailed specs, charts, and comparison for this PC case.	$150 Antec C8 Wood Current Amazon Price Click to view this PC case on Amazon. \| 0.0% Antec C8 Wood Price Change No significant price change detected.	84.0 pts	50.4%
Antec C8 ARGB Antec C8 ARGB View detailed specs, charts, and comparison for this PC case.	$150 Antec C8 ARGB Current Amazon Price Click to view this PC case on Amazon. \| 0.0% Antec C8 ARGB Price Change No significant price change detected.	84.0 pts	50.4%
CORSAIR 4000D Frame Vault Series Galaxy CORSAIR 4000D Frame Vault Series Galaxy View detailed specs, charts, and comparison for this PC case.	$115 CORSAIR 4000D Frame Vault Series Galaxy Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PC Case on Amazon. \| ↓ -17.9% CORSAIR 4000D Frame Vault Series Galaxy Price Change Price decreased from the last update.	84.0 pts	65.7%
CORSAIR 4000D Frame RS Black CORSAIR 4000D Frame RS Black View detailed specs, charts, and comparison for this PC case.	$90 CORSAIR 4000D Frame RS Black Current Amazon Price Click to view this PC case on Amazon. \| 0.0% CORSAIR 4000D Frame RS Black Price Change No significant price change detected.	84.0 pts	84.0%
Cooler Master QUBE 500 Flatpack Cooler Master QUBE 500 Flatpack View detailed specs, charts, and comparison for this PC case.	$92 Cooler Master QUBE 500 Flatpack Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PC Case on Amazon. \| ↑ 2.4% Cooler Master QUBE 500 Flatpack Price Change Price increased from the last update.	84.0 pts	82.2%
Thermaltake The Tower 600 Snow Thermaltake The Tower 600 Snow View detailed specs, charts, and comparison for this PC case.	$170 Thermaltake The Tower 600 Snow Price Not Available Last known price from Amazon. Currently unavailable. Click to view this PC Case on Amazon. \| 0.0% Thermaltake The Tower 600 Snow Price Change No significant price change detected.	84.0 pts	44.5%
be quiet! Pure Base 501 Airflow Window be quiet! Pure Base 501 Airflow Window View detailed specs, charts, and comparison for this PC case.	$100 be quiet! Pure Base 501 Airflow Window Current Amazon Price Click to view this PC case on Amazon. \| 0.0% be quiet! Pure Base 501 Airflow Window Price Change No significant price change detected.	84.0 pts	75.7%

PC Case Comparison and Detail Specifications Table

Specification	ASUS TUF Gaming GT302 ARGB Wh… ASUS TUF Gaming GT302 ARGB White View detailed specs, charts, and comparison for this PC case.	Cooler Master TD500 Mesh V2 W… Cooler Master TD500 Mesh V2 White View detailed specs, charts, and comparison for this PC case.	Antec C8 Wood Antec C8 Wood View detailed specs, charts, and comparison for this PC case.	Antec C8 ARGB Antec C8 ARGB View detailed specs, charts, and comparison for this PC case.	CORSAIR 4000D Frame Vault Ser… CORSAIR 4000D Frame Vault Series Galaxy View detailed specs, charts, and comparison for this PC case.	CORSAIR 4000D Frame RS Black CORSAIR 4000D Frame RS Black View detailed specs, charts, and comparison for this PC case.	Cooler Master QUBE 500 Flatpa… Cooler Master QUBE 500 Flatpack View detailed specs, charts, and comparison for this PC case.	Thermaltake The Tower 600 Snow Thermaltake The Tower 600 Snow View detailed specs, charts, and comparison for this PC case.	be quiet! Pure Base 501 Airfl… be quiet! Pure Base 501 Airflow Window View detailed specs, charts, and comparison for this PC case.
Perf Chart
Price	$130 ASUS TUF Gaming GT302 ARGB White Current Amazon Price Click to view this PC case on Amazon. ↓ -21.2% ASUS TUF Gaming GT302 ARGB White Price Change Price decreased from the last update.	$110 Cooler Master TD500 Mesh V2 White Current Amazon Price Click to view this PC case on Amazon. ↓ -17.5% Cooler Master TD500 Mesh V2 White Price Change Price decreased from the last update.	$150 Antec C8 Wood Current Amazon Price Click to view this PC case on Amazon. 0.0% Antec C8 Wood Price Change No significant price change detected.	$150 Antec C8 ARGB Current Amazon Price Click to view this PC case on Amazon. 0.0% Antec C8 ARGB Price Change No significant price change detected.	$115❗ CORSAIR 4000D Frame Vault Series Galaxy Price Not Available Last known price from Amazon. Currently unavailable. ↓ -17.9% CORSAIR 4000D Frame Vault Series Galaxy Price Change Price decreased from the last update.	$90 CORSAIR 4000D Frame RS Black Current Amazon Price Click to view this PC case on Amazon. 0.0% CORSAIR 4000D Frame RS Black Price Change No significant price change detected.	$92❗ Cooler Master QUBE 500 Flatpack Price Not Available Last known price from Amazon. Currently unavailable. ↑ 2.4% Cooler Master QUBE 500 Flatpack Price Change Price increased from the last update.	$170❗ Thermaltake The Tower 600 Snow Price Not Available Last known price from Amazon. Currently unavailable. 0.0% Thermaltake The Tower 600 Snow Price Change No significant price change detected.	$100 be quiet! Pure Base 501 Airflow Window Current Amazon Price Click to view this PC case on Amazon. 0.0% be quiet! Pure Base 501 Airflow Window Price Change No significant price change detected.
Form Factor	Mid-Tower	Mid-Tower	Mid-Tower	Mid-Tower	Mid-Tower	Mid-Tower	Mid-Tower	Mid-Tower	Mid-Tower
Color	GT302\|White\|ARGB	White	FLUX PRO	C8 ARGB	Galaxy	Black	Black	snow	Airflow Window Black
Side Panel	tempered glass	tempered glass	tempered glass	tempered glass	tempered glass	tempered glass	tempered glass	Temperd glass	tempered glass
Max GPU L.	407 mm	410 mm	440 mm	440 mm	430 mm	430 mm	365 mm	400 mm	368 mm
Max CPU H.	165 mm	165 mm	175 mm	175 mm	170 mm	170 mm	172 mm	210 mm	178 mm
Max PSU L.	220 mm	200 mm	210 mm	210 mm	220 mm	220 mm	216 mm	220 mm	180 mm
PSU FF	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX	ATX, SFX

PC Case Specification Table

PC_Case (Desc)	Form Factor	Color / Side Panel	GPU Length	CPU Cooler Height	PSU Length / Form Factor
ASUS TUF Gaming GT302 ARGB White ASUS TUF Gaming GT302 ARGB White View detailed specs, charts, and comparison for this PC case.	Mid-Tower	GT302\|White\|ARGB / tempered glass	407 mm	165 mm	220 mm / ATX, SFX
Cooler Master TD500 Mesh V2 White Cooler Master TD500 Mesh V2 White View detailed specs, charts, and comparison for this PC case.	Mid-Tower	White / tempered glass	410 mm	165 mm	200 mm / ATX, SFX
Antec C8 Wood Antec C8 Wood View detailed specs, charts, and comparison for this PC case.	Mid-Tower	FLUX PRO / tempered glass	440 mm	175 mm	210 mm / ATX, SFX
Antec C8 ARGB Antec C8 ARGB View detailed specs, charts, and comparison for this PC case.	Mid-Tower	C8 ARGB / tempered glass	440 mm	175 mm	210 mm / ATX, SFX
CORSAIR 4000D Frame Vault Series Galaxy CORSAIR 4000D Frame Vault Series Galaxy View detailed specs, charts, and comparison for this PC case.	Mid-Tower	Galaxy / tempered glass	430 mm	170 mm	220 mm / ATX, SFX
CORSAIR 4000D Frame RS Black CORSAIR 4000D Frame RS Black View detailed specs, charts, and comparison for this PC case.	Mid-Tower	Black / tempered glass	430 mm	170 mm	220 mm / ATX, SFX
Cooler Master QUBE 500 Flatpack Cooler Master QUBE 500 Flatpack View detailed specs, charts, and comparison for this PC case.	Mid-Tower	Black / tempered glass	365 mm	172 mm	216 mm / ATX, SFX
Thermaltake The Tower 600 Snow Thermaltake The Tower 600 Snow View detailed specs, charts, and comparison for this PC case.	Mid-Tower	snow / Temperd glass	400 mm	210 mm	220 mm / ATX, SFX
be quiet! Pure Base 501 Airflow Window be quiet! Pure Base 501 Airflow Window View detailed specs, charts, and comparison for this PC case.	Mid-Tower	Airflow Window Black / tempered glass	368 mm	178 mm	180 mm / ATX, SFX

Additional PC Case Information

Fan Support:

Fan Support - Front1x 120/140mm (x2 if PSU is mounted in bottom)Fan Support - Top2x 120/140mmFan Support - Rear1x 120mmFan Support - Bottom2x 120/140mmFan Support - Left side2x 120/140mm

Radiator Support:

Radiator Support - Front120/140 mm (240/280mm w/ PSU in bottom)Radiator Support - Top120 / 140 / 240 / 280mm (280mm can be used within 53mm thickness)Radiator Support - Rear120mmRadiator Support - Bottom120 / 140 / 240 / 280mmRadiator Support - Left side120 / 140 / 240 / 280mm

HDD / SSD Support:

3.5" Drive Bays: 4, 2.5" Drive Bays: 3

Front Ports:

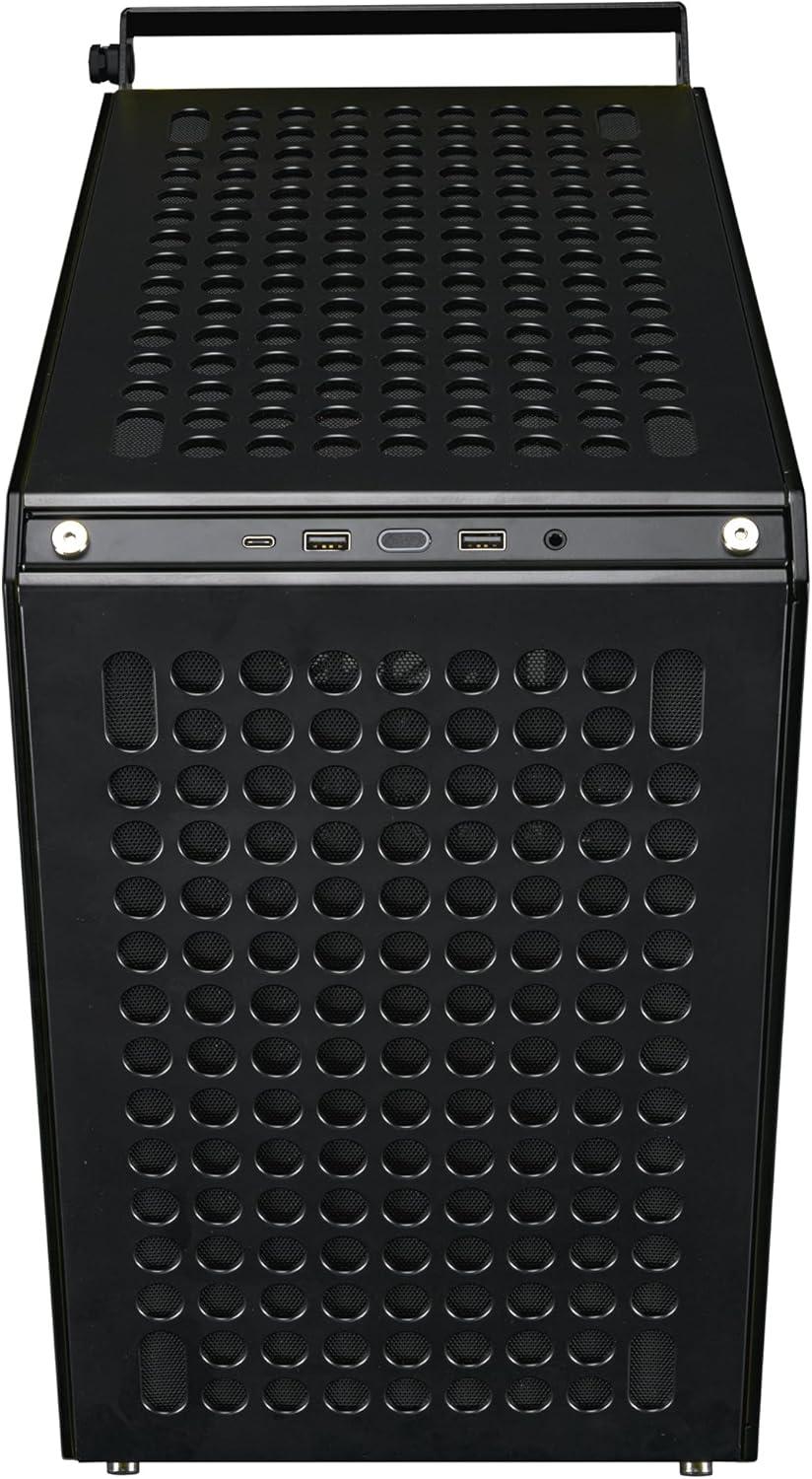

2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C

Dust Filters:

yes

Additional Information:
