KingSpec · PCIe 4.0 · 500 GB

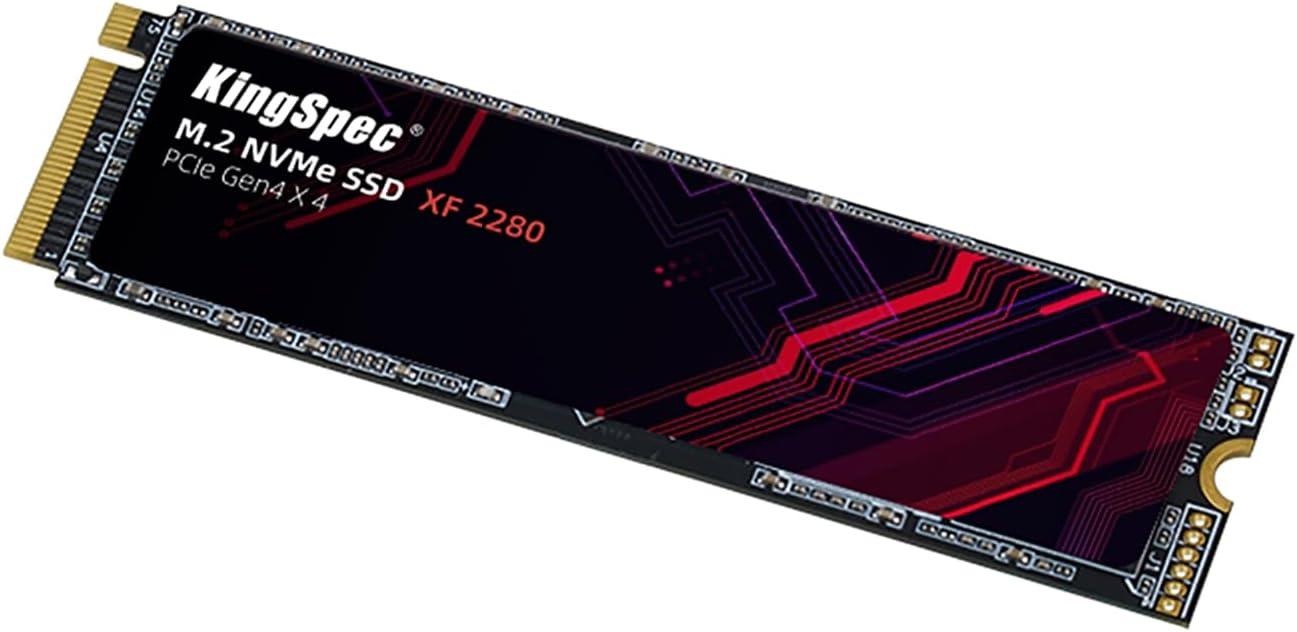

KingSpec XF2280 500GB

M.2 2280 · TLC NAND · Host-Memory-Buffer (HMB)

Performance: 62
Perf / price: 94
Capacity value: 47
Amazon: $100

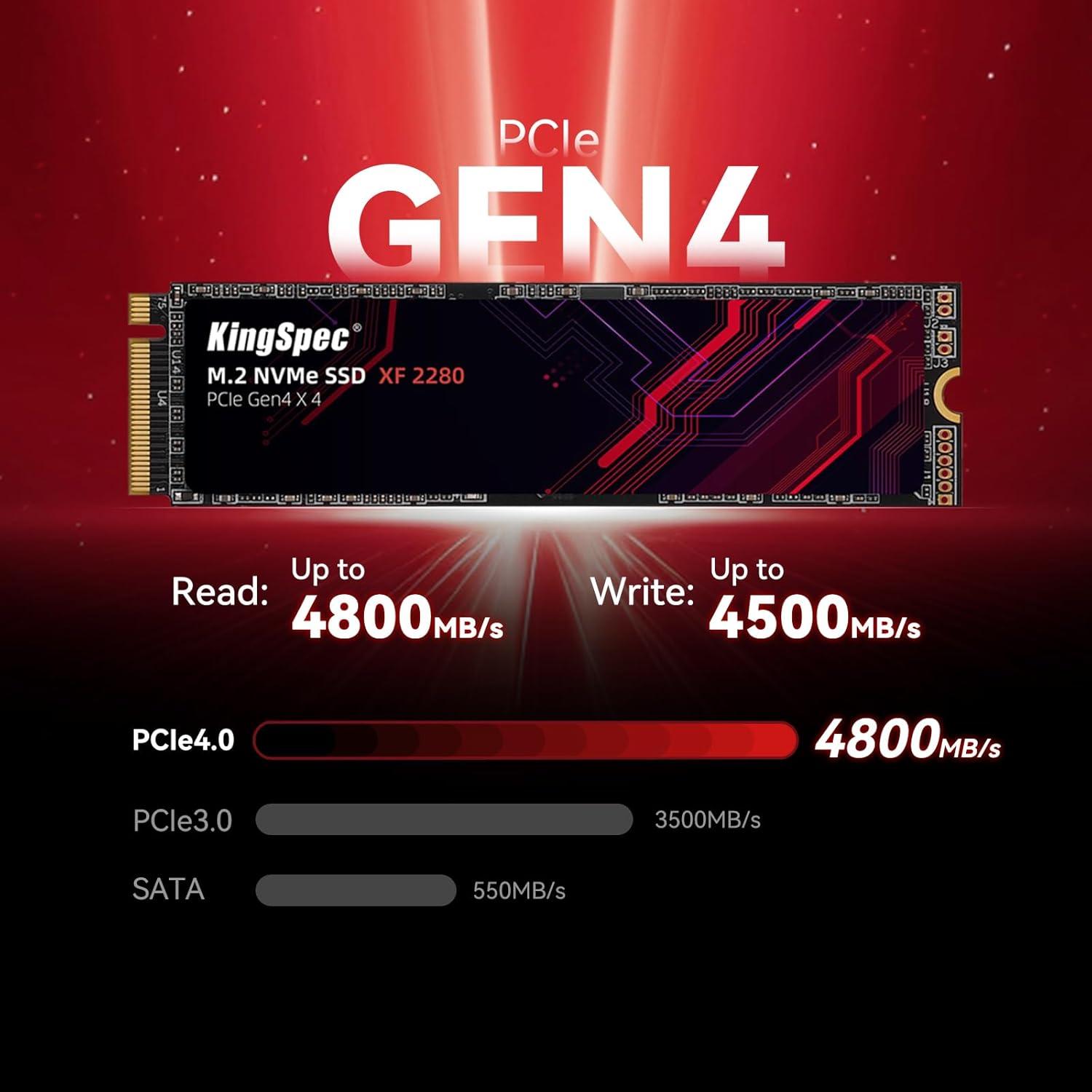

View KingSpec XF2280 500GB Gallery in high resolution

Available on Amazon Updated Aug 16, 2026

Performance62.5

Performance / price93.7

Capacity value46.9

$100 on Amazon Open in PC Builder SSD table

Written analysis

KingSpec XF2280 500GB at a glance

The KingSpec XF2280 500GB is a 500 GB M.2 2280 SSD using PCIe 4.0 x4, NVMe 1.4. The controller is TenaFE TC2200 Merak. Flash type is 3D TLC NAND. Cache is listed as Host-Memory-Buffer (HMB).

Rated sequential throughput is 4800 MB/s read and 4500 MB/s write. Random throughput is 400K read IOPS and 500K write IOPS. The calculated specification score is 62.5.

Best fit: General storage workloads where compatibility and price matter more than peak transfer rates.

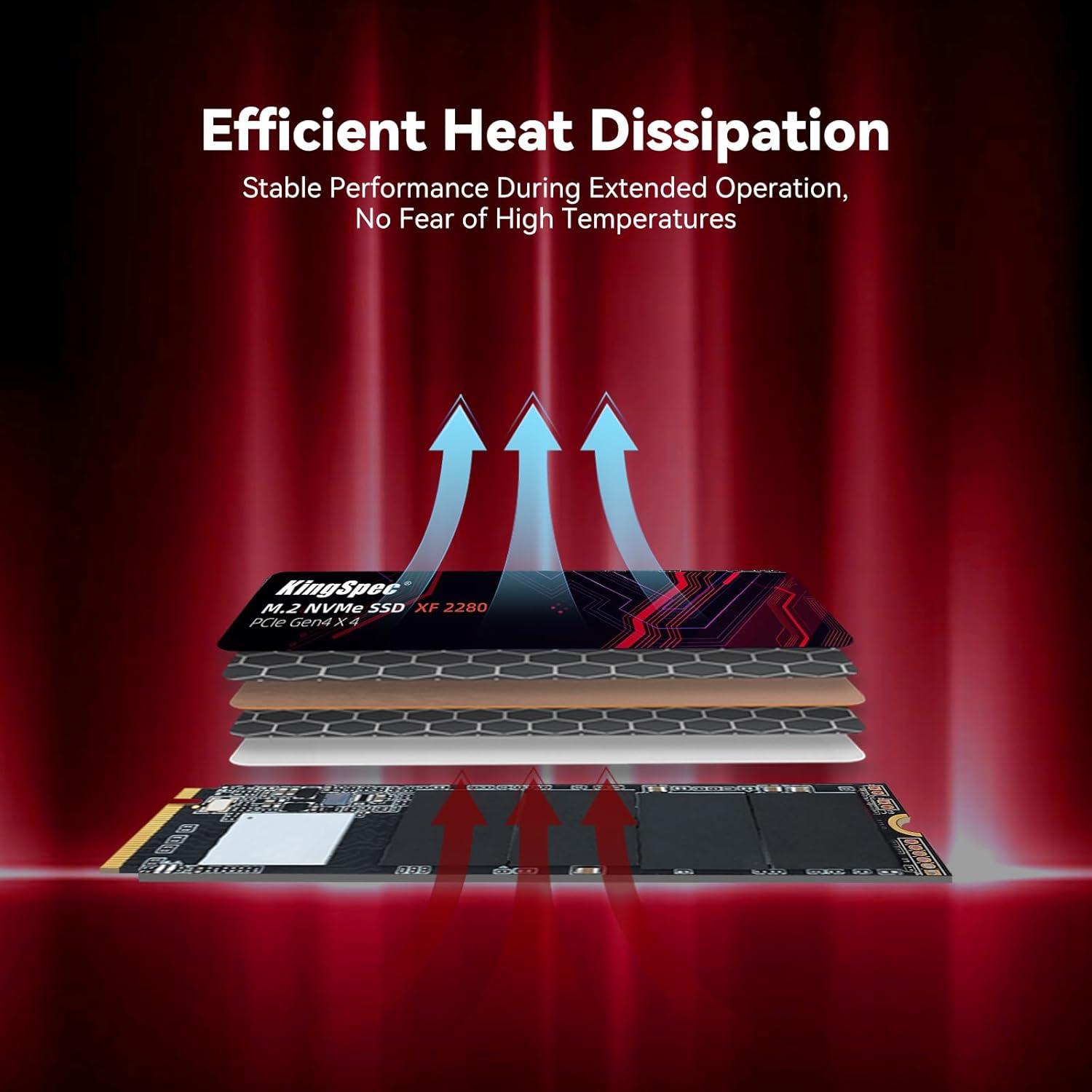

Endurance and thermals

Rated endurance is 600 TBW, or approximately 1200 TBW per TB of capacity. The listed warranty is 3 years.

Current value

At $100, the drive costs $199.94 per TB. Performance / price is 93.7 and capacity value is 46.9. Compare these values with nearby drives below; interface generation and headline speed alone do not determine value.

Drive data

Full specifications

Interface, flash, controller, cache, throughput, endurance, power, warranty, and value in one technical sheet.

General

Manufacturer: KingSpec
SSD: KingSpec XF2280 500GB
Capacity: 500 GB
Form factor: M.2 2280
Launch price: —
Amazon price: $100
Amazon availability: Available
Price updated: Aug 16, 2026

Performance

Sequential read: 4800 MB/s
Sequential write: 4500 MB/s
Random read: 400K IOPS
Random write: 500K IOPS

Value

Amazon price: $100
Price / TB: $199.94
Performance / price: 93.7
Capacity value: 46.9

Hardware & cache

Interface: PCIe 4.0 x4, NVMe 1.4
Interface generation: PCIe 4.0
Controller: TenaFE TC2200 Merak
NAND: 3D TLC NAND
Process: 12
Cache type: Host-Memory-Buffer (HMB)
DRAM: Host-Memory-Buffer (HMB)
DRAM capacity: 64 MB
DRAM speed: 2000 MT/s
SLC cache: Dynamic

Durability & power

Endurance: 600 TBW
Endurance / TB: 1200 TBW
Warranty: 3 years
Idle power: —
Active power: —

Amazon

Price history

Nearby performance

Similar SSDs

Drives close to KingSpec XF2280 500GB on calculated specification performance. Open the SSD table to sort, filter, and compare side by side.

PNY PNY CS2140 500GB M.2 NVMe Gen4 500 GB · PCIe 4.0 · TLC

62.1

71.7

35.8

$130

Silicon Power Silicon Power 500GB UD90 NVMe 4.0 Gen4 PCIe M.2 SSD 500 GB · PCIe 4.0 · TLC

62.2

84.8

42.4

$110

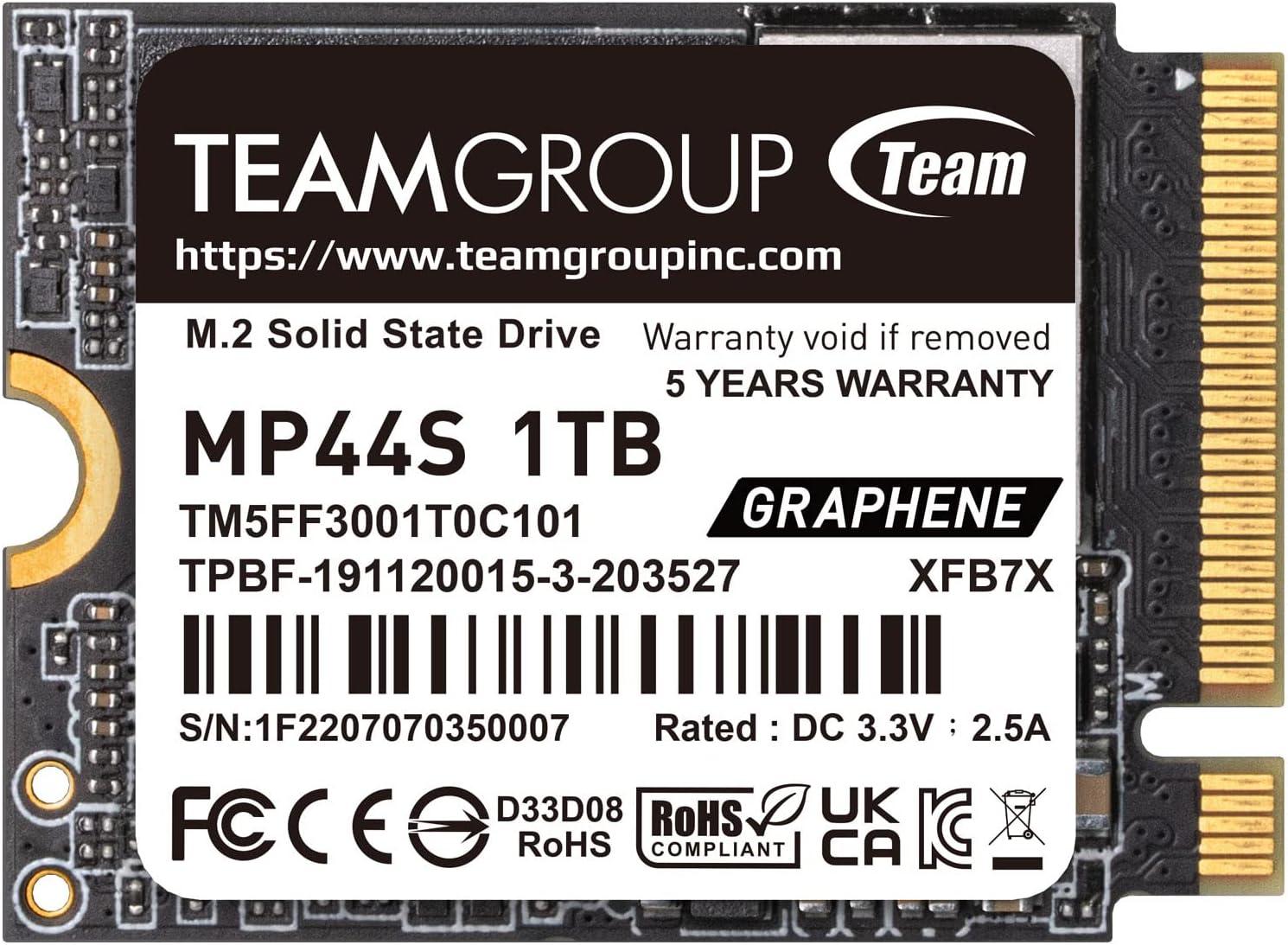

TEAMGROUP TEAMGROUP MP44S SSD 1TB SLC Cache Gen 4x4 M.2 2230 PCIe 4.0 1000 GB · PCIe 4.0 · QLC

62.2

51.9

$180

TEAMGROUP TEAMGROUP MP44S SSD 2TB SLC Cache Gen 4x4 M.2 2230 PCIe 4.0 2000 GB · PCIe 4.0 · QLC

62.2

31.1

62.3

$300

KingSpec KingSpec XF2280 500GB This drive

62.5

93.7

46.9

$100

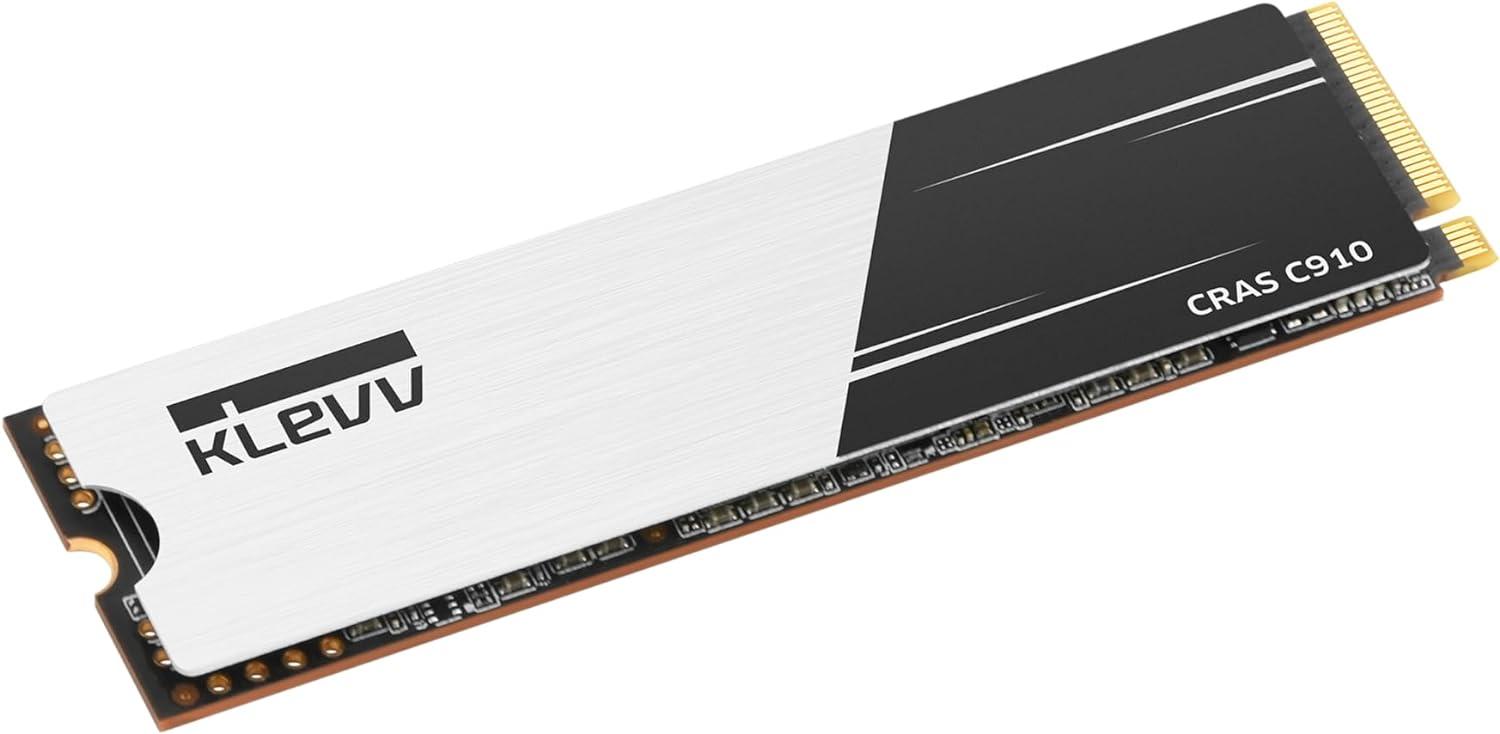

KLEVV KLEVV CRAS C910 500GB M.2 2280 SLC Cache NVMe PCIe Gen4x4 500 GB · PCIe 4.0 · TLC

62.7

92.3

46.1

$102

Crucial Crucial P3 Plus 500GB PCIe Gen4 3D NAND 500 GB · PCIe 4.0 · QLC

62.8

144.9

72.5

$65

ADATA XPG Gammix S60 2TB 2000 GB · PCIe 4.0 · TLC

62.8

—

PNY PNY M280CS2140-1TB-RB M.2 NVMe Gen4 1000 GB · PCIe 4.0 · TLC

63.0

43.6

$217

Compare these in the SSD table
