Written analysis
ZOTAC Gaming GeForce RTX 5060 Ti 16GB AMP at a glance

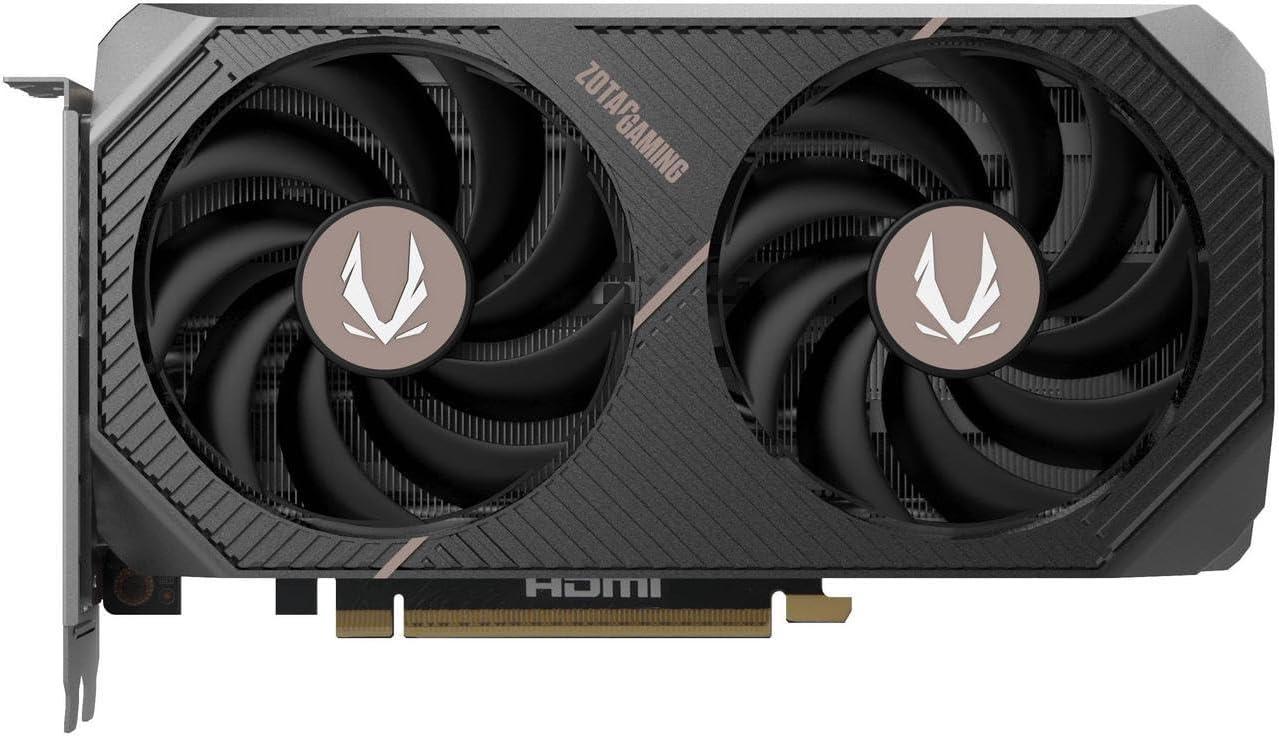

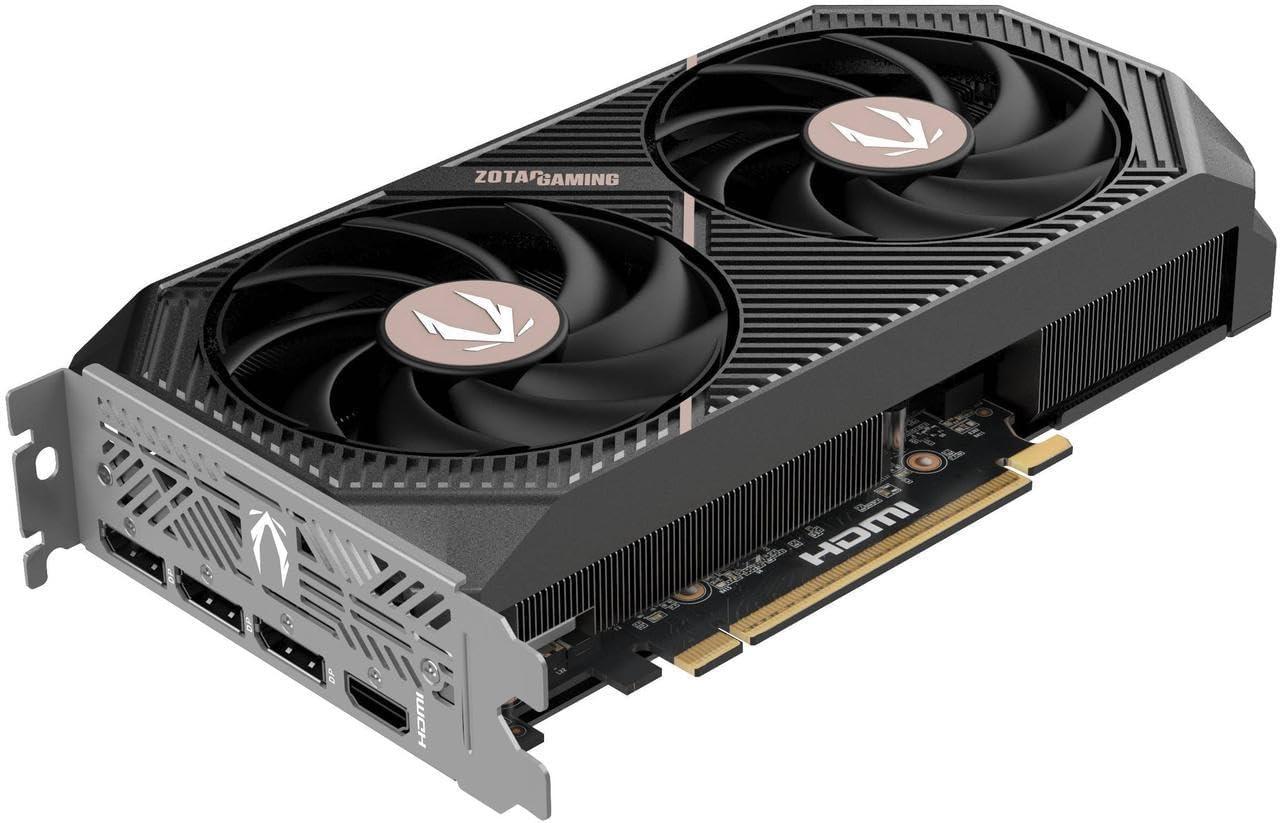

The ZOTAC Gaming GeForce RTX 5060 Ti 16GB AMP is a ZOTAC retail card of the RTX 5060 Ti 16GB on Blackwell 2.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 2572 MHz.

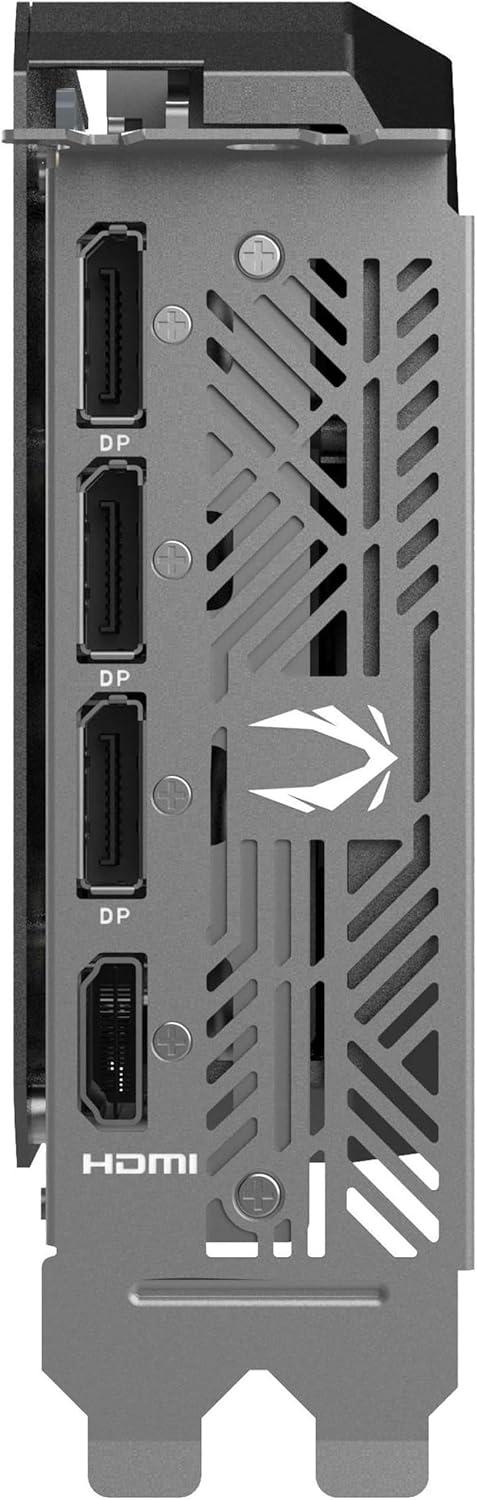

Length is 221 mm and it occupies 2.0 slots ( 220.5mm x 120.25mm x 41.6mm ). Board power is 180 W with 1 x 8-pin. Outputs: 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) 1 x HDMI® Connector . Warranty is 36 months.
This is a short card and is a better candidate for compact cases than most RTX 5060 Ti 16GB partners.
Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.
Inherited GPU performance
Raster scores come from the RTX 5060 Ti 16GB, not from this cooler. At 1440p that is 38.54% of the dataset’s best (entry-level), with 45% at 1080p and 32% at 4K. The chip uses 16 GB GDDR7.
This card’s 1440p value is balanced at 57.5 performance per dollar.
Compare other ZOTAC and partner boards of this GPU in the RTX 5060 Ti 16GB retail-card table.
