RTX 5060 Ti 16GB
RTX 5060 Ti 16GB Specifications
The RTX 5060 Ti 16GB is based on the Blackwell 2.0 architecture and manufactured using the 4 nm process node. It was launched approximately 2 months, 3 weeks ago, originally priced at $430. It features 4608 cores, including 36 compute units (SMs), 144 texture mapping units (TMUs), and 48 render output units (ROPs). For ray tracing and AI-accelerated tasks, it also includes 36 dedicated RT cores and 144 Tensor cores, enabling advanced rendering and upscaling features where supported. It has a base clock of 2407 MHz and a boost clock reaching up to 2572 MHz. The RTX 5060 Ti 16GB comes equipped with 16 GB of GDDR7 memory across a 128-bit bus. Memory runs at 1750 MHz and delivers a total memory bandwidth of 448 GB/s.
This GPU has a low thermal design power (TDP) of 180 W. It is generally compatible with almost all PC cases and is excellent for SFF and compact systems where heat dissipation is a concern.
RTX 5060 Ti 16GB Performance Review
RTX 5060 Ti 16GB is a mid-range graphics card, scoring 45.23% in relative gaming performance. Thanks to 16 GB of VRAM, it offers excellent 1440p performance and can handle 4K gaming with optimized settings or the help of DLSS, FSR, and frame generation. Great for users targeting 100+ FPS at 1440p or playable 4K in lighter titles.
The RTX 5060 Ti 16GB is equipped with a generous 16 GB of VRAM, providing excellent performance in a wide range of use cases. It can handle ultra to high settings in most modern games at up to 4K resolution with minimal compromise. It also supports features such as ray tracing and high-resolution textures without significant memory constraints. For content creators, this GPU is well-suited for 4K video editing, photo editing with large RAW files, 3D rendering, and complex animations. In AI applications, it can run intermediate-sized models and perform tasks such as training custom models, image generation, and data processing — though not at the scale of enterprise-class GPUs. It offers a great balance for gamers, creators, and prosumers alike.
In terms of gaming value, RTX 5060 Ti 16GB offers excellent performance per dollar, achieving 79.1% efficiency relative to the best in this category. It is an outstanding choice for users seeking a cost-effective yet powerful solution, with ample VRAM ensuring strong future-proofing.
RTX 5060 Ti 16GB GPU Information
GPU Code Name: GB206
Release Price: $430
Selected Model: ASUS Dual GeForce RTX™ 5060 Ti 16GB GDDR7 OC Edition (PCIe 5.0, 16GB GDDR7, DLSS 4, HDMI 2.1b, DisplayPort 2.1b, 2.5-Slot Design, Axial-tech Fan Design, 0dB Technology, and More)
Current Price Amazon: $429
Amazon Price Updated: 4 hours, 10 minutes ago.
Launch Date: 2 months, 3 weeks ago.
GPU Available: True
Architecture / Process: Blackwell 2.0 / 4 nm
Cores / CUs (SMs) : 4608 / 36
TMUs / ROPs: 144 / 48
RT Cores / Tensor Cores: 36 / 144
Base / Boost Clock: 2407 MHz / 2572 MHz
Memory: 16 GB GDDR7, 128 bit
Memory Clock / Bandwidth: 1750 MHz / 448 GB/s
Transistors: 21900 million
TDP: 180 W
Performance
Pixel Rate: 123.50 GPixel/s
Texture Rate: 370.40 GTexel/s
FP16: 23.70 TFLOPS
FP32: 23.70 TFLOPS
FP64: 370.40 GFLOPS
Gaming Performance
1080p: 45.23%
1440p: 38.54%
2160p: 31.65%
Calculated Performance
Performance per Price: 79.1%
RTX 5060 Ti 16GB Compared to Similar Performance GPUs
GPU Price / Performance Table
| GPU (Desc) | Price (Desc) | Gaming_1080p (Desc) | Gaming_1440p (Desc) | Gaming_2160p (Desc) | Game_1440p/Price (Desc) |
|---|---|---|---|---|---|
|
$599
|
0.0%
|
51.5%
|
44.6%
|
38.1%
|
65.6%
|
|
|
$499
|
↓
-2.0%
|
50.9%
|
43.7%
|
39.1%
|
77.0%
|
|
|
$845
|
0.0%
|
51.4%
|
43.1%
|
35.8%
|
44.8%
|
|
|
$599
|
0.0%
|
49.2%
|
42.7%
|
35.6%
|
62.7%
|
|
|
$429
|
↓
-10.4%
|
45.2%
|
38.5%
|
31.7%
|
79.1%
|
|
|
$589
|
↑
31.2%
|
43.9%
|
38.2%
|
31.5%
|
57.0%
|
|
|
$434
|
↓
-27.6%
|
44.0%
|
37.4%
|
32.1%
|
75.9%
|
|
|
$399
|
0.0%
|
44.6%
|
36.6%
|
25.7%
|
80.7%
|
|
|
$389
|
↑
8.4%
|
42.8%
|
36.0%
|
29.9%
|
81.4%
|
GPU Specification Table
| GPU (Desc) | Architecture | Shader/TMU/ROP/RT | Base/Boost Clock | Memory | Mem Clock/Bandwidth | TDP |
|---|---|---|---|---|---|---|
| RX 7800 XT | Navi 32 / 5 nm / RDNA 3.0 | 3840 / 240 / 96 / 60 | 1295 MHz / 2430 MHz | 16 GB GDDR6 / 256 bit | 2438 MHz / 624 GB/s | 263 W |
| RTX 3080 | GA102 / 8 nm / Ampere | 8704 / 272 / 96 / 68 | 1440 MHz / 1710 MHz | 10 GB GDDR6X / 320 bit | 1188 MHz / 760 GB/s | 320 W |
| RTX 4070 | AD104 / 5 nm / Ada Lovelace | 5888 / 184 / 64 / 46 | 1920 MHz / 2475 MHz | 12 GB GDDR6X / 192 bit | 1313 MHz / 504 GB/s | 200 W |
| RX 6800 XT | Navi 21 / 7 nm / RDNA 2.0 | 4608 / 288 / 128 / 72 | 1825 MHz / 2250 MHz | 16 GB GDDR6 / 256 bit | 2000 MHz / 512 GB/s | 300 W |
| RTX 5060 Ti 16GB | GB206 / 4 nm / Blackwell 2.0 | 4608 / 144 / 48 / 36 | 2407 MHz / 2572 MHz | 16 GB GDDR7 / 128 bit | 1750 MHz / 448 GB/s | 180 W |
| RX 7700 XT | Navi 32 / 5 nm / RDNA 3.0 | 3456 / 216 / 96 / 54 | 1435 MHz / 2544 MHz | 12 GB GDDR6 / 192 bit | 2250 MHz / 432 GB/s | 245 W |
| RX 6800 | Navi 21 / 7 nm / RDNA 2.0 | 3840 / 240 / 96 / 60 | 1700 MHz / 2105 MHz | 16 GB GDDR6 / 256 bit | 2000 MHz / 512 GB/s | 250 W |
| RTX 5060 Ti 8GB | GB206 / 4 nm / Blackwell 2.0 | 4608 / 144 / 48 / 36 | 2407 MHz / 2572 MHz | 8 GB GDDR7 / 128 bit | 1750 MHz / 448 GB/s | 180 W |
| RX 9060 XT 16GB | Navi 44 / 4 nm / RDNA 4.0 | 2048 / 128 / 64 / 32 | 1700 MHz / 3130 MHz | 16 GB GDDR6 / 128 bit | 2518 MHz / 322 GB/s | 160 W |

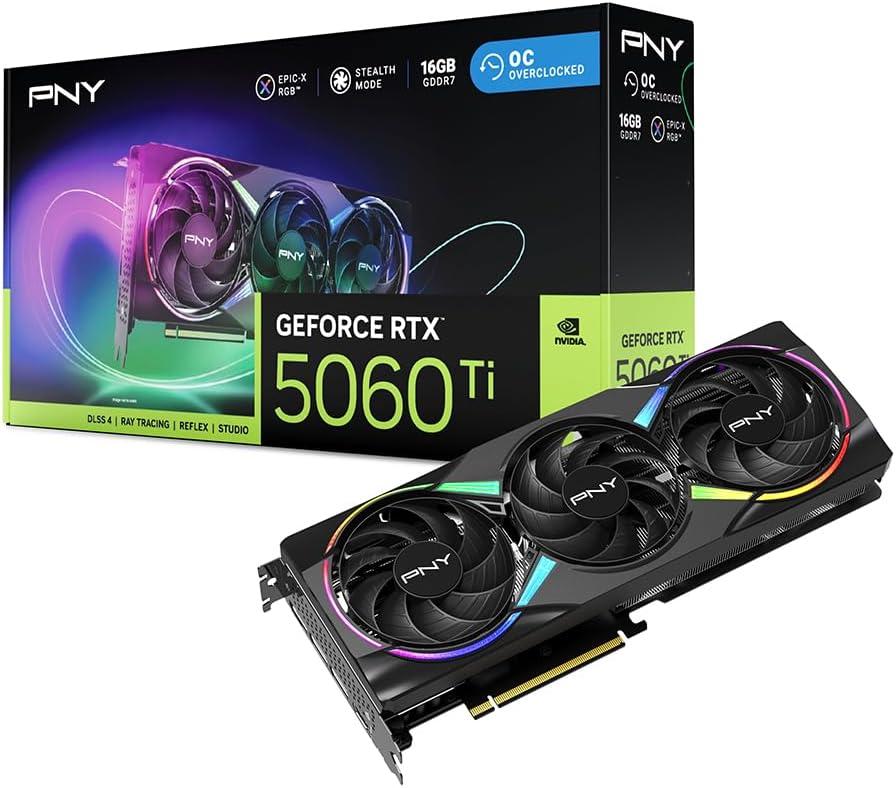

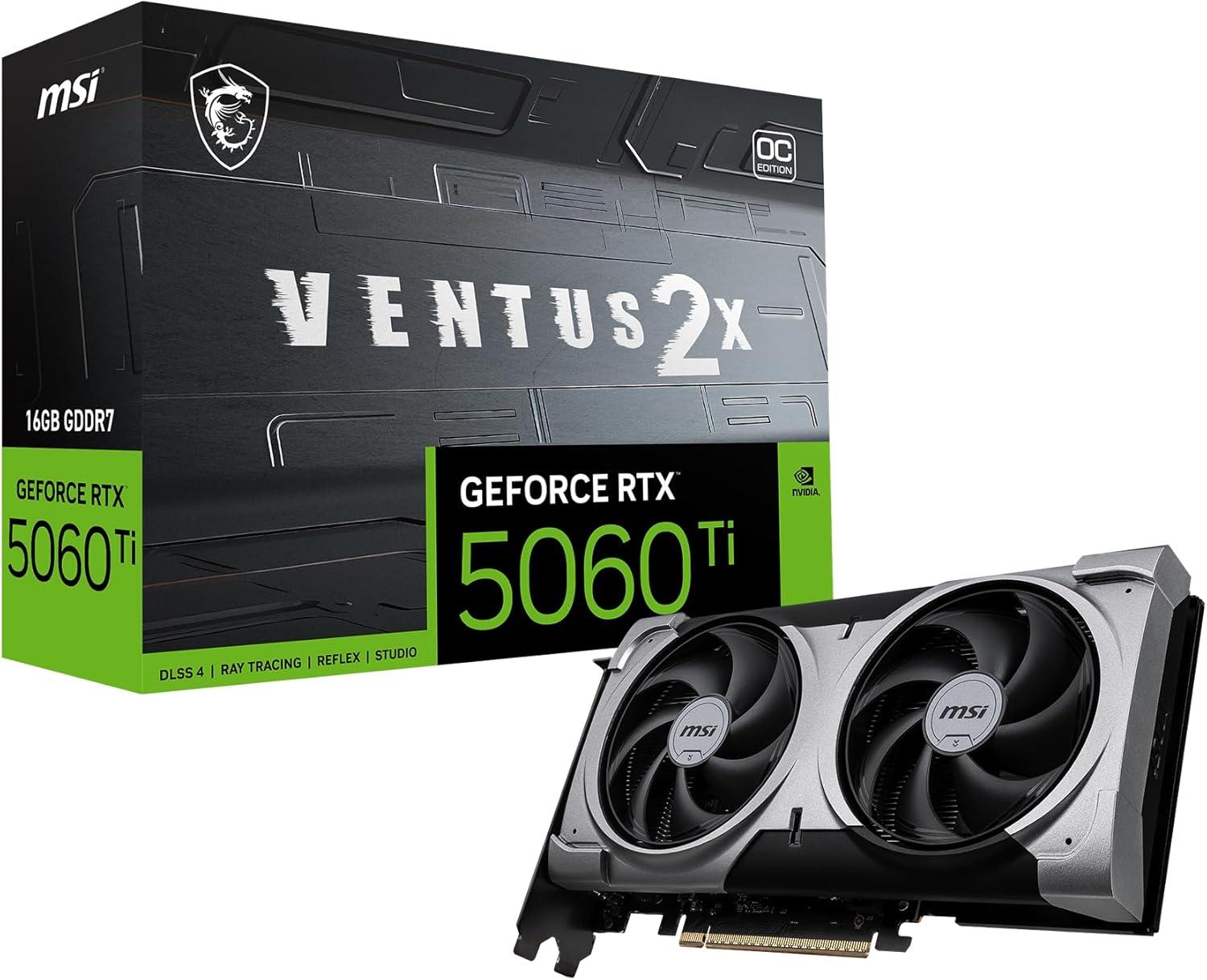

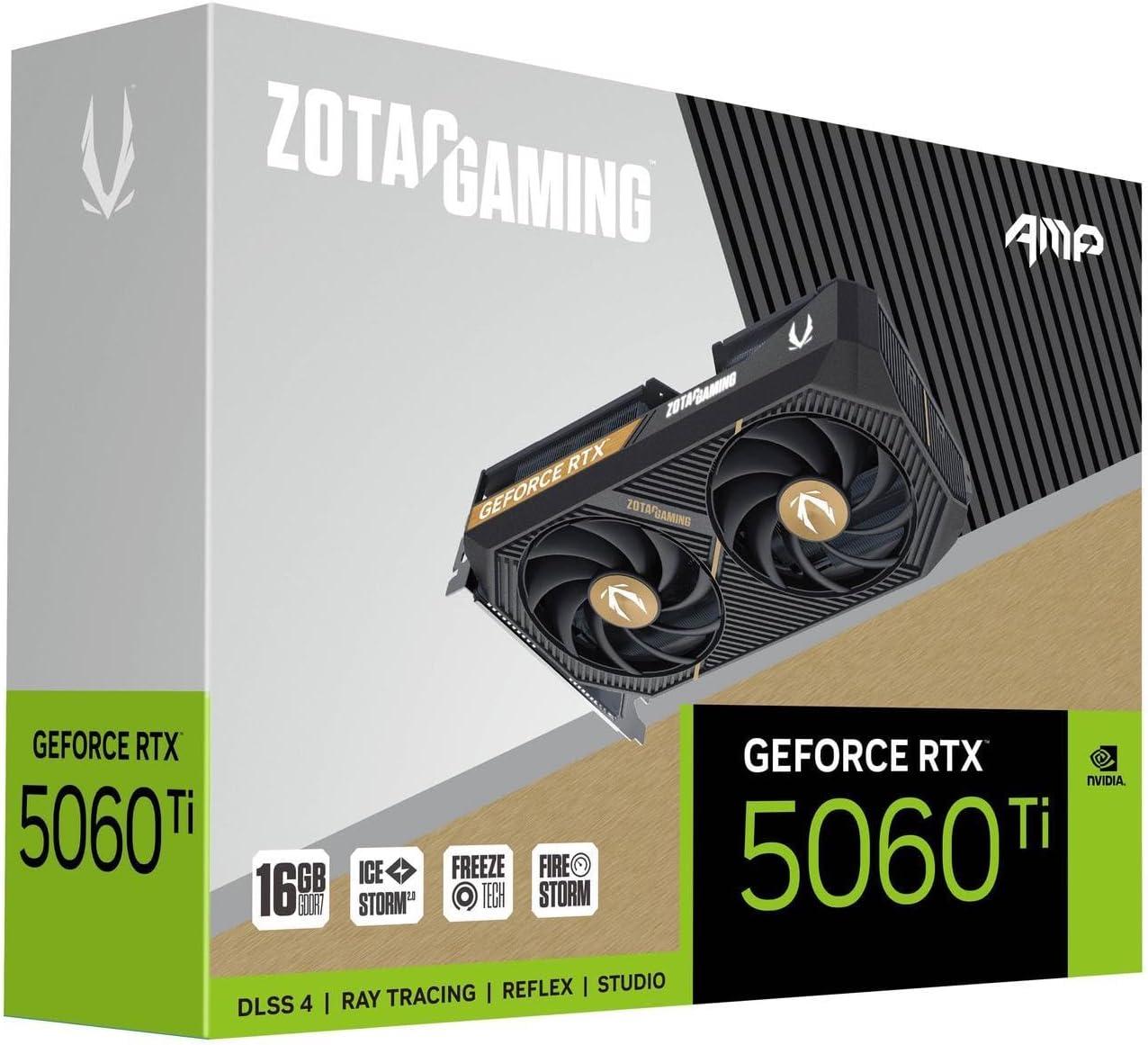

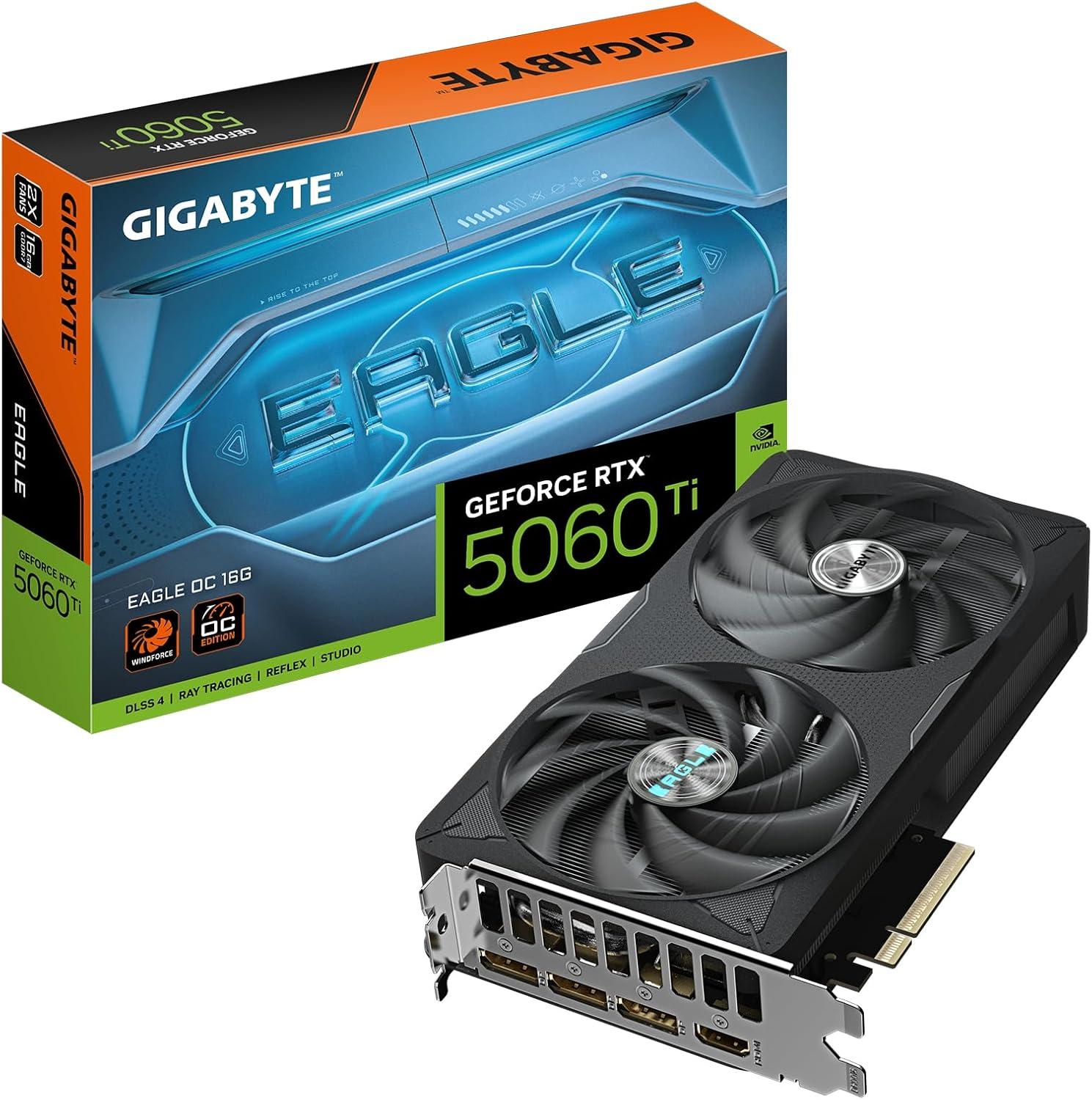

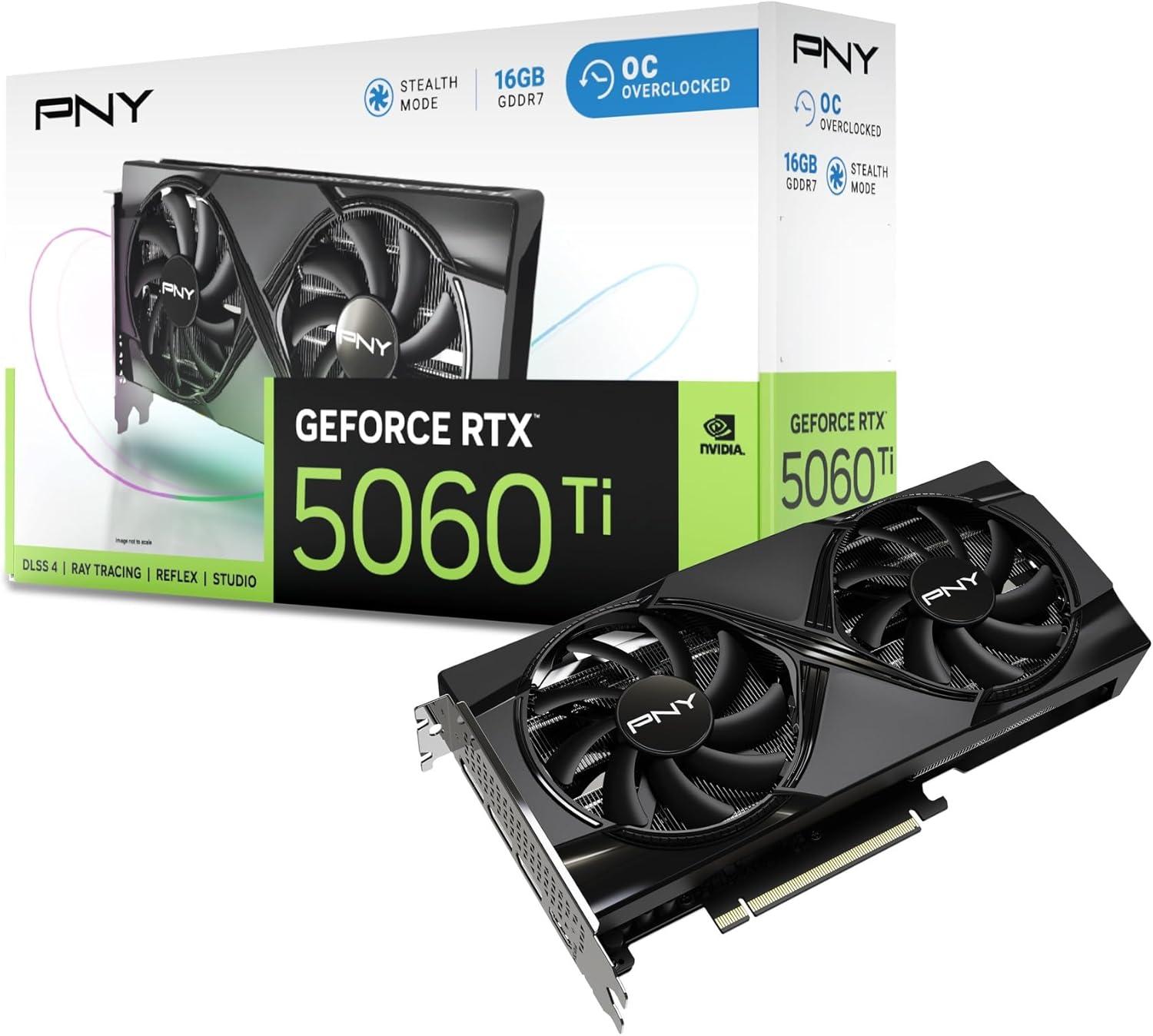

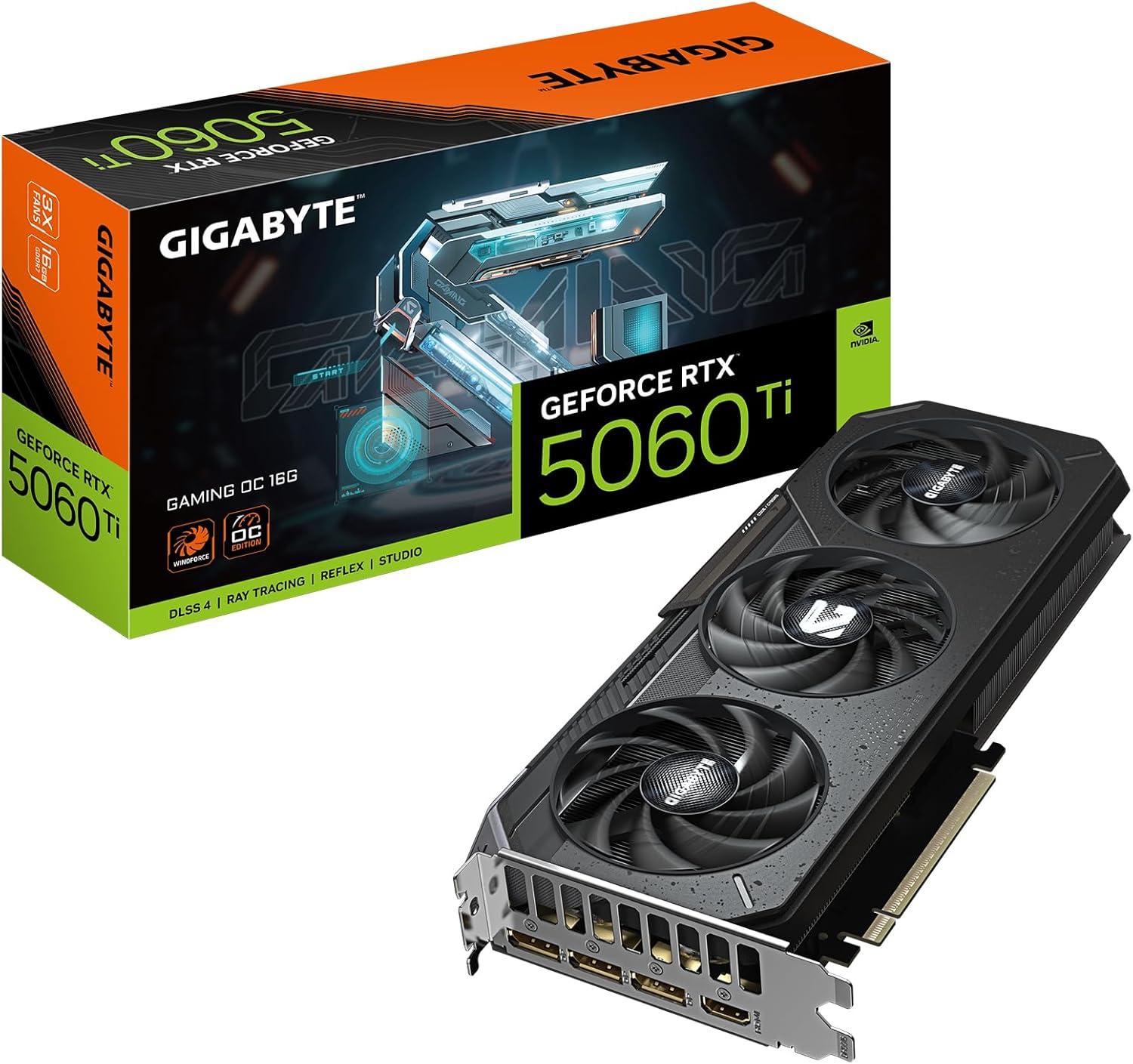

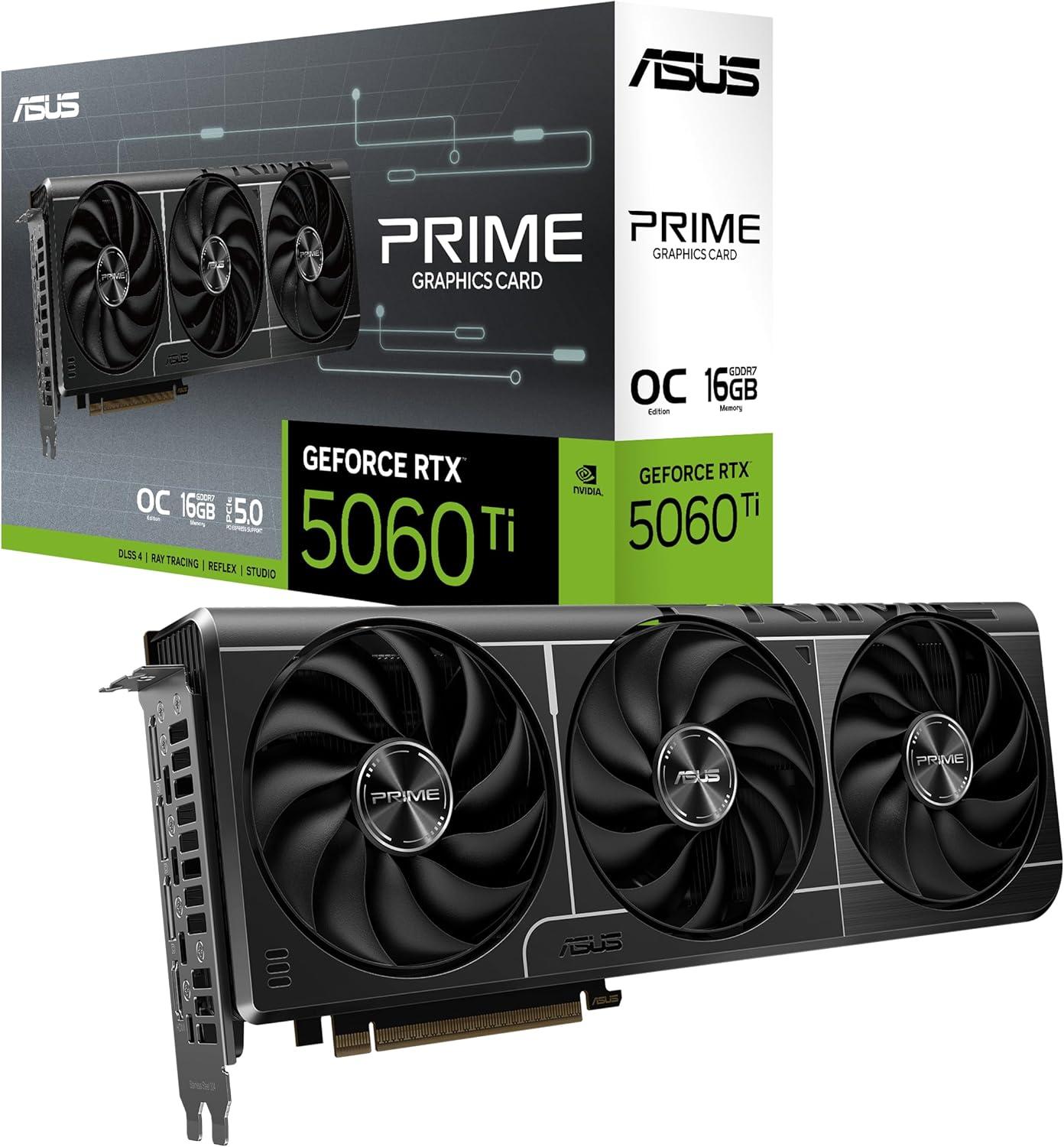

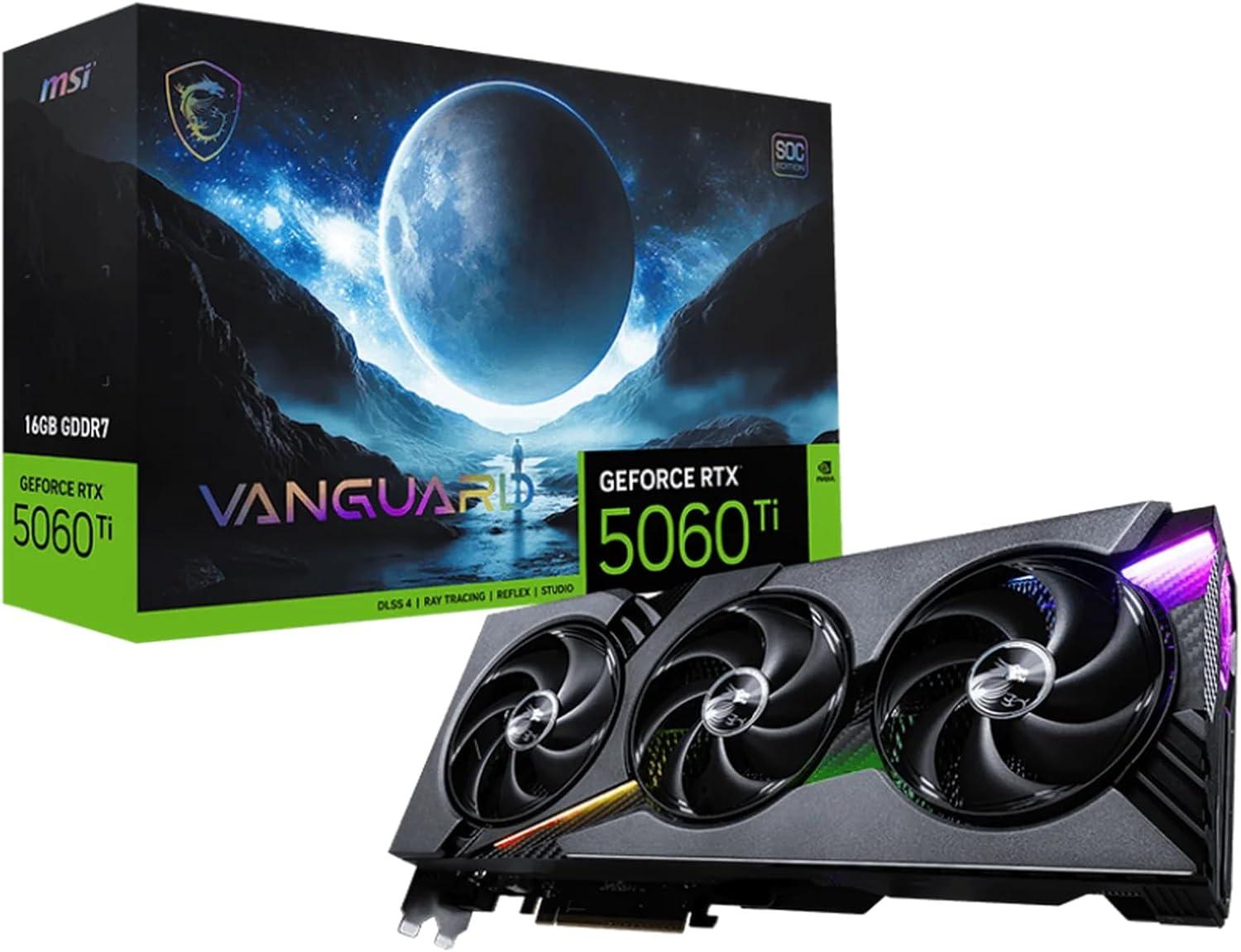

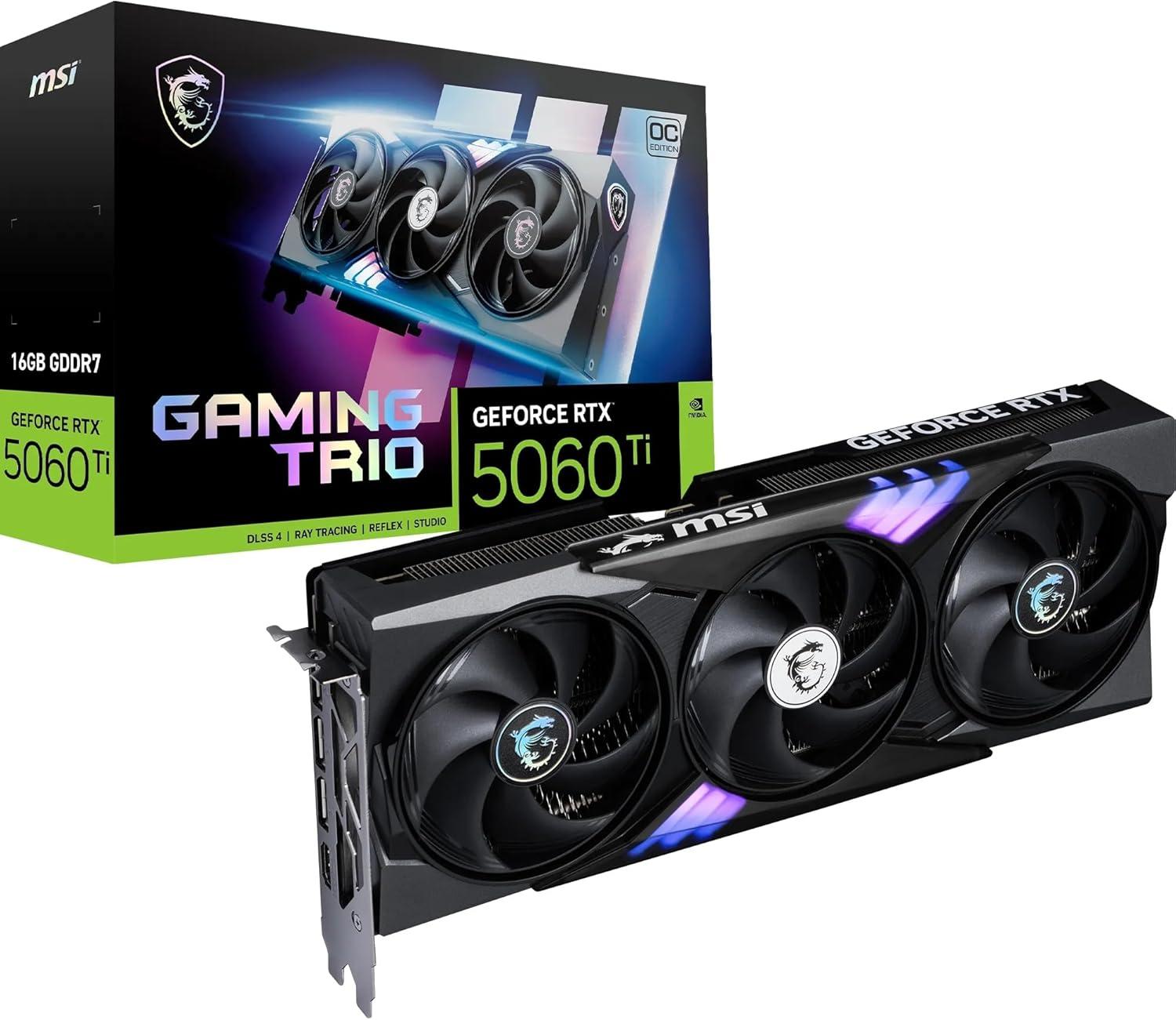

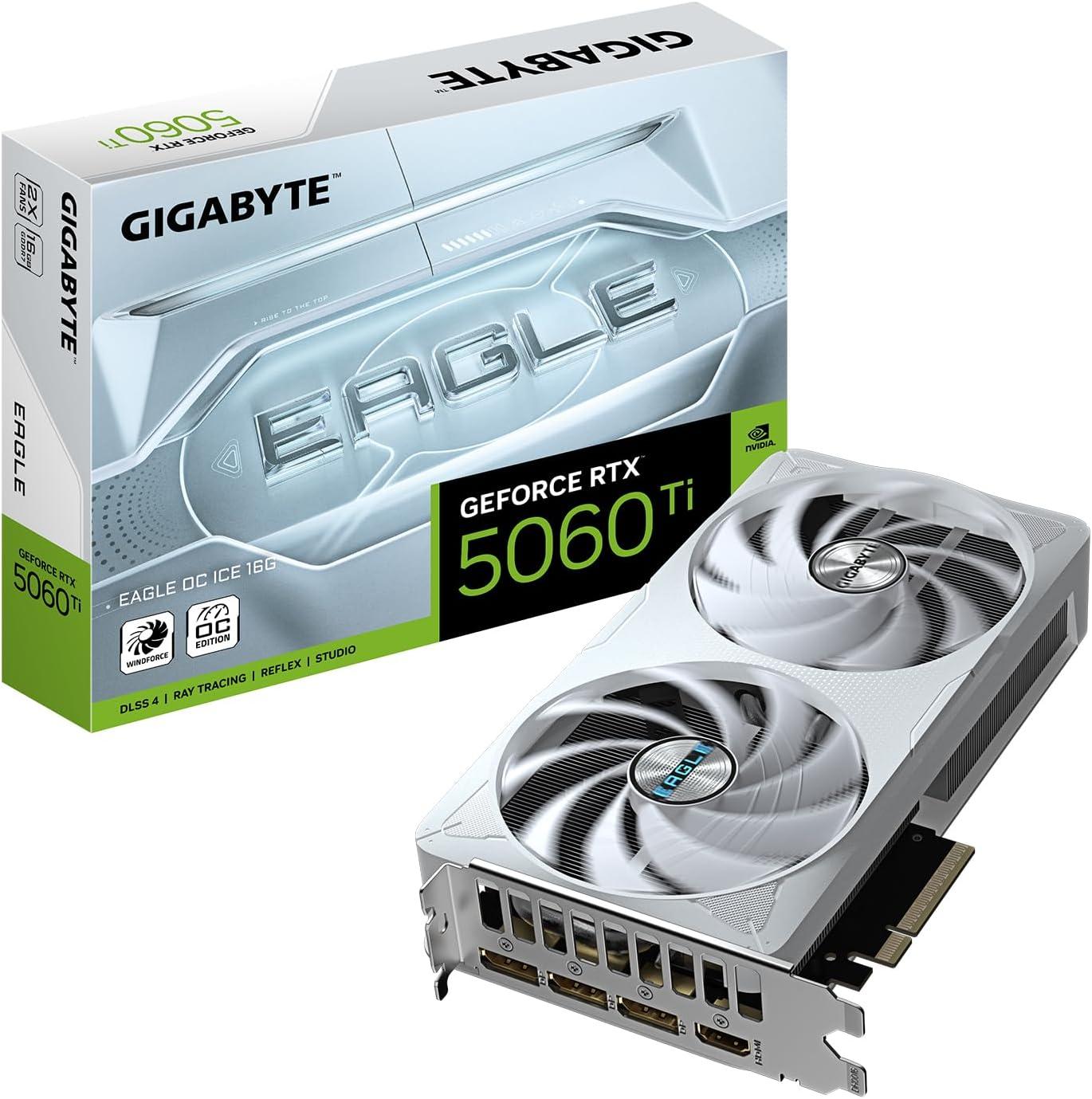

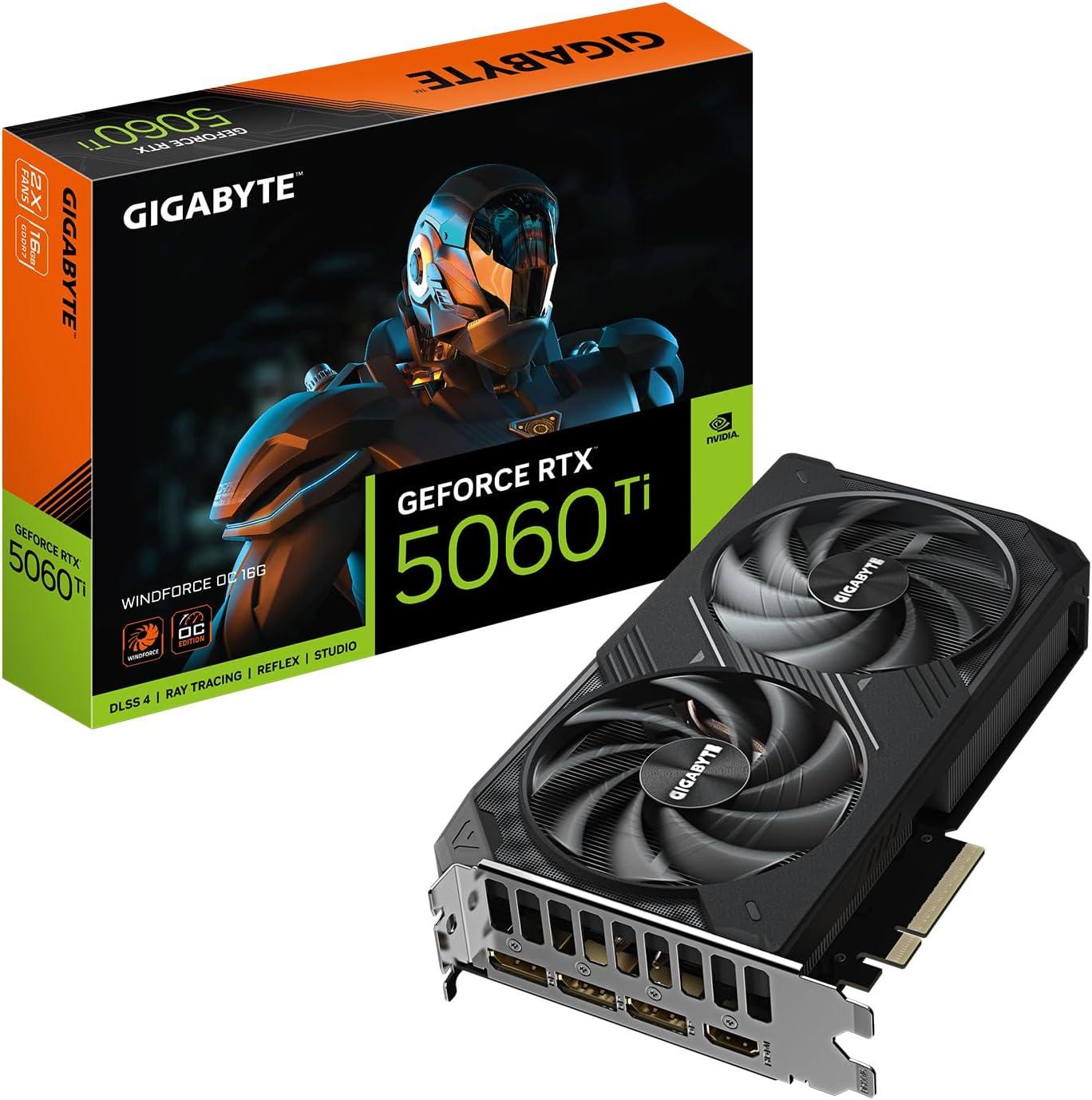

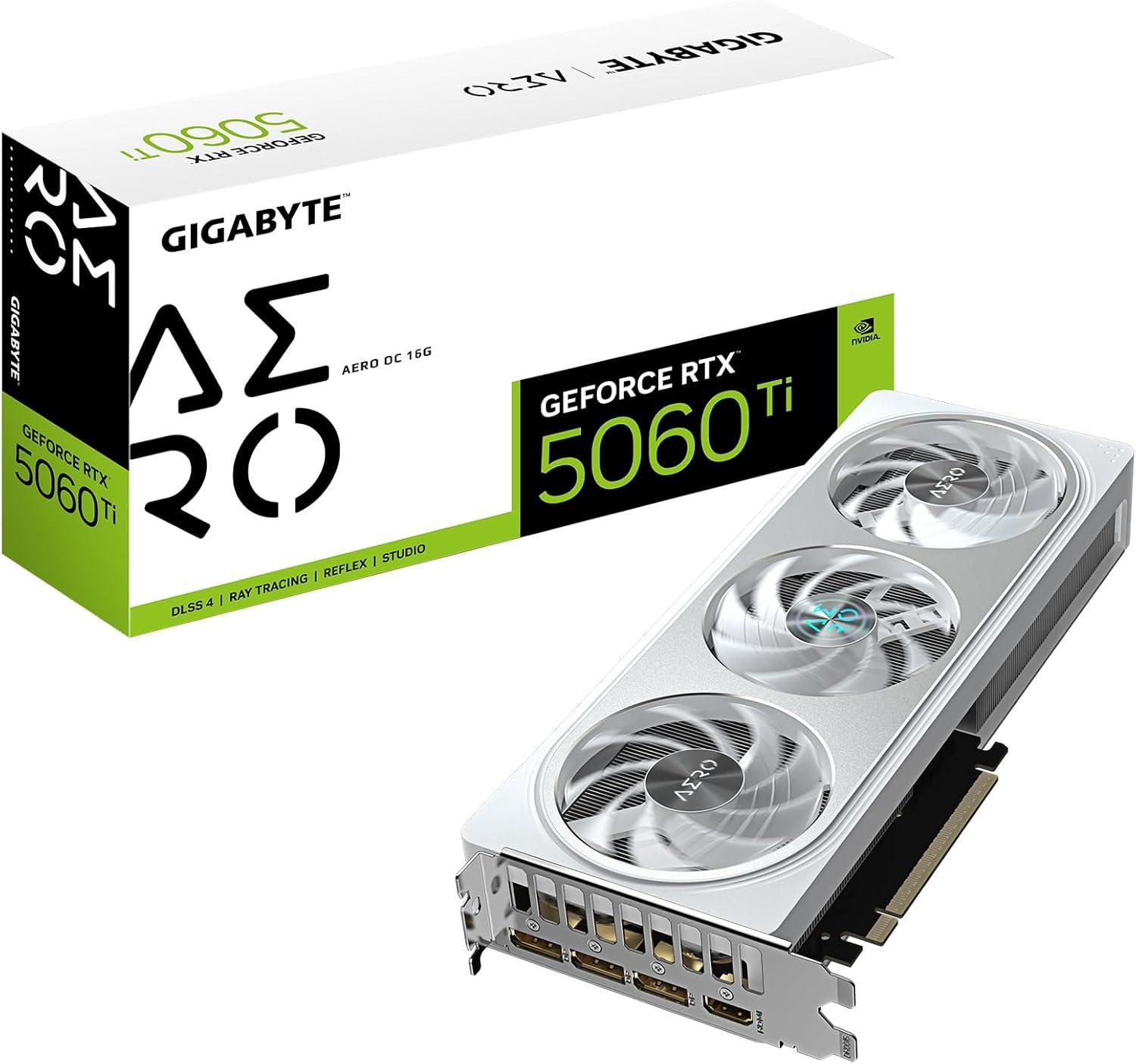

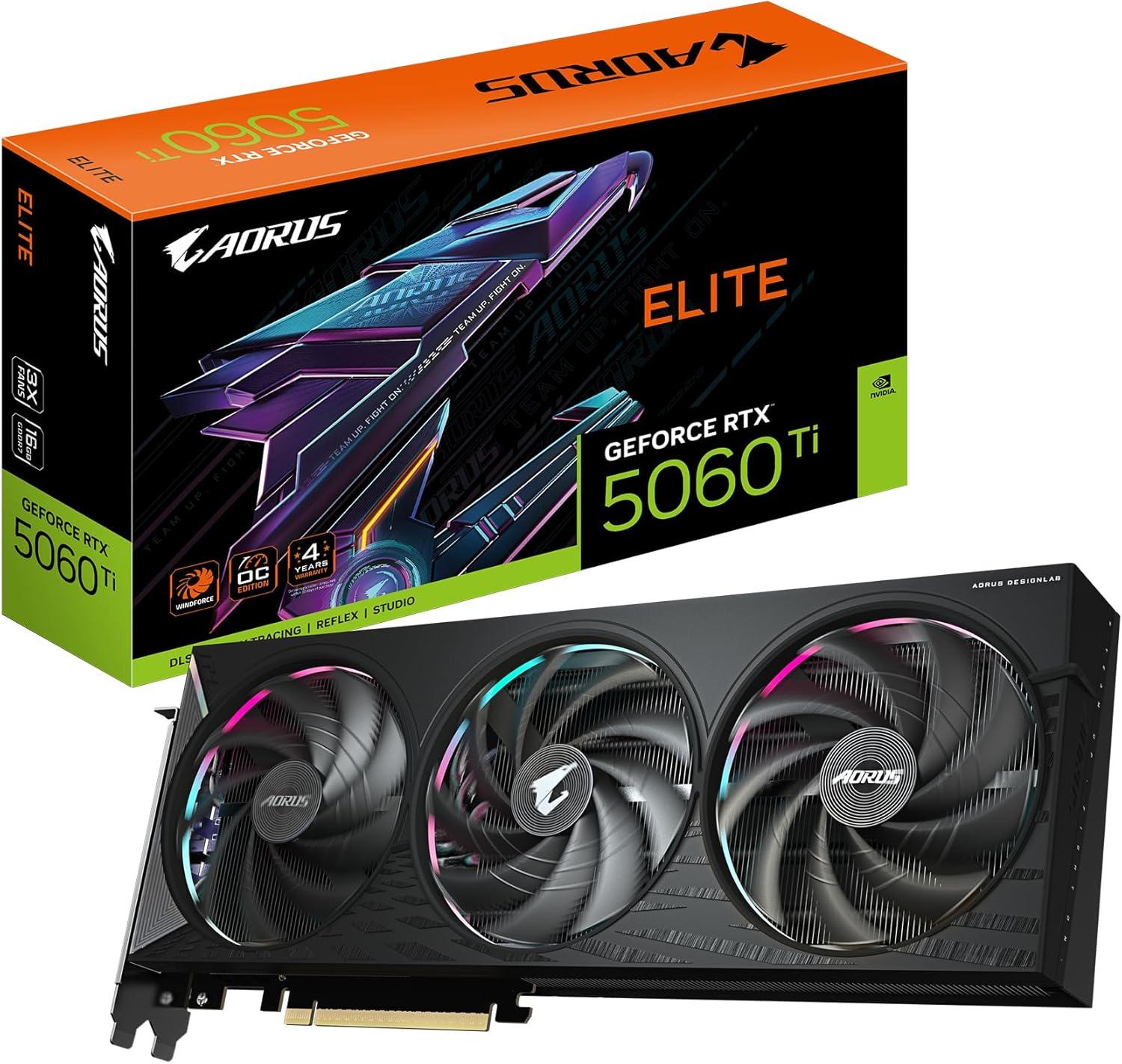

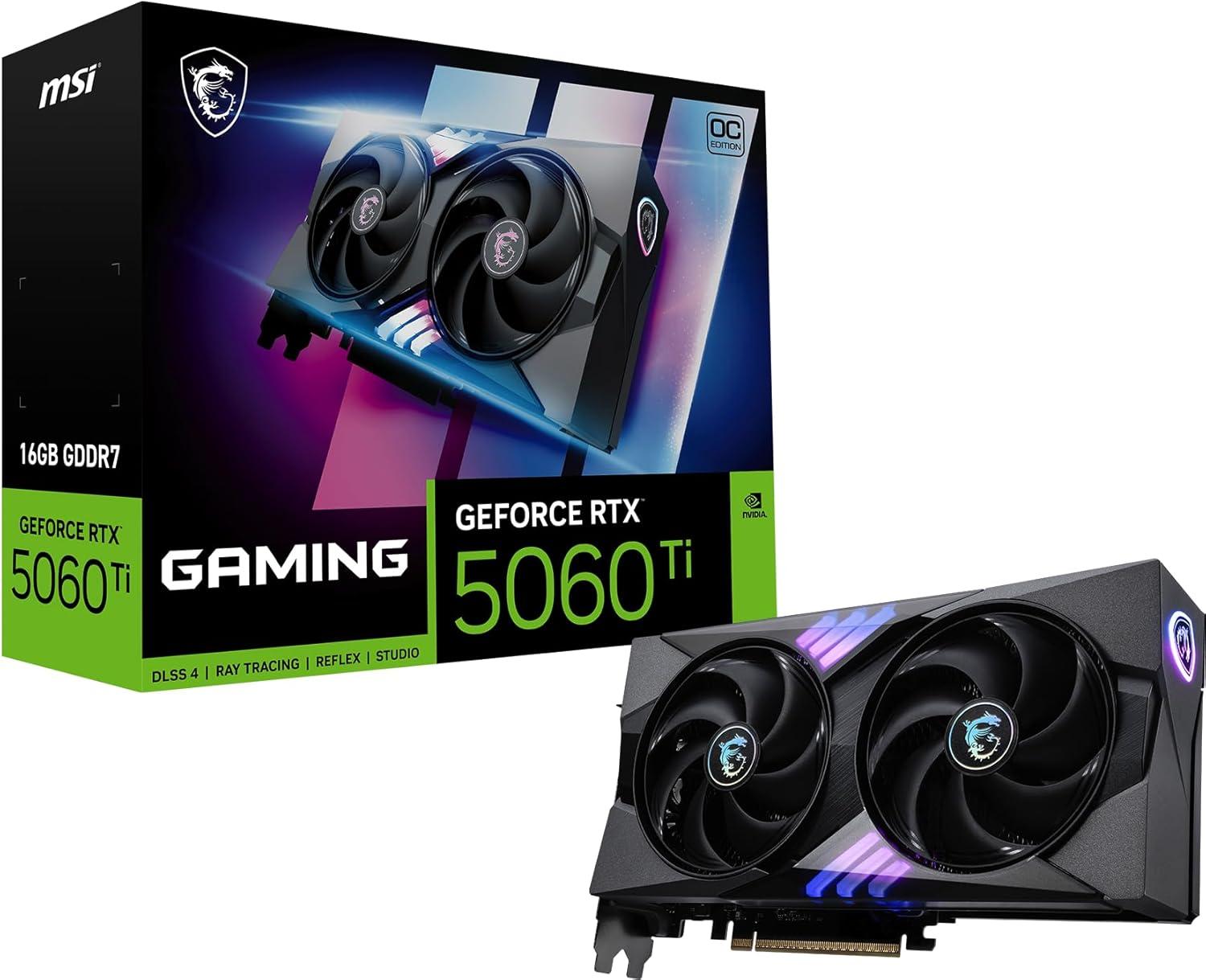

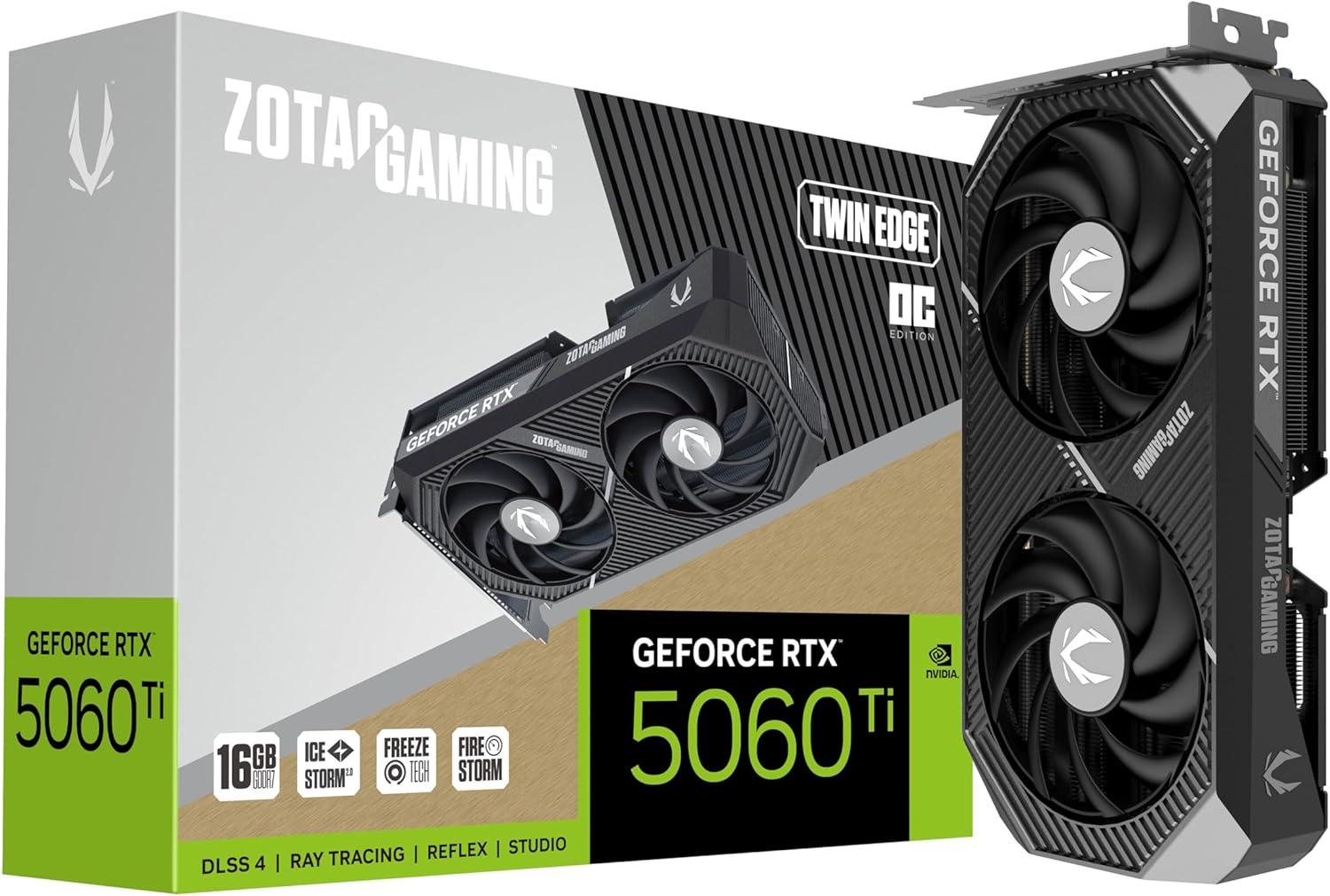

Graphics Cards Based on the RTX 5060 Ti 16GB GPU
No image available
No image available
