ASUS Dual GeForce RTX™ 5060 8GB GDDR7 OC Edition

Written analysis

ASUS Dual GeForce RTX™ 5060 8GB GDDR7 OC Edition at a glance

The ASUS Dual GeForce RTX™ 5060 8GB GDDR7 OC Edition is a ASUS retail card of the RTX 5060 on Blackwell 2.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 2497 MHz.

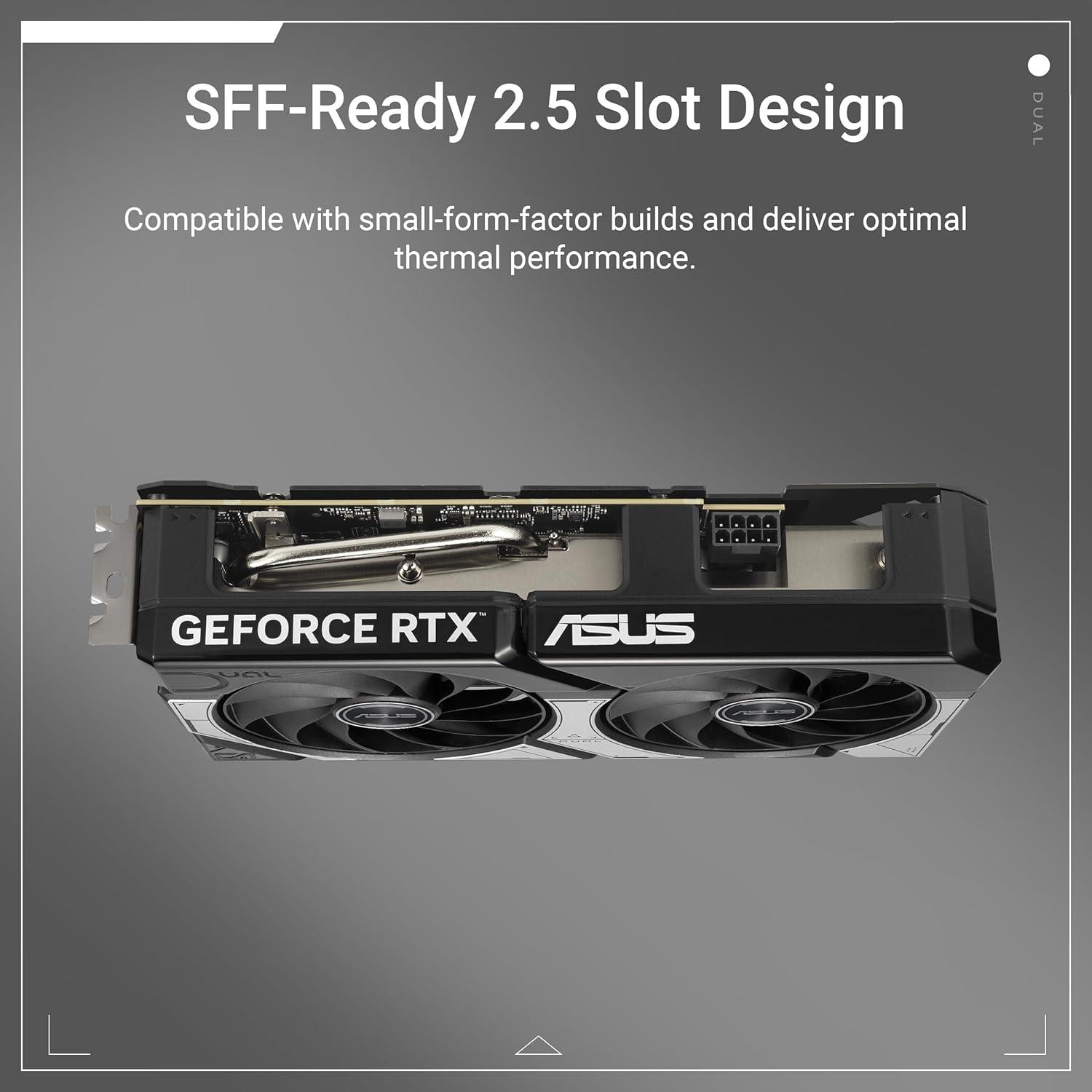

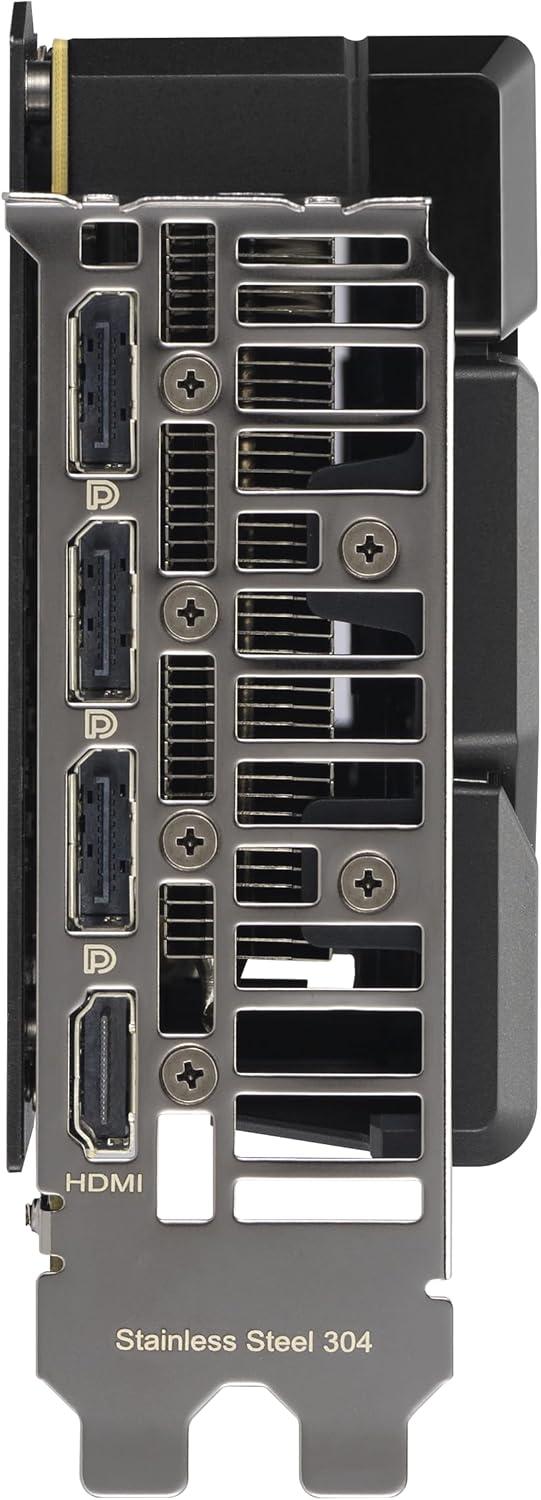

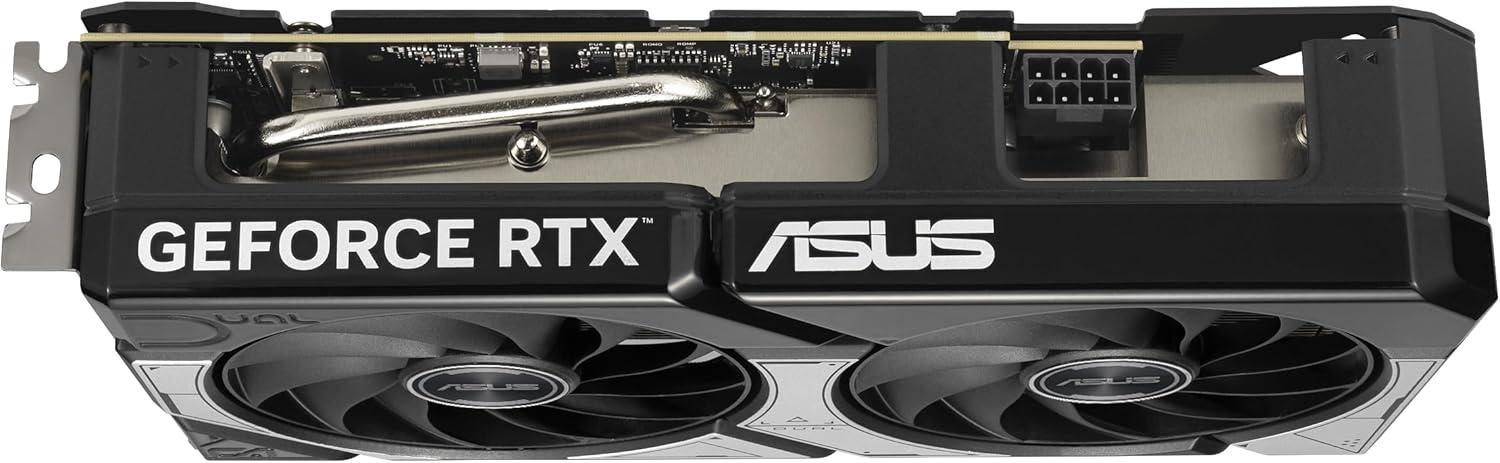

Length is 228 mm and it occupies 2.5 slots (228 x 123 x 50 mm). Board power is 145 W with 1 x 8-pin. Outputs: Yes x 1 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3). Warranty is 36 months.

This is a short card and is a better candidate for compact cases than most RTX 5060 partners.

Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.

Inherited GPU performance

Raster scores come from the RTX 5060, not from this cooler. At 1440p that is 30.98% of the dataset’s best (budget), with 39% at 1080p and 24% at 4K. The chip uses 8 GB GDDR7.

This card’s 1440p value is balanced at 65.3 performance per dollar.

Compare other ASUS and partner boards of this GPU in the RTX 5060 retail-card table.
