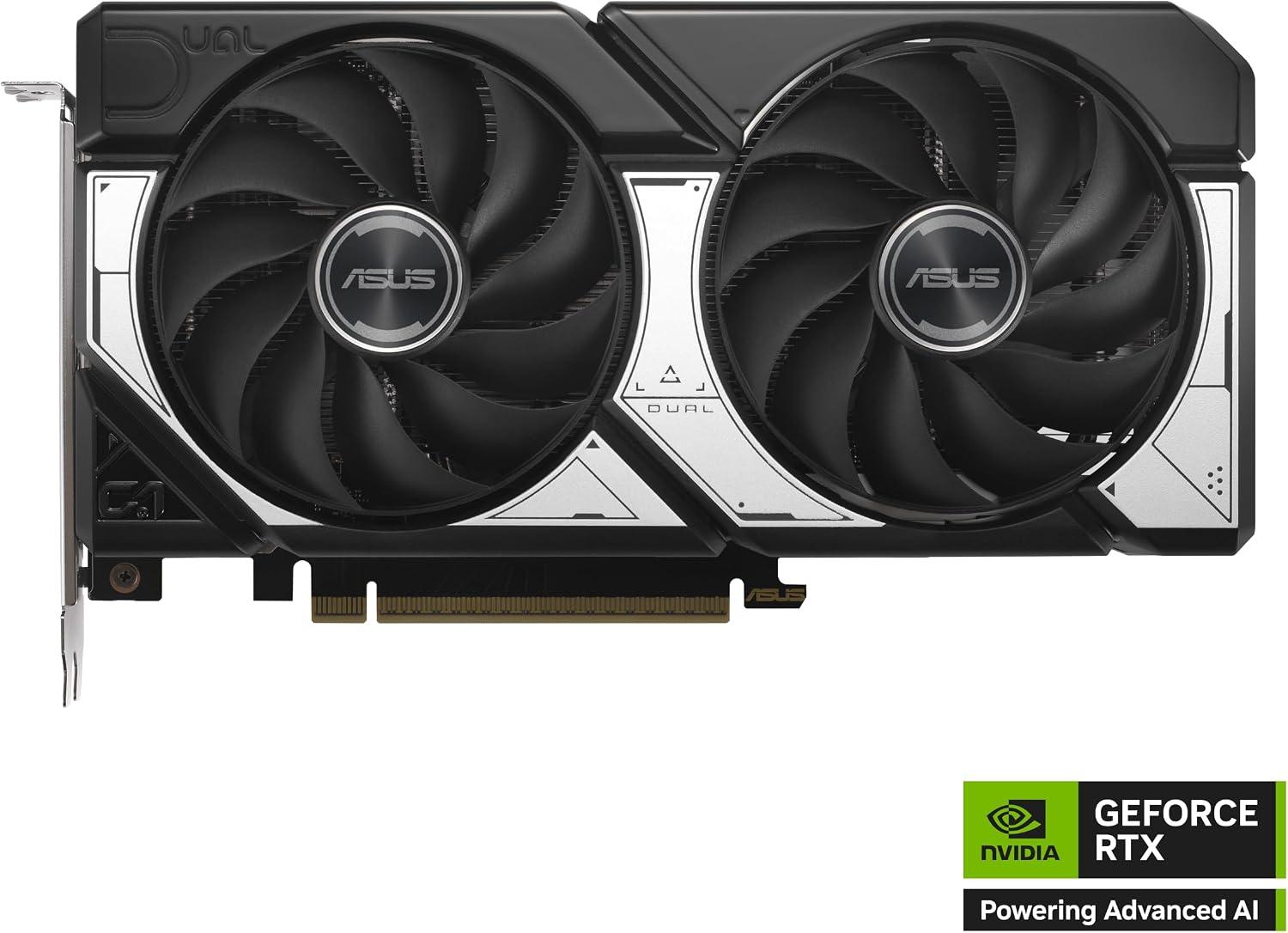

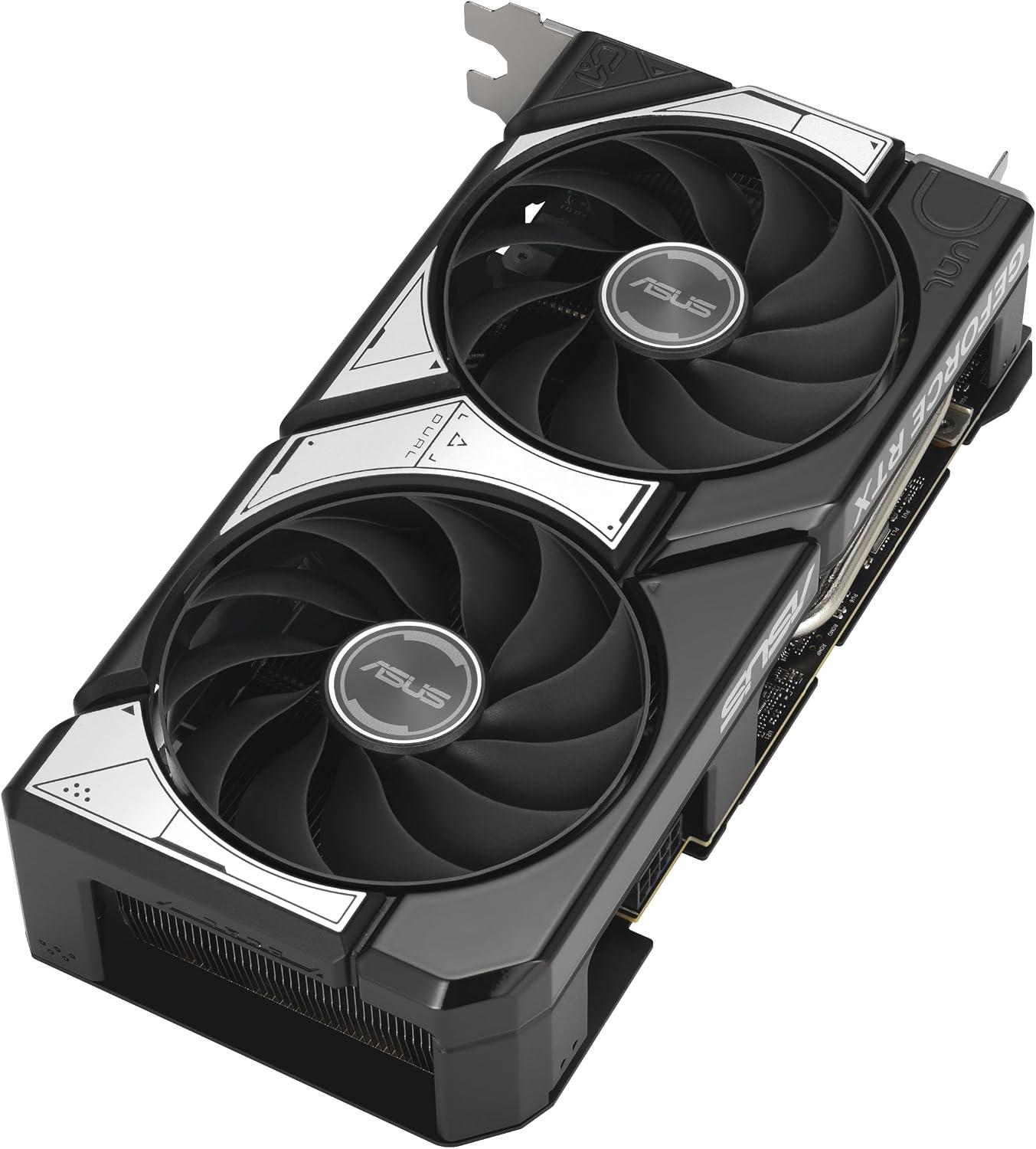

ASUS Dual GeForce RTX 5060 Ti 8GB GDDR7 OC Edition at a glance
The ASUS Dual GeForce RTX 5060 Ti 8GB GDDR7 OC Edition is a ASUS retail card of the RTX 5060 Ti 8GB on Blackwell 2.0. It is marked as a factory overclock at 2602 MHz boost.

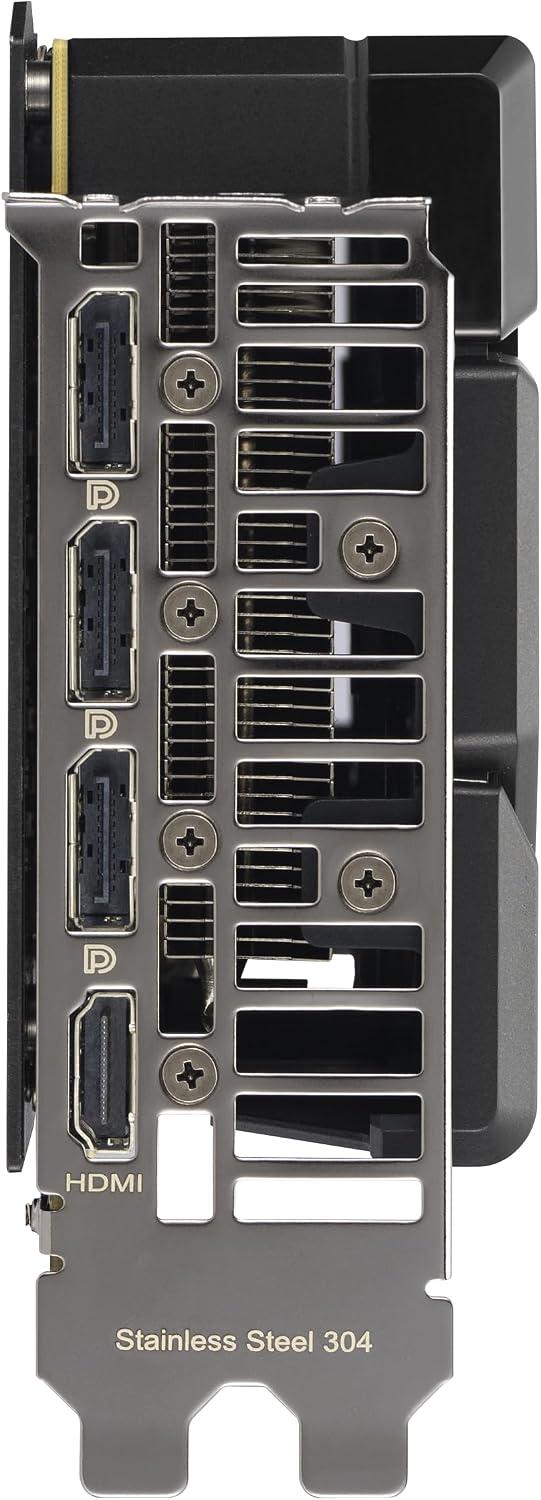

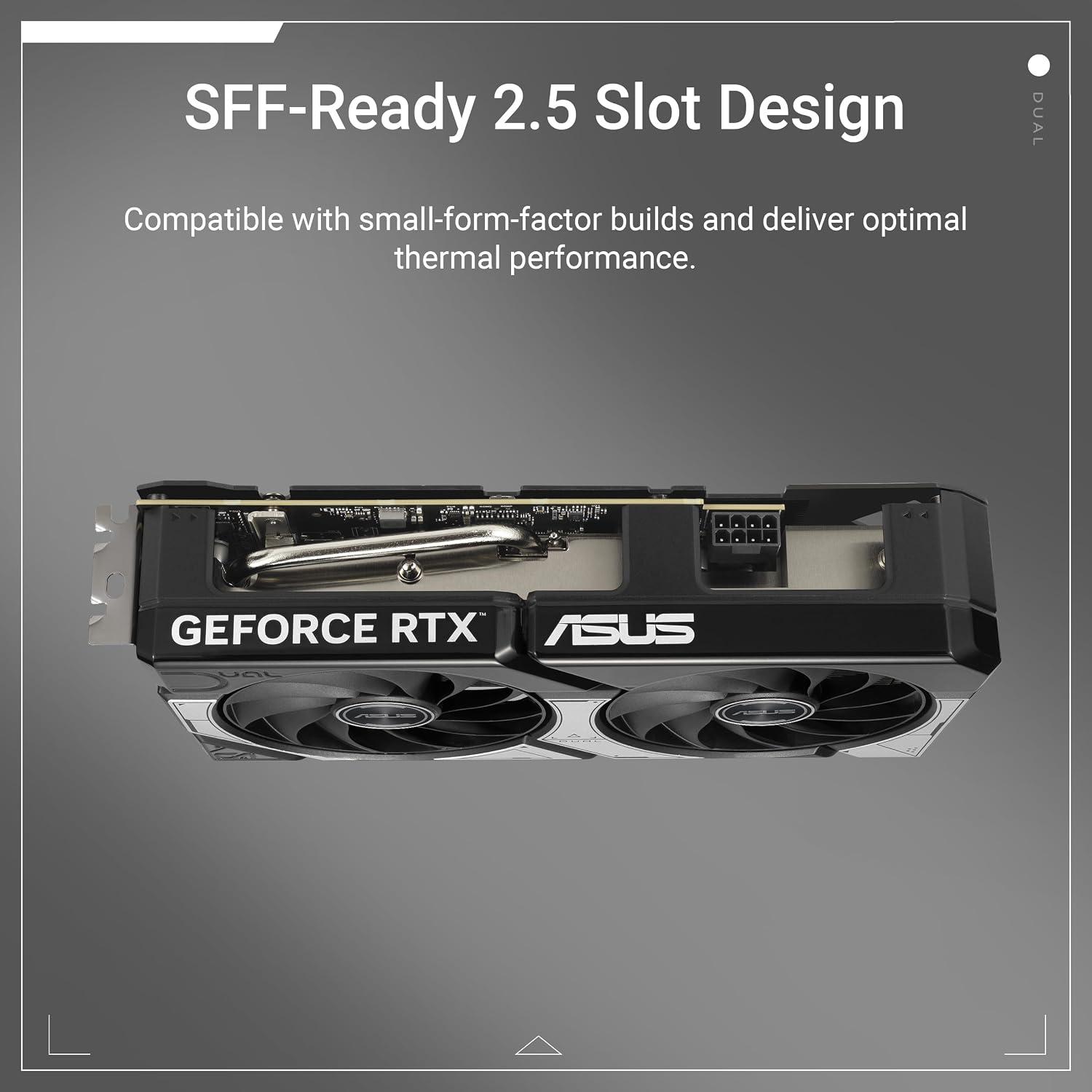

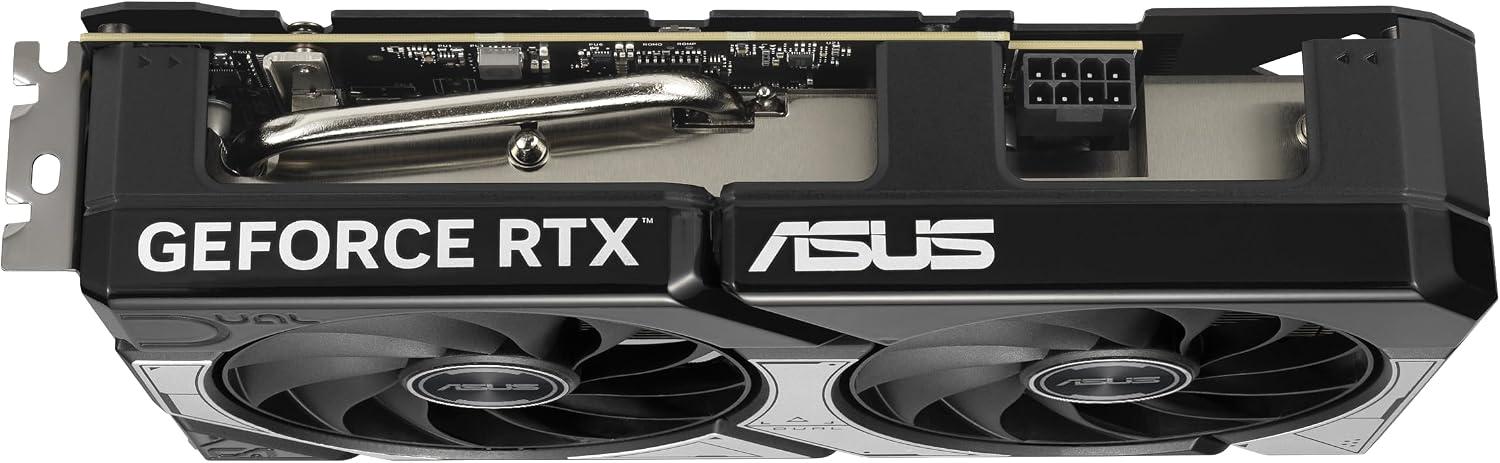

Length is 229 mm and it occupies 2.5 slots (229 x 120 x 50 mm). Board power is 180 W with 1 x 8-pin. Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b. Warranty is 36 months.
This is a short card and is a better candidate for compact cases than most RTX 5060 Ti 8GB partners.
Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.
Inherited GPU performance
Raster scores come from the RTX 5060 Ti 8GB, not from this cooler. At 1440p that is 36.59% of the dataset’s best (entry-level), with 45% at 1080p and 26% at 4K. The chip uses 8 GB GDDR7.
This card’s 1440p value is balanced at 66.2 performance per dollar.
Compare other ASUS and partner boards of this GPU in the RTX 5060 Ti 8GB retail-card table.
