ASUS · RTX 5050 · 203 mm

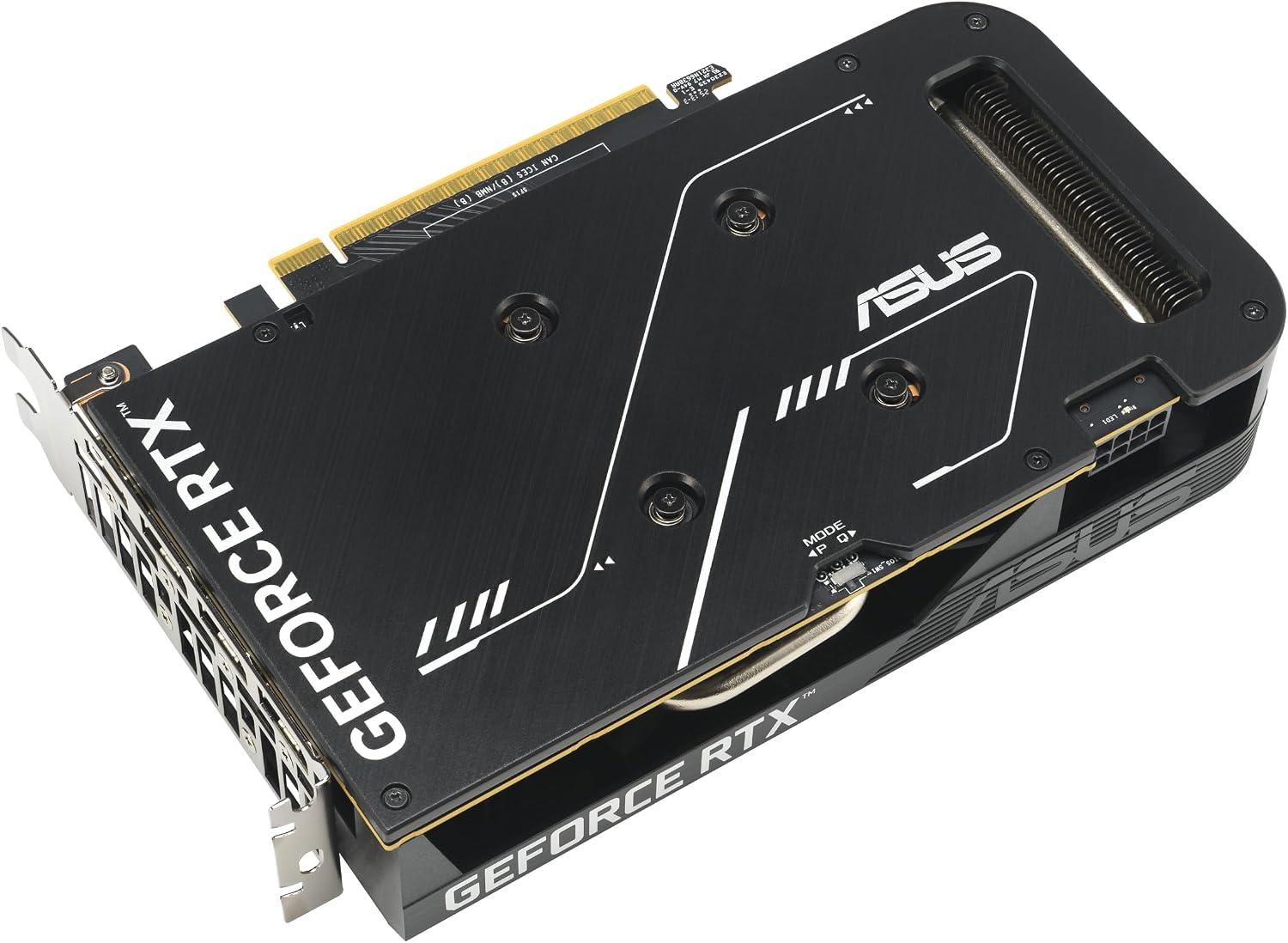

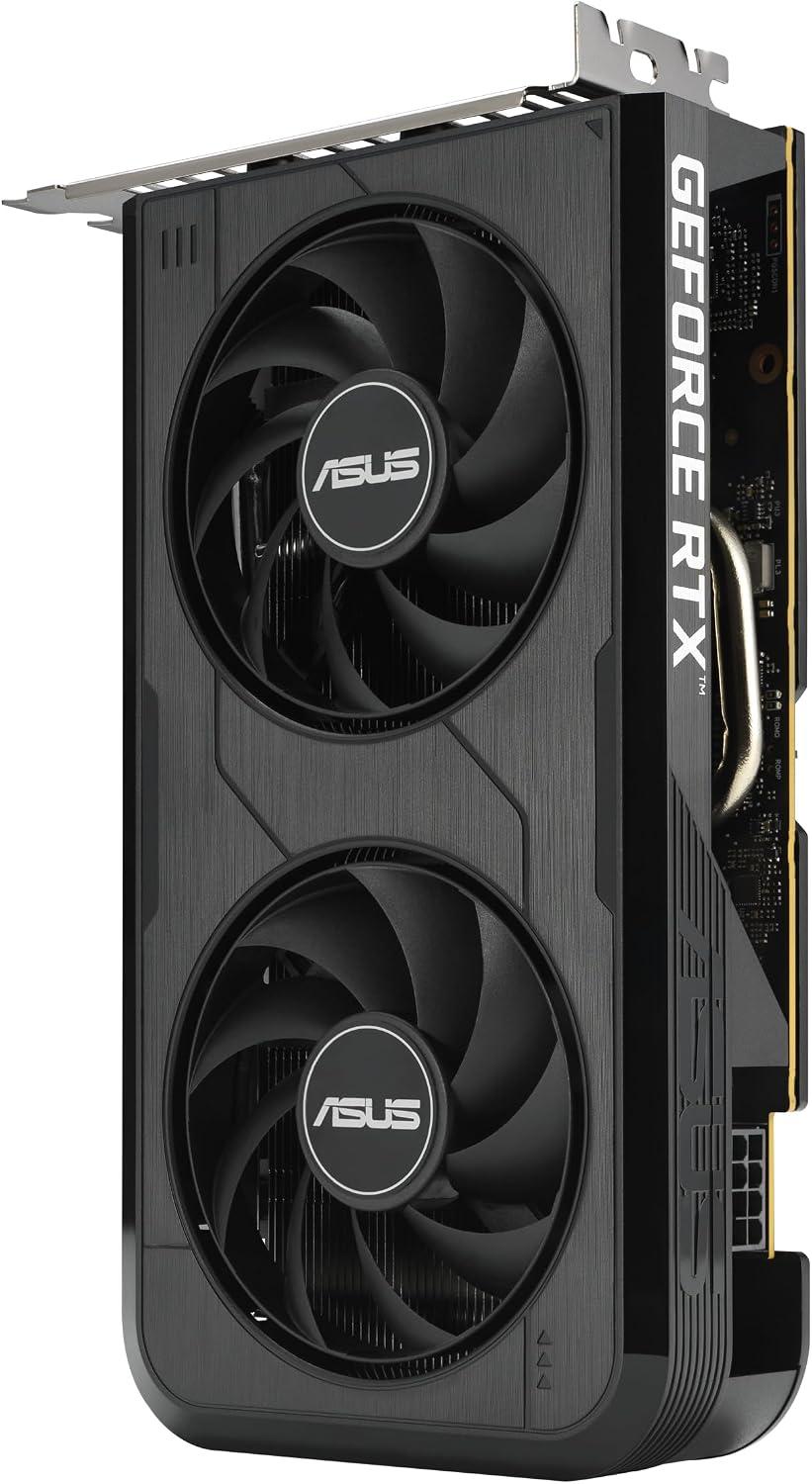

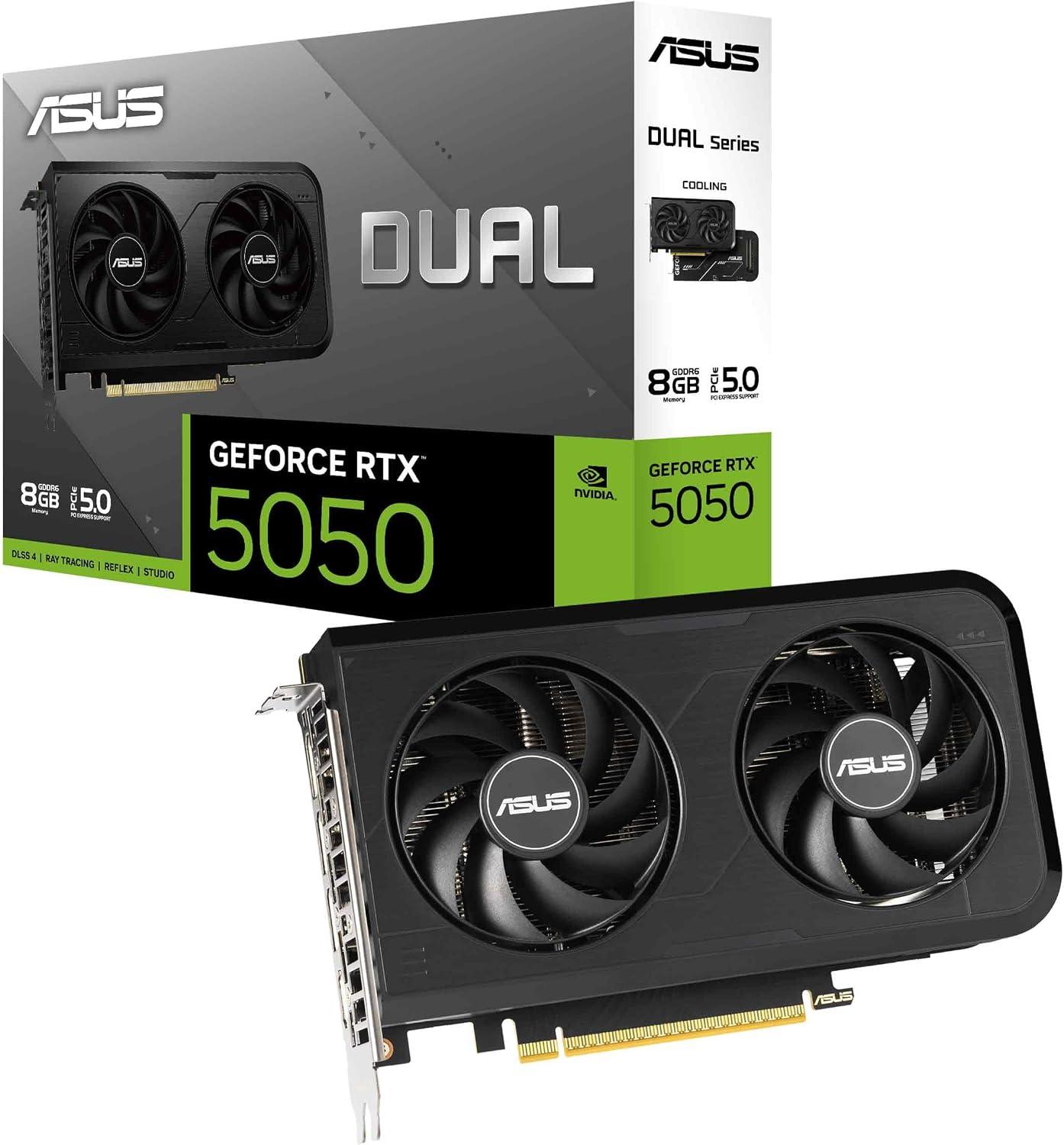

ASUS Dual GeForce RTX 5050 8GB GDDR6

8 GB GDDR6 · 203 mm · 2.0 slots · 130 W

1440p
24%
Value
0
Length
203 mm
Amazon
—
ASUS Dual GeForce RTX 5050 8GB GDDR6

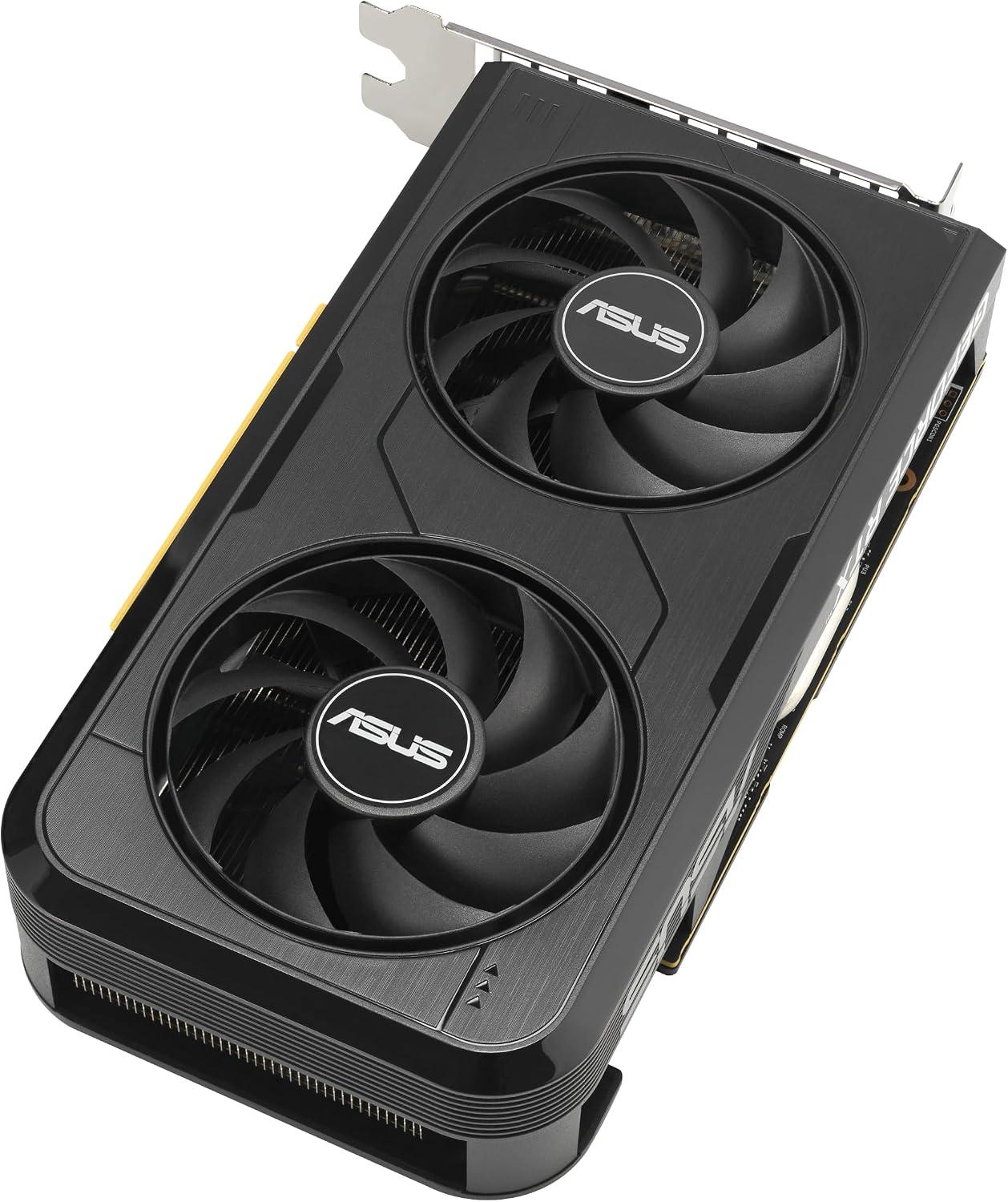

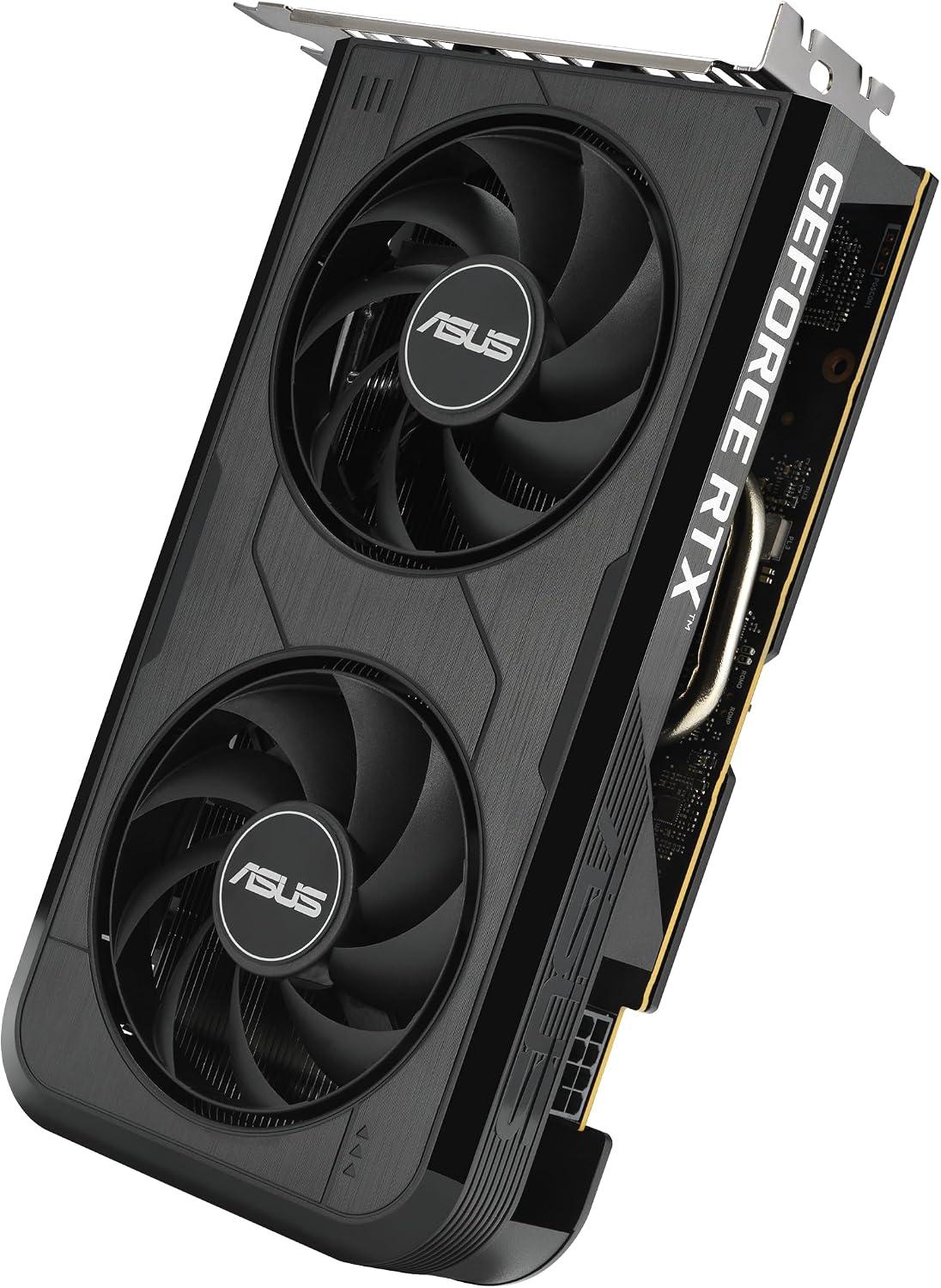

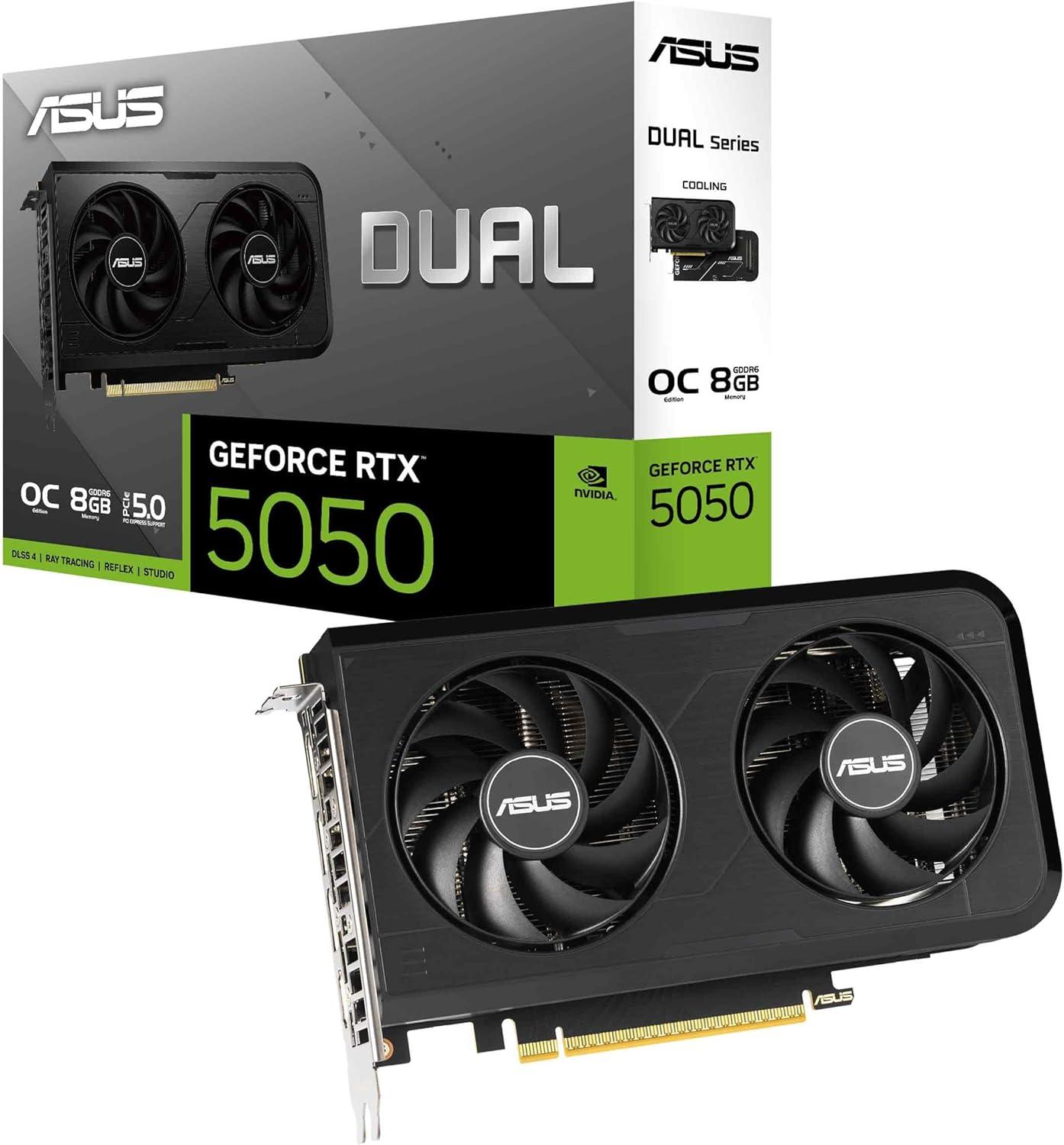

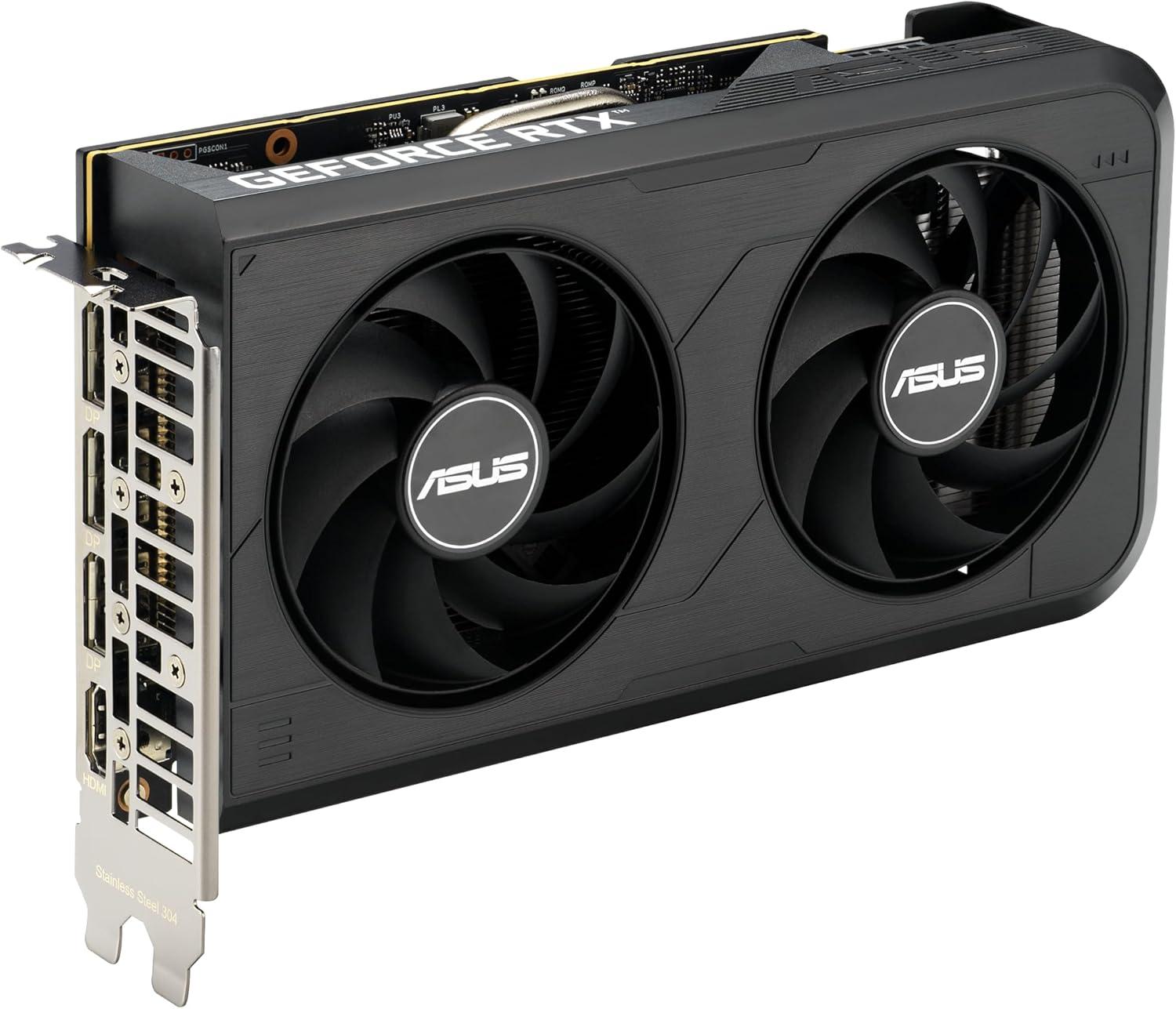

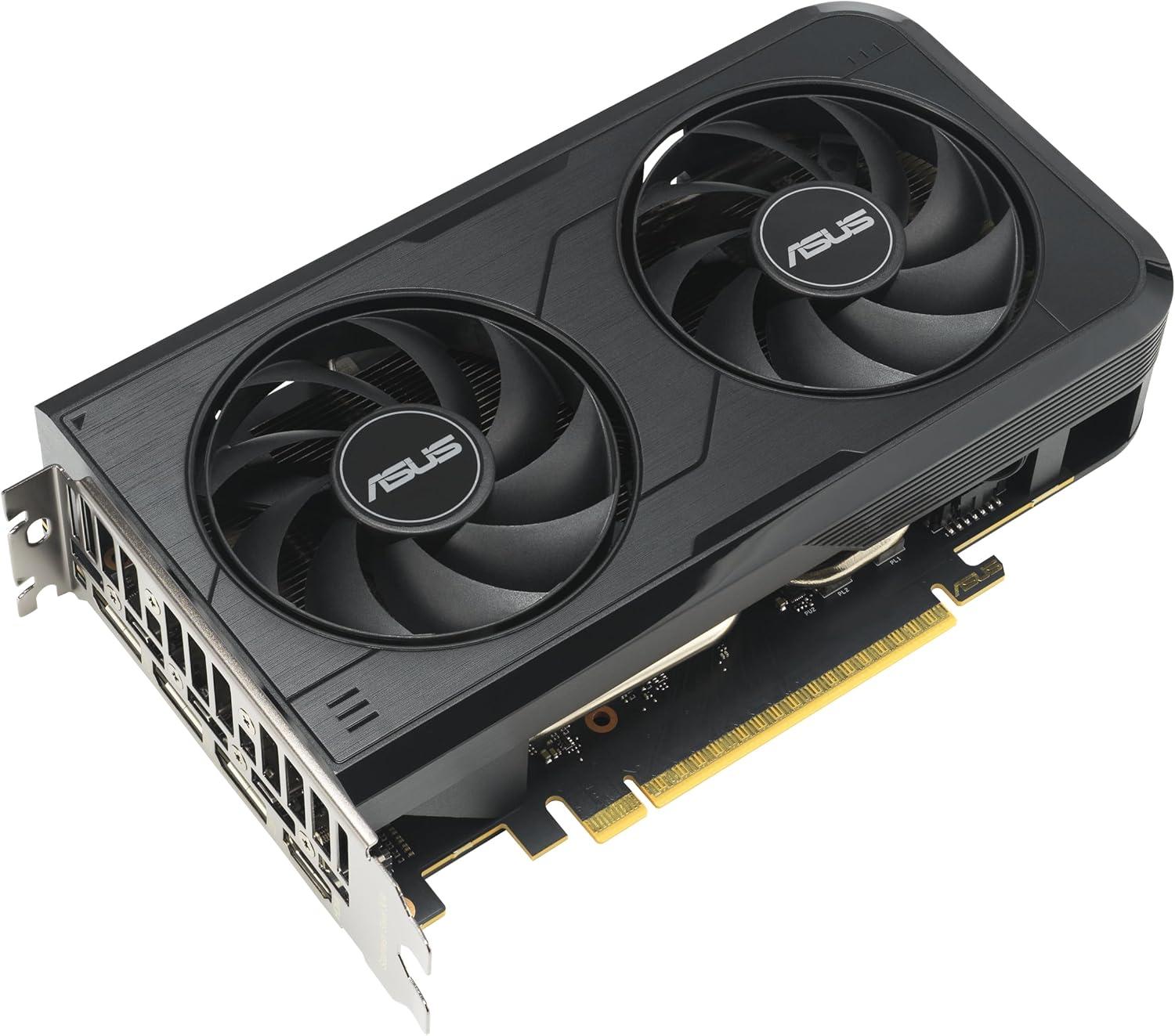

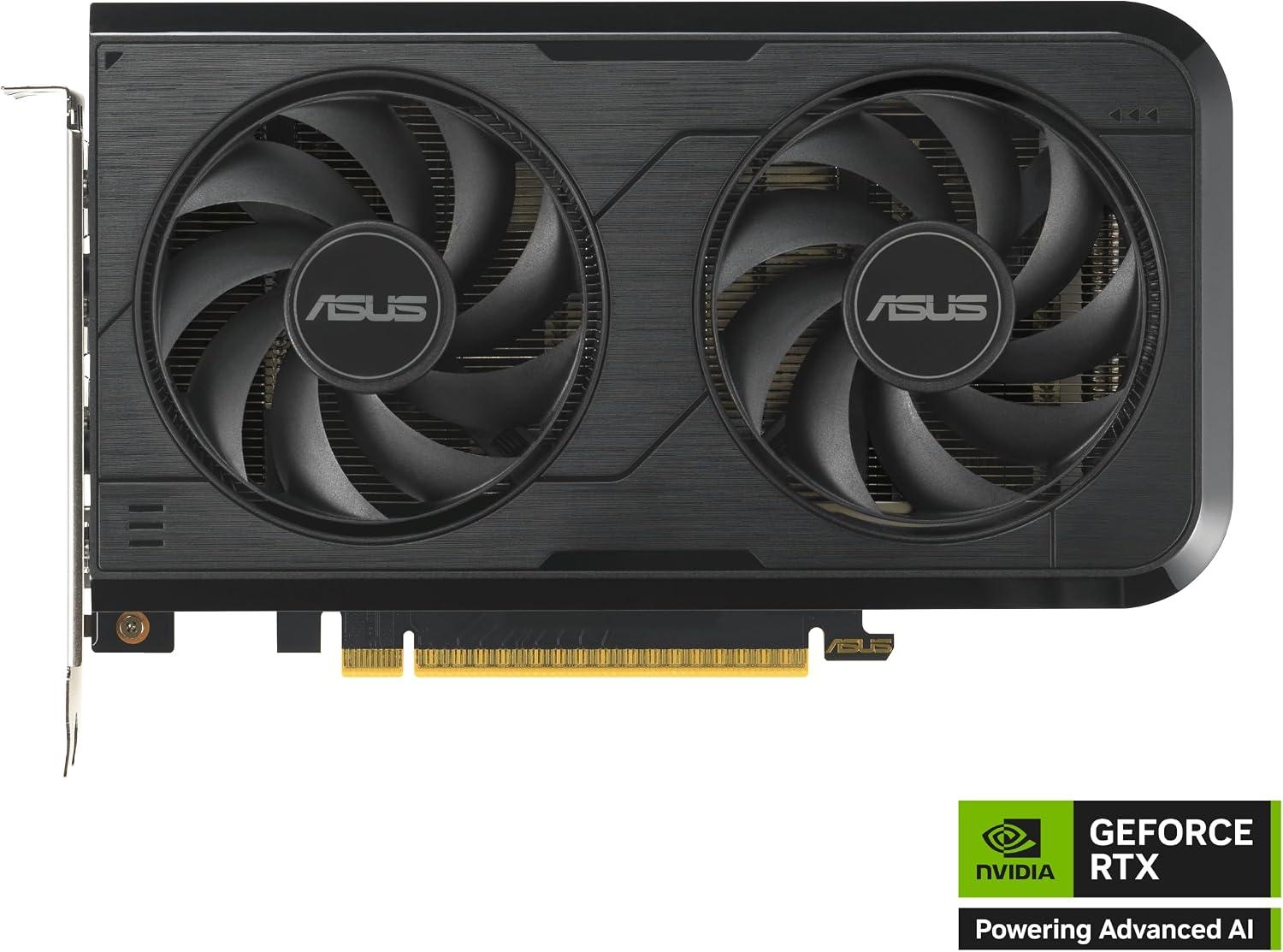

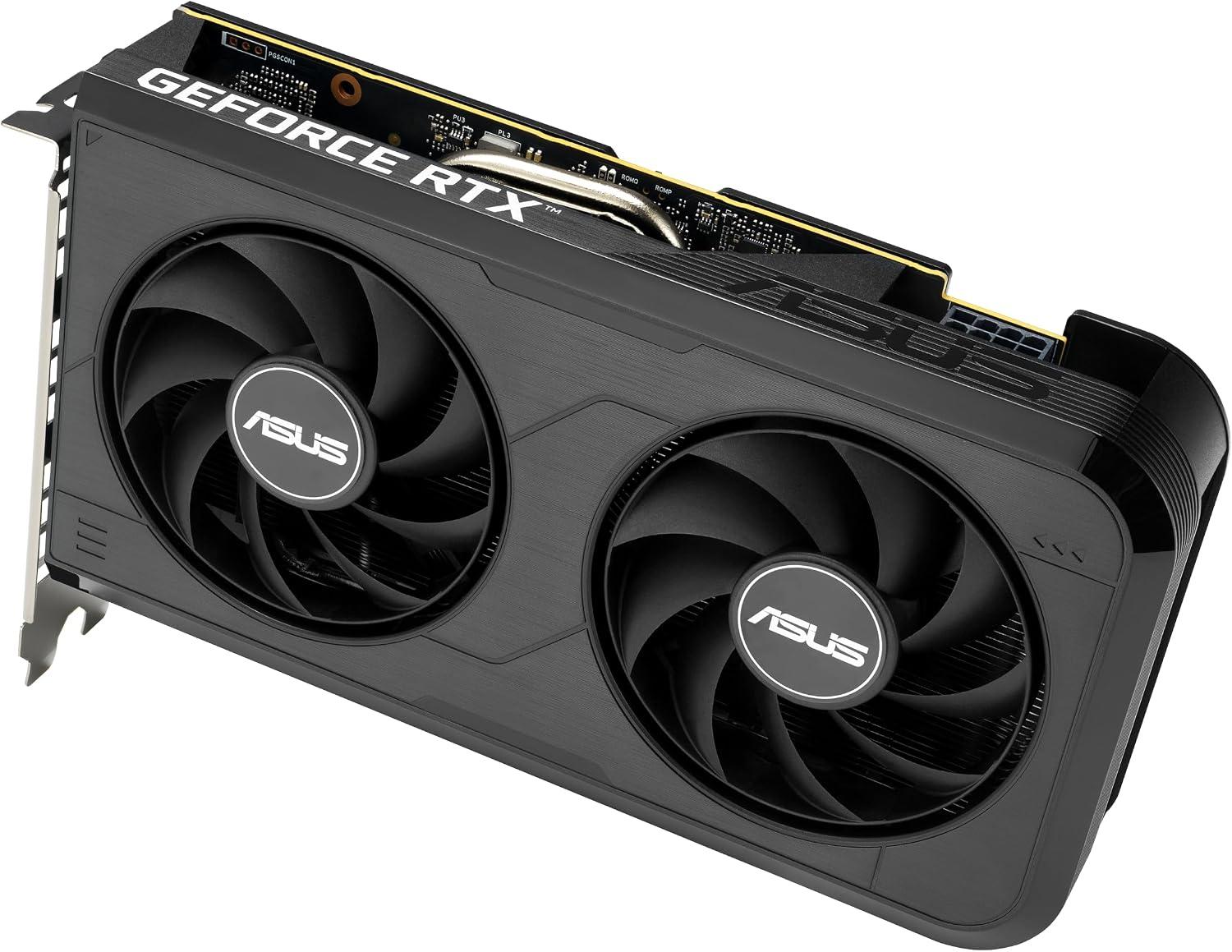

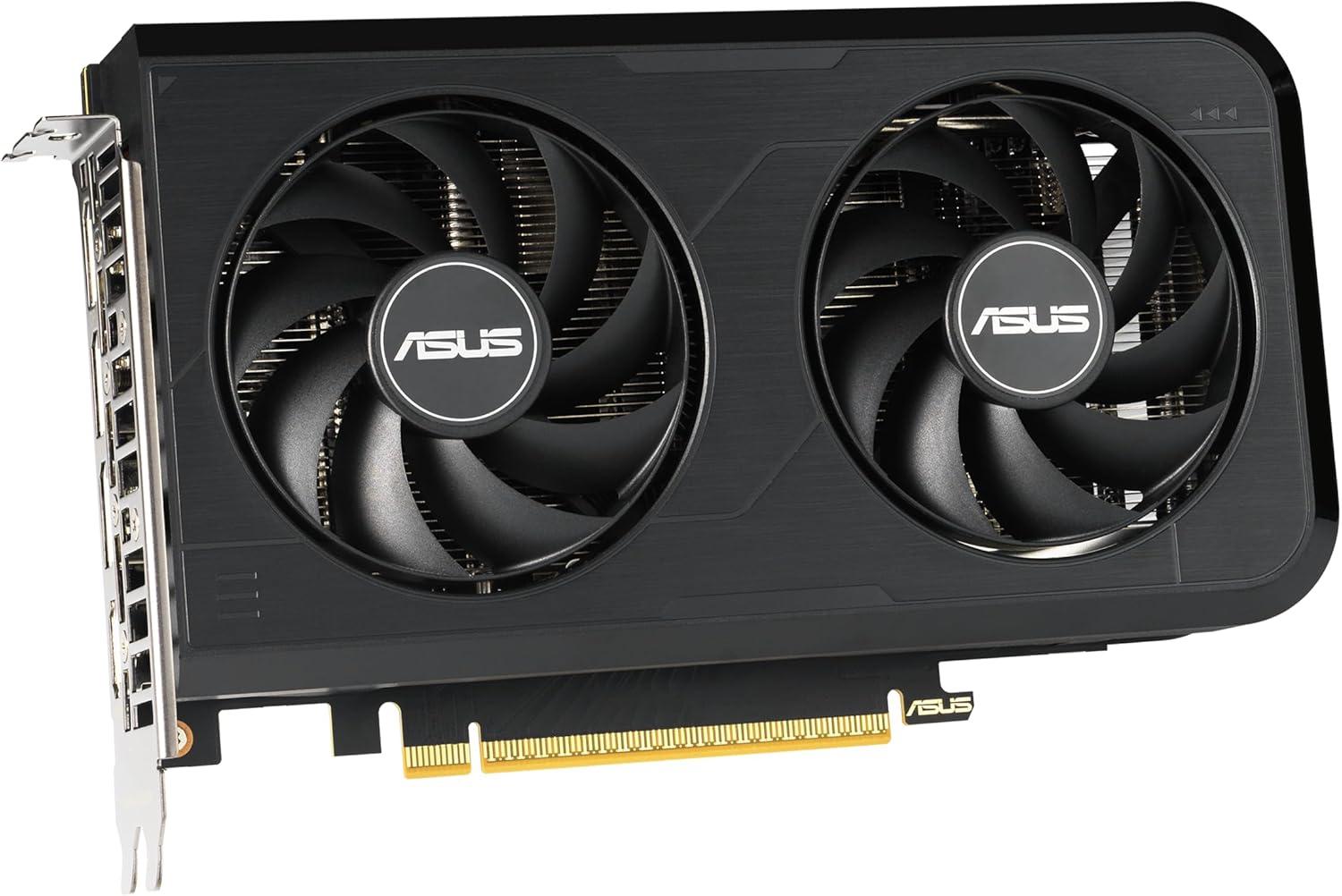

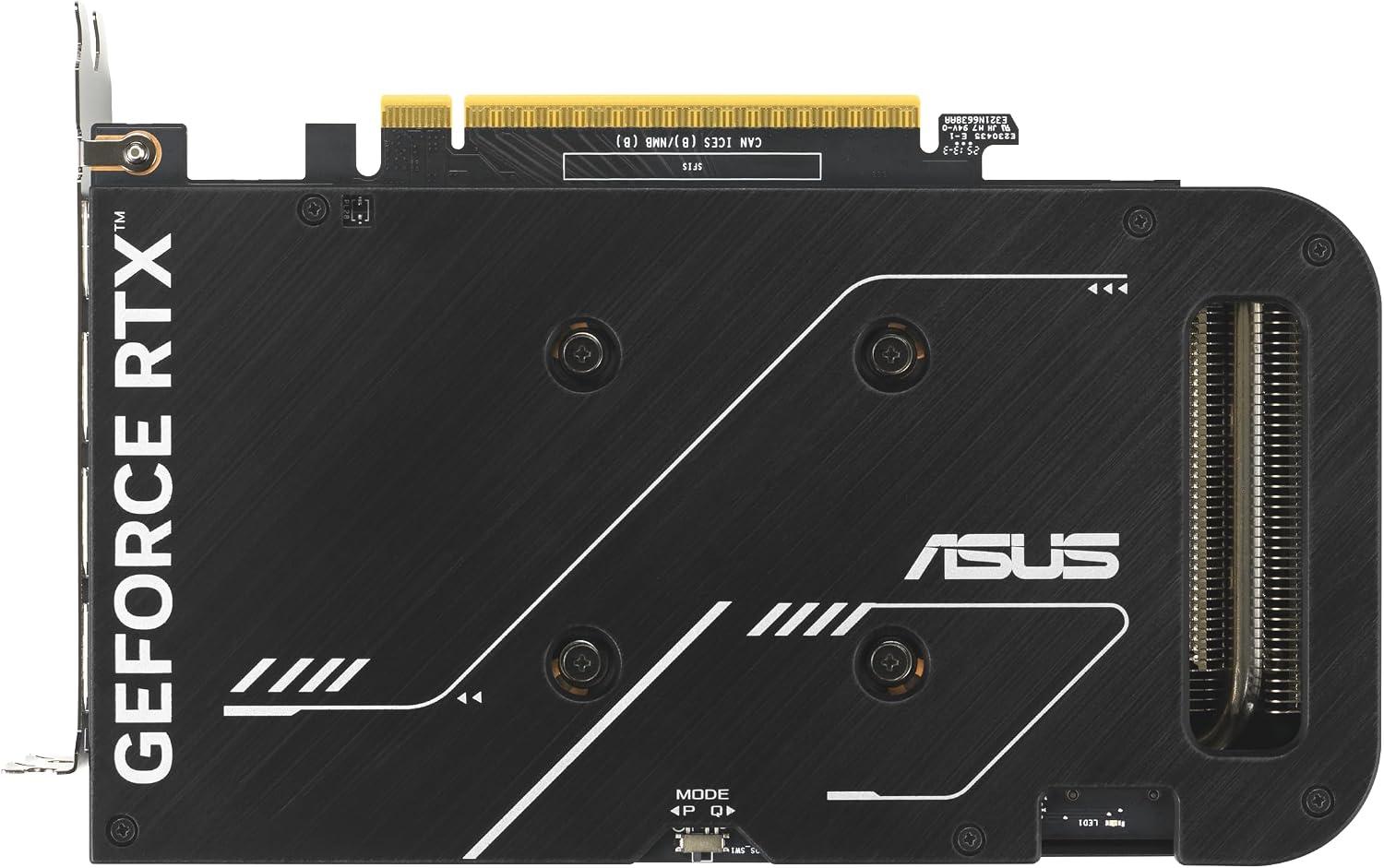

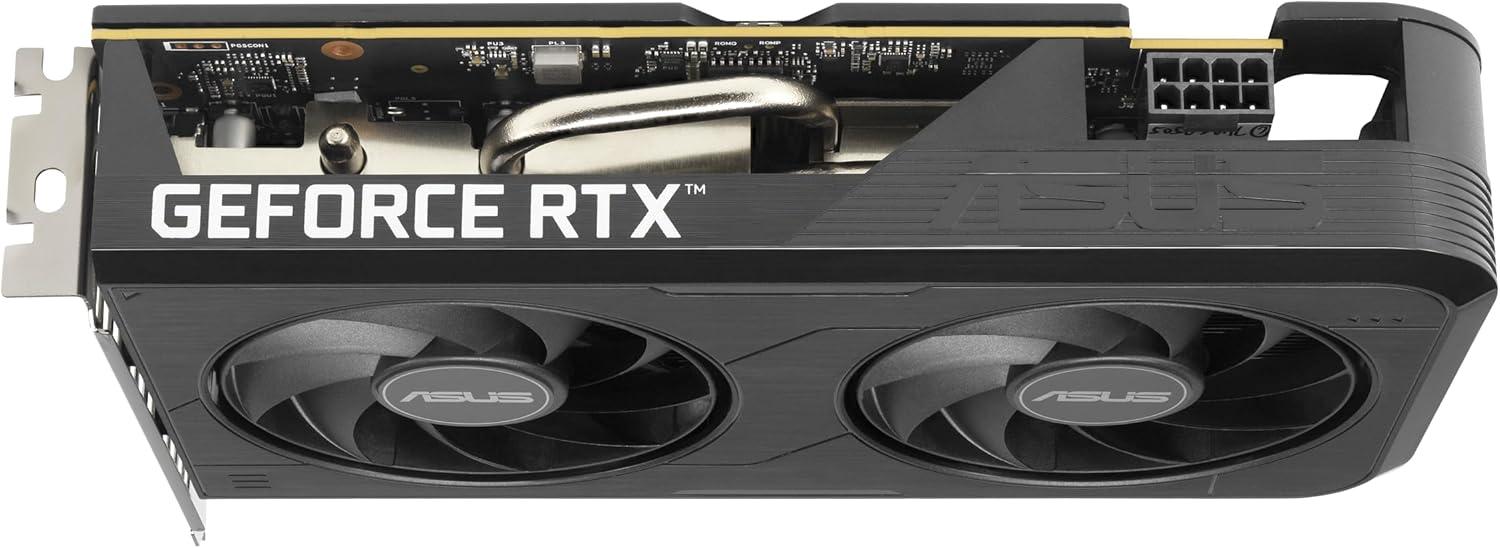

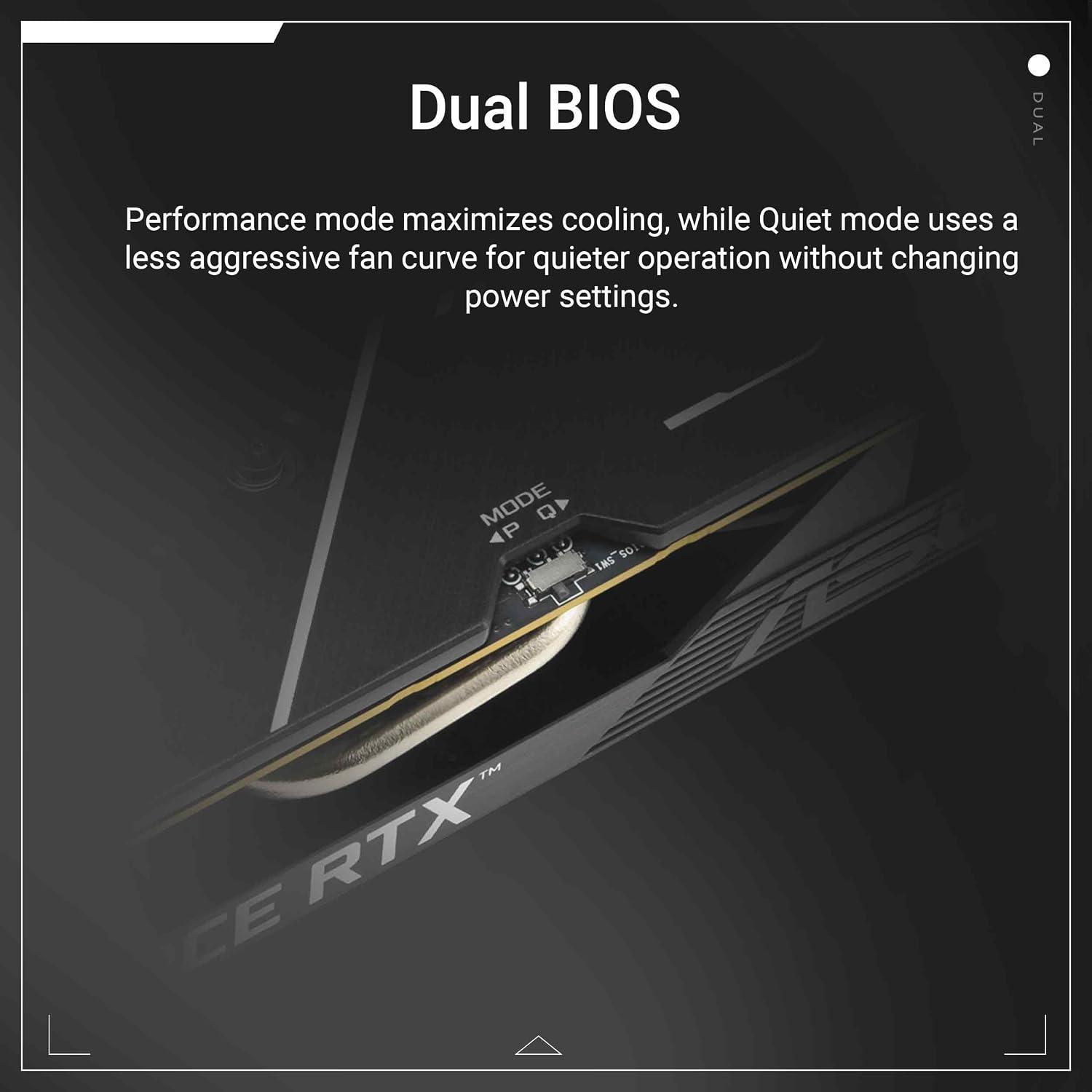

View ASUS ASUS Dual GeForce RTX 5050 8GB GDDR6 (RTX 505 Gallery in high resolution
—
Unavailable
Gaming 1080p30.6%
Gaming 1440p24.3%
Gaming 4K18.9%
1440p value0.0
View on Amazon Start build with this card Compare this card GPU silicon

Written analysis

ASUS Dual GeForce RTX 5050 8GB GDDR6 at a glance

The ASUS Dual GeForce RTX 5050 8GB GDDR6 is a ASUS retail card of the RTX 5050 on Blackwell 2.0. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 2572 MHz.

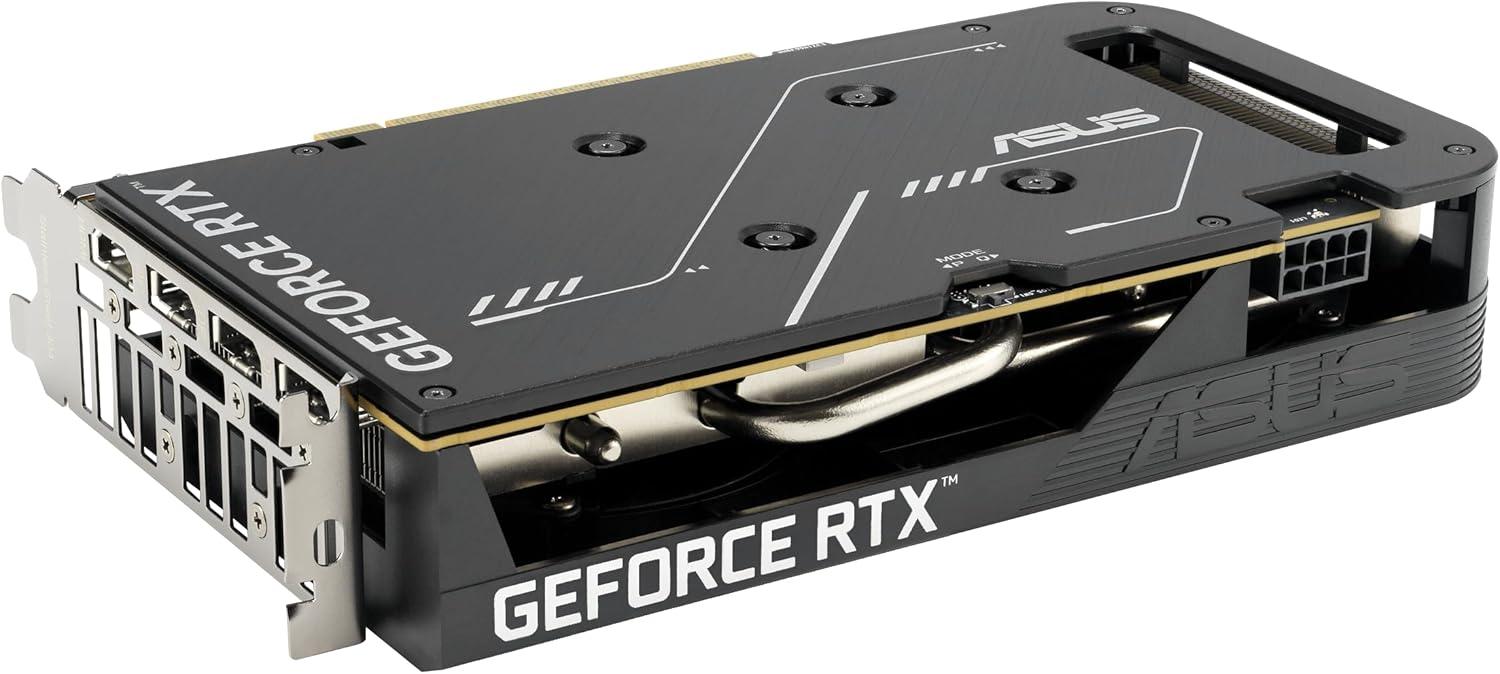

Length is 203 mm and it occupies 2.0 slots (203 x 120.2 x 40 mm). Board power is 130 W with 1 x 8-pin. Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b. Warranty is 36 months.

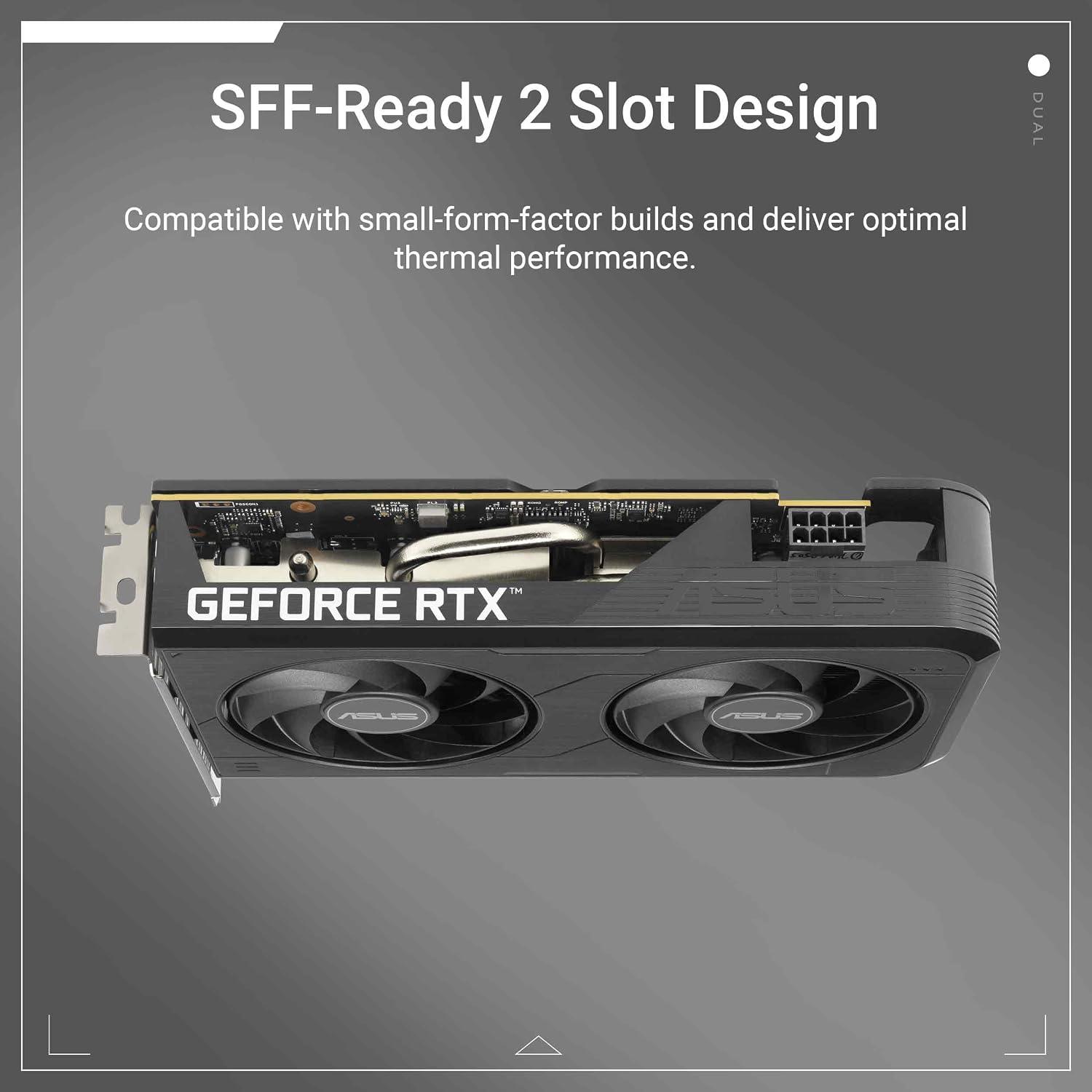

This is a short card and is a better candidate for compact cases than most RTX 5050 partners.

Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.

Inherited GPU performance

Raster scores come from the RTX 5050, not from this cooler. At 1440p that is 24.27% of the dataset’s best (budget), with 31% at 1080p and 19% at 4K. The chip uses 8 GB GDDR6.

Compare other ASUS and partner boards of this GPU in the RTX 5050 retail-card table.

Board hardware

Full specifications

Partner-card clocks, physical fit, cooling, power delivery, display outputs, and the underlying GPU in one technical sheet.

Identity

Card
ASUS Dual GeForce RTX 5050 8GB GDDR6
Manufacturer
ASUS
Model
ASUS Dual GeForce RTX 5050 8GB GDDR6
Launch price
—
Amazon price
—
Availability
Unavailable

Fit

Length
203 mm
Slot size
2.0 slots
Dimensions
203 x 120.2 x 40 mm
Cooler
—
Warranty
36 months

Power & I/O

Board power
130 W
Connectors
1 x 8-pin

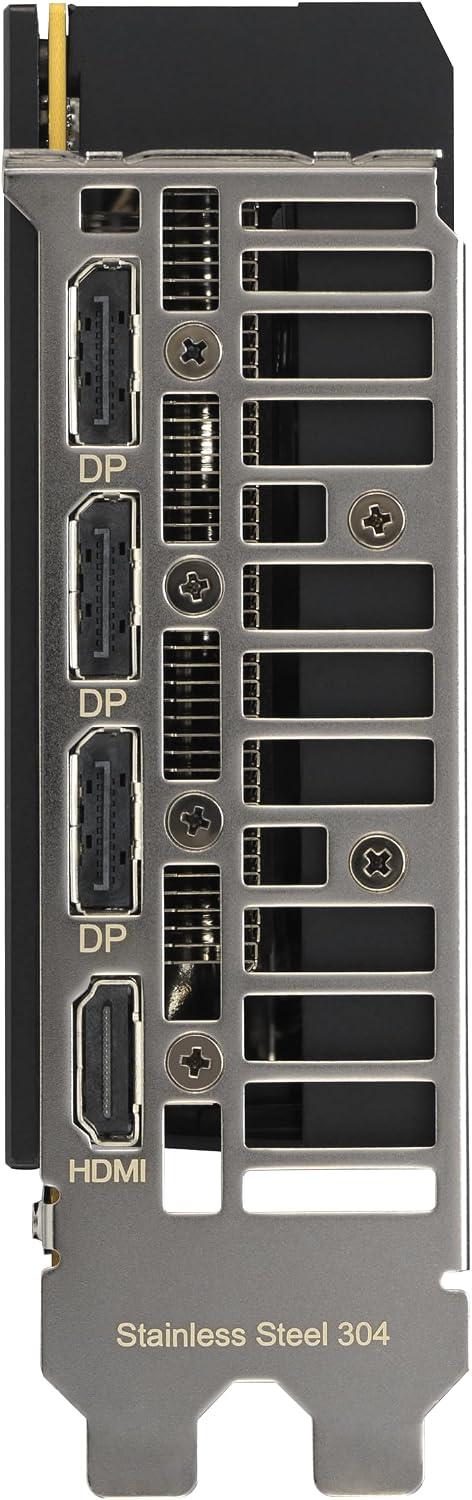

Display outputs
3 x DisplayPort 2.1b, 1 x HDMI 2.1b
Factory OC
No

Boost clock vs RTX 5050

Reference GPU boost compared with this partner card. If no partner boost is recorded, the card is shown as using the reference clock.

Boost clock
Reference GPU 2572 MHz
This card 2572 MHz
Delta 0 MHz

GPU silicon

Architecture
Blackwell 2.0
Process
5 nm
Interface
PCIe 5.0 x8
VRAM
8 GB GDDR6
Bus / bandwidth
128-bit · 320 GB/s
Shaders / CU-SM
2560 / 20
RT cores
20
Tensor / matrix
80
Reference TDP
130 W
Reference base / boost
2317 MHz / 2572 MHz
