GIGABYTE · RX 9070 XT · 288 mm

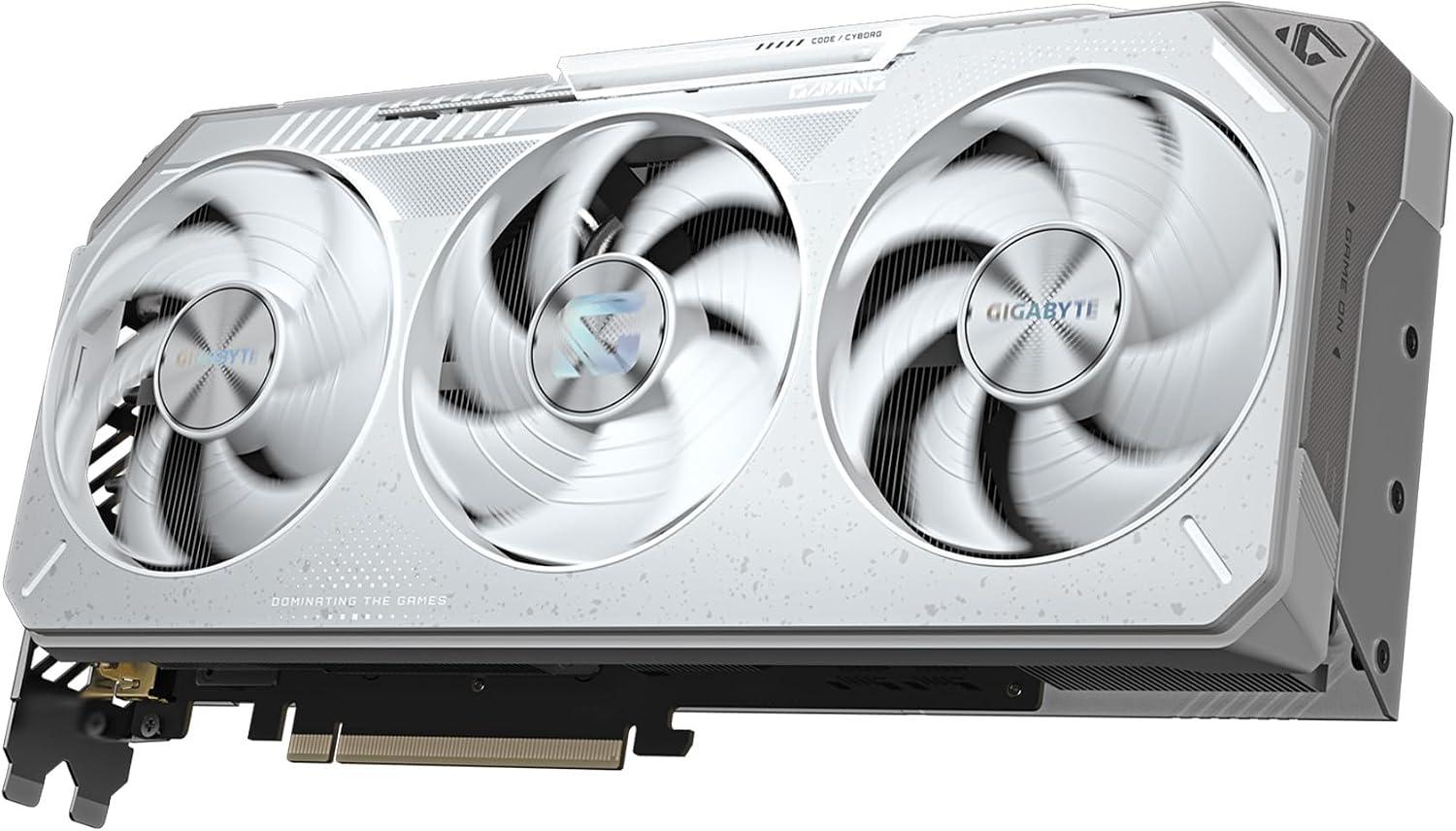

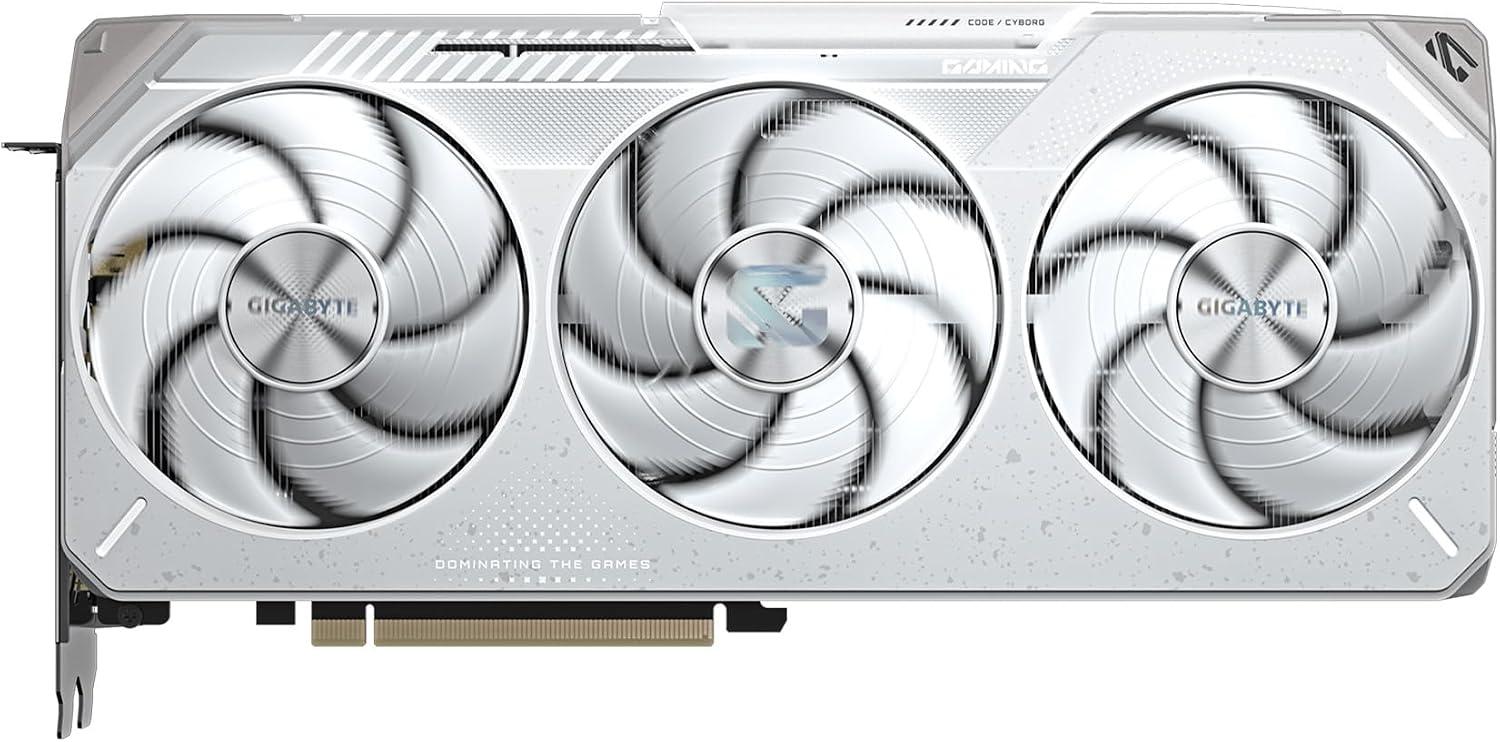

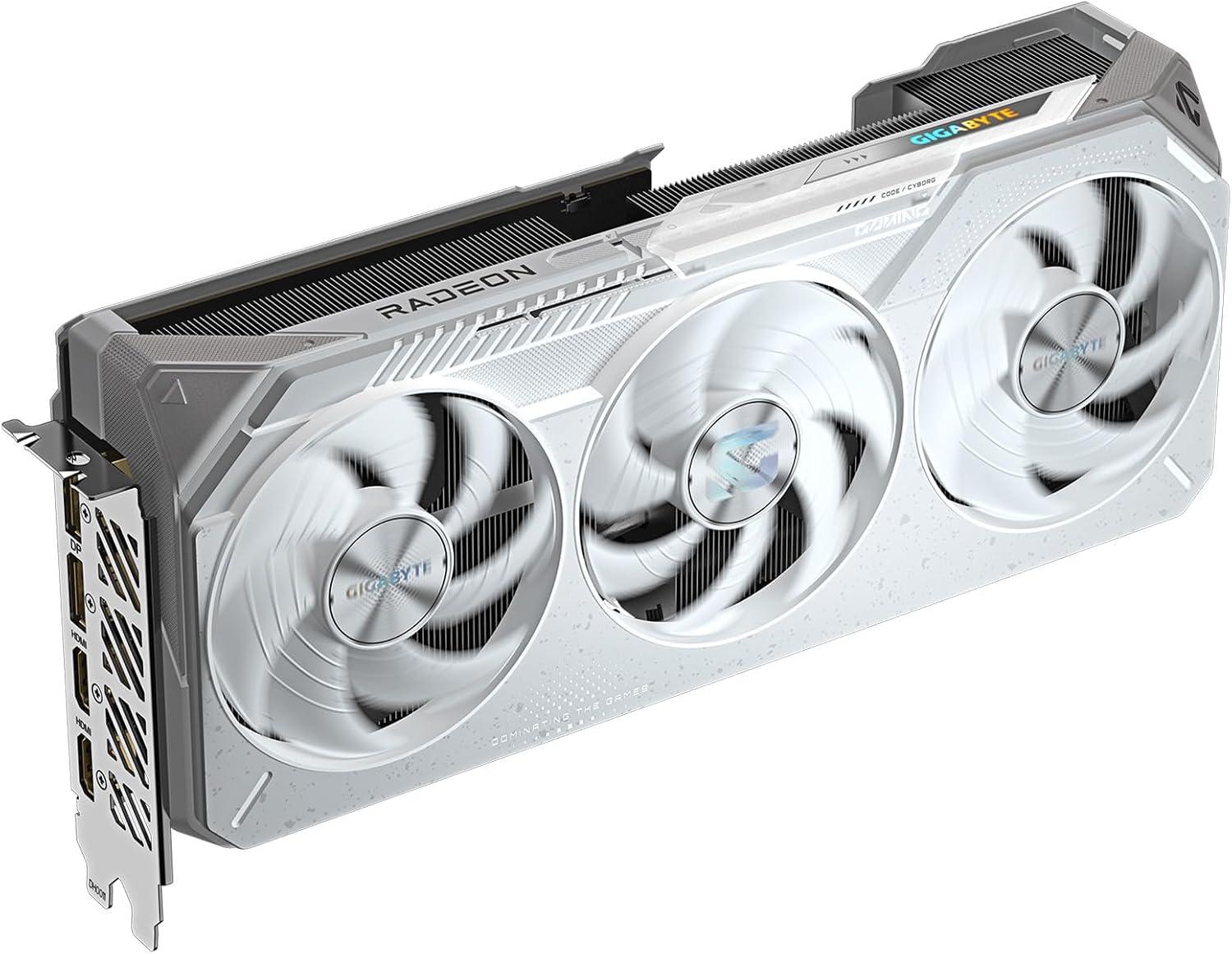

GIGABYTE Radeon RX 9070 XT GAMING OC ICE 16G

16 GB GDDR6 · 288 mm · 3.0 slots · 304 W

1440p
62%
Value
82
Length
288 mm
Amazon
$750
$750
Available Updated 4 hours, 42 minutes ago Factory OC
Gaming 1080p69.2%
Gaming 1440p62.3%
Gaming 4K54.1%
1440p value82.3

Written analysis

GIGABYTE Radeon RX 9070 XT GAMING OC ICE 16G at a glance

The GIGABYTE Radeon RX 9070 XT GAMING OC ICE 16G is a GIGABYTE retail card of the RX 9070 XT on RDNA 4.0. It is marked as a factory overclock at 3060 MHz boost.

Length is 288 mm and it occupies 3.0 slots (288 x 132 x 56 mm). Board power is 304 W with 3 x 8-pin. Outputs: 2 x DisplayPort 2.1a, 2 x HDMI 2.1b. Warranty is 36 months.

Length is mainstream. It fits most ATX cases and many compact mid-towers.

Best fit: Standard mid-tower builds seeking a factory-tuned version of the RX 9070 XT.

Inherited GPU performance

Raster scores come from the RX 9070 XT, not from this cooler. At 1440p that is 62.32% of the dataset’s best (mid-range), with 69% at 1080p and 54% at 4K. The chip uses 16 GB GDDR6.

This card’s 1440p value is excellent at 82.3 performance per dollar.

Compare other GIGABYTE and partner boards of this GPU in the RX 9070 XT retail-card table.

Board hardware

Full specifications

Partner-card clocks, physical fit, cooling, power delivery, display outputs, and the underlying GPU in one technical sheet.

Identity

Card
GIGABYTE Radeon RX 9070 XT GAMING OC ICE 16G
Manufacturer
GIGABYTE
Model
GIGABYTE Radeon RX 9070 XT GAMING OC ICE 16G
Launch price
Amazon price
$750
Availability
In stock
Price updated
4 hours, 42 minutes ago

Fit

Length
288 mm
Slot size
3.0 slots
Dimensions

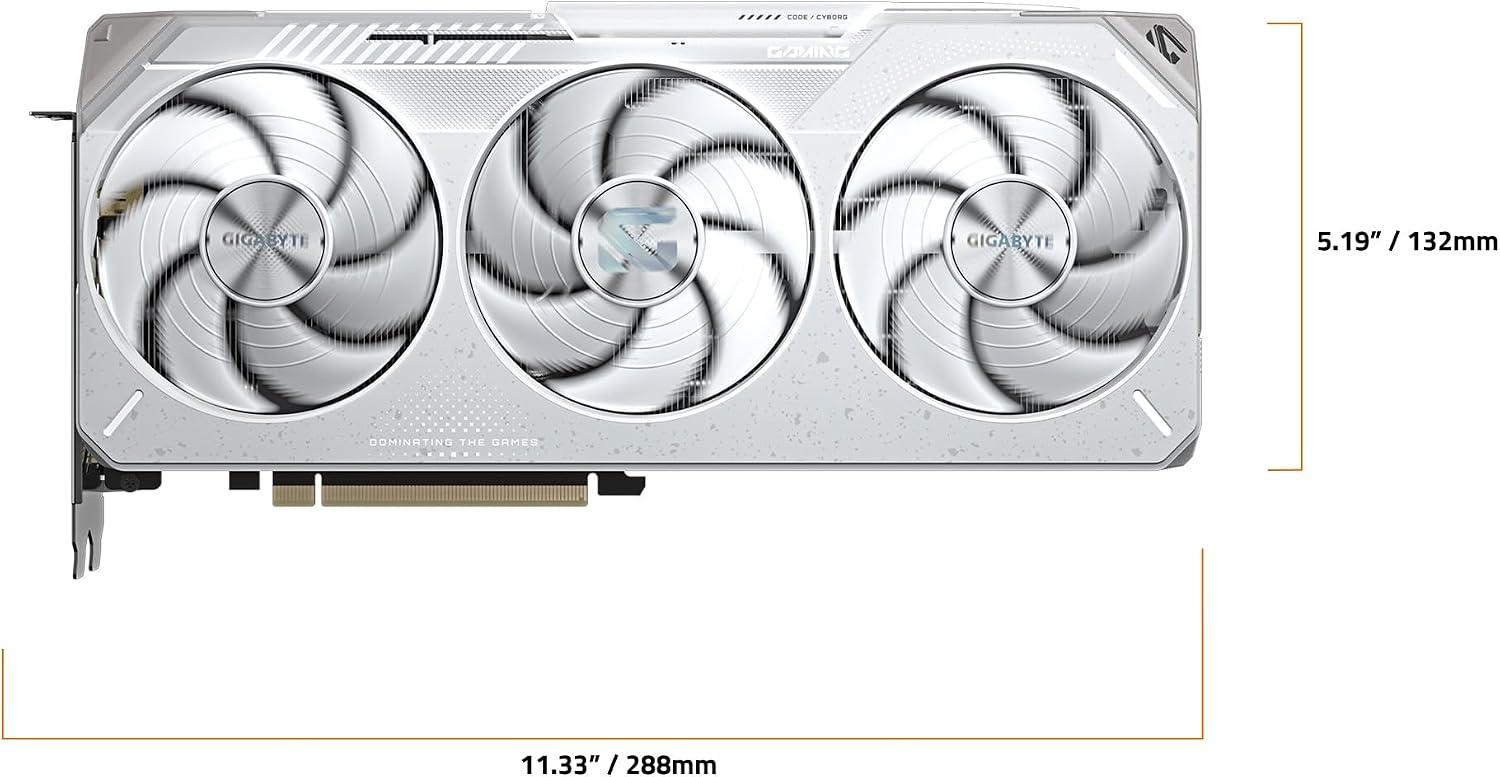

288 x 132 x 56 mm
Cooler
Warranty
36 months

Power & I/O

Board power
304 W

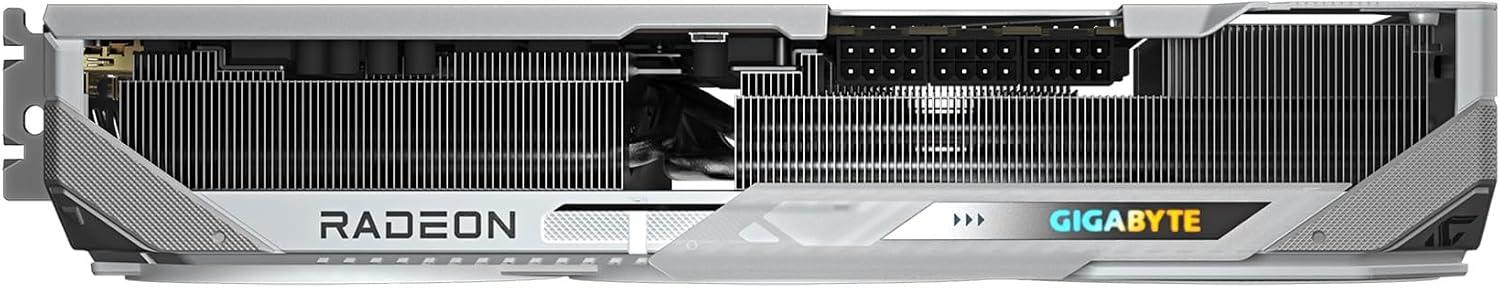

Connectors
3 x 8-pin

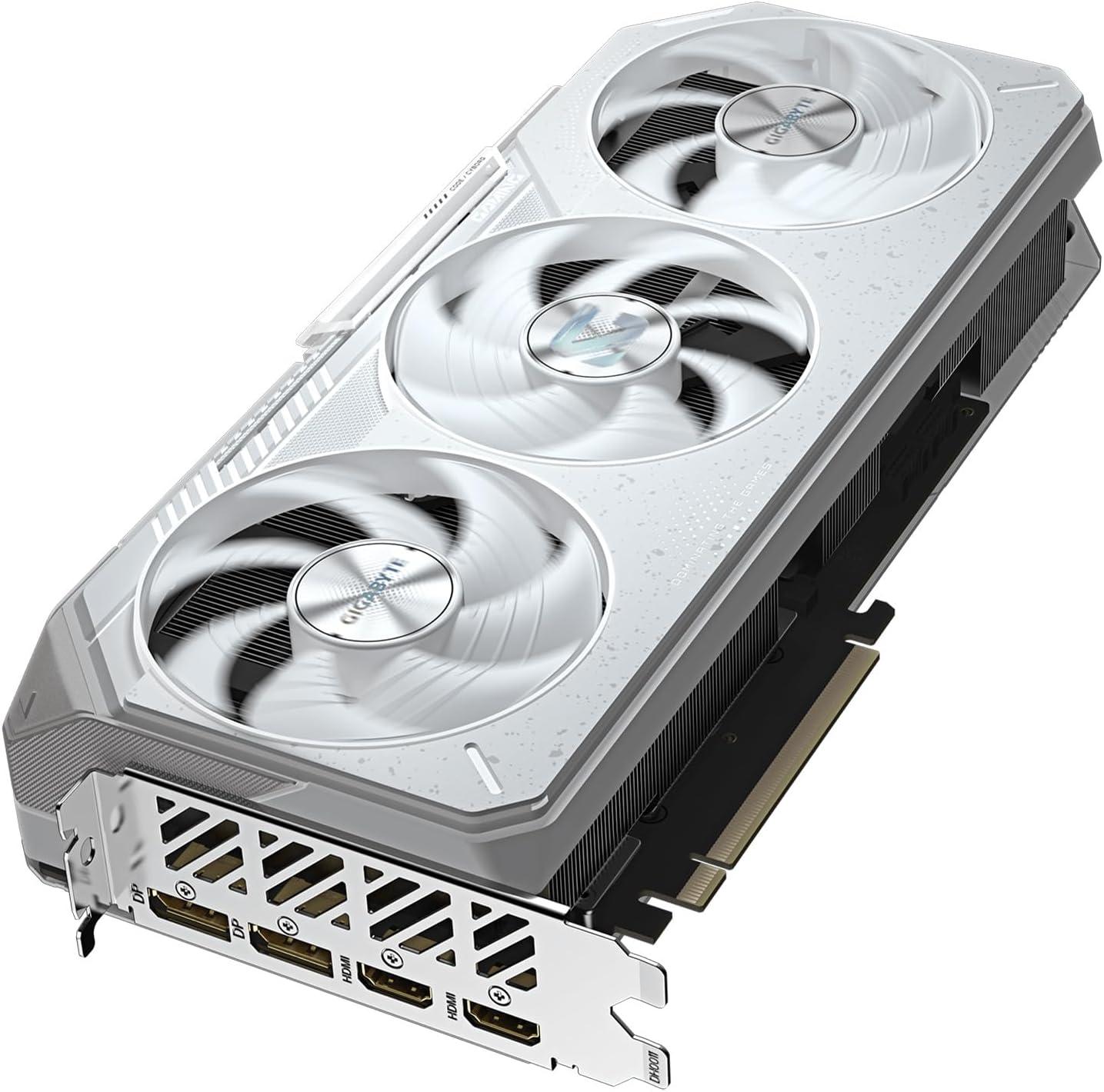

Display outputs

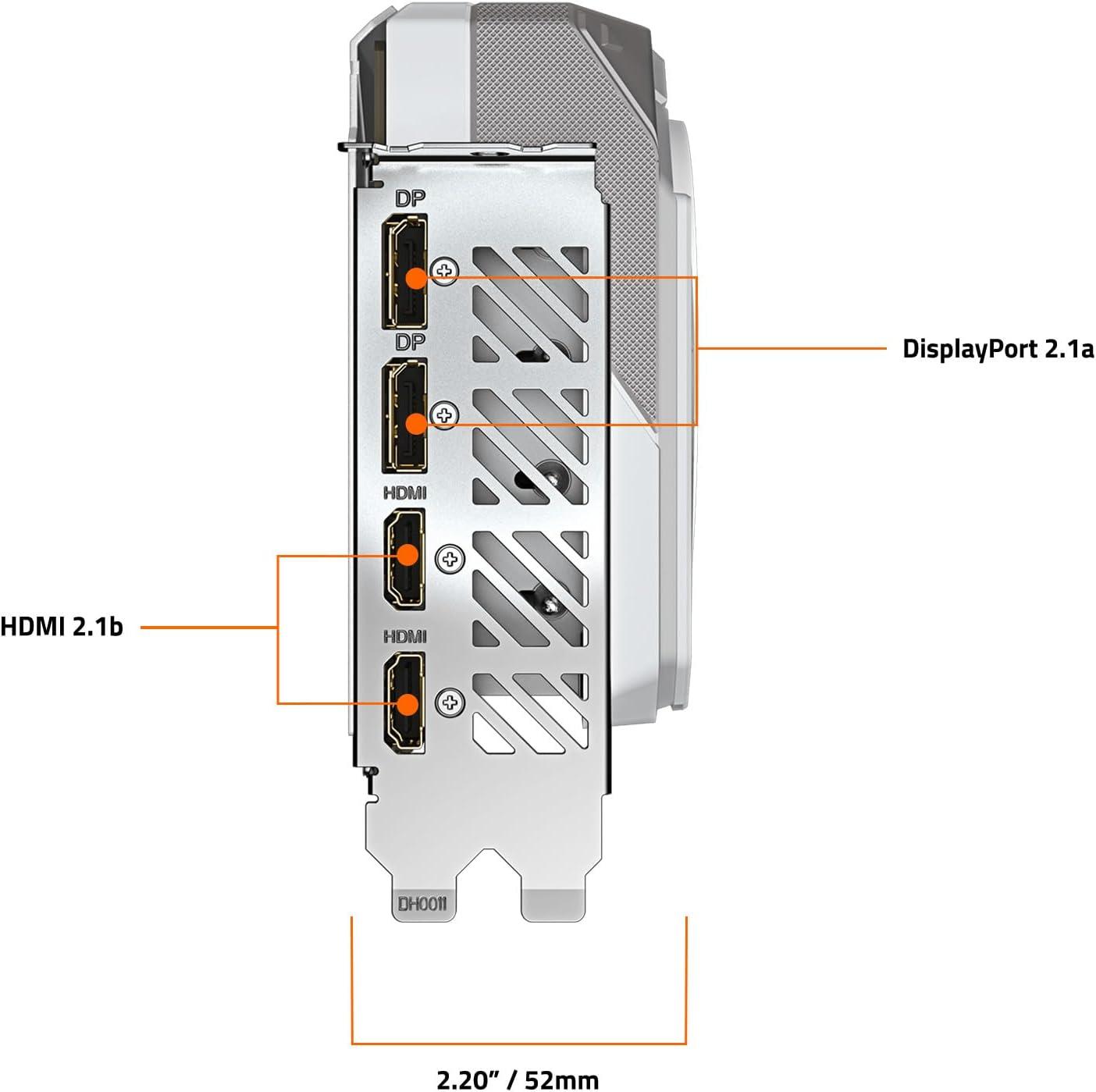

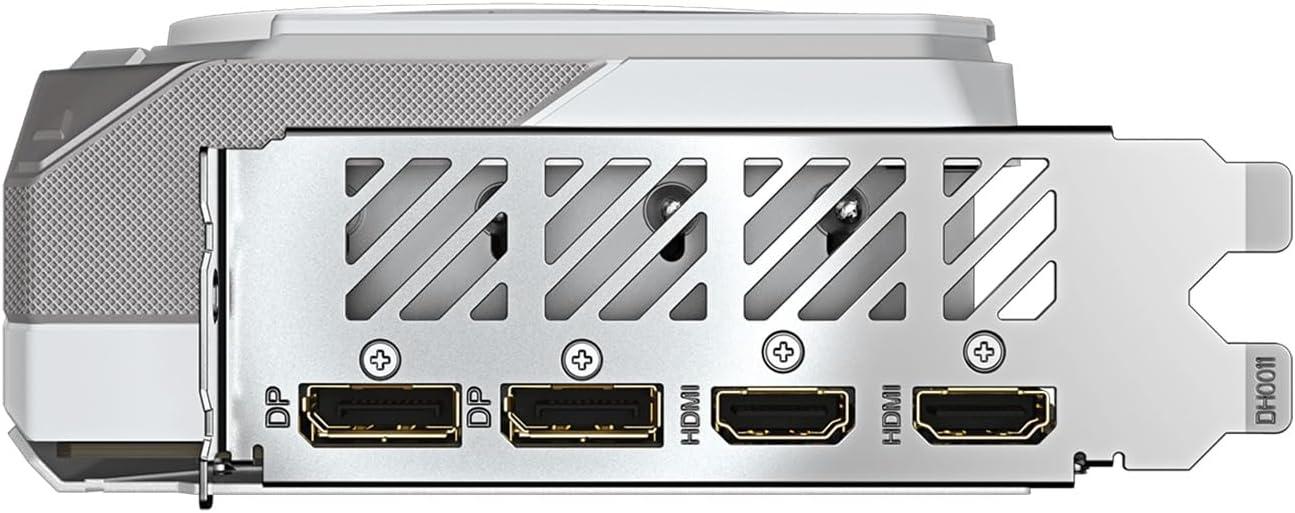

2 x DisplayPort 2.1a, 2 x HDMI 2.1b
Factory OC
Yes

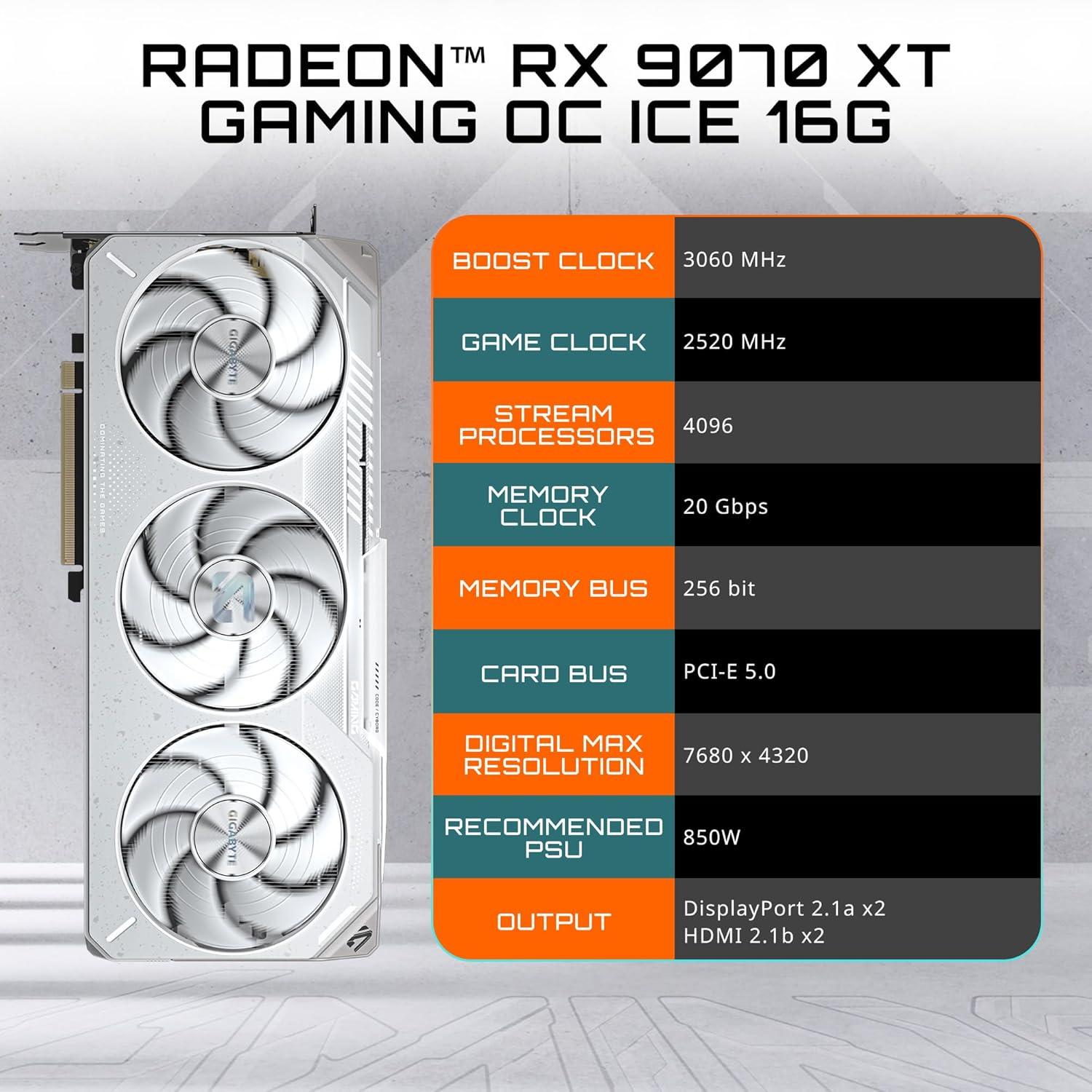

Boost clock vs RX 9070 XT

Reference GPU boost compared with this partner card. If no partner boost is recorded, the card is shown as using the reference clock.

Boost clock
Reference GPU 2970 MHz
This card 3060 MHz
Delta +90 MHz (3.0%)

GPU silicon

Architecture
RDNA 4.0
Process
5
Interface
PCIe 5.0 x16
VRAM
16 GB GDDR6
Bus / bandwidth
256-bit · 644 GB/s
Shaders / CU-SM
4096 / 64
RT cores
64
Tensor / matrix
128
Reference TDP
304 W
Reference base / boost
1660 MHz / 2970 MHz

Amazon

Price history

Nearby cards

Similar graphics cards

Other retail boards of RX 9070 XT, plus nearby silicon if the family is small. Price, length, and value are what actually change between partner cards.

Compare these in the graphics card table
