Gigabyte NVIDIA GeForce RTX 4060 Ti WINDFORCE OC

Written analysis

Gigabyte NVIDIA GeForce RTX 4060 Ti WINDFORCE OC at a glance

The Gigabyte NVIDIA GeForce RTX 4060 Ti WINDFORCE OC is a GIGABYTE retail card of the RTX 4060 Ti 8GB on Ada Lovelace. It is not marked as a factory-overclocked board ; the GPU’s reference boost is 2535 MHz.

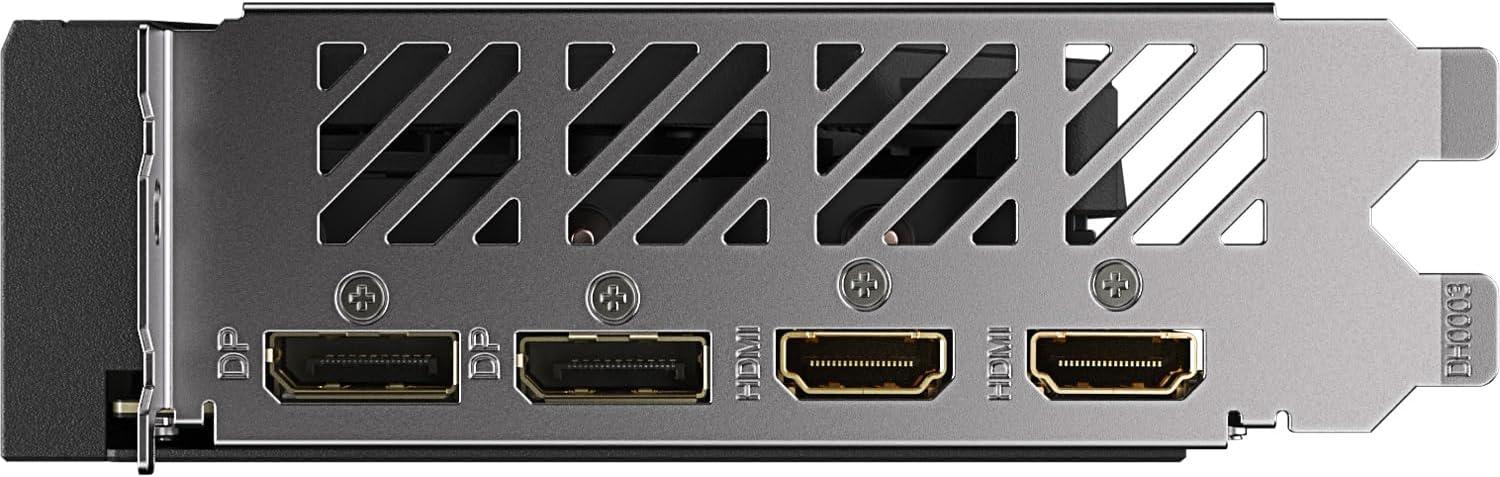

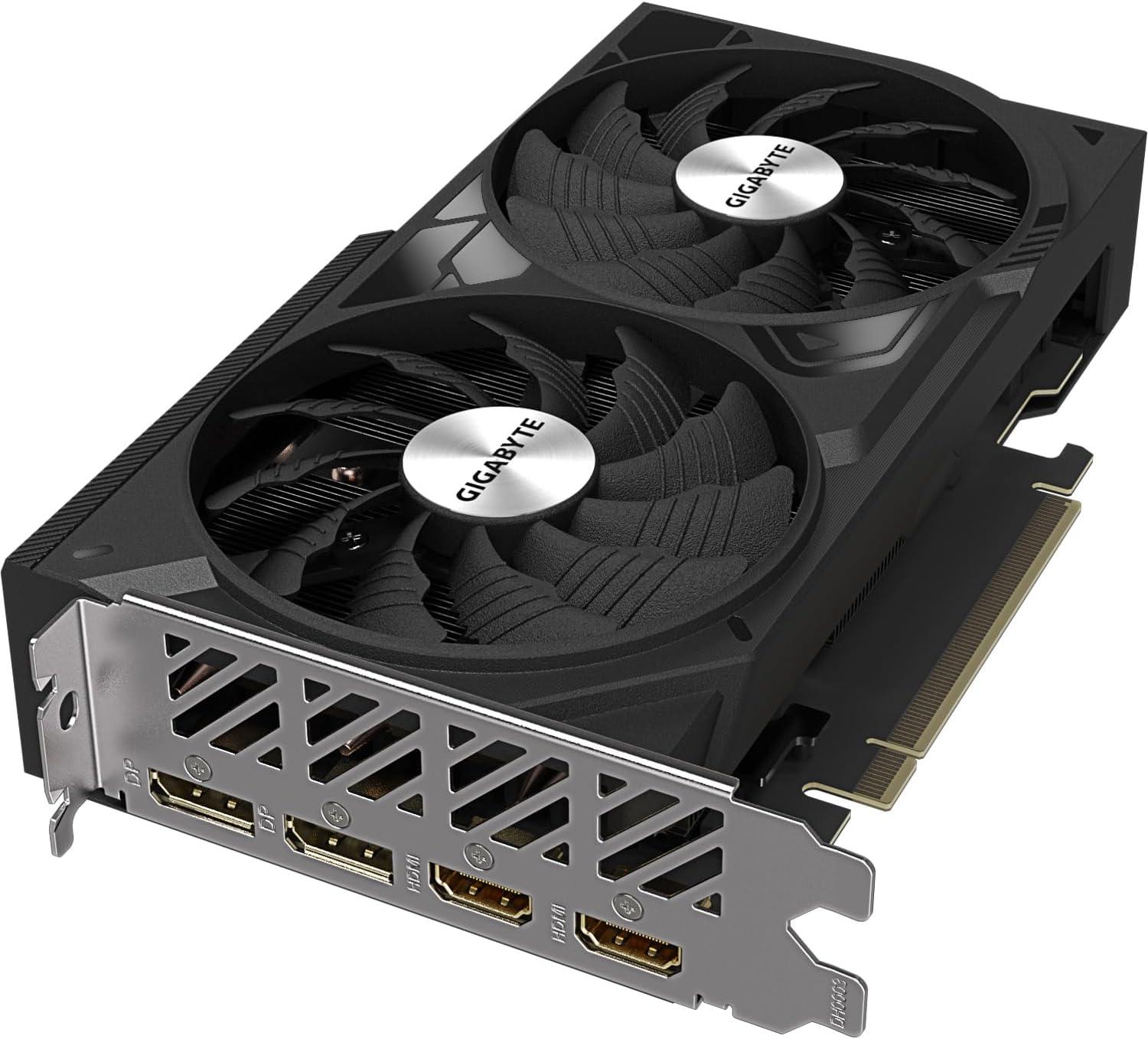

Length is 201 mm and it occupies 2.0 slots (L=201 W=120 H=41 mm). Board power is 160 W with 1 x 8-pin PCIe. Outputs: DisplayPort 1.4a*2HDMI 2.1a*2. Warranty is 36 months.

This is a short card and is a better candidate for compact cases than most RTX 4060 Ti 8GB partners.

Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.

Inherited GPU performance

Raster scores come from the RTX 4060 Ti 8GB, not from this cooler. At 1440p that is 31.71% of the dataset’s best (budget), with 39% at 1080p and 24% at 4K. The chip uses 8 GB GDDR6.

This card’s 1440p value is excellent at 92.3 performance per dollar.

Compare other GIGABYTE and partner boards of this GPU in the RTX 4060 Ti 8GB retail-card table.
