ASUS GeForce RTX 4060 LP BRK OC Edition 8GB

Written analysis

ASUS GeForce RTX 4060 LP BRK OC Edition 8GB at a glance

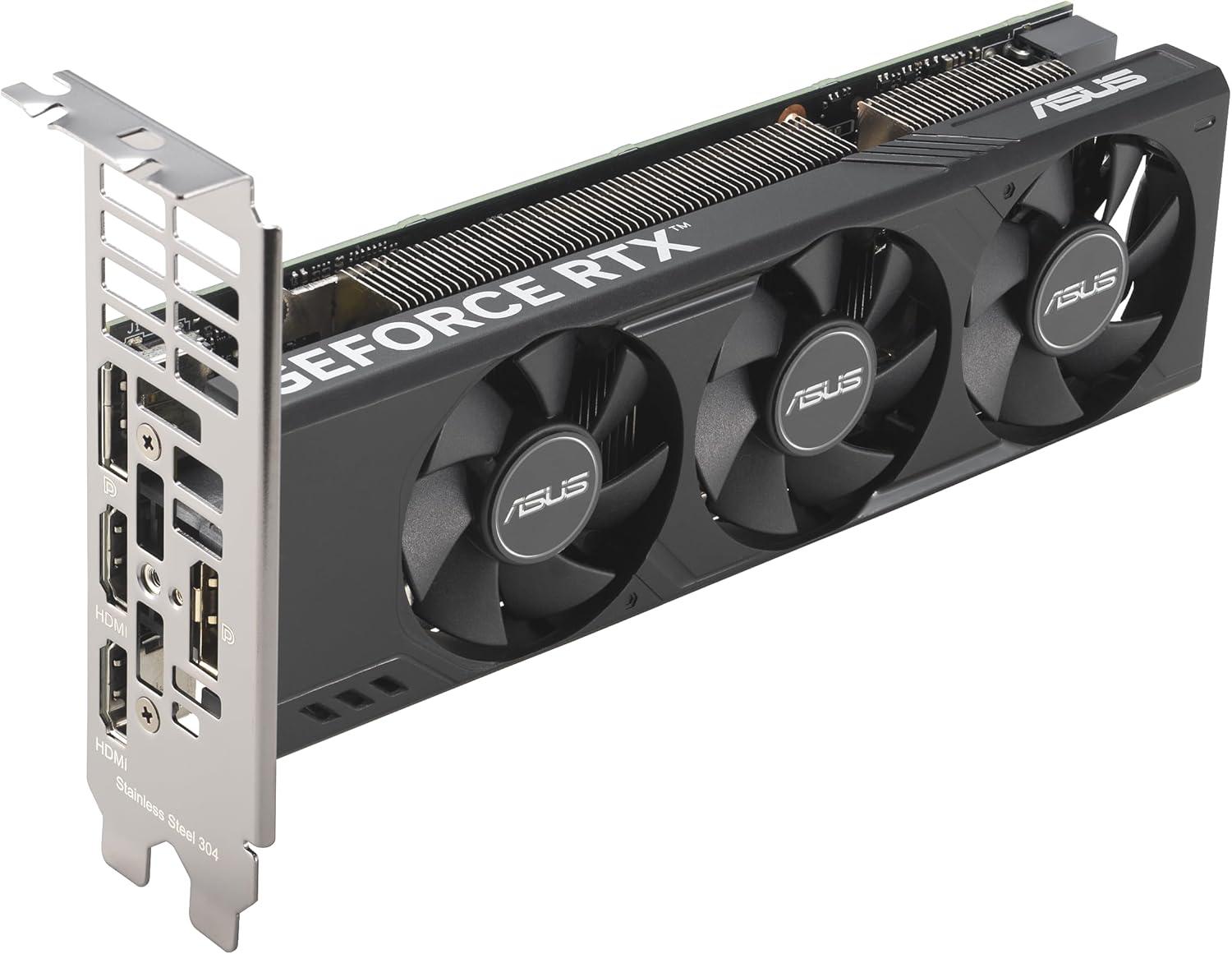

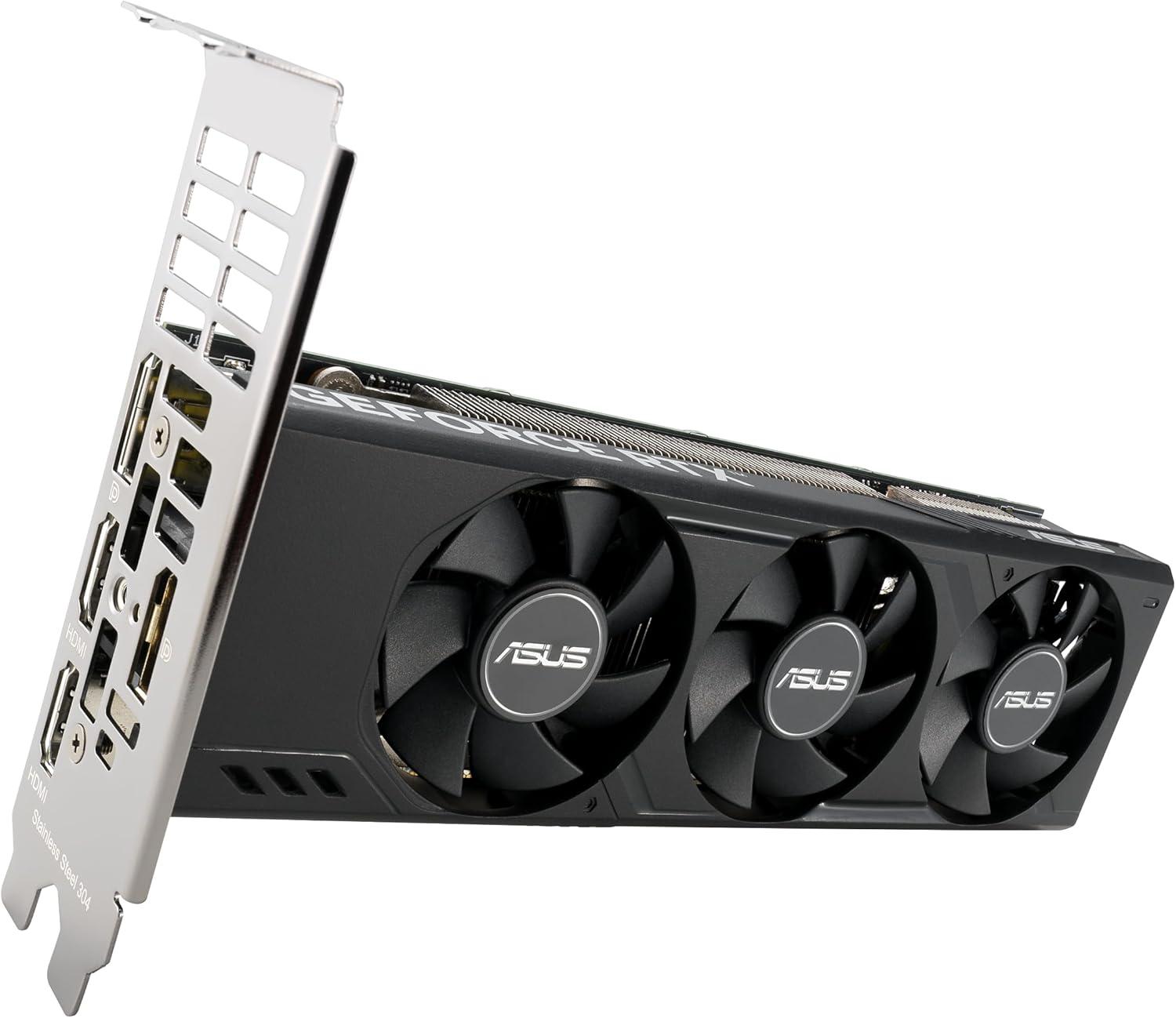

The ASUS GeForce RTX 4060 LP BRK OC Edition 8GB is a ASUS retail card of the RTX 4060 on Ada Lovelace. It is marked as a factory overclock at 2520 MHz boost.

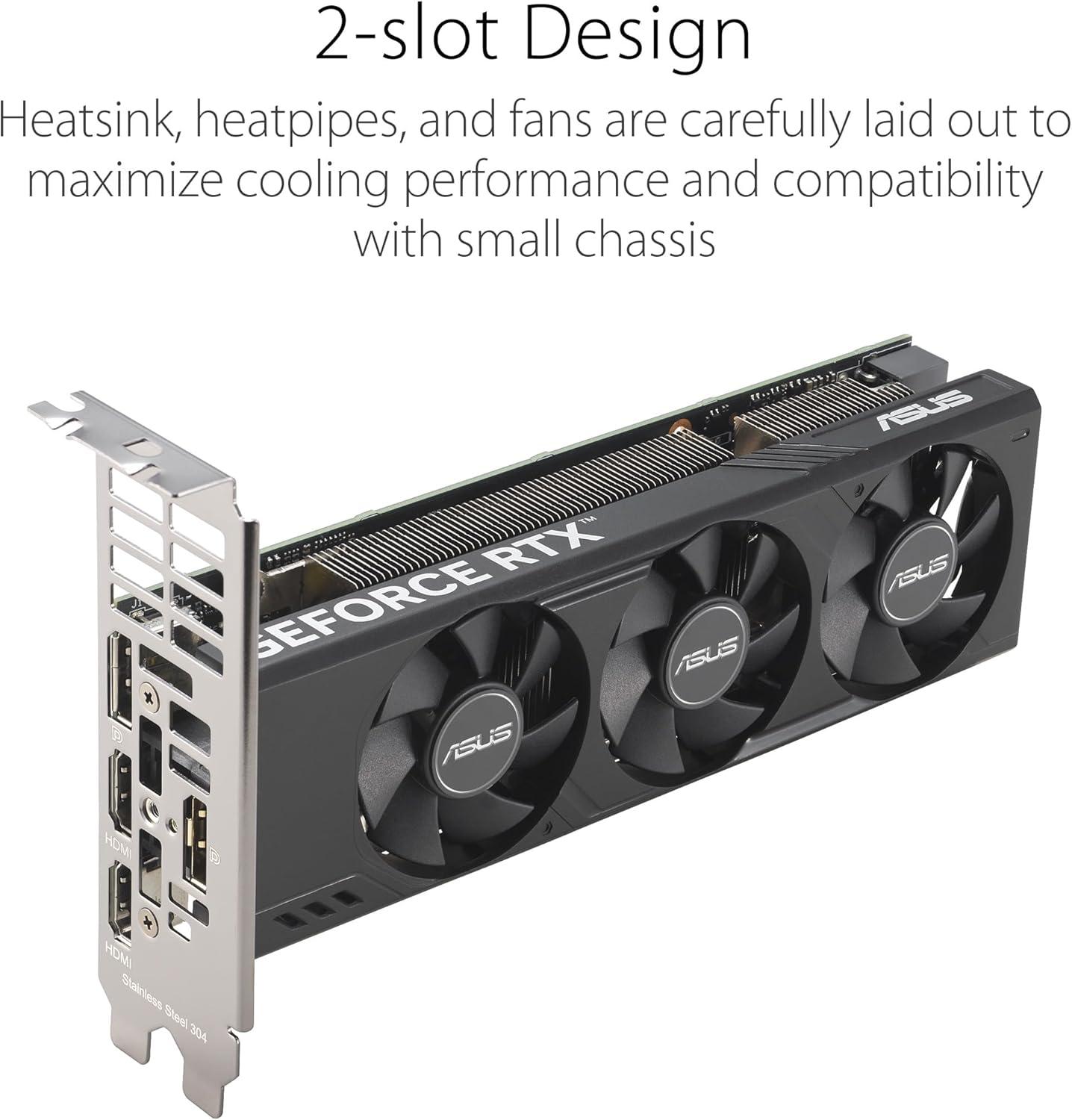

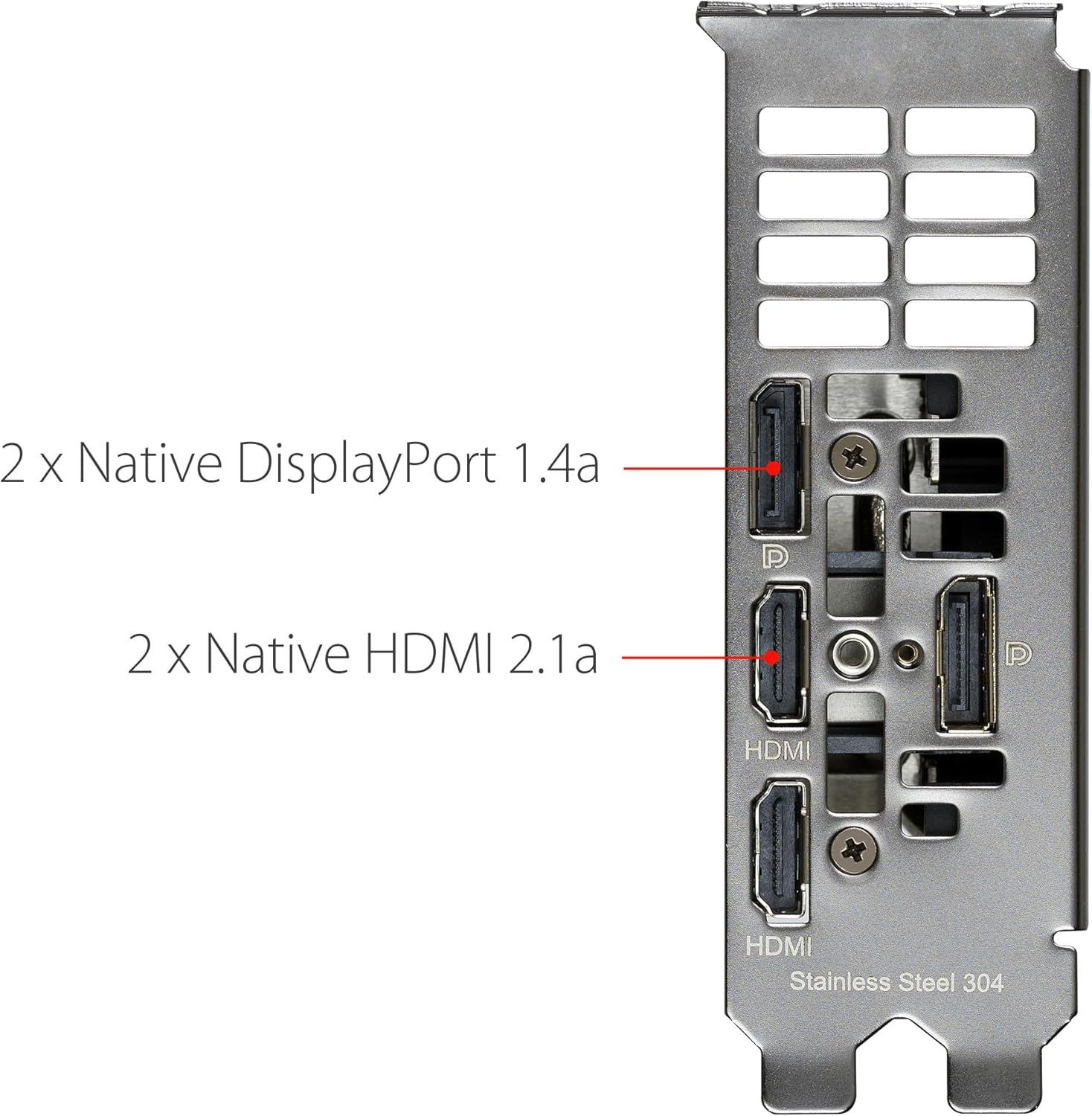

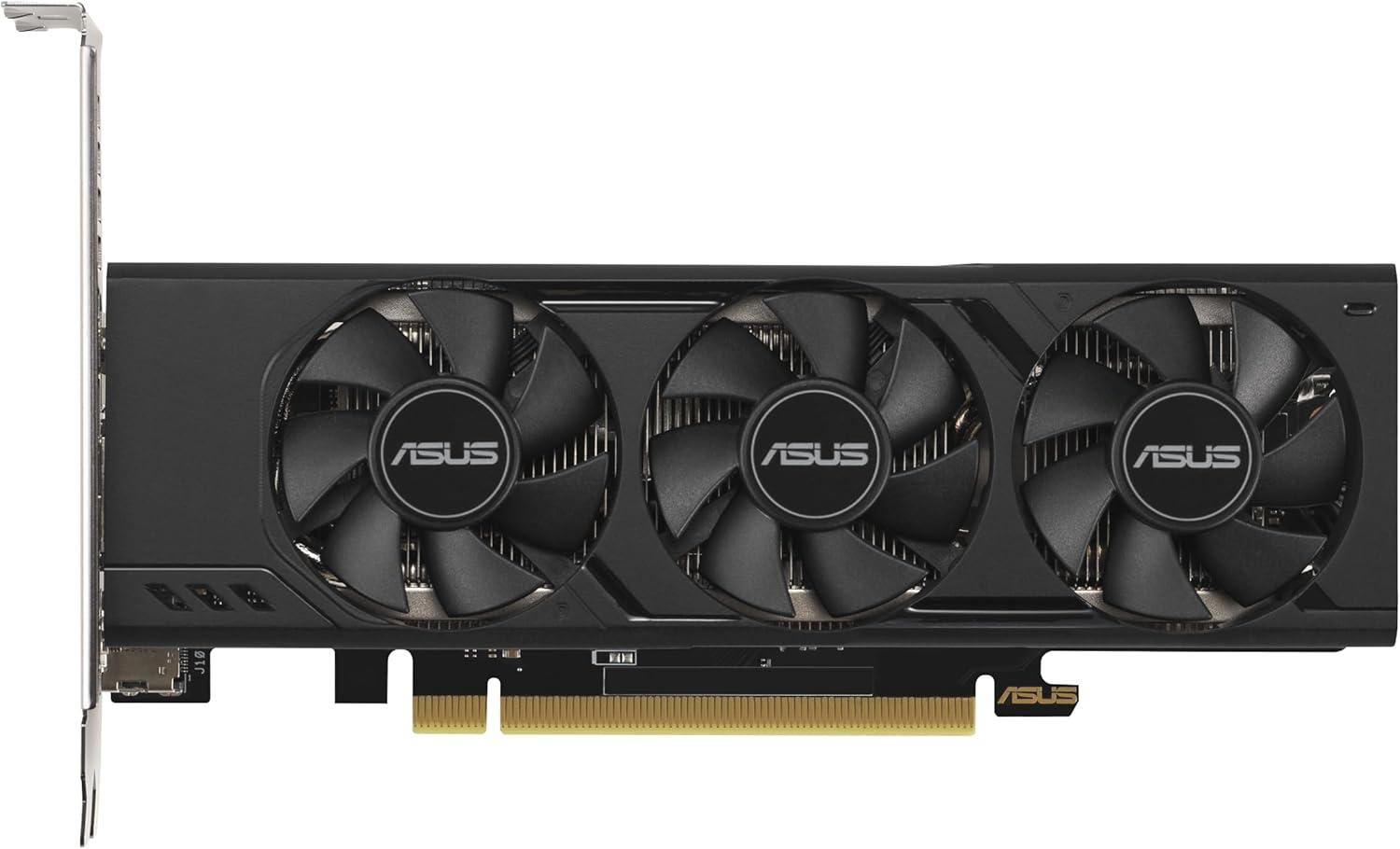

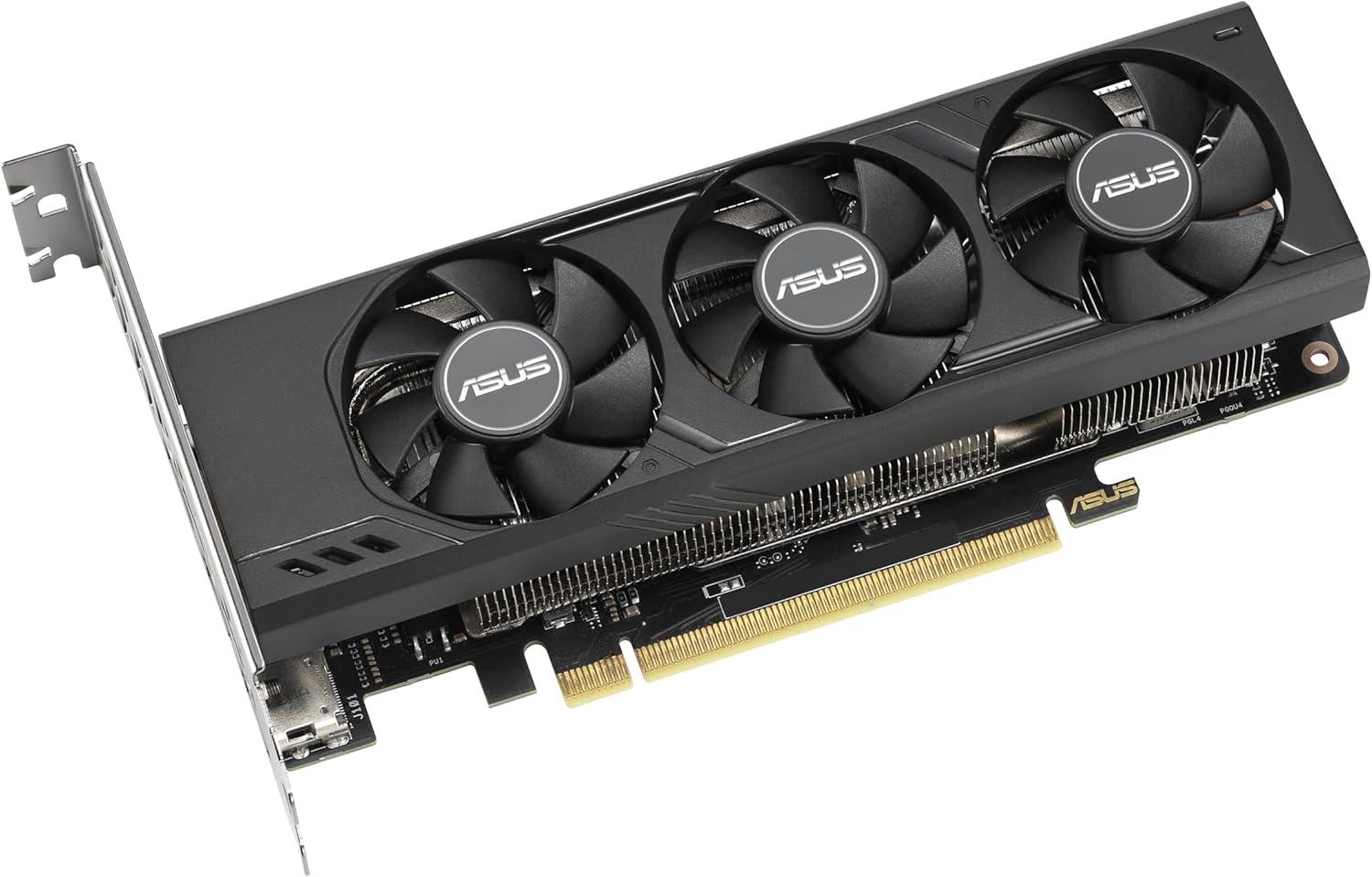

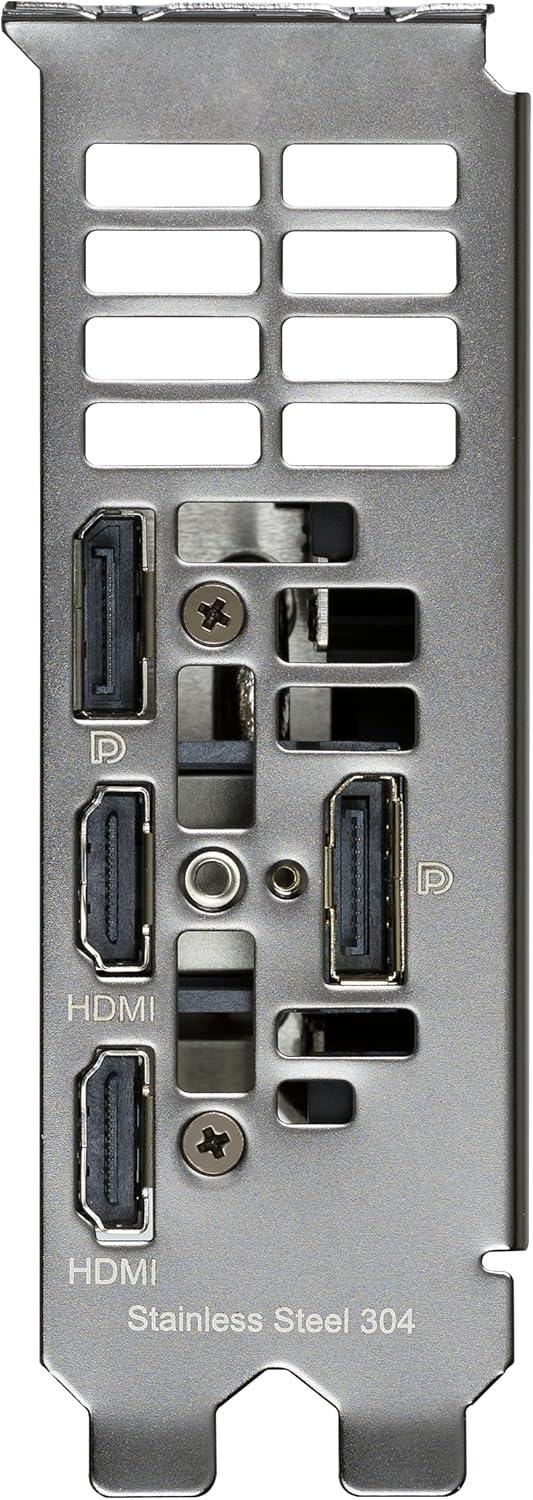

Length is 188 mm and it occupies 2.0 slots (188 x 69 x 39 mm). Board power is 115 W with 1 x 6-pin. Outputs: Yes x 2 (Native HDMI 2.1a)Yes x 2 (Native DisplayPort 1.4a)HDCP Support Yes (2.3). Warranty is 36 months.

This is a short card and is a better candidate for compact cases than most RTX 4060 partners.

Best fit: Compact builds that need this GPU in a shorter board design, subject to slot-width clearance.

Inherited GPU performance

Raster scores come from the RTX 4060, not from this cooler. At 1440p that is 24.88% of the dataset’s best (budget), with 31% at 1080p and 20% at 4K. The chip uses 8 GB GDDR6.

This card’s 1440p value is balanced at 65.2 performance per dollar.

Compare other ASUS and partner boards of this GPU in the RTX 4060 retail-card table.
