GIGABYTE B850 Gaming WIFI6
GIGABYTE B850 Gaming WIFI6 Specifications Review

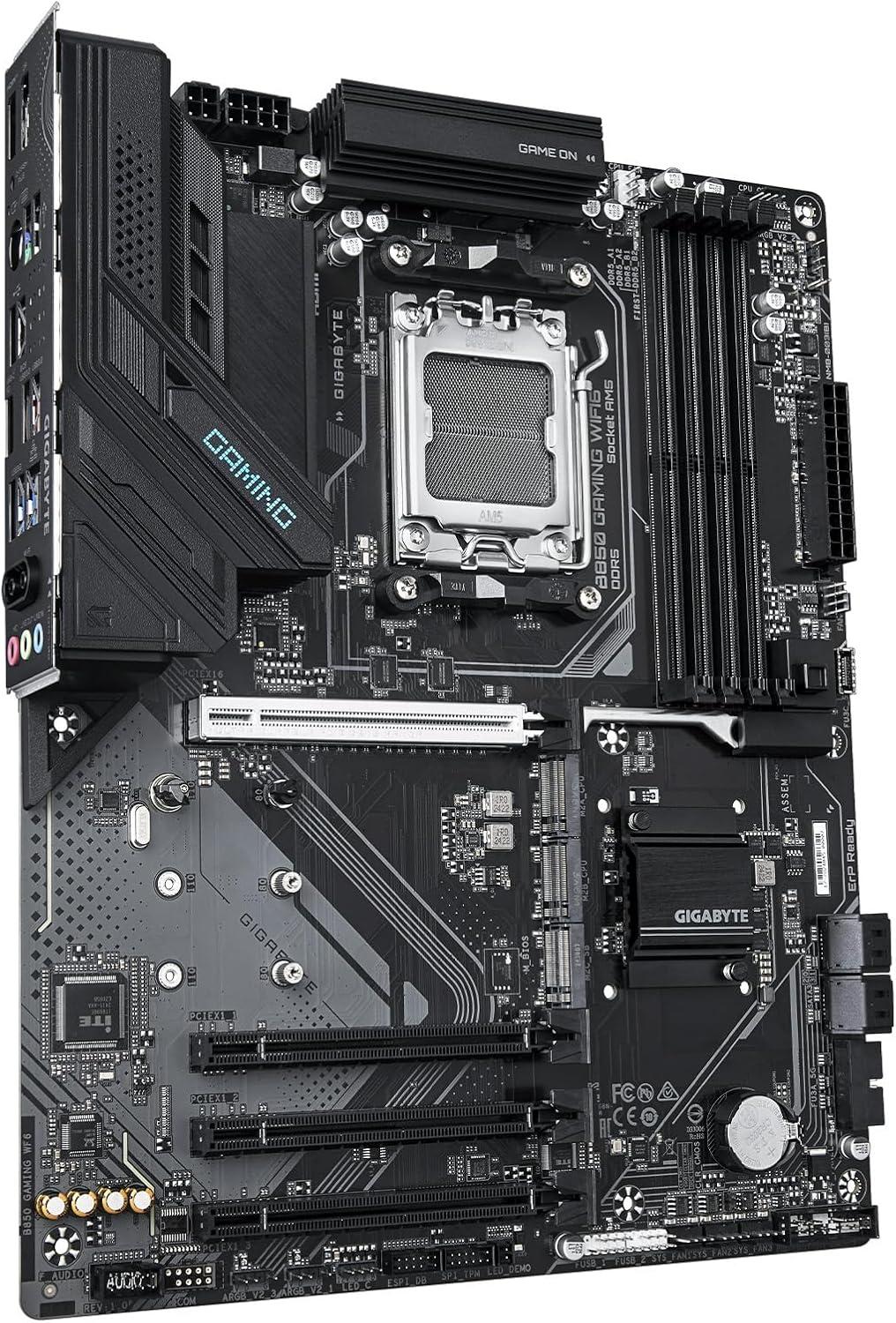

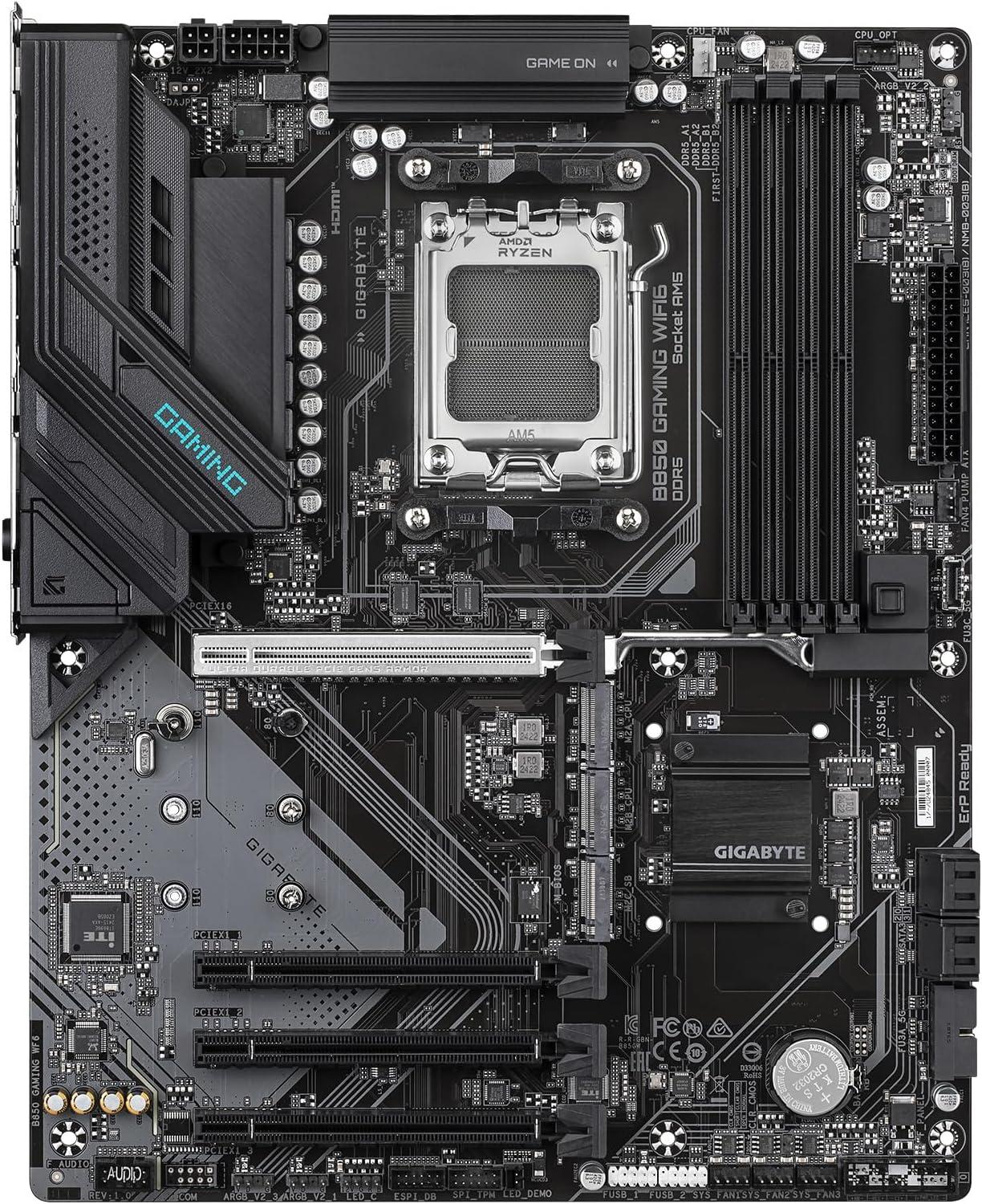

GIGABYTE B850 Gaming WIFI6 by GIGABYTE is a Standard-ATX form factor motherboard based on the mid-range B850 chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8200 MHz.
VRM Quality
The GIGABYTE B850 Gaming WIFI6 has a basic VRM configuration, delivering 60 A across 6 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE B850 Gaming WIFI6 offers a well-equipped expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 4 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 3 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the Wi-Fi 6 standard, and wired Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) ethernet supporting speeds up to 1000 Gbps. Bluetooth 5.3 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® Audio CODEC) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
GIGABYTE B850 Gaming WIFI6 is a dependable choice with a respectable overall quality score of 54.40. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard has a solid 60.8% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE B850 Gaming WIFI6 |
| Current Price Amazon | $170 |
| Amazon Price Updated | 1 day, 21 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | B850 / AM5 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 6 (60 A) |
|---|---|
| Power Design | 6+2+2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen3 |
|---|---|---|---|
| x16 | 4 | 1 | 3 |
Storage Configuration
| M.2 Slot Count | 3 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® Audio CODEC |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 3840x2160@144 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 2 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6 Bandwidth: 80MHz Frequency Bands: 2.4/5 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
Q-Flash Plus |
|---|
Quality & Features
Additional Information
| RAM | Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Also supports AMD EXtended Profiles for Overclocking (AMD EXPO™). The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules; refer to the manufacturer's Memory Support List for more information. |
|---|---|
| Display | Requires an Integrated Graphics Processor with AMD Radeon™ Graphics support. DisplayPort supports HDR. HDMI supports HDCP 2.3, HDR, and native HDMI 2.1 TMDS compatible ports. Graphics specifications may vary depending on CPU support. |
| Expansion | The primary PCIEX16 slot's speed depends on the installed CPU: PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0 x8 (Ryzen 8000 Phoenix 1), or PCIe 4.0 x4 (Ryzen 8000 Phoenix 2). This slot supports either a graphics card or an NVMe SSD. The three other physical x16 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3) are connected to the chipset and operate at PCIe 3.0 x1 speed. |
| Storage |
M.2 Slot Details:
RAID 5 for NVMe SSDs is only available on AMD Ryzen™ 9000 Series Processors. |
| Audio | High Definition Audio. Supports 2/4/5.1/7.1-channel configurations. You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Networking | Wi-Fi module: Realtek RTL8851BE. Supported Wi-Fi standards: a, b, g, n, ac, ax. Antenna configuration: 2T2R. Actual data rate may vary depending on environment and equipment. |
| Buttons | The text mentions a 'Clear CMOS jumper' and a 'reset jumper', but not a dedicated Clear CMOS button. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE B850 Gaming WIFI6 Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$151
|
0.0%
|
55.4%
|
41.0%
|
73.0%
|
59.0%
|
64.0%
|
40.0%
|
69.5%
|
|
|
$140
|
0.0%
|
55.0%
|
37.0%
|
74.0%
|
72.0%
|
52.0%
|
40.0%
|
74.6%
|
|
|
$158
|
0.0%
|
54.8%
|
30.0%
|
80.0%
|
65.0%
|
59.0%
|
40.0%
|
65.9%
|
|
|
$170
|
↓
-5.6%
|
54.4%
|
18.0%
|
80.0%
|
83.0%
|
51.0%
|
40.0%
|
60.8%
|
|
|
$229
|
↑
0.1%
|
54.4%
|
39.0%
|
81.0%
|
43.0%
|
69.0%
|
40.0%
|
45.2%
|
|
|
$150
|
↓
-8.8%
|
53.8%
|
24.0%
|
74.0%
|
66.0%
|
62.0%
|
43.0%
|
68.2%
|
|
|
$155
|
↓
-0.2%
|
53.6%
|
24.0%
|
80.0%
|
65.0%
|
59.0%
|
40.0%
|
65.5%
|
|
|
$0
|
0.0%
|
53.4%
|
25.0%
|
84.0%
|
75.0%
|
38.0%
|
45.0%
|
N/A | |
|
$178
|
↑
26.8%
|
53.2%
|
23.0%
|
76.0%
|
59.0%
|
65.0%
|
43.0%
|
56.9%
|
Motherboard Comparison and Detail Specifications Table
| Specification |
No image available |
Perf Chart | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$151
|
0.0%
|
$140
|
0.0%
|
$158
|
0.0%
|
$170
|
↓
-5.6%
|
$229
|
↑
0.1%
|
$150
|
↓
-8.8%
|
$155
|
↓
-0.2%
|
$0
|
0.0%
|
$178
|
↑
26.8%
|
||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASRock | GIGABYTE | GIGABYTE | GIGABYTE | MSI | GIGABYTE | GIGABYTE | ASUS | MSI | ||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B650 / AM5 | B650 / AM5 | B850M / AM5 | B850 / AM5 | B650M / AM5 | B650 / AM5 | B850M / AM5 | AMD B850 / AM5 | B650M / AM5 | ||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Micro-ATX | Micro-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 14 (60 A) | 12 (60 A) | 10 (60 A) | 6 (60 A) | 10 (80 A) | 8 (60 A) | 8 (60 A) | 8 (60 A) | 8 (55 A) | ||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 14+2+1 | 12+2+2 | 10+2+2 | 6+2+2 | 10+2+1 | 8+2+1 | 8+2+2 | 8 + 2 + 1 | 8+2 | ||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 7200 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 256 GB / 8200 MHz | 256 GB / 7600 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 128 GB / 8400 MHz | 256 GB / 7200 MHz | ||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen4 | 1x16 Gen3 | 1x1 Gen4 | 1x16 Gen4 | 3x16 Gen3 | 1x16 Gen5 | 1x16 Gen3 | 1x16 Gen5 | 3x16 Gen3 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen4 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 2 | 3 | 2 | 3 | 2 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC897 | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® ALC897 Codec | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | ||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ | ❌ | ❌ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||
| LAN | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® GbE LAN chip (1 ports) | Realtek® 2.5GbE LAN (1 ports) | Realtek® GbE LAN chip (1… (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 8125BG 2.5G (1 ports) | ||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6 | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | ❌ | Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||||
| BT | v5.2 | v5.3 | v5.3 | v5.3 | v5.3 | v5.2 / 5.3 | v5.3 | ❌ | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
❌ |
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
❌ |
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
| No compatible CPU available. The motherboard's VRM is too weak to be recommended with any CPU in the database. | |||||||||
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Storage:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Expansion Slots:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
USB:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

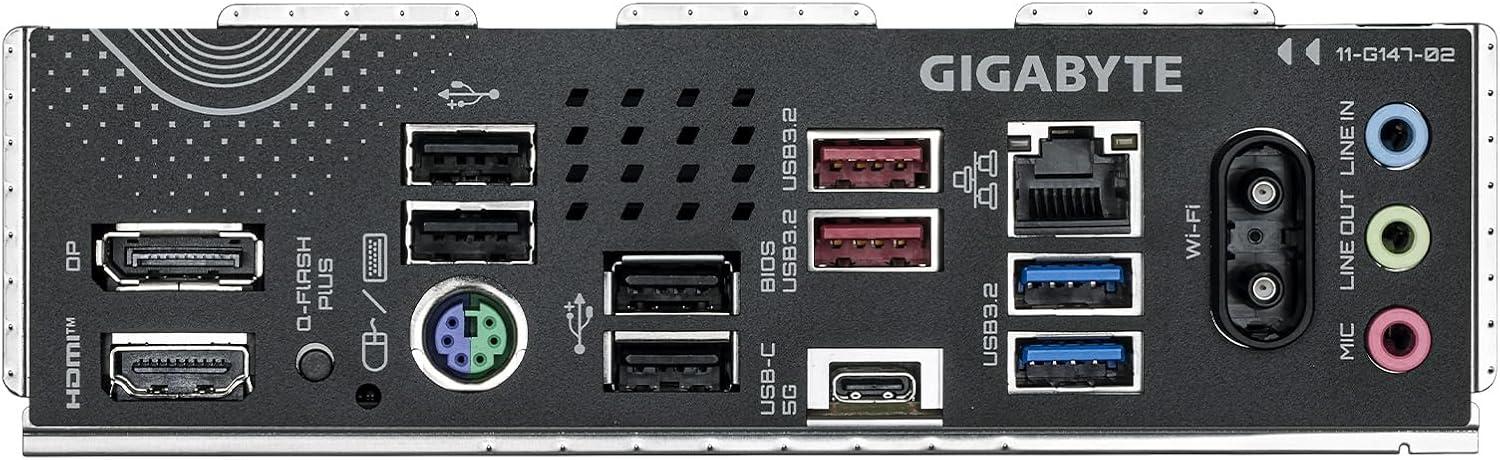

Back Panel I/O:
1 x HDMI port (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
2 x antenna connectors (2T2R)
3 x audio jacks
(Note) Actual support may vary by CPU.
WiFi:
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Add Comment on GIGABYTE B850 Gaming WIFI6
Comments on GIGABYTE B850 Gaming WIFI6:
That’s not accurate, and it mixes up TDP with real power draw and VRM capability.
First, the Ryzen 7 9800X3D does not operate as a 170 W sustained load in the way you’re implying. AMD’s “max power” (PPT) is a short-duration limit, not a continuous draw. In real workloads—especially gaming, which is the primary use case for X3D chips—power consumption is typically much lower due to cache efficiency.
Second, VRM evaluation is not just “it boots and runs.” A motherboard like the GIGABYTE B850 Gaming WIFI6 using a 6-phase 60 A design (≈360 A theoretical) is indeed capable of running high-end CPUs. That’s not the question. The key factors are:
Thermal headroom
Sustained load stability
Efficiency under high current
VRM cooling quality (heatsinks, airflow)
Even if it can run a high-end CPU, that doesn’t mean it’s ideal or safe long-term under:
all-core workloads
PBO/overclocking
poor case airflow
What my dynicly generated statement reflects is recommendation, not possibility:
Yes → it can run a high-end CPU
No → it is not designed for sustained high-power workloads
There’s a big difference between:
“works in tests”
vs
“has sufficient thermal and electrical margin for long-term heavy use”
In fact, many budget boards pass benchmarks but:
run hotter VRMs (>90°C)
throttle under sustained load
degrade faster over time
So the conclusion still stands:
This board is fine for mid-range or efficient CPUs, but pairing it with a top-tier chip + overclocking is not optimal engineering practice, even if it appears stable in short tests.
This site is all nonsenses the Vrms of the Gigabyte B850 WIFI 6 can handle like the Ryzen 7 9800X3D which can draw maximum power wattage 170watts it is tested that can handle this Ryzen 7 9800X3D even with overclock.
