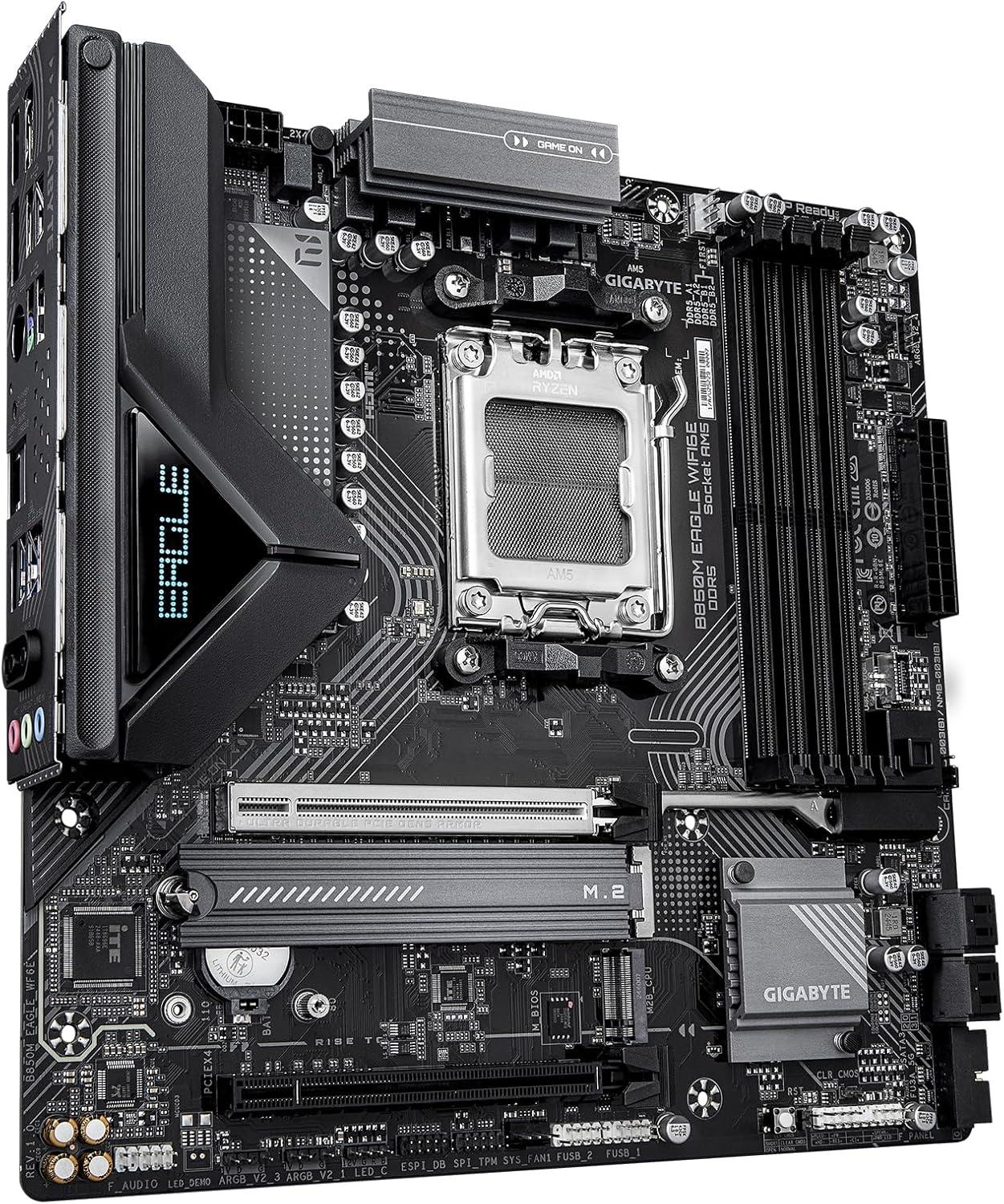

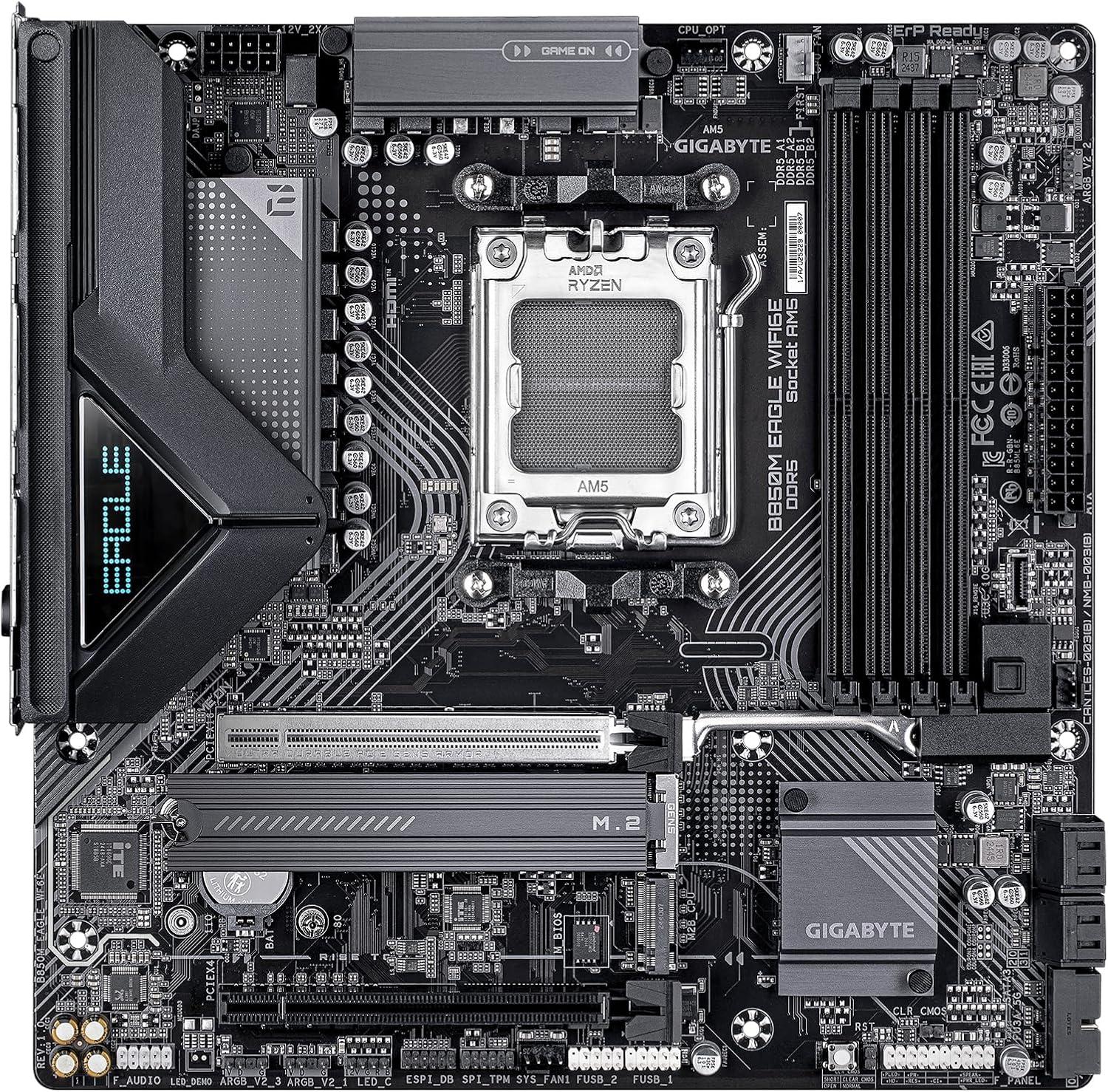

GIGABYTE B850M Eagle WIFI6E
GIGABYTE B850M Eagle WIFI6E Specifications Review
GIGABYTE B850M Eagle WIFI6E by GIGABYTE is a Micro-ATX form factor motherboard based on the mid-range B850M chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 8200 MHz.
VRM Quality
The GIGABYTE B850M Eagle WIFI6E has a basic VRM configuration, delivering 60 A across 8 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE B850M Eagle WIFI6E offers a balanced expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the Wi-Fi 6E standard, and wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® Audio CODEC) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
GIGABYTE B850M Eagle WIFI6E is a dependable choice with a respectable overall quality score of 53.60. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard offers an impressive 68.4% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE B850M Eagle WIFI6E |
| Current Price Amazon | $149 |
| Amazon Price Updated | 6 days, 13 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | B850M / AM5 |
| Form Factor | Micro-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (60 A) |
|---|---|
| Power Design | 8+2+2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 8200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen3 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 25110, 22110, 2580, 2280 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® Audio CODEC |
|---|---|
| Analog Audio Jacks | 3 jacks |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 3840x2160@144 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 1 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2 Header (10 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6E Bandwidth: 160MHz Frequency Bands: 2.4/5/6 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
Q-Flash Plus Reset Button |
|---|
Quality & Features
Additional Information
| RAM | Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Also supports AMD EXtended Profiles for Overclocking (AMD EXPO™). The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules; refer to the official Memory Support List for more information. |
|---|---|
| Display | Requires Integrated Graphics Processor with AMD Radeon™ Graphics support. The HDMI port supports HDCP 2.3 and HDR, and is a native HDMI 2.1 TMDS compatible port. Graphics specifications may vary depending on CPU support. |
| Expansion | The primary PCIEX16 slot's performance depends on the installed CPU: Ryzen 9000/7000 Series support PCIe 5.0 x16 mode, Ryzen 8000 Series-Phoenix 1 support PCIe 4.0 x8 mode, and Ryzen 8000 Series-Phoenix 2 support PCIe 4.0 x4 mode. The second physical x16 slot (PCIEX4) is connected to the chipset and supports PCIe 3.0, running at x4 mode. The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage |
M.2 Slot Details:
RAID 5 for NVMe SSDs is only available on AMD Ryzen™ 9000 Series Processors. |
| Audio | Supports High Definition Audio and 2/4/5.1/7.1-channel configurations. The functionality of an audio jack can be changed using the audio software, which is also required to configure 7.1-channel audio. |
| Networking | Realtek® Wi-Fi 6E RTL8852CE. Supports WIFI a, b, g, n, ac, ax. (Actual data rate may vary depending on environment and equipment.) |
| Buttons | The text lists a reset button, a reset jumper, and a Clear CMOS jumper. |
| Dimensions | 24.4cm x 24.4cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE B850M Eagle WIFI6E Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$160
|
0.0%
|
54.8%
|
30.0%
|
80.0%
|
65.0%
|
59.0%
|
40.0%
|
65.1%
|
|
|
$170
|
0.0%
|
54.4%
|
18.0%
|
80.0%
|
83.0%
|
51.0%
|
40.0%
|
60.8%
|
|
|
$190
|
0.0%
|
54.4%
|
39.0%
|
81.0%
|
43.0%
|
69.0%
|
40.0%
|
54.5%
|
|
|
$164
|
0.0%
|
53.8%
|
24.0%
|
74.0%
|
66.0%
|
62.0%
|
43.0%
|
62.2%
|
|
|
$149
|
0.0%
|
53.6%
|
24.0%
|
80.0%
|
65.0%
|
59.0%
|
40.0%
|
68.4%
|
|
|
$0
|
0.0%
|
53.4%
|
25.0%
|
84.0%
|
75.0%
|
38.0%
|
45.0%
|
N/A | |
|
$163
|
↓
-0.6%
|
53.2%
|
23.0%
|
76.0%
|
59.0%
|
65.0%
|
43.0%
|
62.1%
|
|
|
$120
|
0.0%
|
52.8%
|
20.0%
|
78.0%
|
66.0%
|
60.0%
|
40.0%
|
83.6%
|
|
|
$170
|
↑
0.4%
|
52.2%
|
25.0%
|
73.0%
|
67.0%
|
51.0%
|
45.0%
|
58.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification |
No image available |
Perf Chart | |||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$160
|
0.0%
|
$170
|
0.0%
|
$190
|
0.0%
|
$164
|
0.0%
|
$149
|
0.0%
|
$0
|
0.0%
|
$163
|
↓
-0.6%
|
$120
|
0.0%
|
$170
|
↑
0.4%
|
||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | GIGABYTE | MSI | GIGABYTE | GIGABYTE | ASUS | MSI | ASRock | ASUS | ||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B850M / AM5 | B850 / AM5 | B650M / AM5 | B650 / AM5 | B850M / AM5 | AMD B850 / AM5 | B650M / AM5 | B850M / AM5 | B840 / AM5 | ||||||||||||||||||||||||||||||||||||||||||||
| Form | Micro-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 10 (60 A) | 6 (60 A) | 10 (80 A) | 8 (60 A) | 8 (60 A) | 8 (60 A) | 8 (55 A) | 8 (50 A) | 8 (60 A) | ||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 10+2+2 | 6+2+2 | 10+2+1 | 8+2+1 | 8+2+2 | 8 + 2 + 1 | 8+2 | 8+2+1 | 8+2+1 | ||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8200 MHz | 256 GB / 8200 MHz | 256 GB / 7600 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 128 GB / 8400 MHz | 256 GB / 7200 MHz | 256 GB / 8000 MHz | 256 GB / 7600 MHz | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | PCIe 5.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen3 | 1x16 Gen5 | 3x16 Gen3 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x4 Gen4 | 1x16 Gen4 | 2x16 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 2 | 3 | 2 | 3 | 2 | 2 | 2 | 3 | 3 | ||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® ALC897 Codec | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | Realtek ALC897 Audio Codec | Realtek® ALC892/ALC897 | ||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ✔️ | ❌ | ❌ | ✔️ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN (1 ports) | Realtek® GbE LAN chip (1… (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 8125BG 2.5G (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6 | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | ❌ | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.3 | v5.3 | v5.2 / 5.3 | v5.3 | ❌ | v5.3 | v5.2 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
❌ |
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
❌ |
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
-1.3%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
↓
-0.7%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$299
|
0.0%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
0.0%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
↓
-2.1%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$170
|
↓
-5.0%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$140
|
↓
-6.1%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$153
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Graphics:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
(Graphics specifications may vary depending on CPU support.)
Storage:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Expansion Slots:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
USB:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

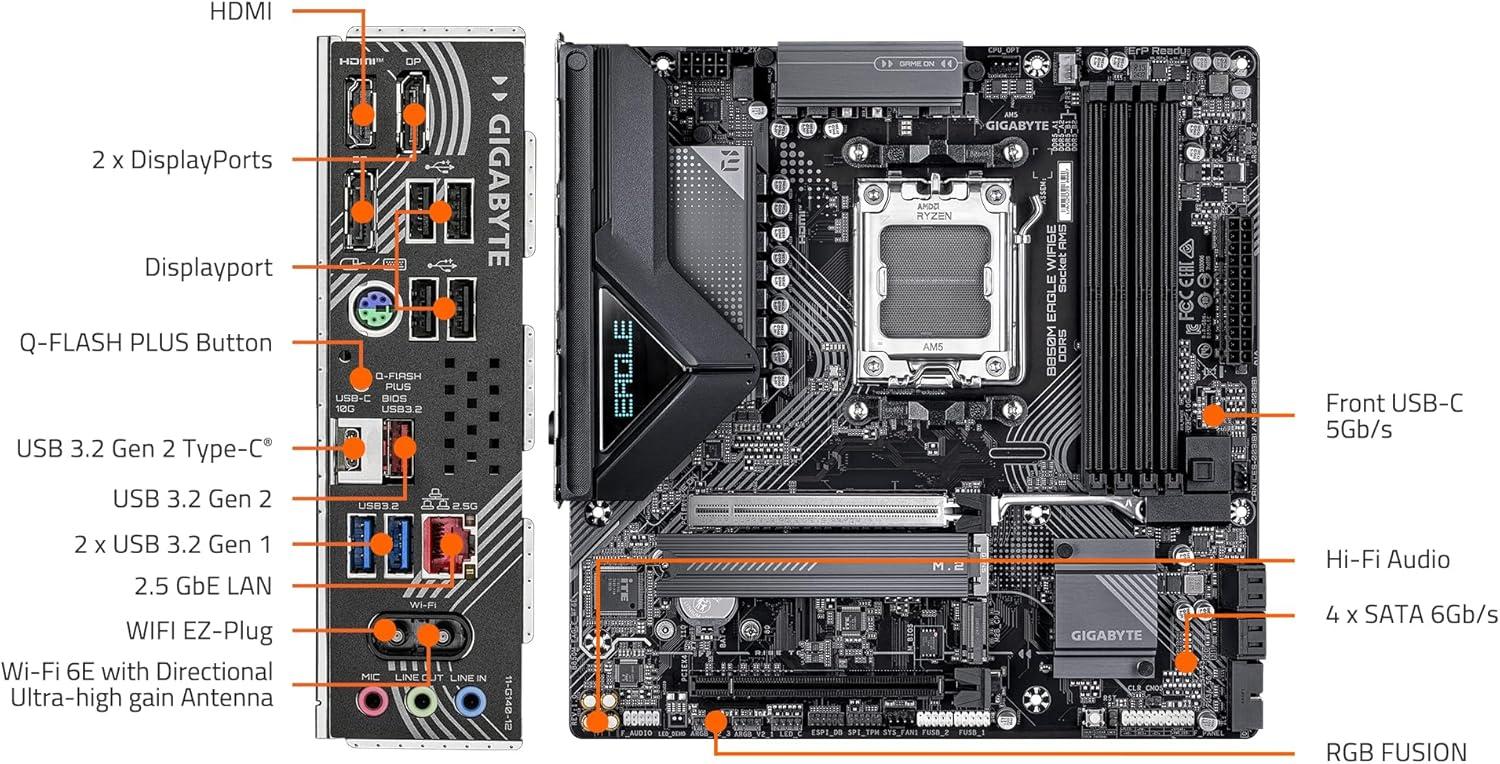

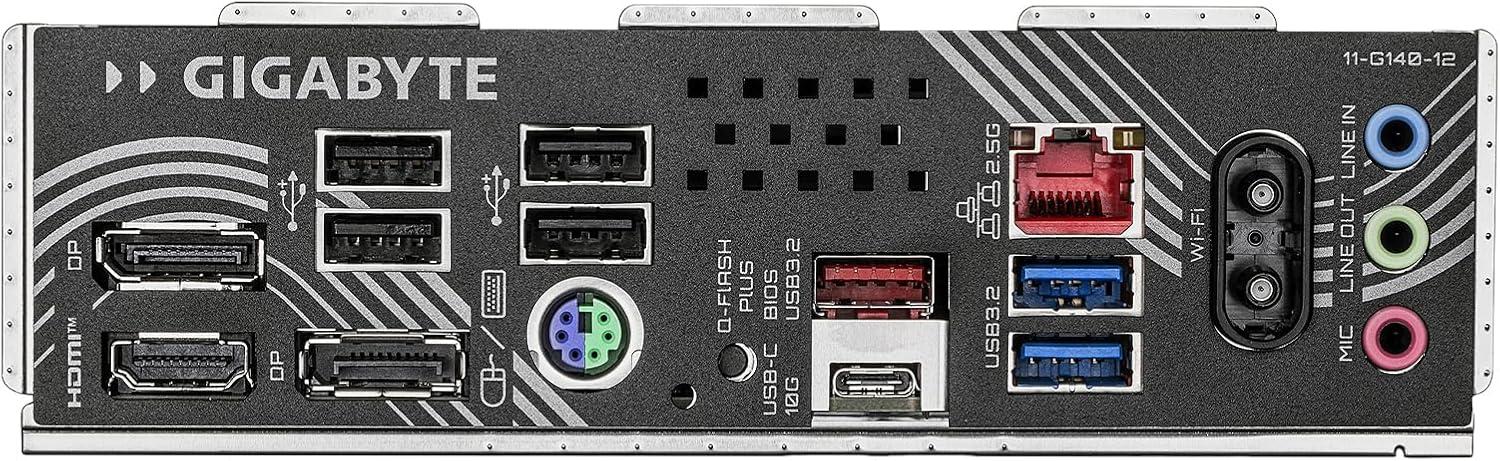

Back Panel I/O:
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks
(Note) Actual support may vary by CPU.
WiFi:
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
