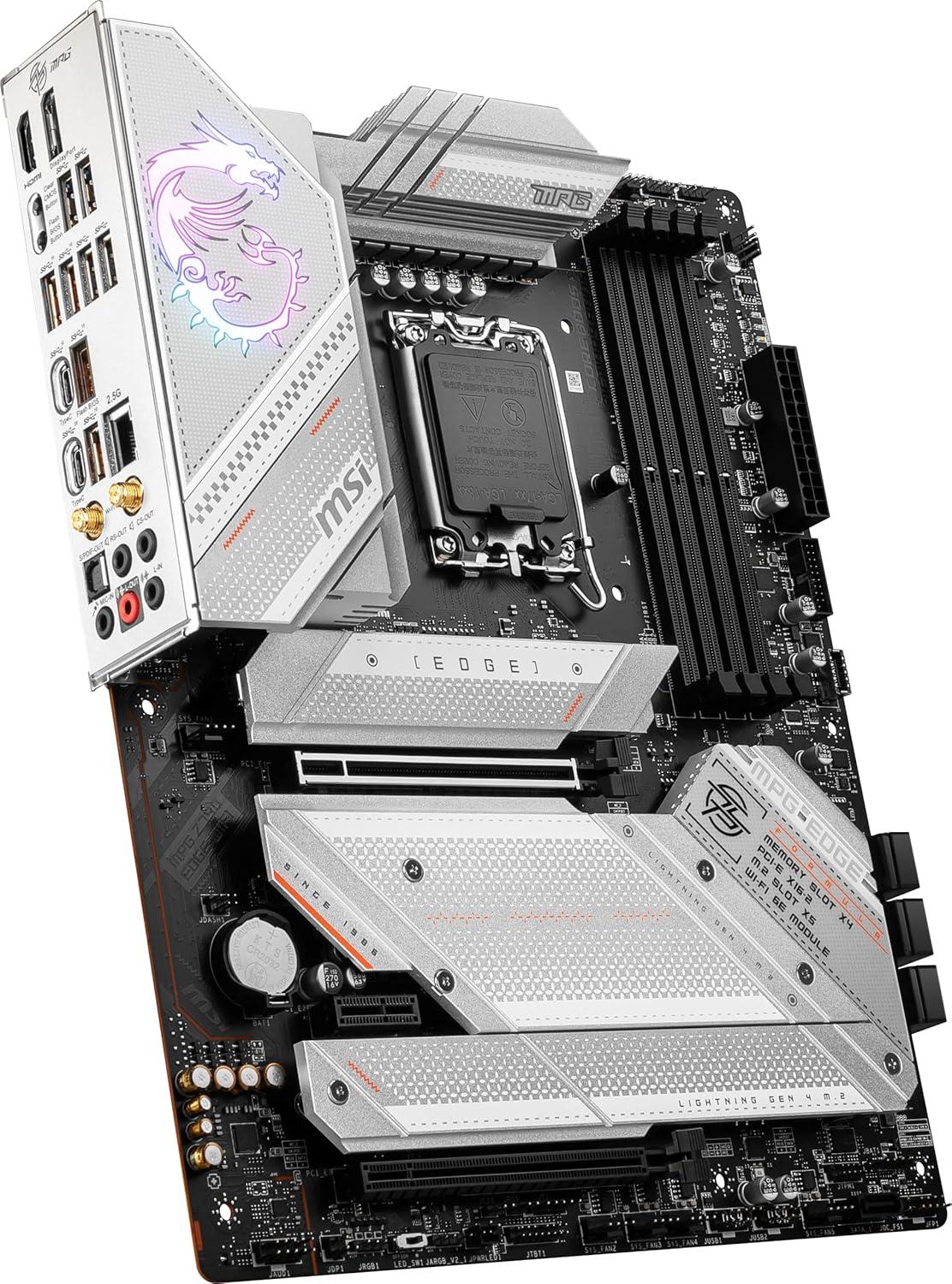

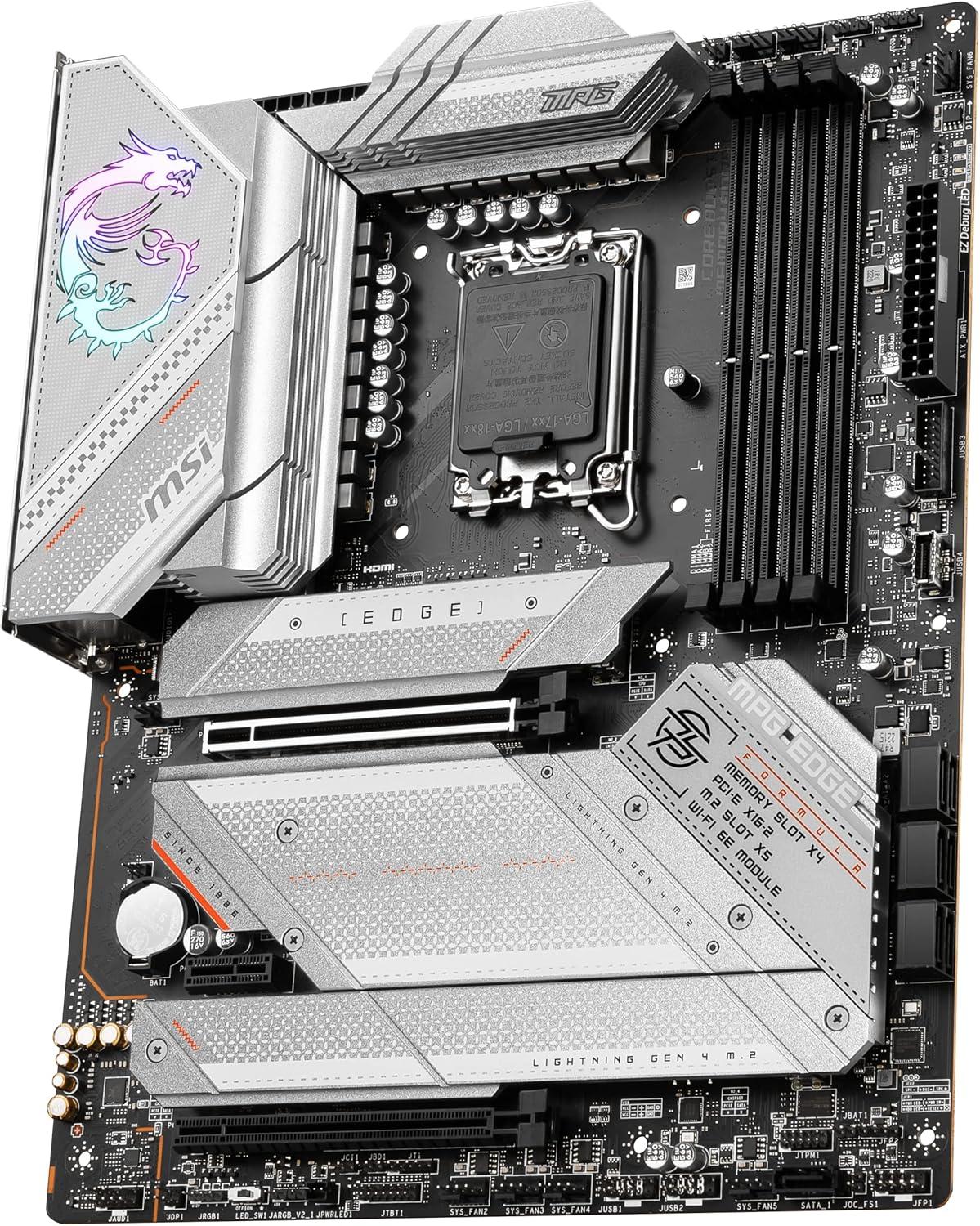

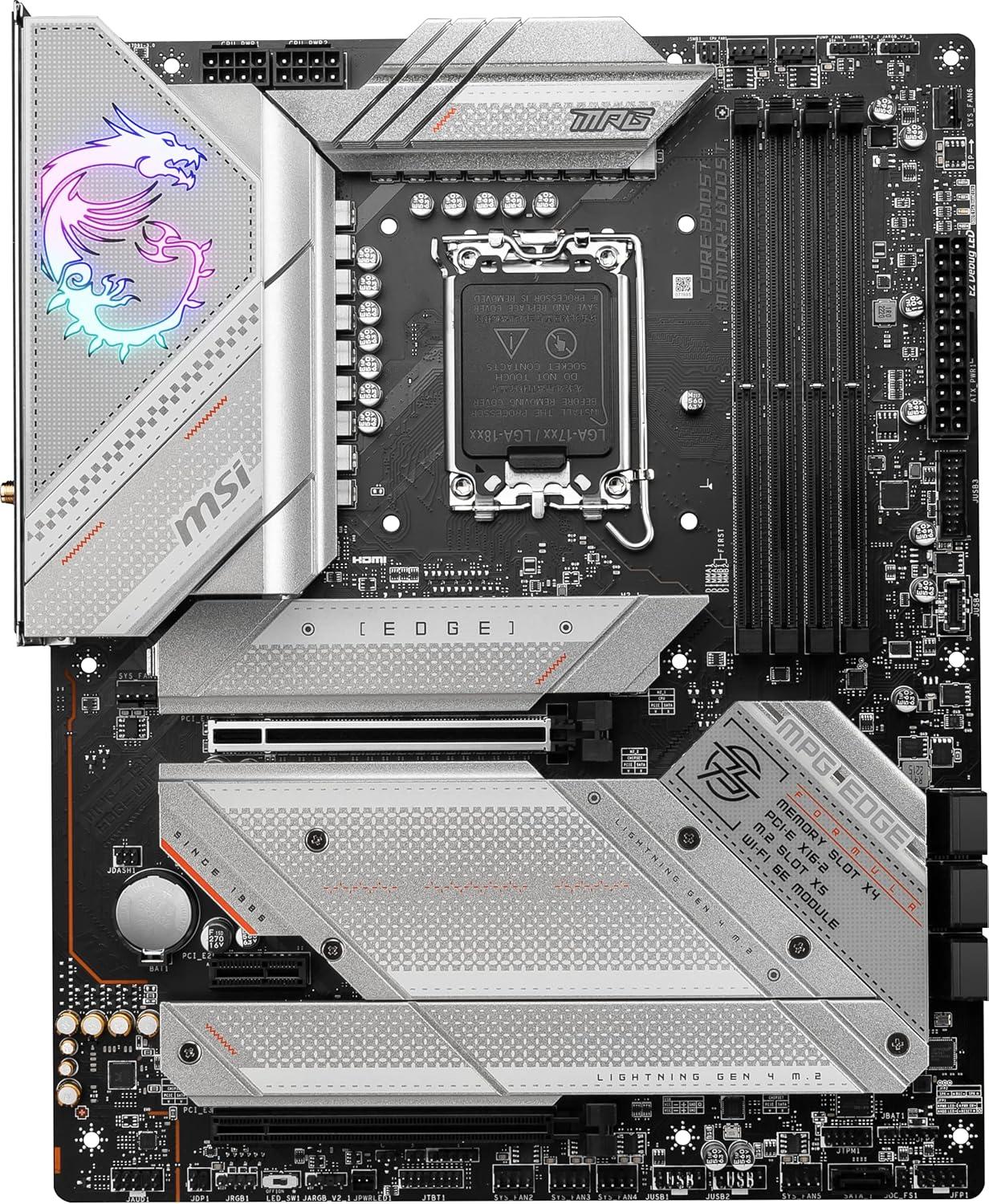

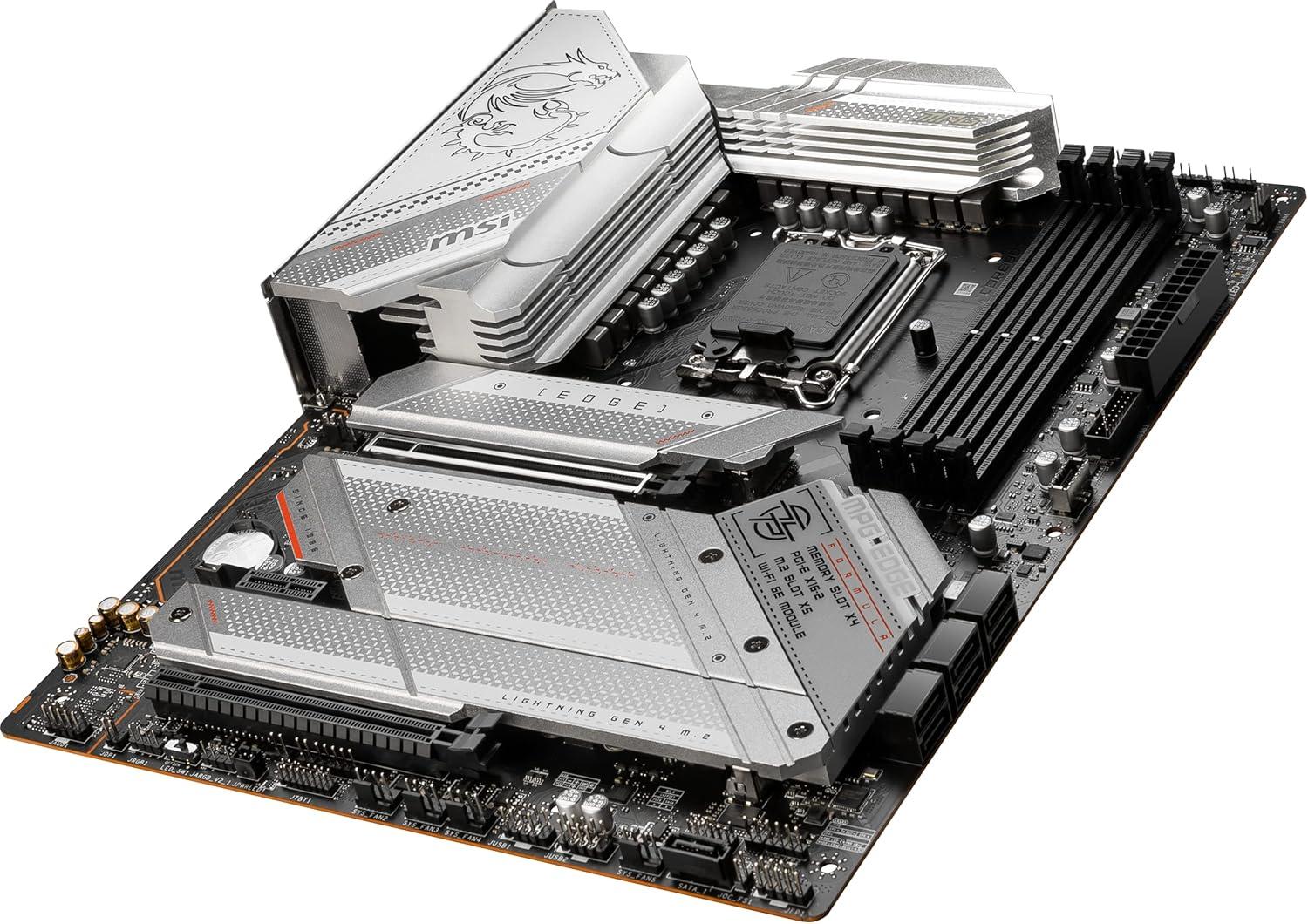

MSI MPG Z790 Edge WiFi Specifications Review
MSI MPG Z790 Edge WiFi by MSI is a Standard-ATX form factor motherboard based on the high-end Z790 chipset and LGA 1700 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 7200 MHz.
VRM Quality
The MSI MPG Z790 Edge WiFi features a high-end VRM setup, supplying 90 A across 16 phases. Capable of handling high-wattage CPUs (200 W+) and supporting moderate to heavy overclocking, while keeping thermals and voltage regulation under control. Well-suited for gaming builds with top-tier CPUs, workstation tasks, and enthusiasts seeking reliable high performance.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MSI MPG Z790 Edge WiFi offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , and 1 x1 slot. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 5 M.2 slots and 7 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 6E standard, and wired Intel® 2.5Gbps LAN ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek® ALC4080 Codec — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
MSI MPG Z790 Edge WiFi is a premium motherboard boasting a high overall quality score of 85.80. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard offers an impressive 109.8% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MSI MPG Z790 Edge WiFi |
| Current Price Amazon | $148 |
| Amazon Price Updated | 1 day, 21 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | Z790 / LGA 1700 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (90 A) |
|---|---|
| Power Design | 16+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 7200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 | Gen3 |
|---|---|---|---|---|
| x16 | 2 | 1 | 1 | 0 |
| x1 | 1 | 0 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 5 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| SATA Ports | 7 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC4080 Codec |
|---|---|
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K 60Hz) |

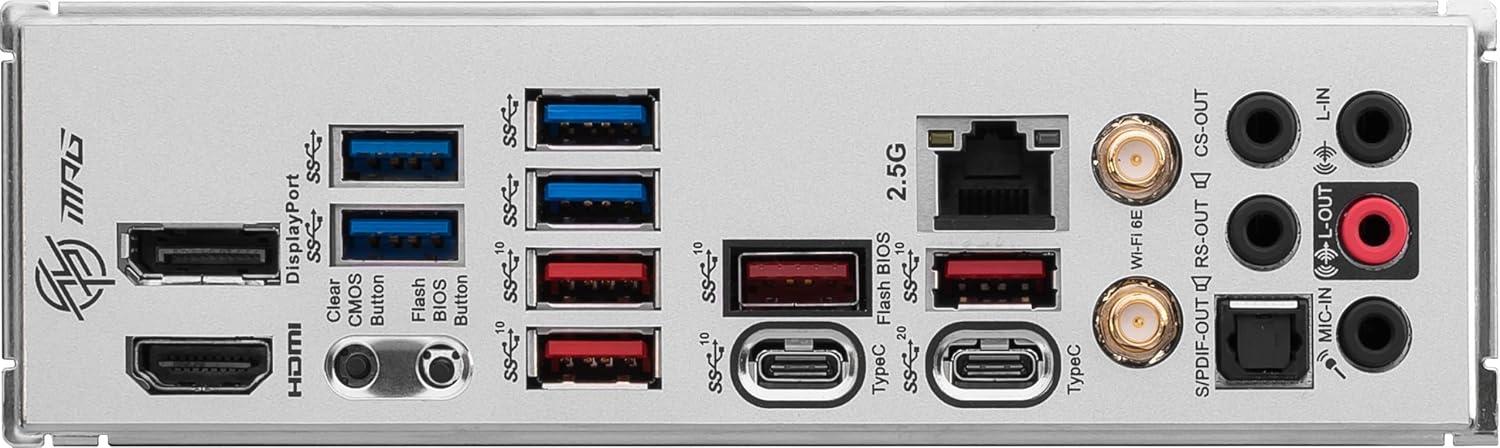

USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 4 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 4 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Intel® 2.5Gbps LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6E Bandwidth: 160MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS |
|---|
Quality & Features
Additional Information
| RAM | Supports Dual-Controller Dual-Channel mode. Supports un-buffered memory. Max overclocking frequency depends on the memory configuration: 1DPC 1R up to 7200+ MHz, 1DPC 2R up to 6600+ MHz, 2DPC 1R up to 6400+ MHz, 2DPC 2R up to 5600+ MHz. |
|---|---|
| Display | Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1-Channel USB High Performance Audio. Supports up to 32-Bit/384 kHz playback on front panel. |
| Networking | The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Buttons | The text lists 'Clear CMOS / Flash BIOS', which may indicate a single button with a dual function. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MSI MPG Z790 Edge WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$650❗
|
↑
68.5%
|
91.6%
|
99.0%
|
94.0%
|
93.0%
|
81.0%
|
91.0%
|
26.8%
|
|
|
$300❗
|
0.0%
|
90.0%
|
74.0%
|
100.0%
|
96.0%
|
89.0%
|
91.0%
|
57.0%
|
|
|
$554❗
|
↑
9.6%
|
86.8%
|
61.0%
|
100.0%
|
96.0%
|
89.0%
|
88.0%
|
29.8%
|
|
|
$356
|
0.0%
|
86.0%
|
71.0%
|
89.0%
|
99.0%
|
83.0%
|
88.0%
|
45.9%
|
|
|
$148
|
0.0%
|
85.8%
|
71.0%
|
99.0%
|
96.0%
|
75.0%
|
88.0%
|
109.8%
|
|
|
$225
|
↑
2.8%
|
85.2%
|
70.0%
|
92.0%
|
103.0%
|
73.0%
|
88.0%
|
71.9%
|
|
|
$180
|
0.0%
|
85.0%
|
71.0%
|
99.0%
|
93.0%
|
77.0%
|
85.0%
|
89.7%
|
|
|
$275
|
↓
-2.3%
|
81.4%
|
55.0%
|
92.0%
|
99.0%
|
80.0%
|
81.0%
|
56.3%
|
|
|
$108
|
↑
2.7%
|
81.0%
|
63.0%
|
94.0%
|
93.0%
|
67.0%
|
88.0%
|
141.9%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$650❗
|
↑
68.5%
|
$300❗
|
0.0%
|
$554❗
|
↑
9.6%
|
$356
|
0.0%
|
$148
|
0.0%
|
$225
|
↑
2.8%
|
$180
|
0.0%
|
$275
|
↓
-2.3%
|
$108
|
↑
2.7%
|
||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | MSI | ASUS | ASUS | MSI | MSI | ASUS | MSI | GIGABYTE | MSI | ||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z790 / LGA 1700 | Z790-F / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790-A / LGA 1700 | ||||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 19 (105 A) | 16 (90 A) | 16 (70 A) | 16 (90 A) | 16 (90 A) | 16 (80 A) | 16 (90 A) | 18 (60 A) | 16 (80 A) | ||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 19+1+1 | 16(90A)+1(90A)+2 | 16+1+2 | 16+1+1 | 16+1 | 16+1 | 16+1+2 | 18+1+2 | 16+1+1 | ||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 7800 MHz | 192 GB / 8000 MHz | 192 GB / 8000 MHz | 192 GB / 7200 MHz | 256 GB / 7200 MHz | 192 GB / 7200 MHz | 256 GB / 7800 MHz | 256 GB / 8266 MHz | 256 GB / 7800 MHz | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 2x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 5 | 5 | 5 | 5 | 5 | 4 | 4 | 5 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 6 | 4 | 4 | 8 | 7 | 4 | 8 | 4 | 6 | ||||||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC4080 Codec | ROG SupremeFX ALC4080 | ALC4080 | Realtek® ALC4080 Codec | Realtek® ALC4080 Codec | Realtek S1220A | Realtek® ALC4080 Codec | Realtek® ALC1220-VB CODEC | Realtek® ALC4080 Codec | ||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||||
| LAN | Intel® 2.5Gbps LAN (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1 x Intel® 2.5Gb Ethernet (2 ports) | Intel® 2.5Gbps LAN (1 ports) | Intel® 2.5Gbps LAN (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | Intel® 2.5Gbps LAN (1 ports) | Realtek® 5GbE LAN chip (… (1 ports) | Intel® 2.5Gbps LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 7 | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.4 | v5.4 | v5.3 | v5.3 | v5.4 | v5.3 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||
| USB Headers |
❌ |
|
|
|
❌ |
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
❌ |
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$474
|
↓
-0.6%
|
83.3%
|
82.0%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.20 GHz / 6.00 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$450
|
↓
-0.1%
|
83.3%
|
82.0%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.20 GHz / 6.00 GHz | Raptor Lake-R | None | |
|
$320
|
0.0%
|
81.0%
|
81.5%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.00 GHz / 5.80 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$270
|
↓
-53.4%
|
81.0%
|
81.5%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.00 GHz / 5.80 GHz | Raptor Lake-S | None | |
|
$371
|
0.0%
|
74.3%
|
81.4%
|
125 W / 253 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 3.40 GHz / 5.60 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$540
|
0.0%
|
74.3%
|
81.4%
|
125 W / 253 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 3.40 GHz / 5.60 GHz | Raptor Lake-R | None | |
|
$633
|
0.0%
|
70.1%
|
80.7%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.80 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$561
|
0.0%
|
70.1%
|
80.7%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.80 GHz | Raptor Lake-R | None | |
|
$640
|
↑
11.1%
|
68.0%
|
81.0%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.60 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$400
|
0.0%
|
68.0%
|
81.0%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.60 GHz | Raptor Lake-S | None | |
|
$400
|
↓
-11.1%
|
66.4%
|
80.6%
|
125 W / 253 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 3.40 GHz / 5.40 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$379
|
0.0%
|
66.4%
|
80.6%
|
125 W / 253 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 3.40 GHz / 5.40 GHz | Raptor Lake-S | None | |
|
$379
|
0.0%
|
65.6%
|
81.1%
|
65 W / 219 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 2.10 GHz / 5.40 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$290
|
↑
3.6%
|
65.6%
|
81.1%
|
65 W / 219 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 2.10 GHz / 5.40 GHz | Raptor Lake-R | None | |
|
$430
|
0.0%
|
60.5%
|
76.2%
|
125 W / 241 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 3.20 GHz / 5.20 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$344
|
0.0%
|
60.5%
|
76.2%
|
125 W / 241 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 3.20 GHz / 5.20 GHz | Alder Lake-S | None | |
|
$400
|
0.0%
|
58.8%
|
79.9%
|
65 W / 219 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 2.10 GHz / 5.20 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$399
|
0.0%
|
58.8%
|
79.9%
|
65 W / 219 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 2.10 GHz / 5.20 GHz | Raptor Lake-S | None | |
|
$262❗
|
↑
5.6%
|
55.4%
|
78.9%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.30 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$250❗
|
↓
-1.0%
|
55.4%
|
78.9%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.30 GHz | Raptor Lake-R | None | |
|
$380❗
|
↓
-10.6%
|
54.1%
|
72.4%
|
65 W / 202 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 2.40 GHz / 5.10 GHz | Alder Lake-S | None | |
|
$696
|
0.0%
|
54.1%
|
72.4%
|
65 W / 202 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 2.40 GHz / 5.10 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$268
|
0.0%
|
52.3%
|
76.8%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$268
|
0.0%
|
52.3%
|
76.8%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Raptor Lake-S | None | |
|
$334
|
↓
-1.6%
|
50.9%
|
73.9%
|
125 W / 190 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 3.60 GHz / 5.00 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$273
|
↑
1.8%
|
50.9%
|
73.9%
|
125 W / 190 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 3.60 GHz / 5.00 GHz | Alder Lake-S | None | |
|
$375
|
0.0%
|
50.5%
|
76.8%
|
65 W / 154 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 2.70 GHz / 5.20 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$280
|
0.0%
|
47.8%
|
75.0%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.60 GHz / 5.00 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$268
|
0.0%
|
47.7%
|
74.7%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.70 GHz / 5.00 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$405
|
↑
44.7%
|
45.6%
|
73.0%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.50 GHz / 4.80 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$448
|
↓
-0.3%
|
43.0%
|
72.7%
|
65 W / 180 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 2.10 GHz / 4.90 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$327
|
↓
-2.7%
|
43.0%
|
72.7%
|
65 W / 180 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 2.10 GHz / 4.90 GHz | Alder Lake-S | None | |
|
$191
|
↓
-5.4%
|
40.4%
|
68.3%
|
125 W / 150 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 3.70 GHz / 4.90 GHz | Alder Lake-S | None | |
|
$203❗
|
↑
13.4%
|
40.4%
|
68.3%
|
125 W / 150 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 3.70 GHz / 4.90 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$212
|
↓
-1.5%
|
36.1%
|
64.8%
|
65 W / 154 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.70 GHz | Raptor Lake-R | UHD Graphics 730 | |
|
$188
|
↓
-4.1%
|
36.1%
|
64.8%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.70 GHz | Raptor Lake-R | None | |
|
$387
|
↑
0.8%
|
35.0%
|
64.0%
|
65 W / 154 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.60 GHz | Raptor Lake-S | UHD Graphics 730 | |
|
$234
|
0.0%
|
35.0%
|
64.0%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.60 GHz | Raptor Lake-S | None | |
|
$268
|
0.0%
|
33.9%
|
63.7%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.30 GHz / 4.80 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$210
|
0.0%
|
32.3%
|
62.5%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.00 GHz / 4.60 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$165
|
↓
-0.3%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | None | |
|
$248
|
↑
0.2%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | UHD Graphics 730 | |
|
$250
|
↑
38.9%
|
22.9%
|
57.1%
|
60 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | UHD Graphics 730 | |
|
$115❗
|
0.0%
|
22.9%
|
57.1%
|
58 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | None |
Official Manufacturer Data
Memory:
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Graphics:
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage:
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
7x SATA 6G
Expansion Slots:
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
USB:
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Internal I/O:
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Back Panel I/O:
USB 5 Gbps (Type-A)
USB 10Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Clear CMOS / Flash BIOS
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 20Gbps (Type-C)
Optical S/PDIF Out
WiFi:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio:
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Add Comment on MSI MPG Z790 Edge WiFi
