MSI PRO Z790-A MAX WiFi
MSI PRO Z790-A MAX WiFi Specifications Review

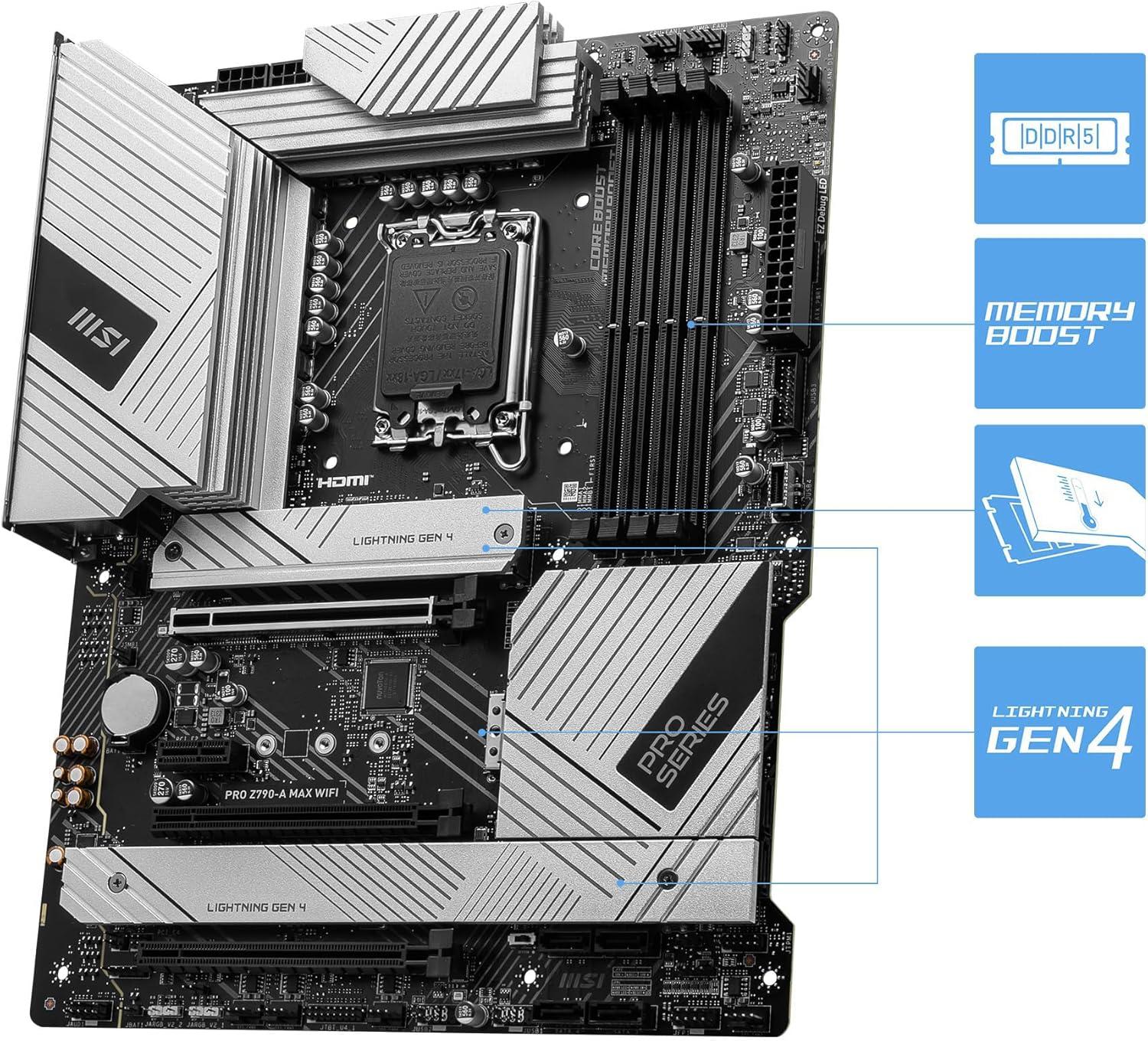

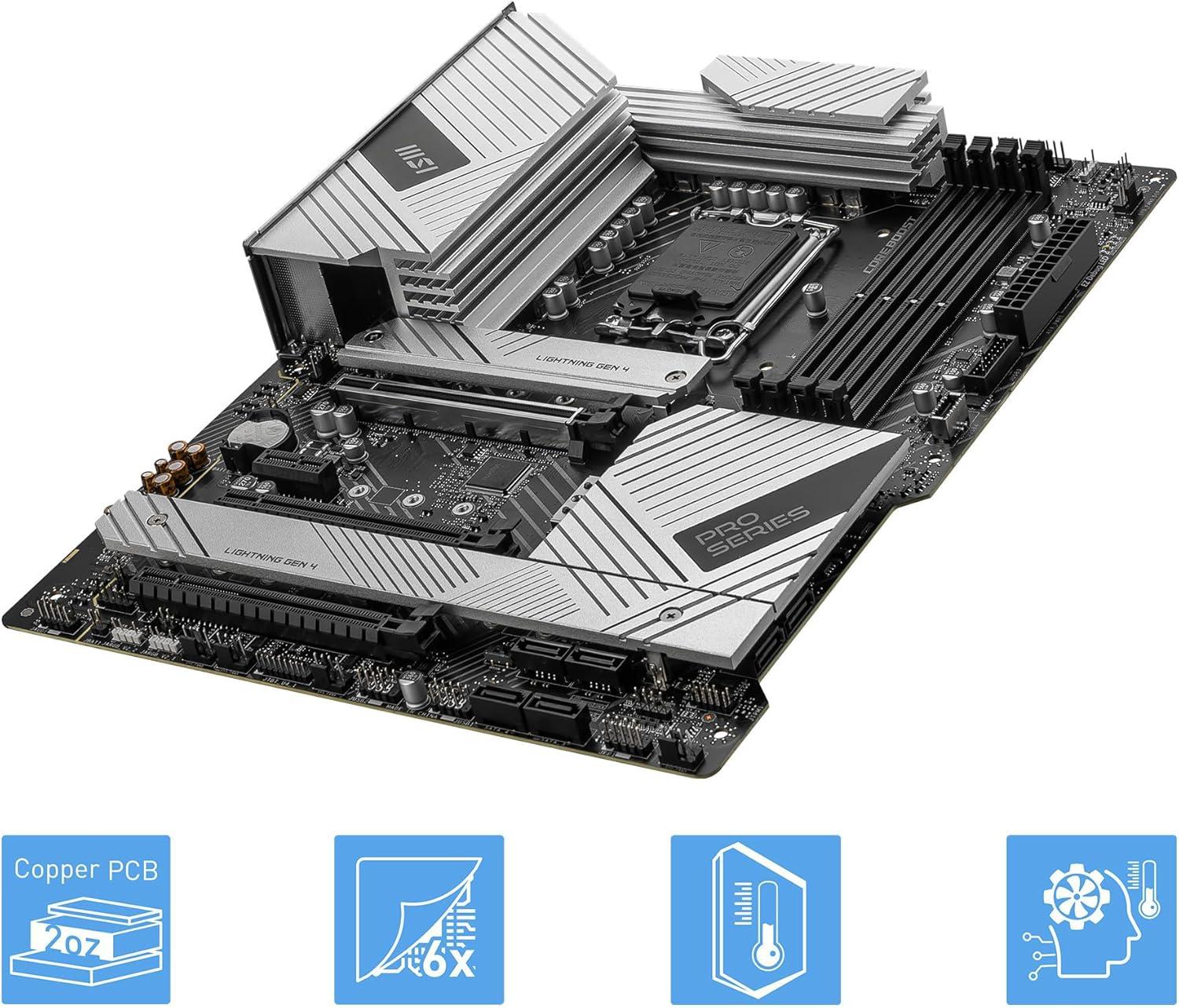

MSI PRO Z790-A MAX WiFi by MSI is a Standard-ATX form factor motherboard based on the high-end Z790-A chipset and LGA 1700 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 7800 MHz.
VRM Quality
The MSI PRO Z790-A MAX WiFi includes an upper mid-range VRM configuration, delivering 80 A through 16 phases. This tier comfortably supports CPUs in the ~170 W TDP range and can run high-wattage CPUs at stock settings, though sustained heavy overclocking may reduce stability. A good choice for performance-oriented gamers and productivity users who don’t require extreme tuning.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MSI PRO Z790-A MAX WiFi offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 3 x16 slots , and 1 x1 slot. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 6 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the Wi-Fi 7 standard, and wired Intel® 2.5Gbps LAN ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.4 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek® ALC4080 Codec — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
MSI PRO Z790-A MAX WiFi is a premium motherboard boasting a high overall quality score of 81.00. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard offers an impressive 141.9% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MSI PRO Z790-A MAX WiFi |
| Current Price Amazon | $108 |
| Amazon Price Updated | 1 day, 22 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | Z790-A / LGA 1700 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (80 A) |
|---|---|
| Power Design | 16+1+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 7800 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 | Gen3 |
|---|---|---|---|---|
| x16 | 3 | 1 | 1 | 1 |
| x1 | 1 | 0 | 0 | 1 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| SATA Ports | 6 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC4080 Codec |
|---|---|
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K 60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K 60Hz) |

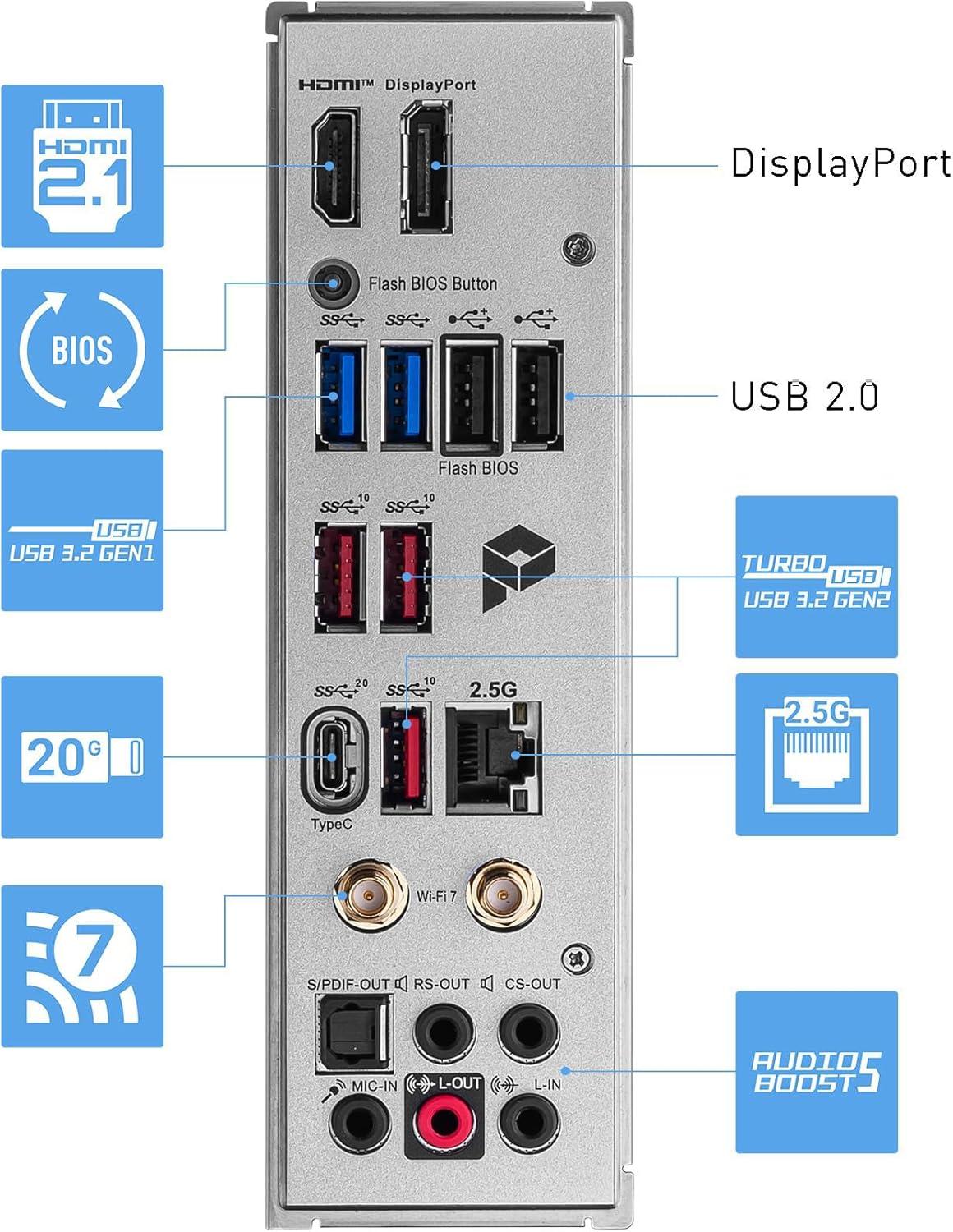

USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-A (10 Gbps) | 3 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
| USB 3.2 Gen 2 Header (10 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Intel® 2.5Gbps LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 320MHz Frequency Bands: ['2.4GHz', '5GHz', '6GHz'] |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Supports non-ECC, un-buffered memory. The maximum overclocking frequency varies by configuration: 1DPC 1R up to 7800+ MHz, 1DPC 2R up to 6600+ MHz, 2DPC 1R up to 6400+ MHz, and 2DPC 2R up to 5600+ MHz. |
|---|---|
| Display | HDMI supports HDR. Video outputs are available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset). PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset). PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset). |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1-Channel USB High Performance Audio |
| Networking | The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, up to 5.8Gbps. Supports 802.11 a/ b/ g/ n/ ac/ ax/ be. Supports MLO, 4KQAM. 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MSI PRO Z790-A MAX WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$554❗
|
↑
9.6%
|
86.8%
|
61.0%
|
100.0%
|
96.0%
|
89.0%
|
88.0%
|
29.8%
|
|
|
$356
|
0.0%
|
86.0%
|
71.0%
|
89.0%
|
99.0%
|
83.0%
|
88.0%
|
45.9%
|
|
|
$148
|
0.0%
|
85.8%
|
71.0%
|
99.0%
|
96.0%
|
75.0%
|
88.0%
|
109.8%
|
|
|
$225
|
↑
2.8%
|
85.2%
|
70.0%
|
92.0%
|
103.0%
|
73.0%
|
88.0%
|
71.9%
|
|
|
$180
|
0.0%
|
85.0%
|
71.0%
|
99.0%
|
93.0%
|
77.0%
|
85.0%
|
89.7%
|
|
|
$275
|
↓
-2.3%
|
81.4%
|
55.0%
|
92.0%
|
99.0%
|
80.0%
|
81.0%
|
56.3%
|
|
|
$108
|
↑
2.7%
|
81.0%
|
63.0%
|
94.0%
|
93.0%
|
67.0%
|
88.0%
|
141.9%
|
|
|
$440
|
↑
186.5%
|
79.4%
|
53.0%
|
92.0%
|
103.0%
|
67.0%
|
82.0%
|
34.3%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | |||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$554❗
|
↑
9.6%
|
$356
|
0.0%
|
$148
|
0.0%
|
$225
|
↑
2.8%
|
$180
|
0.0%
|
$275
|
↓
-2.3%
|
$108
|
↑
2.7%
|
$440
|
↑
186.5%
|
||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | MSI | MSI | ASUS | MSI | GIGABYTE | MSI | ASUS | ||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790-A / LGA 1700 | Z790-A / LGA 1700 | ||||||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (70 A) | 16 (90 A) | 16 (90 A) | 16 (80 A) | 16 (90 A) | 18 (60 A) | 16 (80 A) | 16 (60 A) | ||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 16+1+2 | 16+1+1 | 16+1 | 16+1 | 16+1+2 | 18+1+2 | 16+1+1 | 16+1+1 | ||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 192 GB / 8000 MHz | 192 GB / 7200 MHz | 256 GB / 7200 MHz | 192 GB / 7200 MHz | 256 GB / 7800 MHz | 256 GB / 8266 MHz | 256 GB / 7800 MHz | 192 GB / 7200 MHz | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 2x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 2x1 Gen3 | ||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 5 | 5 | 5 | 4 | 4 | 5 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 8 | 7 | 4 | 8 | 4 | 6 | 4 | ||||||||||||||||||||||||||||||||||||||||||||
| Audio | ALC4080 | Realtek® ALC4080 Codec | Realtek® ALC4080 Codec | Realtek S1220A | Realtek® ALC4080 Codec | Realtek® ALC1220-VB CODEC | Realtek® ALC4080 Codec | Realtek S1220A | ||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ❌ | ||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||||
| LAN | 1 x Intel® 2.5Gb Ethernet (2 ports) | Intel® 2.5Gbps LAN (1 ports) | Intel® 2.5Gbps LAN (1 ports) | Realtek 2.5Gb Ethernet (1 ports) | Intel® 2.5Gbps LAN (1 ports) | Realtek® 5GbE LAN chip (… (1 ports) | Intel® 2.5Gbps LAN (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | v5.3 | v5.3 | v5.4 | v5.3 | v5.4 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
❌ |
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
❌ |
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$474
|
↓
-0.6%
|
83.3%
|
82.0%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.20 GHz / 6.00 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$450
|
↓
-0.1%
|
83.3%
|
82.0%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.20 GHz / 6.00 GHz | Raptor Lake-R | None | |
|
$320
|
0.0%
|
81.0%
|
81.5%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.00 GHz / 5.80 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$270
|
↓
-53.4%
|
81.0%
|
81.5%
|
125 W / 253 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 3.00 GHz / 5.80 GHz | Raptor Lake-S | None | |
|
$371
|
0.0%
|
74.3%
|
81.4%
|
125 W / 253 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 3.40 GHz / 5.60 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$540
|
0.0%
|
74.3%
|
81.4%
|
125 W / 253 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 3.40 GHz / 5.60 GHz | Raptor Lake-R | None | |
|
$633
|
0.0%
|
70.1%
|
80.7%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.80 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$561
|
0.0%
|
70.1%
|
80.7%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.80 GHz | Raptor Lake-R | None | |
|
$640
|
↑
11.1%
|
68.0%
|
81.0%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.60 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$400
|
0.0%
|
68.0%
|
81.0%
|
65 W / 219 W | 24 / 16 / 32 | 2048.0 kB / 36.0 MB | 2.00 GHz / 5.60 GHz | Raptor Lake-S | None | |
|
$400
|
↓
-11.1%
|
66.4%
|
80.6%
|
125 W / 253 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 3.40 GHz / 5.40 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$379
|
0.0%
|
66.4%
|
80.6%
|
125 W / 253 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 3.40 GHz / 5.40 GHz | Raptor Lake-S | None | |
|
$379
|
0.0%
|
65.6%
|
81.1%
|
65 W / 219 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 2.10 GHz / 5.40 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$290
|
↑
3.6%
|
65.6%
|
81.1%
|
65 W / 219 W | 20 / 12 / 28 | 2048.0 kB / 33.0 MB | 2.10 GHz / 5.40 GHz | Raptor Lake-R | None | |
|
$430
|
0.0%
|
60.5%
|
76.2%
|
125 W / 241 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 3.20 GHz / 5.20 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$344
|
0.0%
|
60.5%
|
76.2%
|
125 W / 241 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 3.20 GHz / 5.20 GHz | Alder Lake-S | None | |
|
$400
|
0.0%
|
58.8%
|
79.9%
|
65 W / 219 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 2.10 GHz / 5.20 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$399
|
0.0%
|
58.8%
|
79.9%
|
65 W / 219 W | 16 / 8 / 24 | 2048.0 kB / 30.0 MB | 2.10 GHz / 5.20 GHz | Raptor Lake-S | None | |
|
$262❗
|
↑
5.6%
|
55.4%
|
78.9%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.30 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$250❗
|
↓
-1.0%
|
55.4%
|
78.9%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.30 GHz | Raptor Lake-R | None | |
|
$380❗
|
↓
-10.6%
|
54.1%
|
72.4%
|
65 W / 202 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 2.40 GHz / 5.10 GHz | Alder Lake-S | None | |
|
$696
|
0.0%
|
54.1%
|
72.4%
|
65 W / 202 W | 16 / 8 / 24 | 1280.0 kB / 30.0 MB | 2.40 GHz / 5.10 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$268
|
0.0%
|
52.3%
|
76.8%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$268
|
0.0%
|
52.3%
|
76.8%
|
125 W / 181 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Raptor Lake-S | None | |
|
$334
|
↓
-1.6%
|
50.9%
|
73.9%
|
125 W / 190 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 3.60 GHz / 5.00 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$273
|
↑
1.8%
|
50.9%
|
73.9%
|
125 W / 190 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 3.60 GHz / 5.00 GHz | Alder Lake-S | None | |
|
$375
|
0.0%
|
50.5%
|
76.8%
|
65 W / 154 W | 14 / 8 / 20 | 2048.0 kB / 24.0 MB | 2.70 GHz / 5.20 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$280
|
0.0%
|
47.8%
|
75.0%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.60 GHz / 5.00 GHz | Raptor Lake-R | UHD Graphics 770 | |
|
$268
|
0.0%
|
47.7%
|
74.7%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.70 GHz / 5.00 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$405
|
↑
44.7%
|
45.6%
|
73.0%
|
65 W / 154 W | 14 / 8 / 20 | 1280.0 kB / 24.0 MB | 2.50 GHz / 4.80 GHz | Raptor Lake-S | UHD Graphics 770 | |
|
$448
|
↓
-0.3%
|
43.0%
|
72.7%
|
65 W / 180 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 2.10 GHz / 4.90 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$327
|
↓
-2.7%
|
43.0%
|
72.7%
|
65 W / 180 W | 12 / 4 / 20 | 1280.0 kB / 25.0 MB | 2.10 GHz / 4.90 GHz | Alder Lake-S | None | |
|
$191
|
↓
-5.4%
|
40.4%
|
68.3%
|
125 W / 150 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 3.70 GHz / 4.90 GHz | Alder Lake-S | None | |
|
$203❗
|
↑
13.4%
|
40.4%
|
68.3%
|
125 W / 150 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 3.70 GHz / 4.90 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$212
|
↓
-1.5%
|
36.1%
|
64.8%
|
65 W / 154 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.70 GHz | Raptor Lake-R | UHD Graphics 730 | |
|
$188
|
↓
-4.1%
|
36.1%
|
64.8%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.70 GHz | Raptor Lake-R | None | |
|
$387
|
↑
0.8%
|
35.0%
|
64.0%
|
65 W / 154 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.60 GHz | Raptor Lake-S | UHD Graphics 730 | |
|
$234
|
0.0%
|
35.0%
|
64.0%
|
65 W / 148 W | 10 / 4 / 16 | 1280.0 kB / 20.0 MB | 2.50 GHz / 4.60 GHz | Raptor Lake-S | None | |
|
$268
|
0.0%
|
33.9%
|
63.7%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.30 GHz / 4.80 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$210
|
0.0%
|
32.3%
|
62.5%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.00 GHz / 4.60 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$165
|
↓
-0.3%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | None | |
|
$248
|
↑
0.2%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | UHD Graphics 730 | |
|
$250
|
↑
38.9%
|
22.9%
|
57.1%
|
60 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | UHD Graphics 730 | |
|
$115❗
|
0.0%
|
22.9%
|
57.1%
|
58 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | None | |
|
$94
|
↓
-27.8%
|
22.2%
|
56.7%
|
58 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.40 GHz / 4.50 GHz | Raptor Lake-S | None | |
|
$94
|
↓
-27.8%
|
22.2%
|
56.7%
|
60 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.40 GHz / 4.50 GHz | Raptor Lake-S | UHD Graphics 730 | |
|
$135
|
0.0%
|
21.3%
|
53.0%
|
58 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.30 GHz / 4.30 GHz | Alder Lake-S | None | |
|
$275
|
↑
63.6%
|
21.3%
|
53.0%
|
60 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.30 GHz / 4.30 GHz | Alder Lake-S | UHD Graphics 730 |
Official Manufacturer Data
Memory:
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Graphics:
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed
Storage:
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G
Expansion Slots:
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
USB:
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Internal I/O:
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Back Panel I/O:
USB 2.0
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Flash BIOS Button
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
S/PDIF-OUT
WiFi:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Audio:
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Add Comment on MSI PRO Z790-A MAX WiFi
