ASUS ROG Strix B760-I Gaming
ASUS ROG Strix B760-I Gaming Specifications Review

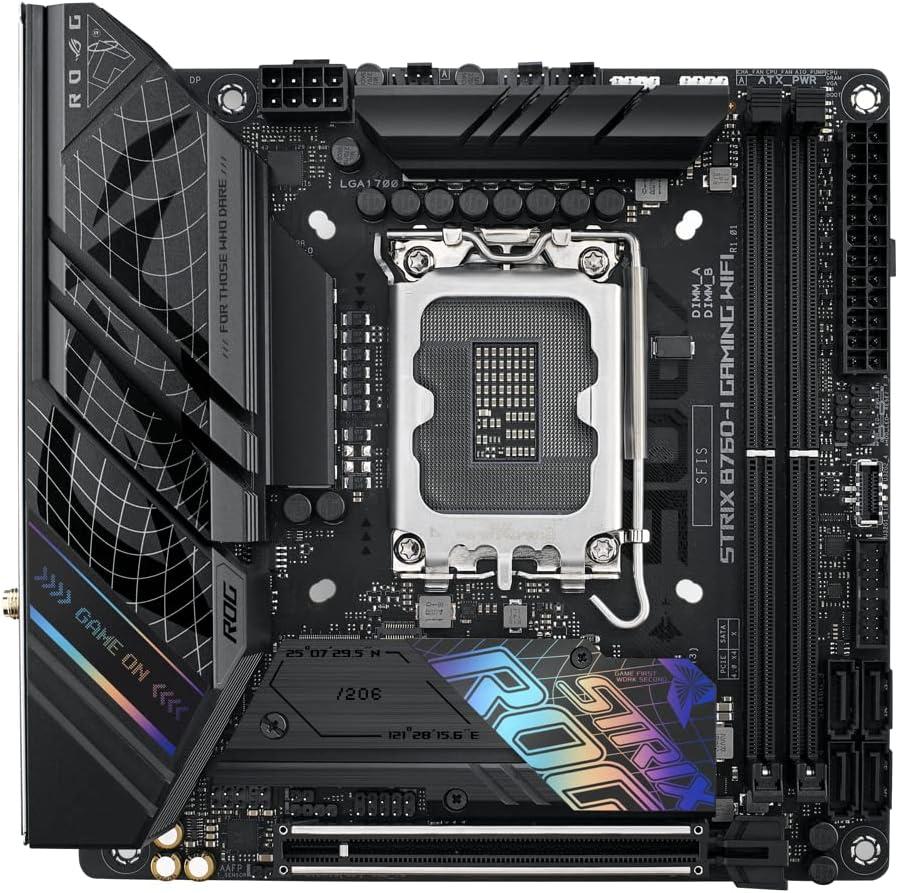

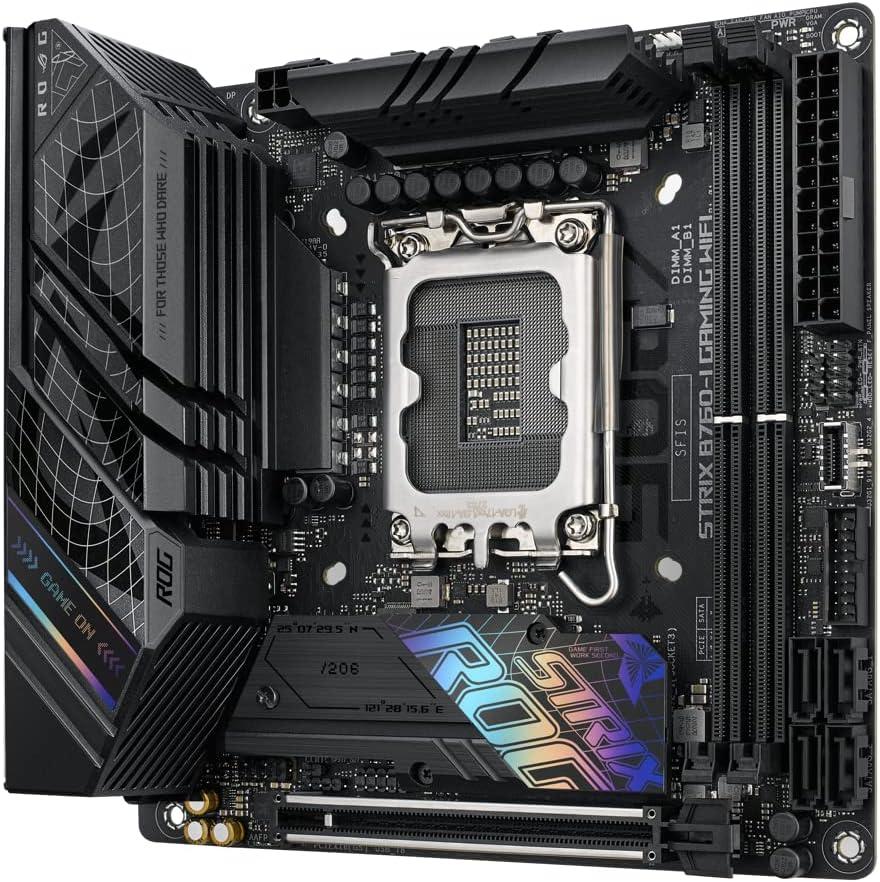

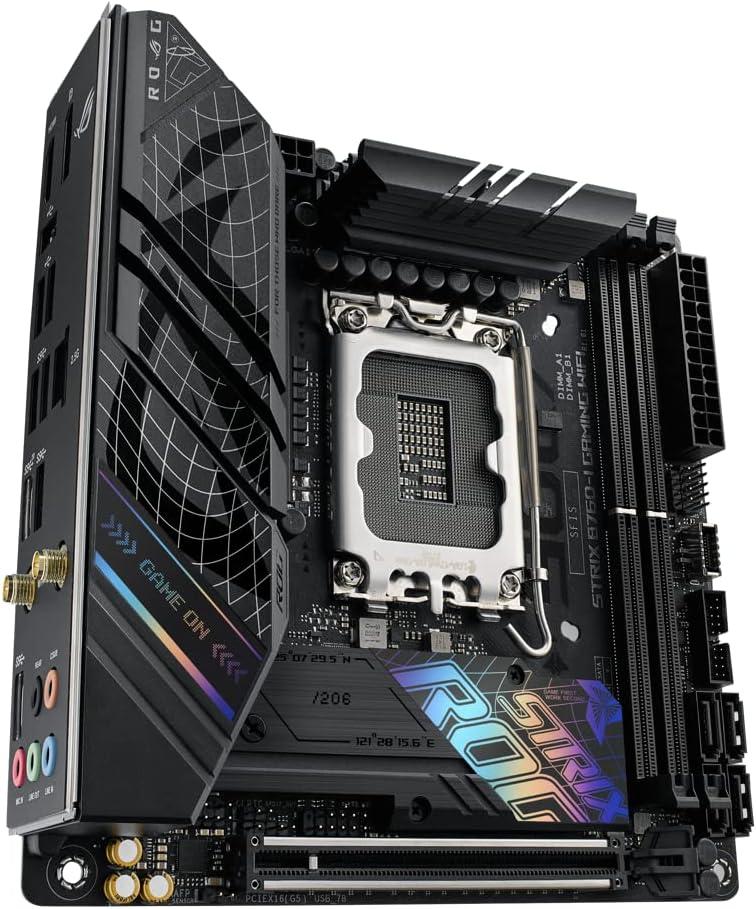

ASUS ROG Strix B760-I Gaming by ASUS is a Mini-ITX form factor motherboard based on the mid-range B760I chipset and LGA 1700 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 96 GB, and an overclocking speed of up to 7600 MHz.
VRM Quality
The ASUS ROG Strix B760-I Gaming comes with an entry-level VRM setup, delivering 80 A across 8 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASUS ROG Strix B760-I Gaming offers a balanced expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 1 x16 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the Wi-Fi 6E standard, and wired Intel® 2.5Gb Ethernet ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the ROG SupremeFX S1220A — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include multiple audio jacks (5) for flexible connectivity.
Overall Quality and Value
ASUS ROG Strix B760-I Gaming is a dependable choice with a respectable overall quality score of 59.80. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard shows a 36.8% value score indicating less favorable price-to-performance compared to mainstream models. For budget-conscious buyers, there may be better value options available at this price point.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS ROG Strix B760-I Gaming |
| Current Price Amazon | $308 |
| Amazon Price Updated | 2 hours, 1 minute ago. |
| Motherboard Available | True |
| Chipset / Socket | B760I / LGA 1700 |
| Form Factor | Mini-ITX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (80 A) |
|---|---|
| Power Design | 8+1+2 |
Memory Information
| Type / Slots | DDR5 / 2 slots |
|---|---|
| Max Capacity / Max OC | 96 GB / 7600 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 |
|---|---|---|
| x16 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2242, 2260, 2280 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | ROG SupremeFX S1220A |
|---|---|
| Analog Audio Jacks | 5 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 4K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 3 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 3 |
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: Intel® 2.5Gb Ethernet LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6E Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
|---|
Quality & Features
Additional Information
| RAM | Supports Un-buffered Memory. Features OptiMem II. Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. Refer to the official website for the Memory QVL (Qualified Vendors Lists). |
|---|---|
| Display | Graphics specifications may vary between CPU types. |
| Expansion | The PCIe 5.0 x16 slot is provided by the CPU (Intel 12th/13th/14th Gen). |
| Storage |
M.2 Slot Details:
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio | Features SupremeFX Shielding Technology, Savitech SV3H712 AMP, and premium audio capacitors. Supports impedance sense for front and rear headphone outputs, jack-detection, multi-streaming, and front panel jack-retasking. High quality 120 dB SNR stereo playback output and 113 dB SNR recording input. Supports up to 32-Bit/192 kHz playback, but not for 7.1 Surround Sound audio. |
| Networking | WiFi 6E 6GHz regulatory may vary between countries. |
| Buttons | The motherboard includes a Clear CMOS header, but not a dedicated button. |
| Dimensions | 17 cm x 17 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS ROG Strix B760-I Gaming Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$200
|
0.0%
|
67.4%
|
48.0%
|
92.0%
|
105.0%
|
52.0%
|
40.0%
|
64.0%
|
|
|
$387❗
|
↑
69.6%
|
67.4%
|
40.0%
|
94.0%
|
93.0%
|
67.0%
|
43.0%
|
33.1%
|
|
|
$130
|
0.0%
|
66.4%
|
40.0%
|
94.0%
|
93.0%
|
65.0%
|
40.0%
|
97.1%
|
|
|
$170
|
0.0%
|
65.2%
|
37.0%
|
92.0%
|
93.0%
|
56.0%
|
48.0%
|
72.9%
|
|
|
$308
|
↑
0.8%
|
59.8%
|
32.0%
|
67.0%
|
56.0%
|
59.0%
|
85.0%
|
36.8%
|
|
|
$92❗
|
0.0%
|
59.6%
|
40.0%
|
86.0%
|
83.0%
|
49.0%
|
40.0%
|
122.5%
|
|
|
$130
|
0.0%
|
58.2%
|
34.0%
|
89.0%
|
65.0%
|
60.0%
|
43.0%
|
85.1%
|
|
|
$144❗
|
0.0%
|
57.4%
|
43.0%
|
65.0%
|
69.0%
|
67.0%
|
43.0%
|
76.0%
|
|
|
$443
|
0.0%
|
57.0%
|
43.0%
|
70.0%
|
66.0%
|
63.0%
|
43.0%
|
24.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$200
|
0.0%
|
$387❗
|
↑
69.6%
|
$130
|
0.0%
|
$170
|
0.0%
|
$308
|
↑
0.8%
|
$92❗
|
0.0%
|
$130
|
0.0%
|
$144❗
|
0.0%
|
$443
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | MSI | MSI | GIGABYTE | ASUS | MSI COMPUTER | MSI | MSI | ZXKLXYY | ||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | Z790 / LGA 1700 | B760I / LGA 1700 | Z690-A / LGA 1700 | Z790-S / LGA 1700 | B760 / LGA 1700 | B760M / LGA 1700 | ||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Standard-ATX | Standard-ATX | Standard-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (60 A) | 14 (55 A) | 14 (55 A) | 12 (60 A) | 8 (80 A) | 14 (55 A) | 12 (55 A) | 12 (75 A) | 12 (75 A) | ||||||||||||||||||||||||||||||||||||||||
| PWR Design | 16+1+１ | 14+1+1 | 14+1+1 | 12+1+1 | 8+1+2 | 14+1+1 | 12+1+1 | 12+1+1 | 12+1+1 | ||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR4 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 7600 MHz | 256 GB / 7200 MHz | 256 GB / 7200 MHz | 256 GB / 7600 MHz | 96 GB / 7600 MHz | 128 GB / 5333 MHz | 256 GB / 6600 MHz | 256 GB / 7000 MHz | 256 GB / 7800 MHz | ||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 2x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen3 | 2x1 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 2x16 Gen3 | 1x1 Gen3 | 1x16 Gen5 | 1x16 Gen3 | 3x1 Gen3 | 1x16 Gen5 | 1x16 Gen3 | 1x1 Gen4 | 1x16 Gen5 | 1x4 Gen3 | ||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 4 | 4 | 3 | 2 | 4 | 2 | 3 | 3 | ||||||||||||||||||||||||||||||||||||||||
| SATA | 6 | 6 | 6 | 4 | 4 | 6 | 4 | 4 | 6 | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® ALC897 Codec | Realtek® ALC897 Codec | Realtek® ALC892/ALC897 | ROG SupremeFX S1220A | Realtek® ALC897 Codec | Realtek® ALC897 Codec | Realtek® ALC897 Codec | Realtek® ALC897 Codec | ||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ✔️ | ❌ | ✔️ | ❌ | ❌ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.2) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.2) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Intel® 2.5Gbps LAN (1 ports) | Intel® 2.5Gbps LAN (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Intel® 2.5Gb Ethernet (1 ports) | 1x Intel® I225-V 2.5Gbps… (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | Realtek® 2.5Gbps LAN (1 ports) | Realtek® 2.5Gbps LAN (1 ports) | ||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 802.11ac | Wi-Fi 7 | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 6E | ❌ | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||
| BT | v5.1 | v5.4 | v5.3 | v5.3 | v5.3 | ❌ | v5.3 | v5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
❌ |
❌ |
||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$268
|
0.0%
|
33.9%
|
63.7%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.30 GHz / 4.80 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$210
|
0.0%
|
32.3%
|
62.5%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 3.00 GHz / 4.60 GHz | Alder Lake-S | UHD Graphics 770 | |
|
$165
|
↓
-0.3%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | None | |
|
$248
|
↑
0.2%
|
29.8%
|
62.1%
|
65 W / 117 W | 6 / 0 / 12 | 1280.0 kB / 18.0 MB | 2.50 GHz / 4.40 GHz | Alder Lake-S | UHD Graphics 730 | |
|
$250
|
↑
38.9%
|
22.9%
|
57.1%
|
60 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | UHD Graphics 730 | |
|
$115❗
|
0.0%
|
22.9%
|
57.1%
|
58 W / 110 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.50 GHz / 4.70 GHz | Raptor Lake-R | None | |
|
$94
|
↓
-27.8%
|
22.2%
|
56.7%
|
58 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.40 GHz / 4.50 GHz | Raptor Lake-S | None | |
|
$94
|
↓
-27.8%
|
22.2%
|
56.7%
|
60 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.40 GHz / 4.50 GHz | Raptor Lake-S | UHD Graphics 730 | |
|
$135
|
0.0%
|
21.3%
|
53.0%
|
58 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.30 GHz / 4.30 GHz | Alder Lake-S | None | |
|
$275
|
↑
63.6%
|
21.3%
|
53.0%
|
60 W / 89 W | 4 / 0 / 8 | 1280.0 kB / 12.0 MB | 3.30 GHz / 4.30 GHz | Alder Lake-S | UHD Graphics 730 |
Official Manufacturer Data
Memory:
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics:
1 x HDMI®***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI 2.1.
Storage:
Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Expansion Slots:
1 x PCIe 5.0 x16 slot
USB:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin Chasis Fan header
1 x 4-pin AIO Pump header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support additional 2 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

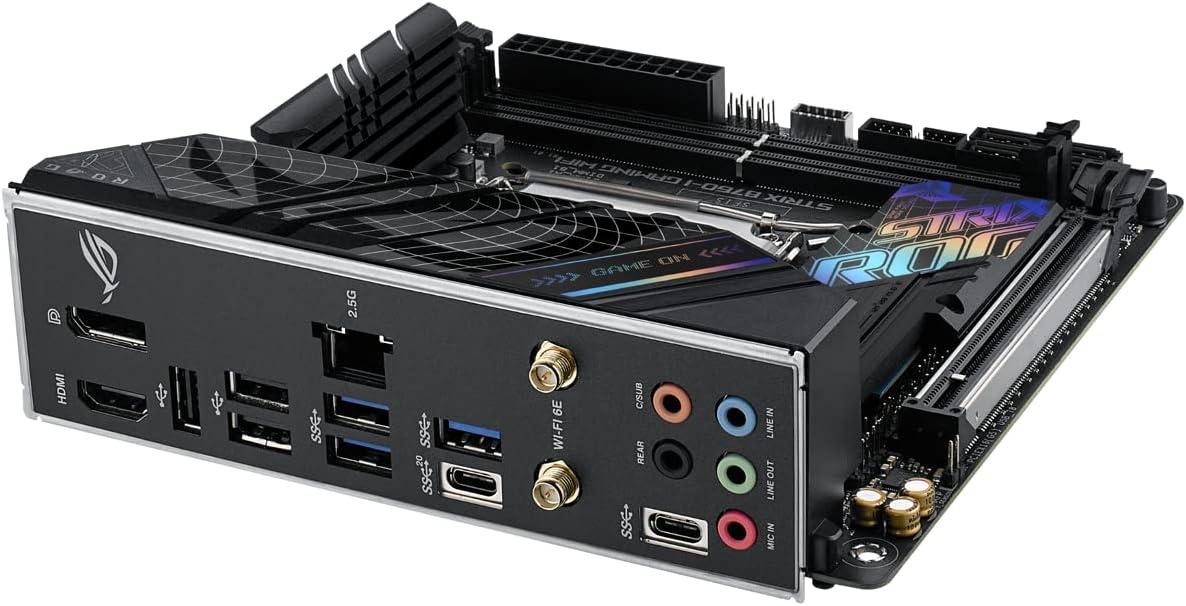

Back Panel I/O:
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)
3 x USB 2.0 ports (3 x Type-A)
1 x HDMI® port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet
5 x Audio jacks

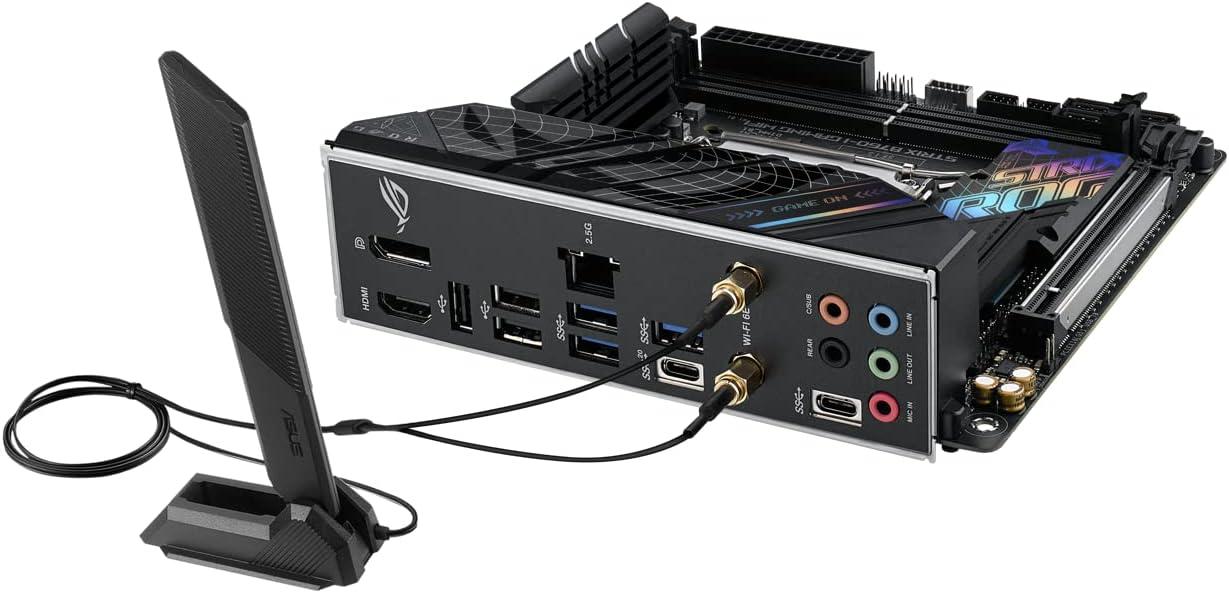

WiFi:
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
Audio:
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Special Features:
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
ASUS EZ DIY
-CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 header
