GIGABYTE · LGA 1700 · Z790

GIGABYTE Z790 UD AC

ATX · DDR5 · 4 DIMMs · 16-phase VRM · 802.11ac

Quality
67
VRM
48
Value
64
Amazon
$200
GIGABYTE Z790 UD AC

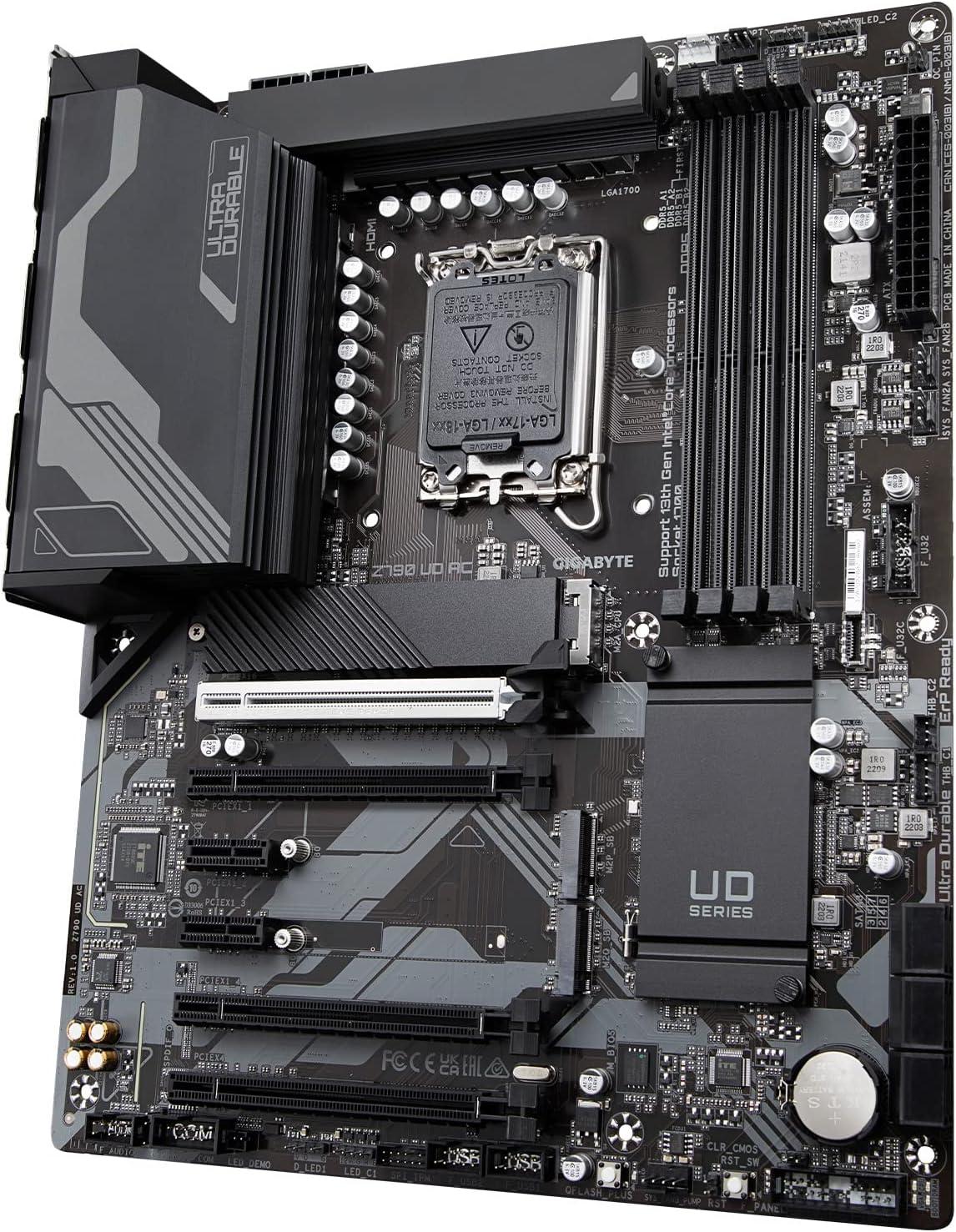

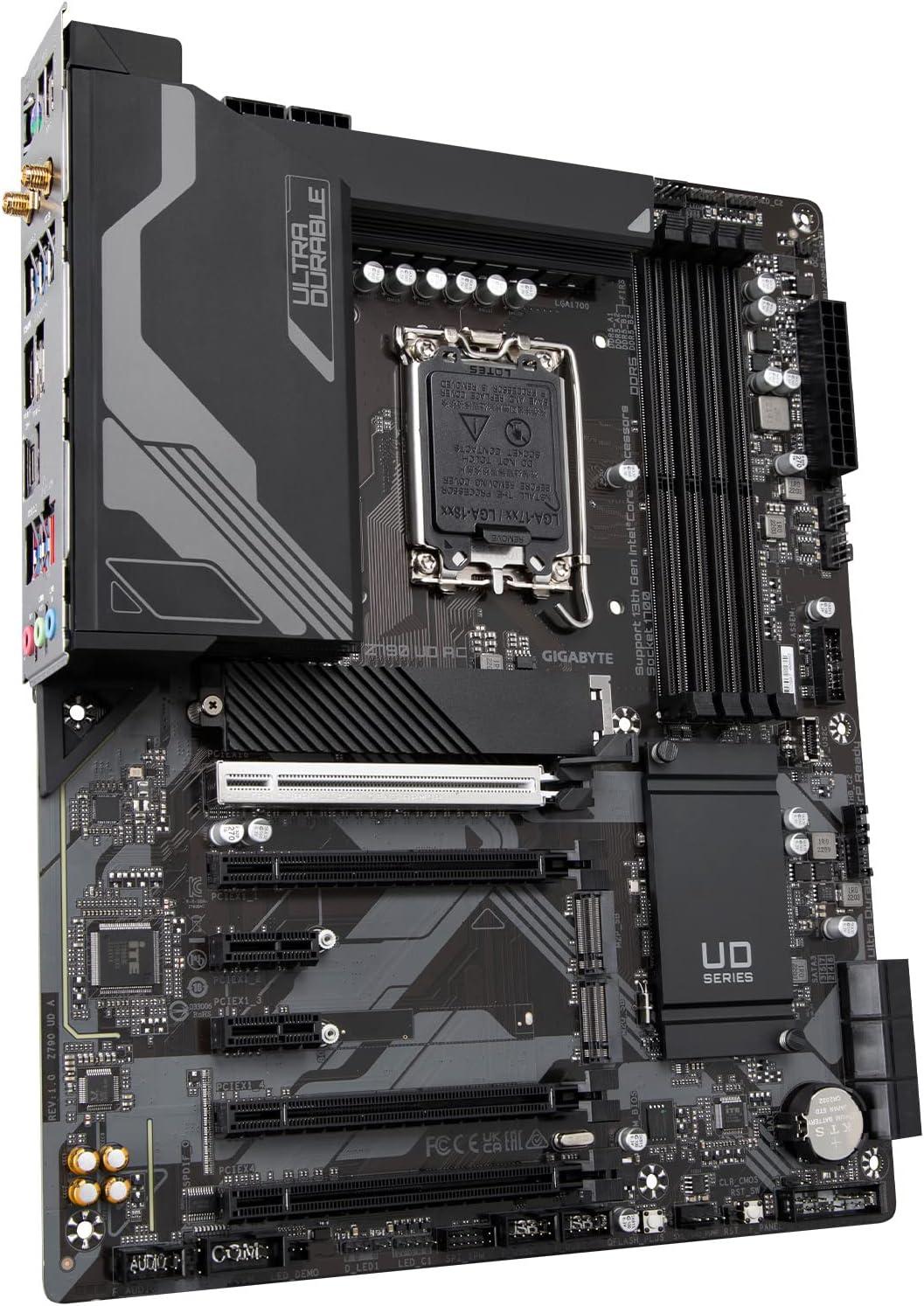

View GIGABYTE Z790 UD AC Gallery in high resolution
$200
Available Updated 3 days, 19 hours ago Prime FBA
Overall67.4
VRM48.0
Chipset92.0
Expansion / storage105.0
Connectivity52.0
Audio40.0
Quality / price64.0
$200 on Amazon Motherboard table Compare this motherboard

Build with this motherboardSelect a CPU first so the Builder can confirm the socket and unlock this board. Choose the CPU first

Written analysis

GIGABYTE Z790 UD AC at a glance

The GIGABYTE Z790 UD AC uses the ATX form factor, LGA 1700 socket, and Z790 chipset. This is a high-end platform with the feature headroom expected in an enthusiast gaming or productivity build.

Memory support is DDR5 across 4 DIMM slots, with up to 256 GB and rated overclocked speeds up to 7600 MT/s. ECC modules are accepted, subject to CPU support. XMP / EXPO memory-profile support is recorded for easier tuning.

Best fit: a performance gaming and productivity PC that needs a balanced board without workstation-class excess.

Power delivery

The calculated VRM score is 48.0, placing the power delivery in the mid-range class. The board lists 16 CPU power phases, 60 A power stages in a 16+1+１ layout. CPU power input is listed as 2. It is a sensible match for mainstream processors, with conservative tuning on higher-power chips.

Expansion and storage

The expansion and storage score is 105.0: exceptionally well equipped . The platform supports PCIe 5.0. Physical expansion includes 4 ×16 slots, and 2 ×1.

On-board storage consists of 3 M.2 slots and 6 SATA ports. Supported M.2 lengths are listed as 22110, 2280. That is enough NVMe capacity for a multi-drive gaming or creator setup without immediately relying on an add-in card.

Connectivity and rear I/O

The connectivity score is 52.0, rated adequate . Wireless networking is Wi-Fi 802.11ac ; wired networking is Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) at up to 2500 Mbps. Bluetooth 5.1 is included. The recorded USB provision is 10 rear connections and 7 front-panel connections. The specification sheet below separates every USB speed and connector type.

Display connectivity includes HDMI 2.1, DisplayPort 1.2. These motherboard outputs require a processor with integrated graphics.

Audio

The audio score is 40.0. This is a standard onboard solution using Realtek® Audio CODEC. It covers normal gaming and communication; demanding headphones or production work still benefit from an external interface. The rear panel has 3 analogue jacks.

Buying verdict

Overall quality is 67.40, a strong performance-class result. This is the practical sweet spot for a powerful gaming or productivity PC without paying for every flagship extra.

At the recorded Amazon price, the quality-to-price score is 64.0—a balanced value for its feature class.

Board data

Full specifications

Platform, expansion, storage, rear I/O, internal headers, networking, audio, and board controls in one sheet.

General

Manufacturer
GIGABYTE
Motherboard
GIGABYTE Z790 UD AC
Chipset / socket
Z790 / LGA 1700
Form factor
ATX
Launch price
—
Amazon price
$200
Availability
In stock
Price updated
3 days, 19 hours ago

VRM

CPU phases
16 (60 A)
Power design
16+1+１
EPS connector
2

Memory

Type / slots
DDR5 / 4 DIMMs
Max capacity / OC
256 GB / 7600 MT/s
Per DIMM
64 GB
XMP / EXPO
Yes
ECC
Modules supported

PCIe

Supported version
PCIe 5.0
x16 physical
4
x16 Gen 5
1
x16 Gen 4
1
x16 Gen 3
2
x1 physical
2
x1 Gen 3
2

Storage

M.2 slots
3
M.2 lengths
22110, 2280
SATA ports
6

Display outputs

HDMI
Yes · 2.1 · 4096x2160@60 Hz
DisplayPort
Yes · 1.2 · 4096x2304@60 Hz
USB-C DisplayPort
No

USB

Rear USB 2.0
4
Rear USB 3.2 Gen 1 Type-A 5 Gbps
4
Rear USB 3.2 Gen 2 Type-A 10 Gbps
1
Rear USB 3.2 Gen 2×2 Type-C 20 Gbps
1
Front USB 2.0
4
Front USB 3.2 Gen 1 Type-A 5 Gbps
2
Front USB 3.2 Gen 1 Type-C 5 Gbps
1
Header USB 2.0
4
Header USB 3.2 Gen 1 Type-A 5 Gbps
2

Networking

Ethernet
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
LAN ports
1
LAN speed
2500 Mbps
Wi-Fi
802.11ac
Wi-Fi bandwidth
160MHz
Bands
2.4/5 GHz Dual-Band
Antenna connectors
2
Bluetooth
5.1

Audio

Chipset
Realtek® Audio CODEC
Analog jacks
3
Gold-plated jacks
No
Optical S/PDIF
No
Spatial audio
No

Buttons

BIOS flashback
No
Clear CMOS
No
Q-Flash Plus
Yes
Smart button
No
Onboard start / reset
Reset

Additional information

Memory notes
Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, but they operate in non-ECC mode. Also supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to the 'Memory Support List' for more information.
Display notes
Powered by Integrated Intel® HD Graphics. Both HDMI and DisplayPort support HDCP 2.3. The HDMI port is a native HDMI 2.1 TMDS compatible port. Graphics specifications may vary depending on CPU support.
Expansion notes
The primary PCIEX16 slot is PCIe 5.0 and runs at x16. The second physical x16 slot (PCIEX4) is PCIe 4.0 but runs at x4 speed. Two other physical x16 slots (PCIEX1_1, PCIEX1_4) are PCIe 3.0 and run at x1 speed. The board supports AMD CrossFire™ technology using the PCIEX16 and PCIEX4 slots. The primary PCIEX16 slot can only support a graphics card or an NVMe SSD.
M2A_CPU
4.0 4 · 22110, 2280 · CPU
M2Q_SB
4.0 4 · 2280 · Chipset
M2P_SB
4.0 4 · 2280 · Chipset
RAID
SATA / PCIe (['0', '1', '5', '10'])
USB notes
Includes 2 x Thunderbolt™ add-in card connectors.
Audio notes
Supports 2/4/5.1/7.1-channel High Definition Audio. S/PDIF Out is supported. The functionality of an audio jack can be changed using the audio software to configure 7.1-channel audio.
Networking notes
Wi-Fi/Bluetooth module depends on PCB revision: Realtek Wi-Fi RTL8821CE (For PCB rev. 1.0), Intel Wireless-AC 9461 (For PCB rev. 1.1), Intel Wireless-AC 9560 (For PCB rev. 1.2). Actual data rate may vary depending on environment and equipment.
Button notes
The board includes a reset button, a reset jumper, and a Clear CMOS jumper.
Fan / RGB headers
1 CPU · 1 OPT · 1 AIO · 3 chassis · 2 ARGB · 2 RGB
Other headers
Front audio · System panel · TPM · Thunderbolt
Dimensions
30.5 cm x 24.4 cm

Extracted notes sit here. Official manufacturer copy is at the bottom of the page.

Amazon

Price history

Nearby quality

Similar motherboards

Boards on LGA 1700 close to GIGABYTE Z790 UD AC on overall quality. Open the motherboard table to sort, filter, and compare side by side.

Compare these in the motherboard table

VRM fit

VRM-appropriate CPUs

LGA 1700 processors whose TDP sits in this board’s VRM window. Socket match is required; chipset extras still matter on sTR5. This is a power-delivery filter, not a ranked CPU guide.

Open LGA 1700 CPUs in the CPU table

Discussion

Comments on GIGABYTE Z790 UD AC

No comments yet.

Vendor copy

Official manufacturer data

Raw manufacturer text kept for reference. Structured specs above are extracted from this copy and are the source for scores and tables.

Memory

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)

Expansion slots

CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage

CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

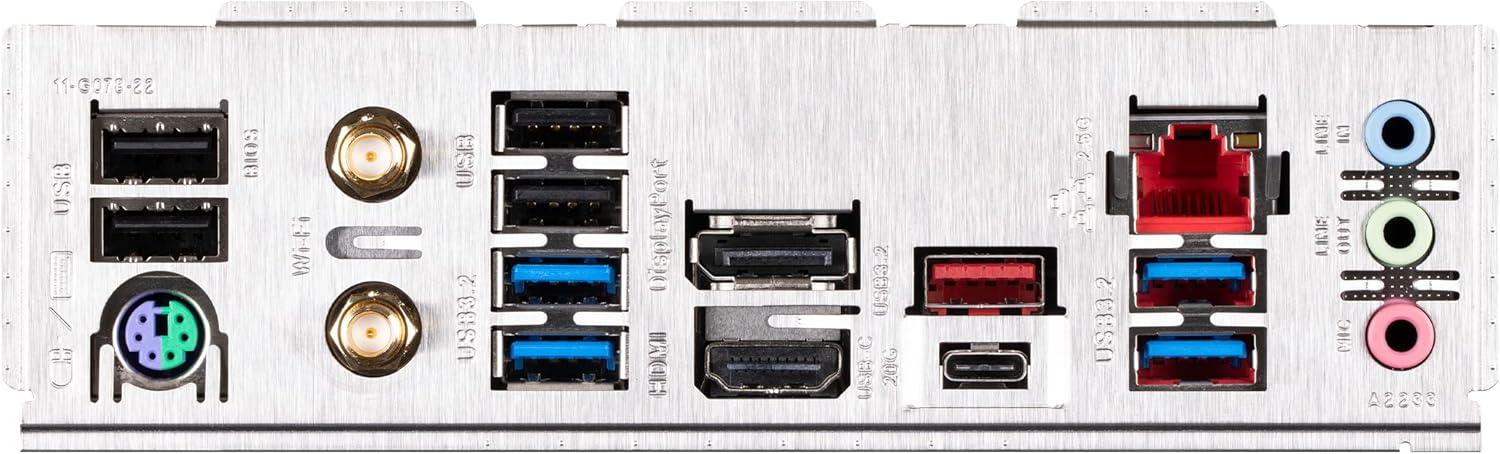

Rear I/O

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (1T1R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks

Wireless

Realtek® Wi-Fi RTL8821CE (For PCB rev. 1.0)
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard
Intel® Wireless-AC 9461 (For PCB rev. 1.1)
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ac wireless standard
Intel® Wireless-AC 9560 (For PCB rev. 1.2)
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ac 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

Special features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
