MSI MPG B850I Edge TI WiFi Specifications Review

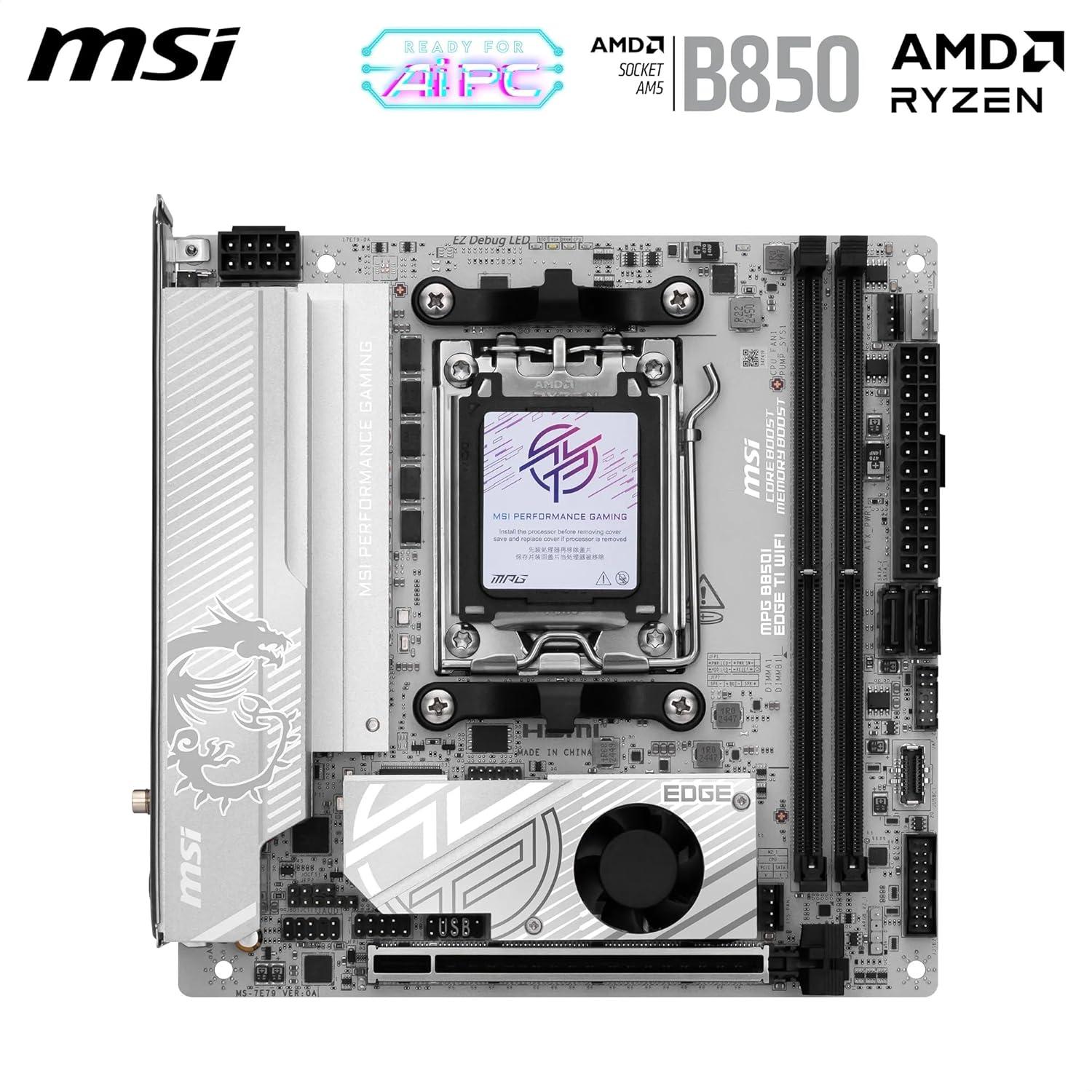

MSI MPG B850I Edge TI WiFi by MSI is a Mini-ITX form factor motherboard based on the mid-range B850I chipset and AM5 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 10000 MHz.
VRM Quality

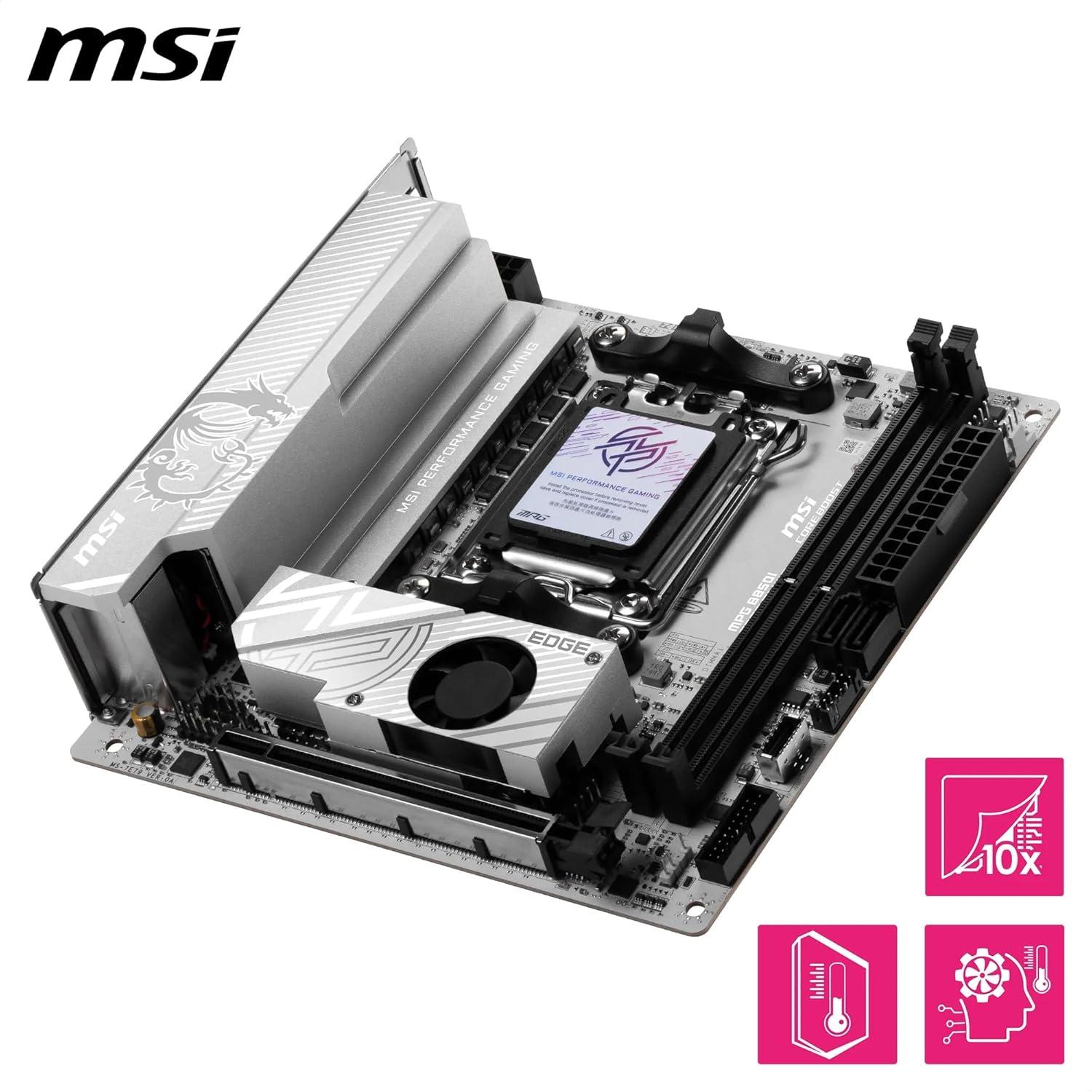

The MSI MPG B850I Edge TI WiFi comes with an entry-level VRM setup, delivering 90 A across 8 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MSI MPG B850I Edge TI WiFi offers a simplified expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 1 x16 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots (PCIe 5.0, PCIe 4.0) and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the Wi-Fi 7 standard, and wired Realtek® 8126 5G LAN ethernet supporting speeds up to 5000 Gbps. Bluetooth 5.4 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek® ALC4080 Codec — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
MSI MPG B850I Edge TI WiFi is a dependable choice with a respectable overall quality score of 62.60. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard has a solid 45.7% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MSI MPG B850I Edge TI WiFi |
| Current Price Amazon | $260 |
| Amazon Price Updated | 4 hours, 8 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B850I / AM5 |
| Form Factor | Mini-ITX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (90 A) |
|---|---|
| Power Design | 8+2 + 1 |
Memory Information
| Type / Slots | DDR5 / 2 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 10000 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 |
|---|---|---|
| x16 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2280 |
| M.2 PCIe Modes | PCIe 5.0, PCIe 4.0 |
| SATA Ports | 2 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC4080 Codec |
|---|---|
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 8K 60Hz) |
|---|
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 3 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Networking Information
| Ethernet | Chipset: Realtek® 8126 5G LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 320MHz Frequency Bands: 2.4GHz, 5GHz, 6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS |
|---|
Quality & Features
Additional Information
| RAM | Supports AMD EXPO™. For Ryzen™ 9000 Series Processors, the max overclocking frequency is up to 8200+ MT/s for 1DPC 1R and up to 8000+ MT/s for 1DPC 2R. Supports AMD POR Speed, JEDEC Speed, and Un-buffered memory. Also supports CUDIMM in Clock Driver bypass mode only. |
|---|---|
| Display | HDMI 2.1 port supports FRL. Video output is available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU). Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors). Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors). Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor). |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1-Channel USB High-Performance Audio. Supports up to 32-Bit/384 kHz playback on front panel. Supports S/PDIF output. |
| Networking | The Wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, up to 5.8Gbps. Supports 802.11 a/b/g/n/ac/ax/be. Supports MLO, 4KQAM. 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| Buttons | The text lists a 'Flash BIOS Button', which has been mapped to 'bios_flashback_button'. |
| Dimensions | 17 cm x 17 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MSI MPG B850I Edge TI WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$215
|
↓
-4.4%
|
63.8%
|
40.0%
|
79.0%
|
54.0%
|
61.0%
|
85.0%
|
56.3%
|
|
|
$200
|
0.0%
|
63.4%
|
24.0%
|
74.0%
|
67.0%
|
71.0%
|
81.0%
|
60.2%
|
|
|
$170
|
0.0%
|
63.0%
|
37.0%
|
81.0%
|
84.0%
|
70.0%
|
43.0%
|
70.4%
|
|
|
$170
|
0.0%
|
62.6%
|
37.0%
|
81.0%
|
84.0%
|
68.0%
|
43.0%
|
70.0%
|
|
|
$260
|
0.0%
|
62.6%
|
34.0%
|
81.0%
|
44.0%
|
66.0%
|
88.0%
|
45.7%
|
|
|
$250
|
↑
13.6%
|
62.6%
|
37.0%
|
81.0%
|
84.0%
|
68.0%
|
43.0%
|
47.6%
|
|
|
$180
|
0.0%
|
62.4%
|
51.0%
|
78.0%
|
44.0%
|
55.0%
|
84.0%
|
65.9%
|
|
|
$190
|
0.0%
|
62.2%
|
24.0%
|
88.0%
|
77.0%
|
77.0%
|
45.0%
|
62.2%
|
|
|
$173
|
↑
3.0%
|
61.6%
|
25.0%
|
84.0%
|
93.0%
|
66.0%
|
40.0%
|
67.5%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$215
|
↓
-4.4%
|
$200
|
0.0%
|
$170
|
0.0%
|
$170
|
0.0%
|
$260
|
0.0%
|
$250
|
↑
13.6%
|
$180
|
0.0%
|
$190
|
0.0%
|
$173
|
↑
3.0%
|
||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | GIGABYTE | MSI | MSI | MSI | MSI | ASRock | GIGABYTE | ASUS | ||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B650I / AM5 | B650 / AM5 | B850 / AM5 | B850-P / AM5 | B850I / AM5 | B850 / AM5 | B850I / AM5 | X870 / AM5 | AMD B850 / AM5 | ||||||||||||||||||||||||||||||||||||||||
| Form | Mini-ITX | Standard-ATX | Standard-ATX | Standard-ATX | Mini-ITX | Standard-ATX | Mini-ITX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 8 (105 A) | 8 (60 A) | 12 (60 A) | 12 (60 A) | 8 (90 A) | 12 (60 A) | 10 (110 A) | 8 (60 A) | 8 (60 A) | ||||||||||||||||||||||||||||||||||||||||
| PWR Design | 8+2+1 | 8+2+1 | 12+2+1 | 12+2+1 | 8+2 + 1 | 12+2+1 | 10+1+1 | 8+2+2 | 8 + 2 + 1 | ||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||
| Max Mem | 128 GB / 7200 MHz | 256 GB / 8000 MHz | 256 GB / 8200 MHz | 256 GB / 8200 MHz | 128 GB / 10000 MHz | 256 GB / 8200 MHz | 128 GB / 8200 MHz | 256 GB / 8200 MHz | 256 GB / 8000 MHz | ||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen4 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen5 | 2x16 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 2x16 Gen3 | ||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 3 | 3 | 3 | 2 | 3 | 2 | 3 | 3 | ||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 2 | 4 | 2 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC4080 CODEC | Realtek® ALC1220-VB CODEC | Realtek® ALC897 | Realtek® ALC897 | Realtek® ALC4080 Codec | Realtek® ALC897 | Realtek ALC1220 | Realtek® ALC892/ALC897 | Realtek 7.1 Surround Sound Hi… | ||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ✔️ (2.1) | ❌ | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ❌ | ✔️ (1.2) | ❌ | ❌ | ✔️ (1.2) | ❌ | ❌ | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Intel® 2.5GbE LAN chip (… (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | Realtek® 8126 5G LAN (1 ports) | Realtek® 8126VB 5G LAN (1 ports) | 2.5 Gigabit LAN (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | ||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi Wi-Fi 7 | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6 | Wi-Fi Wi-Fi 6E | ||||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.2 | v5.4 | v5.4 | v5.4 | v5.4 | v5.2 | v5.3 | v5.3 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
❌ |
|
|
|
|
||||||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
❌ |
❌ |
|
|
|
|
❌ |
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$316
|
↓
0.0%
|
63.0%
|
76.4%
|
65 W / 88 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 3.70 GHz / 5.40 GHz | Raphael | Radeon Graphics | |
|
$0
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | None | |
|
$303
|
0.0%
|
51.9%
|
80.9%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.50 GHz | Granite Ridge | Radeon Graphics | |
|
$190
|
↓
-32.1%
|
47.8%
|
78.1%
|
65 W / 88 W | 8 / 0 / 16 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.30 GHz | Raphael | Radeon Graphics | |
|
$266
|
0.0%
|
45.2%
|
63.7%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.20 GHz / 5.10 GHz | Phoenix | Radeon 780M | |
|
$180
|
↓
-14.3%
|
45.1%
|
63.5%
|
65 W / 61 W | 8 / 0 / 16 | 1024.0 kB / 16.0 MB | 4.10 GHz / 5.00 GHz | Phoenix | None | |
|
$185
|
0.0%
|
43.7%
|
80.4%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.90 GHz / 5.40 GHz | Granite Ridge | Radeon Graphics | |
|
$0
|
0.0%
|
41.0%
|
77.9%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.00 GHz | Granite Ridge | None | |
|
$240
|
0.0%
|
38.8%
|
86.0%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 96.0 MB | 4.10 GHz / 4.70 GHz | Raphael | Radeon Graphics | |
|
$169
|
↓
-0.6%
|
38.2%
|
75.3%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.80 GHz / 5.10 GHz | Raphael | Radeon Graphics | |
|
$103❗
|
0.0%
|
37.8%
|
74.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 5.00 GHz | Raphael | None | |
|
$188
|
0.0%
|
35.8%
|
63.7%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.30 GHz / 5.00 GHz | Phoenix | Radeon 760M | |
|
$0
|
0.0%
|
34.9%
|
73.1%
|
65 W / 88 W | 6 / 0 / 12 | 1024.0 kB / 32.0 MB | 3.70 GHz / 4.70 GHz | Raphael | None | |
|
$149
|
0.0%
|
34.7%
|
62.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 4.20 GHz / 4.70 GHz | Phoenix | None | |
|
$149
|
0.0%
|
31.3%
|
57.3%
|
65 W / 61 W | 6 / 0 / 12 | 1024.0 kB / 16.0 MB | 3.50 GHz / 5.00 GHz | Phoenix2 | Radeon 740M |
Official Manufacturer Data
Memory:
Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 8000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Graphics:
Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage:

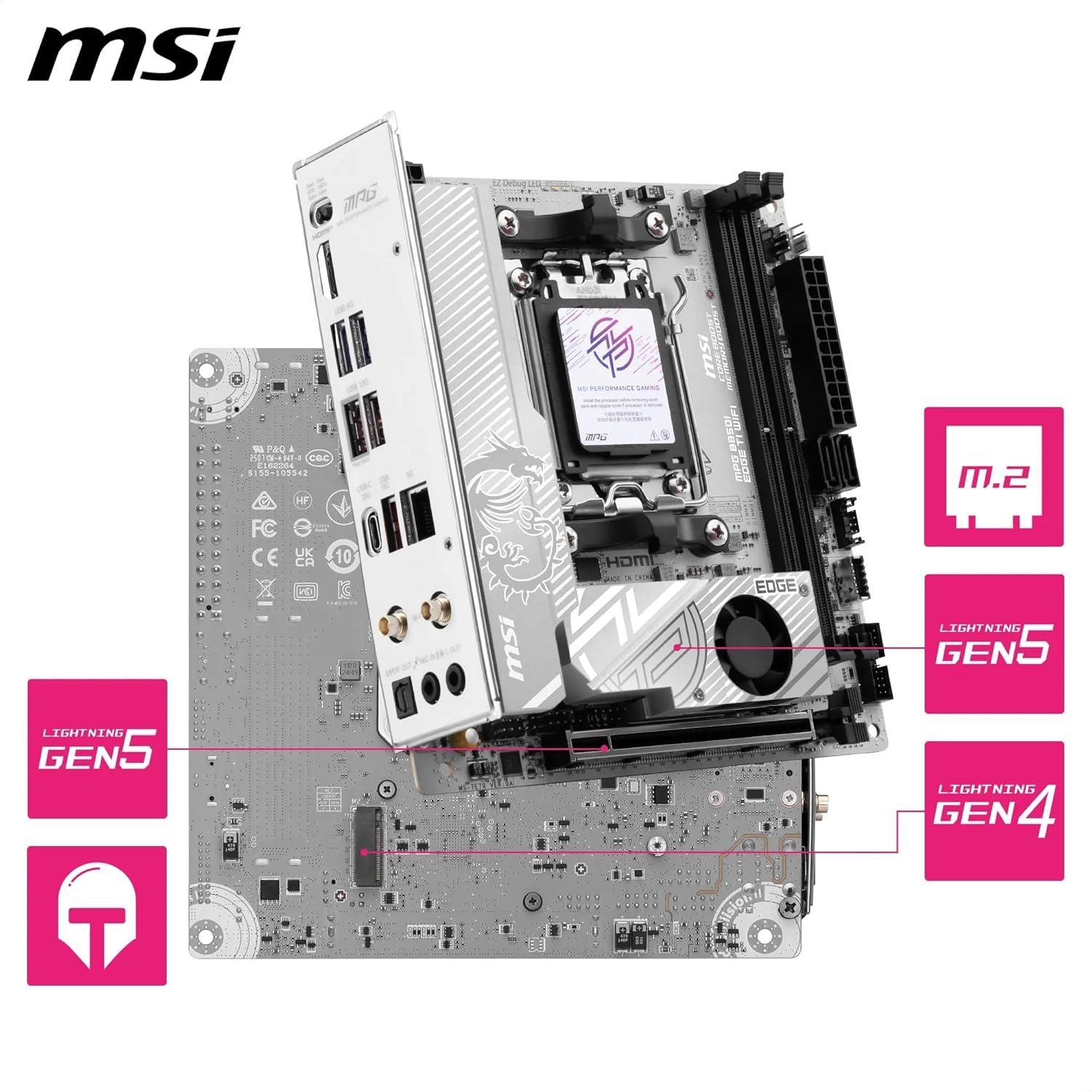

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G
M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot
• Supports up to PCIe 4.0 x4
• Supports 2280 storage devices
Expansion Slots:
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
USB:
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Internal I/O:
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
1x System Fan

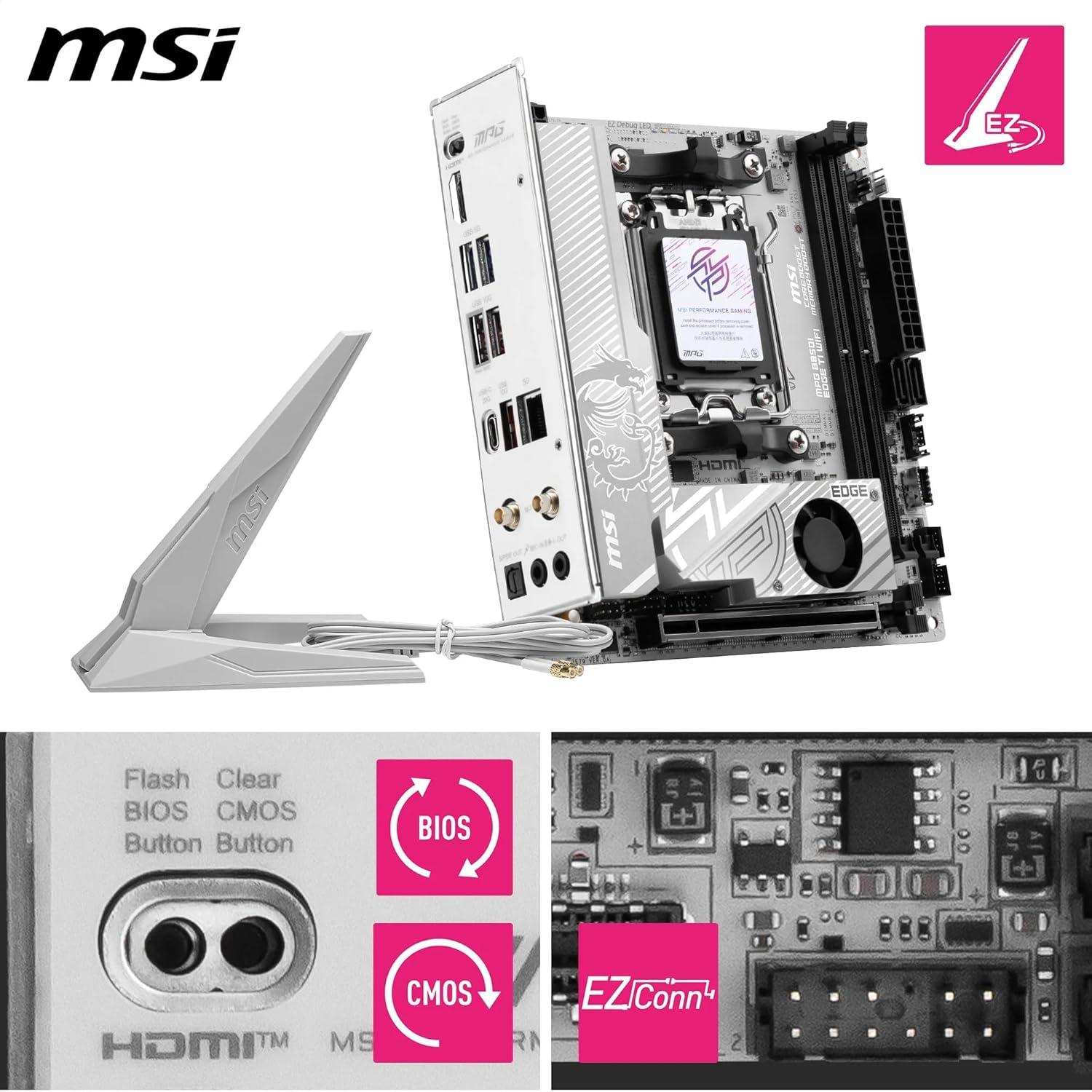

1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

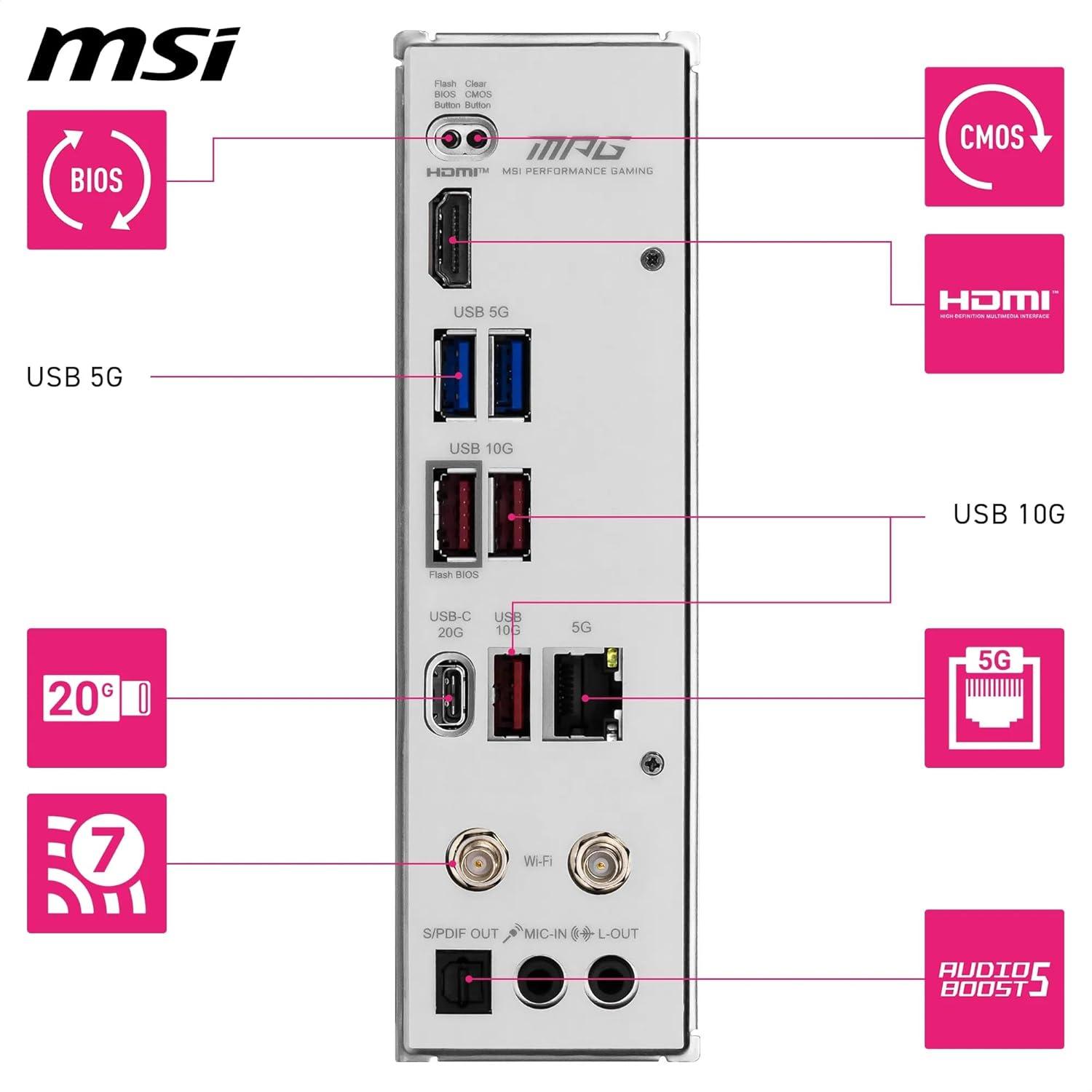

Back Panel I/O:
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 5Gbps Type-A
USB 10Gbps Type-A
USB 20Gbps Type-C
USB 10Gbps Type-A
Optical S/PDIF Out
WiFi:
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Audio:
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output
