GIGABYTE B860I AORUS PRO Specifications Review

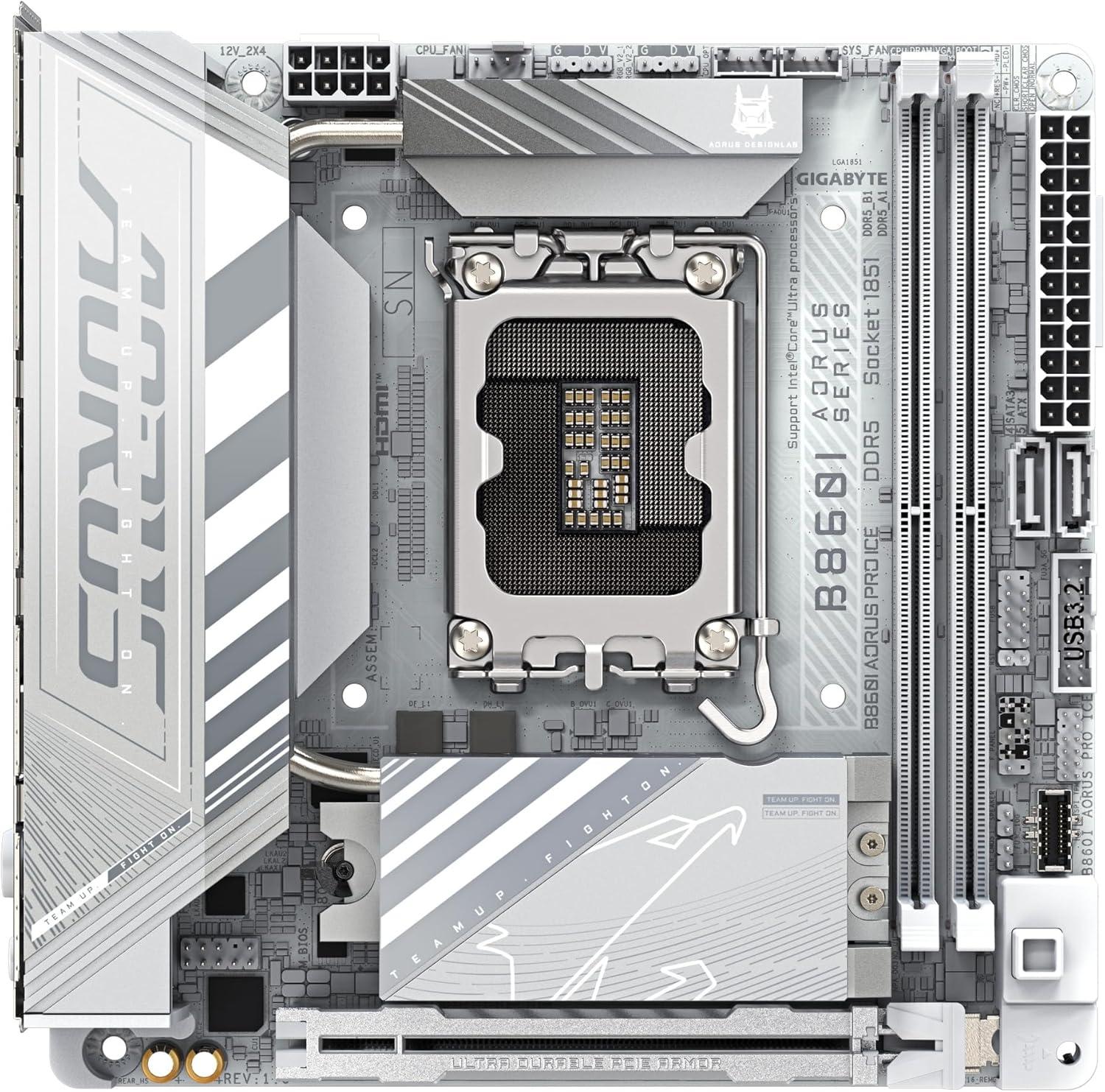

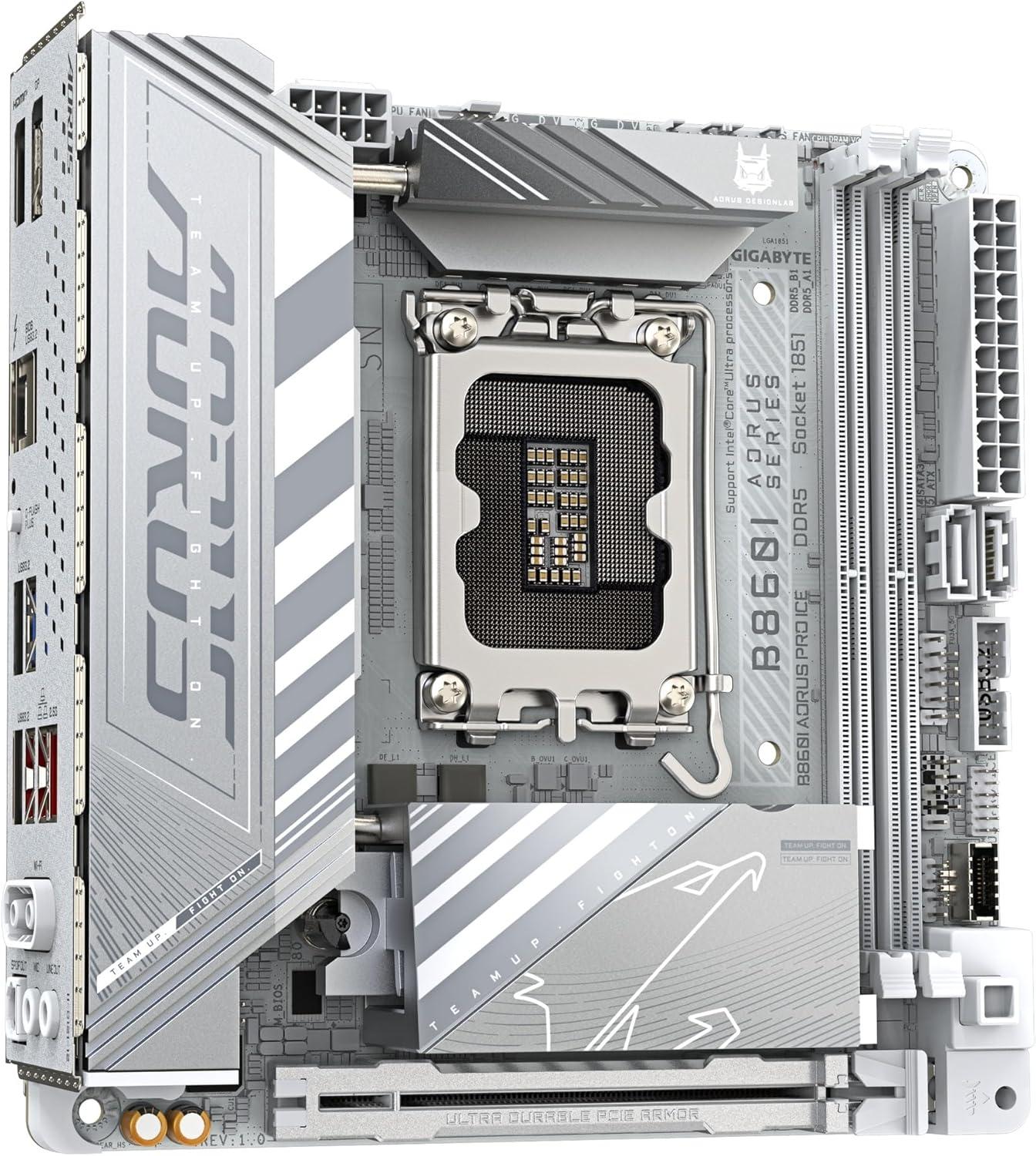

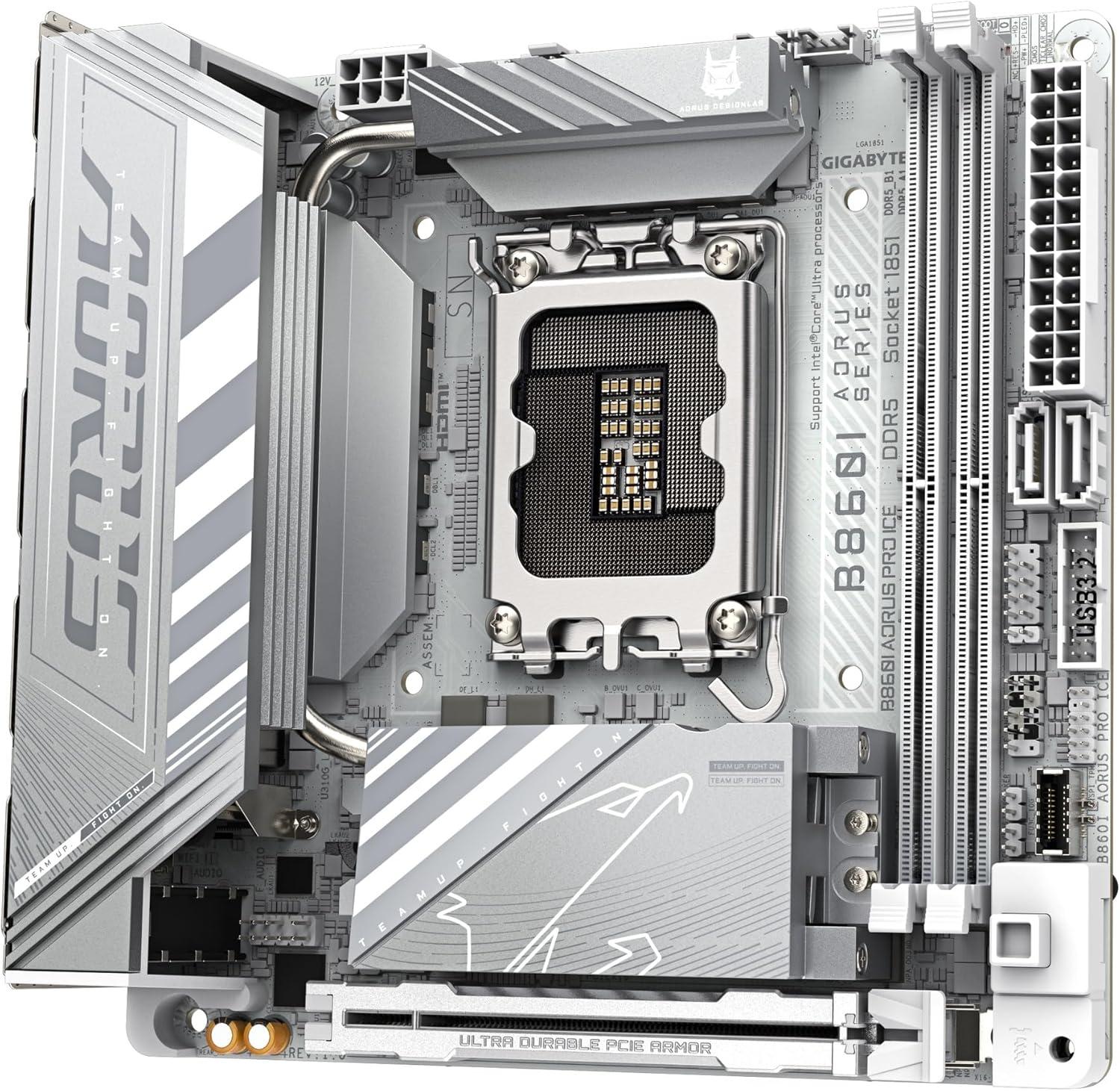

GIGABYTE B860I AORUS PRO by GIGABYTE is a Mini-ITX form factor motherboard based on the mid-range B860I chipset and LGA 1851 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 2 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 9200 MHz.
VRM Quality
The GIGABYTE B860I AORUS PRO comes with an entry-level VRM setup, delivering 80 A across 8 phases. Works best with CPUs in the ~65–105 W TDP range. Can technically run higher-TDP processors at stock, but will likely experience thermal throttling under sustained heavy loads. Suited for budget gaming, office PCs, and home builds without heavy CPU demands.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE B860I AORUS PRO offers a simplified expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 1 x16 slot . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots and 2 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the Wi-Fi 7 standard, and wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.4 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 2.1 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® Audio CODEC) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
GIGABYTE B860I AORUS PRO is a dependable choice with a respectable overall quality score of 51.60. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard shows a 42.6% value score indicating less favorable price-to-performance compared to mainstream models. For budget-conscious buyers, there may be better value options available at this price point.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE B860I AORUS PRO |
| Current Price Amazon | $230 |
| Amazon Price Updated | 20 hours, 27 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | B860I / LGA 1851 |
| Form Factor | Mini-ITX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (80 A) |
|---|---|
| Power Design | 8+1+2 |
Memory Information
| Type / Slots | DDR5 / 2 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 9200 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 |
|---|---|---|
| x16 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2280 |
| SATA Ports | 2 |
Onboard Audio Features
| Audio Chipset | Realtek® Audio CODEC |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Optical S/PDIF Output | ✔️ Present |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 2.1 (Max: 3840x2160@144 Hz) |
| DP over USB-C | DisplayPort over USB-C - Version 2.1 (Max: 5120x2880@60 Hz (Thunderbolt monitor) or 3840x2160@240 Hz (USB4 Type-C monitor)) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 3 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 1 |
Front USB Ports
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 160MHz Frequency Bands: ['2.4GHz', '5GHz', '6GHz'] Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
Q-Flash Plus |
|---|
Quality & Features
Additional Information
| RAM | Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, but they operate in non-ECC mode. Also supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. |
|---|---|
| Display | Integrated Intel® HD Graphics support. The Thunderbolt™ 4 / USB4® USB Type-C® port supports DisplayPort and Thunderbolt™ video outputs. All ports support HDCP 2.3. Supports up to triple-display at the same time. Graphics specifications may vary depending on CPU support. The number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. |
| Expansion | The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage |
M.2 Slot Details:
The M2Q_SB M.2 connector is located on the back of the motherboard. |
| Audio | High Definition Audio with 2/4/5.1/7.1-channel support. You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Networking | Wi-Fi module varies by PCB revision: Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0) or MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1). Supports 802.11a, b, g, n, ac, ax, be standards. Antenna configuration is 2T2R. Wi-Fi 7 features require Windows 11 SV3. Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
| Buttons | The board includes a reset jumper and a Clear CMOS jumper. |
| Dimensions | 17 cm x 17 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE B860I AORUS PRO Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$170
|
0.0%
|
56.8%
|
28.0%
|
67.0%
|
79.0%
|
65.0%
|
45.0%
|
63.5%
|
|
|
$170
|
0.0%
|
55.6%
|
24.0%
|
73.0%
|
72.0%
|
64.0%
|
45.0%
|
62.1%
|
|
|
$160
|
0.0%
|
54.8%
|
30.0%
|
67.0%
|
75.0%
|
62.0%
|
40.0%
|
65.1%
|
|
|
$150
|
0.0%
|
54.2%
|
20.0%
|
68.0%
|
88.0%
|
50.0%
|
45.0%
|
68.7%
|
|
|
$161
|
0.0%
|
53.0%
|
32.0%
|
67.0%
|
78.0%
|
43.0%
|
45.0%
|
62.6%
|
|
|
$173
|
0.0%
|
52.2%
|
24.0%
|
87.0%
|
81.0%
|
29.0%
|
40.0%
|
57.3%
|
|
|
$230
|
0.0%
|
51.6%
|
31.0%
|
73.0%
|
48.0%
|
63.0%
|
43.0%
|
42.6%
|
|
|
$160❗
|
0.0%
|
49.6%
|
24.0%
|
62.0%
|
53.0%
|
69.0%
|
40.0%
|
58.9%
|
|
|
$0
|
0.0%
|
46.2%
|
17.0%
|
67.0%
|
60.0%
|
42.0%
|
45.0%
|
N/A |
Motherboard Comparison and Detail Specifications Table
| Specification |
No image available |
Perf Chart | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$170
|
0.0%
|
$170
|
0.0%
|
$160
|
0.0%
|
$150
|
0.0%
|
$161
|
0.0%
|
$173
|
0.0%
|
$230
|
0.0%
|
$160❗
|
0.0%
|
$0
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | GIGABYTE | ASRock | GIGABYTE | ASUS | GIGABYTE | GIGABYTE | ASRock | ASUS | ||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B860M / LGA 1851 | B860M / LGA 1851 | B860 / LGA 1851 | B860M / LGA 1851 | B860 / LGA 1851 | Z890M / LGA 1851 | B860I / LGA 1851 | B860I / LGA 1851 | B860M / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||
| Form | Micro-ATX | Micro-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Micro-ATX | Mini-ITX | Mini-ITX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 7 (80 A) | 8 (60 A) | 10 (60 A) | 8 (50 A) | 8 (80 A) | 8 (60 A) | 8 (80 A) | 8 (60 A) | 6 (55 A) | ||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 7(80A) + 1(80A) + 1(80A) + 1(80A) | 8+1+2 | 10+1+1+1+1 | 8+1+2 | 8+1+1 | 8+1+2 | 8+1+2 | 8+1+1+1+1 | 6+1+1+1 | ||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 2 / DDR5 | 2 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8666 MHz | 256 GB / 9200 MHz | 256 GB / 8666 MHz | 256 GB / 9066 MHz | 256 GB / 8666 MHz | 256 GB / 9066 MHz | 128 GB / 9200 MHz | 128 GB / 8933 MHz | 128 GB / 8800 MHz | ||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen4 | 2x1 Gen4 | ||||||||||||||||||||||||||||||||||||||||||
| M.2 | 2 | 2 | 3 | 2 | 3 | 3 | 2 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 2 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek ALC897 Audio Codec | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek ALC897 Audio Codec | Realtek® ALC892/ALC897 | ||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||
| LAN | Intel® B860 Chipset (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x 2.5 Gigabit LAN 10/1… (2 ports) | 1 x Realtek 2.5Gb Ethern… (2 ports) | ||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | ❌ | ❌ | Wi-Fi 7 | Wi-Fi Wi-Fi 6E | ❌ | ||||||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.3 | v5.3 | v5.3 | ❌ | ❌ | v5.4 | v5.3 | ❌ | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$0
|
0.0%
|
52.1%
|
74.9%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$346
|
0.0%
|
49.2%
|
74.2%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.40 GHz / 5.00 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 24EU | |
|
$179
|
0.0%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 16EU | |
|
$165
|
↑
0.1%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | None |
Official Manufacturer Data
Memory:
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Graphics:
- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolutionsupported is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Storage:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for SATA storage devices
Expansion Slots:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
USB:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

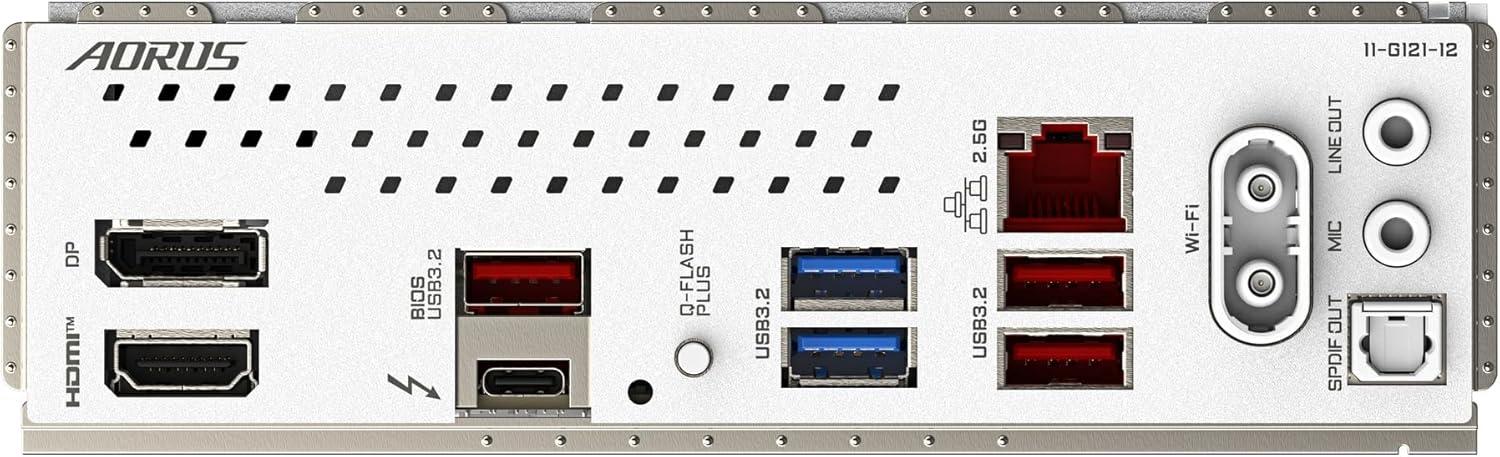

Back Panel I/O:
1 x HDMI port*
1 x Intel® Thunderbolt™ 4* connector (USB4® USB Type-C® port)
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x RJ-45 port

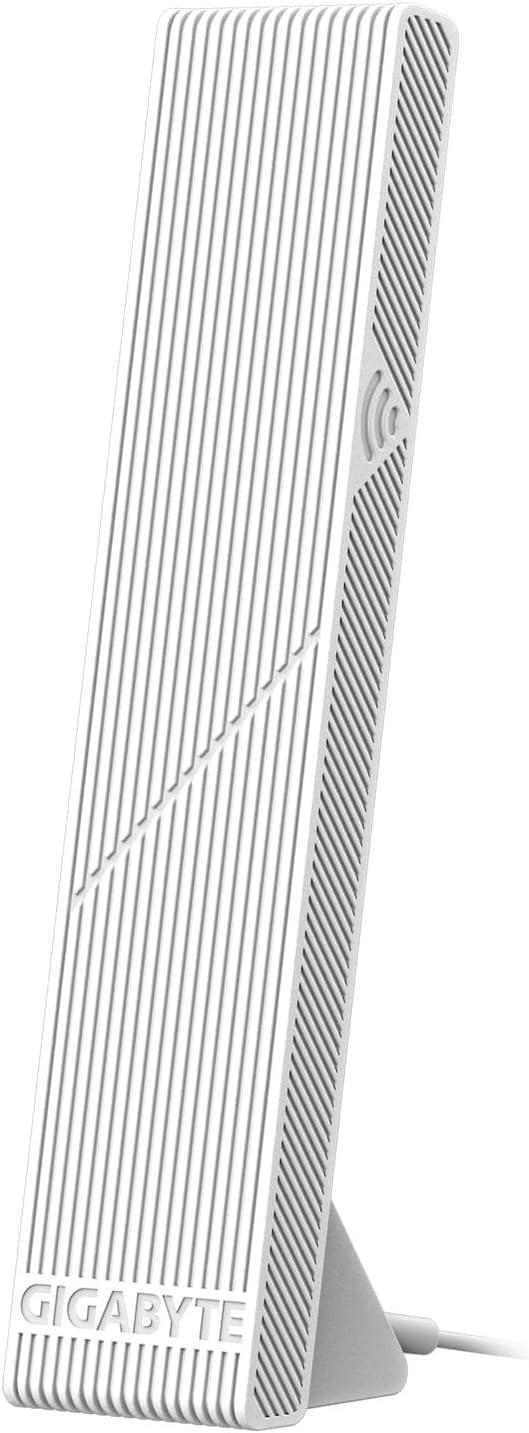

2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
WiFi:
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
