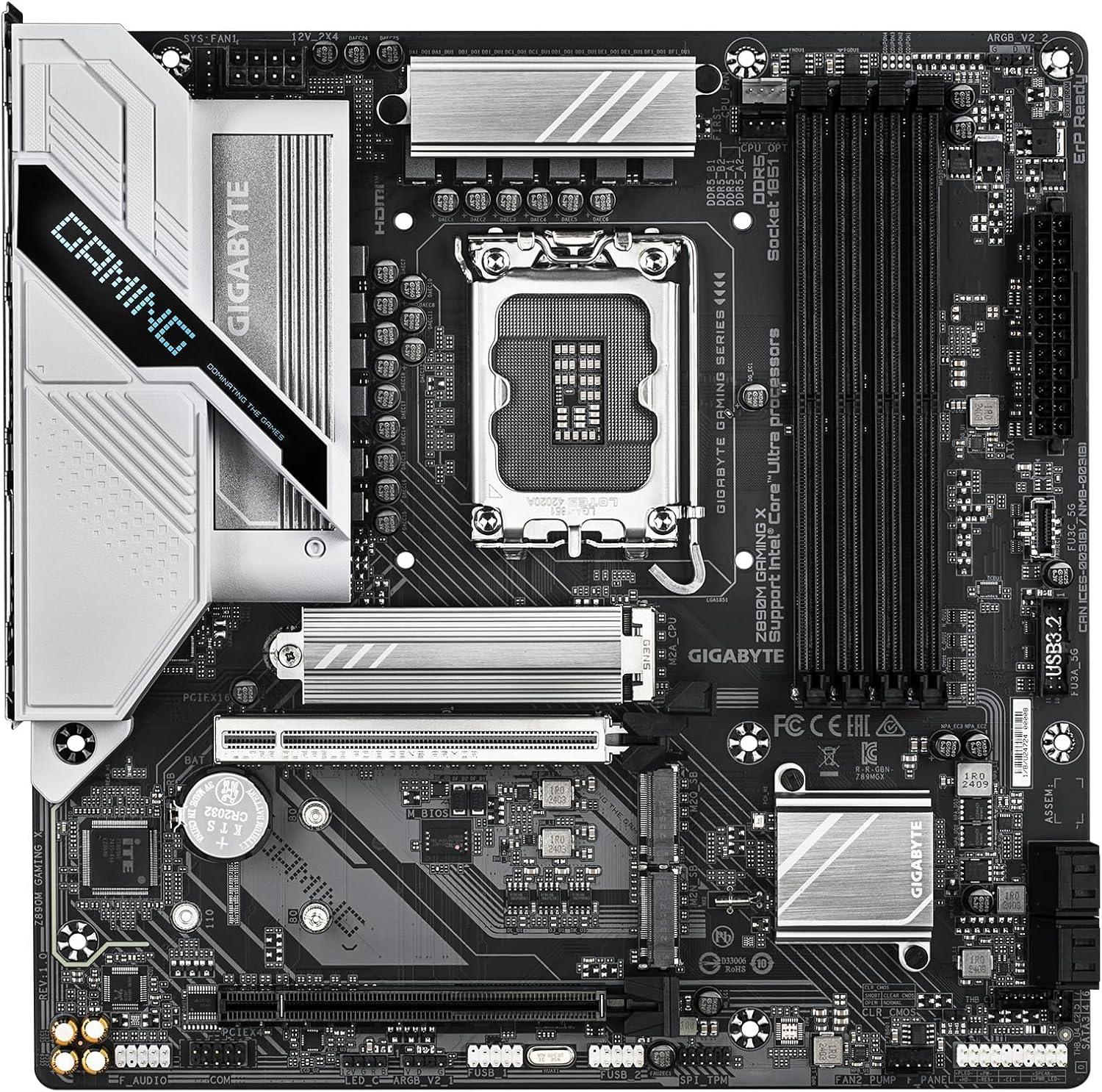

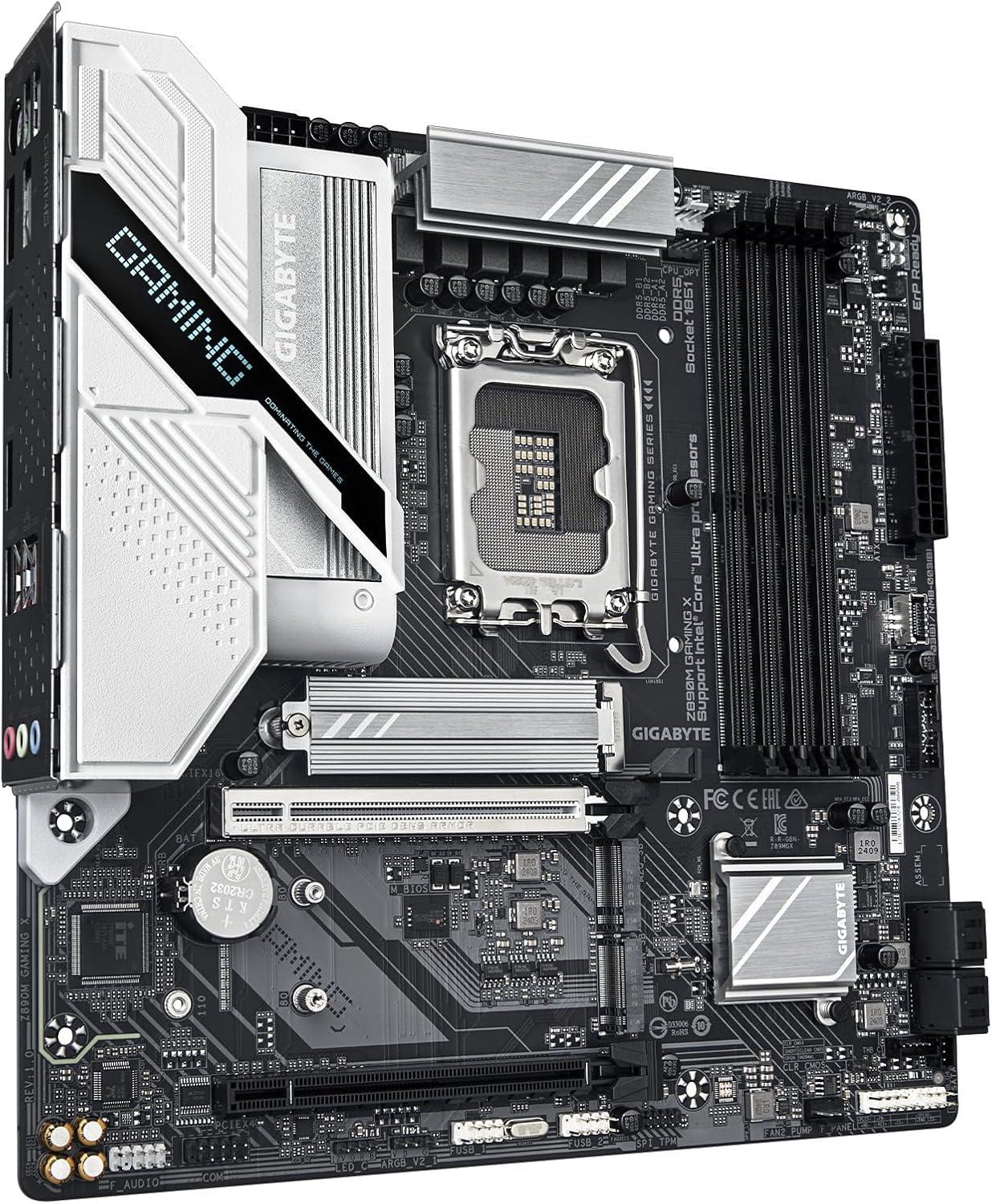

GIGABYTE Z890M Gaming X
GIGABYTE Z890M Gaming X Specifications Review
GIGABYTE Z890M Gaming X by GIGABYTE is a Micro-ATX form factor motherboard based on the high-end Z890M chipset and LGA 1851 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 9066 MHz.
VRM Quality
The GIGABYTE Z890M Gaming X has a basic VRM configuration, delivering 60 A across 8 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE Z890M Gaming X offers a well-equipped expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 3 M.2 slots (x4/x2) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard has essential connectivity features with wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Ethernet . USB connectivity covers basic needs. Please refer to the specification table for details.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 2.1 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® Audio CODEC) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
GIGABYTE Z890M Gaming X is a dependable choice with a respectable overall quality score of 52.20. It provides all the essential features and stable performance expected in a mainstream system, covering typical use cases without unnecessary extras.
This motherboard has a solid 57.3% value efficiency, providing decent performance relative to its price. It represents a balanced option for users seeking fair capabilities without paying a premium.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE Z890M Gaming X |
| Current Price Amazon | $173 |
| Amazon Price Updated | 14 hours, 11 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | Z890M / LGA 1851 |
| Form Factor | Micro-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 8 (60 A) |
|---|---|
| Power Design | 8+1+2 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 9066 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
Storage Configuration
| M.2 Slot Count | 3 slots |
|---|---|
| M.2 Supported Lengths | 2580, 2280, 25110, 22110 |
| M.2 PCIe Modes | x4/x2 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® Audio CODEC |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 2.1 (Max: 4096x2304@60 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 3 |
Front USB Ports
| USB 3.2 Gen 1 Type-C (5 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Module: Not Included |
| Bluetooth | Supported: No |
Button Features
| Buttons |
|---|
Quality & Features
Additional Information
| RAM | Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, but they will operate in non-ECC mode. Also supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules and CUDIMM memory modules. The CPU and memory configuration may affect the supported memory types, data rate, and number of DRAM modules. |
|---|---|
| Display | Powered by Integrated Intel® HD Graphics. The HDMI port supports HDCP 2.3 and native HDMI 2.1 TMDS compatible ports. Supports up to triple-display at the same time. Graphics specifications may vary depending on CPU support. There are 2 DisplayPorts. |
| Expansion | The primary PCIEX16 slot supports PCIe 5.0 and runs at x16. It can only support a graphics card or an NVMe SSD. The second physical x16 slot (PCIEX4) supports PCIe 4.0 and runs at x4 speed. |
| Storage |
M.2 Slot Details:
|
| Audio | High Definition Audio. Supports 2/4/5.1/7.1-channel audio. You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Networking | Supported speeds: 2.5 Gbps/1 Gbps/100 Mbps |
| Buttons | The motherboard includes a Clear CMOS jumper. |
| Dimensions | 24.4cm x 24.4cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE Z890M Gaming X Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$170
|
0.0%
|
56.8%
|
28.0%
|
67.0%
|
79.0%
|
65.0%
|
45.0%
|
63.5%
|
|
|
$170
|
0.0%
|
55.6%
|
24.0%
|
73.0%
|
72.0%
|
64.0%
|
45.0%
|
62.1%
|
|
|
$160
|
0.0%
|
54.8%
|
30.0%
|
67.0%
|
75.0%
|
62.0%
|
40.0%
|
65.1%
|
|
|
$150
|
0.0%
|
54.2%
|
20.0%
|
68.0%
|
88.0%
|
50.0%
|
45.0%
|
68.7%
|
|
|
$161
|
0.0%
|
53.0%
|
32.0%
|
67.0%
|
78.0%
|
43.0%
|
45.0%
|
62.6%
|
|
|
$173
|
0.0%
|
52.2%
|
24.0%
|
87.0%
|
81.0%
|
29.0%
|
40.0%
|
57.3%
|
|
|
$230
|
0.0%
|
51.6%
|
31.0%
|
73.0%
|
48.0%
|
63.0%
|
43.0%
|
42.6%
|
|
|
$160❗
|
0.0%
|
49.6%
|
24.0%
|
62.0%
|
53.0%
|
69.0%
|
40.0%
|
58.9%
|
|
|
$0
|
0.0%
|
46.2%
|
17.0%
|
67.0%
|
60.0%
|
42.0%
|
45.0%
|
N/A |
Motherboard Comparison and Detail Specifications Table
| Specification |
No image available |
Perf Chart | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$170
|
0.0%
|
$170
|
0.0%
|
$160
|
0.0%
|
$150
|
0.0%
|
$161
|
0.0%
|
$173
|
0.0%
|
$230
|
0.0%
|
$160❗
|
0.0%
|
$0
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | ASUS | GIGABYTE | ASRock | GIGABYTE | ASUS | GIGABYTE | GIGABYTE | ASRock | ASUS | ||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B860M / LGA 1851 | B860M / LGA 1851 | B860 / LGA 1851 | B860M / LGA 1851 | B860 / LGA 1851 | Z890M / LGA 1851 | B860I / LGA 1851 | B860I / LGA 1851 | B860M / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||
| Form | Micro-ATX | Micro-ATX | Standard-ATX | Micro-ATX | Standard-ATX | Micro-ATX | Mini-ITX | Mini-ITX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 7 (80 A) | 8 (60 A) | 10 (60 A) | 8 (50 A) | 8 (80 A) | 8 (60 A) | 8 (80 A) | 8 (60 A) | 6 (55 A) | ||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 7(80A) + 1(80A) + 1(80A) + 1(80A) | 8+1+2 | 10+1+1+1+1 | 8+1+2 | 8+1+1 | 8+1+2 | 8+1+2 | 8+1+1+1+1 | 6+1+1+1 | ||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 2 / DDR5 | 2 / DDR5 | 2 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 8666 MHz | 256 GB / 9200 MHz | 256 GB / 8666 MHz | 256 GB / 9066 MHz | 256 GB / 8666 MHz | 256 GB / 9066 MHz | 128 GB / 9200 MHz | 128 GB / 8933 MHz | 128 GB / 8800 MHz | ||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 1x16 Gen5 | 1x16 Gen4 | 2x1 Gen4 | ||||||||||||||||||||||||||||||||||||||||||
| M.2 | 2 | 2 | 3 | 2 | 3 | 3 | 2 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 2 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek ALC897 Audio Codec | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek® Audio CODEC | Realtek® Audio CODEC | Realtek ALC897 Audio Codec | Realtek® ALC892/ALC897 | ||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ❌ | ❌ | ❌ | ✔️ | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.4) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||||
| LAN | Intel® B860 Chipset (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x Realtek 2.5Gb Ethern… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | 1 x 2.5 Gigabit LAN 10/1… (2 ports) | 1 x Realtek 2.5Gb Ethern… (2 ports) | ||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi 6E | ❌ | ❌ | Wi-Fi 7 | Wi-Fi Wi-Fi 6E | ❌ | ||||||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.3 | v5.3 | v5.3 | ❌ | ❌ | v5.4 | v5.3 | ❌ | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
|
|
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
| No compatible CPU available. The motherboard's VRM is too weak to be recommended with any CPU in the database. | |||||||||
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Graphics:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Storage:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Expansion Slots:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
USB:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

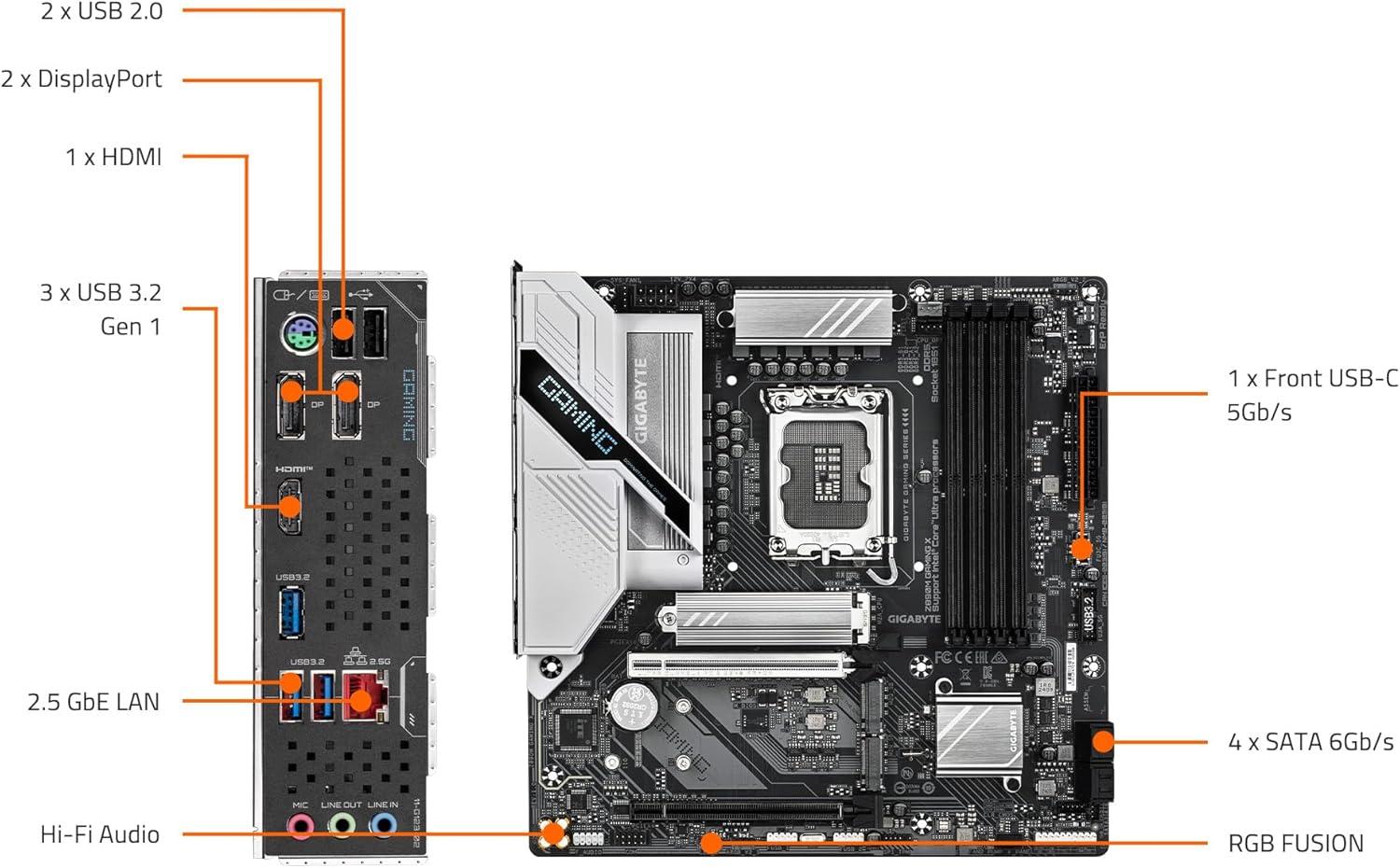

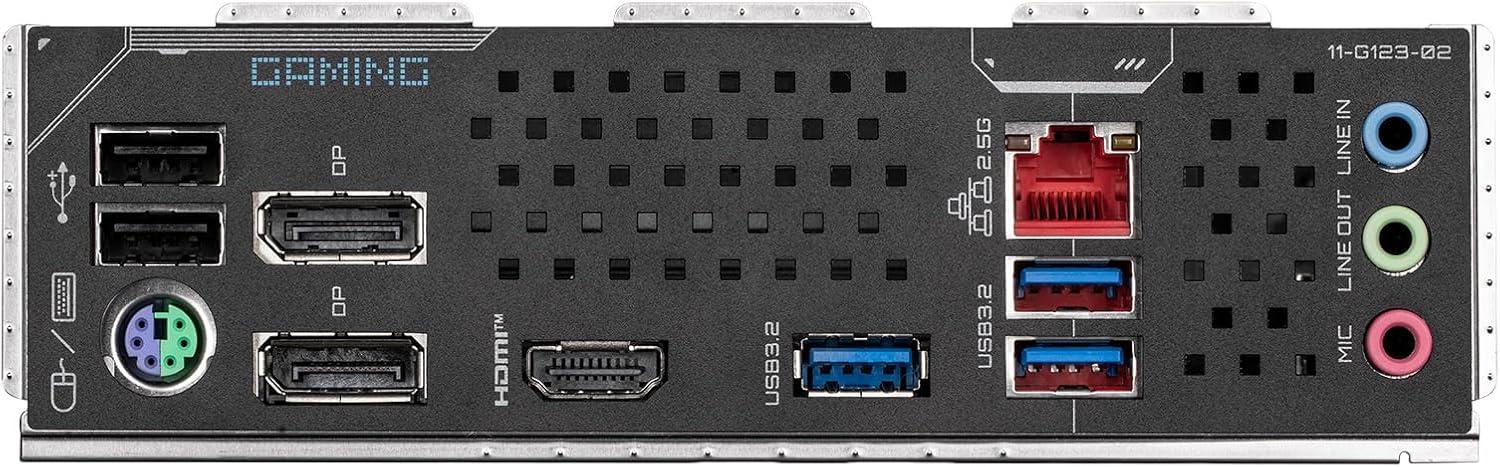

Back Panel I/O:
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
