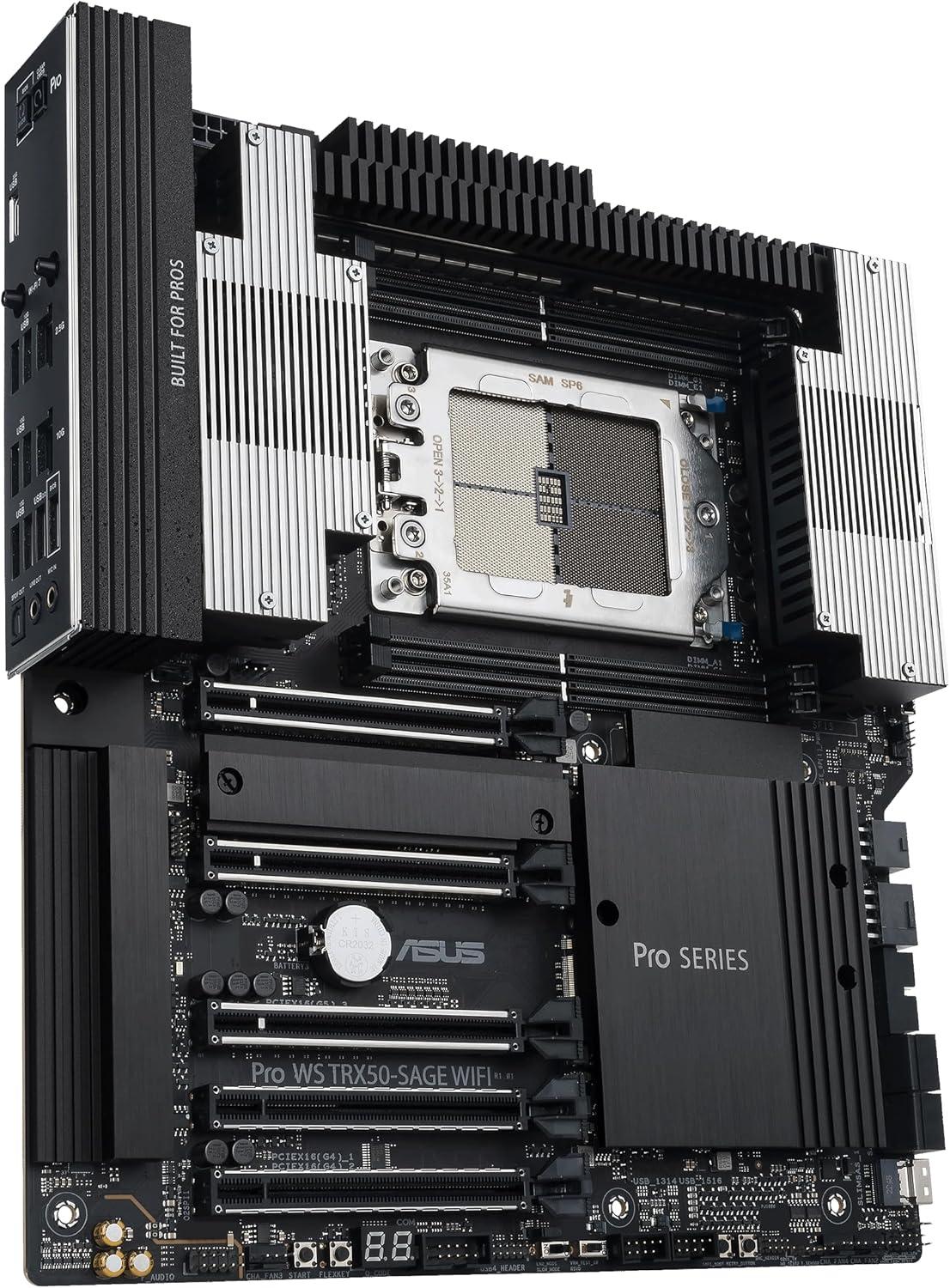

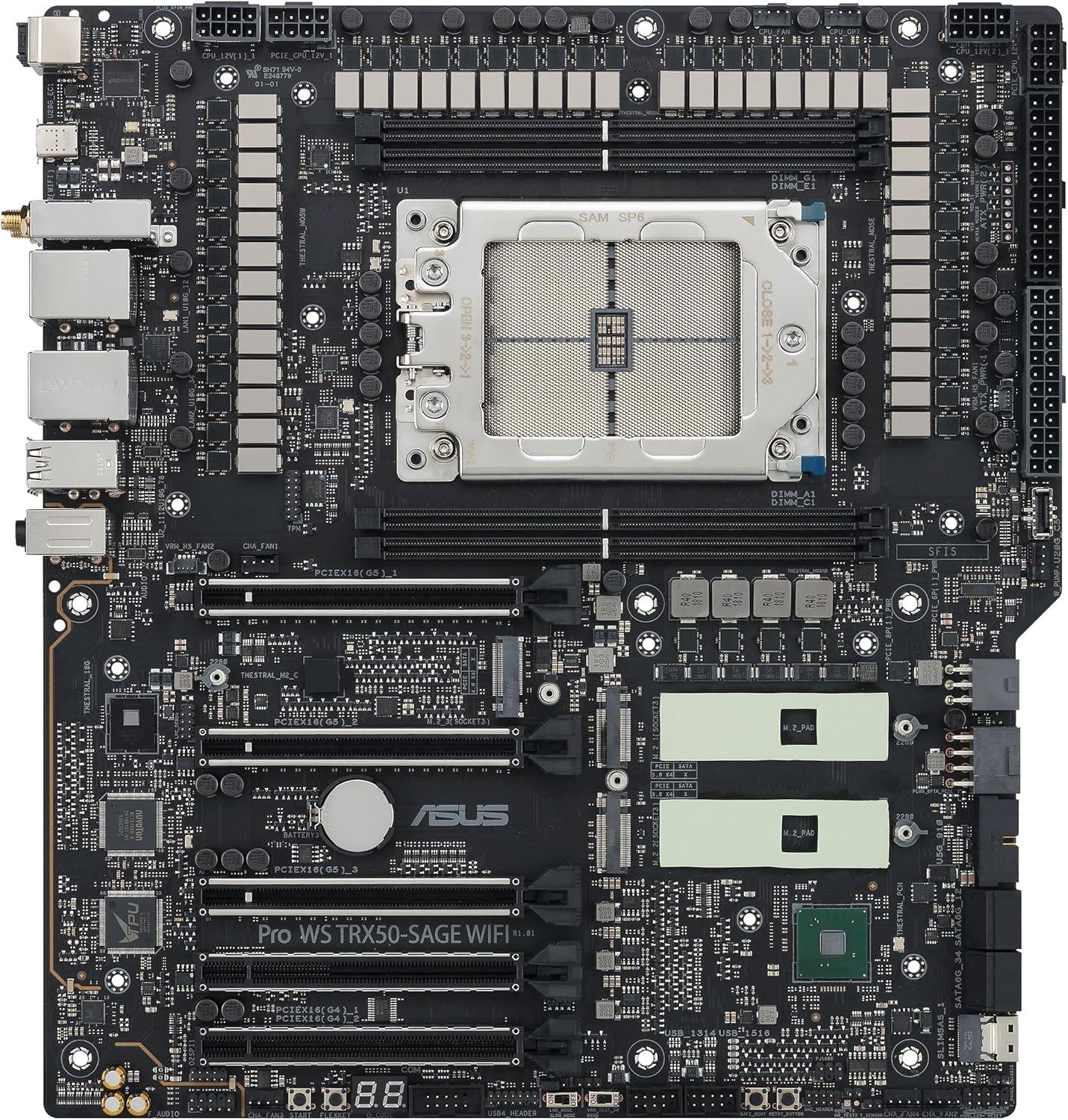

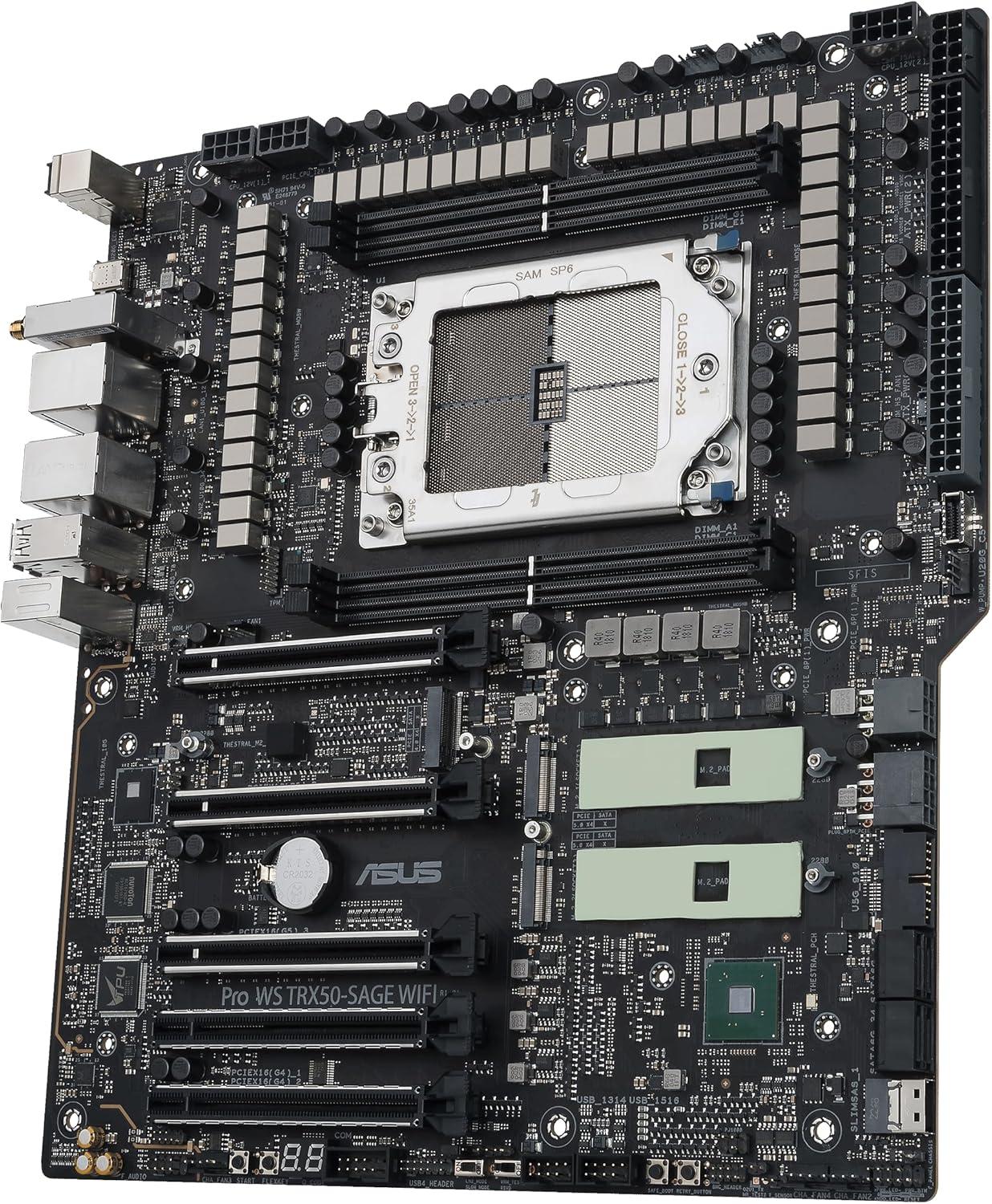

Asus Pro WS TRX50-SAGE WIFI
Asus Pro WS TRX50-SAGE WIFI Specifications Review
It is a high-end desktop (HEDT) motherboard based on the TRX50 chipset and sTR5 socket. Targeted at enthusiasts and power users, it delivers extreme multi-core performance with 4-channel memory support, making it well-suited for heavy multitasking, content creation, and compute-intensive workloads. It is designed to support DDR5 ECC Reg memory, with 4 slots, a maximum capacity of 1024 GB.

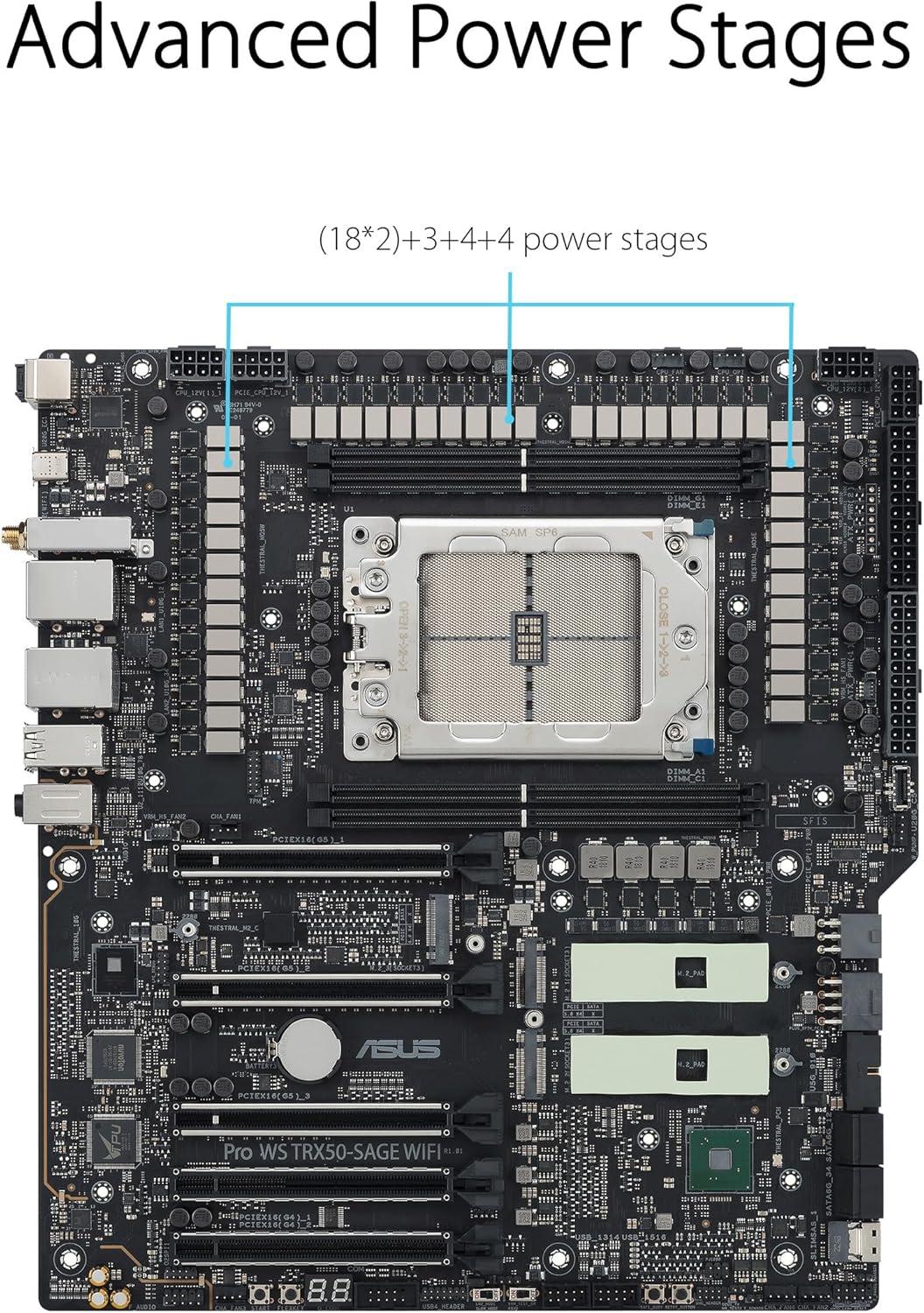

VRM Quality
The Asus Pro WS TRX50-SAGE WIFI is equipped with a professional-grade workstation VRM, providing 90 A across 36 phases. This configuration is purpose-built to handle high-core-count Threadripper™ processors under 24/7 sustained rendering and compute loads. It offers the superior thermal stability required for mission-critical workstations and data-intensive applications.
Expansion and Storage Overview
The Asus Pro WS TRX50-SAGE WIFI offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 5 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.

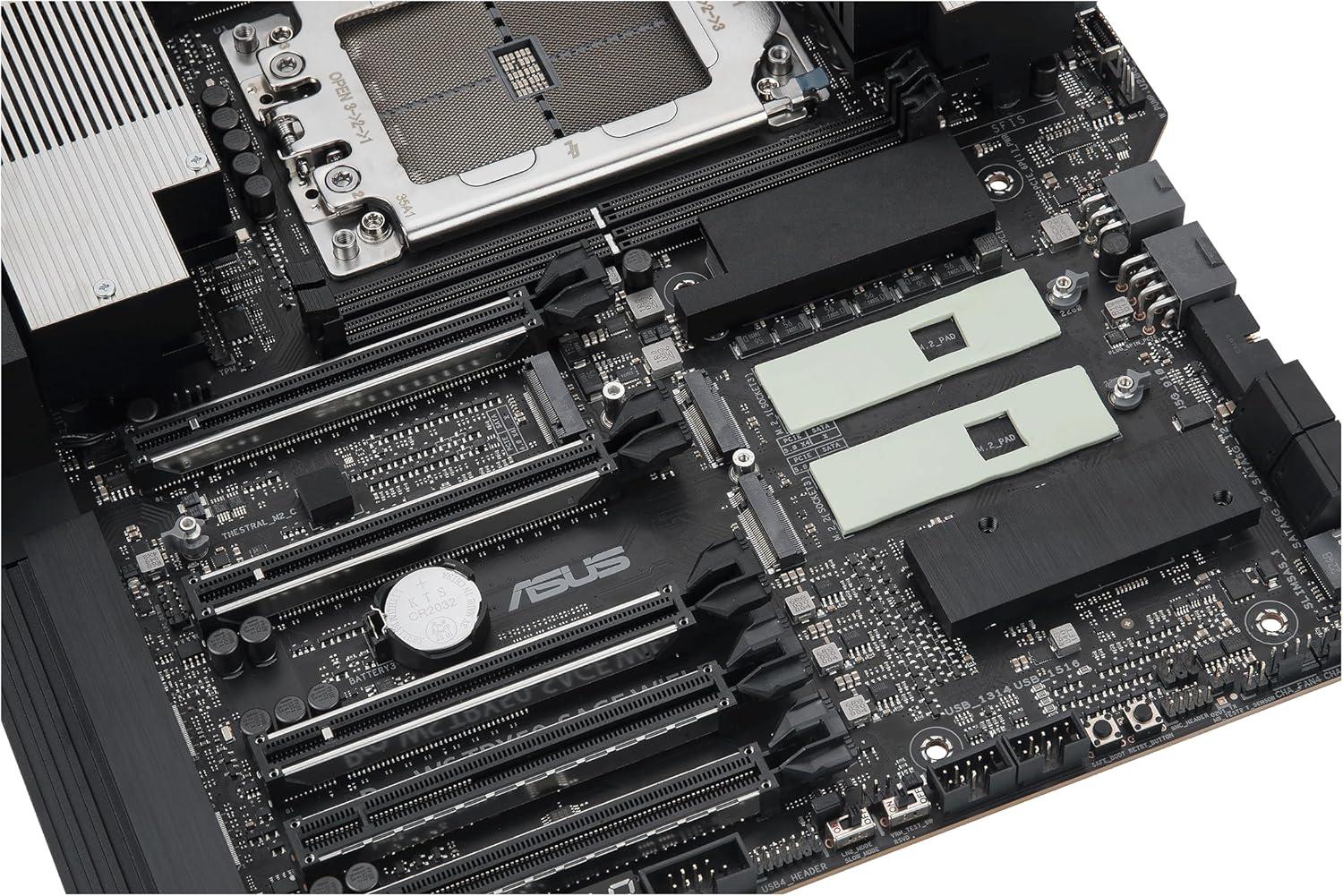

For storage, this motherboard provides 3 M.2 slots (M.2_1: PCIe 5.0 x4; M.2_2: PCIe 5.0 x4; M.2_3: PCIe 4.0 x4) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wireless networking with the wireless Wi-Fi 7 (802.11be) and wired 1 x Marvell®AQtion 10Gb Ethernet1 x Intel®I226-LM 2.5Gb Ethernet LAN support capable of speeds up to 10000 Gbps, ensuring ultra-fast network connections. Bluetooth 5.4 is included for seamless wireless connections to peripherals. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
Audio Quality
Equipped with a high-end audio chipset — the Realtek ALC1220P — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
Asus Pro WS TRX50-SAGE WIFI is a premium motherboard boasting a high overall quality score of 98.20. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard shows a 22.0% value score indicating less favorable price-to-performance compared to mainstream models. This is typical for high-end motherboards, which prioritize premium features, durability, and advanced capabilities over raw value. It is an excellent choice for users who favor top quality, cutting-edge technology, and robust performance and are willing to invest more without focusing primarily on price.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | Asus Pro WS TRX50-SAGE WIFI |
| Current Price Amazon | $850 |
| Amazon Price Updated | 1 day ago. |
| Motherboard Available | True |
| Chipset / Socket | TRX50 / sTR5 |
| Form Factor | SSI-CEB |
VRM Configuration
| CPU Power Phases (Amps) | 36 (90 A) |
|---|---|
| Power Design | 36 |
Memory Information
| Type / Slots | DDR5 ECC Reg / 4 slots |
|---|---|
| Max Capacity / Max OC | 1024 GB |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 5 | 3 | 2 |
Storage Configuration
| M.2 Slot Count | 3 slots |
|---|---|
| M.2 Supported Lengths | 2242, 2260, 2280 |
| M.2 PCIe Modes | M.2_1: PCIe 5.0 x4; M.2_2: PCIe 5.0 x4; M.2_3: PCIe 4.0 x4 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ALC1220P |
|---|---|
| Analog Audio Jacks | 2 jacks |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 6 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
Front USB Ports
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
|---|---|
| Power Delivery (W) | 27W |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 1 x Marvell®AQtion 10Gb Ethernet1 x Intel®I226-LM 2.5Gb Ethernet LAN Ports: 2 |
|---|---|
| Wi-Fi |
Version: Wi-Fi Wi-Fi 7 (802.11be) Bandwidth: 160MHz Frequency Bands: ['2.4GHz', '5GHz', '6GHz'] Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| CPU Support | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors ** *Refer to www.asus.com for CPU support list. **System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete. |
|---|---|
| OS Support | Windows®11 |
| RAM | DDR5, ECC Registered Memory (registered ECC modules). Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration; refer to the CPU/Memory Support list under the product Support tab or https://www.asus.com/support/. |
| Expansion | Maximum supported generation is PCIe 5.0. Physical layout: 5 x16-size slots total — 2x PCIe 5.0 x16, 1x PCIe 5.0 x16 (operates in x8 mode), 1x PCIe 4.0 x16, and 1x PCIe 4.0 x16 (operates in x4 mode). Slots that list a reduced mode are physically x16 but run at fewer lanes (x8 or x4) depending on configuration. Consult the ASUS PCIe bifurcation table (https://www.asus.com/support/FAQ/1037507/) for bandwidth sharing, bifurcation options, and slot limitations. PCIe 5.0 offers up to double the per-lane bandwidth of PCIe 4.0 (approximately 32 GT/s per lane, ~4 GB/s per lane raw per direction; ~64 GB/s total for x16) and is backward compatible with earlier PCIe versions. |
| Storage |
M.2 Slot Details:
Total: 3x M.2 slots and 4x SATA 6Gb/s ports. 1x SlimSAS slot supports a PCIe 4.0 x4 NVMe device. AMD RAIDXpert2 supports both PCIe and SATA RAID (0/1/5/10). No slot population interdependencies were specified in the source text. |
| Audio | Impedance sense for front and rear headphone outputs; internal audio amplifier for headphones and speakers; supports jack-detection, multi-streaming, front panel jack-retasking; 120 dB SNR playback, 113 dB SNR recording; supports up to 32-bit/192 kHz playback; audio shielding, dedicated audio PCB layers, unique de-pop circuit. Motherboard supports up to 5.1 surround sound but requires a chassis HD front-panel audio module and is limited by the number of audio ports. |
| Networking | Two physical Ethernet ports: Marvell AQtion 10Gb and Intel I226-LM 2.5Gb. Wi‑Fi: 2x2 Wi‑Fi 7, up to 2.9Gbps transfer rate; Wi‑Fi features vary by OS (Windows 11 requires SV3+ for full Wi‑Fi7, Win11 SV1/2 only support Wi‑Fi 6E; no driver for Windows 10). 6GHz band and bandwidth regulatory availability may vary by country. Bluetooth version may vary per Wi‑Fi module vendor. |
| Buttons | Also includes FlexKey button, Start button, Safe Boot button, ReTry button; additionally has an LN2 mode jumper and a Slow Mode switch. Other headers (BMC, COM, USB4, TPM, etc.) and fan/power connectors are listed but are not buttons. |

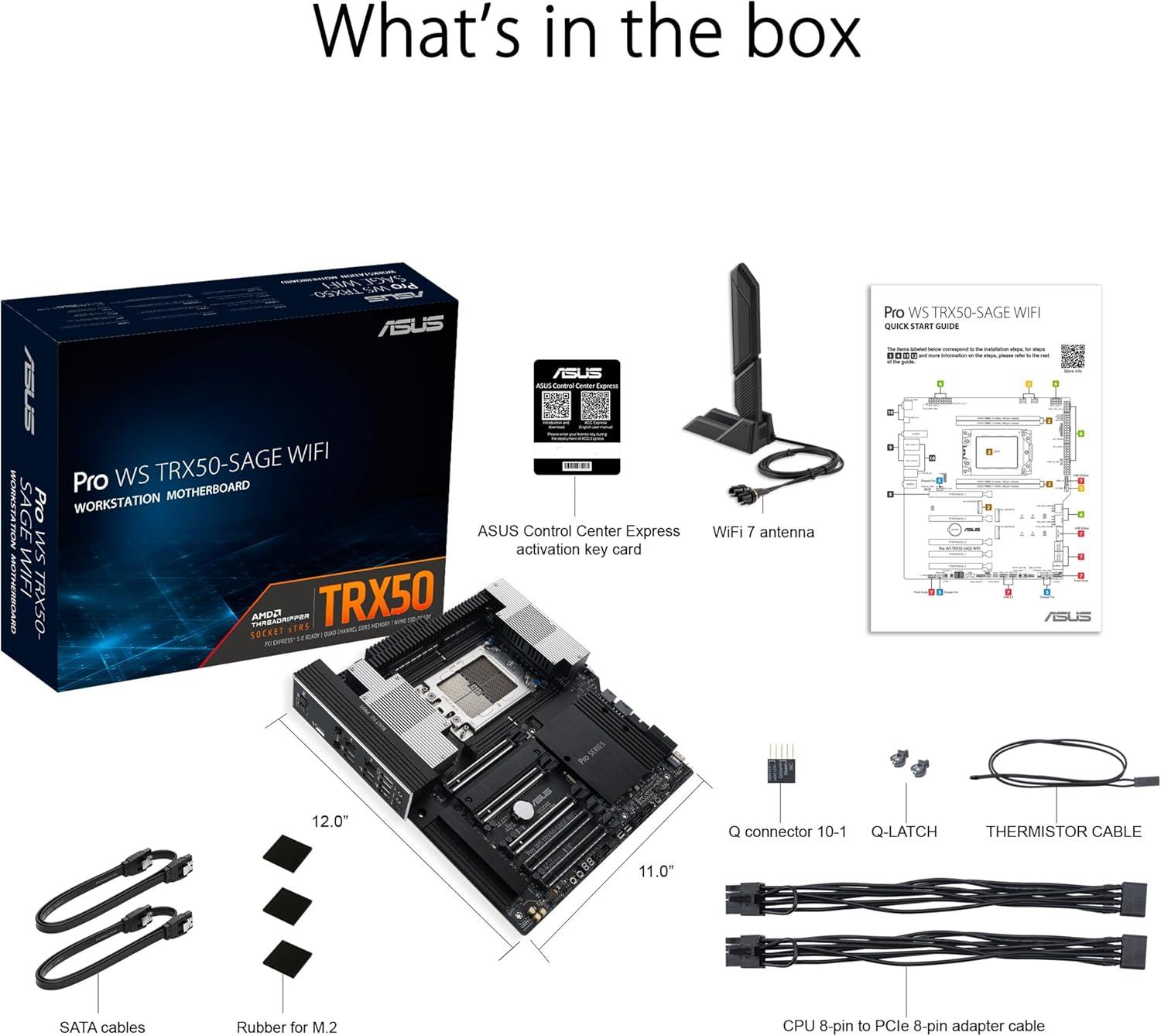

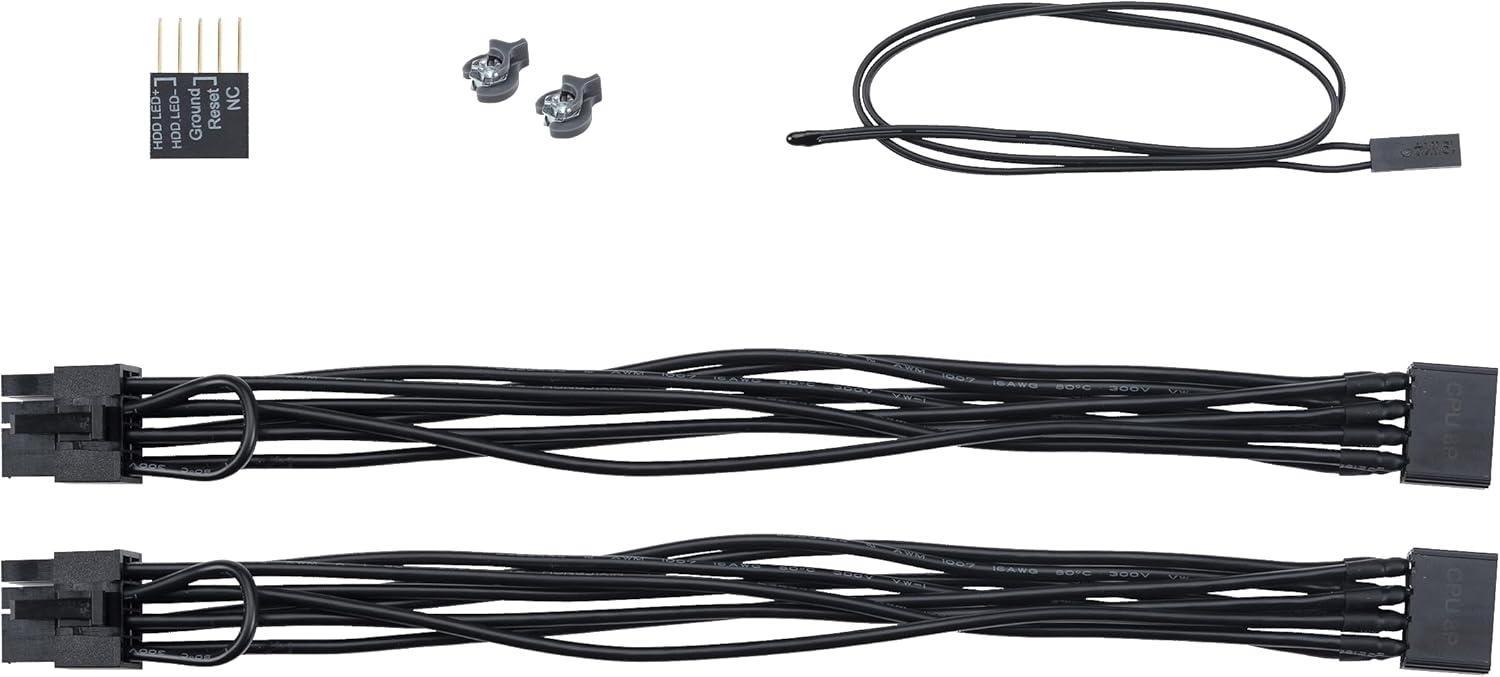

| Accessories | Cables 2 x SATA 6Gb/s cables 1 x CPU 8-pin to PCIe 8-pin adapter cable package 1 x Thermistor cable pack Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 Q-Latch package(2 in 1) 2 x M.2 Rubber Packages 1 x Q-connector Documentation 1 x ACC Express Activation Key Card 1 x QSG |
| Dimensions | CEB Form Factor12 inch x 11 inch(30.5 cm x 28.3 cm) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
Asus Pro WS TRX50-SAGE WIFI Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$850
|
0.0%
|
99.2%
|
110.0%
|
95.0%
|
110.0%
|
103.0%
|
78.0%
|
22.2%
|
|
|
$850
|
↑
3.7%
|
98.2%
|
110.0%
|
95.0%
|
110.0%
|
95.0%
|
81.0%
|
22.0%
|
|
|
$1101❗
|
↑
7.0%
|
97.4%
|
110.0%
|
99.0%
|
110.0%
|
90.0%
|
78.0%
|
16.8%
|
|
|
$578
|
0.0%
|
94.8%
|
84.0%
|
90.0%
|
110.0%
|
105.0%
|
85.0%
|
31.2%
|
|
|
$756
|
↓
-5.8%
|
94.8%
|
98.0%
|
88.0%
|
110.0%
|
94.0%
|
84.0%
|
23.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$850
|
0.0%
|
$850
|
↑
3.7%
|
$1101❗
|
↑
7.0%
|
$578
|
0.0%
|
$756
|
↓
-5.8%
|
||||||||||||||||||
| Manufacturer | ASUS | ASUS | ASUS | GIGABYTE | ASROCK | ||||||||||||||||||
| Chip/Socket | TRX50 / sTR5 | TRX50 / sTR5 | WRX90 / sTR5 | TRX50 / sTR5 | TRX50 / sTR5 | ||||||||||||||||||
| Form | SSI-CEB | SSI-CEB | SSI-EEB | E-ATX | E-ATX | ||||||||||||||||||
| CPU Phases | 20 (110 A) | 36 (90 A) | 32 (110 A) | 16 (108 A) | 18 (110 A) | ||||||||||||||||||
| PWR Design | 20 +3 + 3 + 3 | 36 | 32+3+3+3 | 16+8+4 | 18+3+3 | ||||||||||||||||||
| Mem Slots | 4 / DDR5 ECC Reg | 4 / DDR5 ECC Reg | 8 / DDR5 ECC Reg | 4 / DDR5 ECC Reg | 4 / DDR5 ECC Reg | ||||||||||||||||||
| Max Mem | 1024 GB / 0 MHz | 1024 GB / 0 MHz | 2048 GB / 0 MHz | 1024 GB / 8000 MHz | 1024 GB / 7600 MHz | ||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||
| PCIe Slots | 3x16 Gen5 | 1x16 Gen4 | 3x16 Gen5 | 2x16 Gen4 | 7x16 Gen5 | 2x16 Gen5 | 1x16 Gen4 | 3x16 Gen5 | 2x16 Gen4 | ||||||||||||||||||
| M.2 | 4 | 3 | 4 | 4 | 2 | ||||||||||||||||||
| SATA | 4 | 4 | 4 | 8 | 4 | ||||||||||||||||||
| Audio | Realtek ALC1220P Surround Sou… | Realtek ALC1220P | Realtek ALC1220P Surround Sou… | Realtek® ALC4080; Realtek® AL… | Realtek ALC1220 Audio Codec | ||||||||||||||||||
| S/PDIF | ❌ | ✔️ | ❌ | ❌ | ✔️ | ||||||||||||||||||
| HDMI | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||
| LAN | 1 x Marvell® AQtion 10Gb… (2 ports) | 1 x Marvell®AQtion 10Gb … (2 ports) | 1 x Realtek 1Gb Ethernet… (3 ports) | Marvell® AQtion AQC113C … (2 ports) | 1 x 10 Gigabit LAN 100/1… (3 ports) | ||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 7 (802.11be) Realtek RTL8922AE | Wi-Fi Wi-Fi 7 (802.11be) | ❌ | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 6E (802.11ax) | ||||||||||||||||||
| BT | v5.4 | v5.4 | ❌ | v5.3 | v5.2 | Rear USB |
|
|
|
|
|
||||||||||||
| USB Headers |
|
|
|
|
❌ |
||||||||||||||||||
| Front USB |
|
|
|
❌ |
|
%20Gallery/840c75521de64f37b377c19d53781be1.jpg)
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$10500
|
0.0%
|
285.4%
|
75.6%
|
350 W / 350 W | 96 / 0 / 192 | 1024.0 kB / 384.0 MB | 2.50 GHz / 5.40 GHz | Shimada Peak | None | |
|
$7952
|
↑
0.2%
|
255.7%
|
75.8%
|
350 W / 350 W | 64 / 0 / 128 | 1024.0 kB / 256.0 MB | 3.20 GHz / 5.40 GHz | Shimada Peak | None | |
|
$2768
|
0.0%
|
255.0%
|
76.1%
|
350 W / 350 W | 64 / 0 / 128 | 1024.0 kB / 256.0 MB | 3.20 GHz / 5.40 GHz | Shimada Peak | None | |
|
$9588
|
0.0%
|
253.5%
|
74.5%
|
350 W / 350 W | 96 / 0 / 192 | 1024.0 kB / 384.0 MB | 2.50 GHz / 5.10 GHz | Storm Peak | None | |
|
$3800❗
|
0.0%
|
229.2%
|
74.5%
|
350 W / 350 W | 64 / 0 / 128 | 1024.0 kB / 256.0 MB | 3.20 GHz / 5.10 GHz | Storm Peak | None | |
|
$3220
|
0.0%
|
228.3%
|
74.9%
|
350 W / 350 W | 64 / 0 / 128 | 1024.0 kB / 256.0 MB | 3.20 GHz / 5.10 GHz | Storm Peak | None | |
|
$4190
|
↓
-0.5%
|
177.7%
|
76.3%
|
350 W / 350 W | 32 / 0 / 64 | 1024.0 kB / 128.0 MB | 4.00 GHz / 5.40 GHz | Shimada Peak | None | |
|
$1900
|
↓
-5.0%
|
176.3%
|
76.6%
|
350 W / 350 W | 32 / 0 / 64 | 1024.0 kB / 128.0 MB | 4.00 GHz / 5.40 GHz | Shimada Peak | None | |
|
$3800
|
↑
1.1%
|
156.1%
|
75.5%
|
350 W / 350 W | 32 / 0 / 64 | 1024.0 kB / 128.0 MB | 4.00 GHz / 5.30 GHz | Storm Peak | None | |
|
$1916
|
↓
-0.2%
|
155.8%
|
75.4%
|
350 W / 350 W | 32 / 0 / 64 | 1024.0 kB / 128.0 MB | 4.00 GHz / 5.30 GHz | Storm Peak | None | |
|
$2700❗
|
0.0%
|
144.3%
|
77.0%
|
350 W / 350 W | 24 / 0 / 48 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.40 GHz | Shimada Peak | None | |
|
$1299❗
|
0.0%
|
144.1%
|
77.1%
|
350 W / 350 W | 24 / 0 / 48 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.30 GHz | Shimada Peak | None | |
|
$1140
|
0.0%
|
125.2%
|
76.0%
|
350 W / 350 W | 24 / 0 / 48 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.30 GHz | Storm Peak | None | |
|
$2753
|
↓
-0.2%
|
124.6%
|
75.8%
|
350 W / 350 W | 24 / 0 / 48 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.30 GHz | Storm Peak | None | |
|
$1549❗
|
0.0%
|
106.4%
|
78.3%
|
350 W / 350 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.40 GHz | Shimada Peak | None | |
|
$1640
|
0.0%
|
95.4%
|
76.3%
|
350 W / 350 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.30 GHz | Storm Peak | None | |
|
$0
|
0.0%
|
86.3%
|
79.1%
|
350 W / 350 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.40 GHz | Shimada Peak | None | |
|
$0
|
0.0%
|
78.3%
|
77.0%
|
350 W / 350 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.30 GHz | Storm Peak | None |
Official Manufacturer Data
Memory:
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics:
Storage:
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

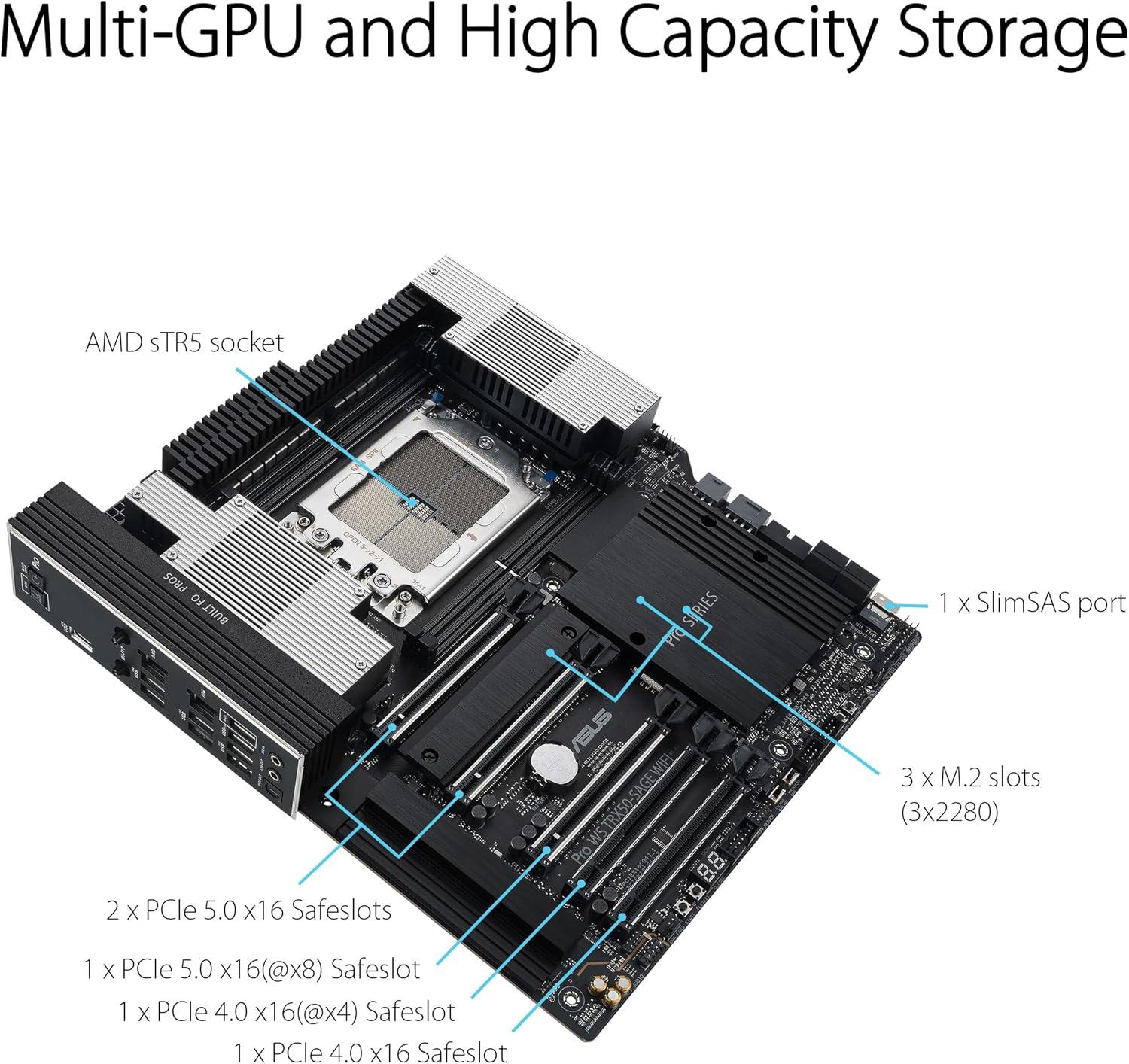

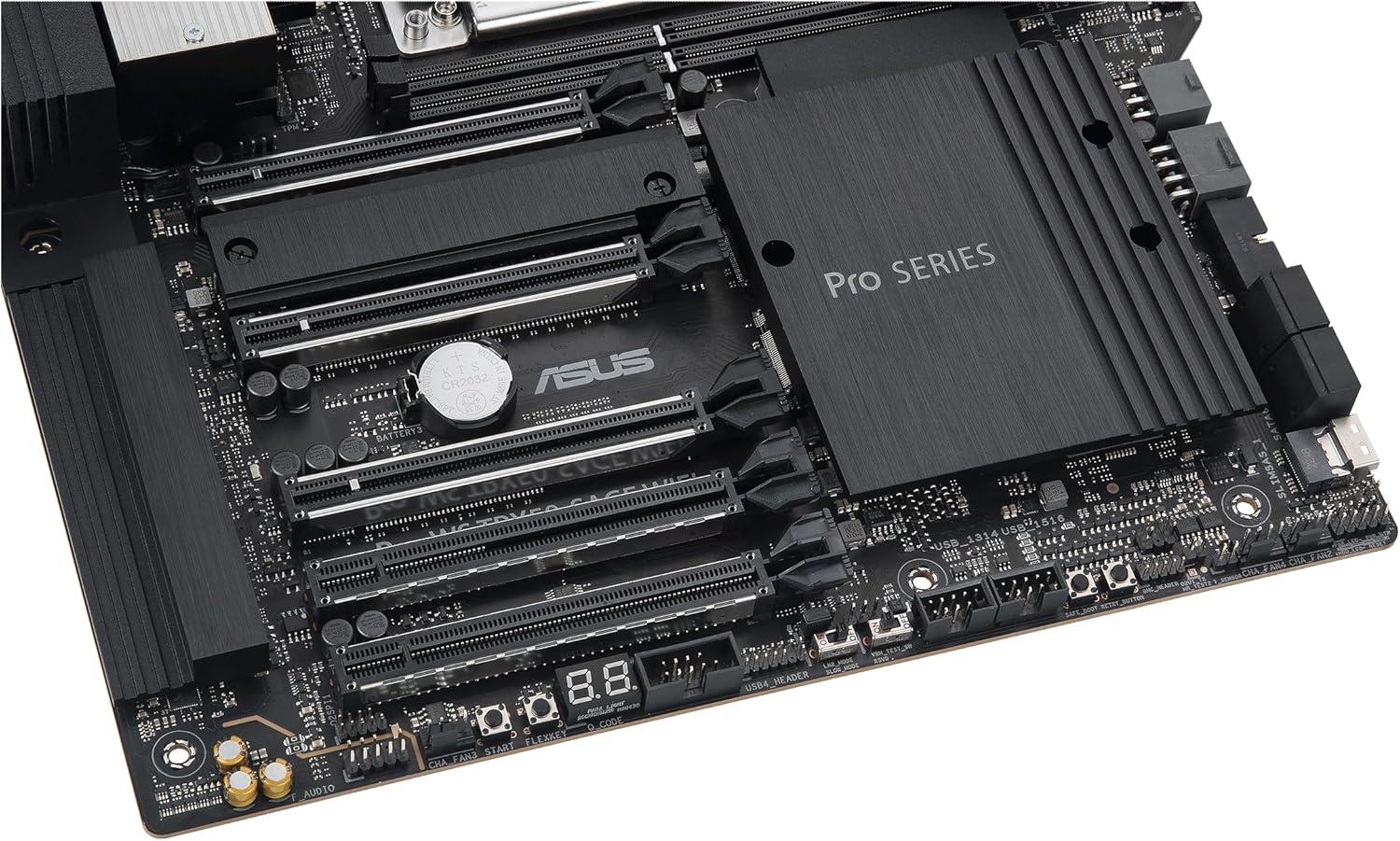

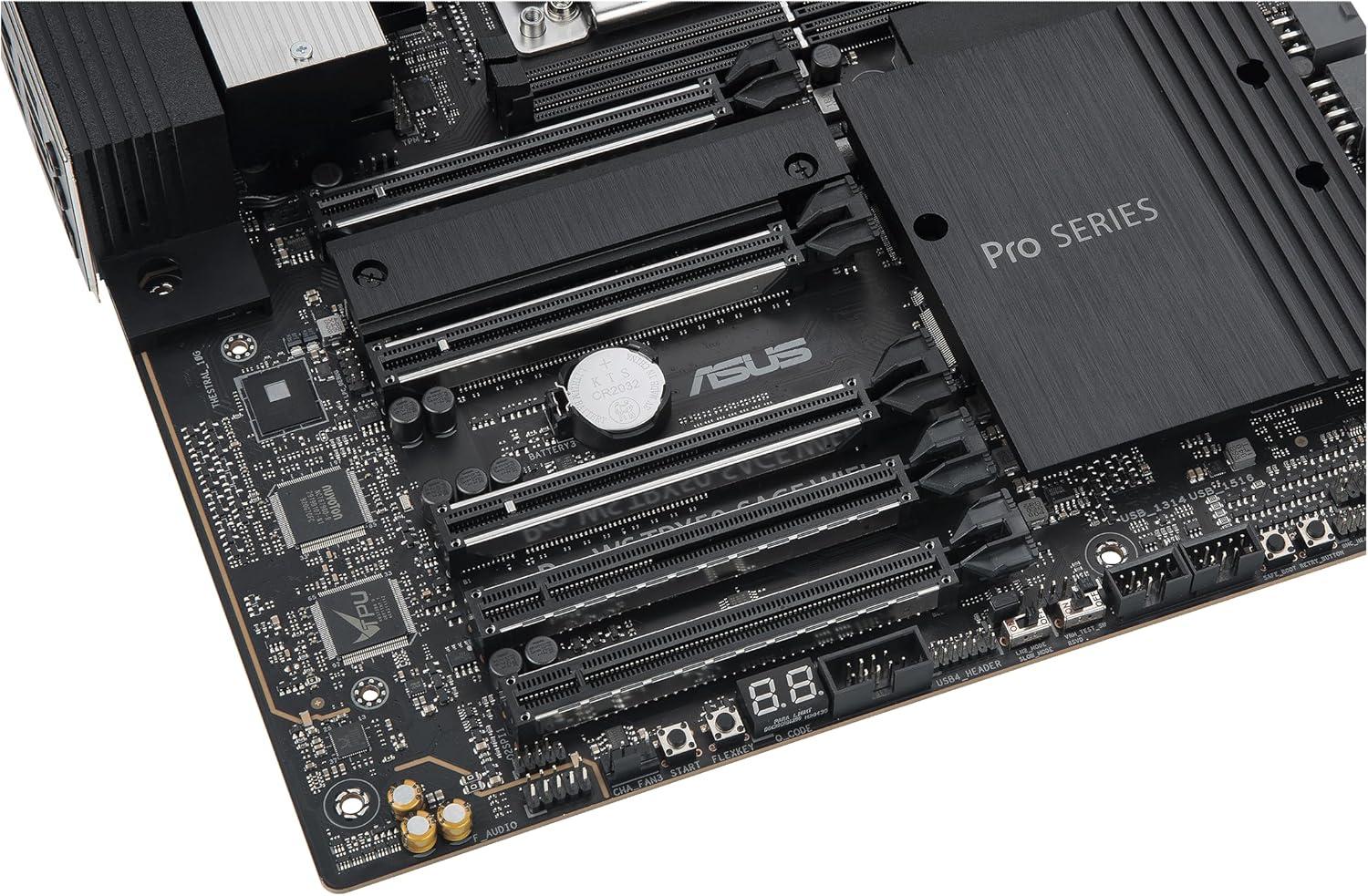

Expansion Slots:
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
USB:
1 x USB 20Gbps port (1 x USB Type-C®
)
6 x USB 10Gbps ports (6 x Type-A )
2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C®
with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous

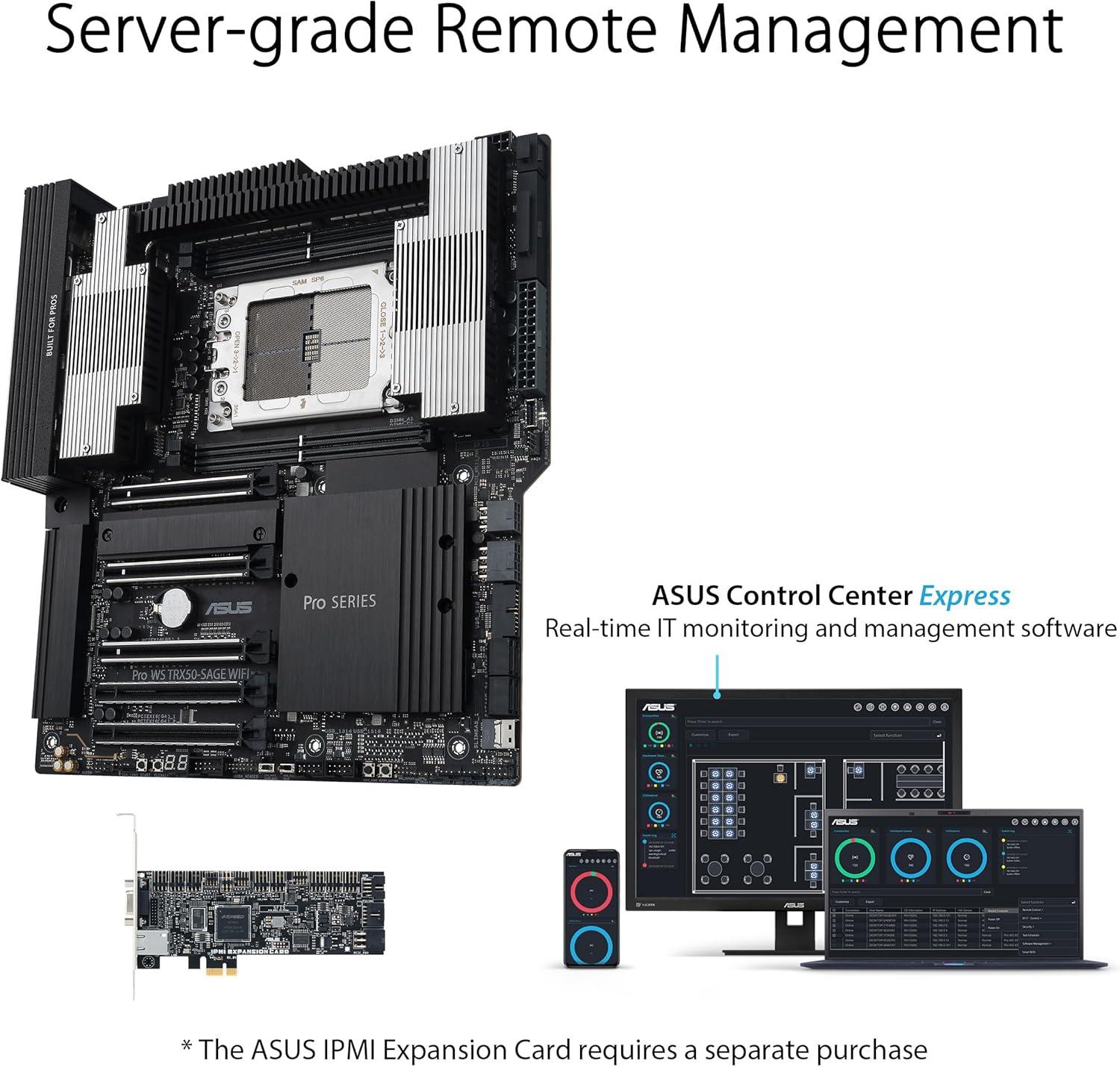

1 x BMC header
1 x COM Port header
1 x USB4 header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor header

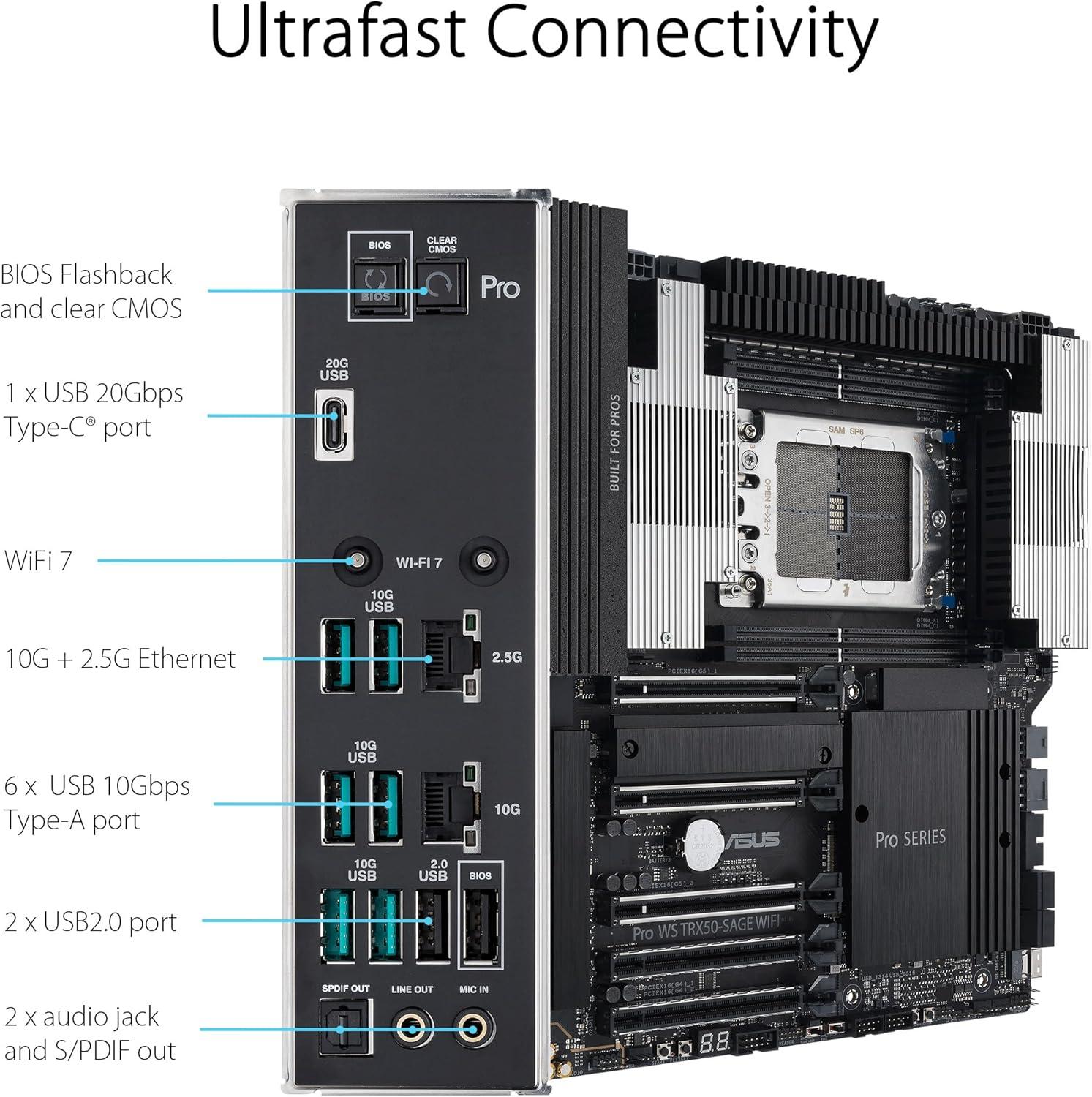

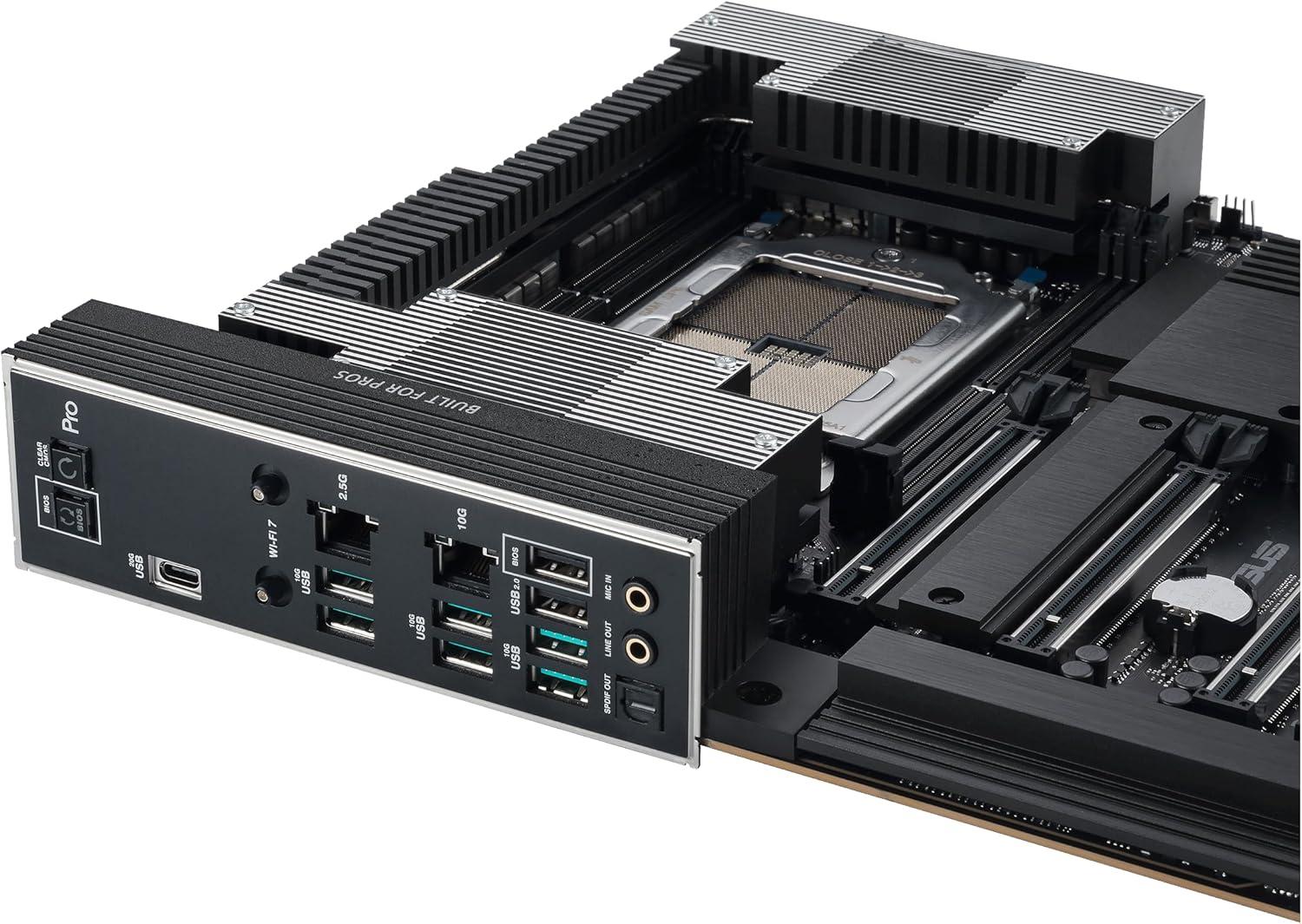

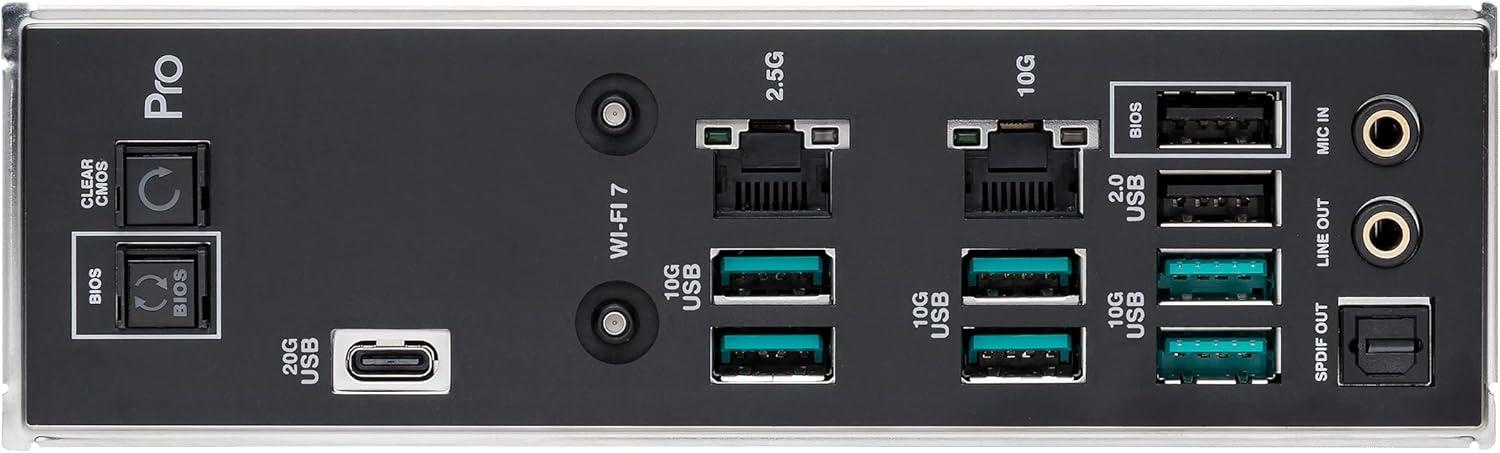

Back Panel I/O:
)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell®
AQtion 10Gb Ethernet port
1 x Intel®
2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
WiFi:
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Dedicated audio PCB layers
- Unique de-pop circuit
* A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
Special Features:
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

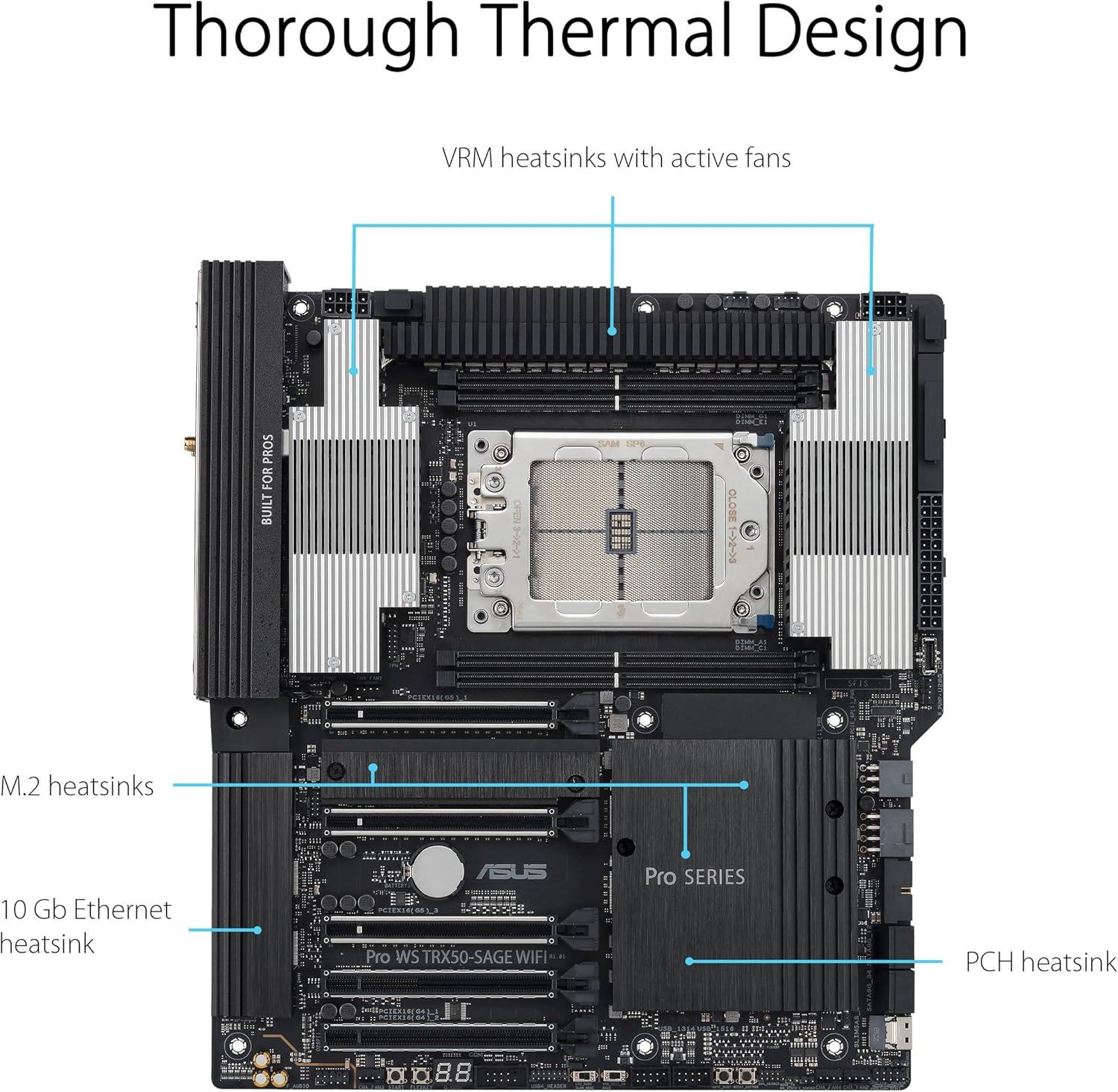

ASUS Thermal Solution

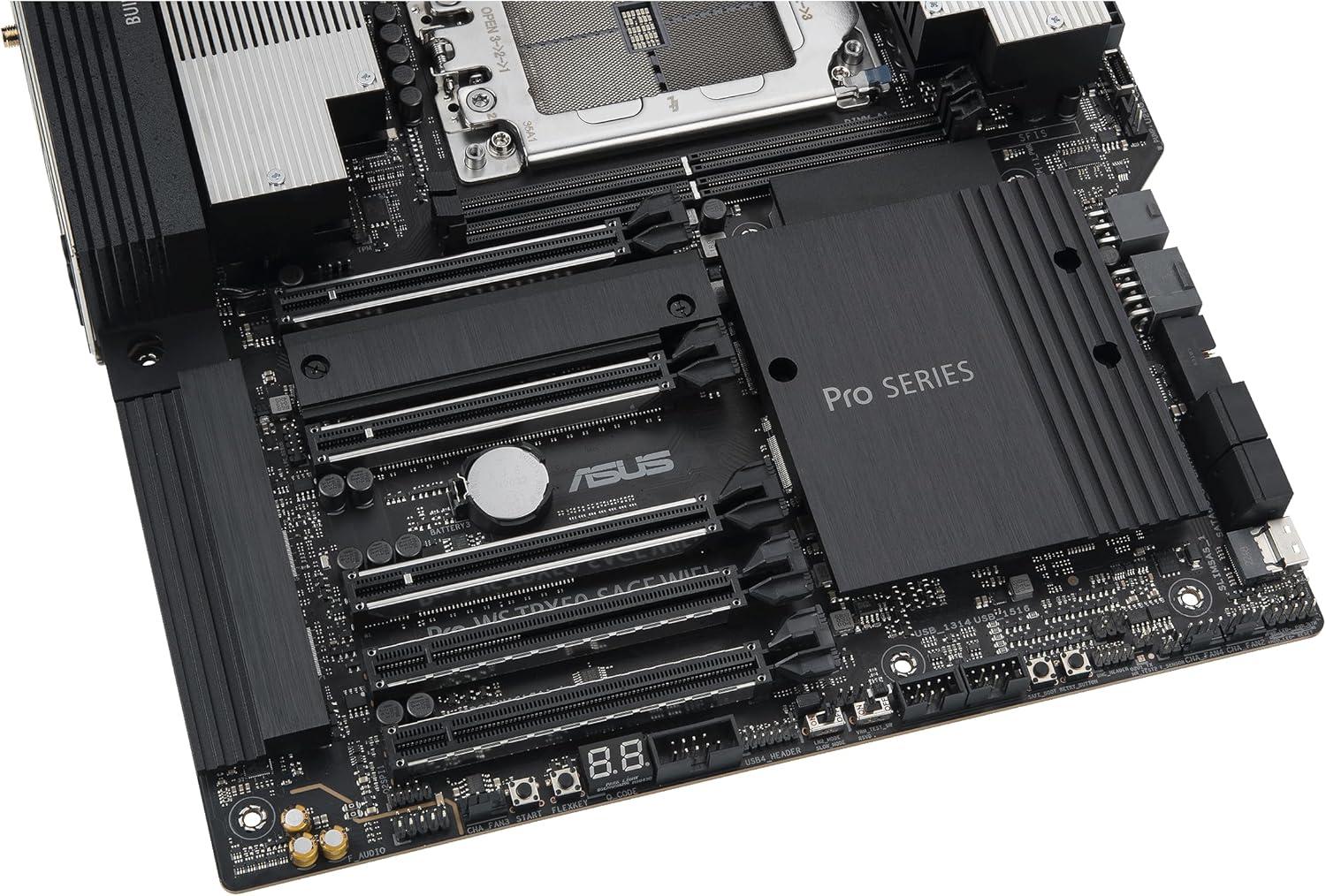

- M.2 heatsink and onboard thermal pads
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
