Asus Pro WS WRX90E-SAGE SE
Asus Pro WS WRX90E-SAGE SE Specifications Review
It is an enterprise-grade workstation motherboard built around the WRX90 chipset and sTR5 socket. Designed for professional and mission-critical workloads, it provides the full 128 PCIe 5.0 lanes along with 8-channel memory support, enabling maximum I/O bandwidth, exceptional scalability, and uncompromised data throughput. It is designed to support DDR5 ECC Reg memory, with 8 slots, a maximum capacity of 2048 GB.
VRM Quality
The Asus Pro WS WRX90E-SAGE SE is equipped with a professional-grade workstation VRM, providing 110 A across 32 phases. This configuration is purpose-built to handle high-core-count Threadripper™ processors under 24/7 sustained rendering and compute loads. It offers the superior thermal stability required for mission-critical workstations and data-intensive applications.
Expansion and Storage Overview
The Asus Pro WS WRX90E-SAGE SE offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 7 x16 slots . These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots (M.2_1-4: PCIe 5.0 x4) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard provides extensive and premium connectivity options, including wired 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)1 x Intel®dual 10Gb EthernetASUS LANGuard LAN support capable of speeds up to 10000 Gbps, ensuring ultra-fast network connections. Additionally, it features plenty of newer USB ports for high-speed and versatile device connectivity. Details about USB types and counts are listed in the specifications table. This comprehensive selection supports demanding networking and peripheral setups.
Audio Quality
This motherboard features a quality mid-range audio solution (Realtek ALC1220P Surround Sound High Definition Audio CODEC), offering noticeably better sound than basic implementations. With dedicated audio components, it provides detailed, dynamic sound suitable for gaming headsets, bookshelf speakers, and users who appreciate good audio without external equipment.
Overall Quality and Value
Asus Pro WS WRX90E-SAGE SE is a premium motherboard boasting a high overall quality score of 97.40. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard shows a 16.8% value score indicating less favorable price-to-performance compared to mainstream models. This is typical for high-end motherboards, which prioritize premium features, durability, and advanced capabilities over raw value. It is an excellent choice for users who favor top quality, cutting-edge technology, and robust performance and are willing to invest more without focusing primarily on price.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | Asus Pro WS WRX90E-SAGE SE |
| Current Price Amazon | $1101❗N/A |
| Amazon Price Updated | 2 weeks ago. |
| Motherboard Available | False |
| Chipset / Socket | WRX90 / sTR5 |
| Form Factor | SSI-EEB |
VRM Configuration
| CPU Power Phases (Amps) | 32 (110 A) |
|---|---|
| Power Design | 32+3+3+3 |
Memory Information
| Type / Slots | DDR5 ECC Reg / 8 slots |
|---|---|
| Max Capacity / Max OC | 2048 GB |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 |
|---|---|---|
| x16 | 7 | 7 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| M.2 PCIe Modes | M.2_1-4: PCIe 5.0 x4 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ALC1220P Surround Sound High Definition Audio CODEC |
|---|---|
| Analog Audio Jacks | 2 jacks |
Motherboard Display Outputs
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 1 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 6 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 2 |
Front USB Ports
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
|---|
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)1 x Intel®dual 10Gb EthernetASUS LANGuard LAN Ports: 3 |
|---|---|
| Wi-Fi |
Module: Not Included |
| Bluetooth | Supported: No |
Button Features
| Buttons |
BIOS Flashback Clear CMOS Start Button |
|---|
Quality & Features
Additional Information
| CPU Support | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series* *Refer to www.asus.com for CPU support list. **System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration. This behavior is normal. Please allow sufficient time for the process to complete. |
|---|---|
| OS Support | Windows®11Windows®10 64-bit |
| RAM | 8 x DIMM slots, DDR5, supports ECC Registered Memory. 8 Channel memory architecture. Supported memory types, data rates (speeds), and number of DRAM modules vary depending on the CPU and memory configuration — refer to the CPU/Memory Support list on the product support page for detailed compatibility: https://www.asus.com/support/. |
| Expansion | Supports PCIe 5.0 (maximum generation). PCIe 5.0 provides ~32 GT/s per lane (roughly 4 GB/s per lane), i.e., up to ~64 GB/s total bandwidth for an x16 slot, and is backward compatible with previous PCIe versions. Reported slots: 6 x PCIe 5.0 x16 slots plus 1 x PCIe 5.0 x16 slot that operates electrically in x8 mode (counted here as a physical x16 slot per instruction). Check ASUS PCIe bifurcation table and support pages for bandwidth sharing, bifurcation options, and configuration/compatibility limitations: https://www.asus.com/support/FAQ/1037507/. |
| Storage |
M.2 Slot Details:
Total: 4x M.2 slots (M.2_1/2 support up to 22110), 2x SlimSAS (PCIe 4.0 x4 NVMe), 4x SATA 6Gb/s ports. AMD RAIDXpert2 supports PCIe and SATA RAID 0/1/5/10. M.2 slot sources (CPU/chipset) not specified; chipset is AMD WRX90 and CPU family is AMD Threadripper PRO 9000/7000 WX-Series. |
| Audio | Impedance sense for front and rear headphone outputs; internal audio amplifier for headphone and speakers; supports jack-detection, multi-streaming, front panel jack-retasking; 120 dB SNR stereo playback, 113 dB SNR recording input; up to 32-bit/192 kHz playback; premium audio capacitors, dedicated audio PCB layers, unique de-pop circuit. Requires a chassis with an HD audio front-panel module to enable 5.1 surround output; motherboard supports up to 5.1 but rear I/O only provides 2 audio jacks. |
| Networking | 1 x Realtek 1Gb Ethernet (dedicated management LAN for AST2600); Intel dual 10Gb Ethernet (ASUS LANGuard) — interpreted as two 10Gb ports from the Intel dual-port controller. Ethernet entries appear repeated in the text. |
| Buttons | Additional onboard buttons/switches and features present: FlexKey button, ReTry button, Safe Boot button, Start button. Also includes switches and jumpers useful for advanced/overclocking use: Slow Mode switch, RSVD switch, LN2 mode jumper. Other related features: ProbeIt measurement points (7), thermal sensor header, onboard M.2 FAN and VRM FAN headers, multiple fan headers, and various headers (SPI TPM, system panel, chassis intrusion, COM) that support system control and monitoring. |

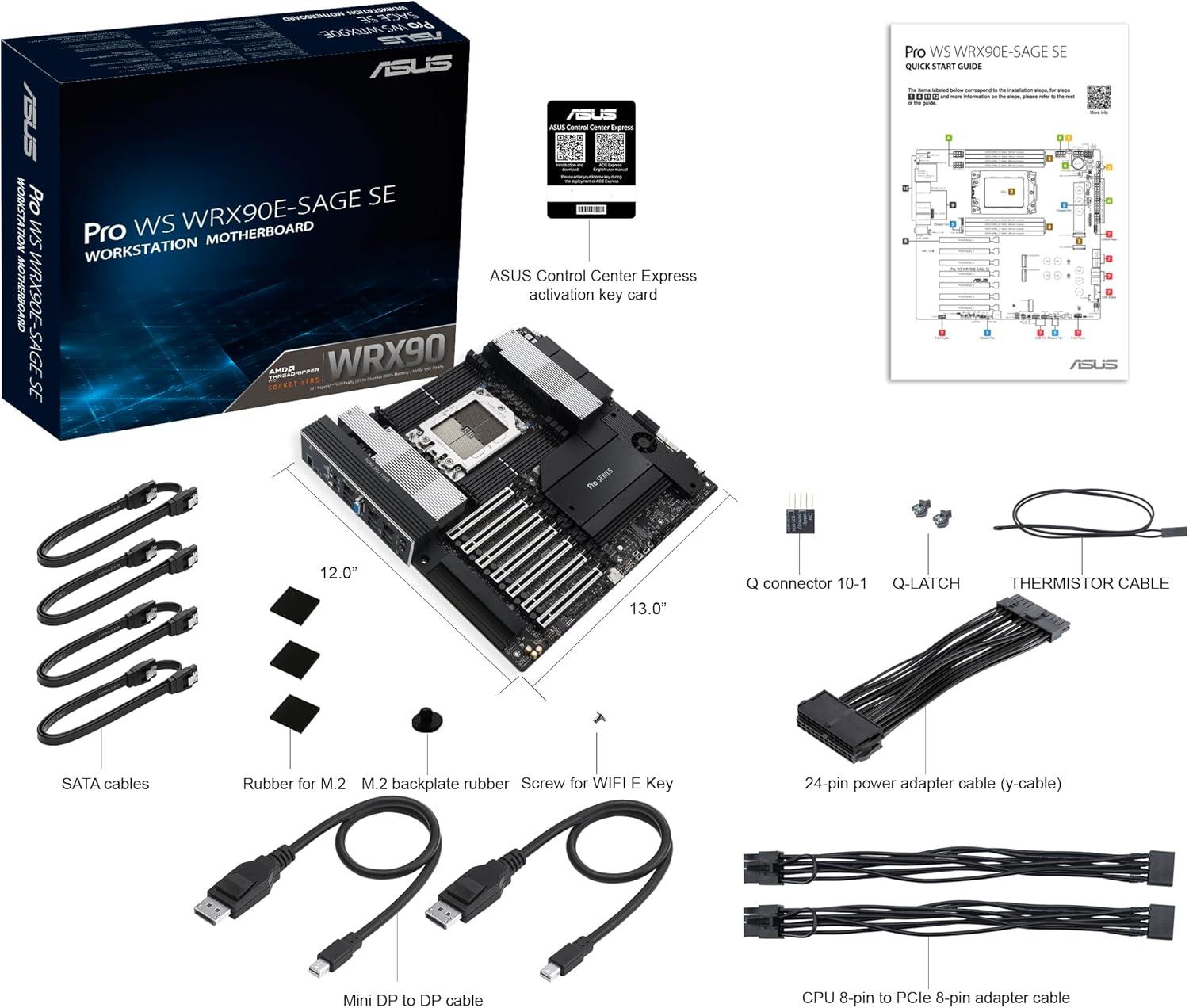

| Accessories | Cables 2 x PCIe 8-pin to CPU power cables 1 x 24-pin power cable (Y cable) 2 x Mini DisplayPort cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x Q-connector 1 x M.2 Q-Latch package 1 x AMI license sticker 4 x M.2 rubber packages 1 x Screw package for M.2 Key E Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide |
| Dimensions | EEB Form Factor12 inch x 13 inch(30.5 cm x 33 cm) |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
Asus Pro WS WRX90E-SAGE SE Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$850
|
0.0%
|
99.2%
|
110.0%
|
95.0%
|
110.0%
|
103.0%
|
78.0%
|
22.2%
|
|
|
$850
|
↑
3.7%
|
98.2%
|
110.0%
|
95.0%
|
110.0%
|
95.0%
|
81.0%
|
22.0%
|
|
|
$1101❗
|
↑
7.0%
|
97.4%
|
110.0%
|
99.0%
|
110.0%
|
90.0%
|
78.0%
|
16.8%
|
|
|
$578
|
0.0%
|
94.8%
|
84.0%
|
90.0%
|
110.0%
|
105.0%
|
85.0%
|
31.2%
|
|
|
$756
|
↓
-5.8%
|
94.8%
|
98.0%
|
88.0%
|
110.0%
|
94.0%
|
84.0%
|
23.8%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$850
|
0.0%
|
$850
|
↑
3.7%
|
$1101❗
|
↑
7.0%
|
$578
|
0.0%
|
$756
|
↓
-5.8%
|
||||||||||||||||||
| Manufacturer | ASUS | ASUS | ASUS | GIGABYTE | ASROCK | ||||||||||||||||||
| Chip/Socket | TRX50 / sTR5 | TRX50 / sTR5 | WRX90 / sTR5 | TRX50 / sTR5 | TRX50 / sTR5 | ||||||||||||||||||
| Form | SSI-CEB | SSI-CEB | SSI-EEB | E-ATX | E-ATX | ||||||||||||||||||
| CPU Phases | 20 (110 A) | 36 (90 A) | 32 (110 A) | 16 (108 A) | 18 (110 A) | ||||||||||||||||||
| PWR Design | 20 +3 + 3 + 3 | 36 | 32+3+3+3 | 16+8+4 | 18+3+3 | ||||||||||||||||||
| Mem Slots | 4 / DDR5 ECC Reg | 4 / DDR5 ECC Reg | 8 / DDR5 ECC Reg | 4 / DDR5 ECC Reg | 4 / DDR5 ECC Reg | ||||||||||||||||||
| Max Mem | 1024 GB / 0 MHz | 1024 GB / 0 MHz | 2048 GB / 0 MHz | 1024 GB / 8000 MHz | 1024 GB / 7600 MHz | ||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||
| PCIe Slots | 3x16 Gen5 | 1x16 Gen4 | 3x16 Gen5 | 2x16 Gen4 | 7x16 Gen5 | 2x16 Gen5 | 1x16 Gen4 | 3x16 Gen5 | 2x16 Gen4 | ||||||||||||||||||
| M.2 | 4 | 3 | 4 | 4 | 2 | ||||||||||||||||||
| SATA | 4 | 4 | 4 | 8 | 4 | ||||||||||||||||||
| Audio | Realtek ALC1220P Surround Sou… | Realtek ALC1220P | Realtek ALC1220P Surround Sou… | Realtek® ALC4080; Realtek® AL… | Realtek ALC1220 Audio Codec | ||||||||||||||||||
| S/PDIF | ❌ | ✔️ | ❌ | ❌ | ✔️ | ||||||||||||||||||
| HDMI | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ❌ | ❌ | ||||||||||||||||||
| LAN | 1 x Marvell® AQtion 10Gb… (2 ports) | 1 x Marvell®AQtion 10Gb … (2 ports) | 1 x Realtek 1Gb Ethernet… (3 ports) | Marvell® AQtion AQC113C … (2 ports) | 1 x 10 Gigabit LAN 100/1… (3 ports) | ||||||||||||||||||
| Wi-Fi | Wi-Fi Wi-Fi 7 (802.11be) Realtek RTL8922AE | Wi-Fi Wi-Fi 7 (802.11be) | ❌ | Wi-Fi Wi-Fi 7 (802.11be) | Wi-Fi Wi-Fi 6E (802.11ax) | ||||||||||||||||||
| BT | v5.4 | v5.4 | ❌ | v5.3 | v5.2 | Rear USB |
|
|
|
|
|
||||||||||||
| USB Headers |
|
|
|
|
❌ |
||||||||||||||||||
| Front USB |
|
|
|
❌ |
|
%20Gallery/840c75521de64f37b377c19d53781be1.jpg)
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$10500
|
0.0%
|
285.4%
|
75.6%
|
350 W / 350 W | 96 / 0 / 192 | 1024.0 kB / 384.0 MB | 2.50 GHz / 5.40 GHz | Shimada Peak | None | |
|
$7952
|
↑
0.2%
|
255.7%
|
75.8%
|
350 W / 350 W | 64 / 0 / 128 | 1024.0 kB / 256.0 MB | 3.20 GHz / 5.40 GHz | Shimada Peak | None | |
|
$9588
|
0.0%
|
253.5%
|
74.5%
|
350 W / 350 W | 96 / 0 / 192 | 1024.0 kB / 384.0 MB | 2.50 GHz / 5.10 GHz | Storm Peak | None | |
|
$3800❗
|
0.0%
|
229.2%
|
74.5%
|
350 W / 350 W | 64 / 0 / 128 | 1024.0 kB / 256.0 MB | 3.20 GHz / 5.10 GHz | Storm Peak | None | |
|
$4190
|
↓
-0.5%
|
177.7%
|
76.3%
|
350 W / 350 W | 32 / 0 / 64 | 1024.0 kB / 128.0 MB | 4.00 GHz / 5.40 GHz | Shimada Peak | None | |
|
$3800
|
↑
1.1%
|
156.1%
|
75.5%
|
350 W / 350 W | 32 / 0 / 64 | 1024.0 kB / 128.0 MB | 4.00 GHz / 5.30 GHz | Storm Peak | None | |
|
$2700❗
|
0.0%
|
144.3%
|
77.0%
|
350 W / 350 W | 24 / 0 / 48 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.40 GHz | Shimada Peak | None | |
|
$2753
|
↓
-0.2%
|
124.6%
|
75.8%
|
350 W / 350 W | 24 / 0 / 48 | 1024.0 kB / 128.0 MB | 4.20 GHz / 5.30 GHz | Storm Peak | None | |
|
$1549❗
|
0.0%
|
106.4%
|
78.3%
|
350 W / 350 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.40 GHz | Shimada Peak | None | |
|
$1640
|
0.0%
|
95.4%
|
76.3%
|
350 W / 350 W | 16 / 0 / 32 | 1024.0 kB / 64.0 MB | 4.50 GHz / 5.30 GHz | Storm Peak | None | |
|
$0
|
0.0%
|
86.3%
|
79.1%
|
350 W / 350 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.40 GHz | Shimada Peak | None | |
|
$0
|
0.0%
|
78.3%
|
77.0%
|
350 W / 350 W | 12 / 0 / 24 | 1024.0 kB / 64.0 MB | 4.70 GHz / 5.30 GHz | Storm Peak | None |
Official Manufacturer Data
Memory:
8 Channel Memory Architecture
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
.
Graphics:
Storage:
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Expansion Slots:
6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
*Please check the PCIe bifurcation table on the support site (
https://www.asus.com/support/FAQ/1037507/
)
**To ensure compatibility of the device installed, please refer to https://www.asus.com/support/
for the list of supported peripherals.
USB:
2 x USB 40Gbps (USB4®
) with ASMedia ASM4242 controller ports (2 x USB Type-C®
)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C®
)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
Power related
1 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
2 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin system panel header
1 x Thermal sensor header

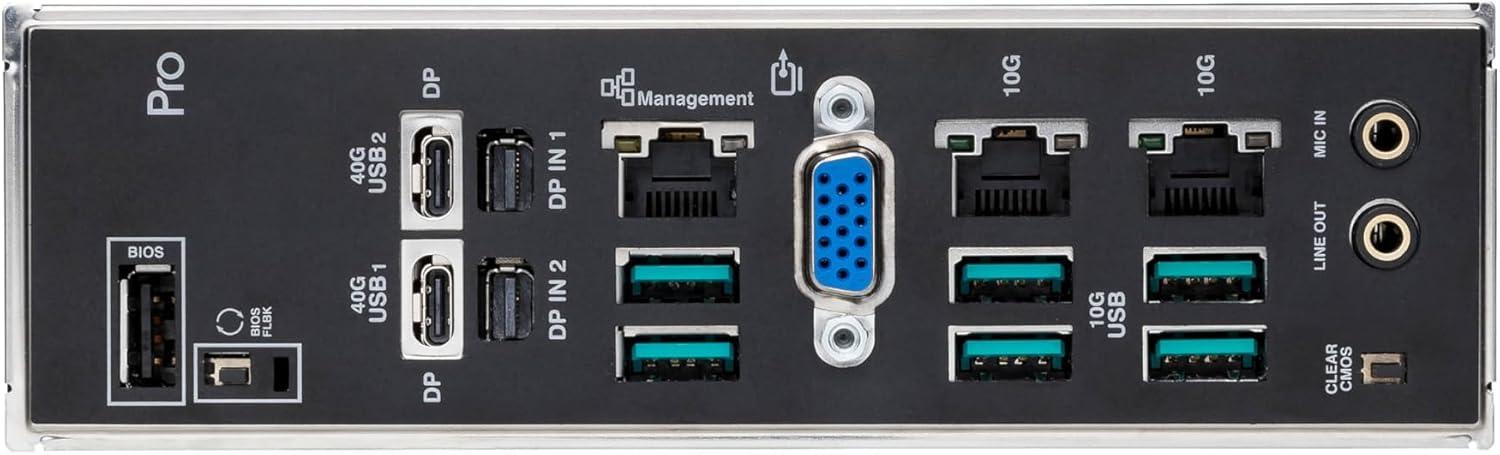

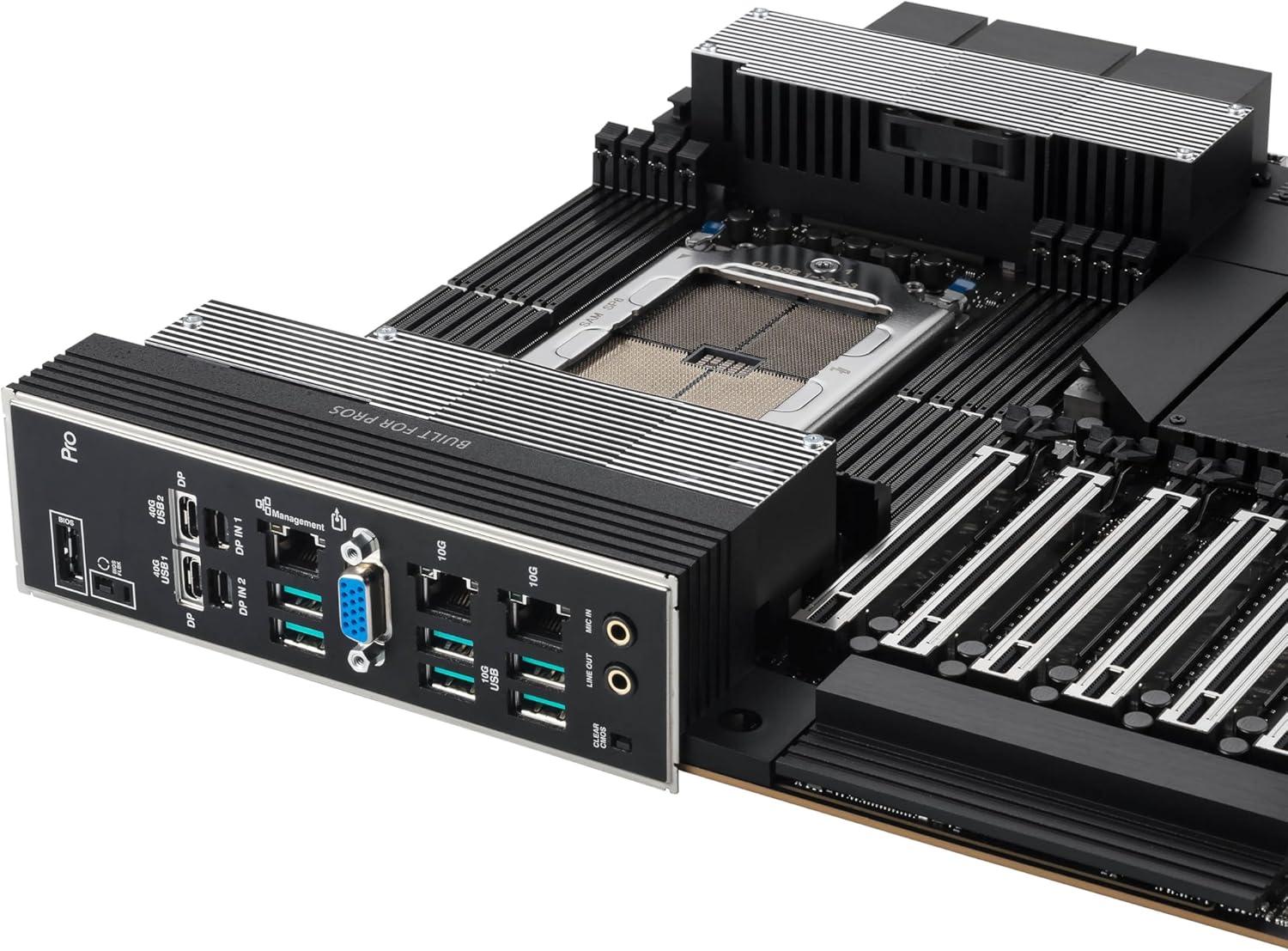

Back Panel I/O:
) with ASMedia ASM4242 controller ports (2 x USB Type-C®
)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (2 x Type-A)
1 x VGA port
2 x mini DisplayPort IN
1 x Intel®
dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Audio:
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
*A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
Special Features:
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate and onboard thermal pads
- M.2 heatsink
- Steel backplate
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
BMC Related
1 x BMC switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
1 x Message LED header
1 x microSD card socket
2 x LAN LED headers
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header (Dedicated Management for AST2600)
1 x VPP_I2C header
