ASUS TUF Gaming Z890-PLUS WiFi Specifications Review

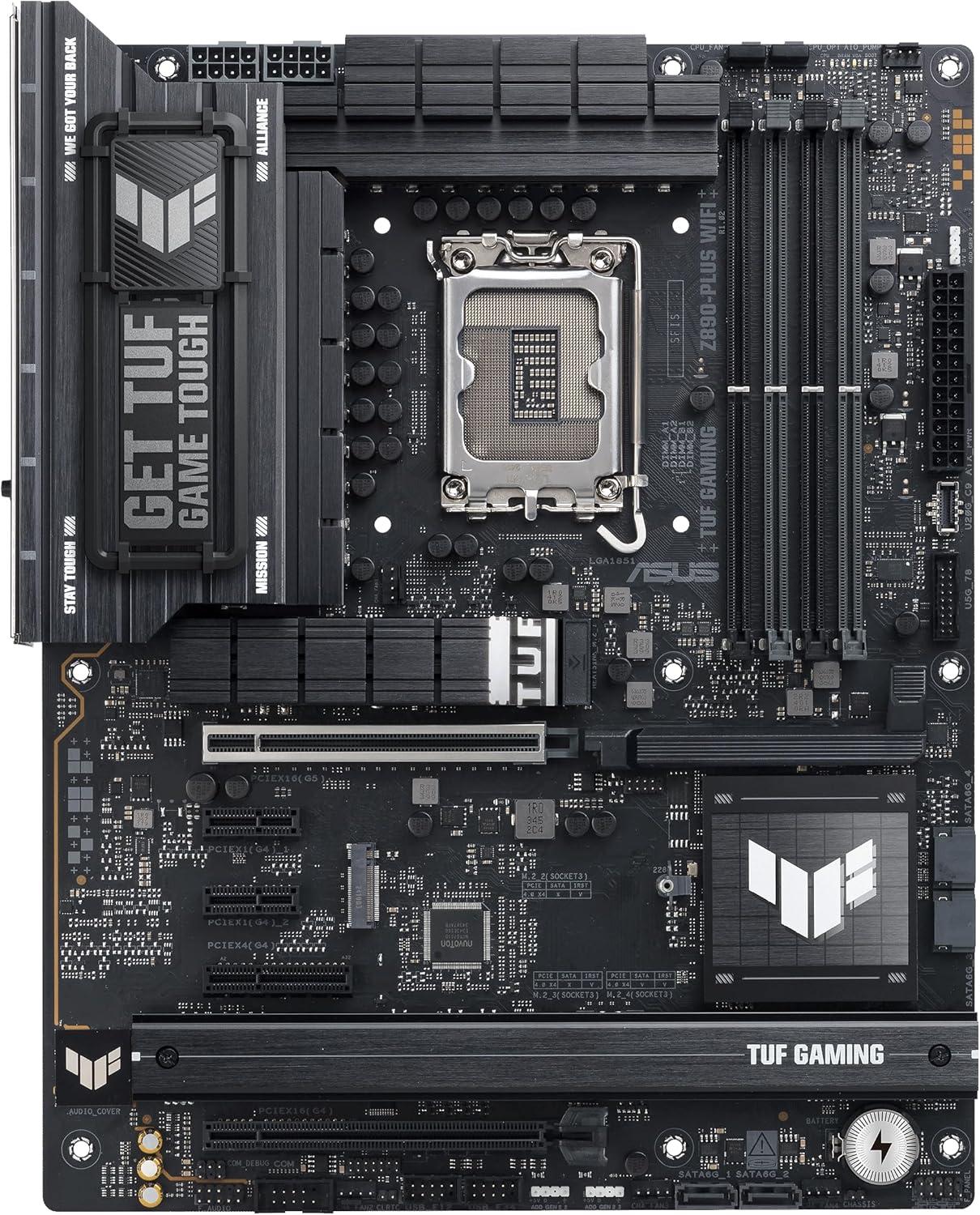

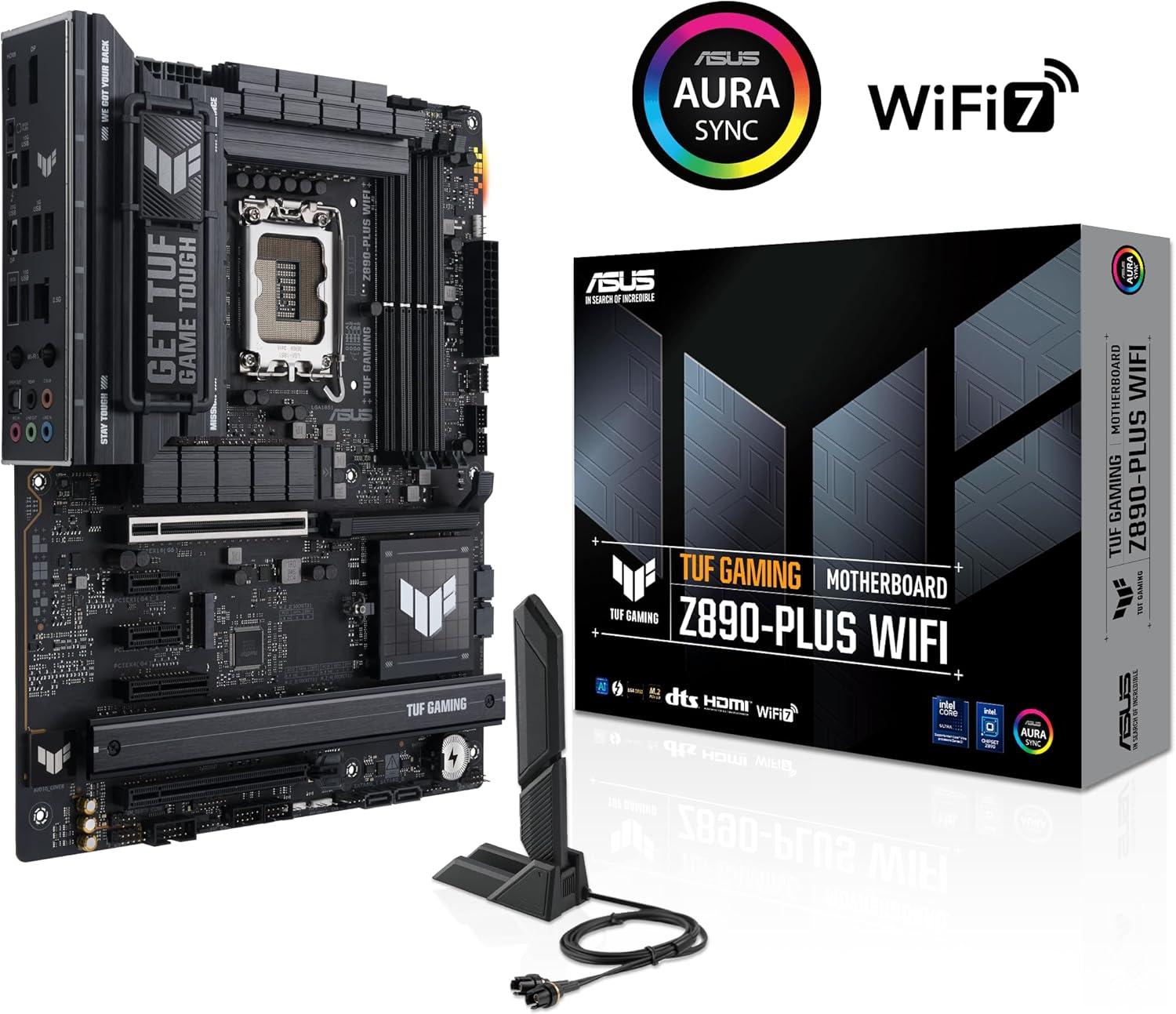

ASUS TUF Gaming Z890-PLUS WiFi by ASUS is a Standard-ATX form factor motherboard based on the high-end Z890 chipset and LGA 1851 socket, offering the most advanced features and connectivity options. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 9066 MHz.
VRM Quality
The ASUS TUF Gaming Z890-PLUS WiFi includes an upper mid-range VRM configuration, delivering 80 A through 16 phases. This tier comfortably supports CPUs in the ~170 W TDP range and can run high-wattage CPUs at stock settings, though sustained heavy overclocking may reduce stability. A good choice for performance-oriented gamers and productivity users who don’t require extreme tuning.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The ASUS TUF Gaming Z890-PLUS WiFi offers a very extensive expansion and storage configuration with PCIe 5.0 support, meaning it uses PCI Express 5.0, the newest standard offering extremely high bandwidth for next-generation graphics cards and ultra-fast NVMe storage. It also includes 2 x16 slots , 1 x4 slot , and 2 x1 slots. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 4 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard offers solid and reliable connectivity features, including wireless networking with the Wi-Fi 7 standard, and wired 1 x Intel® 2.5Gb Ethernet ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.4 is available for wireless accessories. It also provides a good selection of modern USB ports to cover most connectivity needs. For exact USB specifications, please see the detailed table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 , USB-C DisplayPort . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
Equipped with a high-end audio chipset — the Realtek ALC1220P — this motherboard delivers performance comparable to dedicated sound cards. The clean power delivery and premium components provide studio-grade sound with excellent signal-to-noise ratio, perfect for audiophile headphones, surround systems, and content creators who demand pristine audio quality. Additional features include optical S/PDIF output for clean digital audio, plus multiple audio jacks (5) for flexible connectivity.
Overall Quality and Value
ASUS TUF Gaming Z890-PLUS WiFi is a premium motherboard boasting a high overall quality score of 89.20. It offers excellent build quality and a rich feature set, delivering top-tier performance suitable for gamers and power users seeking robust and reliable hardware with extensive connectivity and expandability.
This motherboard offers an impressive 68.5% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | ASUS |
|---|---|
| Motherboard Name | ASUS TUF Gaming Z890-PLUS WiFi |
| Current Price Amazon | $247 |
| Amazon Price Updated | 19 hours, 43 minutes ago. |
| Motherboard Available | True |
| Chipset / Socket | Z890 / LGA 1851 |
| Form Factor | Standard-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 16 (80 A) |
|---|---|

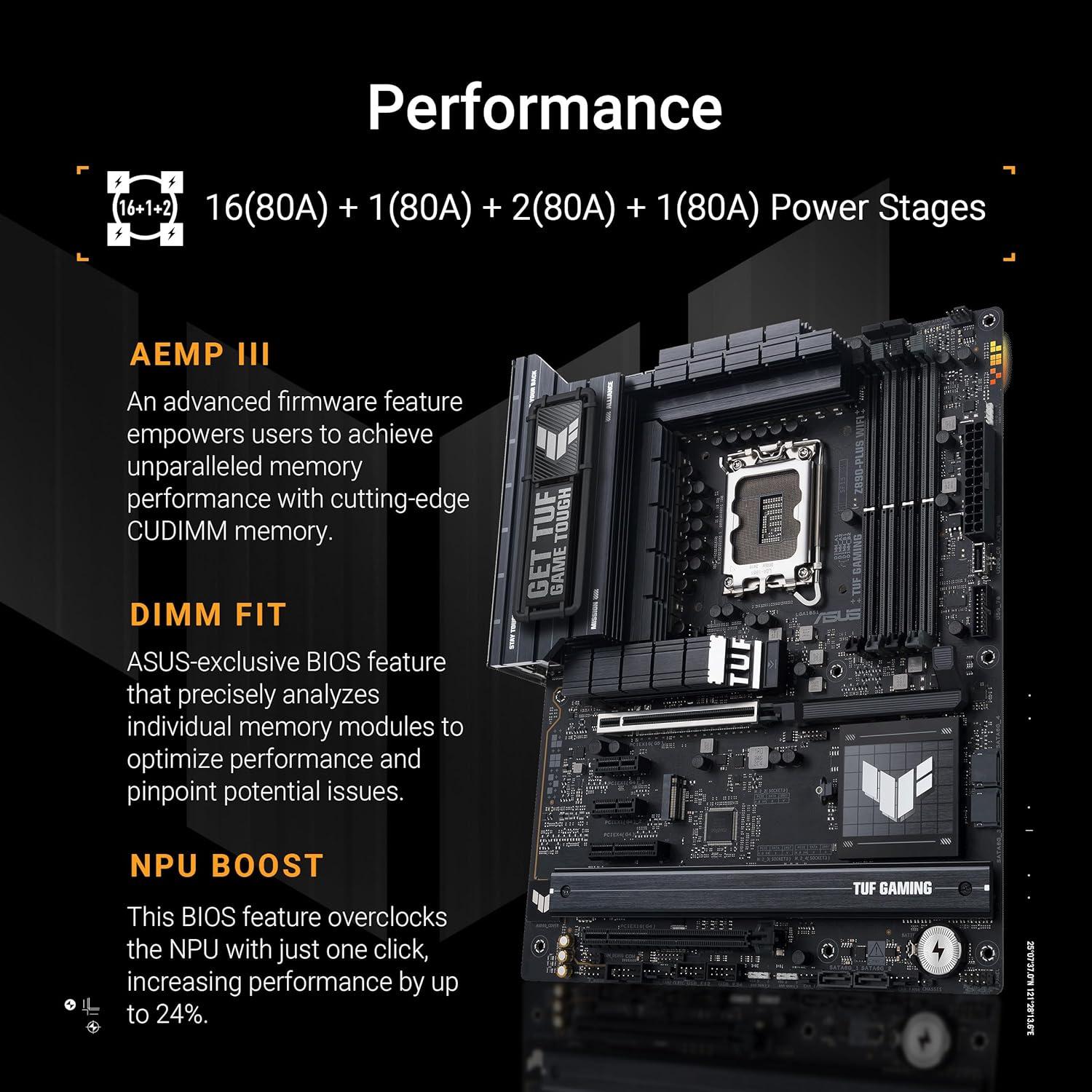

| Power Design | 16(80A) + 1(80A) + 2(80A) + 1(80A) |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 9066 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 5.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen5 | Gen4 |
|---|---|---|---|
| x16 | 2 | 1 | 1 |
| x4 | 1 | 0 | 1 |
| x1 | 2 | 0 | 2 |
Storage Configuration
| M.2 Slot Count | 4 slots |
|---|---|
| M.2 Supported Lengths | 22110, 2280, 2260, 2242 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek ALC1220P |
|---|---|
| Analog Audio Jacks | 5 jacks |
| Optical S/PDIF Output | ✔️ Present |
| Spatial/Surround Audio | ✔️ Rear Output Supports Spatial Audio |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 4K@60Hz) |
| DP over USB-C | DisplayPort over USB-C - Version 2.1 (Max: 8K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 3.2 Gen 1 Type-A (5 Gbps) | 3 |
|---|---|
| USB 3.2 Gen 2 Type-A (10 Gbps) | 3 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| USB4 / Thunderbolt Type-C (40 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
| USB 3.2 Gen 2x2 Type-C (20 Gbps) | 1 |
| Power Delivery (W) | 15W |
Internal USB Headers
| USB4 / Thunderbolt Header (40 Gbps) | 1 |
|---|
Networking Information
| Ethernet | Chipset: 1 x Intel® 2.5Gb Ethernet LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 7 Bandwidth: 160MHz Frequency Bands: 2.4/5/6GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.4 |
Button Features
| Buttons |
BIOS Flashback |
|---|
Quality & Features
Additional Information
| RAM | Supports Un-buffered and Clocked Unbuffered DIMM (CUDIMM). Features DIMM Fit and ASUS Enhanced Memory Profile III (AEMPIII). Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Supported memory types, data rate, and number of DRAM modules vary depending on the CPU and memory configuration. Adjustments will be made based on the specifications of mass-produced memory products available on the market. |
|---|---|
| Display | Graphics specifications may vary between CPU types. There is one Intel Thunderbolt 4 port (USB Type-C) that supports DisplayPort and Thunderbolt video outputs. In Thunderbolt 4 mode, it supports up to 8K@60Hz with DSC (users should check DisplayPort 2.1 specs for resolution support) and up to UHBR20 in DP alt mode. There is also one USB 20Gbps port (USB Type-C) that supports DisplayPort 1.4 video output up to 4K@60Hz. VGA resolution support depends on the processor or graphics card. When installing the operating system, it is recommended to connect the monitor to the HDMI port or a discrete graphics card. |
| Expansion | The PCIe 4.0 x16 slot from the Z890 Chipset supports x4 mode. Please check the PCIe bifurcation table on the ASUS support site for more details. |
| Storage |
M.2 Slot Details:
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. M.2 slots connected to the CPU only support RAID 0/1/5. |
| Audio | Features include impedance sense for front and rear headphone outputs, an internal audio amplifier, jack-detection, multi-streaming, front panel jack-retasking, 120 dB SNR stereo playback output, 113 dB SNR recording input, and support for up to 32-Bit/192 kHz playback. Also includes Audio Shielding, premium audio capacitors, dedicated audio PCB layers, an audio cover, and a unique de-pop circuit. Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Networking | Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 requires 24H2 or later for full functions; older versions only support Wi-Fi 6E. No driver is available for Windows 10. Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country. The Bluetooth version may vary; refer to the Wi-Fi module manufacturer's website. Wi-Fi has a transfer rate up to 2.9Gbps. |
| Buttons | The motherboard includes a Clear CMOS header, but not a dedicated button. |
| Dimensions | 30.5 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
ASUS TUF Gaming Z890-PLUS WiFi Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$550
|
0.0%
|
94.0%
|
63.0%
|
92.0%
|
110.0%
|
110.0%
|
95.0%
|
32.5%
|
|
|
$425
|
↓
-3.6%
|
91.6%
|
74.0%
|
100.0%
|
110.0%
|
93.0%
|
81.0%
|
41.0%
|
|
|
$480
|
0.0%
|
90.8%
|
74.0%
|
100.0%
|
110.0%
|
92.0%
|
78.0%
|
35.9%
|
|
|
$249
|
↓
0.0%
|
89.8%
|
70.0%
|
100.0%
|
103.0%
|
92.0%
|
84.0%
|
68.5%
|
|
|
$247
|
↓
-5.9%
|
89.2%
|
70.0%
|
100.0%
|
110.0%
|
82.0%
|
84.0%
|
68.5%
|
|
|
$253
|
↓
-2.3%
|
89.0%
|
70.0%
|
100.0%
|
110.0%
|
81.0%
|
84.0%
|
66.8%
|
|
|
$263
|
0.0%
|
88.6%
|
71.0%
|
92.0%
|
109.0%
|
90.0%
|
81.0%
|
64.0%
|
|
|
$240❗
|
0.0%
|
88.4%
|
72.0%
|
90.0%
|
97.0%
|
99.0%
|
84.0%
|
70.0%
|
|
|
$283
|
0.0%
|
88.4%
|
74.0%
|
100.0%
|
93.0%
|
87.0%
|
88.0%
|
59.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$550
|
0.0%
|
$425
|
↓
-3.6%
|
$480
|
0.0%
|
$249
|
↓
0.0%
|
$247
|
↓
-5.9%
|
$253
|
↓
-2.3%
|
$263
|
0.0%
|
$240❗
|
0.0%
|
$283
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | ASUS | ASUS | ASUS | ASUS | ASUS | GIGABYTE | ASRock | ASUS | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | Z890 / LGA 1851 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Form | E-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | Standard-ATX | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 16 (80 A) | 16 (90 A) | 16 (90 A) | 16 (80 A) | 16 (80 A) | 16 (80 A) | 16 (90 A) | 18 (80 A) | 16 (90 A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR Design | 16+1+2 | 16+2+1+2 | 16+2+1+2 | 16(80A)+1(80A)+2(80A)+2(80A) | 16(80A) + 1(80A) + 2(80A) + 1(80A) | 16(80A) + 1(80A) + 2(80A) + 1(80A) | 16+1+2 | 18+1+1+1+1 | 16(90A)+1(90A)+2(90A)+2(80A) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 9500 MHz | 256 GB / 9066 MHz | 256 GB / 9066 MHz | 256 GB / 9066 MHz | 256 GB / 9066 MHz | 256 GB / 9066 MHz | 256 GB / 9500 MHz | 256 GB / 9466 MHz | 256 GB / 9066 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | PCIe 5.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 2x16 Gen5 | 1x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 2x1 Gen4 | 1x16 Gen5 | 1x16 Gen4 | 1x4 Gen4 | 2x1 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 2x16 Gen4 | 1x16 Gen5 | 1x16 Gen4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| M.2 | 4 | 5 | 4 | 4 | 4 | 4 | 5 | 4 | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| SATA | 8 | 4 | 8 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | ESS ES9260 | Realtek ALC1220P | Realtek ALC1220P | Realtek ALC1220P | Realtek ALC1220P | Realtek ALC1220P | Realtek® ALC1220 CODEC | Realtek ALC1220 | ROG SupremeFX ALC4080, Savite… | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ❌ | ❌ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (1.4) | ✔️ (2.1) | ✔️ (None) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| DP | ❌ | ❌ | ❌ | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.4) | ❌ | ❌ | ✔️ (None) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | 2 x Marvell® AQtion AQC1… (2 ports) | 1 x Marvell® AQtion 10G… (2 ports) | 1 x Marvell® AQtion 10Gb… (3 ports) | Realtek 5G Ethernet (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | Realtek® 5GbE LAN chip (… (1 ports) | - 2.5 Gigabit LAN 10/100… (1 ports) | 1 x Intel® 2.5Gb Ethernet (1 ports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 7 | Wi-Fi 7 (802.11be) | ❌ | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | Wi-Fi 7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| BT | v5.4 | v5.4 | ❌ | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | v5.4 | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Front USB |
❌ |
|
❌ |
❌ |
|
|
❌ |
|
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
|
$308
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
88.9%
|
82.3%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.50 GHz | Arrow Lake Refresh | None | |
|
$496
|
↓
-4.6%
|
87.2%
|
81.8%
|
125 W / 250 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 3.70 GHz / 5.70 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$634❗
|
↑
24.8%
|
77.4%
|
78.3%
|
65 W / 182 W | 24 / 16 / 24 | 3072.0 kB / 36.0 MB | 2.50 GHz / 5.60 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$295
|
↓
-1.2%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | None | |
|
$346❗
|
↑
11.6%
|
74.9%
|
79.5%
|
125 W / 250 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 3.90 GHz / 5.50 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$220
|
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | Arc Xe-LPG Graphics 64EU | |
|
$200
|
↑
0.0%
|
68.8%
|
81.2%
|
125 W / 159 W | 18 / 12 / 18 | 3072.0 kB / 30.0 MB | 4.20 GHz / 5.30 GHz | Arrow Lake Refresh | None | |
|
$372
|
0.0%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 32EU | |
|
$310
|
↓
-1.9%
|
63.5%
|
79.2%
|
65 W / 182 W | 20 / 12 / 20 | 3072.0 kB / 30.0 MB | 2.40 GHz / 5.30 GHz | Arrow Lake-S | None | |
|
$200
|
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | None | |
|
$195
|
↓
0.0%
|
56.3%
|
75.4%
|
125 W / 159 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 4.20 GHz / 5.20 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$0
|
0.0%
|
52.1%
|
74.9%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.50 GHz / 5.10 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 64EU | |
|
$346
|
0.0%
|
49.2%
|
74.2%
|
65 W / 121 W | 14 / 8 / 14 | 3072.0 kB / 24.0 MB | 3.40 GHz / 5.00 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 24EU | |
|
$179
|
0.0%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | Arc Xe-LPG Graphics 16EU | |
|
$165
|
↑
0.1%
|
43.4%
|
72.6%
|
65 W / 121 W | 10 / 4 / 10 | 3072.0 kB / 20.0 MB | 3.30 GHz / 4.90 GHz | Arrow Lake-S | None |
Official Manufacturer Data
Memory:
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
*** Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Graphics:
1 x HDMI™ port***
1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output******
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
***** In DP alt mode, supports up to UHBR20.
****** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
******* VGA resolution support depends on processors' or graphic cards' resolution.
********While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Storage:
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Expansion Slots:
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
USB:
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
Internal I/O:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

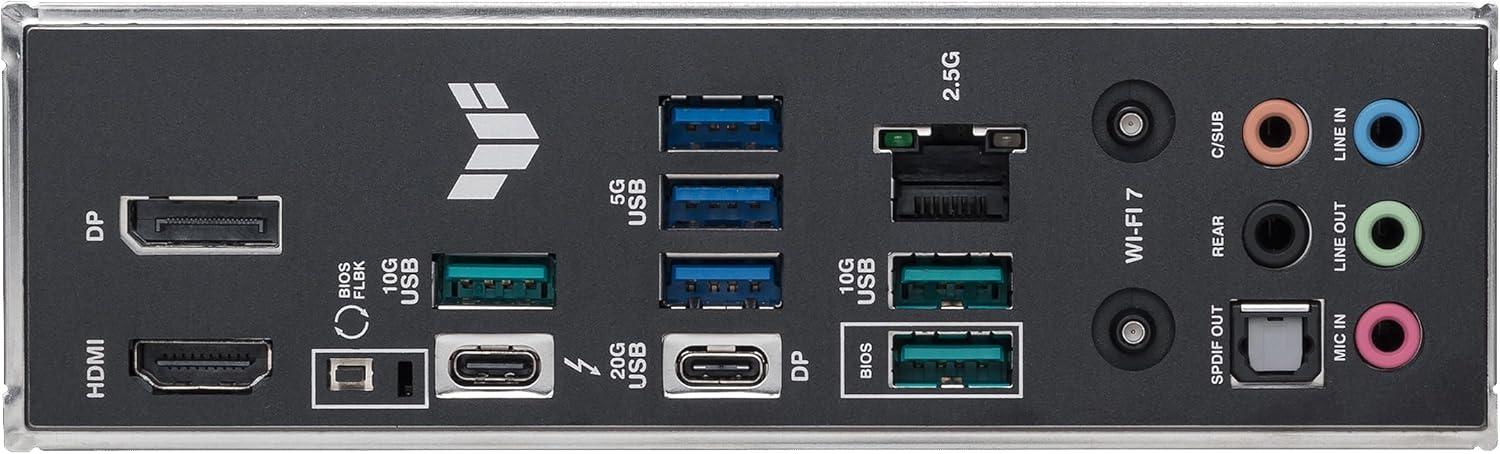

Back Panel I/O:
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
3 x USB 10Gbps ports (3 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
WiFi:
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio:
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Special Features:
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O

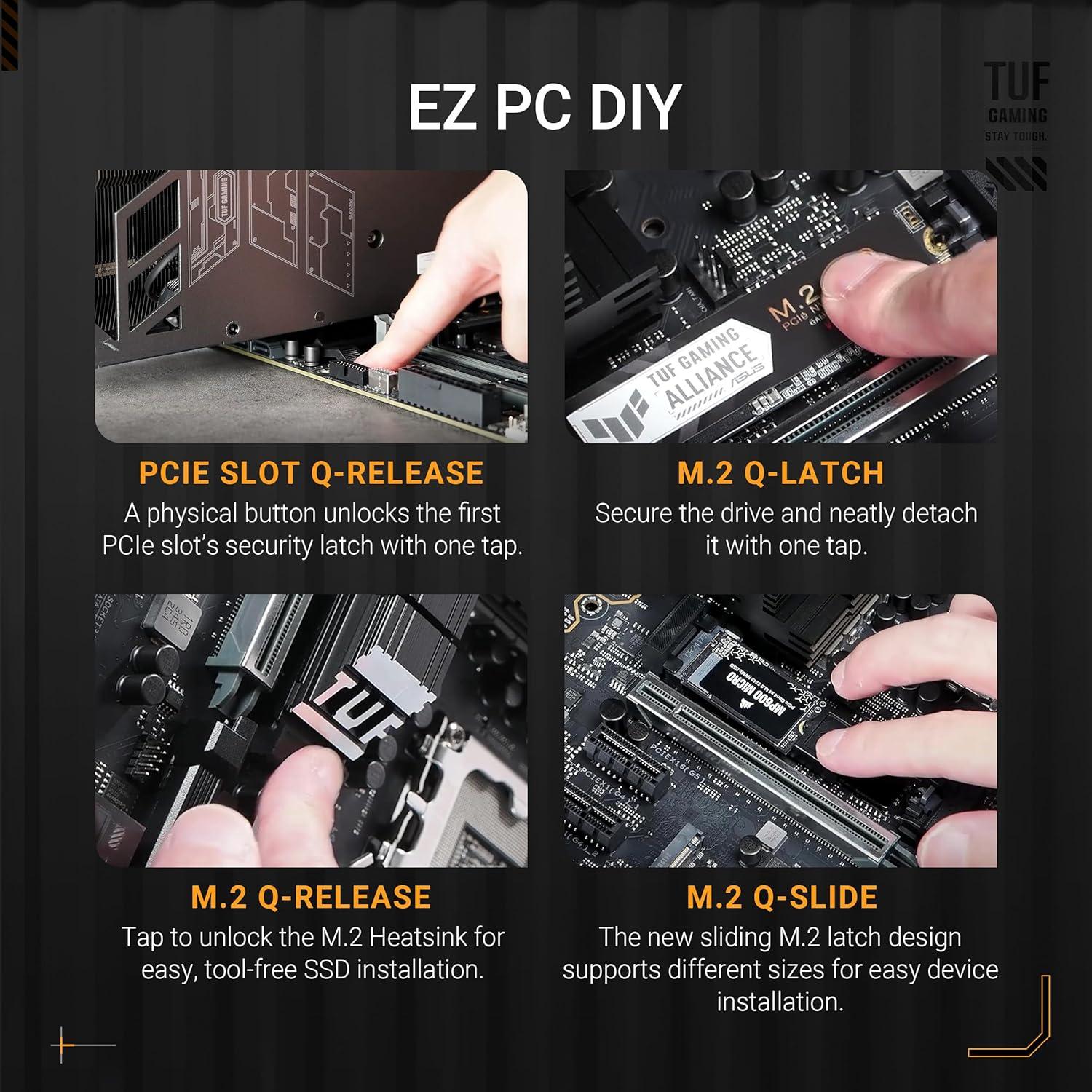

ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Add Comment on ASUS TUF Gaming Z890-PLUS WiFi
