MSI PRO B760M-P DDR4
MSI PRO B760M-P DDR4 Specifications Review

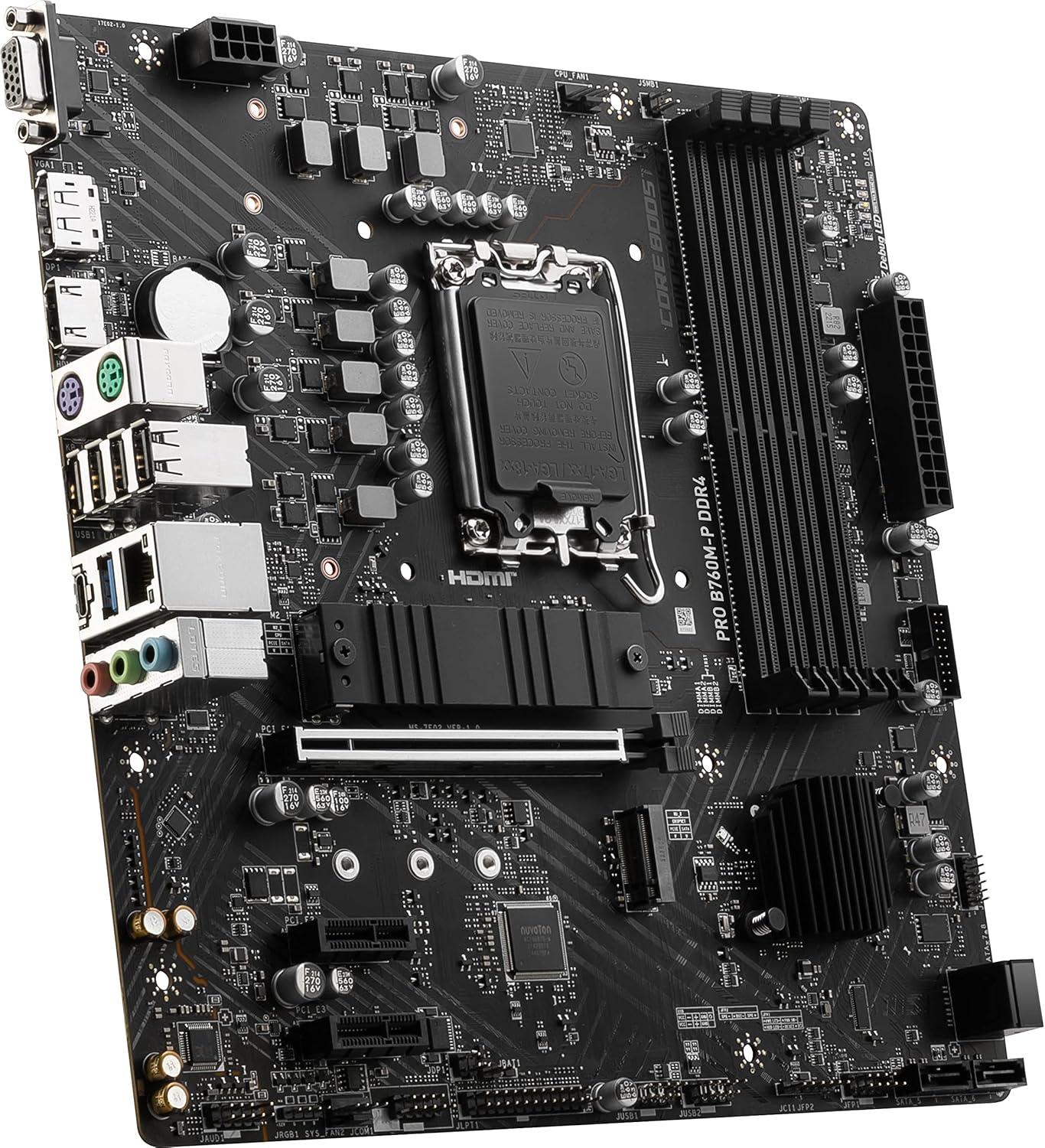

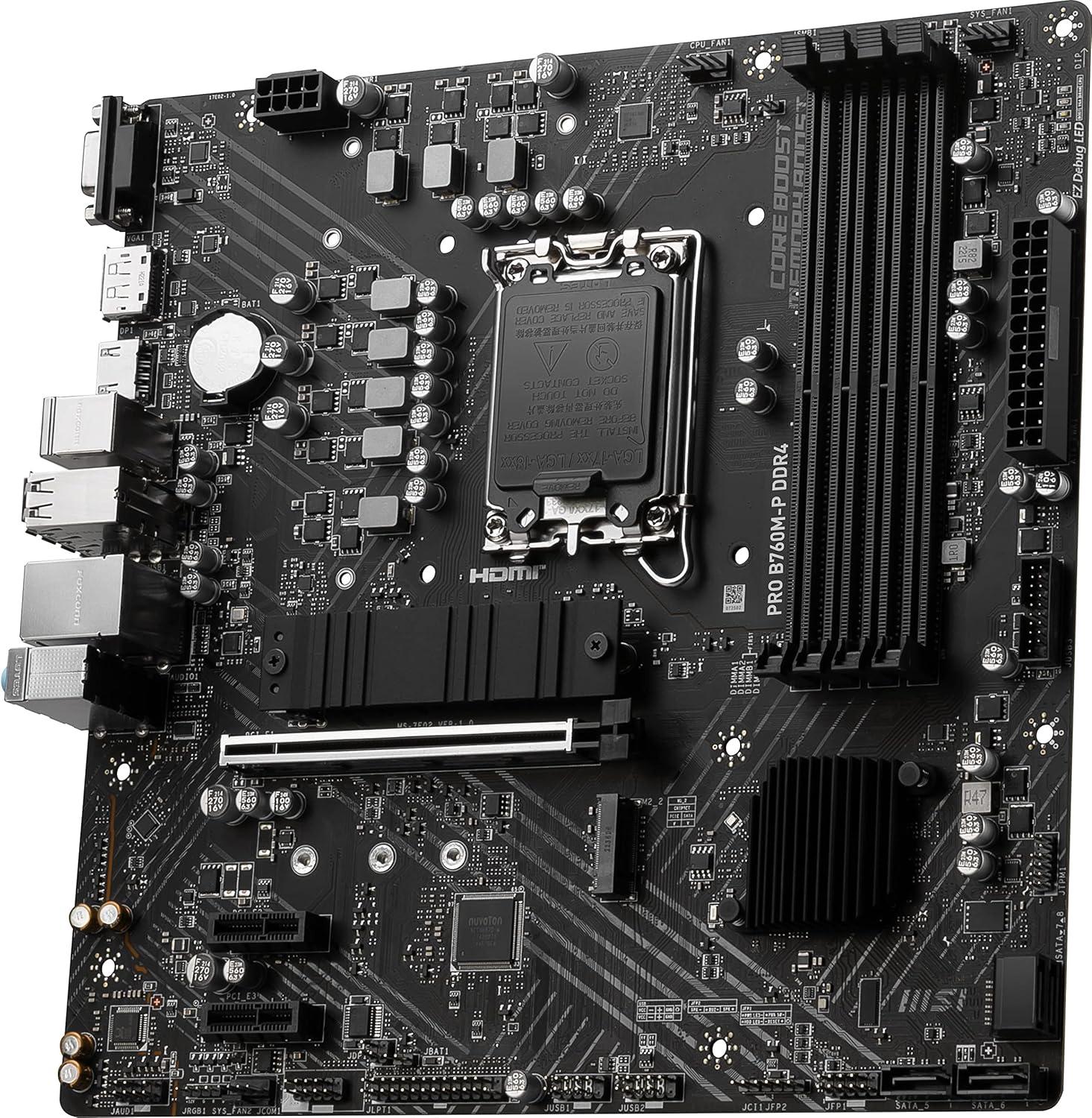

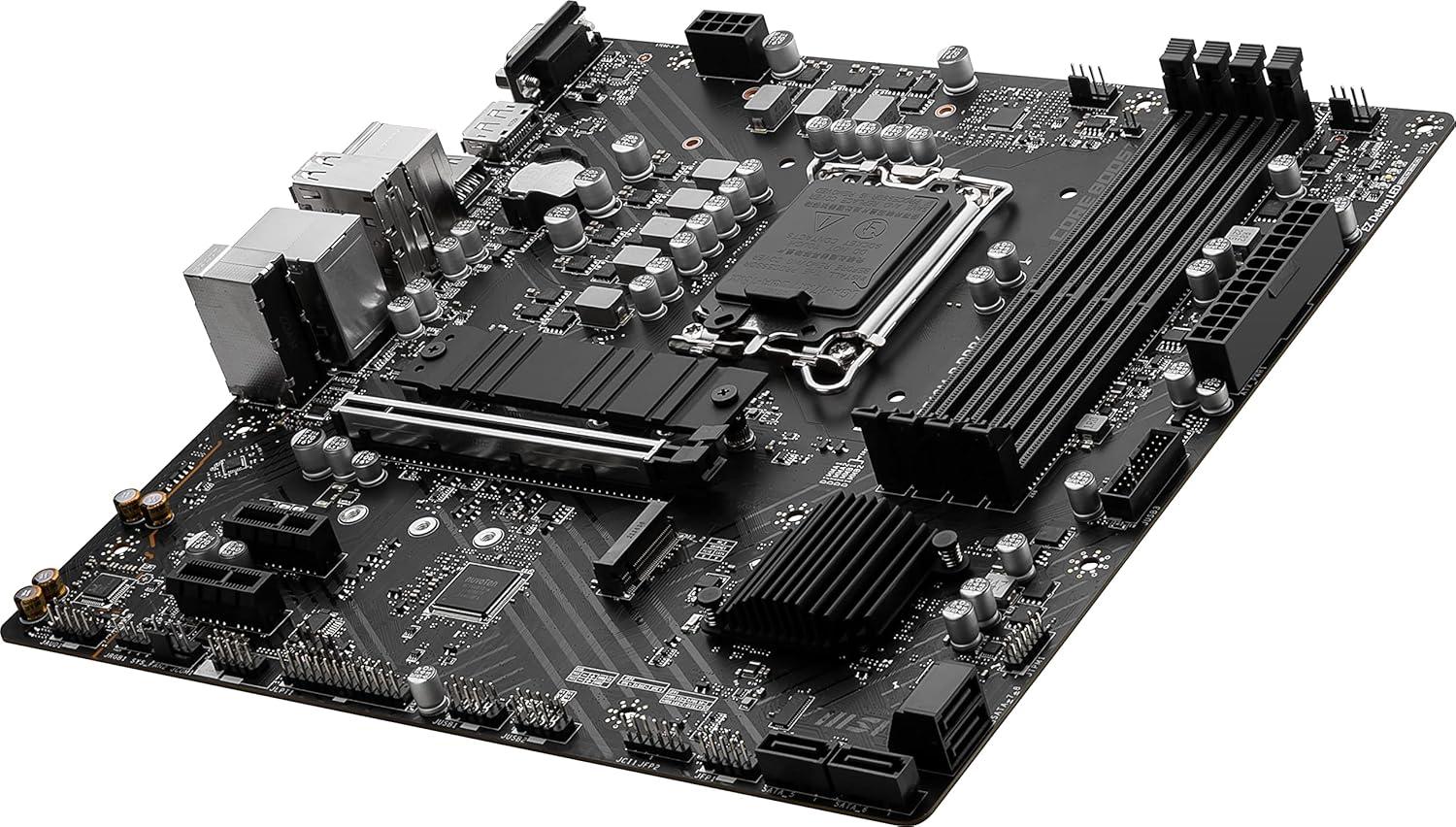

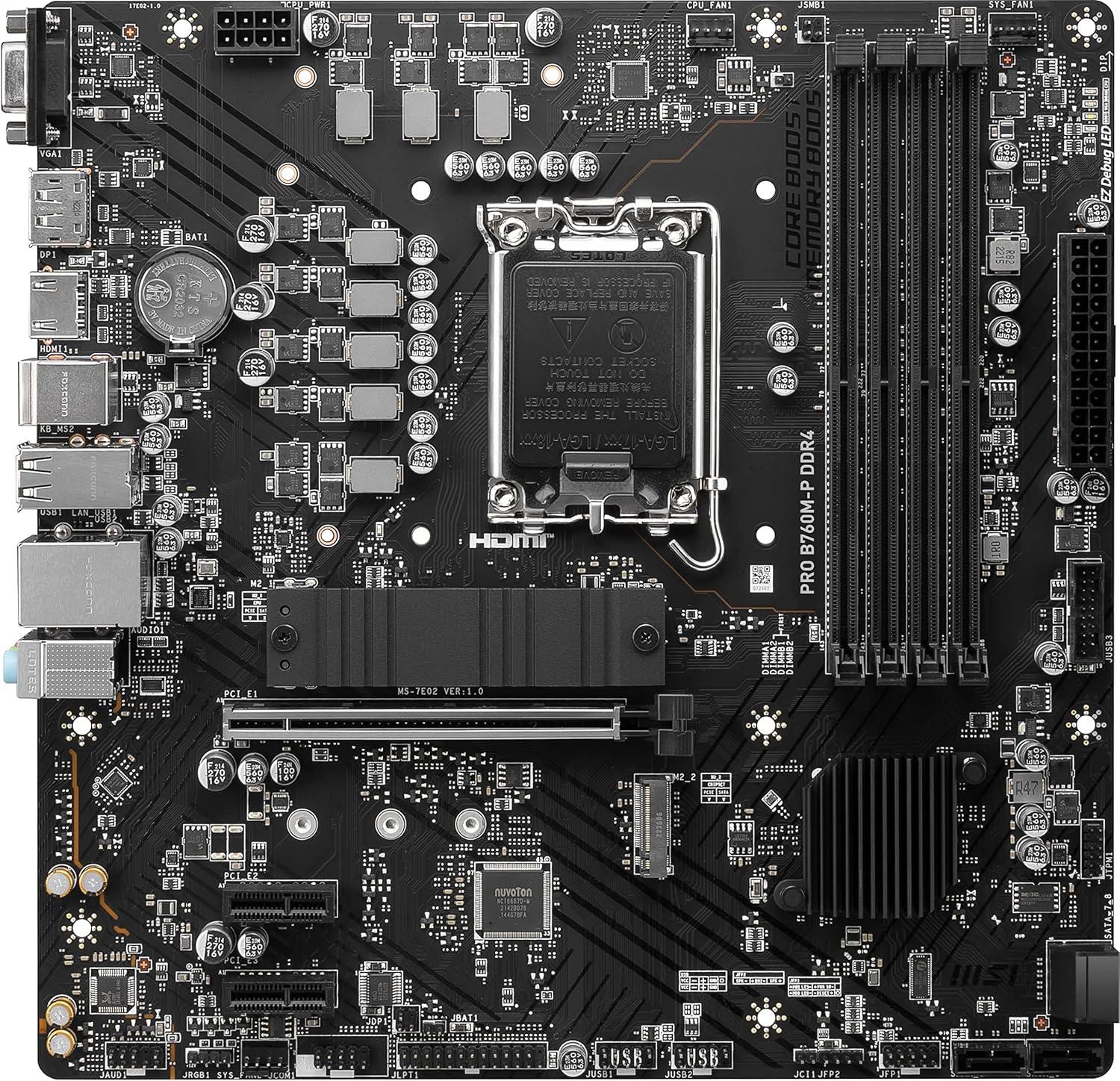

MSI PRO B760M-P DDR4 by MSI is a Micro-ATX form factor motherboard based on the mid-range B760M chipset and LGA 1700 socket, providing a balanced set of features and connectivity. It is designed to support DDR4 memory, with 4 slots, a maximum capacity of 128 GB, and an overclocking speed of up to 4800 MHz.
VRM Quality
The MSI PRO B760M-P DDR4 has a basic VRM configuration, delivering 55 A across 5 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The MSI PRO B760M-P DDR4 offers a simplified expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 1 x16 slot , and 2 x1 slots. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard has essential connectivity features with wired Realtek® RTL8111H Gigabit LAN Ethernet . USB connectivity covers basic needs. Please refer to the specification table for details.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.4 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® ALC897 Codec) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones.
Overall Quality and Value
MSI PRO B760M-P DDR4 is basic and functional, carrying an overall quality score of 40.20. It is designed for budget-conscious builds or office setups where advanced features are not required, handling standard tasks effectively but lacking the polish or expandability of higher-tier models.
This motherboard offers an impressive 85.6% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | MSI |
|---|---|
| Motherboard Name | MSI PRO B760M-P DDR4 |
| Current Price Amazon | $89 |
| Amazon Price Updated | 1 day, 4 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | B760M / LGA 1700 |
| Form Factor | Micro-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 5 (55 A) |
|---|---|
| Power Design | 5+1+1 |
Memory Information
| Type / Slots | DDR4 / 4 slots |
|---|---|
| Max Capacity / Max OC | 128 GB / 4800 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 |
|---|---|---|
| x16 | 1 | 1 |
| x1 | 2 | 2 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2280, 2260, 2242 |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® ALC897 Codec |
|---|
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4K@60Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.4 (Max: 8K@60Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 1 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Front USB Ports
| USB 2.0 Type-A (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: Realtek® RTL8111H Gigabit LAN LAN Ports: 1 |
|---|---|
| Wi-Fi |
Module: Not Included |
| Bluetooth | Supported: No |
Quality & Features
Additional Information
| RAM | Supports DDR4 un-buffered memory. Supported JEDEC speeds are 3200, 2933, 2666, 2400, and 2133 MHz. Max overclocking frequency varies by configuration: 1DPC 1R up to 4800+ MHz, 1DPC 2R up to 4600+ MHz, 2DPC 1R up to 4400+ MHz, and 2DPC 2R up to 4000+ MHz. |
|---|---|
| Display | Graphics specifications may vary depending on the CPU installed. Supports up to 4 displays simultaneously. The DisplayPort supports a maximum resolution of 8K@60Hz as specified in DisplayPort 1.4. The HDMI port supports a maximum resolution of 4K@60Hz as specified in HDMI 2.1. |
| Expansion | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Storage |
M.2 Slot Details:
|
| Audio | 7.1-Channel High Definition Audio |
| Dimensions | 24.4 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
MSI PRO B760M-P DDR4 Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$115
|
0.0%
|
46.0%
|
16.0%
|
68.0%
|
52.0%
|
51.0%
|
43.0%
|
76.0%
|
|
|
$140
|
0.0%
|
45.4%
|
20.0%
|
68.0%
|
52.0%
|
39.0%
|
48.0%
|
61.6%
|
|
|
$130
|
0.0%
|
43.8%
|
16.0%
|
68.0%
|
52.0%
|
35.0%
|
48.0%
|
64.0%
|
|
|
$89
|
↓
-1.2%
|
40.2%
|
14.0%
|
65.0%
|
54.0%
|
28.0%
|
40.0%
|
85.6%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$115
|
0.0%
|
$140
|
0.0%
|
$130
|
0.0%
|
$89
|
↓
-1.2%
|
||||||||||||
| Manufacturer | GIGABYTE | GIGABYTE | GIGABYTE | MSI | ||||||||||||
| Chip/Socket | B760M / LGA 1700 | B760M / LGA 1700 | B760M / LGA 1700 | B760M / LGA 1700 | ||||||||||||
| Form | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | ||||||||||||
| CPU Phases | 6 (55 A) | 8 (50 A) | 6 (55 A) | 5 (55 A) | ||||||||||||
| PWR Design | 6+2+1 | 8+1+1 | 6+2+1 | 5+1+1 | ||||||||||||
| Mem Slots | 4 / DDR5 | 4 / DDR4 | 4 / DDR4 | 4 / DDR4 | ||||||||||||
| Max Mem | 256 GB / 7600 MHz | 128 GB / 5333 MHz | 128 GB / 5333 MHz | 128 GB / 4800 MHz | ||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | ||||||||||||
| PCIe Slots | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen4 | 2x1 Gen4 | ||||||||||||
| M.2 | 2 | 2 | 2 | 2 | ||||||||||||
| SATA | 4 | 4 | 4 | 4 | ||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | ||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ❌ | ||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||
| DP | ✔️ (1.2) | ✔️ (1.2) | ✔️ (1.2) | ✔️ (1.4) | ||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® GbE LAN chip (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® RTL8111H Gigabi… (1 ports) | ||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi 6 | ❌ | ❌ | ||||||||||||
| BT | v5.3 | v5.3 | ❌ | ❌ | Rear USB |
|
|
|
|
|||||||
| USB Headers |
|
|
|
❌ |
||||||||||||
| Front USB |
❌ |
|
❌ |
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
| No compatible CPU available. The motherboard's VRM is too weak to be recommended with any CPU in the database. | |||||||||
Official Manufacturer Data
Memory:
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Graphics:
Storage:
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Expansion Slots:
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
USB:
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Rear)
Internal I/O:
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports

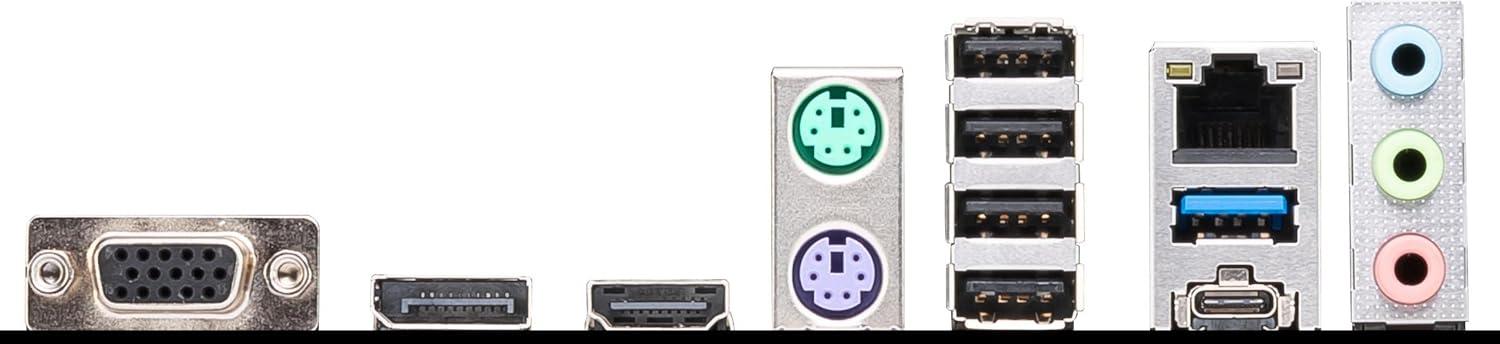

Back Panel I/O:
DisplayPort
HDMI™
Keyboard / Mouse
USB 2.0
LAN port
Audio Connectors
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Audio:
7.1-Channel High Definition Audio
