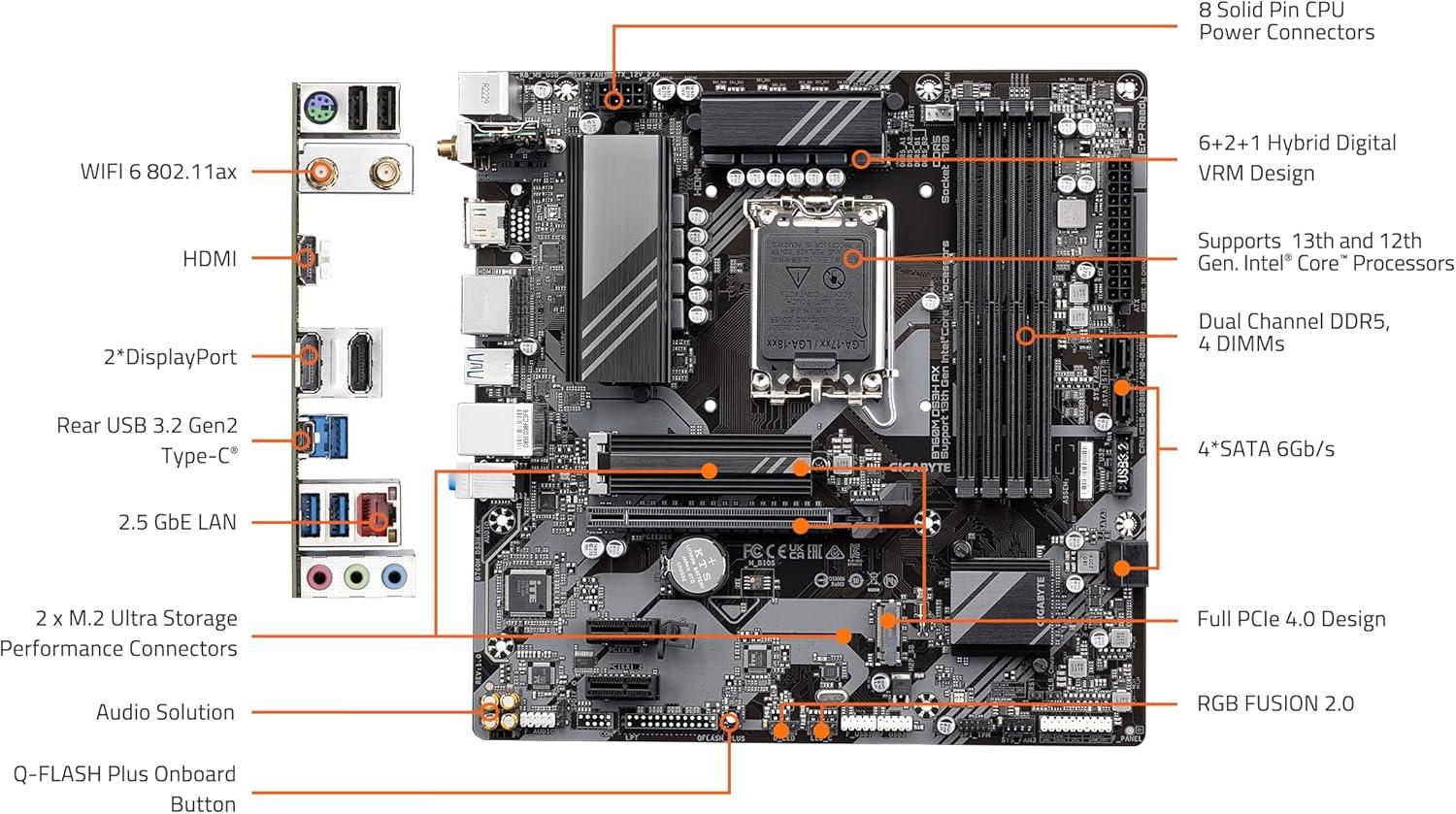

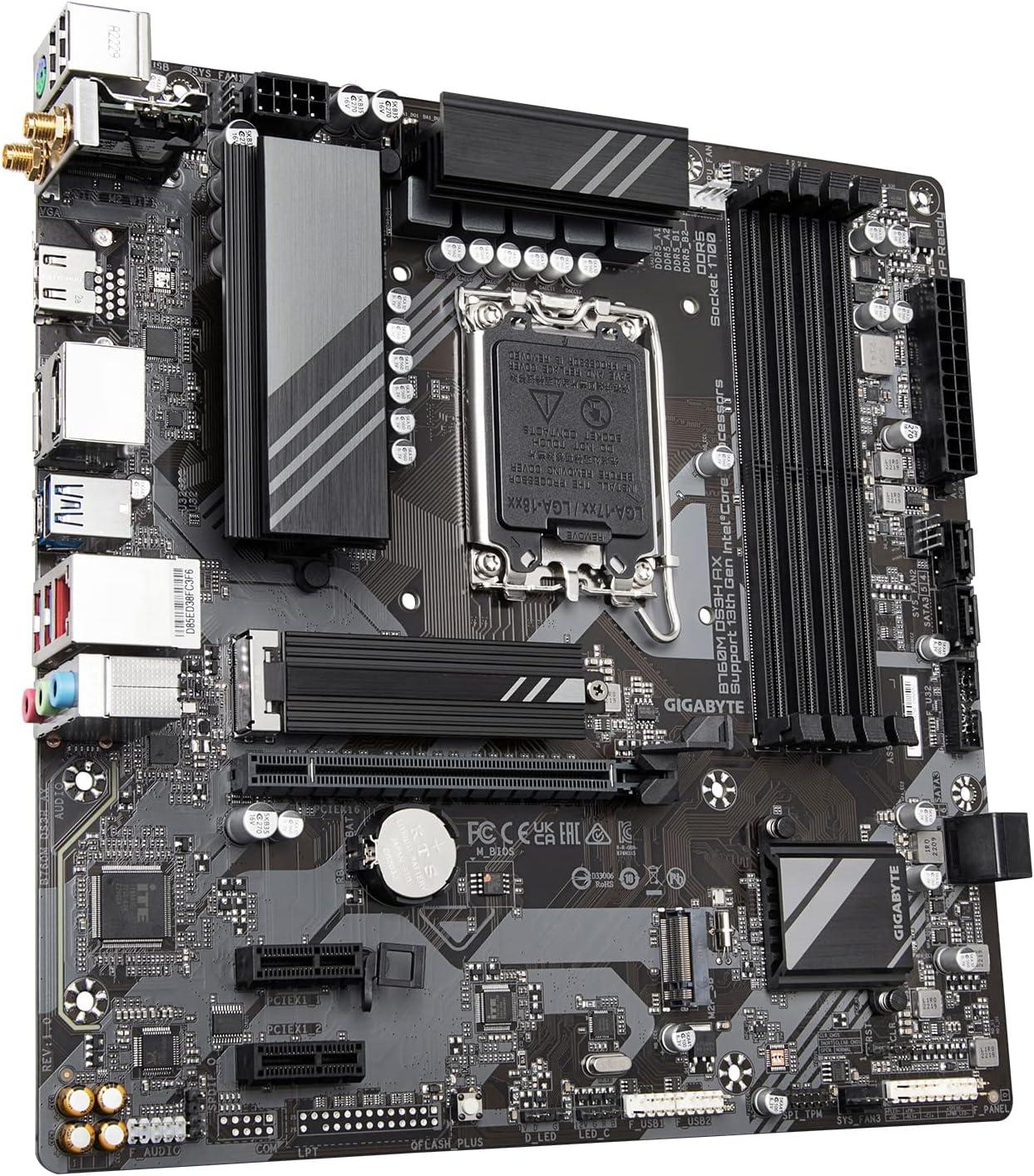

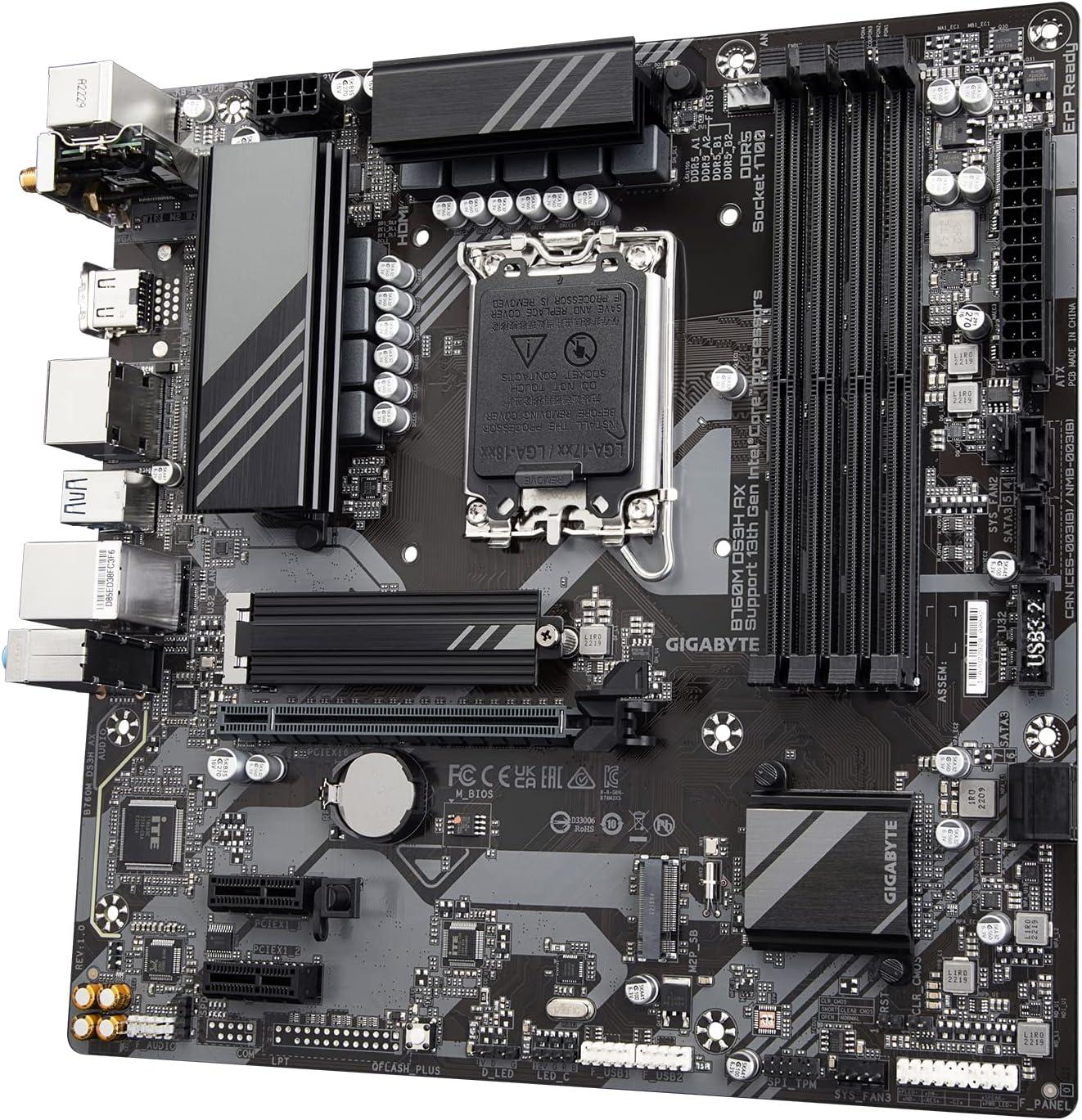

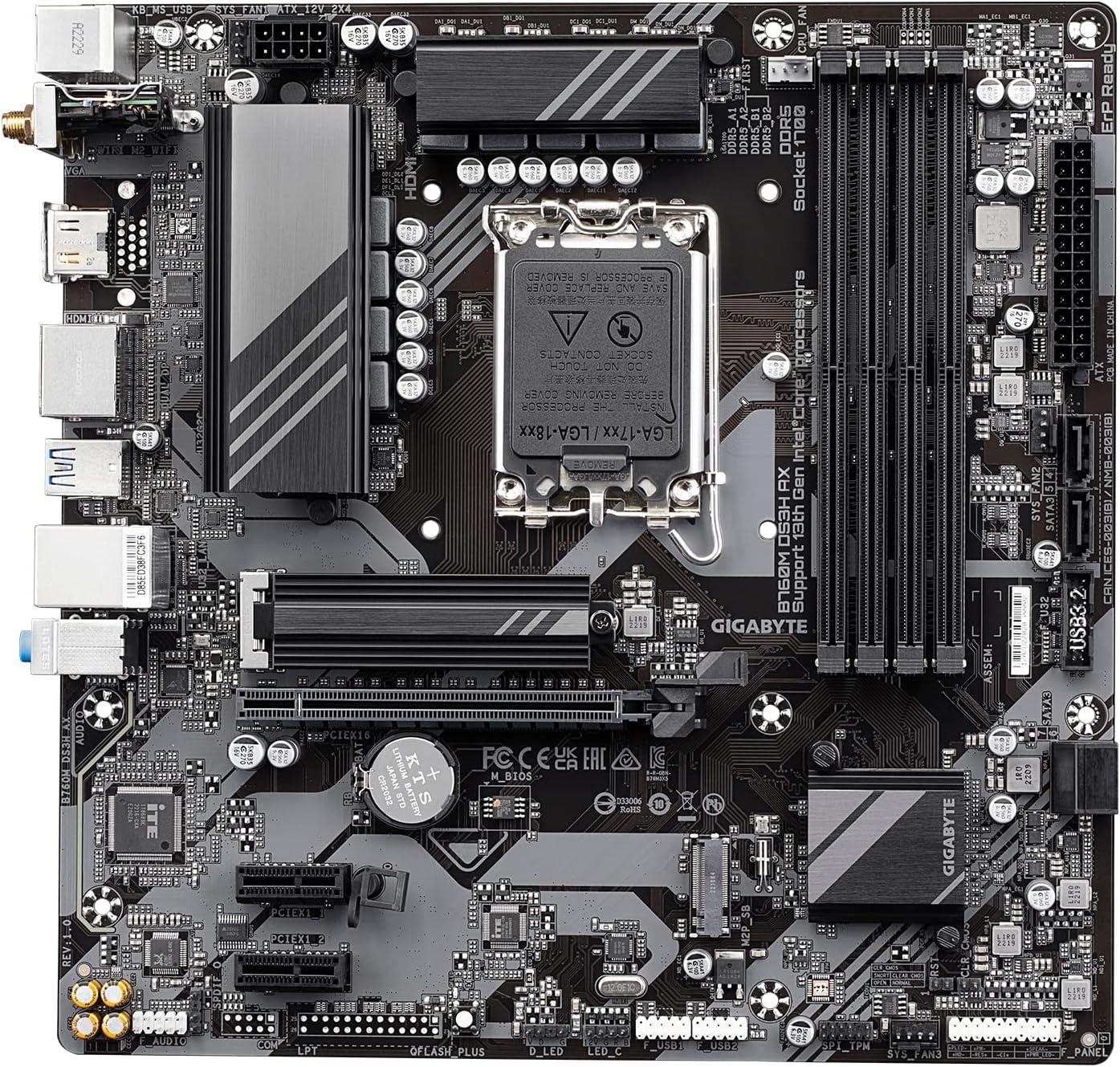

GIGABYTE B760M DS3H AX
GIGABYTE B760M DS3H AX Specifications Review
GIGABYTE B760M DS3H AX by GIGABYTE is a Micro-ATX form factor motherboard based on the mid-range B760M chipset and LGA 1700 socket, providing a balanced set of features and connectivity. It is designed to support DDR5 memory, with 4 slots, a maximum capacity of 256 GB, and an overclocking speed of up to 7600 MHz.
VRM Quality
The GIGABYTE B760M DS3H AX has a basic VRM configuration, delivering 55 A across 6 phases. Best for low-power CPUs (≤65 W TDP). Using high-wattage chips or overclocking could cause severe thermal issues and instability. Recommended for budget builds, office workstations, and media PCs.
See the VRM Appropriate CPU Specification Table at the bottom of this page for recommended CPU options.
Expansion and Storage Overview
The GIGABYTE B760M DS3H AX offers a simplified expansion and storage configuration with PCIe 4.0 support, meaning it uses PCI Express 4.0, fast enough for modern GPUs and high-speed NVMe SSDs. It also includes 1 x16 slot , and 2 x1 slots. These PCIe slots are used to connect expansion cards — with the x16 slots typically reserved for graphics cards, while x8, x4, and x1 slots are used for devices like capture cards, sound cards, or network adapters.
For storage, this motherboard provides 2 M.2 slots (Both M.2 slots support PCIe 4.0 in x4/x2 modes.) and 4 SATA ports. M.2 slots are high-speed connectors for modern NVMe SSDs, which are much faster than older storage, while SATA ports are used for traditional hard drives and 2.5-inch SSDs. Together, they allow you to mix fast primary storage with larger, more affordable drives for bulk data.
Connectivity Overview
This motherboard includes basic to moderate connectivity options, such as wireless networking with the Wi-Fi 6E standard, and wired Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) ethernet supporting speeds up to 2500 Gbps. Bluetooth 5.3 support is included for common wireless devices. USB ports are adequate for everyday devices, and more details are available in the specs table.
For video output, this motherboard includes HDMI version 2.1 , DisplayPort version 1.2 . These video outputs are intended for integrated graphics and will only function if your CPU includes integrated GPU capabilities.
Audio Quality
The motherboard includes a standard audio chipset (Realtek® Audio CODEC) that covers basic needs for casual listening. While adequate for everyday use with mainstream headphones or desktop speakers, discerning users may want to add a USB DAC or sound card for improved fidelity, especially for music production or high-end headphones. Additional features include optical S/PDIF output for clean digital audio.
Overall Quality and Value
GIGABYTE B760M DS3H AX is basic and functional, carrying an overall quality score of 46.00. It is designed for budget-conscious builds or office setups where advanced features are not required, handling standard tasks effectively but lacking the polish or expandability of higher-tier models.
This motherboard offers an impressive 79.2% performance-to-price ratio, delivering excellent value by combining strong performance with reasonable cost, making it a smart choice for budget-conscious buyers who don’t want to sacrifice quality.
General Information
| Manufacturer | GIGABYTE |
|---|---|
| Motherboard Name | GIGABYTE B760M DS3H AX |
| Current Price Amazon | $115 |
| Amazon Price Updated | 1 day, 4 hours ago. |
| Motherboard Available | True |
| Chipset / Socket | B760M / LGA 1700 |
| Form Factor | Micro-ATX |
VRM Configuration
| CPU Power Phases (Amps) | 6 (55 A) |
|---|---|
| Power Design | 6+2+1 |
Memory Information
| Type / Slots | DDR5 / 4 slots |
|---|---|
| Max Capacity / Max OC | 256 GB / 7600 MHz |
PCIe Slot Configuration
| Supported Version | PCIe 4.0 | ||||
|---|---|---|---|---|---|
| Slot Size | Physical Slots | Gen4 | Gen3 |
|---|---|---|---|
| x16 | 1 | 1 | 0 |
| x1 | 2 | 0 | 2 |
Storage Configuration
| M.2 Slot Count | 2 slots |
|---|---|
| M.2 Supported Lengths | 2280 |
| M.2 PCIe Modes | Both M.2 slots support PCIe 4.0 in x4/x2 modes. |
| SATA Ports | 4 |
Onboard Audio Features
| Audio Chipset | Realtek® Audio CODEC |
|---|---|
| Analog Audio Jacks | 3 jacks |
| Optical S/PDIF Output | ✔️ Present |
Motherboard Display Outputs
| HDMI Output | HDMI - Version 2.1 (Max: 4096x2160@60 Hz) |
|---|---|
| DisplayPort Output | DisplayPort - Version 1.2 (Max: 4096x2304@60 Hz) |
USB and Thunderbolt Connectivity
Rear USB Ports
| USB 2.0 Type-A (480 Mbps) | 2 |
|---|---|
| USB 3.2 Gen 1 Type-A (5 Gbps) | 3 |
| USB 3.2 Gen 2 Type-C (10 Gbps) | 1 |
Internal USB Headers
| USB 2.0 Header (480 Mbps) | 4 |
|---|---|
| USB 3.2 Gen 1 Header (5 Gbps) | 2 |
Networking Information
| Ethernet | Chipset: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) LAN Ports: 1 |
|---|---|
| Wi-Fi |
Version: Wi-Fi 6E Bandwidth: 160MHz Frequency Bands: 2.4/5/6 GHz Antenna Connectors: 2 |
| Bluetooth |
Version: 5.3 |
Button Features
| Buttons |
Q-Flash Plus |
|---|
Quality & Features
Additional Information
| RAM | Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (which operate in non-ECC mode) and non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to 'Memory Support List' for more information. |
|---|---|
| Display | Features Intel® HD Graphics support. The HDMI port supports HDCP 2.3 and is a native HDMI 2.1 TMDS compatible port. The DisplayPorts also support HDCP 2.3. There are two DisplayPort 1.2 ports. Supports up to triple-display at the same time. Graphics specifications may vary depending on CPU support. |
| Expansion | The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Storage |
M.2 Slot Details:
SATA connectors support 6Gb/s. |
| Audio | High Definition Audio; 2/4/5.1/7.1-channel support. The functionality of an audio jack can be changed using the audio software. To configure 7.1-channel audio, you must access the audio software for audio settings. |
| Networking | Different Wi-Fi/Bluetooth modules depending on PCB revision: AMD Wi-Fi 6E RZ608 (rev. 1.0) with BT 5.2; Intel Wi-Fi 6E AX210 (rev. 1.1); Intel Wi-Fi 6E AX211 (rev. 1.2); Realtek Wi-Fi 6E RTL8852CE (rev. 1.3). Wi-Fi supports 11ax standard. Max data rate up to 2.4 Gbps. Actual data rate may vary depending on environment and equipment. |
| Buttons | The board features a Clear CMOS jumper and a reset jumper. |
| Dimensions | 24.4 cm x 24.4 cm |
Note: The specifications and descriptions above are extracted by AI to present the official manufacturer data in a clearer and more natural way for easier understanding. However, this AI-processed information may contain inaccuracies. Please verify all details by consulting the official manufacturer's information provided below.
GIGABYTE B760M DS3H AX Compared to Motherboards with Similar Performance and Features
Motherboard Quality & Features per Price Table
| Motherboard (Desc) | Price (Desc) | Overall_Q (Desc) | VRM_Q (Desc) | Chipset (Desc) | Exp_Str (Desc) | Connect (Desc) | Audio (Desc) | Q&F/Price (Desc) |
|---|---|---|---|---|---|---|---|---|
|
$225
|
↓
-4.2%
|
51.8%
|
24.0%
|
68.0%
|
64.0%
|
57.0%
|
46.0%
|
45.6%
|
|
|
$199❗
|
↓
-12.5%
|
51.6%
|
34.0%
|
68.0%
|
52.0%
|
56.0%
|
48.0%
|
51.2%
|
|
|
$228
|
↓
-0.7%
|
50.2%
|
34.0%
|
65.0%
|
50.0%
|
59.0%
|
43.0%
|
43.6%
|
|
|
$120❗
|
0.0%
|
49.0%
|
41.0%
|
62.0%
|
50.0%
|
52.0%
|
40.0%
|
80.9%
|
|
|
$149❗
|
↓
-0.9%
|
49.0%
|
16.0%
|
68.0%
|
76.0%
|
37.0%
|
48.0%
|
65.2%
|
|
|
$115
|
↓
-23.3%
|
46.0%
|
16.0%
|
68.0%
|
52.0%
|
51.0%
|
43.0%
|
79.2%
|
|
|
$150
|
↓
-0.3%
|
45.4%
|
20.0%
|
68.0%
|
52.0%
|
39.0%
|
48.0%
|
60.1%
|
|
|
$124
|
↑
14.3%
|
43.8%
|
16.0%
|
68.0%
|
52.0%
|
35.0%
|
48.0%
|
70.0%
|
|
|
$110
|
0.0%
|
40.2%
|
14.0%
|
65.0%
|
54.0%
|
28.0%
|
40.0%
|
72.4%
|
Motherboard Comparison and Detail Specifications Table
| Specification | Perf Chart | ||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price |
$225
|
↓
-4.2%
|
$199❗
|
↓
-12.5%
|
$228
|
↓
-0.7%
|
$120❗
|
0.0%
|
$149❗
|
↓
-0.9%
|
$115
|
↓
-23.3%
|
$150
|
↓
-0.3%
|
$124
|
↑
14.3%
|
$110
|
0.0%
|
||||||||||||||||||||||||||||||||||||||||
| Manufacturer | GIGABYTE | GIGABYTE | MSI | ASRock | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE | MSI | ||||||||||||||||||||||||||||||||||||||||
| Chip/Socket | B760 / LGA 1700 | B760I / LGA 1700 | B760 / LGA 1700 | B760M / LGA 1700 | B760M / LGA 1700 | B760M / LGA 1700 | B760M / LGA 1700 | B760M / LGA 1700 | B760M / LGA 1700 | ||||||||||||||||||||||||||||||||||||||||
| Form | Standard-ATX | Mini-ITX | Mini-ITX | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | ||||||||||||||||||||||||||||||||||||||||
| CPU Phases | 8 (60 A) | 8 (90 A) | 8 (90 A) | 14 (60 A) | 6 (55 A) | 6 (55 A) | 8 (50 A) | 6 (55 A) | 5 (55 A) | ||||||||||||||||||||||||||||||||||||||||
| PWR Design | 8+1+1 | 8+1+1 | 8+1+1 | 14+1+1 | 6+2+1 | 6+2+1 | 8+1+1 | 6+2+1 | 5+1+1 | ||||||||||||||||||||||||||||||||||||||||
| Mem Slots | 4 / DDR4 | 2 / DDR4 | 2 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR5 | 4 / DDR4 | 4 / DDR4 | 4 / DDR4 | ||||||||||||||||||||||||||||||||||||||||
| Max Mem | 256 GB / 7600 MHz | 64 GB / 5333 MHz | 128 GB / 7200 MHz | 256 GB / 7200 MHz | 256 GB / 7600 MHz | 256 GB / 7600 MHz | 128 GB / 5333 MHz | 128 GB / 5333 MHz | 128 GB / 4800 MHz | ||||||||||||||||||||||||||||||||||||||||
| PCIe | PCIe 4.0 | PCIe 4.0 | PCIe 5.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | PCIe 4.0 | ||||||||||||||||||||||||||||||||||||||||
| PCIe Slots | 1x16 Gen4 | 2x16 Gen3 | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen5 | 1x16 Gen4 | 1x1 Gen4 | 1x16 Gen4 | 3x16 Gen3 | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen4 | 2x1 Gen3 | 1x16 Gen4 | 2x1 Gen4 | ||||||||||||||||||||||||||||||||||||||||
| M.2 | 3 | 2 | 2 | 2 | 4 | 2 | 2 | 2 | 2 | ||||||||||||||||||||||||||||||||||||||||
| SATA | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | Realtek ALC897 Audio Codec | Realtek® ALC892/ALC897 | Realtek® Audio CODEC | Realtek® ALC892/ALC897 | Realtek® ALC892/ALC897 | Realtek® ALC897 Codec | ||||||||||||||||||||||||||||||||||||||||
| S/PDIF | ✔️ | ✔️ | ✔️ | ❌ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ | ||||||||||||||||||||||||||||||||||||||||
| HDMI | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ✔️ (2.1) | ||||||||||||||||||||||||||||||||||||||||
| DP | ✔️ (1.2) | ✔️ (1.2) | ✔️ (1.4) | ✔️ (1.4) | ✔️ (1.2) | ✔️ (1.2) | ✔️ (1.2) | ✔️ (1.2) | ✔️ (1.4) | ||||||||||||||||||||||||||||||||||||||||
| LAN | Realtek® 2.5GbE LAN chip… (1 ports) | Intel® 2.5GbE LAN chip (… (1 ports) | Realtek® RTL8125BG 2.5Gb… (1 ports) | 2.5 Gigabit LAN 10/100/1… (1 ports) | Realtek® GbE LAN chip (1… (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® GbE LAN chip (1 ports) | Realtek® 2.5GbE LAN chip… (1 ports) | Realtek® RTL8111H Gigabi… (1 ports) | ||||||||||||||||||||||||||||||||||||||||
| Wi-Fi | Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi Wi-Fi 6E | Wi-Fi ax | Wi-Fi 6E | Wi-Fi 6 | ❌ | ❌ | ||||||||||||||||||||||||||||||||||||||||
| BT | v5.3 | v5.3 | v5.3 | v5.3 | v.32 | v5.3 | v5.3 | ❌ | ❌ | Rear USB |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||
| USB Headers |
|
|
|
|
|
|
|
|
❌ |
||||||||||||||||||||||||||||||||||||||||
| Front USB |
|
|
|
|
|
❌ |
|
❌ |
|
VRM Appropriate CPU Specification Table
| CPU | Price | App_Performance | Game_Performance | TDP/Max | C/SC/T | L2/L3 Cache | Base/Boost | Code Name | GPU |
|---|---|---|---|---|---|---|---|---|---|
| No compatible CPU available. The motherboard's VRM is too weak to be recommended with any CPU in the database. | |||||||||
Official Manufacturer Data
Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Graphics:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Storage:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Expansion Slots:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
USB:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O:
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

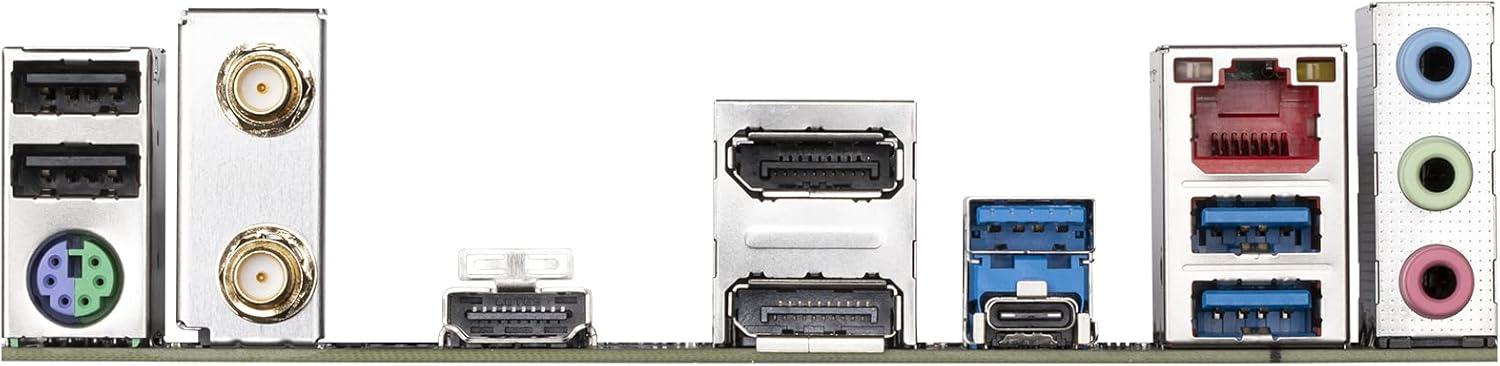

Back Panel I/O:
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
WiFi:
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Audio:
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Special Features:
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
